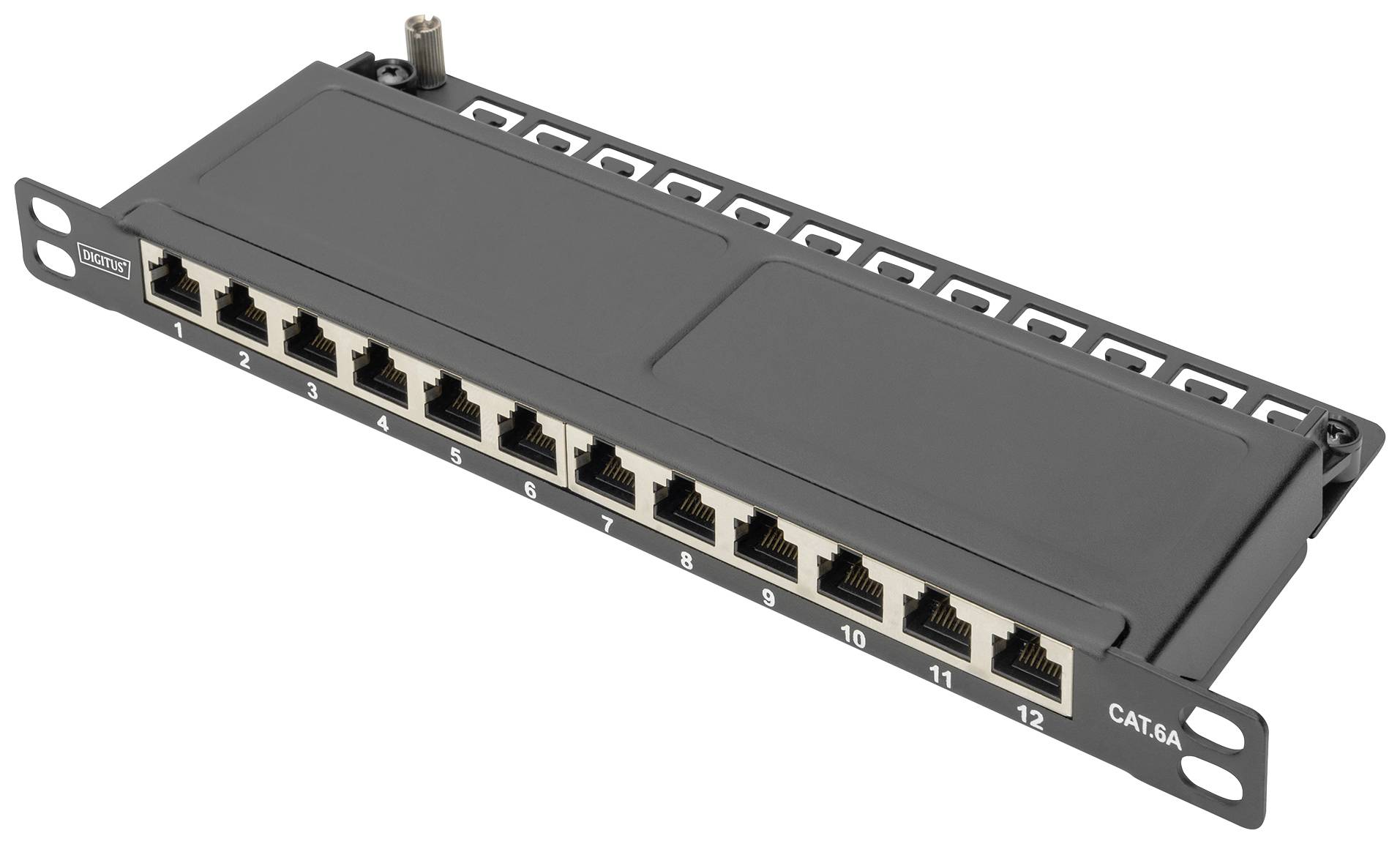

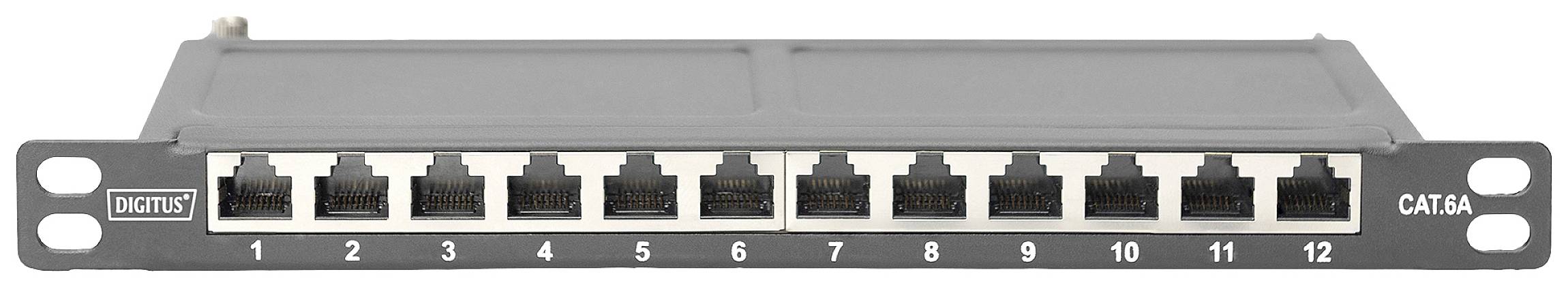

Digitus DN-91612S-SL-EA 12 ports Patch panel 254 mm (10") CAT 6A 0.5 U Multicolour Equipped
EAN:
Part number:
Item no:
cat 6A Patch Panel, shielded, 12-Port 1/2HE, 10", Rack Mount, black RAL 9005
Highlights & Details
- Slim height of only 0.5 HEComplete shielding of housing and shield contactCable installation via LSA-strips
Technical specifications
- Product type
Patch panel
- Rack size
254 mm (10")
CAT 6A
- Rack unit
0.5 U
- Port
12 ports
- Patch panel design
Equipped
- Connection method

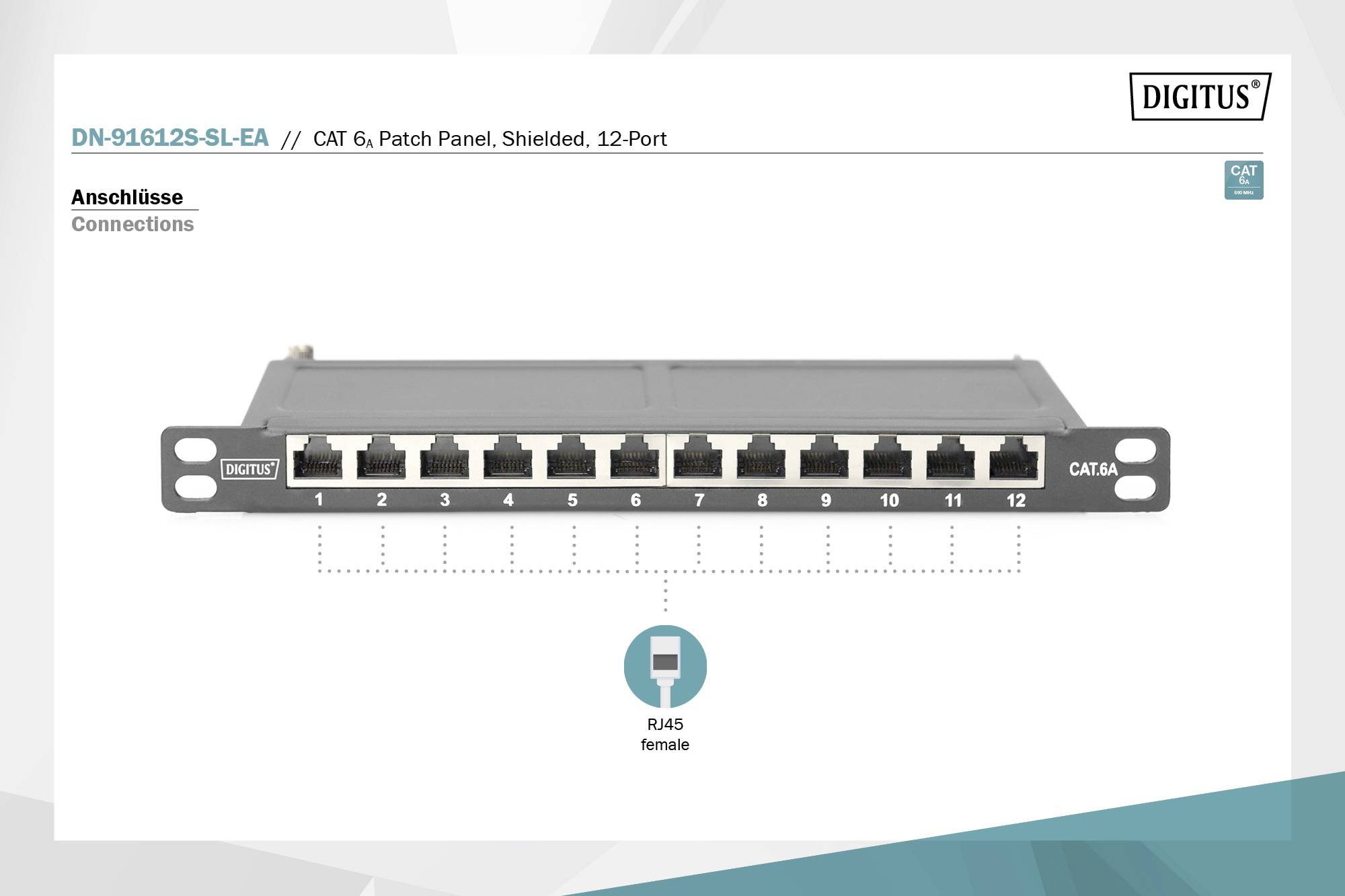

RJ45, auto-negotiation
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2528876 Digitus DN-91612S-SL-EA 12 ports Patch panel 254 mm (10") CAT 6A 0.5 U Multicolour Equipped
Description

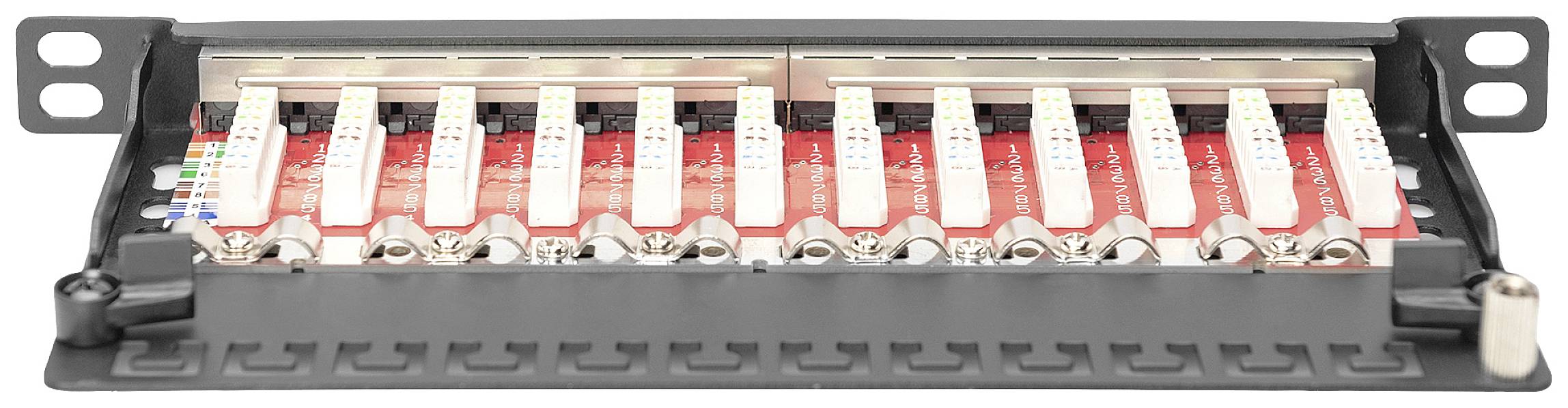

The Digitus DIGITUS® 12-Port Patch Panel offers a very high packing density with only 0.5 HE. This means that up to 24 ports can be implemented on 1 HE with two 0.5 HE panels. The patch panel is shielded. The 360° shield contact of the cable provides for best performance properties. The installation cables can be fixed securely with the integrated cable clamps. The quick-release fastener on the housing provides for easy and tool-free access to the LSA-cutting terminals. It corresponds to the 802.3at PoE+ and the 802.3af PoE standard.
This text is machine translated.
This text is machine translated.
Features
- Central grounding connectionDielectric strength up to 1500 VDC (contact / ground)PoE-enabled according to: IEEE 802.3af, IEEE 802.3at PoE+360° shield contactingQuick-release fastener for securing the housing coverWall mounting possible
