Digitus DN-931094 FTTH junction box set Grey 1 pc(s)
EAN:
Part number:
Item no:

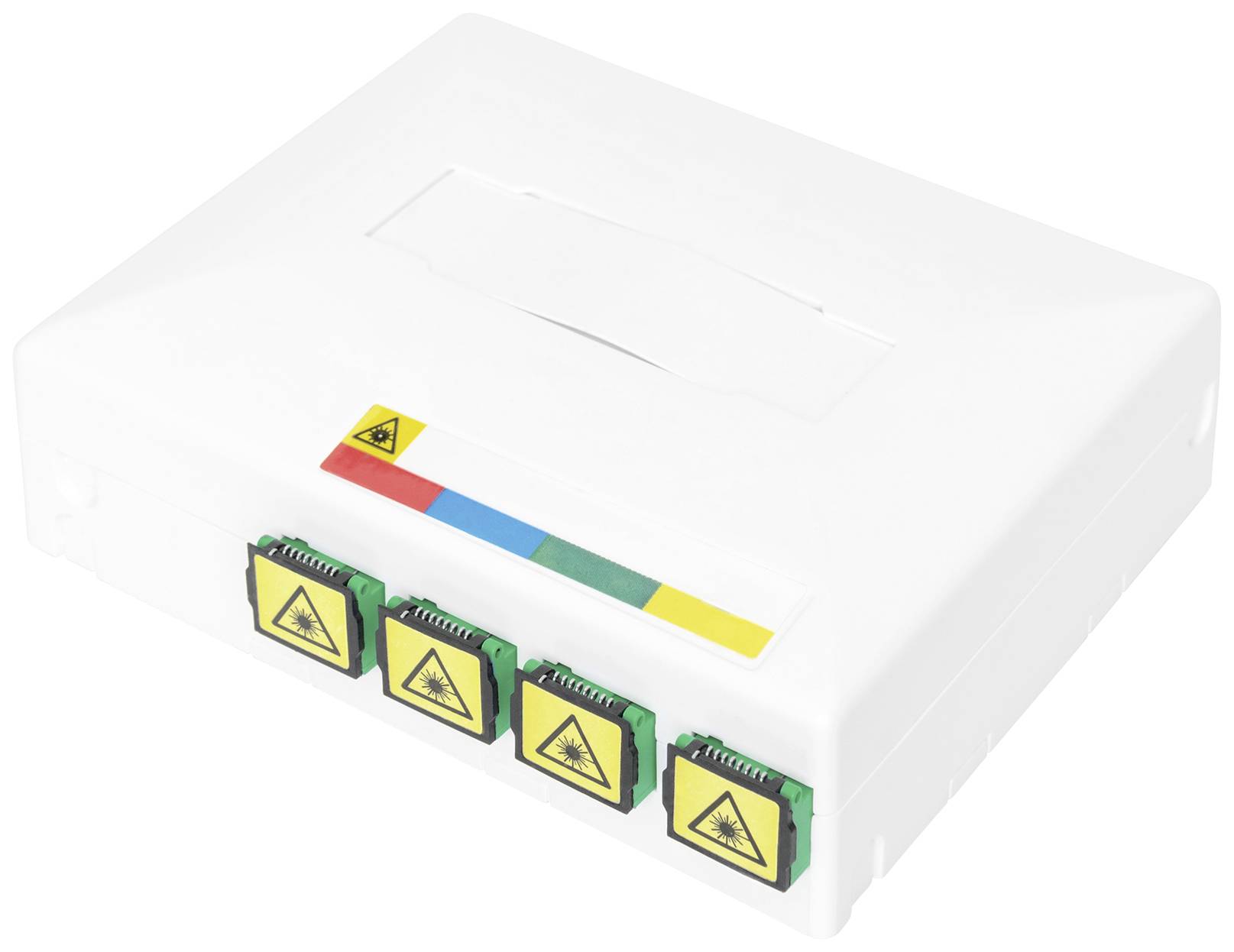

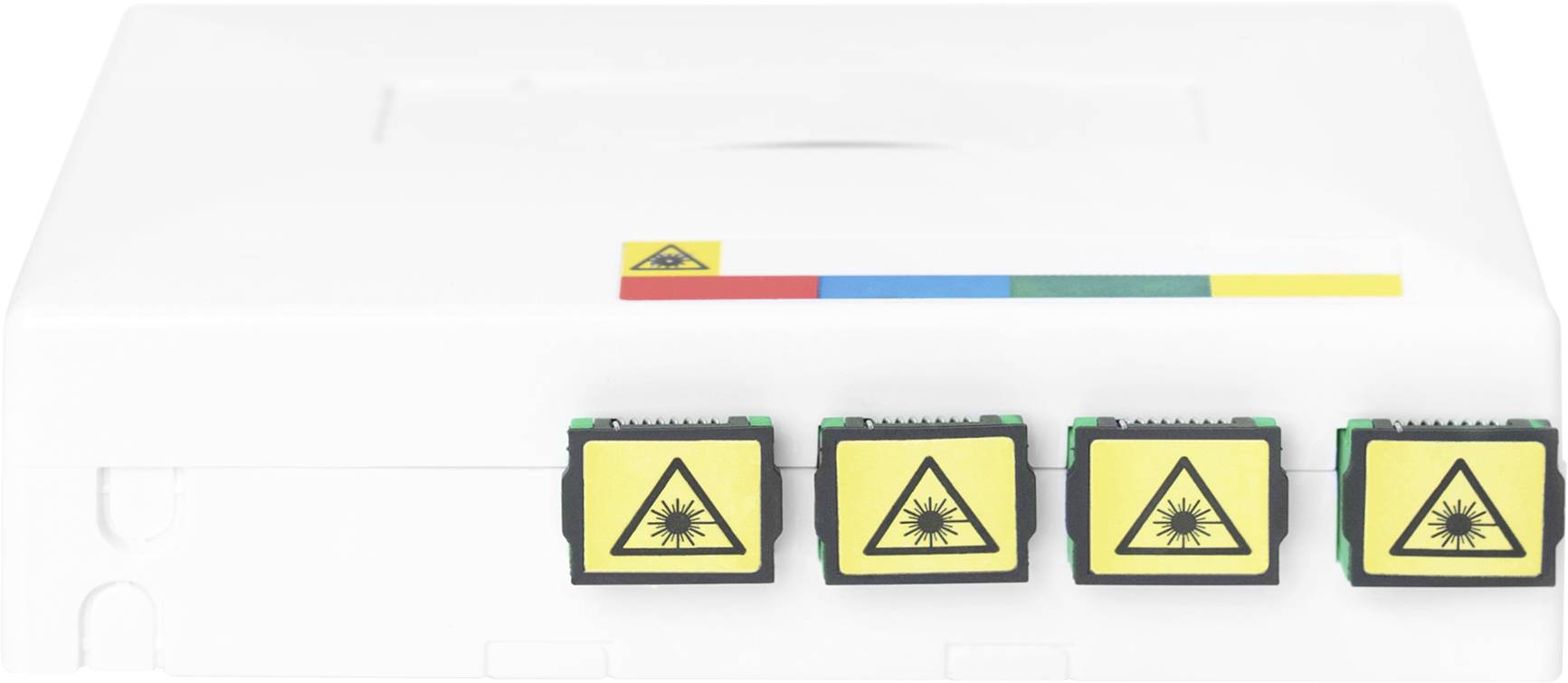

FTTH housing with 4x SC (APC) SX adapter wall and DIN rail mounting
Highlights & Details
- Ideal connection box for fiber optic cables in the FTTX / FTTH range
- Suitable for 4 x SC SX or 4 x LC DX couplings (without flange) (4 x SC SX incl.)
- Suitable for wall and DIN rail mounting (DIN rail)
- Integrated splice box, fold-out with cable guides
- Dust protection design with protection class IP45
- Integrated text field on housing cover
- Suitable for fusion splicing devices or mechanical splicing devices
- Easy maintenance and extension
Technical specifications
- Suitable for 4 ports: 4 x SC SX (integrated) / alternative: 4 x LC DX (not included) (Without flange)
- Integrated splice box
- Protection class IP45
- Mounting: Wall or DIN rail (DIN rail)
- Suitable for singlemode and multimode fiber optic cables
- Return loss: kleiner50dB(UPC), 60dB(APC)
- Operating temperature: -40°C to +85°C
- Housing material: PC + ABS
- Dimensions 100 x 80 x 30 mm (LxWxH)
- Weight 0.4 kg (without couplings)
- Product type
FTTH junction box set
- Type A
SC Simplex socket
SC socket
- Type B
SC/APC 8° plug
Simplex
- Patch panel design
Equipped
- Material
Acrylonitrile butadiene styrene
ABS plastic
PC
- Factory colour
Grey
- Width
105 mm
- Height
93 mm
- Depth
38 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373103 Digitus DN-931094 FTTH junction box set Grey 1 pc(s)
Description

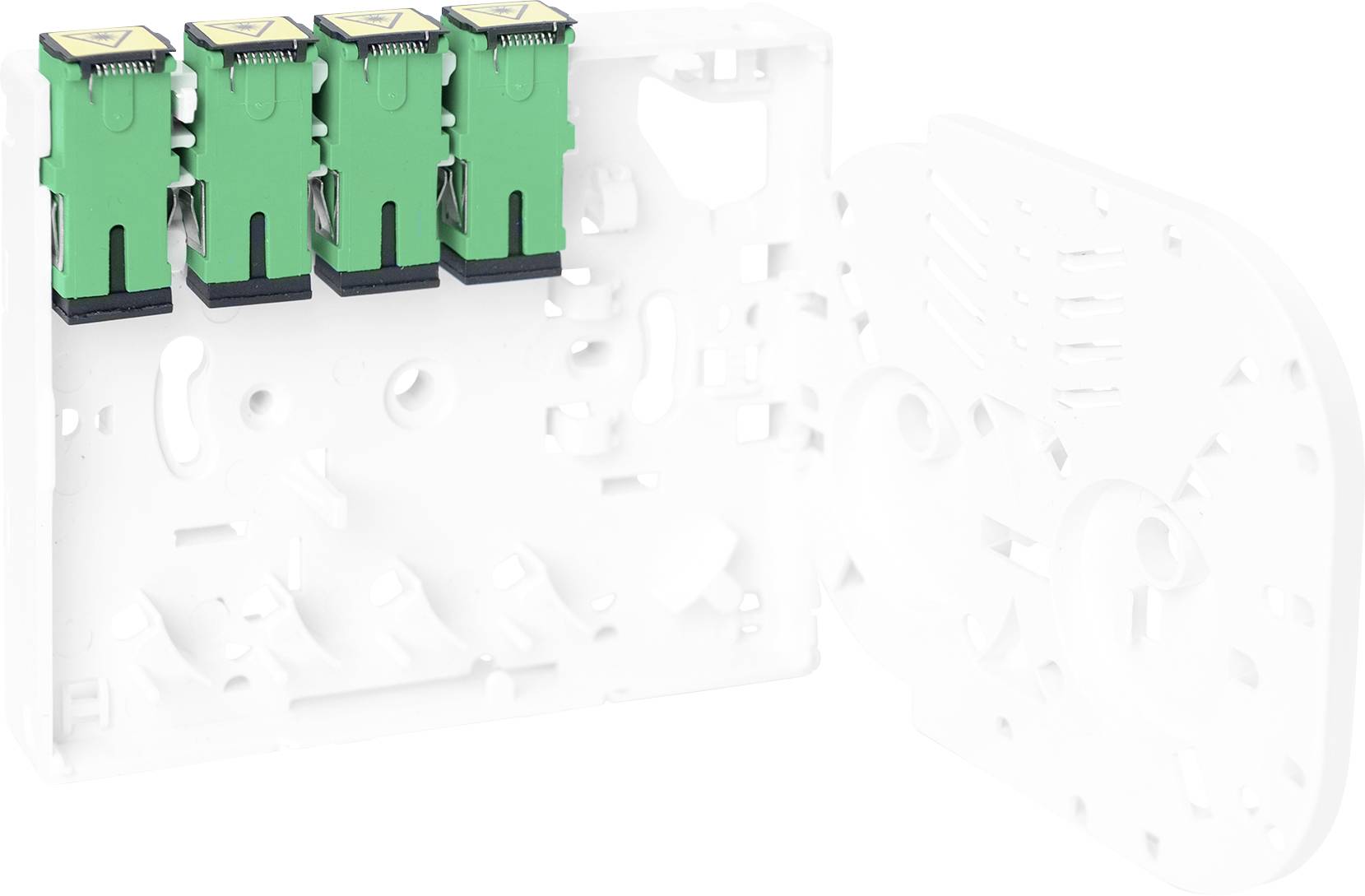

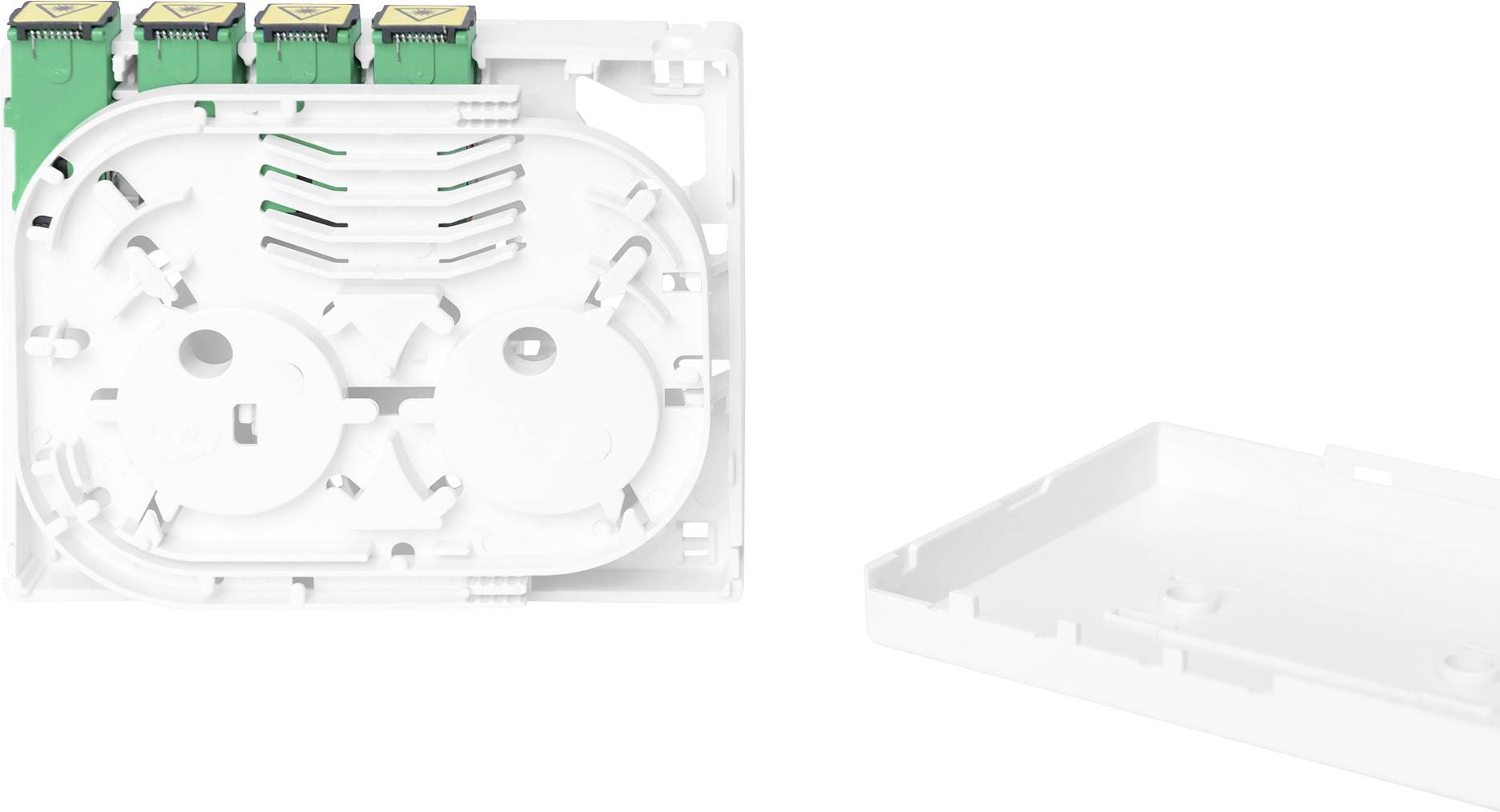

The FTTX housing can hold up to 4 glass fibers and can be distributed on 4 terminals with the appropriate couplings. This housing is equipped with 4 x SC Simplex couplings, alternatively 4 x LC duplex couplings (without flange) can be inserted. The housing consists of a front plate, the housing with folding splice box and a transparent plastic cover for additional protection of the splice fiber optic cables. The box can be mounted on the wall or snapped onto a DIN rail (DIN rail). Integrate fiber splicing, termination, storage and connection in the smallest space with the ultra-compact Digitus-
This text is machine translated.
This text is machine translated.
Features
- Suitable for 4 ports: 4 x SC SX (integrated) / alternative: 4 x LC DX (not included) (Without flange)
- Integrated splice box
- Protection class IP45
- Mounting: Wall or DIN rail (DIN rail)
- Suitable for singlemode and multimode fiber optic cables
- Return loss: Less than 50dB(UPC), 60dB(APC)
- Operating temperature: -40°C to +85°C
- Housing material: PC + ABS
- Dimensions 100 x 80 x 30 mm (LxWxH)
- • Weight 0.4 kg (without couplings)
