Digitus DN-93615-4 RJ45 module Keystone CAT 6A 4 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)

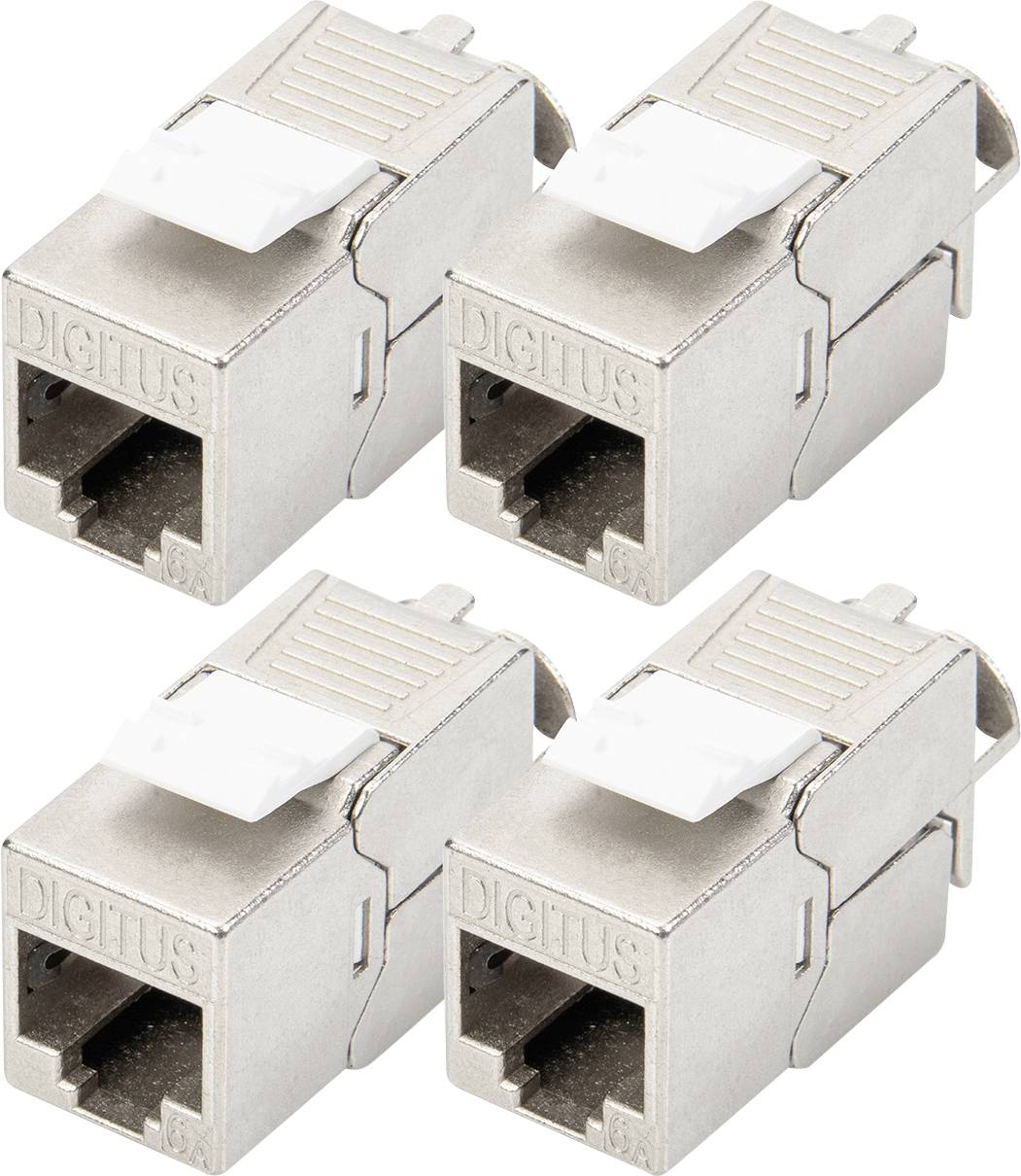

Digitus CAT 6A Keystone module, shielded, tool-free mounting - 4 pcs.
Highlights & Details
- Category: 6A, 10GBASE-T, 500 MHz
- ISO/IEC 11801 3rd Edition, EN 50173-1
- Suitable for PoE/PoE+/4-pin (IEEE 802.3af, 802.3at, 802.3at)
- Suitable for junction box and junction box mounting

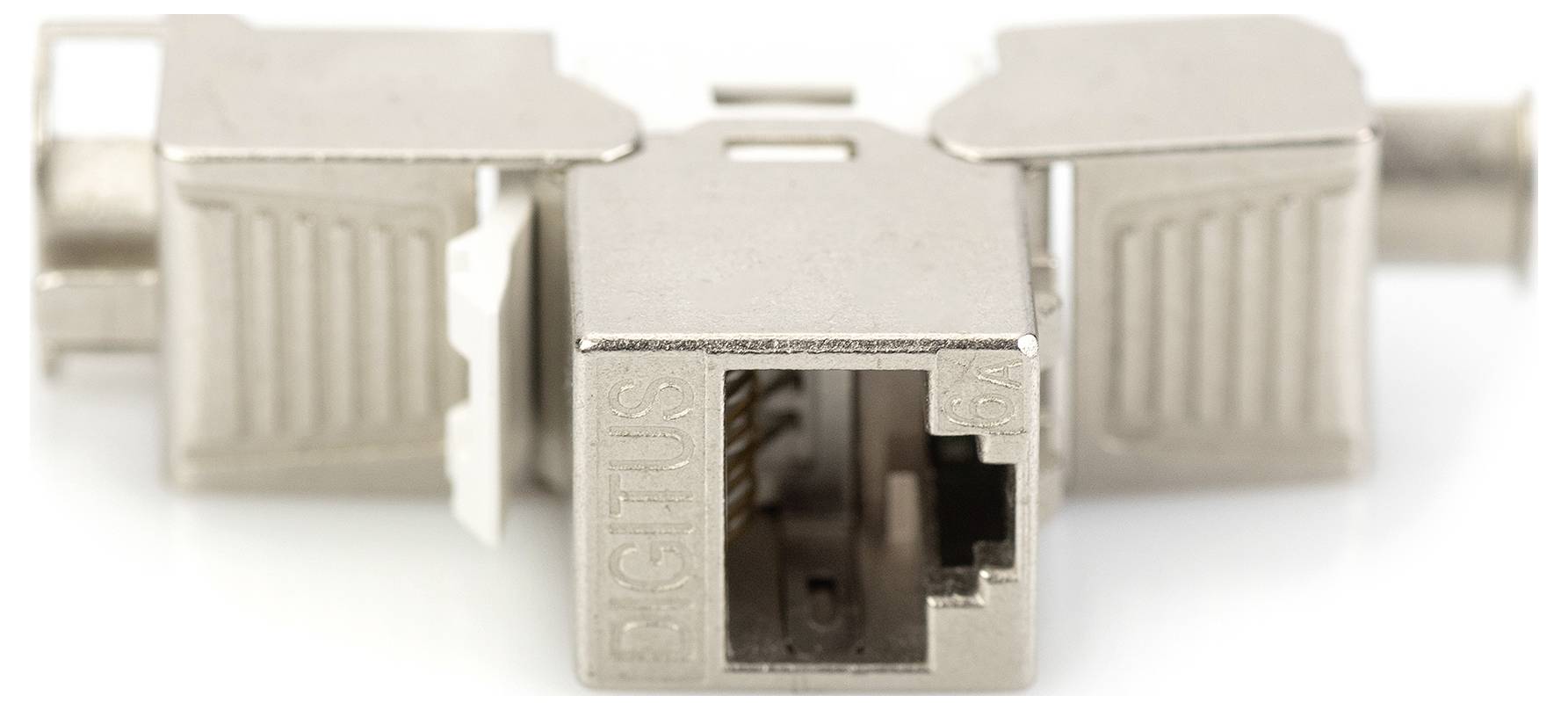

- RJ45-socket 8P8C
- Cable installation via insulation displacement terminals, color coded according to EIA / TIA 568 A & B.
- Strain relief and cable fixing with the help of cable ties
- Tool-free installation
- 360°-Shield contact
- Material housing: Zinc die-cast - nickel-plated
- Contact material: Phosphorbronze
- Coating contacts: Nickel, gold-plated 0.5 μ
- OPERATING TEMPERATURE -20 °C TO +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
- PLUG-IN CYCLES ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
- Tested with AWG 22/1 solid installation cable

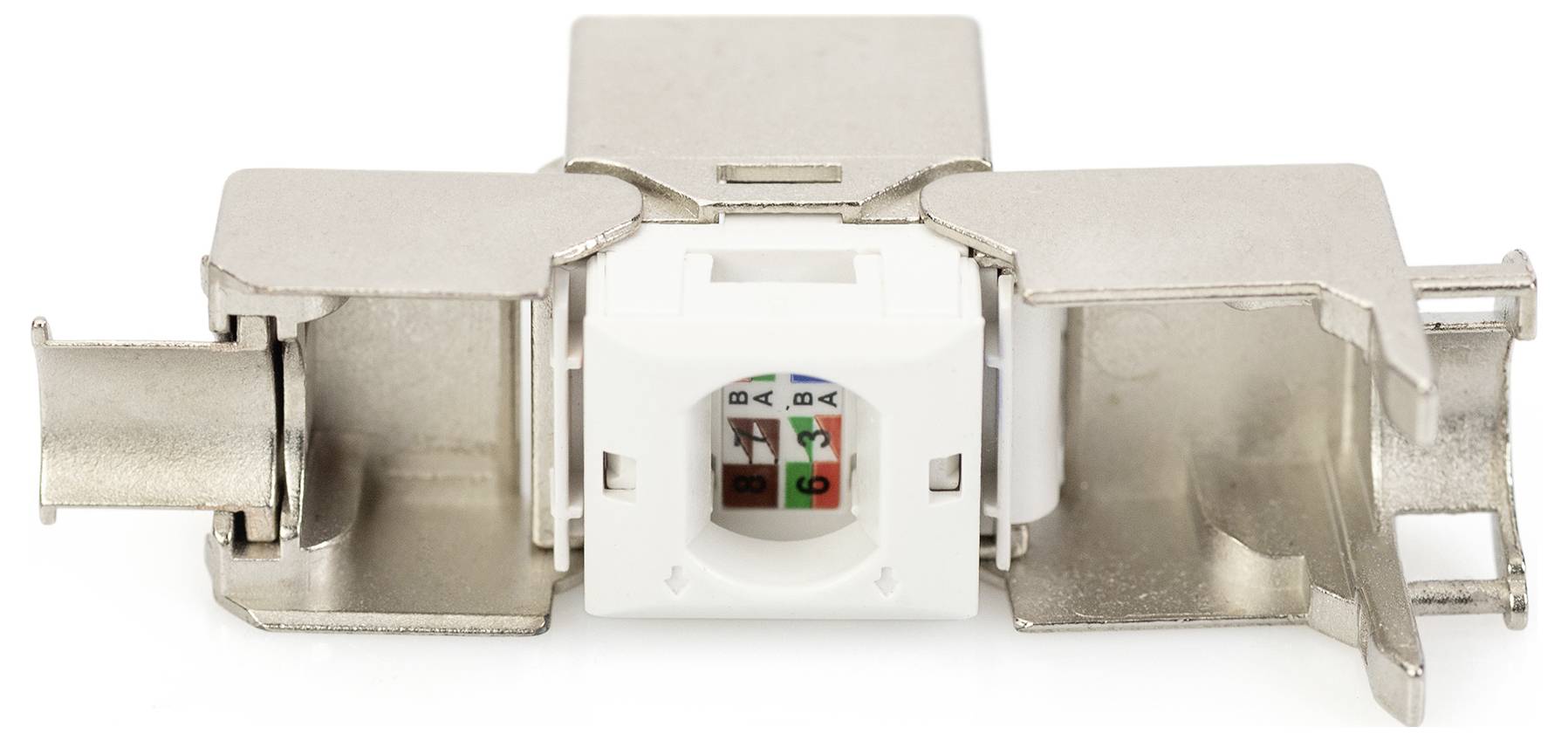

- Tool-free installation by means of LSA insulation displacement terminals, color-coded according to norm EIA/TIA 568 A & B

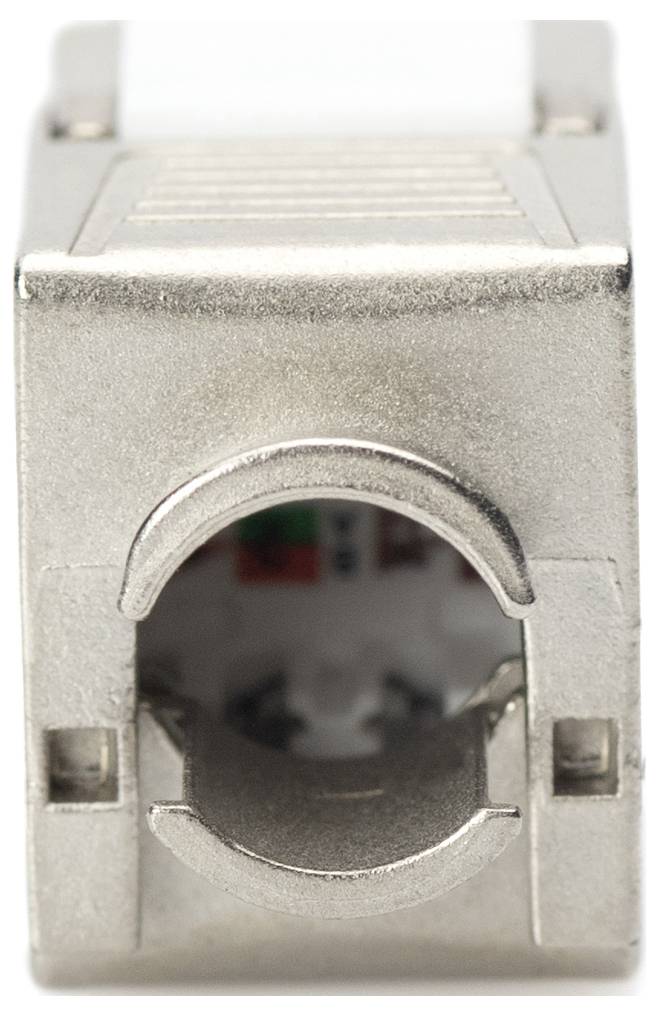

- Intelligent cable manager (resealable)
- Category: CAT 6A Keystone module set
Technical specifications
- Category 6A 10GBase-T, 500 MHz
- ISO/IEC 11801 3rd Edition, EN 50173-1
- Suitable for PoE/PoE+/4-pin (IEEE 802.3af, 802.3at, 802.3at)
- Suitable for junction box and junction box mounting
- RJ45 socket, 8P8C
- Cable installation via insulation displacement terminals, color coded according to EIA / TIA 568 A & B.
- Strain relief and cable fixing with the help of cable ties
- Tool-free installation
- 360°-Shield contact
- Material housing: Zinc die-cast - nickel-plated
- Contact material: Phosphorbronze
- Coating contacts: Nickel, gold-plated 0.5 μ
- Plug-in power: Max. 30N (acc. IEC 60603-7-51
- Holding force: 7.7 kg between socket and plug
- Operating temperature -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
- PLUG-IN CYCLES ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
- Diameter of copper conductor: AWG (26/7 – 22/1), wires and solid wire
- Tested with AWG 22/1 solid installation cable
- (Digitus® DK-174X-A-VH-X; AWG 22/1 CAT.7A connecting cable)
- Voltage resistance 1000 VDC (contact/contact), 1500 VDC (contact/earth)
- Tool-free installation by means of LSA insulation displacement terminals, color-coded according to norm EIA/TIA 568 A & B
- Intelligent cable manager (resealable)
- CAT 6A Keystone module set: 4 pieces
- Dimensions (HxWxD) 21.0 x 14.5 x 34.5 mm
- Weight 19.5 g
- Category: CAT 6A
- Compatible with
Keystone
- Product type
RJ45 module
CAT 6A
- Tool-free installation
Yes
Documents & Downloads
Datasheet
Datasheet 3333830 Digitus DN-93615-4 RJ45 module Keystone CAT 6A 4 pc(s)
User & Safety Instructions
User & Safety Instructions 3333830 Digitus DN-93615-4 RJ45 module Keystone CAT 6A 4 pc(s)
Description

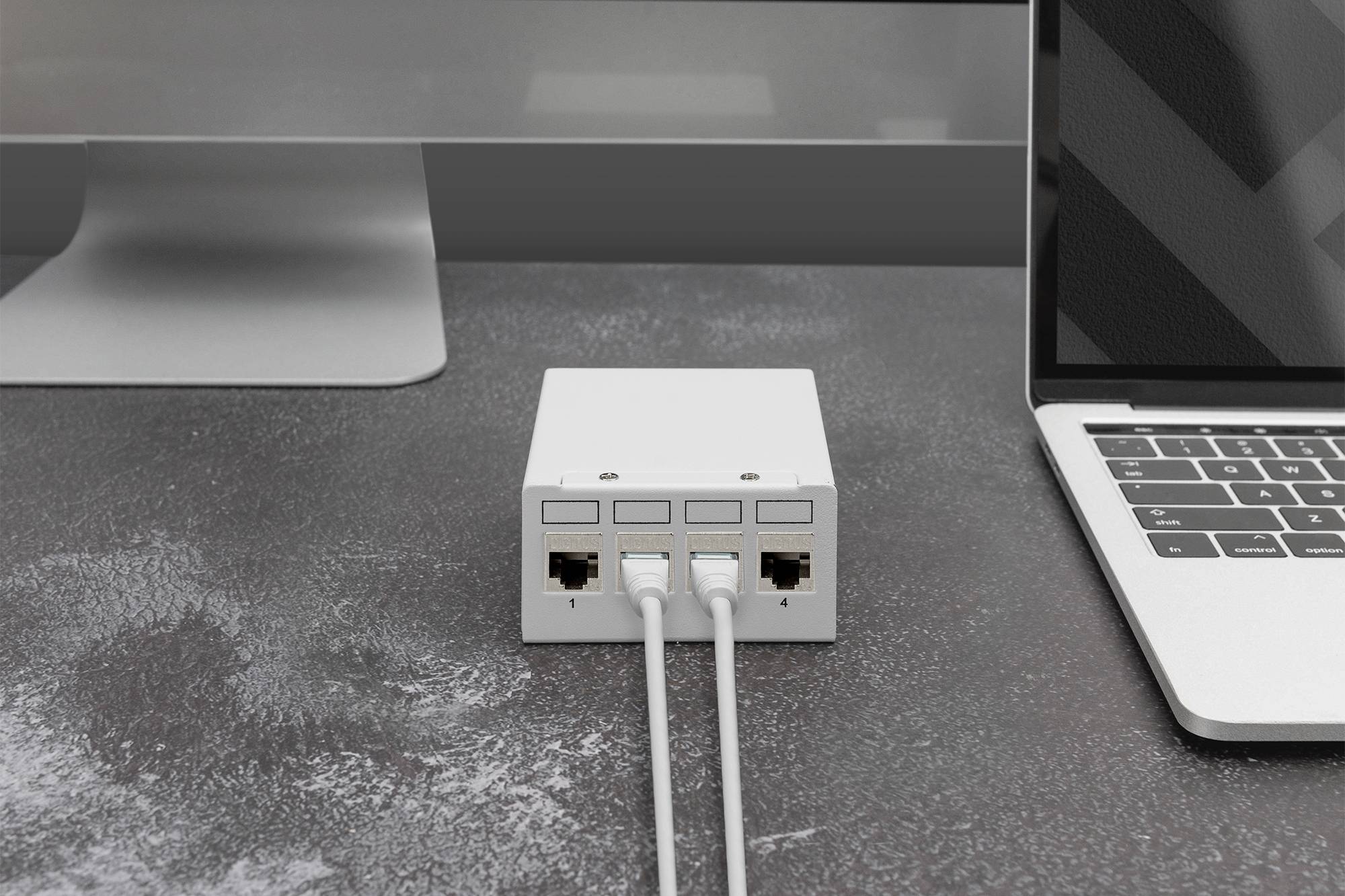

The shielded CAT 6A Keystone module set DN-93615 from Digitus® convinces with future-oriented standards and high-end quality for your network. The compact design permits a series installation in 483 mm (19") 1HE Panel. Tool-free installation takes place via LSA strips, color coded according to EIA/TIA 568 A&B. The compact design of the module also fits into modular junction boxes compatible with design.
This text is machine translated.
This text is machine translated.
Features
- Category: 6A, 10GBASE-T, 500 MHz
- ISO/IEC 11801 3rd Edition, EN 50173-1
- Suitable for PoE/PoE+/4-pin (IEEE 802.3af, 802.3at, 802.3at)
- Suitable for junction box and junction box mounting
- RJ45-socket 8P8C
- Cable installation via insulation displacement terminals, color coded according to EIA / TIA 568 A & B.
- Strain relief and cable fixing with the help of cable ties
- Tool-free installation
- 360°-Shield contact
- Material housing: Zinc die-cast - nickel-plated
- Contact material: Phosphorbronze
- Coating contacts: Nickel, gold-plated 0.5 μ
- Operating temperature -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
- PLUG-IN CYCLES ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
- Tool-free installation by means of LSA insulation displacement terminals, color-coded according to norm EIA/TIA 568 A & B
- Intelligent cable manager (resealable)
- Category: CAT 6A Keystone module set
