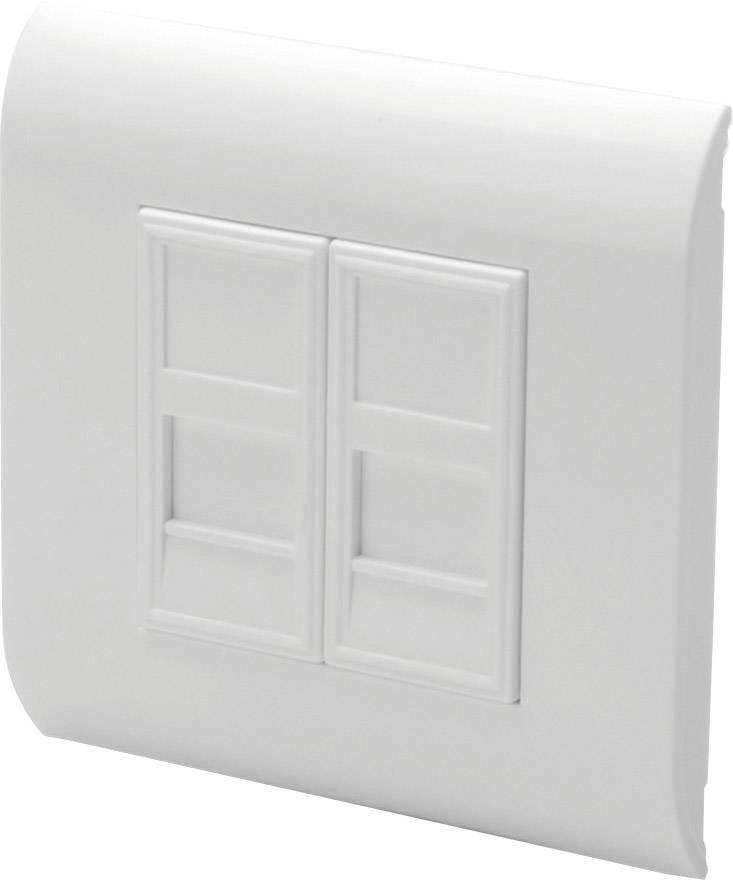

Digitus DN-93802 Keystone mounting bracket double White
EAN:
Part number:
Item no:
Datasheet (PDF)
Wallplate for Keystone Modules, Frame 80x80mm, French type
Highlights & Details
- Connection box with inclined outlet for the admission of Keystone Modules
- Including 2-Port Module Cap, prevents the penetration of dust
- Plug-in direction of the module 90° scale rech
Technical specifications
- Product type
Keystone mounting bracket
- Number
double
- Cable feed
horizontal
- Content
1 pc(s)
- Factory colour
White
- Width
85 mm
- Height
85 mm
- Depth
15 mm
- Length
80 mm
- Weight
0.00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1456134 Digitus DN-93802 Keystone mounting bracket double White
User & Safety Instructions
User & Safety Instructions 1456134 Digitus DN-93802 Keystone mounting bracket double White
Description
The DIGITUS® Faceplates are suitable for the connection of all DIGITUS® Keystone Modules. Included dust protection shutters provide a perfect protection. Their connection way of the module is 45° vertical (German and British Layout) or 90° horizontal (French Layout).
· Layout keystone entry: 90° outlet
· Area of application: Cavity socket, trunking, surface mount box
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, flush and surface mount
· Integrated dust cover
· Plastic label field
· Design compatible to current switch ranges of switch manufacturers
· Technical properties:
· Wall outlet material: Die-cast metal
· Central plate material: ABS UL 94V-0
· Frame material: ABS UL 94V-0
· Surface mount box material: ABS UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Layout keystone entry: 90° outlet
· Area of application: Cavity socket, trunking, surface mount box
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, flush and surface mount
· Integrated dust cover
· Plastic label field
· Design compatible to current switch ranges of switch manufacturers
· Technical properties:
· Wall outlet material: Die-cast metal
· Central plate material: ABS UL 94V-0
· Frame material: ABS UL 94V-0
· Surface mount box material: ABS UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Features
- Framework with 80 x 80 mm of cover + 2 x 22.5 mm recordings
- The surface of the cover panels glossy structured
- Color (frame & central plate): similar to pure white
- French type
