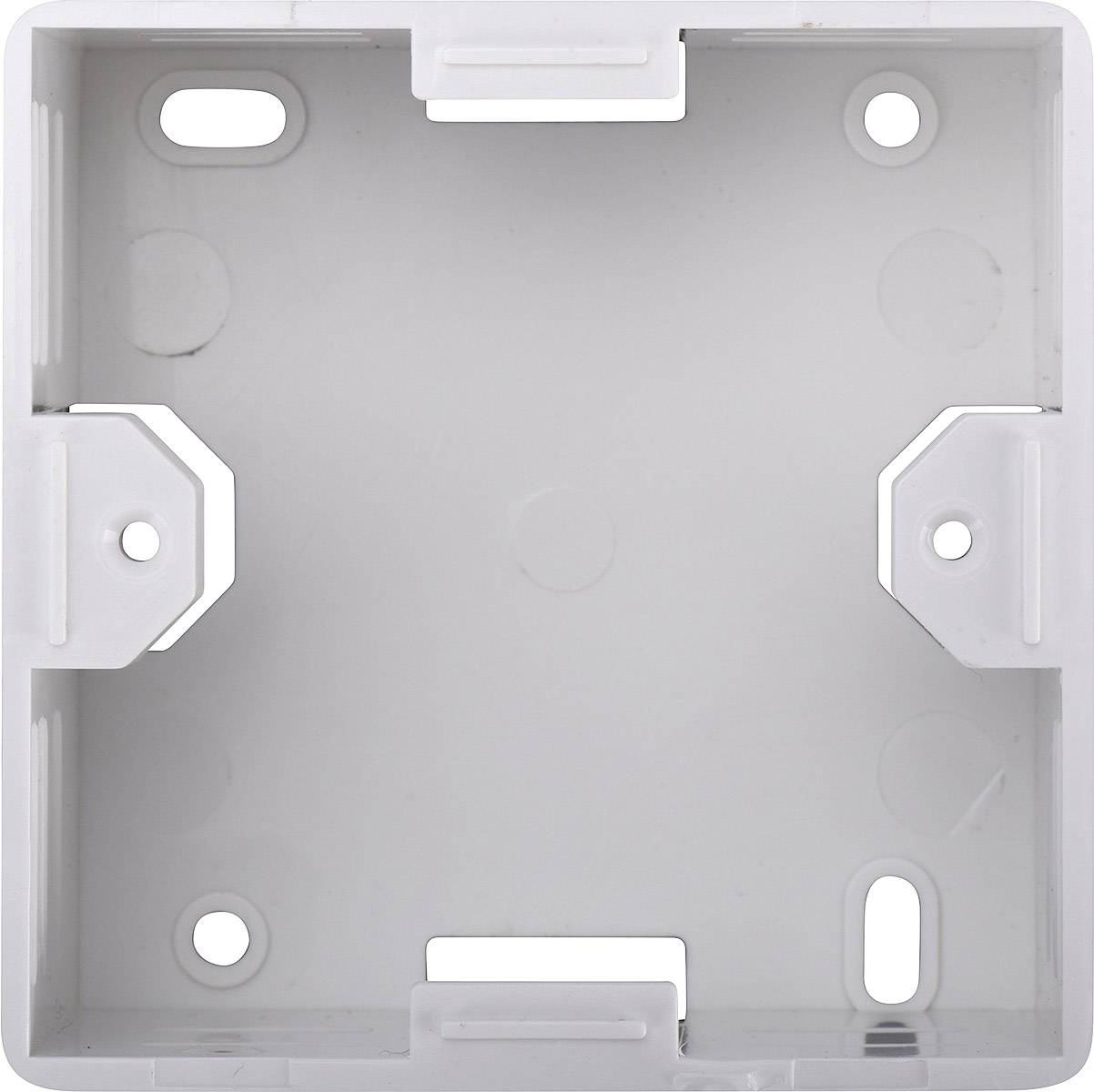

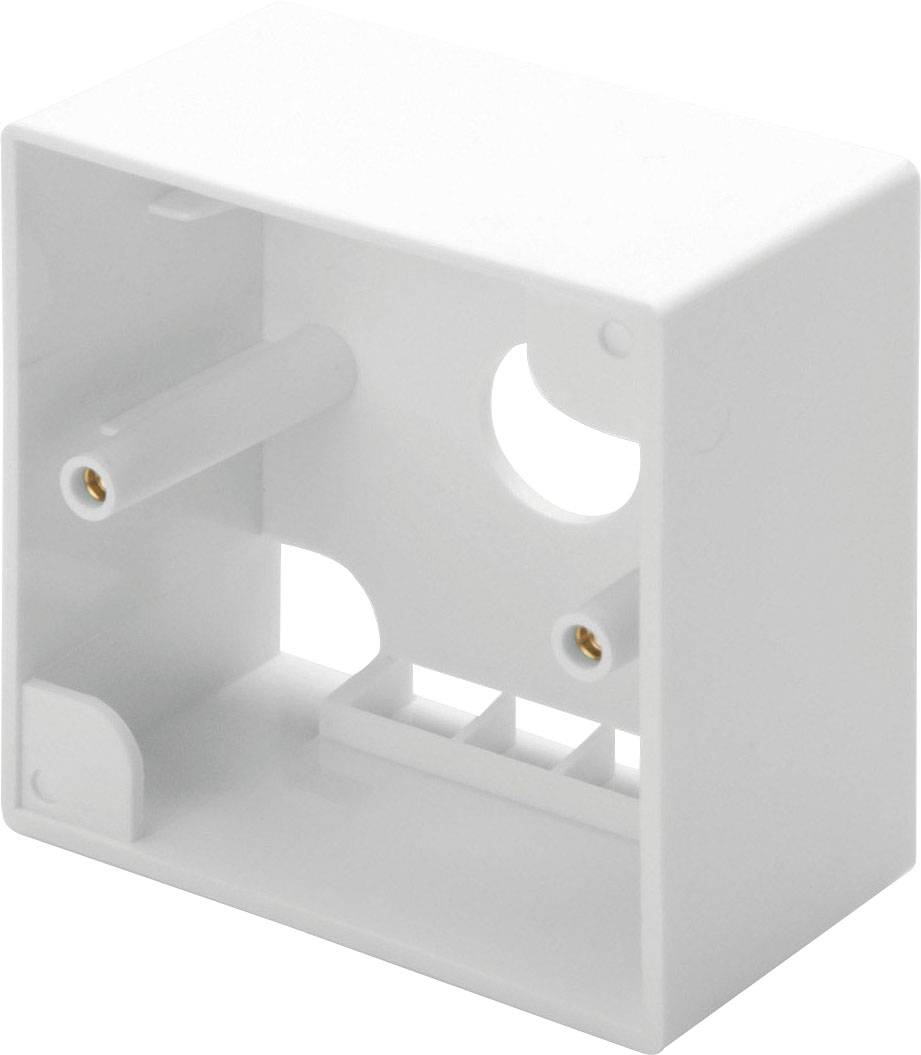

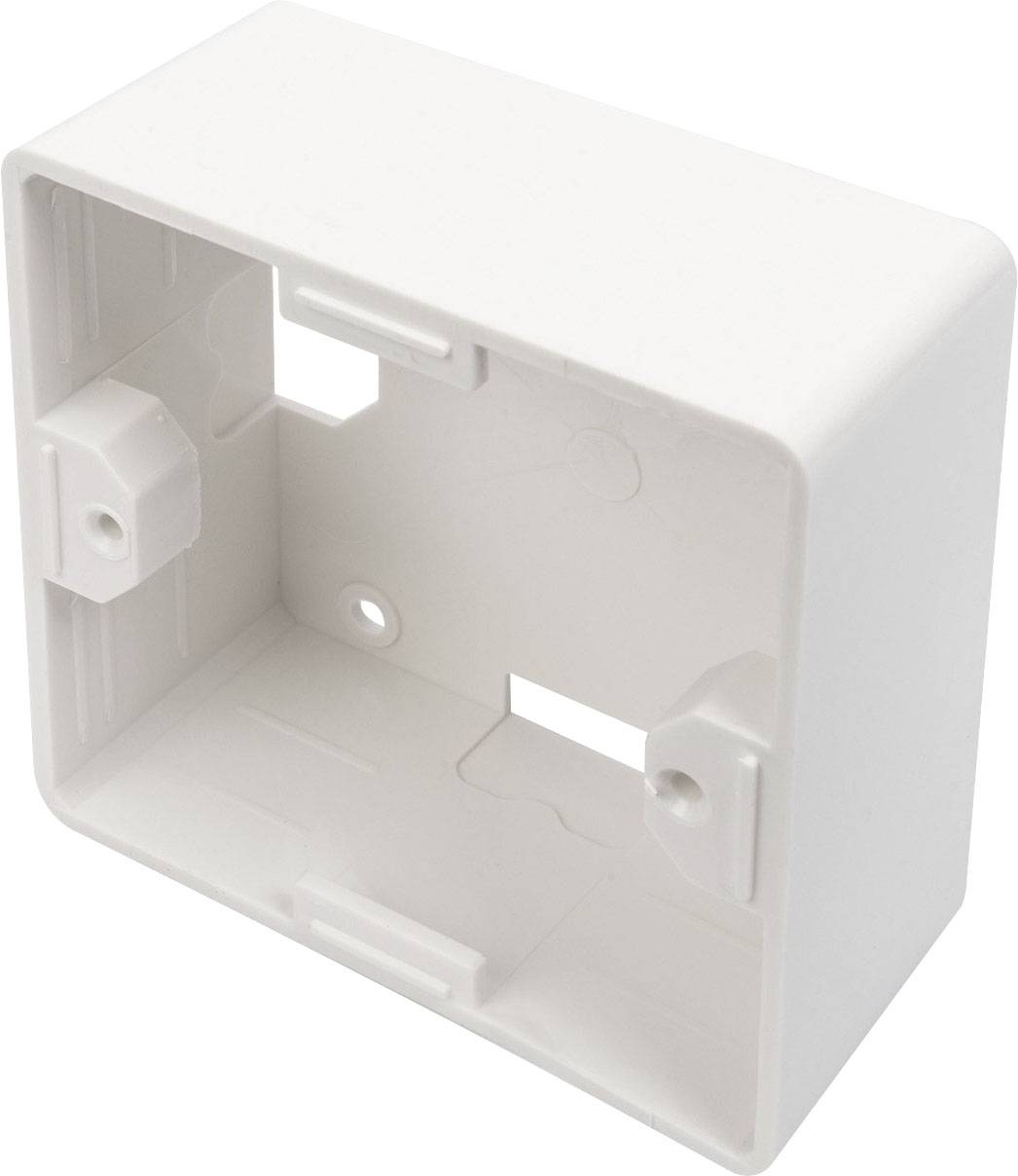

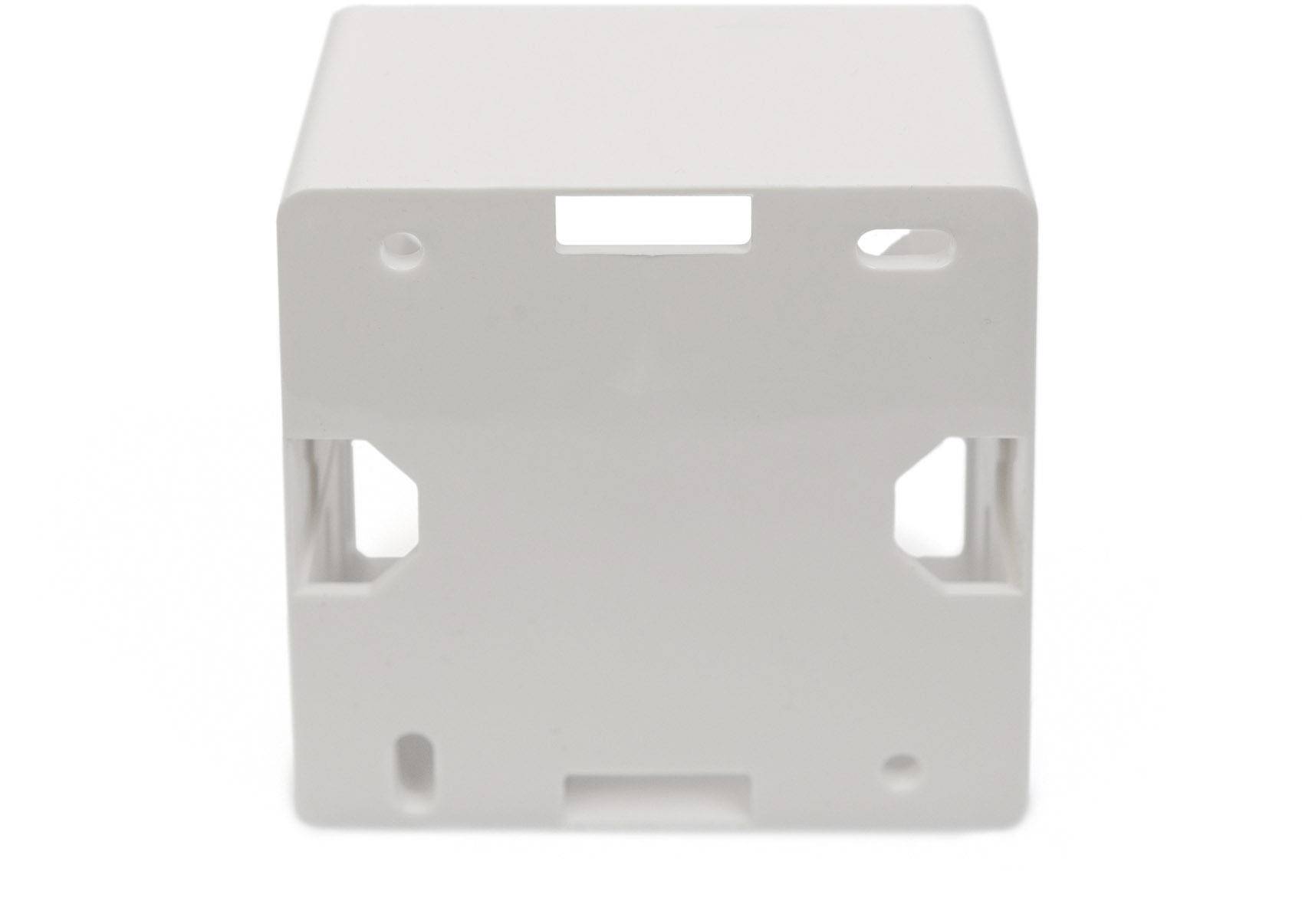

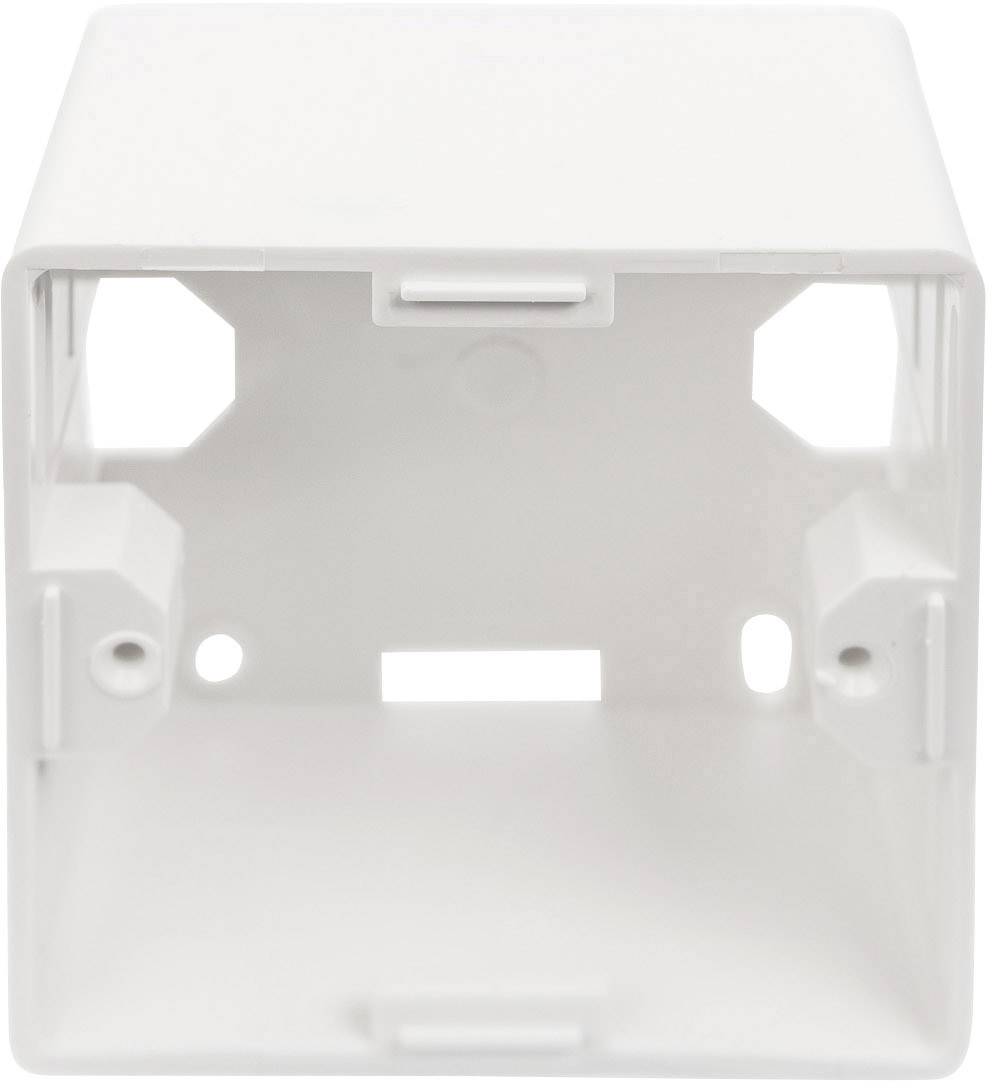

Digitus DN-93803 Surface-mount enclosure White (RAL 9003)
EAN:
Part number:
Item no:
Datasheet (PDF)
Surface Mountbox 80x80 mm for Keystone Walloutlet, German Type
Highlights & Details
- Surface-mounted frame for the extension of data socket
Technical specifications
- Product type
Surface-mount enclosure
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
White (RAL 9003)
- Width
80 mm
- Height
80 mm
- Depth
42 mm
- Weight
0
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 1456133 Digitus DN-93803 Surface-mount enclosure White (RAL 9003)
User & Safety Instructions
User & Safety Instructions 1456133 Digitus DN-93803 Surface-mount enclosure White (RAL 9003)
Description
The DIGITUS® Surface mount boxes for keystone outlets are the perfect solution to extend your data outlets. Available layouts: German, French, British.
· Layout keystone entry: 45° outlet
· Area of application: Cavity socket, trunking, surface mount box
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, flush and surface mount
· Central ground connection
· Integrated dust cover
· Plastic label field
· Design compatible to current switch ranges of switch manufacturers
· Technical properties:
· Wall outlet material: Die-cast metal
· Central plate material: ABS UL 94V-0
· Frame material: ABS UL 94V-0
· Surface mount box material: ABS UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Layout keystone entry: 45° outlet
· Area of application: Cavity socket, trunking, surface mount box
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, flush and surface mount
· Central ground connection
· Integrated dust cover
· Plastic label field
· Design compatible to current switch ranges of switch manufacturers
· Technical properties:
· Wall outlet material: Die-cast metal
· Central plate material: ABS UL 94V-0
· Frame material: ABS UL 94V-0
· Surface mount box material: ABS UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Features
- The surface of the cover panels glossy structured
- Color (frame & central plate): similar to pure white
- German Type
