Digitus DN-93816-24 RJ45 module Keystone CAT 8.1 24 pc(s)
EAN:
Part number:
Item no:

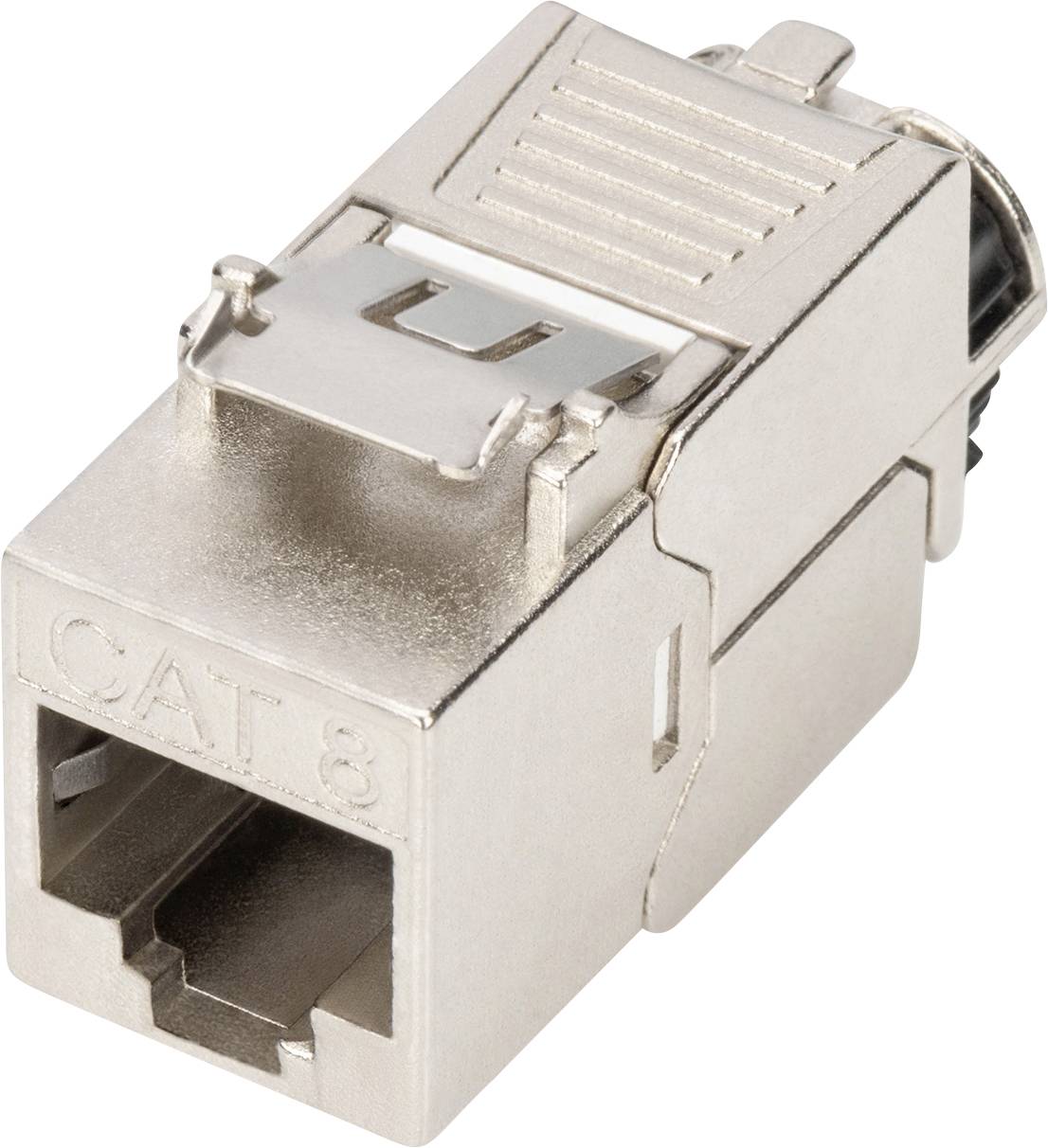

Digitus CAT 8.1 Keystone module, shielded, tool-free mounting - 24 pcs.
Highlights & Details
- 25/40GBase-T
- 2000 MHz
- PIN CONTACT AWG 22/1 - 26/7
- Tool-free installation
Technical specifications
- Plug-in power 30 N max. (IEC 60603-7-81)
- Tensile load: 7.7 kg between socket and plug
- OPERATING TEMPERATURE -20 °C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Plug-in cycle socket: Gem ISO / IEC 11801, IEC 60603-7-81
- Terminal: Gem ISO / IEC 11801, IEC 60603-7-81
- Wire intake: 22–26 AWG solid and stranded conductor
- Insulation resistance 500 MOhm
- Contact resistance 20 Milliohm
- Voltage resistance 1000 VDC (contact/contact), 1500 VDC (contact/earth)

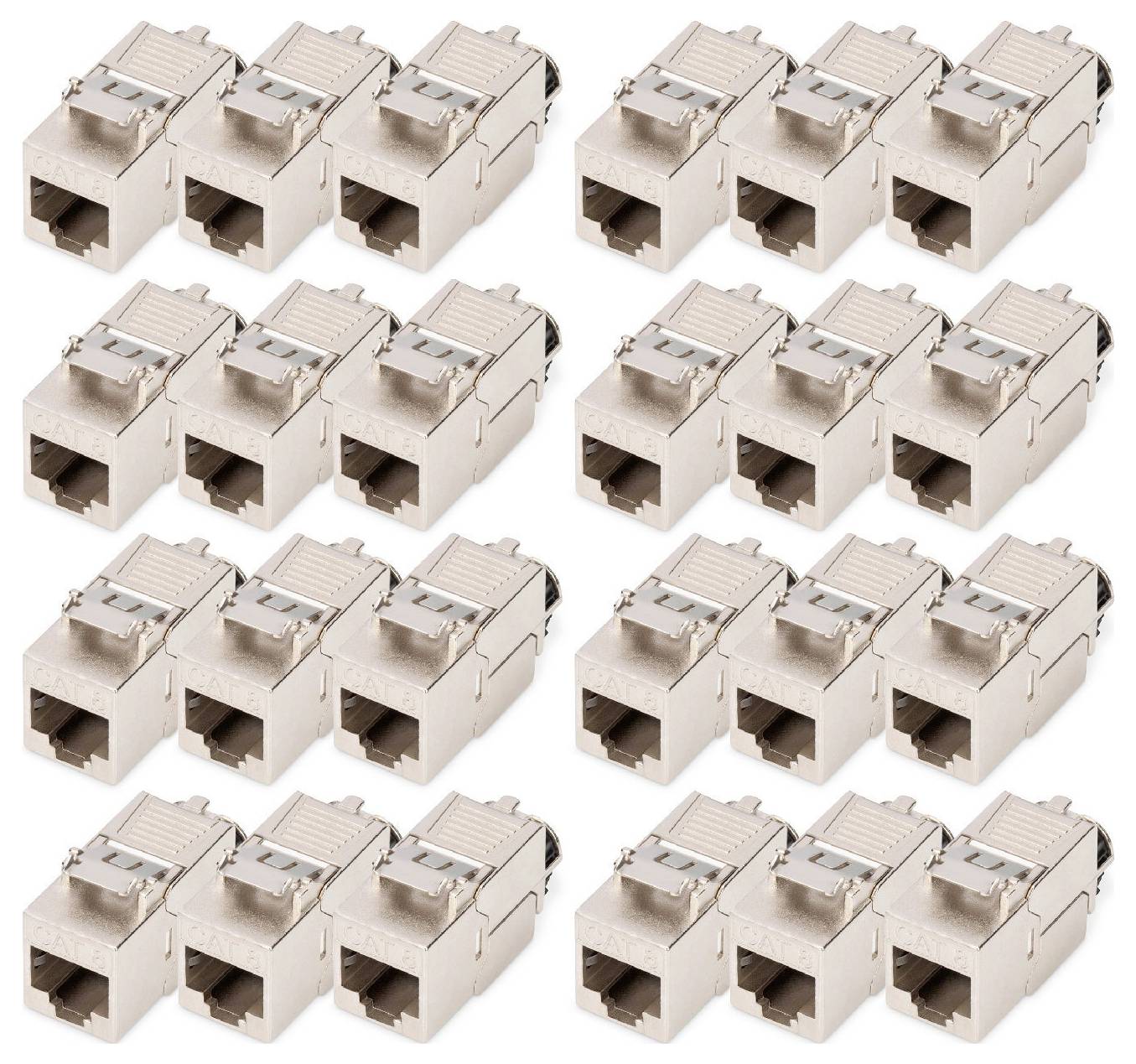

- 24 PCs
- Compatible with
Keystone
- Product type
RJ45 module
CAT 8.1
- Tool-free installation
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3409878 Digitus DN-93816-24 RJ45 module Keystone CAT 8.1 24 pc(s)
Description
The Digitus® DN-93816-24 is a shielded CAT 8.1 Keystone module with tool-free mounting connector that offers excellent performance and connection quality for your network. The compact design permits a series installation of 24 pieces in 483 mm (19") 1HE Panels. It complies with category 8.I / 25/40GBase-T ISO/IEC 11801.
This text is machine translated.
This text is machine translated.
Features
- Transfer property: Category 8 class 1
- Application areas: Up to 2000 MHz, 25/40GBase-T.
- Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at, 8023.bt (PoE, PoE+, 4-PPoE)
- Suitable for junction box and junction box mounting
- RJ45 sockets, 8P8C
- Cable installation via LSA strips, color coded as per EIA/TIA 568 A & B
- Tool-free installation
- 360°-Shield contact
- Material casing: Zinc die-cast, nickel-plated
- Material RJ45-socket ABS UL 94V-0
- Contact RJ45-socket: Nickel-plated phosphorus bronze, 0.5 μ gold-plated contact
- RJ-45 shielding: Nickel-plated bronze
- LSA-cutting terminal: Crown LSA+, UL 94V-2, galvanized phosphor bronze
- FR4, UL 94V-0 CIRCUIT BOARD
