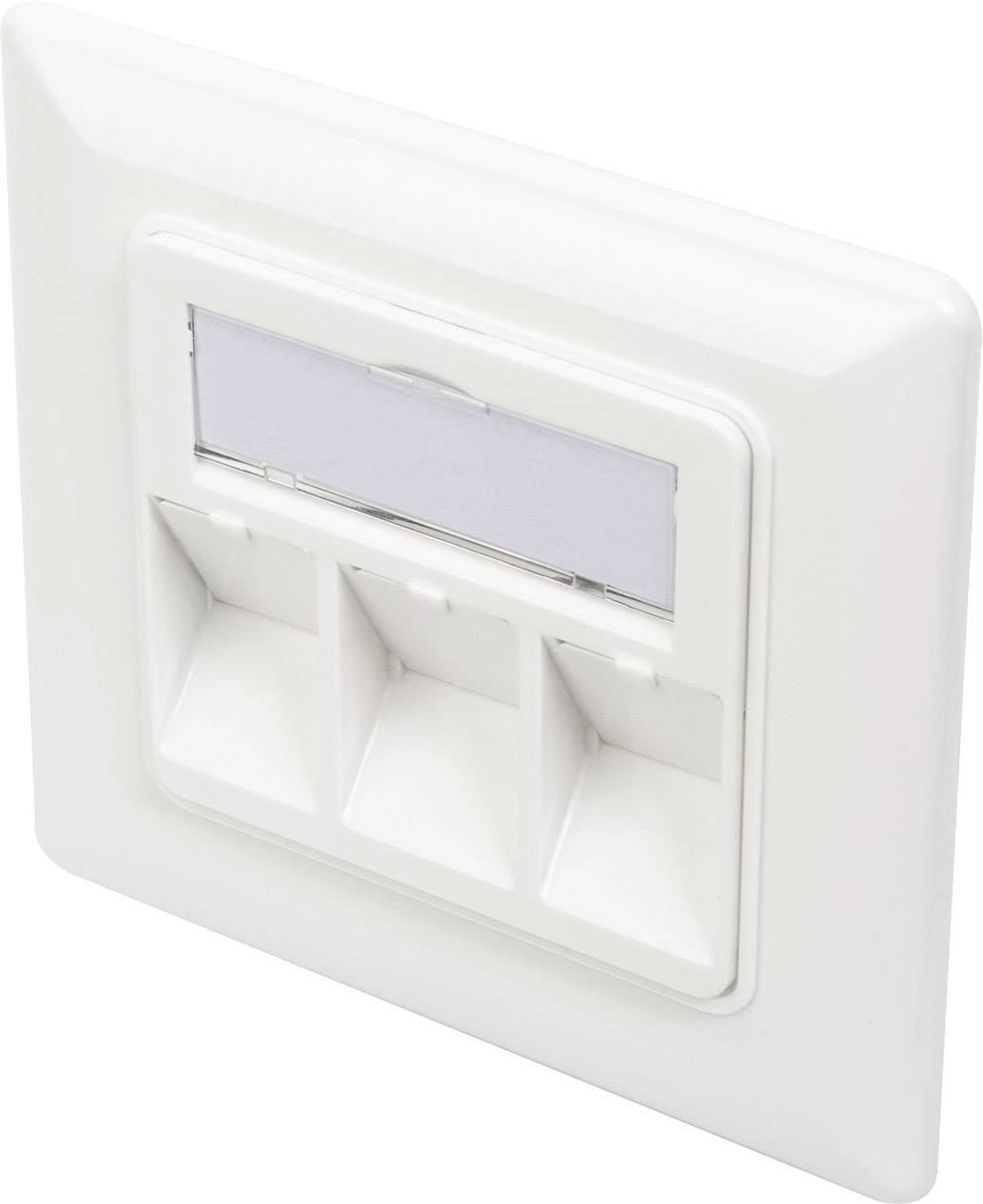

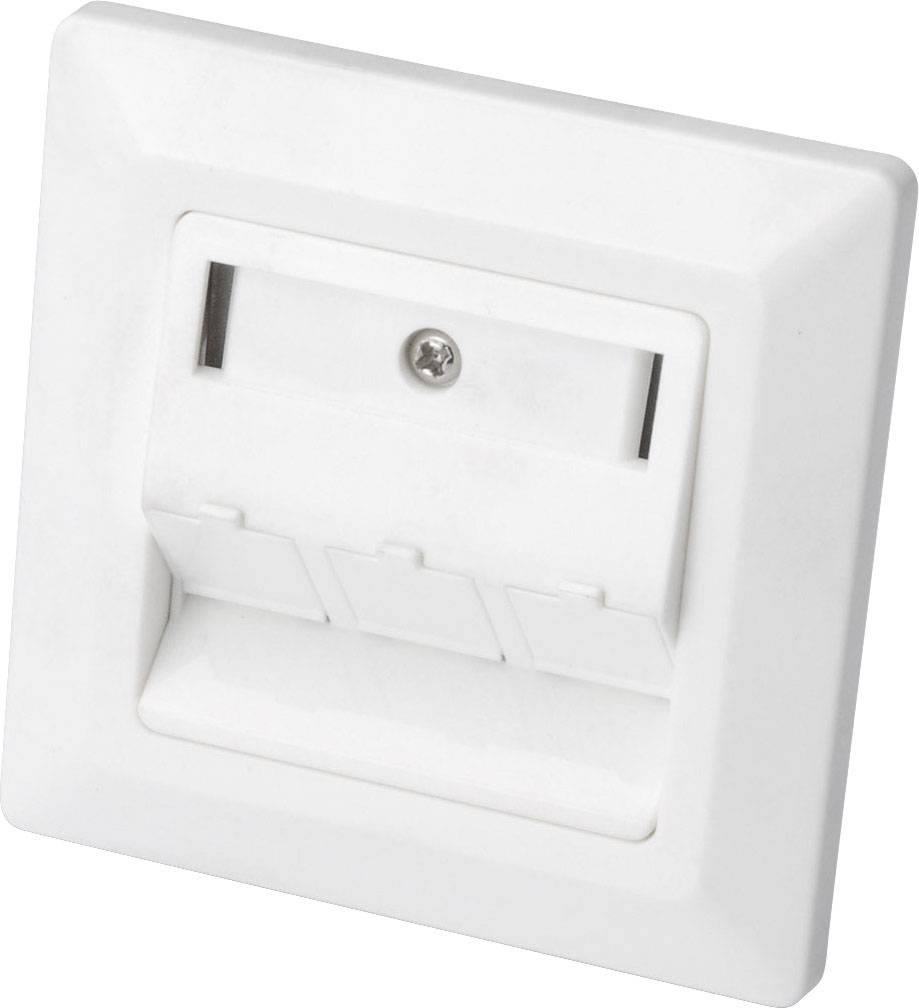

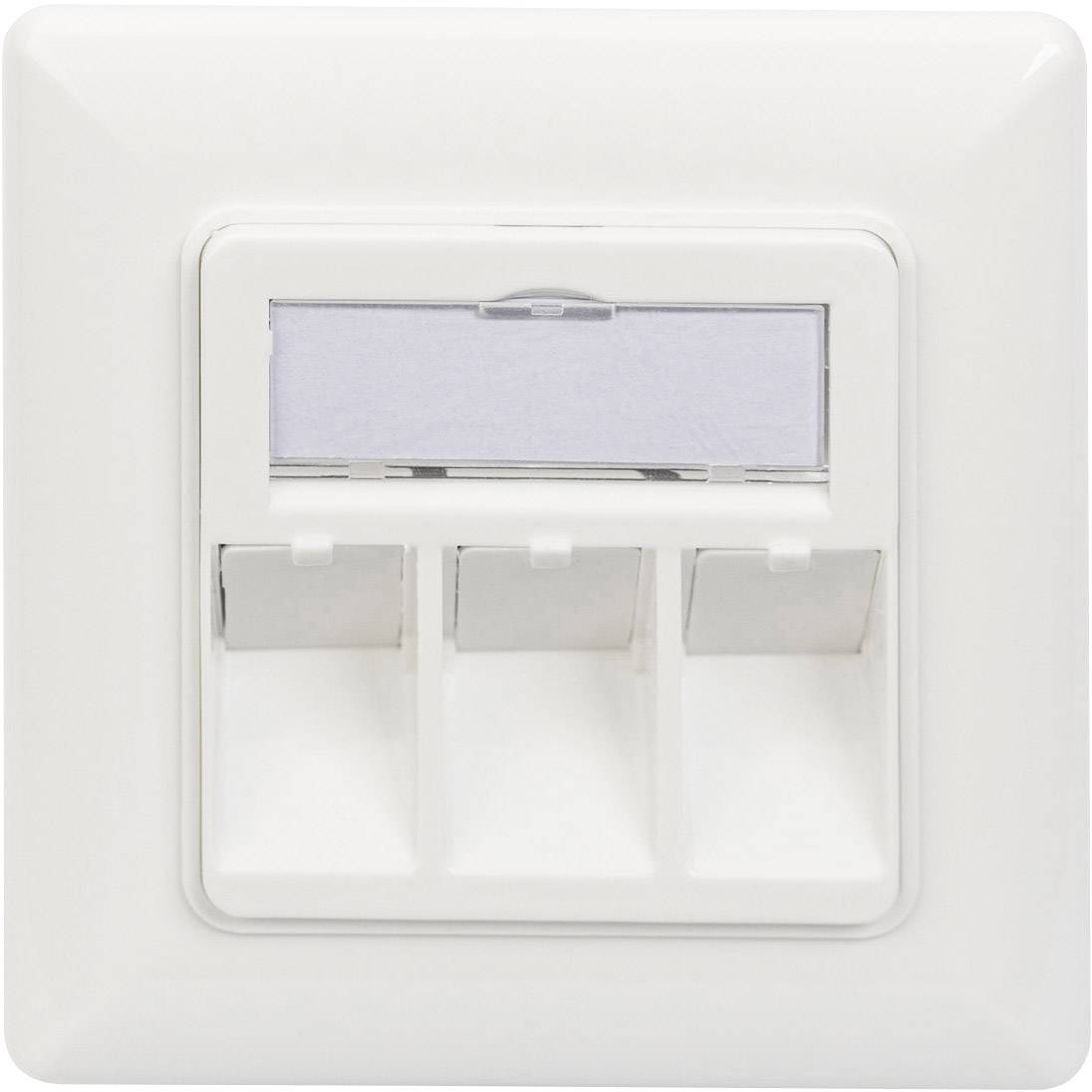

Digitus DN-93821 Keystone mounting bracket triple White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Wallplate for Keystone Modules, German type, middle plate 50x50 mm, frame 80x80 mm
- Connection box with inclined outlet for the admission of 3 Keystone Modules
- Insert direction of the module inclined 45° vertically
- Central plate with a viewing window for labelling insert (including labelling insert included in the scope of delivery)
- German Layout
Technical specifications
- Product type
Keystone mounting bracket
- Number
triple
- Content
1 pc(s)
- Factory colour
White
- Width
80 mm
- Height
80 mm
- Depth
20 mm
- Weight
50.00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1456132 Digitus DN-93821 Keystone mounting bracket triple White
User & Safety Instructions
User & Safety Instructions 1456132 Digitus DN-93821 Keystone mounting bracket triple White
Description
The DIGITUS® Faceplates are suitable for the connection of all DIGITUS® Keystone Modules. Included dust protection shutters provide a perfect protection. Their connection way of the module is 45° vertical (German and British Layout) or 90° horizontal (French Layout).
· Layout keystone entry: 45° outlet
· Area of application: Cavity socket, trunking, surface mount box
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, flush and surface mount
· Central ground connection
· Integrated dust cover
· Plastic label field
· Design compatible to current switch ranges of switch manufacturers
· Technical properties:
· Wall outlet material: Die-cast metal
· Central plate material: ABS UL 94V-0
· Frame material: ABS UL 94V-0
· Surface mount box material: ABS UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
· Layout keystone entry: 45° outlet
· Area of application: Cavity socket, trunking, surface mount box
· Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
· General properties:
· Suitable for installation in trunking, flush and surface mount
· Central ground connection
· Integrated dust cover
· Plastic label field
· Design compatible to current switch ranges of switch manufacturers
· Technical properties:
· Wall outlet material: Die-cast metal
· Central plate material: ABS UL 94V-0
· Frame material: ABS UL 94V-0
· Surface mount box material: ABS UL 94V-0
· Physical properties:
· Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Features
- Framework with 80 x 80 mm of cover + 50 x 50 mm of central plate
- Central plate with integrated dust-protection flaps
- The surface of the cover panels glossy structured

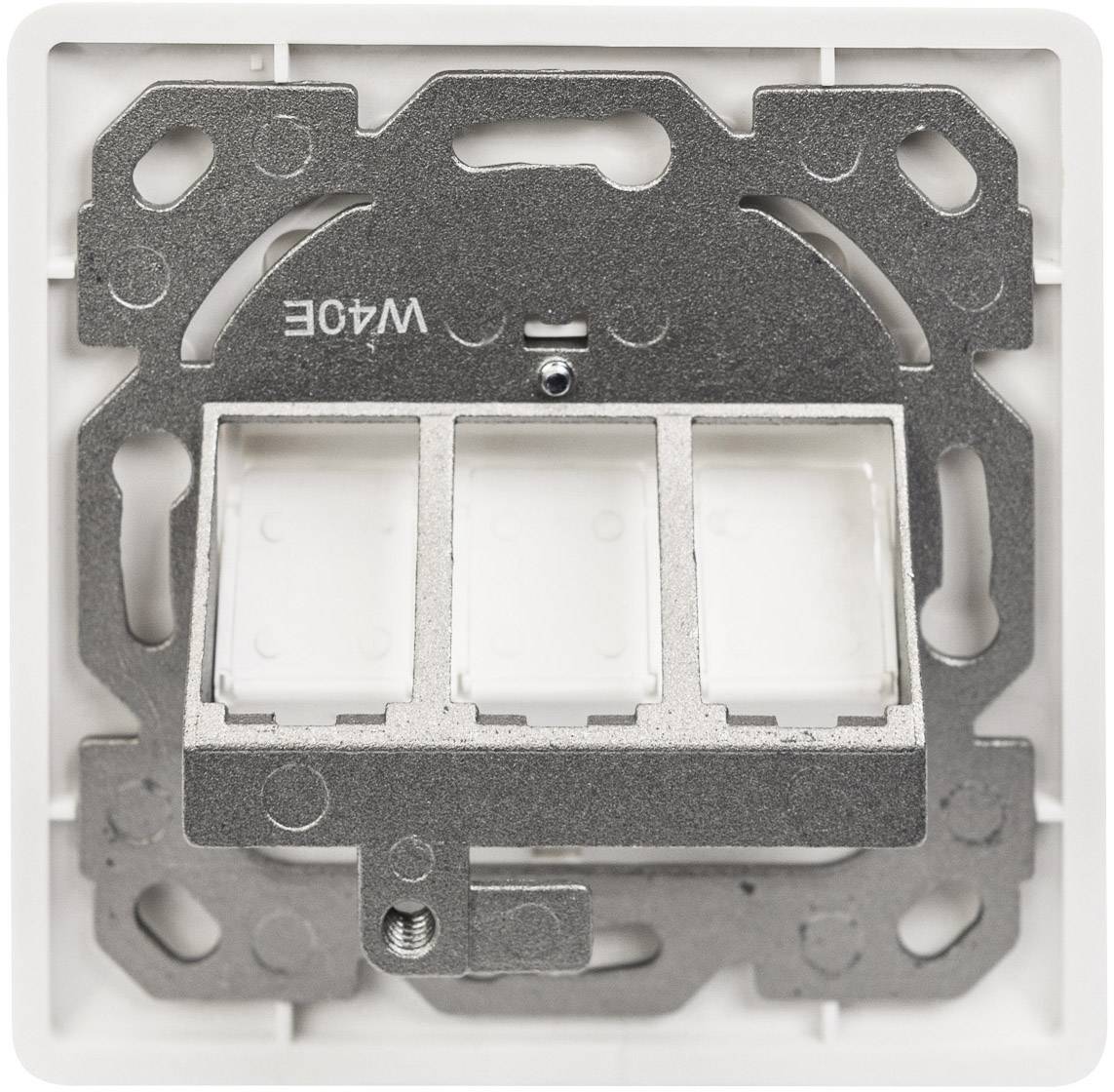

- Fully shielded metal housing (can be used ground connection/for grounding)
- Color (frame & central plate): similar to pure white
- Not suitable in combination with flush-mounted device junction boxes according to DIN 49073-1 Ø 60 MM
- Compatible with the Keystone module DN -93615
Hints
Not suitable in combination with flush-mounted device junction boxes according to DIN 49073-1 Ø 60 MM
Compatible with the Keystone module DN -93615
