Digitus DN-93838 RJ45 module Network receptacle CAT 8.1 1 pc(s)
EAN:
Part number:
Item no:

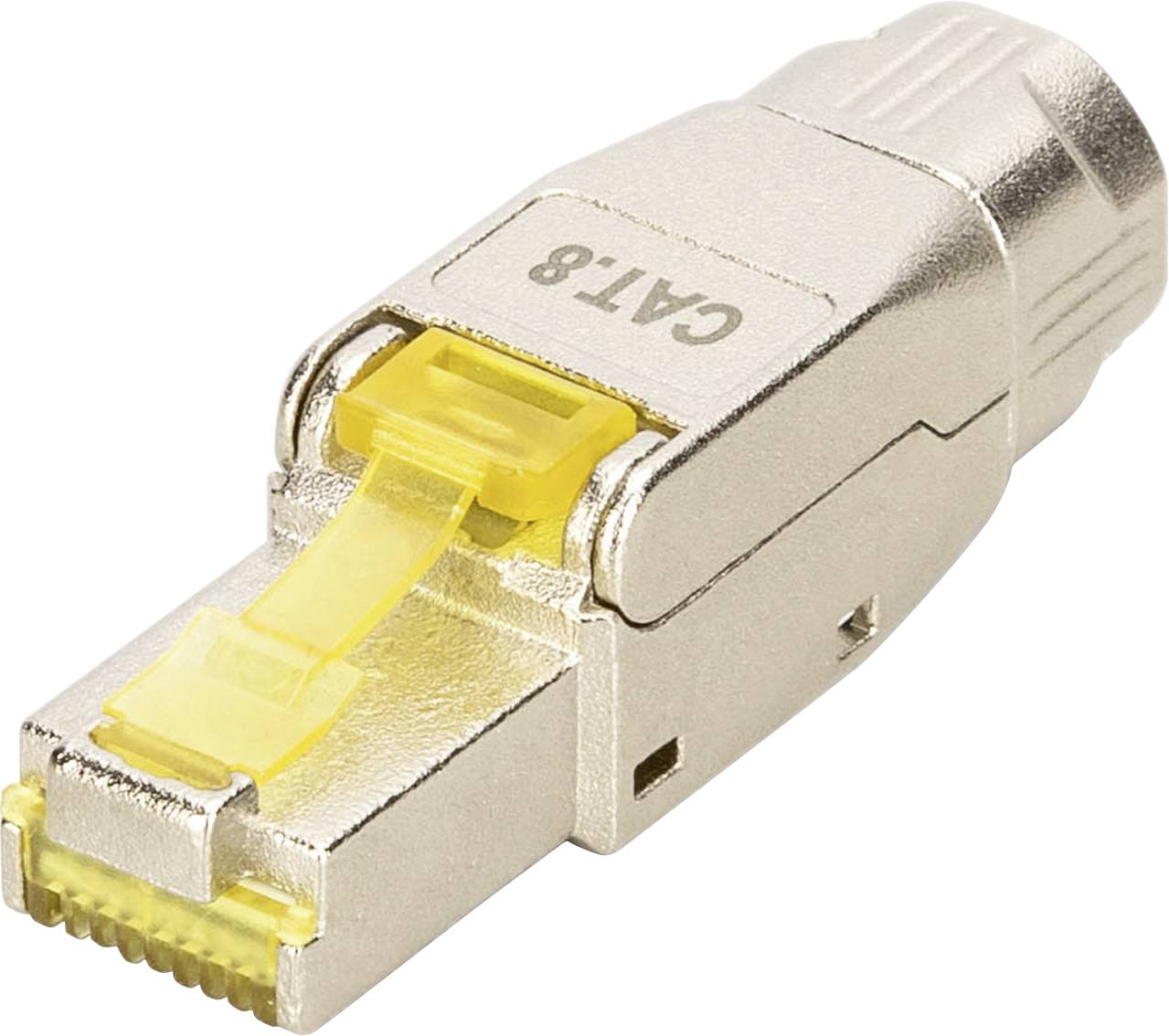

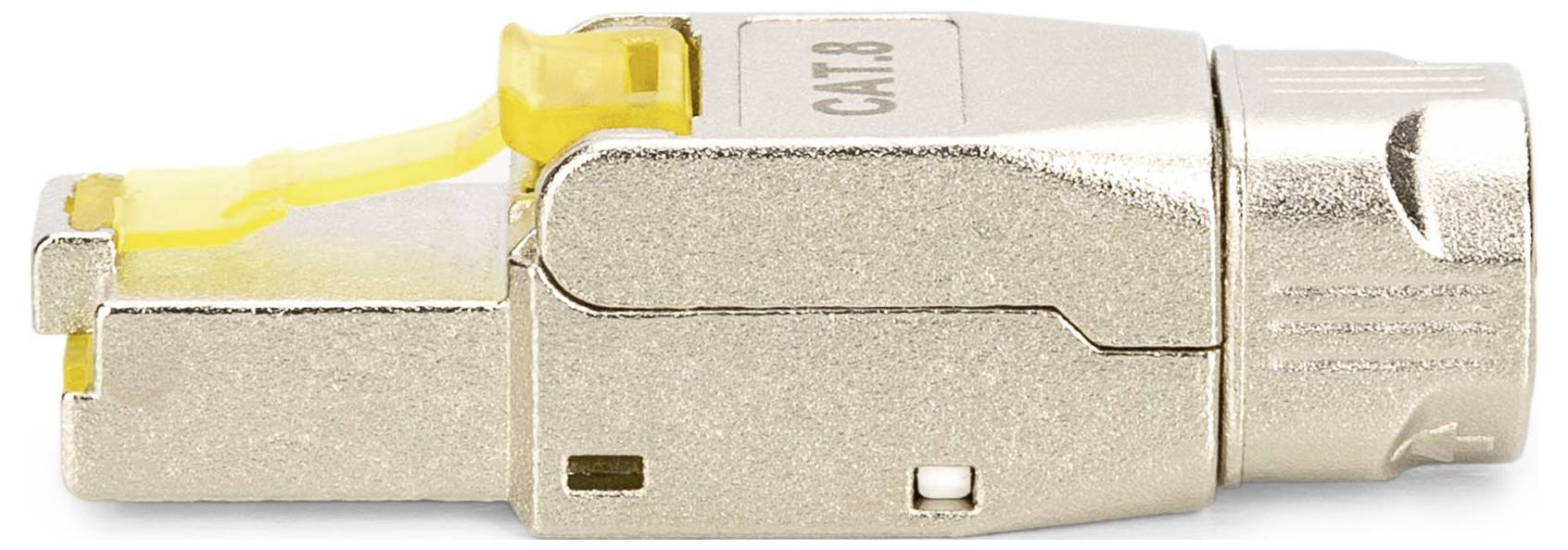

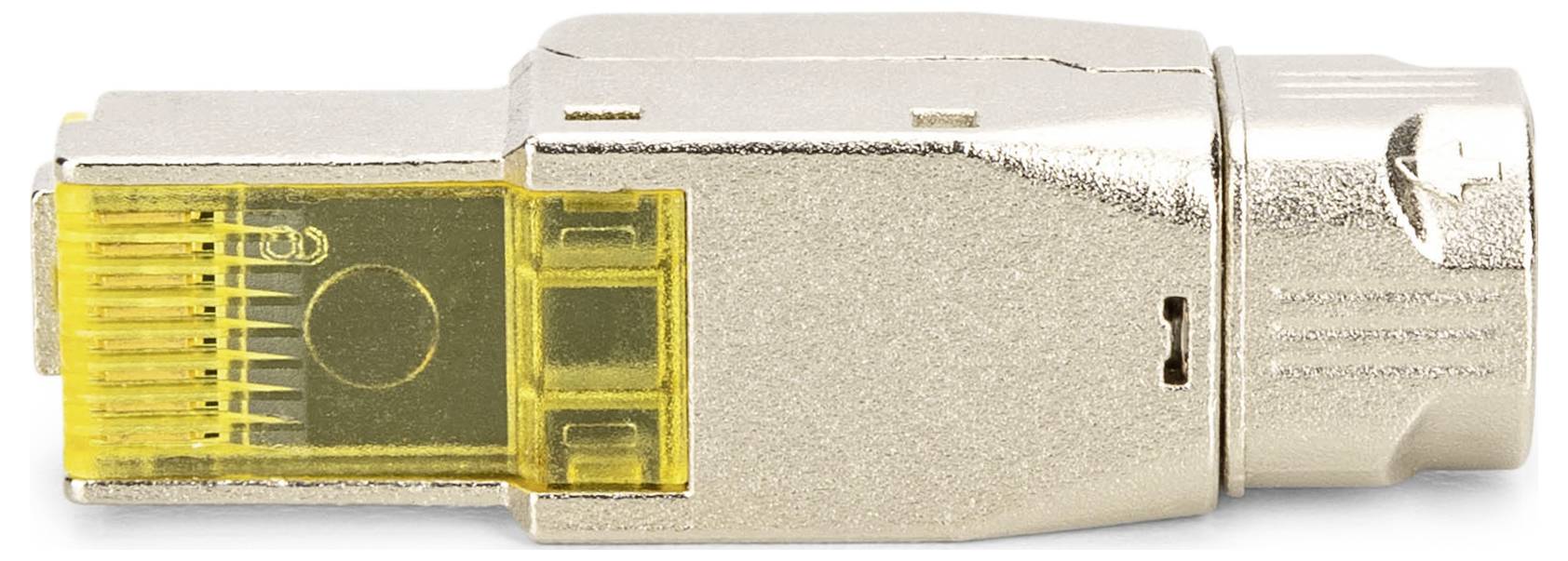

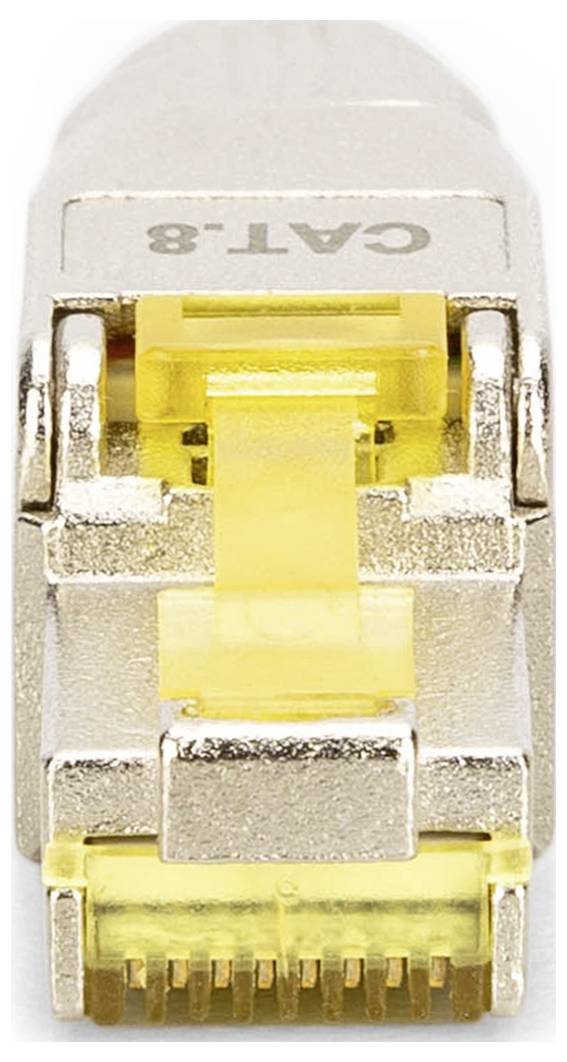

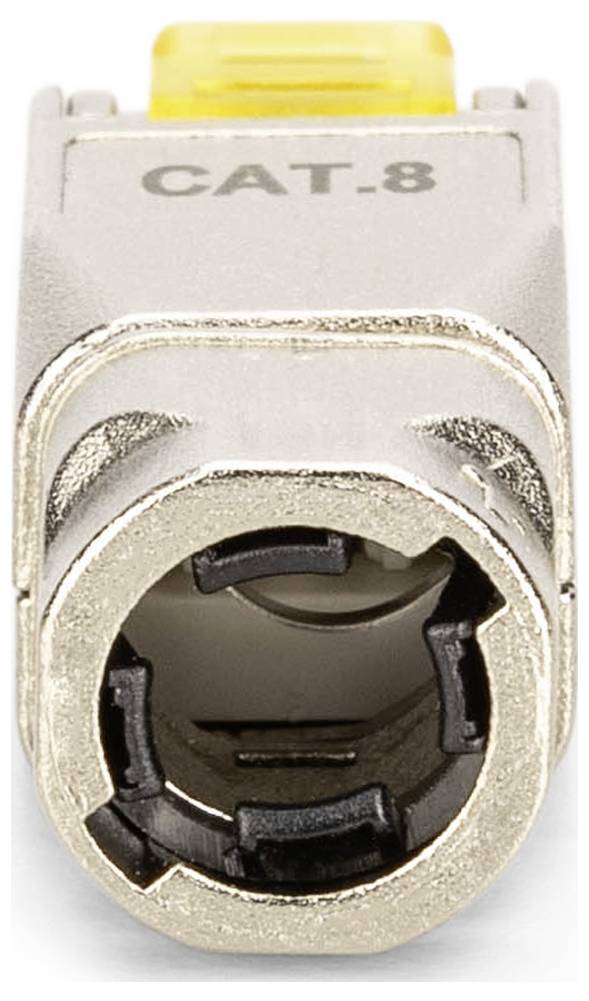

Digitus CAT 8.1 field plug, shielded, tool-free mounting connection
Highlights & Details
- High speed transmission – Supports 25/40GBase-T with a bandwidth of 2000 MHz for ultra fast networks
- Excellent shielding – the 360°-shield contact minimizes interference and guarantees a stable connection
- Tool-free mounting – field plug enables a quick and easy installation without the need for special tools
- Application area – Ideal for data centers, industry, building cabling, and telecommunications
Technical specifications
- Plug-in power: Max. 30N (acc. IEC 60603-7-81
- Operating temperature: -20°C up to +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
- 1500 MATING CYCLES (ISO/IEC 11801, IEC 60603-7-81)
- Diameter of copper conductor AWG (26/7 - 22/1), wires and solid wire
- Voltage resistance 1000 VDC (contact/contact), 1500 VDC (contact/earth)
- Compatible with
Network receptacle
- Product type
RJ45 module
CAT 8.1
- Tool-free installation
Yes
- Factory colour
Black
- Weight
0.018
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3409884 Digitus DN-93838 RJ45 module Network receptacle CAT 8.1 1 pc(s)
Description
The Digitus® CAT 8.1 field connector with tool-free mounting connection, which convinces with future-oriented standards and high-end quality for your network. The field plug is suitable for patch cable mounting with solid and stranded conductor cable. It complies with Category 8.1 / 25/40GBase-T ISO/IEC 11801, IEC 60603-7-81. The robust metal housing ensures long-lasting, stable connections. The fast installation without special tools makes this field plug an optimum choice for installation, repair and maintenance.
This text is machine translated.
This text is machine translated.
Features
- Category 8.1 - 25/40 GBase-T, 2000 MHz
- ISO/IEC 11801 3rd Edition, EN 50173-1
- Suitable for PoE/PoE+/4-pin (IEEE 802.3af, 3AT, 3BT)

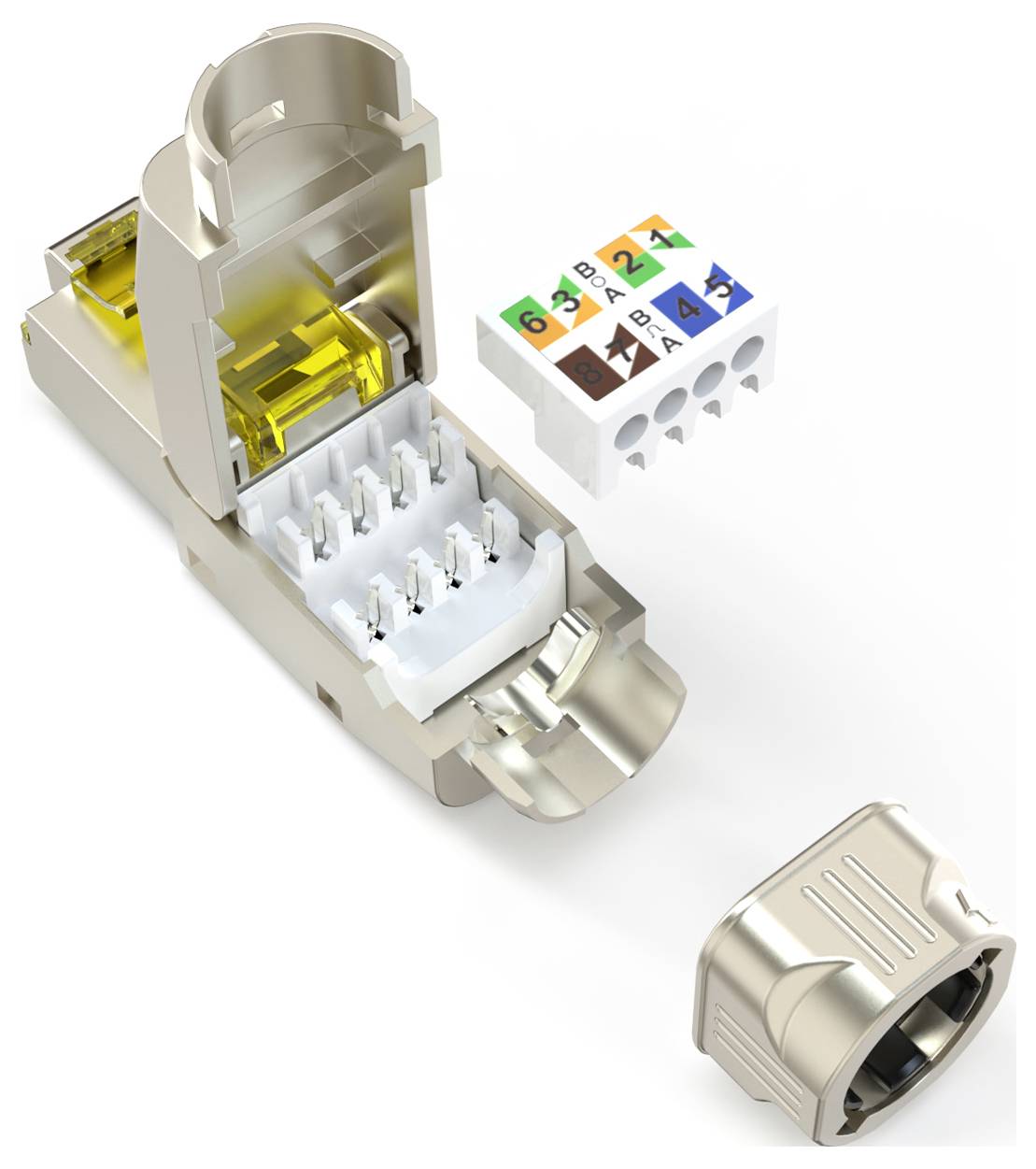

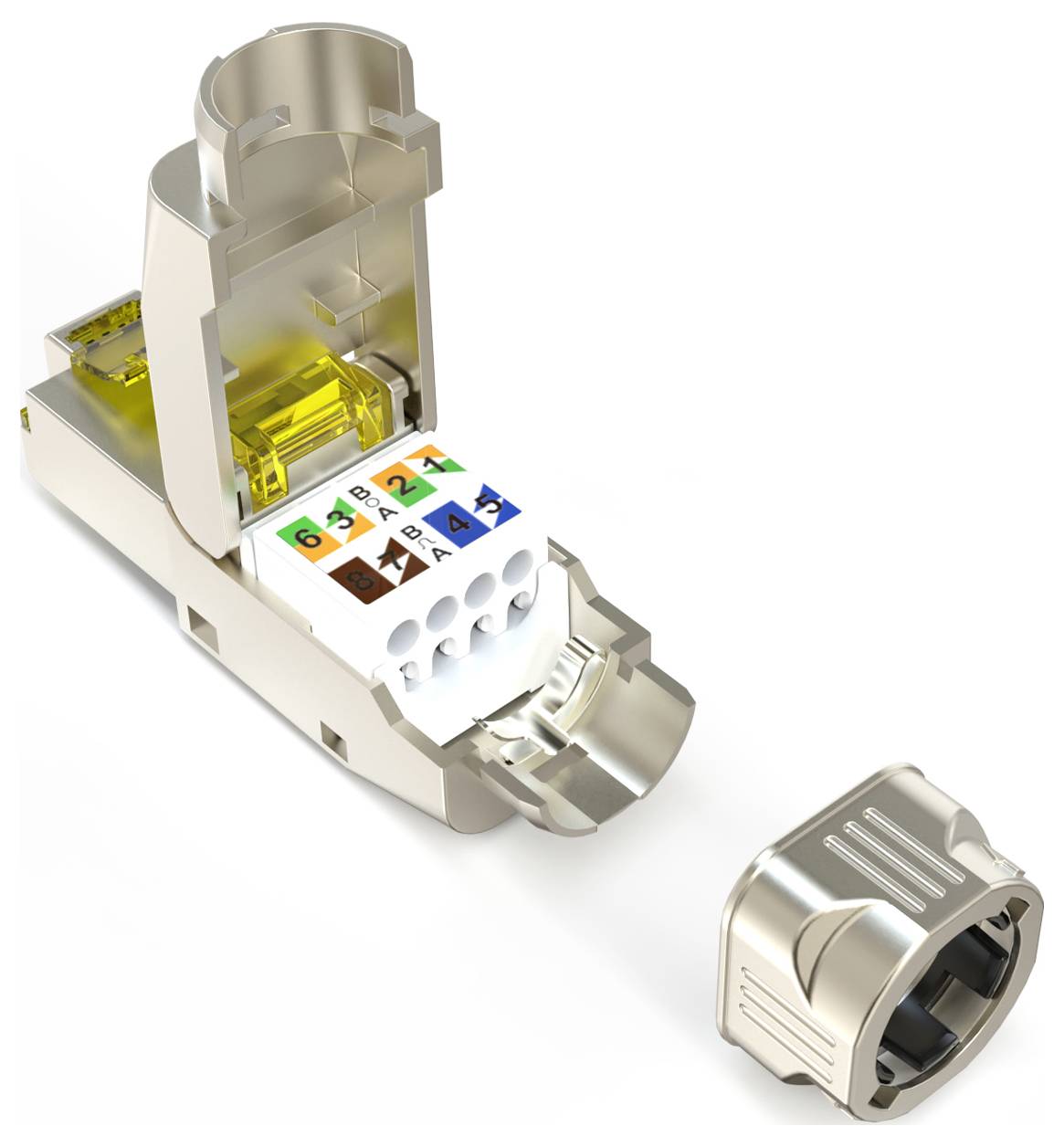

- Tool-free cable installation via LSA insulation displacement terminal, color coded according to EIA / TIA 568 A&B
- Strain relief and cable fixing with the help of screw cap
- RJ45-plug, 8P8C
- 360°-Shield contact
- Material housing: Zinc-Druckguss
- Contact material: Phosphorbronze
- Nickel coating, gold-plated 0.5 µ
