Digitus DN-94022 Network tool kit Compatible with: CAT 5e, CAT 6, CAT 7
EAN:
Part number:
Item no:
Datasheet (PDF)

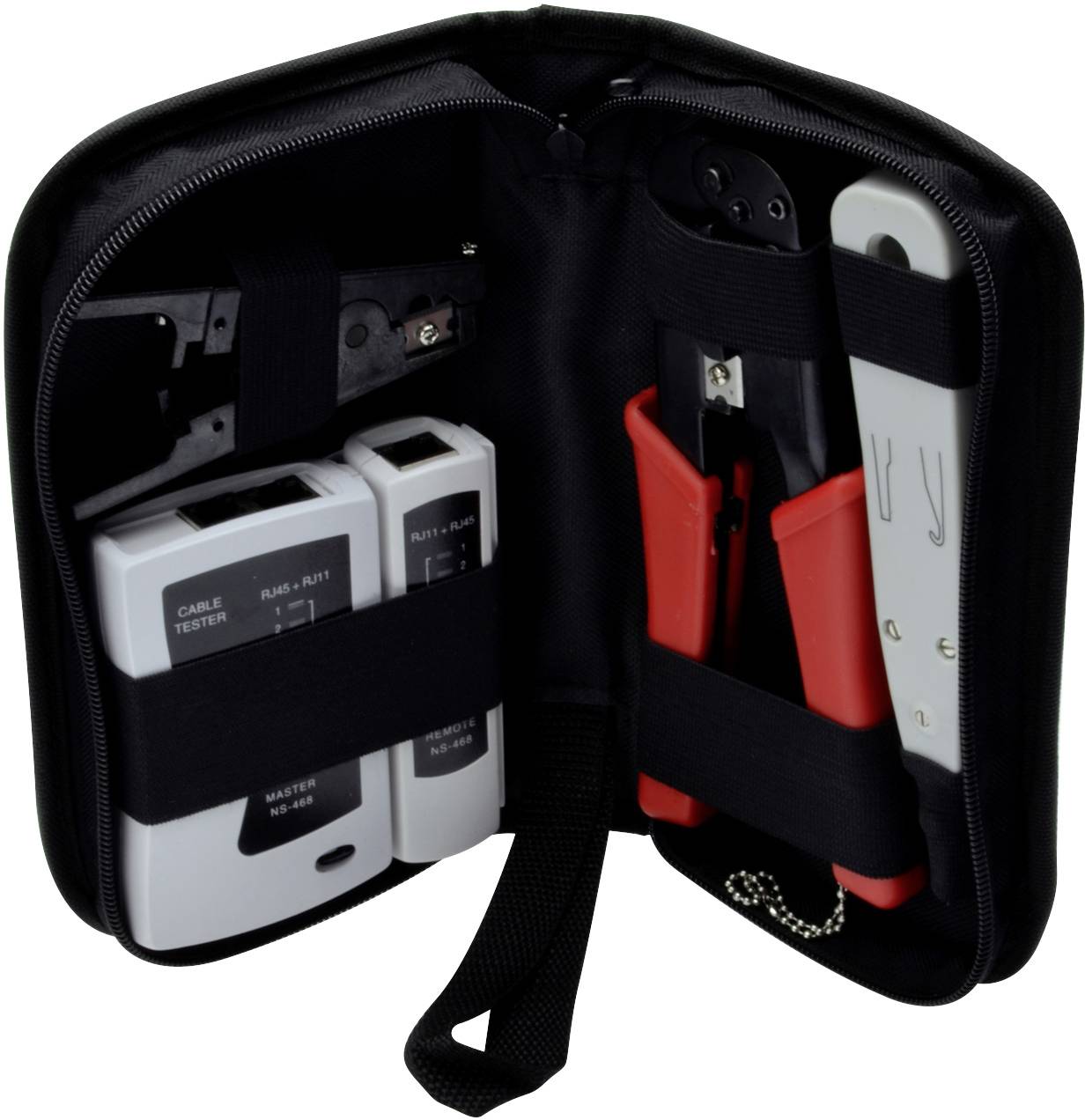

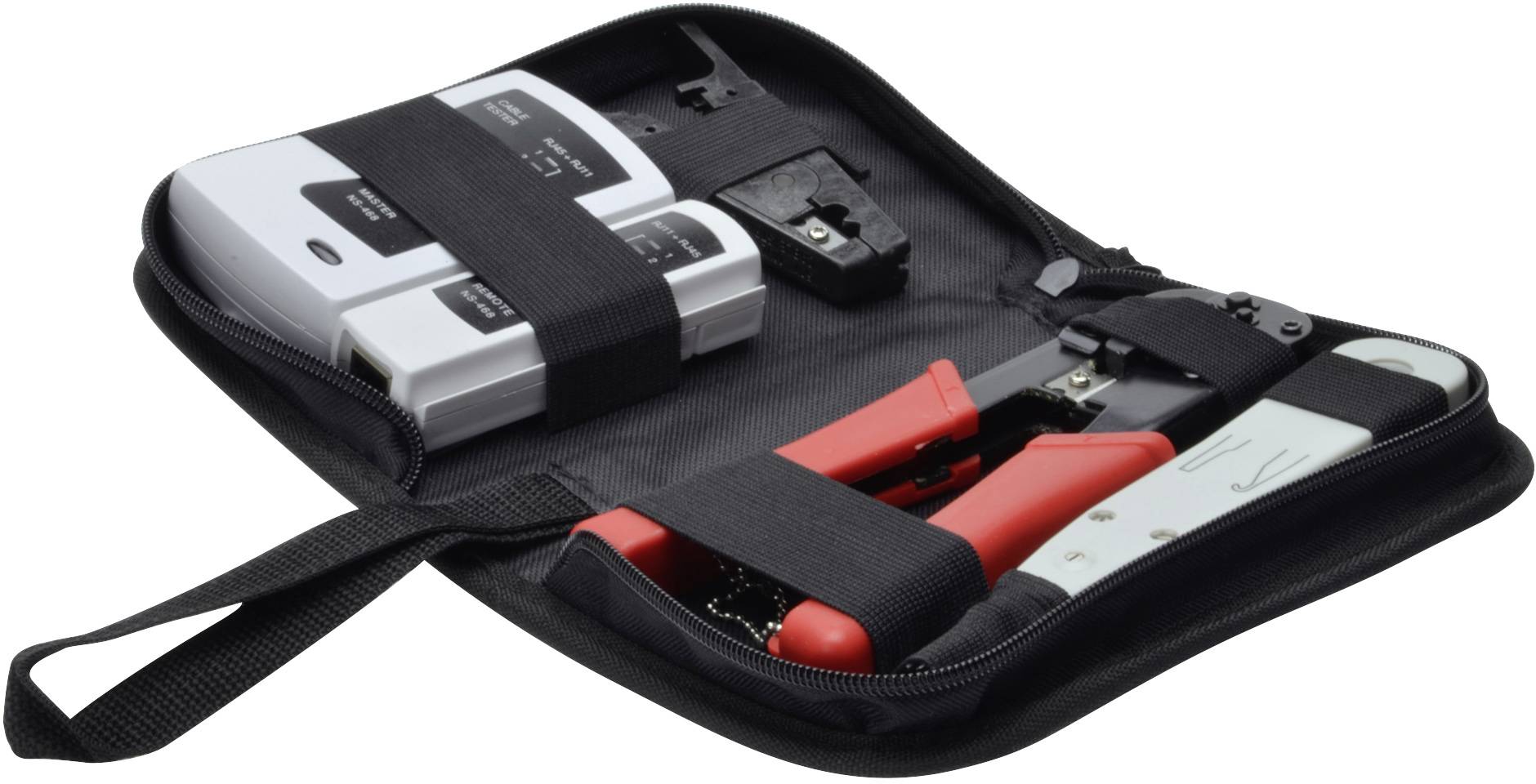

Digitus LAN network tool set - network tester - crimping pliers - cutting edge & stripping tool - LSA insertion tool
Highlights & Details
- This tool set contains all the basic tools for a successful installation Of network cables and the subsequent control of the connected data lines
- The set contains an insulation-pliers with adjustable cutting depth for Ethernet Data cable with a diameter of up to 10 mm and single wires on the 2 mm
- A LSA punchdown tool is used to connect the exposed individual wires of a network cable to a patch panel or a data junction box and to precisely separate the protruding ends of the cable
- The included crimping pliers have an ergonomically designed handle and can be used for the packing of RJ45, RJ12 and RJ11 plugs
- The battery-operated (9V block) network tester for RJ11, RJ12 and RJ45 plug contains 9 LEDs (pin 1-8 & ground) for the function display and has an automatic test run
Technical specifications
- Network tester:
- Toner - Battery: 9V alkaline
- Main unit Connection: 2x RJ45 socket
- Remote unit connection: 1x RJ45 socket
- Product type
Network tool kit
- Compatible with
CAT 5e
CAT 6
CAT 7
- Factory colour
Red
Black
- Weight
0.68
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2335586 Digitus DN-94022 Network tool kit Compatible with: CAT 5e, CAT 6, CAT 7
User & Safety Instructions
User & Safety Instructions 2335586 Digitus DN-94022 Network tool kit Compatible with: CAT 5e, CAT 6, CAT 7
Description
Digitus DIGITUS® network tool set is suitable for on-site service. The tool set is ideal for troubleshooting, testing and new installations.
This text is machine translated.
This text is machine translated.
Features
- Suitable for 6P4C and 8P8C plugs
- Quick and easy operation
- Ergonomic grip
- Robust metal shell.
- Network tester:
- ideal for testing RJ11, RJ12 and RJ45 sockets
- Individual LED displays for PIN 1 to 8 and Ground
- For measuring the continuity of network or communication cables
- Automatic test run
- Punchdown tool:
- Suitable for LSA-strips
- Cable installation with simultaneous cutting of the protruding cable ends
- With pull-out hook and release blade
- Cutting and stripping tool:
- Suitable for cat 5e, cat 6, cat 7 (Ø 2-10 mm)
- Adjustable cutting depth

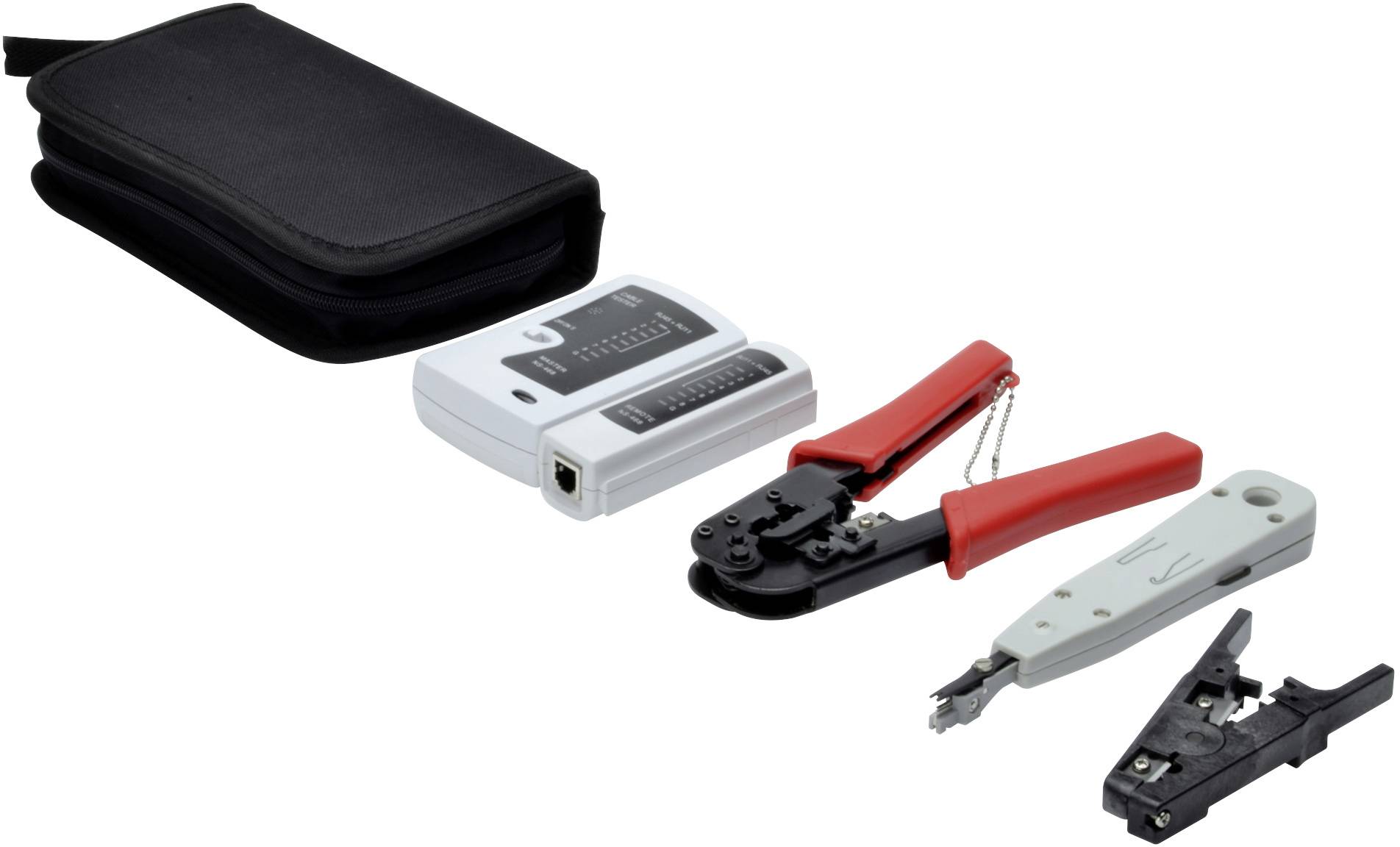

Scope of delivery
- Network tester RJ11, 12 and 45
- LSA Punch Down Tool with cable cutting tool
- Crimping pliers RJ11, 12 and 45
- Cutting and stripping tool
- Carrying case
- Exclusive battery for the network tester (block cell 9V)
