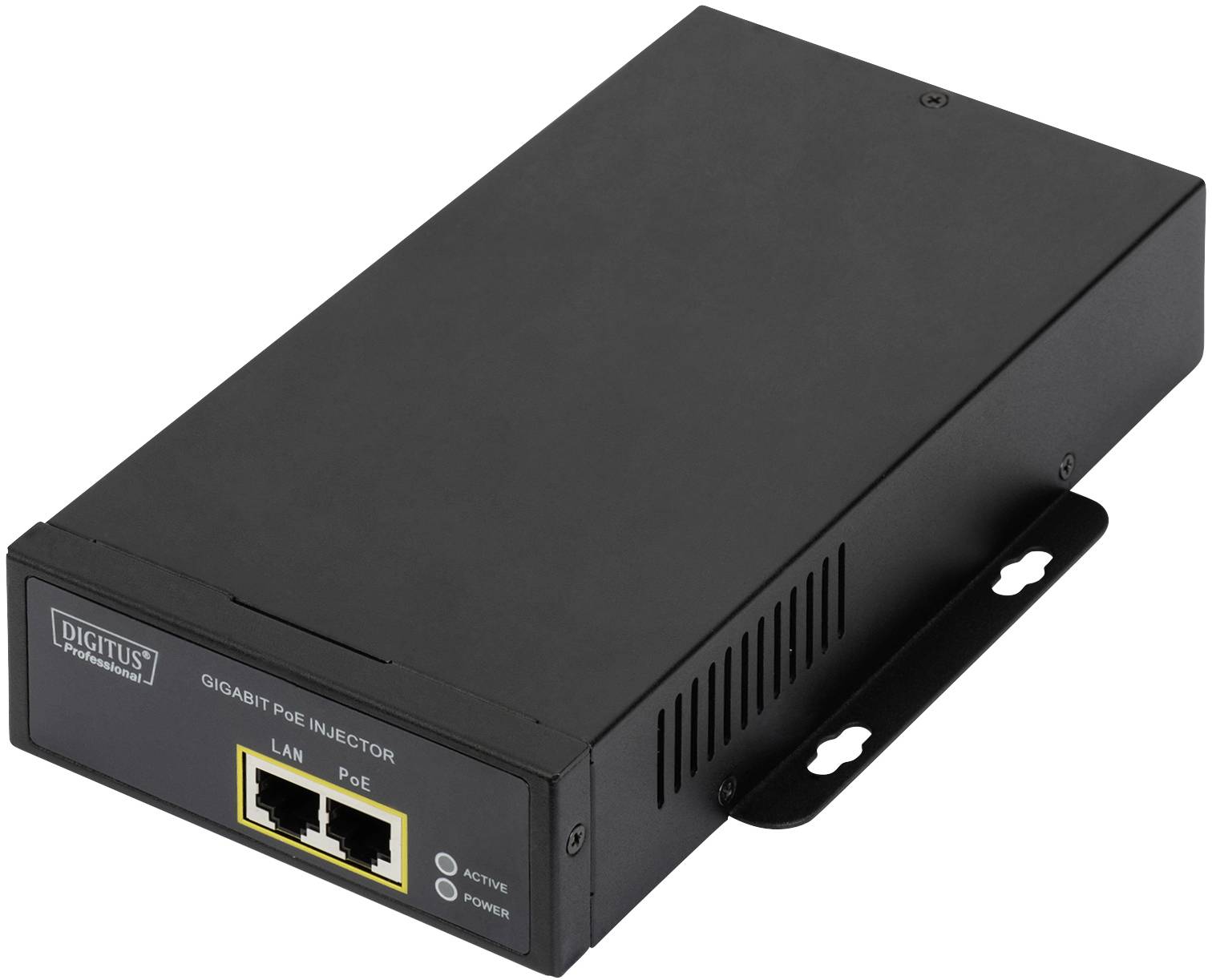

Black Gigabit PoE Injector by Digitus with two network ports, one for LAN and one for PoE, featuring status LEDs for activity and power supply.

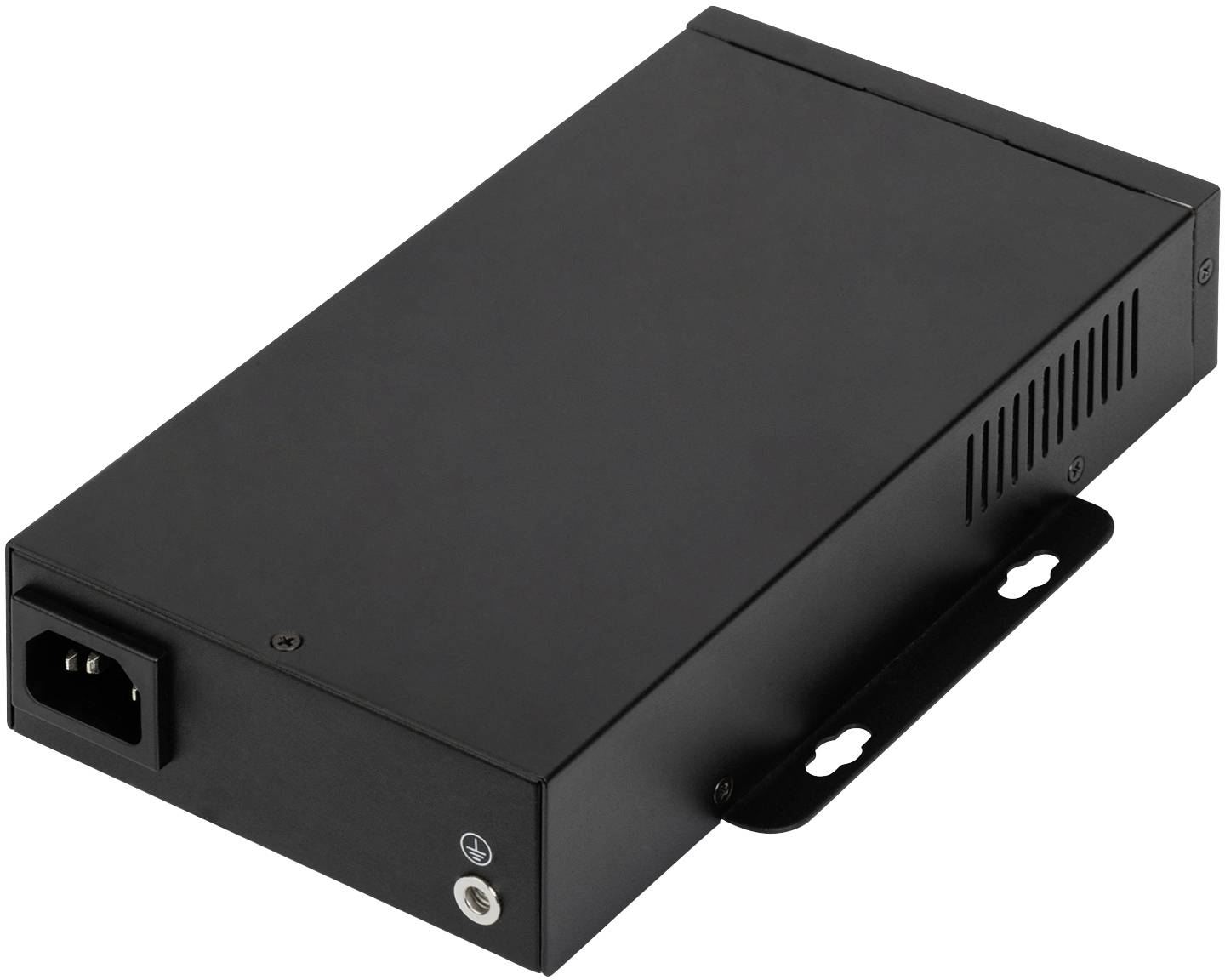

Black metal casing with built-in power connection and side ventilation slots.

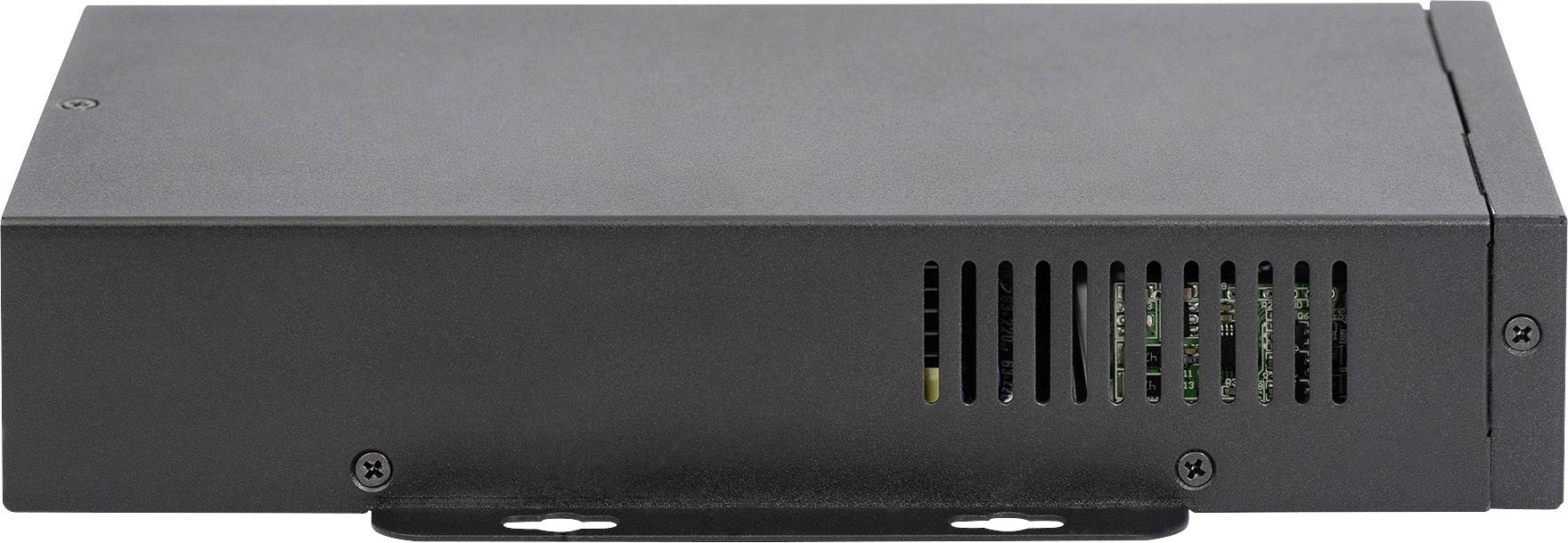

Black, rectangular electronic box with ventilation slots and screw connections on the side.

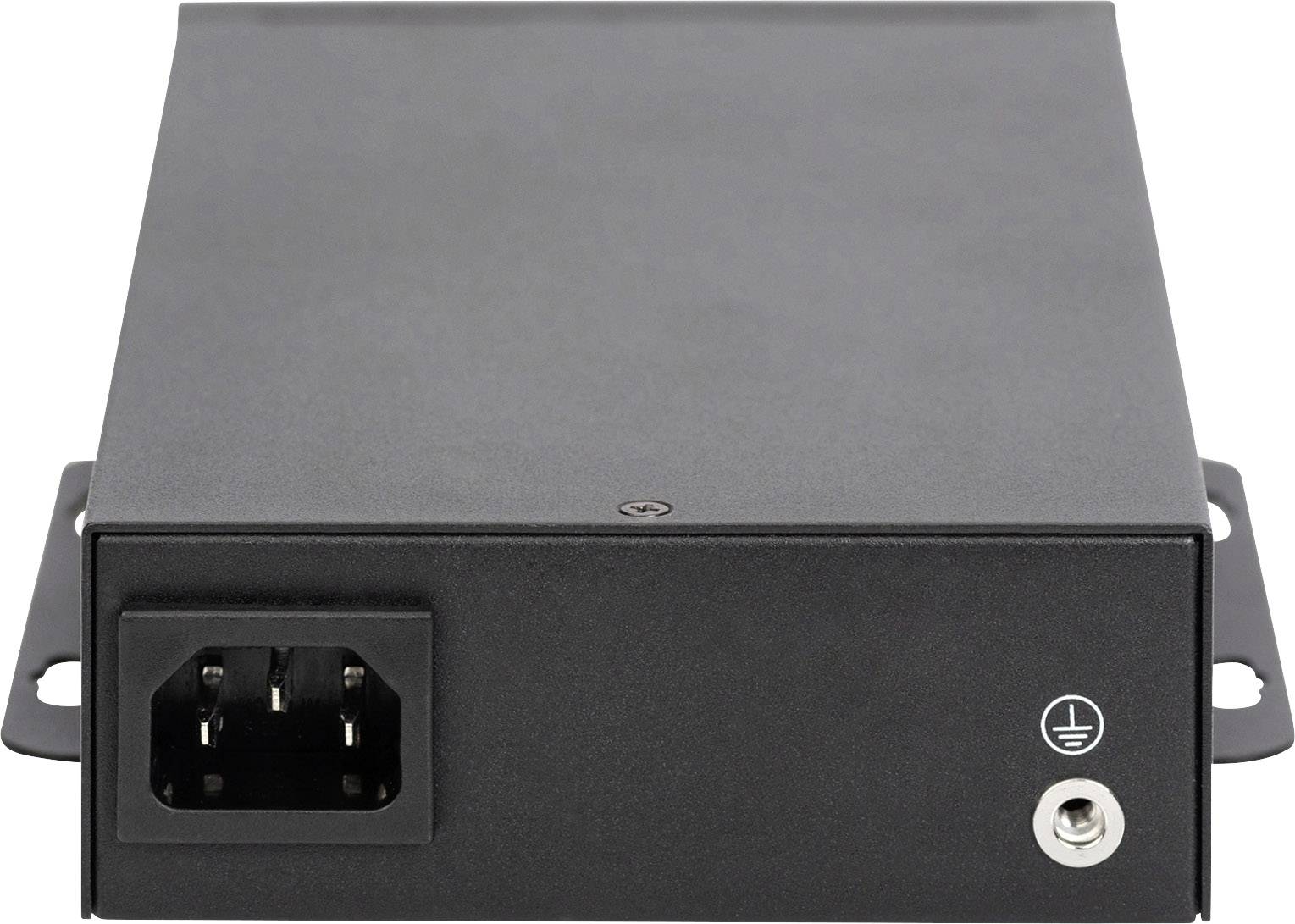

A black electronic device with a power socket on the left and an earth screw on the right, lying on a flat surface.

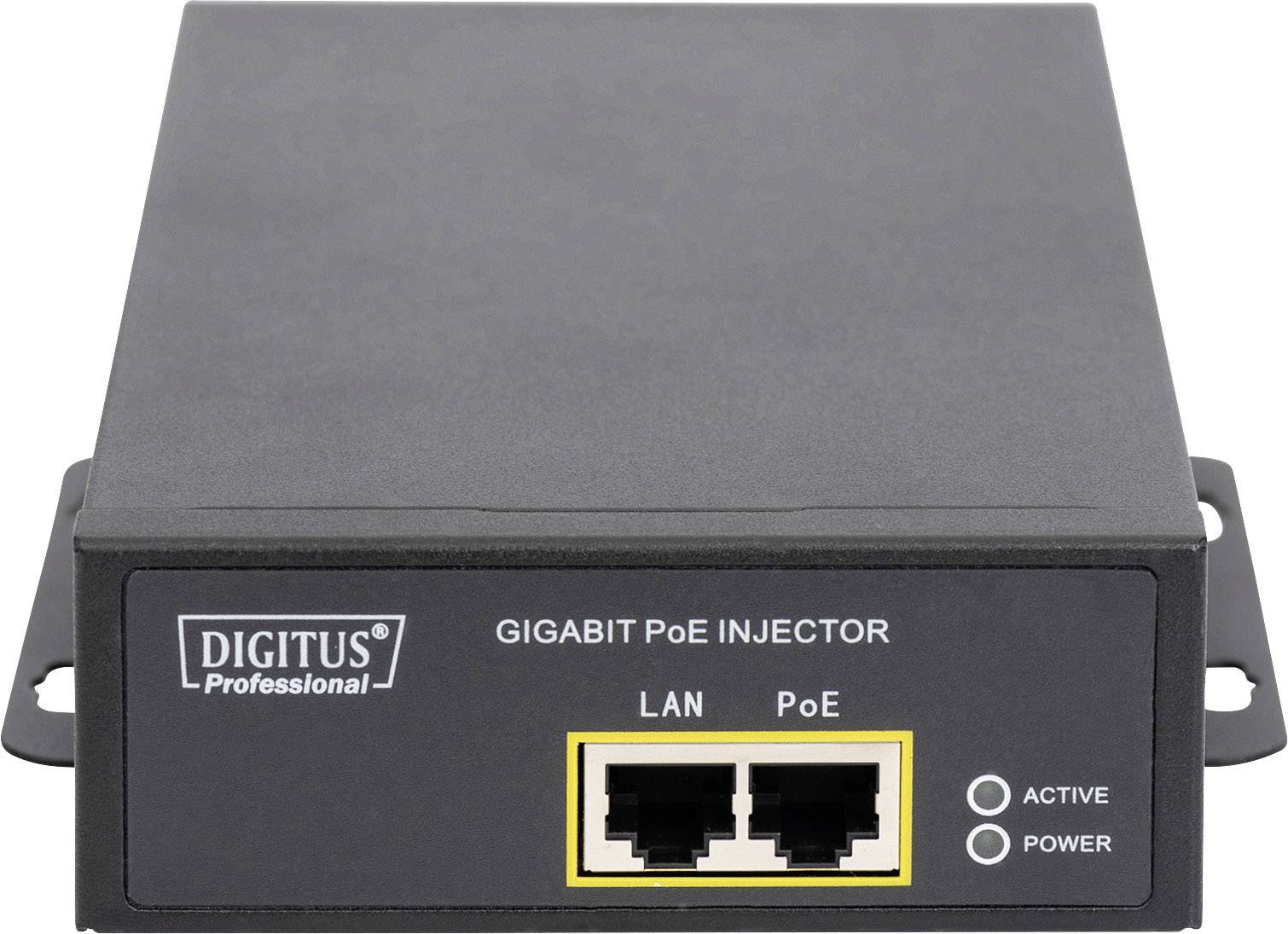

'Gigabit PoE Injector' by Digitus Professional. Front view shows LAN and PoE ports. Indicator lights for activity and power are present.

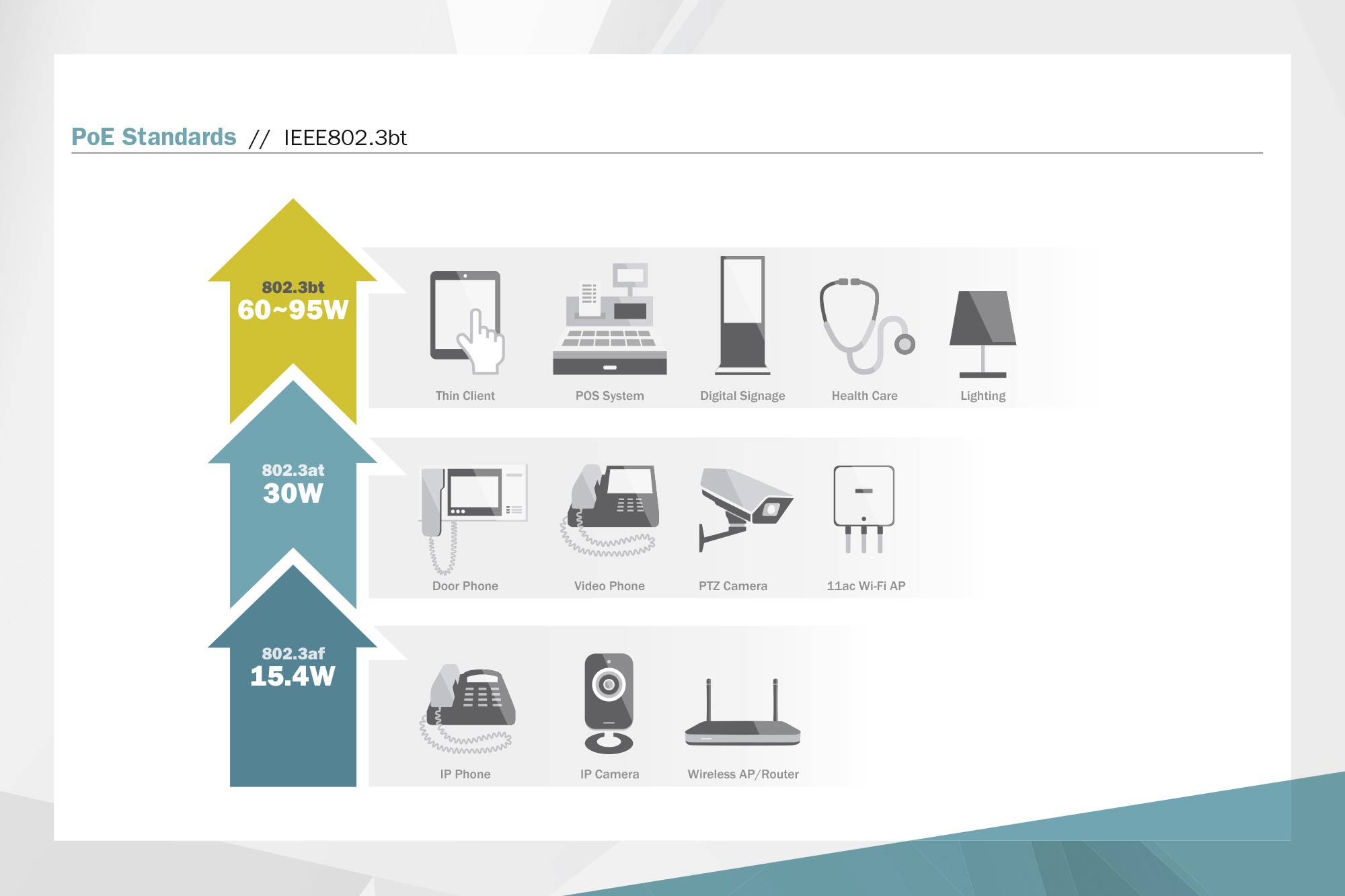

'Diagram of PoE Standards IEEE802.3. Arrows indicate power: 802.3bt 60-95W, 802.3at 30W, 802.3af 15.4W. Devices: Thin Client, POS System, Cameras, Access Point.'

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Gigabit Ethernet PoE++ injector, 802.3at power supply:4/5(+),7/8(-) u 3/6(+),1/2(-),95W

Highlights & Details

PoE is preferably used when no power supply is possible at the place of operation and suitable devices can also be supplied with power via the incoming network cable at the same time.
With a data transfer rate of 1 GBit/s, this PoE injector corresponds to the Gigabit Ethernet standard and has a maximum output voltage of 55 V as well as a power output of 95 W.
Two RJ45 sockets as well as a cold device connection are integrated in the metal housing - the power supply via pin 4/5(+) & 7/8(-) as well as pin 3/6(+) & 1/2(-) is done via the "PoE" network socket.
The PoE output has a current limitation, a short-circuit protection as well as an automatic end device detection and classification for IEEE802.3at PoE+ and IEEE802.3af PoE.
The power consumption of the injector itself is max. 3 Watt - a cold device connection cable is included in the delivery.

Technical specifications

LAN(RJ45) output, power supply via pin: 4/5(+),7/8(-) and 3/6(+),1/2(-)
Cable connection 10/100/1000 Mbps
Own consumption: 3W max.
POWER SUPPLY: 100-240V AC, 2A
Operating temperature: -40°C to 65°C
Dimensions (mm): 214(L) x 134(W) x 41(H)
Ethernet speed: Gigabit
PoE power budget 95W
PoE standard IEEE802.3at (PoE+)

Product type: PoE injector

PoE: IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)

LAN data transfer rate: 1 GBit/s

Width: 200 mm

Height: 130 mm

Length: 40 mm

Weight: 1.4 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2290749 Digitus DN-95107 PoE injector 1 GBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)

Description

With the help of the Digitus PoE injector you minimize your wiring expenditure during the installation of PoE-enabled devices such as IP network cameras. The data and power supply for the devices are only fed via an Ethernet cable. This makes laying a separate power line unnecessary and you are able to expand your network even where there are no sockets or power lines available. The injector is fully compatible with the IEEE 802.3af/at PoE standard and delivers an output power of 95 watt.

This text is machine translated.

Features

Conforms to the 802.3af/at PoE standard
55 volt output voltage, 95 watt
RJ45 LAN input
the output possesses a current limitation, a short-circuit protection as well as automatic end device detection and classification
