Digitus DN-95108 PoE injector 10 GBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
EAN:
Part number:
Item no:
Digitus 10 Gigabit Ethernet PoE+ Injector, 802.3at power pins: 3/6(+), 1/2(-), 30W
Highlights & Details
- PoE power supply with up to 30 W and 10 Gbps
- Supports 10G, 5G, 2.5G and 10/100/1000 Base-T applications
- For distances of up to 100 m.
Technical specifications
- Supported standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
- LED display: Power input / PoE output
- PoE power 30 W.
- Power supply 100 - 240 VAC / 50/60 Hz
- Total power consumption 32 W max.
- PoE voltage 52 VDC / 0.58 A.
- PoE budget 30W
- Pin assignment: V+ (RJ45 pin 3.6), V- (RJ45 Pin1, 2)
- Operating temperature: 0 - 40°C
- Storage temperature: -10 ~ 70°C.
- Operating humidity: 5 - 95% (non-condensing)
- Dimensions 145.5 x 61.5 x 40 mm (L x W x H)
- Weight: 0.45 kg
- Number of ports: 1
- PoE Power Budget 30W
- PoE standard IEEE802.3at (PoE+)
- Ethernet speed: 10 Gigabit
- Product type
PoE injector
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
- LAN data transfer rate
10 GBit/s
- Width
62 mm
- Height
40 mm
- Depth
146 mm
- Factory colour
Multicolour
- Weight
290 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2275131 Digitus DN-95108 PoE injector 10 GBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W)
Description
The Digitus PoE+ injector Compact, cost-effective and fully compliant with IEEE802.3at. With support for 10 Gbps network connections, the PoE injector can also be used in environments where the highest possible transmission speed is essential. The simple solution for the remote power supply of wireless access points, IP security cameras, VoIP telephones and other installations with PoE functionality. The injector makes an external power supply of your devices and the associated power cabling / socket unnecessary. PoE & PoE+ compatible devices can be supplied with power and data via the network cable - a secure and reliable solution for extending the existing network infrastructure.
This text is machine translated.
This text is machine translated.
Features
- LED-operating display

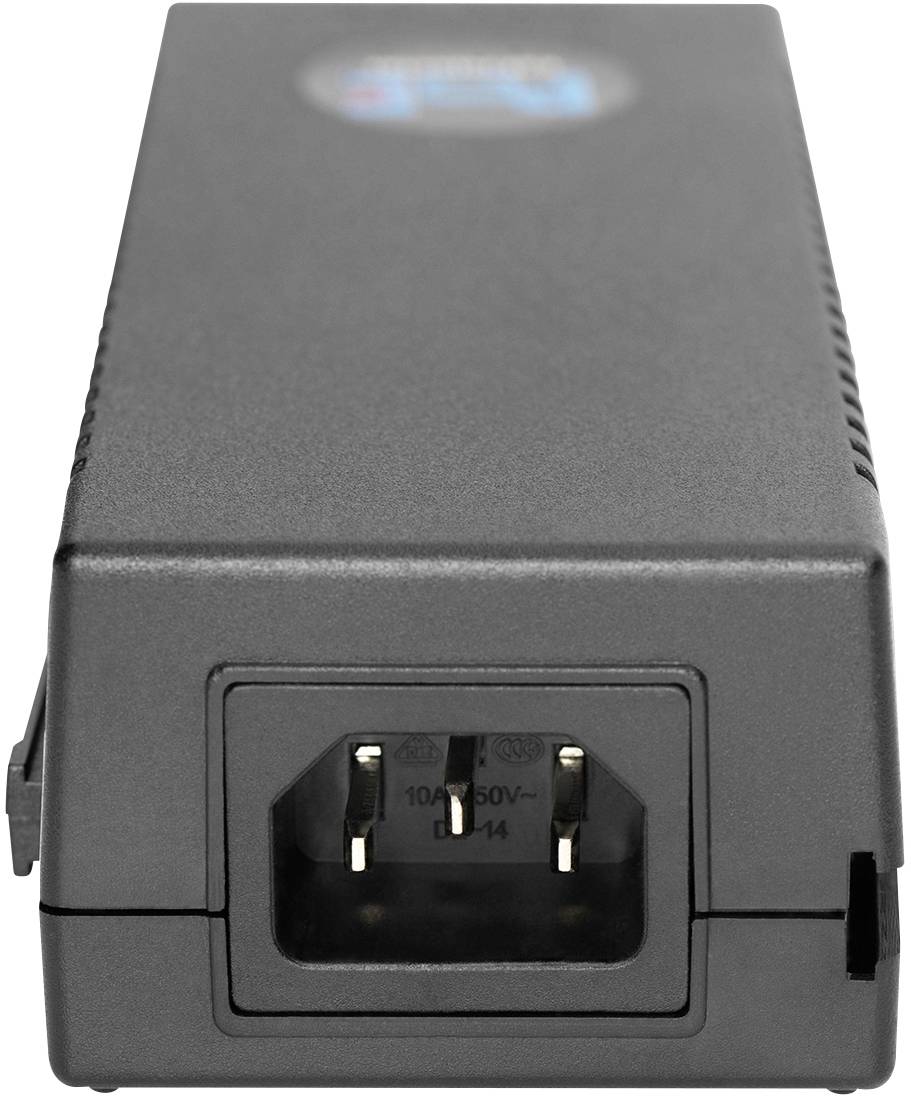

- Integrated cold device Power connection (C14)
- Overload and short-circuit protection
- Automatic detection Of PoE devices
- suitable for wall mounting
