Digitus DN-95109 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W), IEEE 802.3bt
EAN:
Part number:
Item no:
Gigabit Ethernet PoE++ Injector, 802.3bt power pins: 4/5(+), 7/8(-) and 3/6(+), 1/2(-), 85W
Highlights & Details
- PoE power supply with up to 85W as mid-span or end-span
- Supports the PoE++ IEEE 802.3bt PoE-standard
- Supports 10/100/1000 Base-T
- PoE power 85 W (over 4 pairs)
- For distances of up to 100 m.
Technical specifications
- Supports 10/100/1000 Base-T applications
- Supported standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

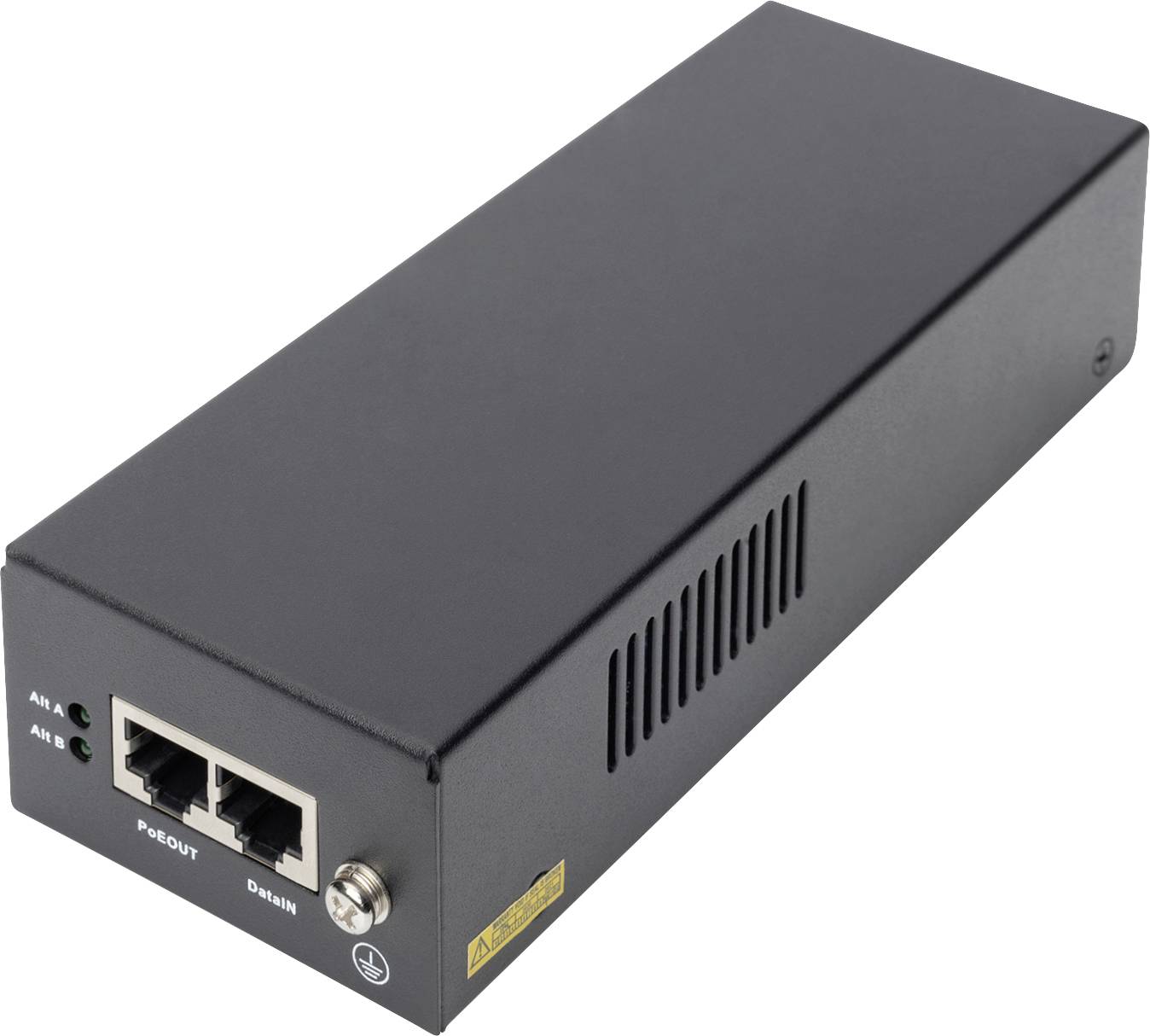

- LED display: Power input / PoE output
- PoE power 85 W (PoE++ over 4 pairs)
- For distances of up to 100 m.
- LED status indicator

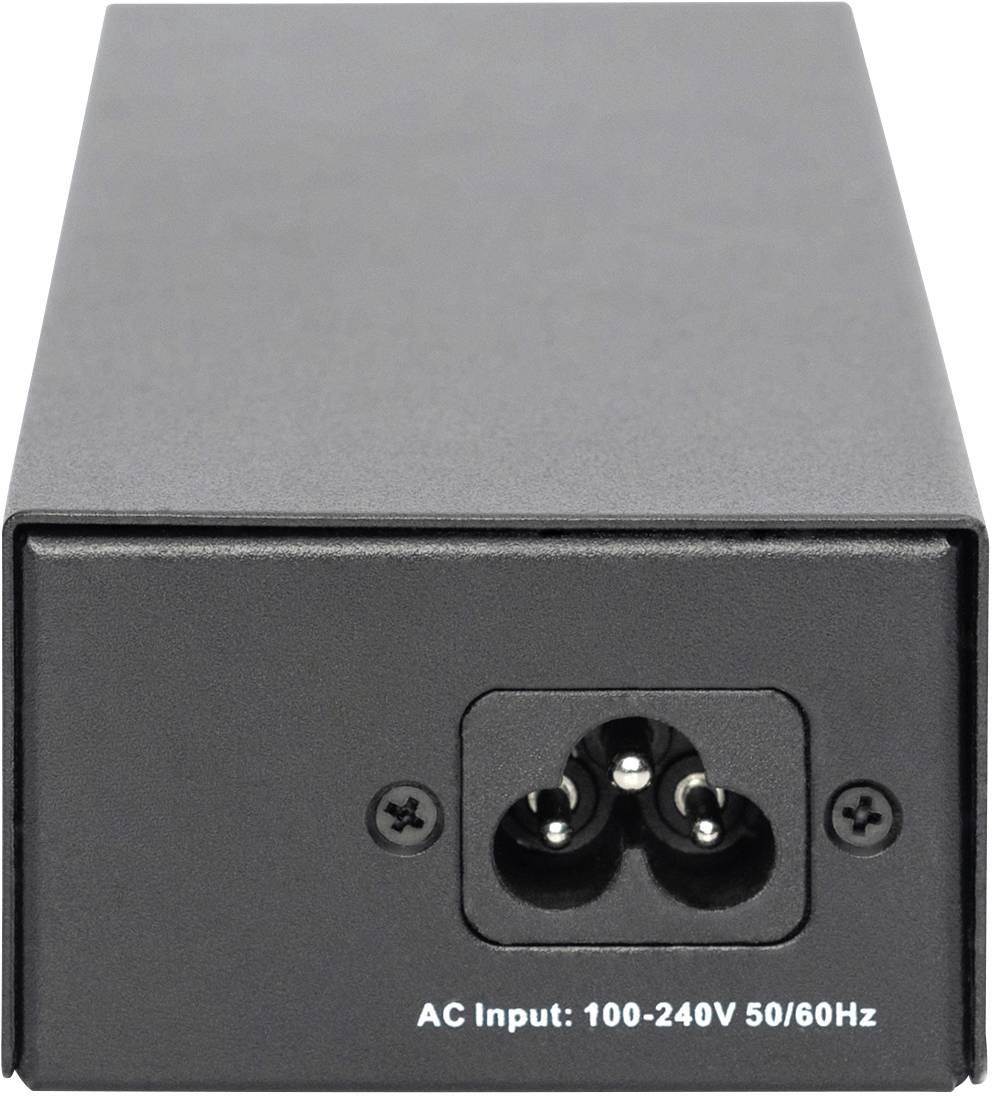

- Integrated IEC power connection (C 6)
- Overload and short-circuit protection
- Automatic detection of PoE devices / PoE modes

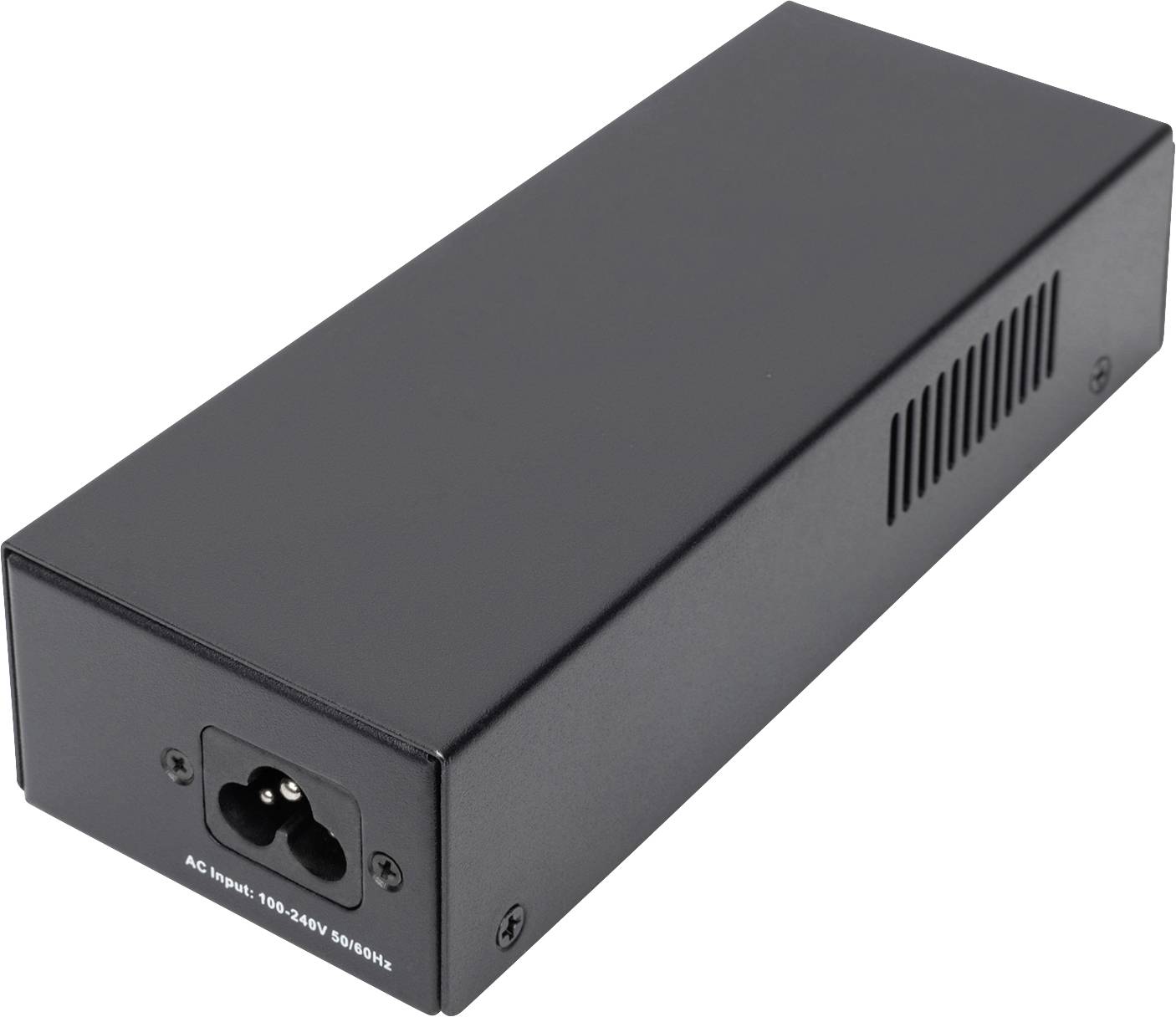

- Power supply 100 - 240 VAC / 50/60 Hz
- Total power consumption: 90 W max.
- PoE voltage 56 VDC / 1.5 A.
- Pin assignment: Mode A: V+ (RJ45 pin 3, 6), V- (RJ45 Pin1, 2) / Mode B: V+ (RJ45 pin 4/5), V- (RJ45 pin 7/8)
- Operating temperature: 0 - 40°C
- Storage temperature: -10 ~ 70°C.
- Operating humidity: 5 - 95% (non-condensing)
- Dimensions 180 x 65 x 40 mm (LxWxH)
- Weight: 0.6 kg
- Ethernet speed: Gigabit
- Number of ports: 1
- PoE power budget 85 W.
- PoE standard: IEEE802.3bt (PoE++)
- Product type
PoE injector
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
IEEE 802.3bt
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
180 mm
- Height
40 mm
- Depth
65 mm
- Factory colour
Multicolour
- Weight
790 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2275132 Digitus DN-95109 PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W), IEEE 802.3bt
Description
The Digitus 802.3bt injector Compact, cost-effective and fully compliant with IEEE802.3bt. The simple solution for the remote power supply of wireless access points, IP security cameras, VoIP telephones, thin clients and other installations with PoE functionality. PoE+ /PoE++ compatible devices can be supplied with power and data via the network cable - a secure and reliable solution for extending the existing network infrastructure. The injector detects different PoE modes (A/B) - Plug & Play.
This text is machine translated.
This text is machine translated.
Features

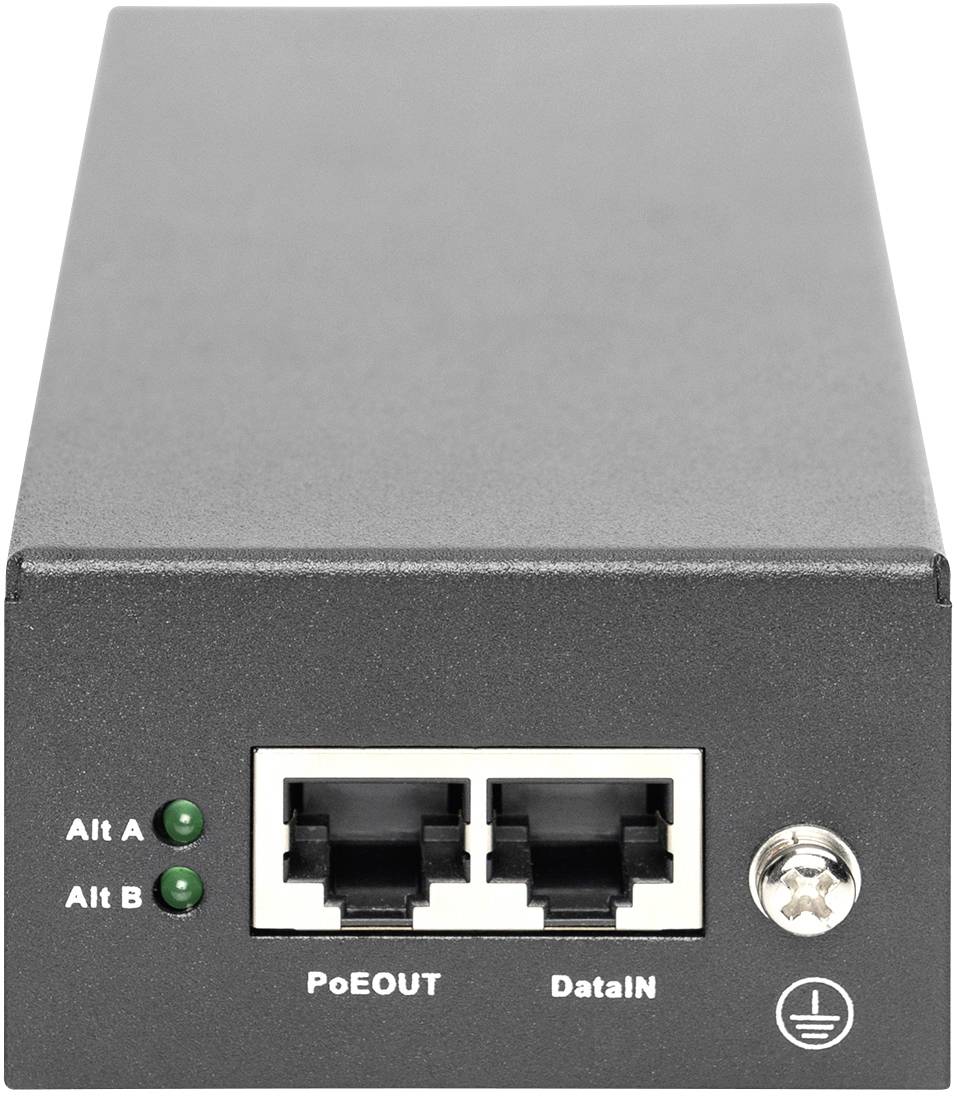

- PoE-Mode A & B, automatic switching
- LED-operating display
- Integrated power supply
- Overload and short-circuit protection
- Automatic detection of PoE-devices
Scope of delivery

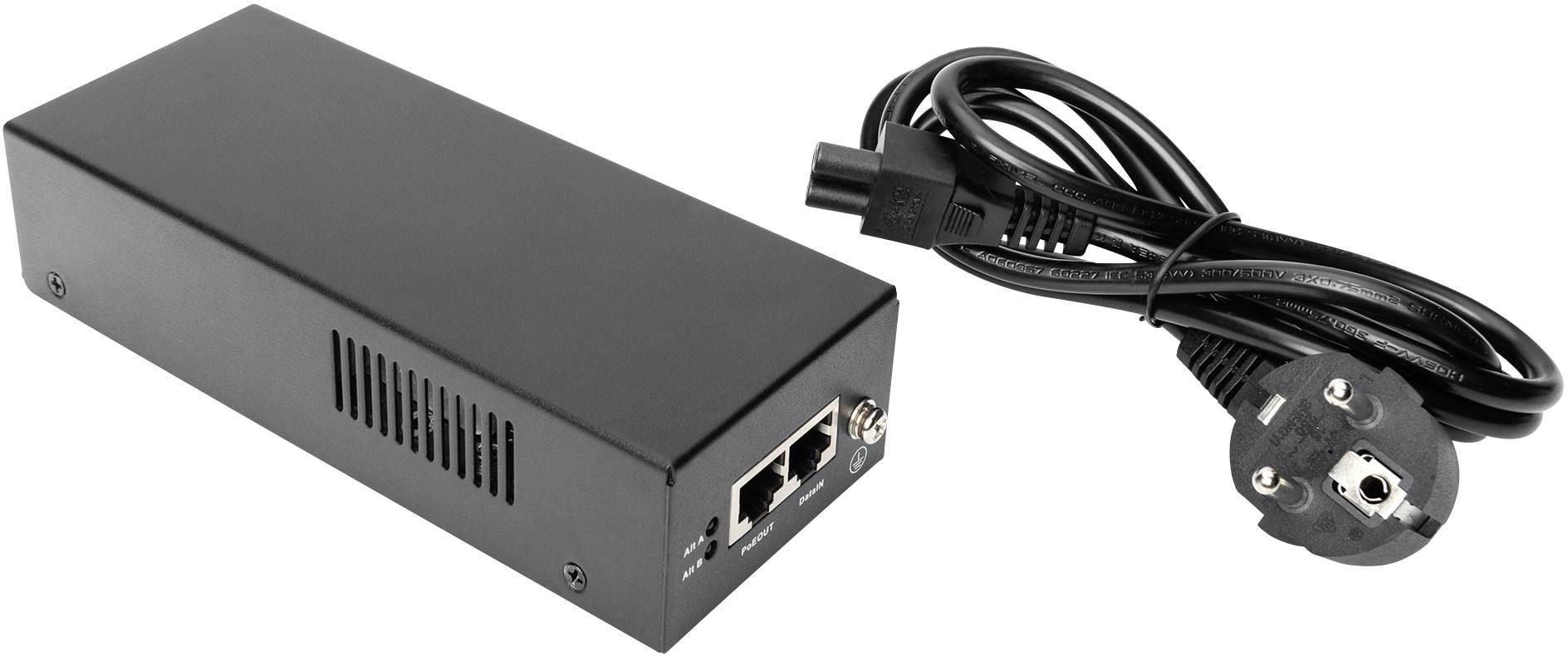

- Gigabit Ethernet PoE++ injector, 802.3bt, 90 W.
- Cold device cable (safety plug / socket IEC 5)
- Quick guide
