Digitus DN-95205 PoE splitter 10 / 100 / 1000 MBit/s IEEE 802.3at (25.5 W), IEEE 802.3af (12.95 W)
EAN:
Part number:
Item no:
Gigabit PoE+ at splitter, 10/100/1000 Mbps, 24W, input: 802.3at PoE, output: 5V/2A, 9V/2A, 12V/2A, black
Highlights & Details
- Gigabit Ethernet speed
- Fanless design provides for a quiet operation
- Requires no external power supply
- SELECTABLE OUTPUT VOLTAGES: 5V/2A, 9V/2A, 12V/2A
- Supports 5.5 mm as well as 3.5 mm power plug
Technical specifications
- Ethernet speed: 10/100/1000Mbps Gigabit half/full duplex
- PoE standard: IEEE802.3at
- Input: Current + data (RJ45)
- Output: Data (RJ45) + DC output
- Operating temperature 0 to 40°C.
- Dimensions (L x W x H) 80 mm x 55 mm x 23 mm
- Weight 80g
- Colour: Black
- Product type
PoE splitter

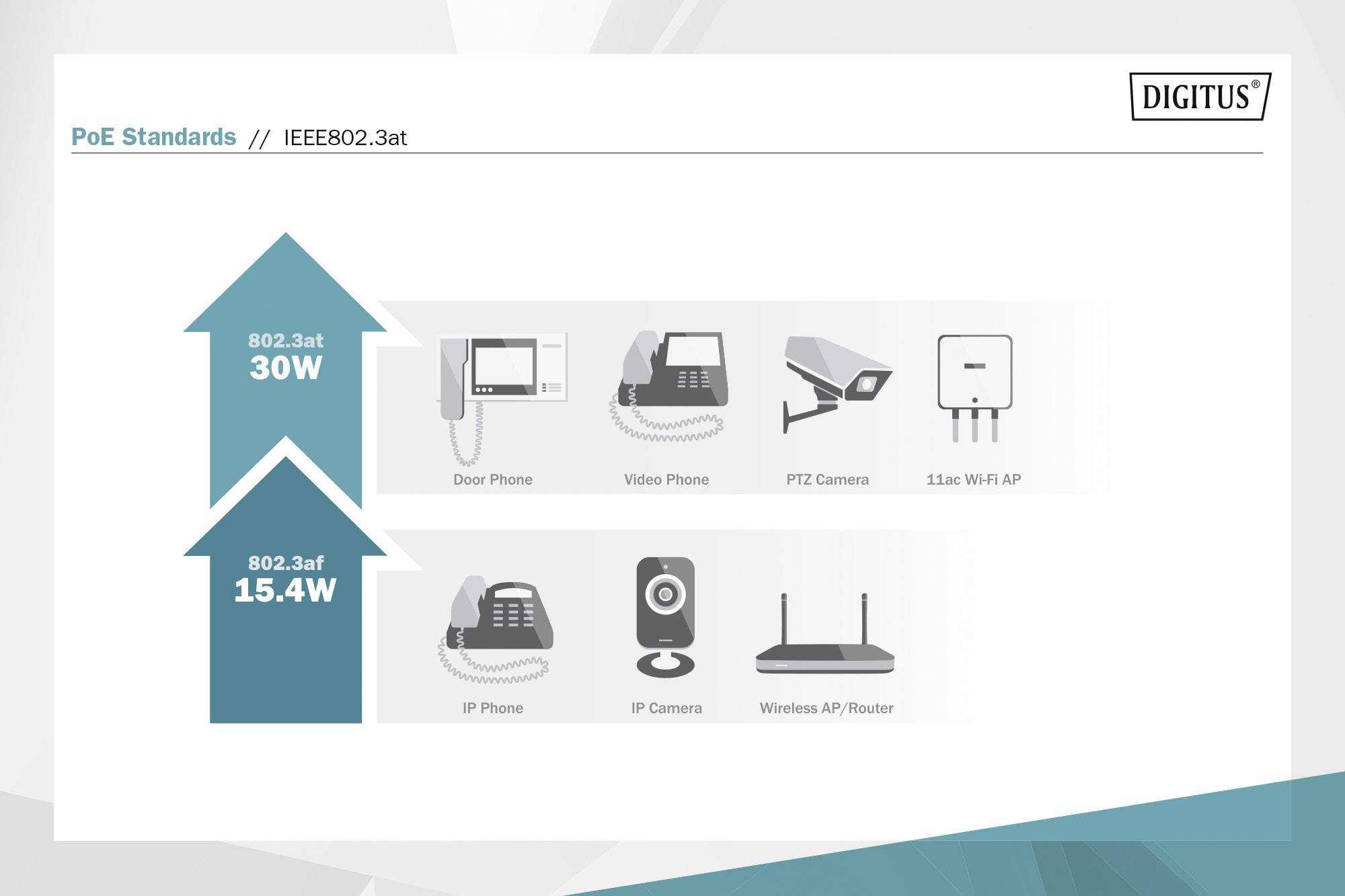

- PoE
IEEE 802.3at (25.5 W)
IEEE 802.3af (12.95 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
55 mm
- Height
23 mm
- Depth
80 mm
- Factory colour
Multicolour
- Weight
0.13
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1953791 Digitus DN-95205 PoE splitter 10 / 100 / 1000 MBit/s IEEE 802.3at (25.5 W), IEEE 802.3af (12.95 W)
Description

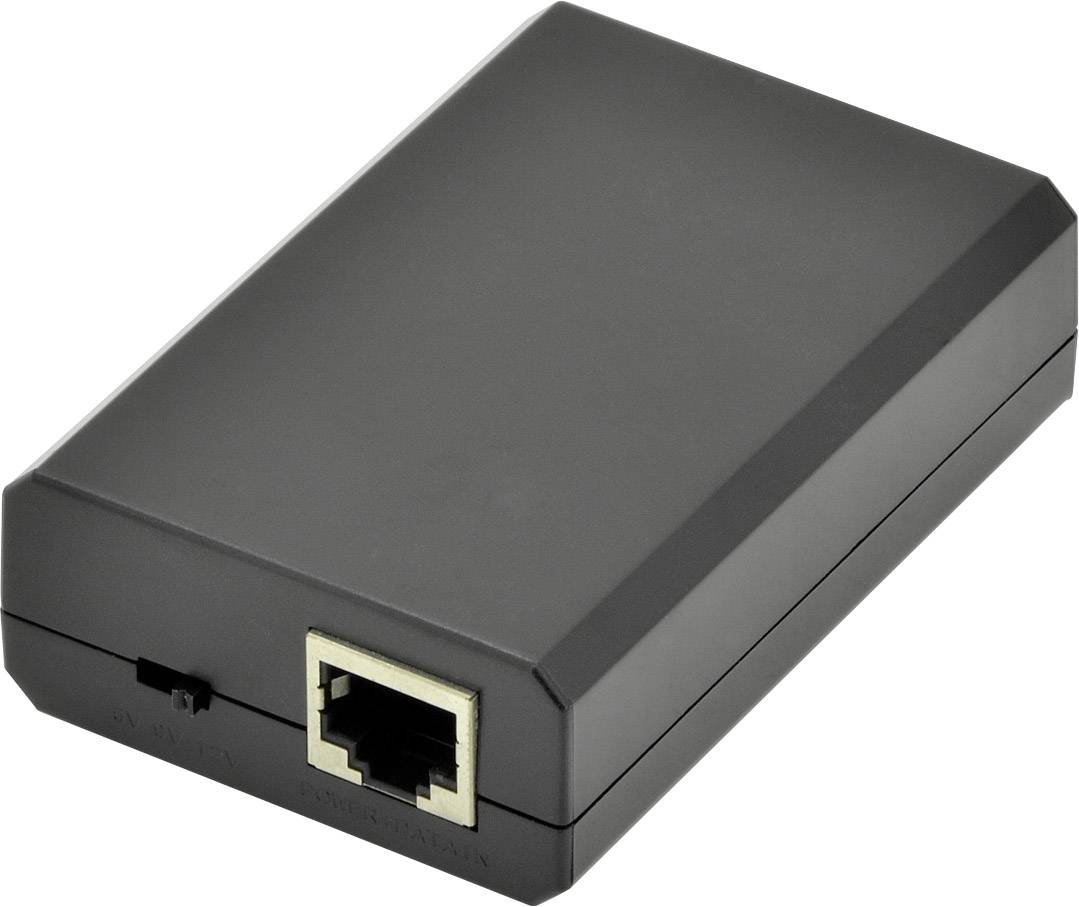

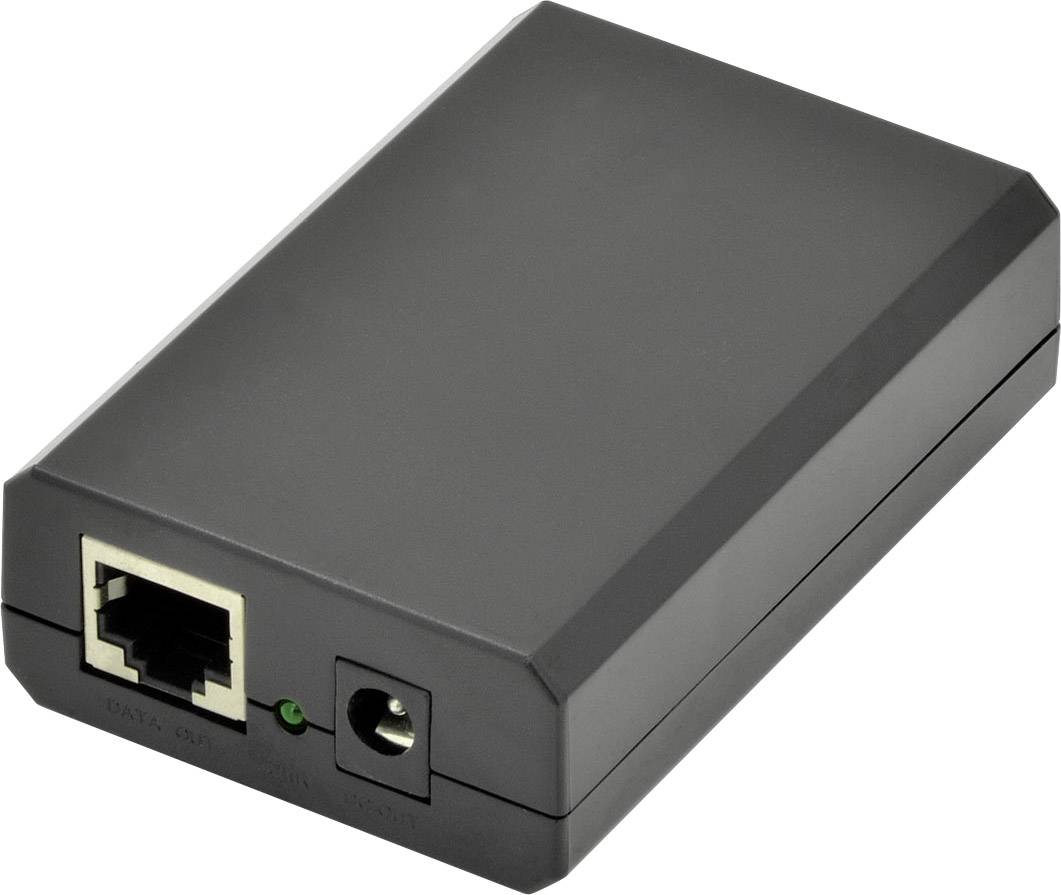

The DIGITUS Gigabit PoE Splitter supplies data and power via a single network cable to devices that do not support Power over Ethernet. Simply connect the input side of the splitter to a PoE switch or a PoE injector and the output side to a non-PoE-enabled network device, such as an access point, an IP telephone or an IP camera, in order to transfer power and data. The splitter is supplied with power via PoE (Power over Ethernet), so you do not need an additional power supply and can also use the device where there are no power lines or sockets. The output voltages can be set to 5V, 9V or 12V via a DIP switch. The splitter requires no configuration and thus guarantees a fast and seamless integration in your network.
This text is machine translated.
This text is machine translated.
Features
- Plug and Play installation - no configuration required
- SELECTABLE OUTPUT VOLTAGES: 5V/2A, 9V/2A, 12V/2A
- Splits the 48VDC input voltage via the RJ45 Ethernet cable into different DC output voltages
- Status LED on the device (PoE ready / PoE in use)
- Protection against overvoltage and short-circuit
- Maximum output power of up to 24 watts
- Supports an input voltage range from 34VDC to 57VDC
- Thermal shutdown in case of overheating

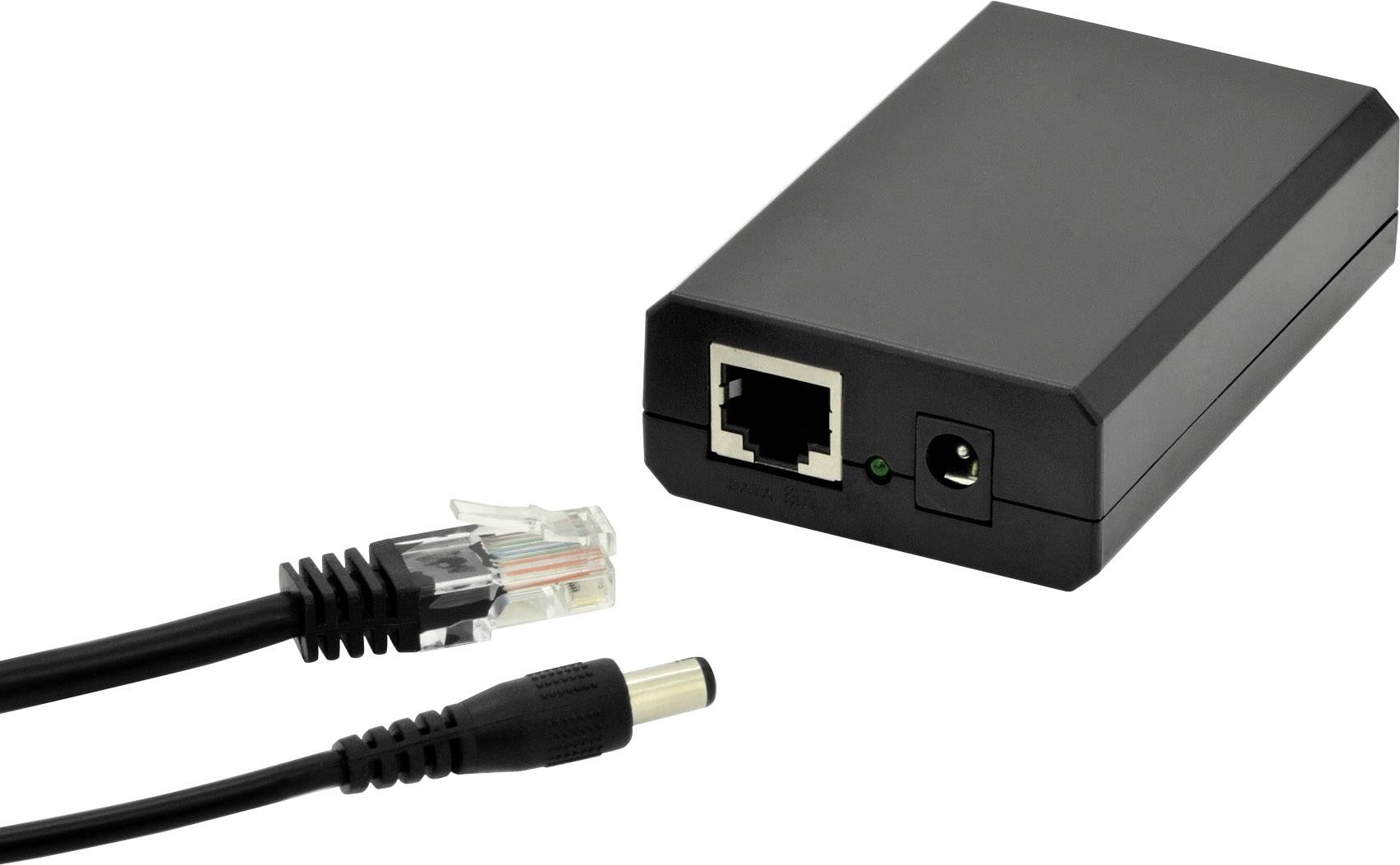

Scope of delivery
- Gigabit PoE Splitter
- User manual
- RJ45 Network cable
- DC power cable
- 3.5 mm power adapter
