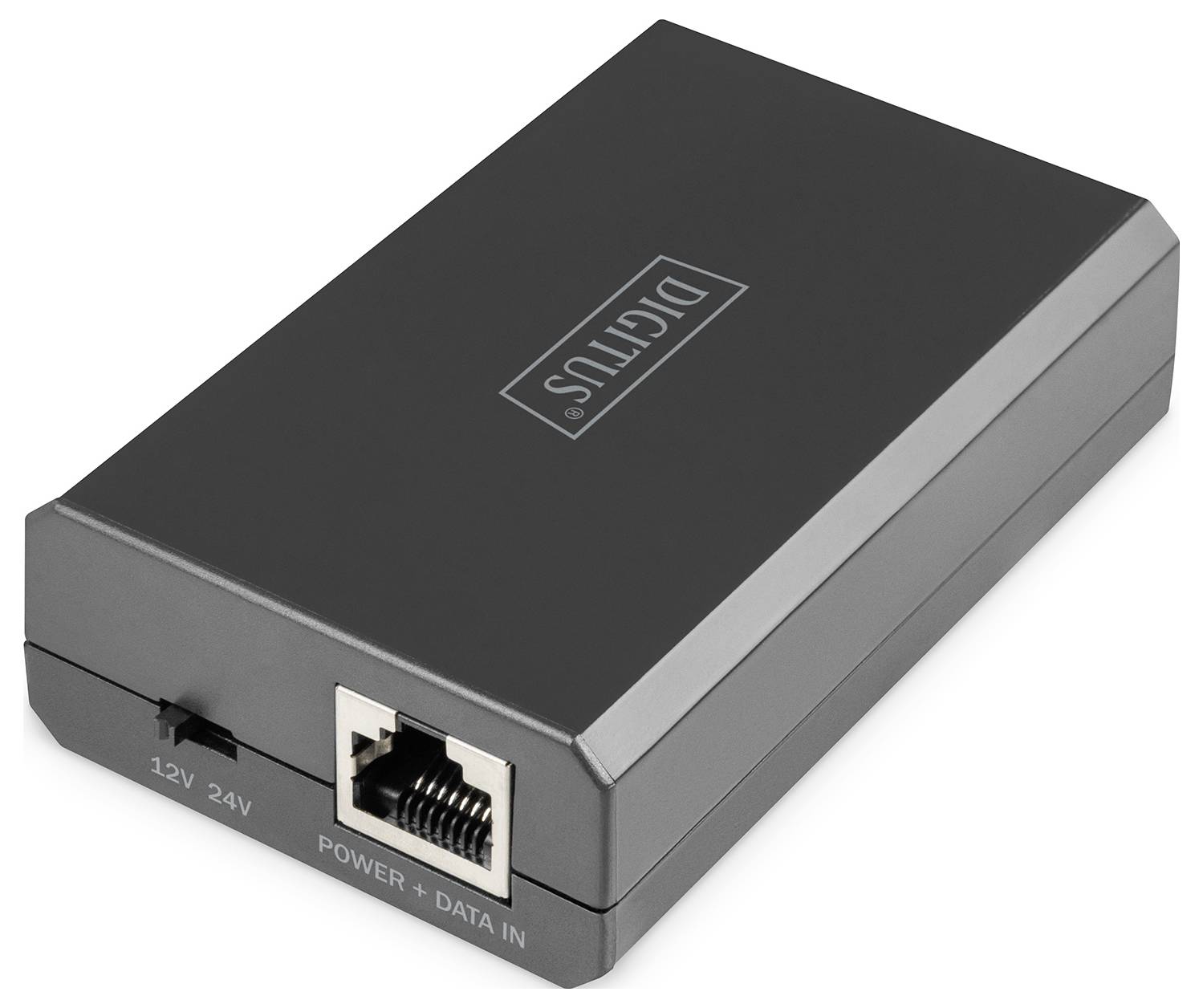

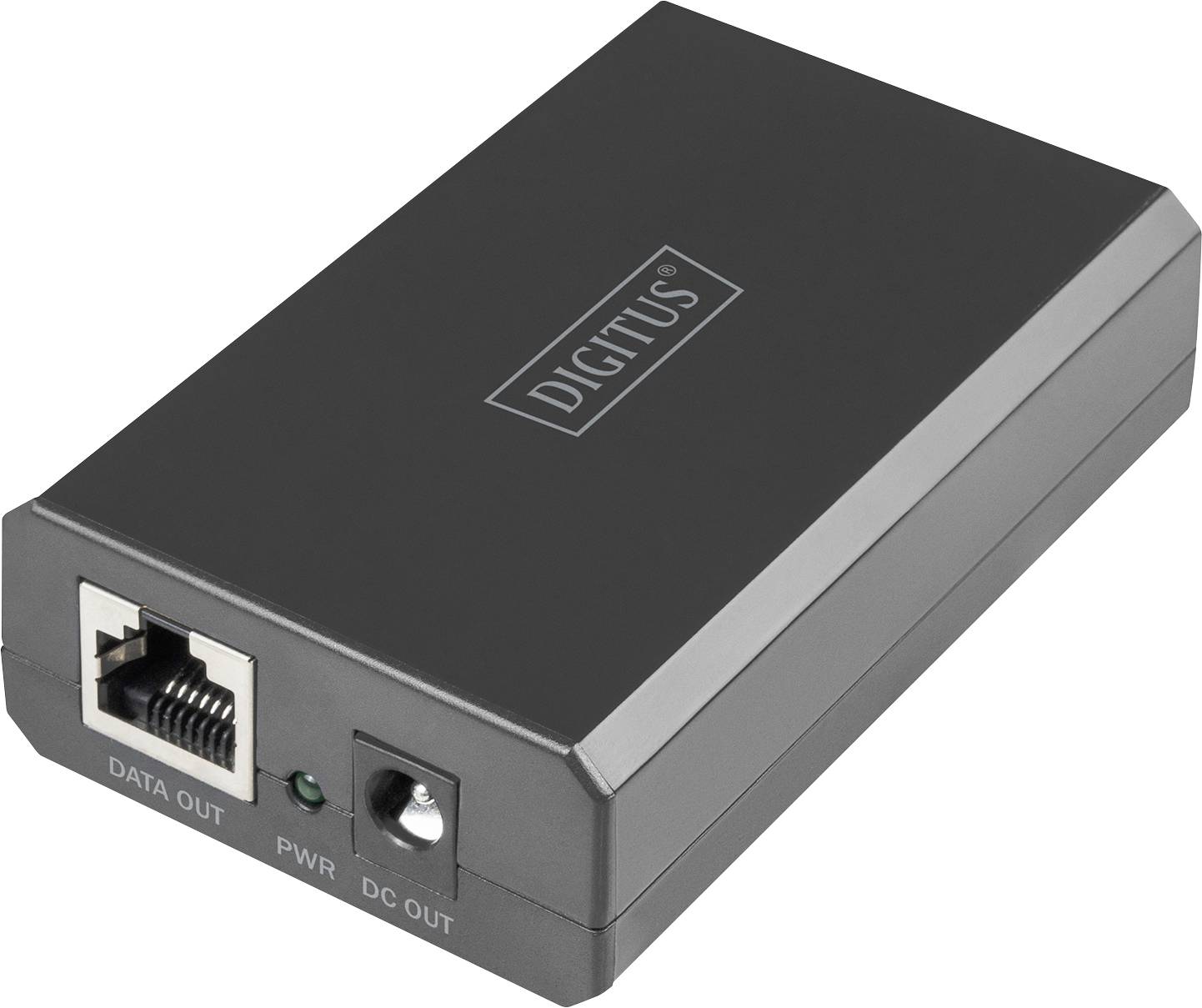

Digitus DN-95211 PoE splitter 10 / 100 / 1000 MBit/s IEEE 802.3at (25.5 W)
EAN:
Part number:
Item no:
Digitus Gigabit Ethernet PoE Splitter, 802.3bt, 51 W

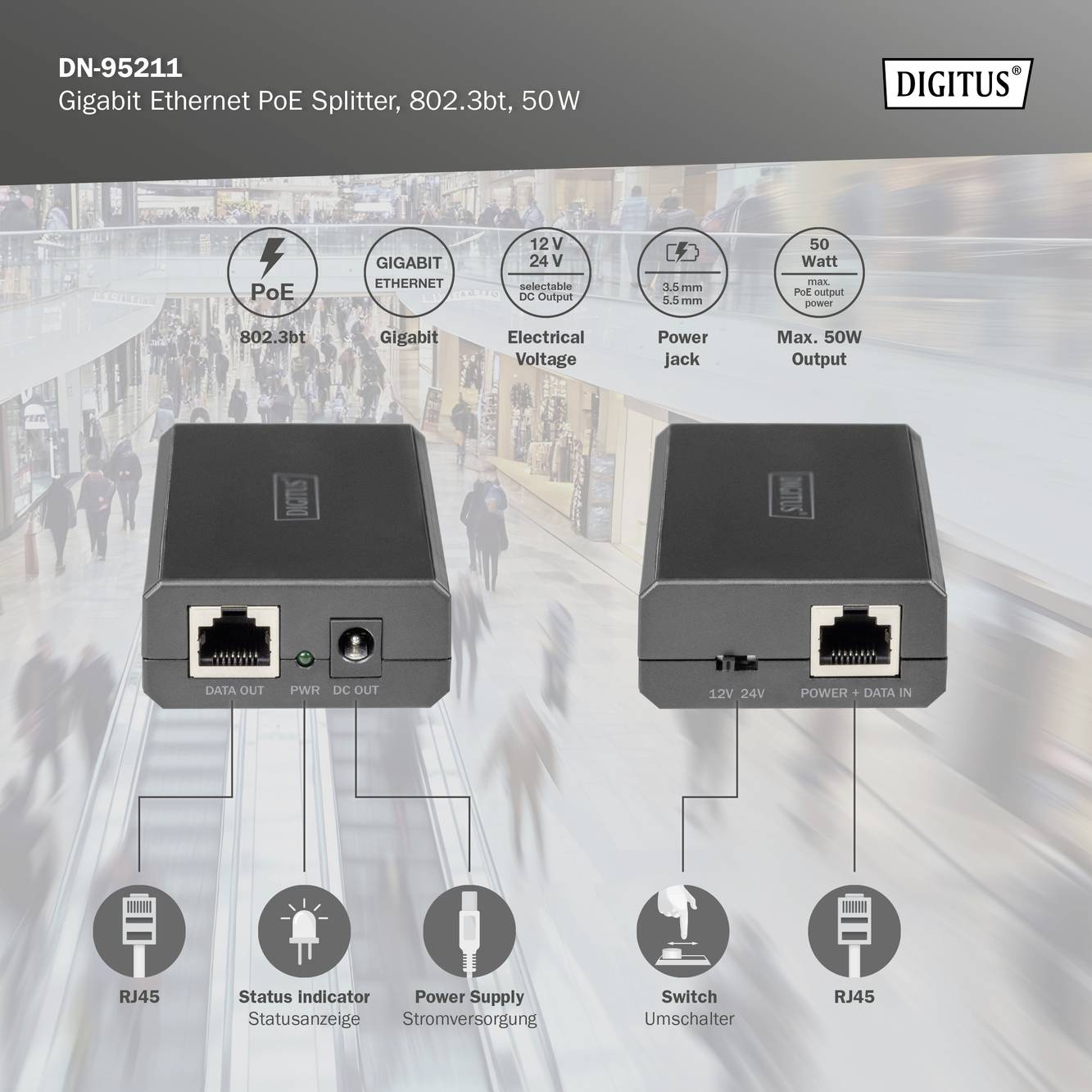

Highlights & Details
- Ethernet speed: 10/100/1000Mbps Gigabit half/full duplex
- PoE standard, IEEE 802.3at/bt
- Input: Power + data input (RJ45)
- Output: Data output (RJ45), DC-output
- Plug and Play installation - no configuration required
- Selectable output voltages: 12V/4.25A, 24V/2.125A,
- Splits the 48VDC power via RJ45 Ethernet cable into various DC outputs
- Status-LED at the device (PoE ready/PoE in operation)
- Protection by isolating the circuit
- Maximum output power up to 51W
Technical specifications
- Ethernet speed 10/100/1000 Mbps
- Selectable output voltages:12V/4.25A, 24V/2.125A
- Maximum output power up to 51W
- Supports a wide input voltage range from 36VDC to 57VDC
- Operating temperature 0 to +40°C.
- Dimensions (L x W x H) 80 x 55 x 23 mm
- Weight 80g
- Number of ports: 1
- Product type
PoE splitter
- PoE
IEEE 802.3at (25.5 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Factory colour
Multicolour
- Weight
0.14
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3333866 Digitus DN-95211 PoE splitter 10 / 100 / 1000 MBit/s IEEE 802.3at (25.5 W)
Description

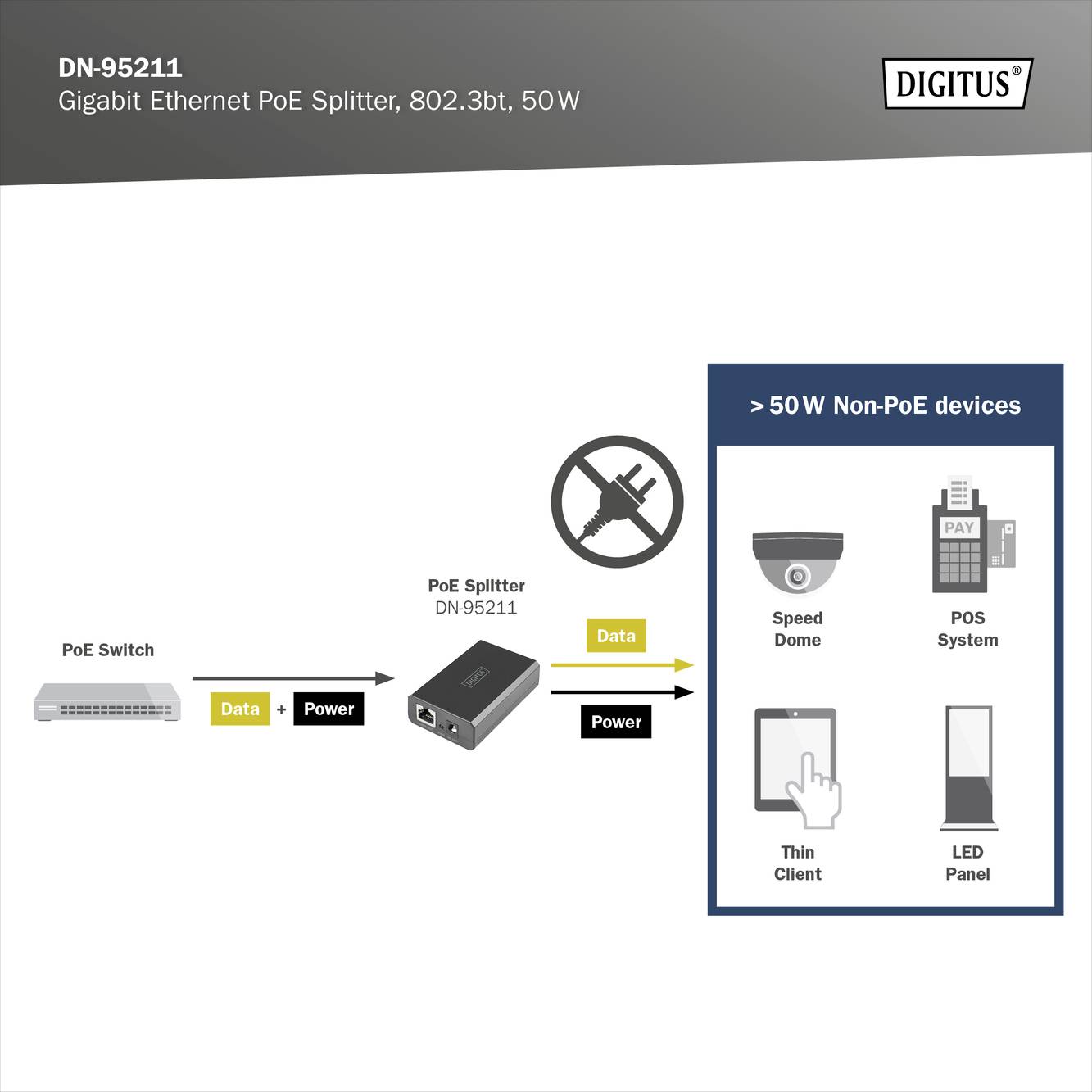

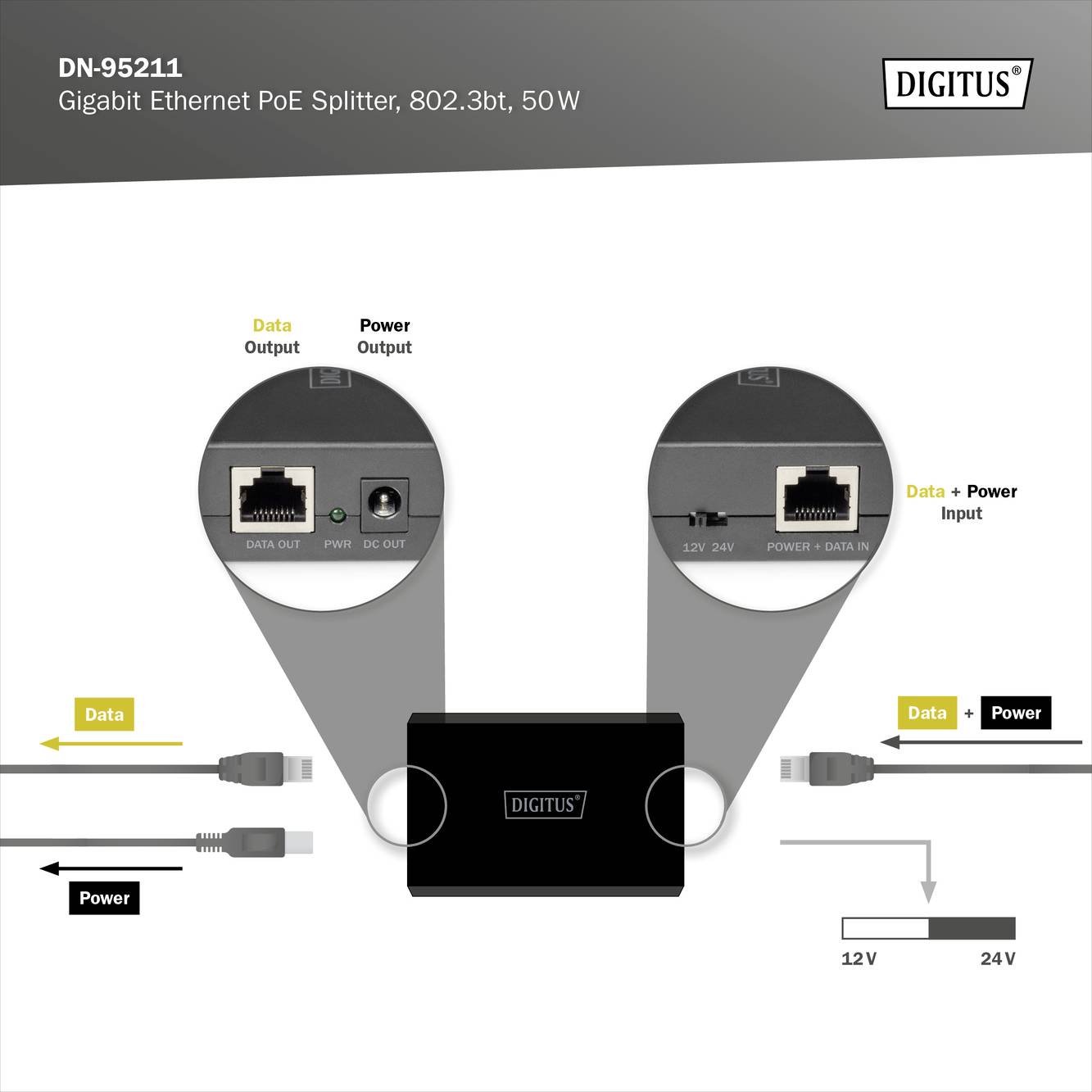

The PoE splitter supplies data and power via a single Ethernet cable to devices that do not support Power over Ethernet. Simply connect the input of the splitter to a PoE switch or PoE injector and the output side to a non-PoE network device, such as an Access Point, IP-telephone or a camera, in order to provide power and data. The Extender is supplied with power via PoE itself, so that no additional power supply is necessary. The output voltage can be regulated to 12V or 24V using a dip switch. Thus, this splitter extends your network there, where you would like to place network devices, for which no plug sockets are available.
This text is machine translated.
This text is machine translated.
Features
- Plug and Play installation - no configuration required
- Splits the 48VDC power via RJ45 Ethernet cable into various DC outputs
- Status-LED at the device (PoE ready/PoE in operation)
- Protection by isolating the circuit
- Thermal cutoff
- Colour, black
- Industrial use: No.

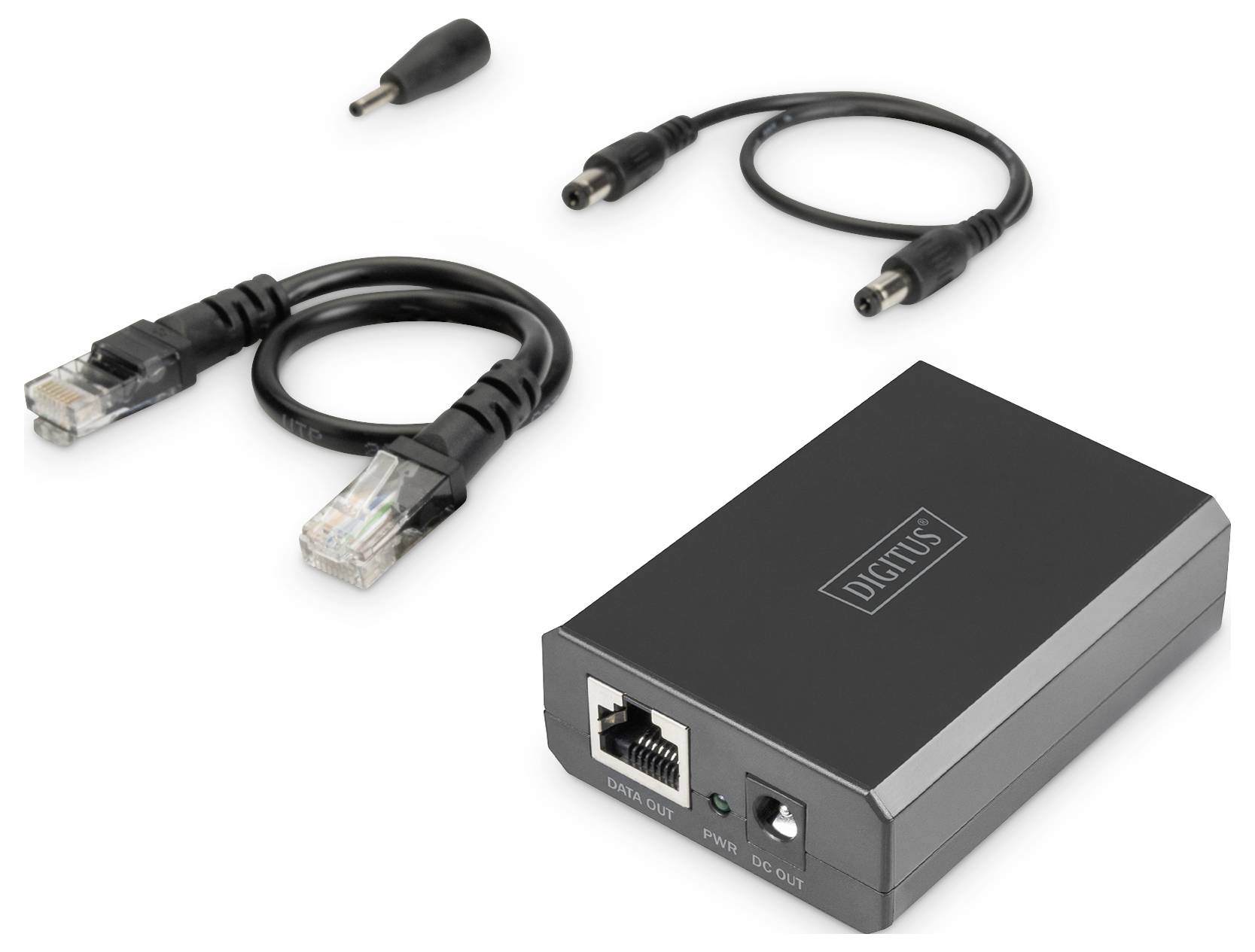

Scope of delivery
- 1x QIG
- 1x RJ45 Ethernet cable
- 1x DC power cable
