Buy Digitus DN-95340 DN-95340 Network switch 8 ports 1 GBit/s PoE

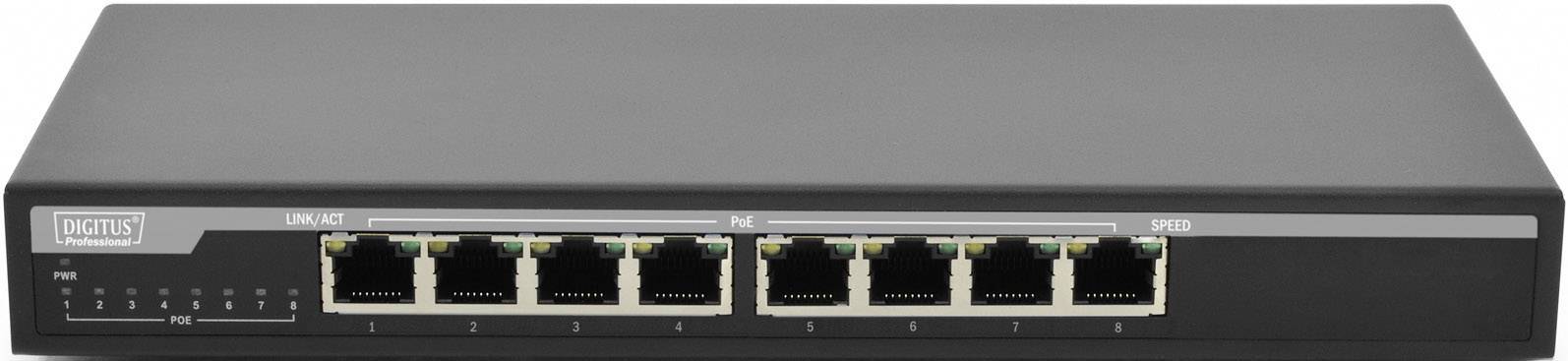

A black network switch with eight Ethernet ports, four of which are marked as 'PoE' (Power over Ethernet).

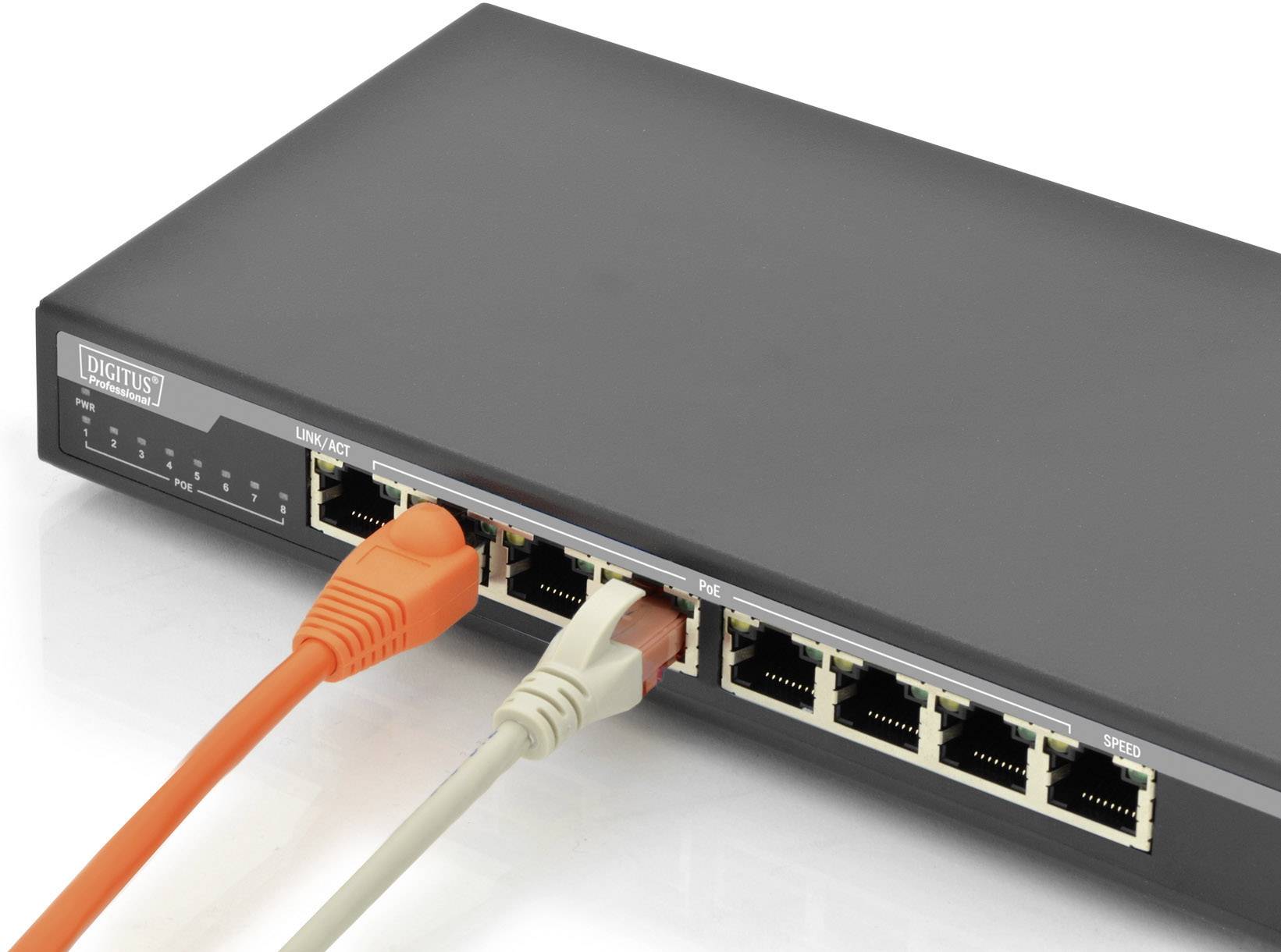

A network switch with multiple Ethernet ports, two of which are connected with orange and grey cables.

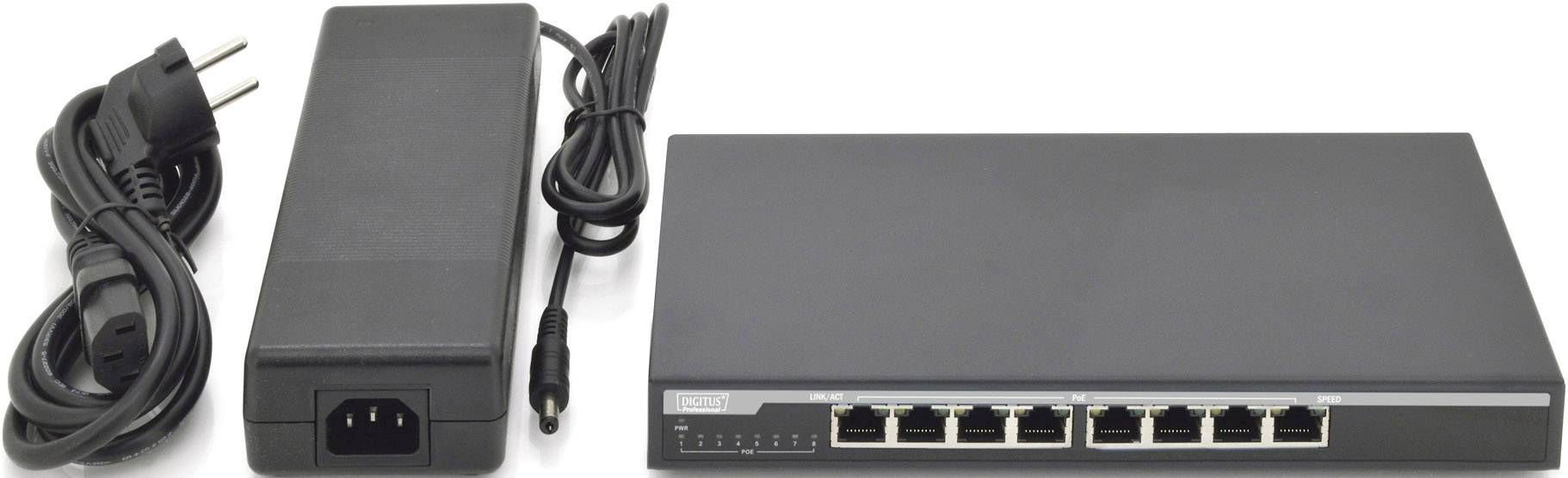

A black Ethernet switch with eight ports, alongside a network adapter with cable and a power cable.

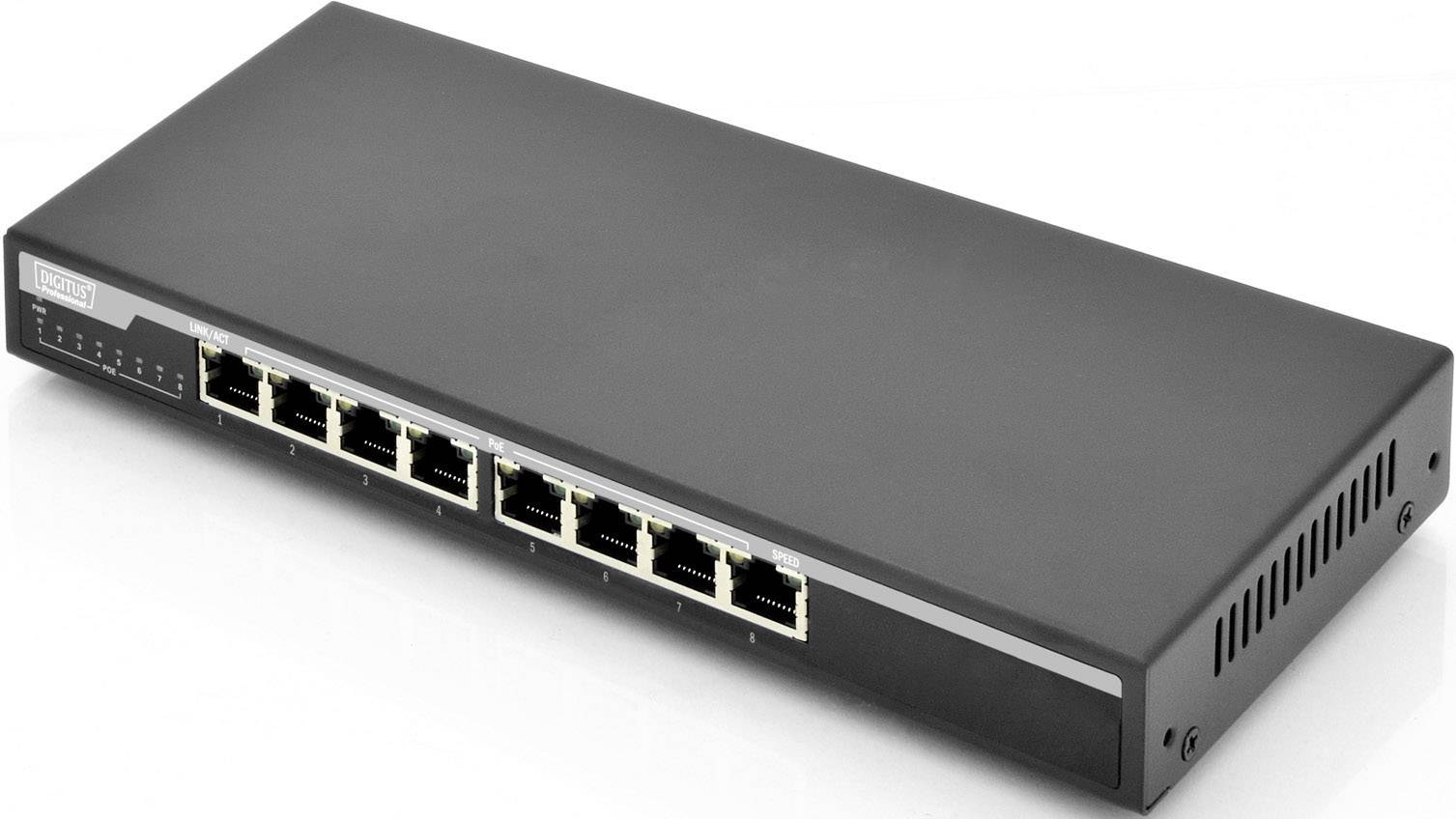

A black network switch with eight Ethernet ports, suitable for connecting multiple devices in a local area network.

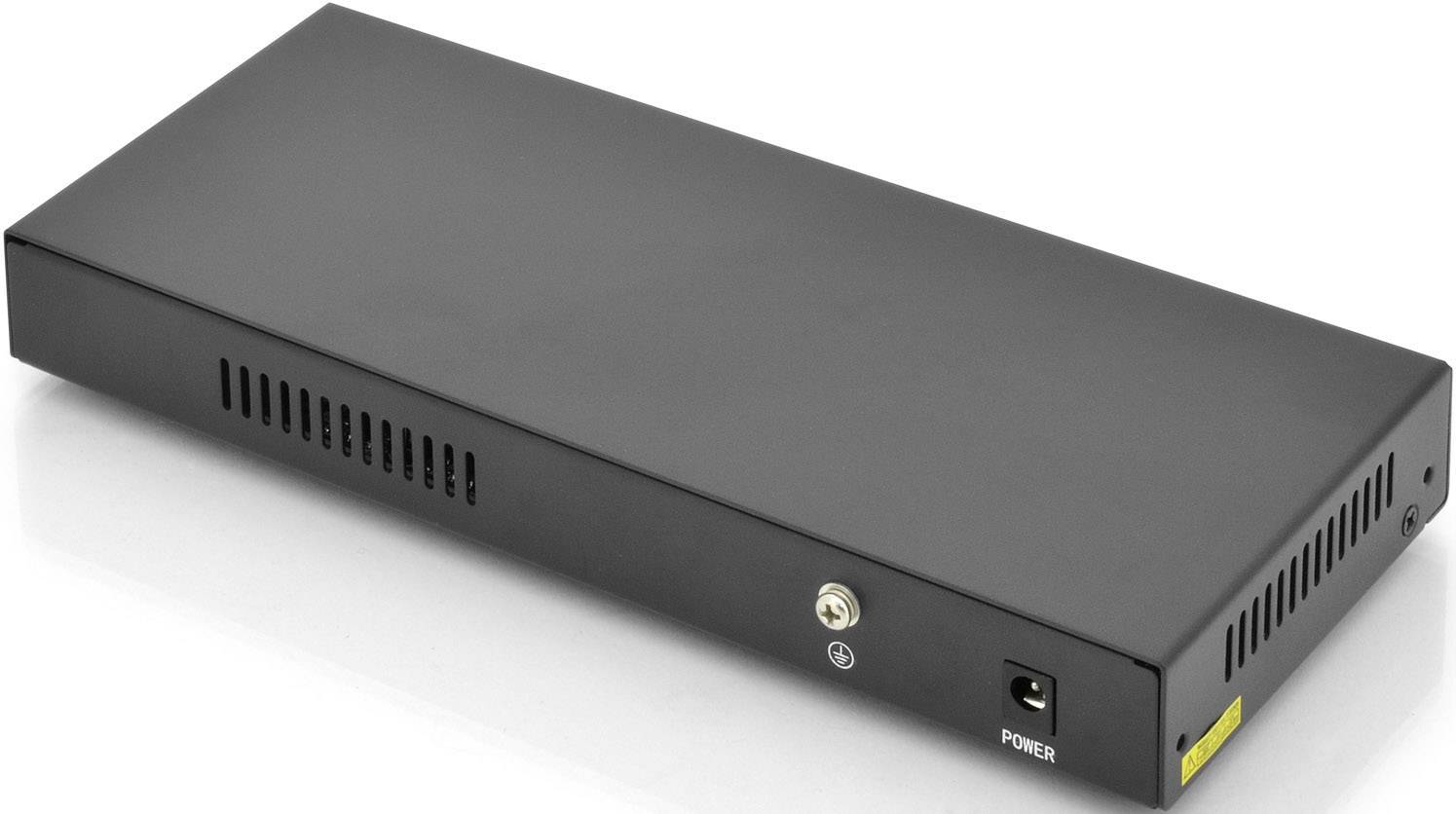

A rectangular, black electronic device with a power connection and ventilation slots.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Gigabit Desktop PoE af/at 8-Port Switch, 10/100/1000 Mbps, 135W PoE Power Budget, metal housing

8-Port 10/100/1000 Mbps PoE Gigabit Desktop Switch
Ethernet IEEE 802.3 / 802.3u/802.3x/IEEE802.3af/at
Power over Ethernet (PoE) you only need a cable for power and data transfer

Technical specifications

PoE total power: 131 watts (1-8 port)
PoE support: Port 1-8
Maximum output power: 135 watts (with power supply)
PoE Pin: V + (RJ45 pin 1, 2) V-(RJ45 pin 3, 6)
Backplane: 16 Gbps
MAC Address Table: 4K

Product type: Network switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 1 GBit/s

10/100/1000 Mbps ports: 8 x

Router features: PoE

Weight: 600 g

Width: 115 mm

Height: 39 mm

Type: DN-95340

Interfaces: RJ45

Factory colour: Multicolour

Port: 8 ports

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1516000 Digitus DN-95340 DN-95340 Network switch 8 ports 1 GBit/s PoE

Description

The DIGITUS 8-Port Fast Ethernet Switch with eight Power over Ethernet ports as well as an additional uplink port, offers a noticeable improvement in your network performance and efficient. Thanks to PoE support, you only need a single cable (network cable) for the current and data transfer. This allows you to expand your network also there, where no power cables or sockets are available. This saves time and allows, for example, a simple and fast installation of Access Points, network cameras or IP phones. The switch does not require any configuration and thus guarantees a quick and seamless integration into the network. In addition, the switch, thanks to the fanless design, perfectly in office environments or conference rooms.

This text is machine translated.
