Buy Digitus DN-95347-2 DN-95347-2 19" switch box 16 ports 10 / 100 / 1000 MBit/s PoE

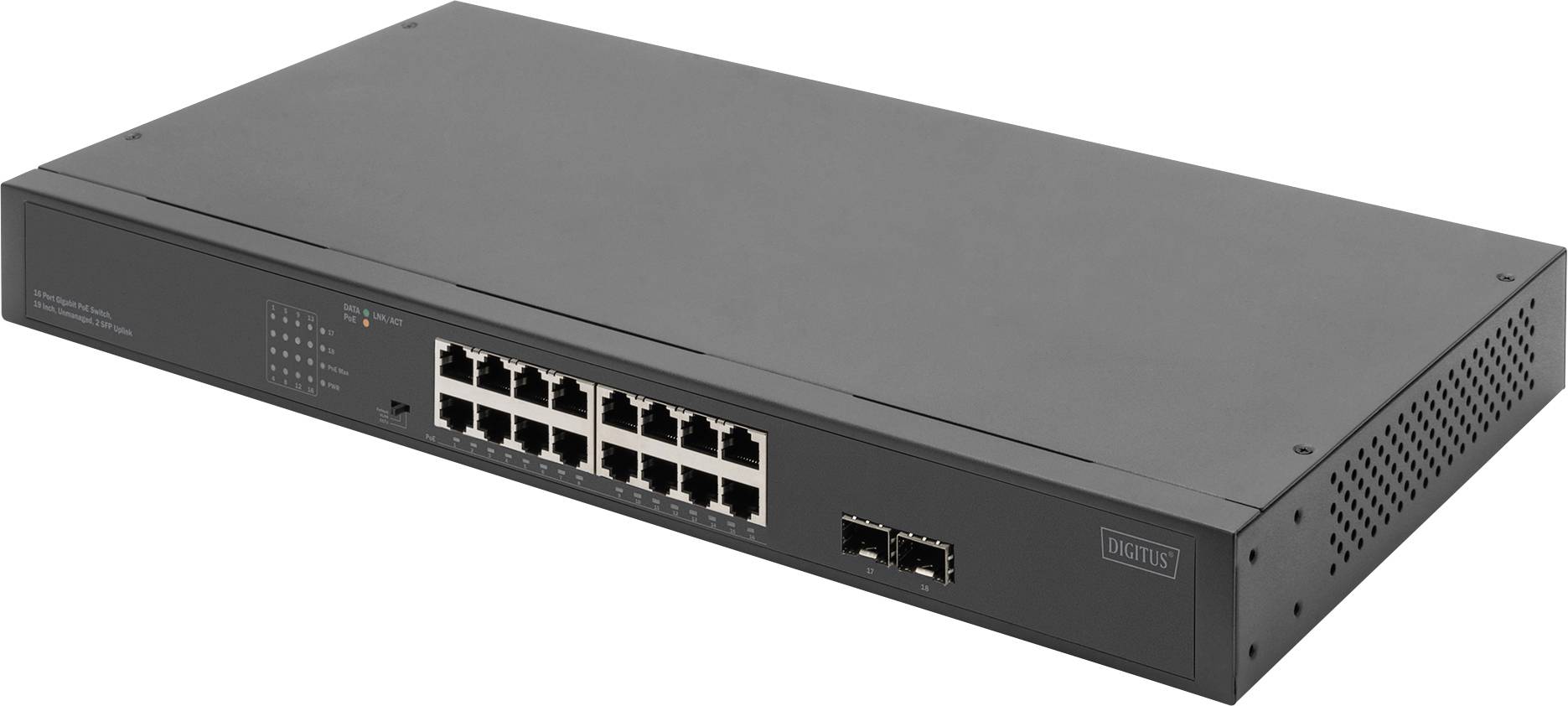

A black network switch with 16 Ethernet ports, LED indicators and two SFP ports. Suitable for office network connections.

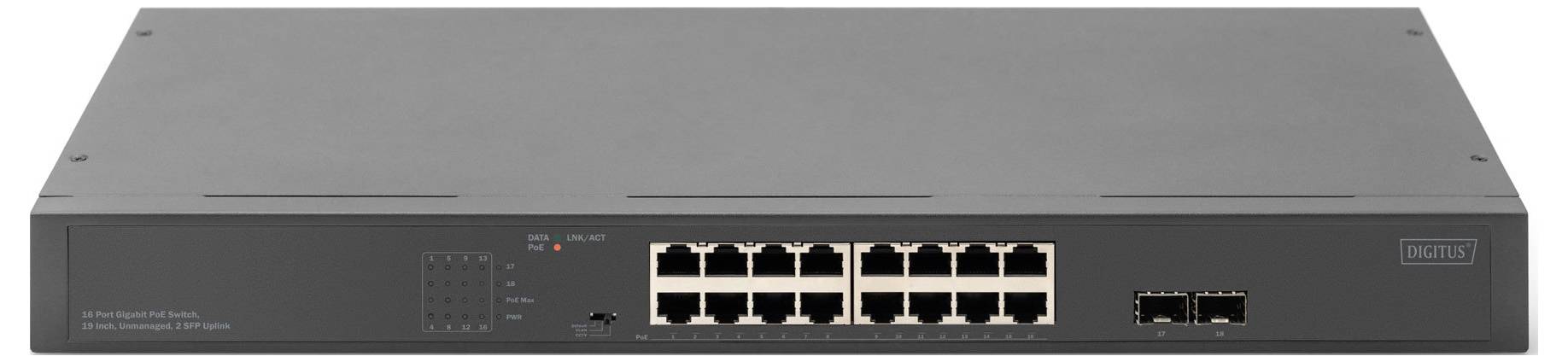

A black network switch with sixteen Ethernet ports and multiple LED indicators for status monitoring.

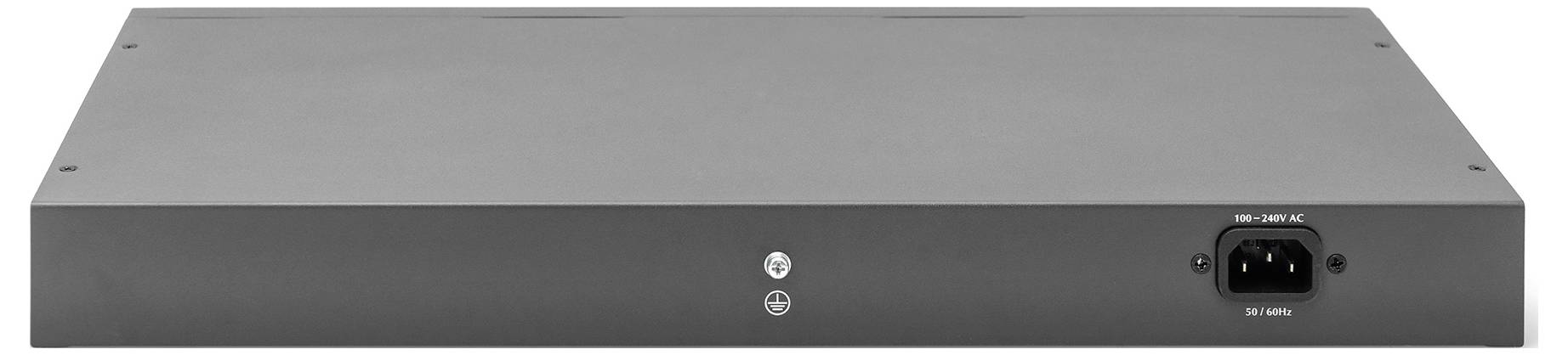

A rectangular, flat electronic device shows its rear side with a power cable socket and two ventilation slots.

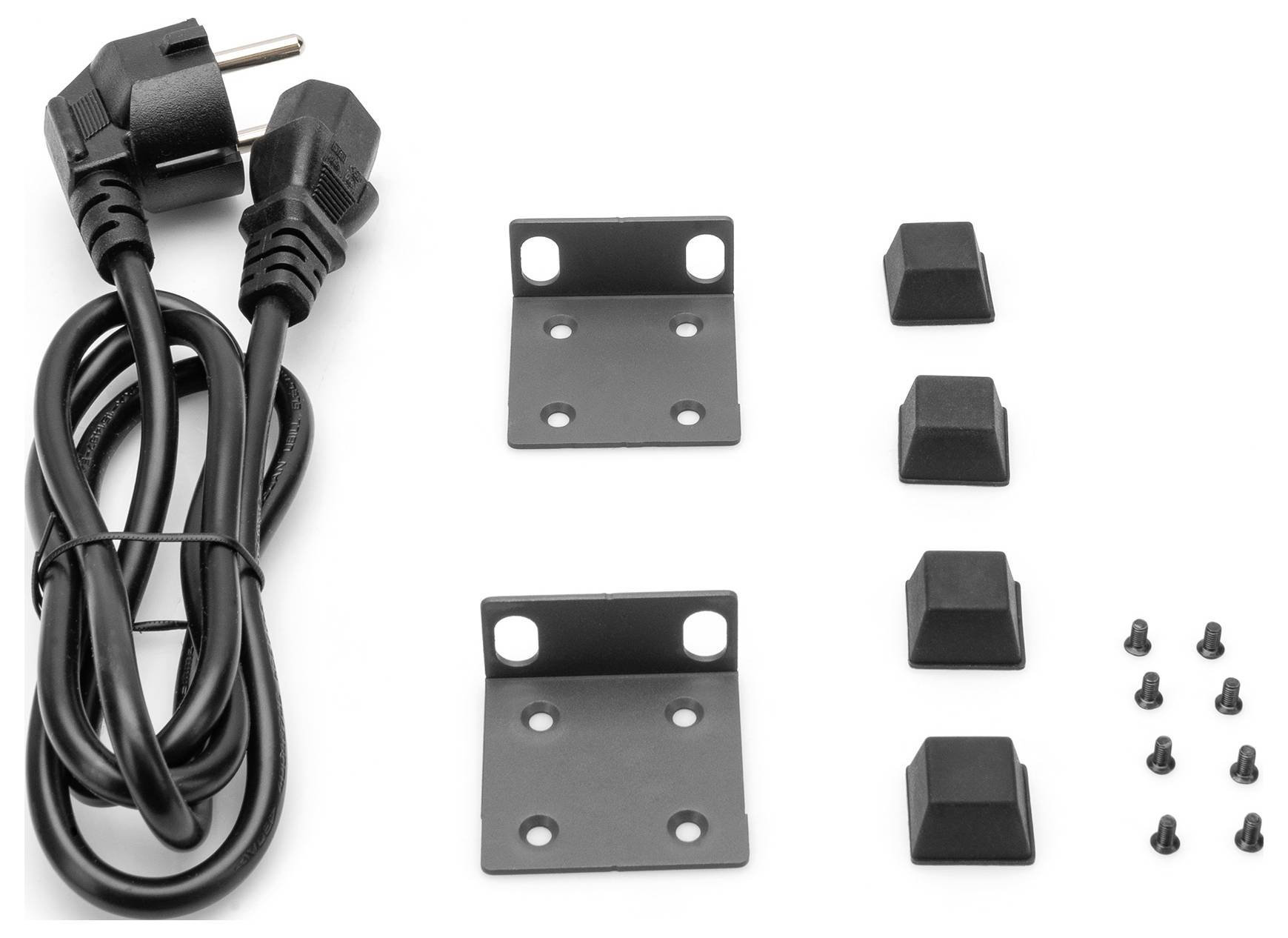

'The illustration shows a power cable, two metal brackets, four rubber feet, and ten screws. These are intended for assembly or mounting.'

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus 16-port gigabit network switch, 19", unmanaged, 2 uplink ports, SFP

Highlights & Details

Supports IEEE802.3af/at standard
Single port output power up to 30 W
Automatic detection and identification of standard PoE receivers, intelligent power supply
Supports port power prioritization for key nodes
Supports VLAN

Technical specifications

Single port output power: Up to 30 W
PoE standard, IEEE802.3af/at
PoE-connection: Connection 1~16
PSE power supply via RJ-45: Mode A 1/2(+), 3/6(-)
PoE port output voltage: 55V DC 30W Max
PoE power budget: 250W
Power supply 260 W
Input power supply: 100 – 240 V AC, 50 Hz
Switching capacity: 36Gbps
MAC address table: 8K, Auto-Learning, Auto-Aging
Jumbo frames: 9216 bytes
Packet buffer: 4.1Mbit
Forward rate: 26.78Mpps
Operating temperature: 0°C ~ 40°C
Storage temperature: -40°C…70°C
Operating humidity: 10%~90% RH non-condensing
Humidity during storage: 5%~90% RH, non-condensing
Dimensions (LBH):44020744mm
Fans Number: 2
Industrial use: No.

Product type: 19" switch box

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 16

PoE ports: 16

SFP ports: 2 x

10/100/1000 Mbps ports: 16 x

Port type: RJ45

Auto-uplink at each port: No

Jumbo frames: Yes

Router features: PoE

Power supply (LOV): mains-powered
via mains outlet

Weight: 3170 g

Width: 500 mm

Height: 320 mm

Depth: 75 mm

Type: DN-95347-2

Rack size: 483 mm (19")

Interfaces: RJ45
SFP

Factory colour: Black

Operating voltage: 230 V

Current consumption: +260 W

Max. ambient temperature: 40 °C

Min. ambient temperature: 0 °C

Port: 16 ports

UKCA: yes

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3384339 Digitus DN-95347-2 DN-95347-2 19" switch box 16 ports 10 / 100 / 1000 MBit/s PoE

Description

The DN-95347-2 PoE-switch offers an excellent solution for the efficient power supply of network components, which support the IEEE802.3af/at standard. With an impressive single port output power of up to 30W, it enables the reliable supply of PoE-enabled devices. Automatic detection and identification of standard PoE receivers make power smart and prevent potential damage from non-standard or conventional devices. By prioritization of the port power supply the module ensures a continuous power supply for critical network node points. The panel displays provide convenient monitoring of the work status and support in fault analysis. The module also supports VLAN and CCTV features to maximize flexibility in network applications. With the flow control for full-duplex operation and backpressure for half-duplex operation the module optimizes the data transmission efficiency. In all, the DN-95347-2 PoE-switch offers a powerful, intelligent and reliable solution for the power supply of network components, which justifies the today's requirements on modern network infrastructures.

This text is machine translated.

Features

Panel displays monitor the work status and assist in fault analysis
Flow control for full-duplex operation and backpressure for half-duplex operation
Energy-efficient Ethernet (EEE) support (IEEE802.3az)
Key supply: VLAN
Forwarding mode: Storage and forwarding
