Digitus DN-95410-R 19 inch Server rack cabinet power strip 1 U PG socket Aluminium rail Red
EAN:
Part number:
Item no:

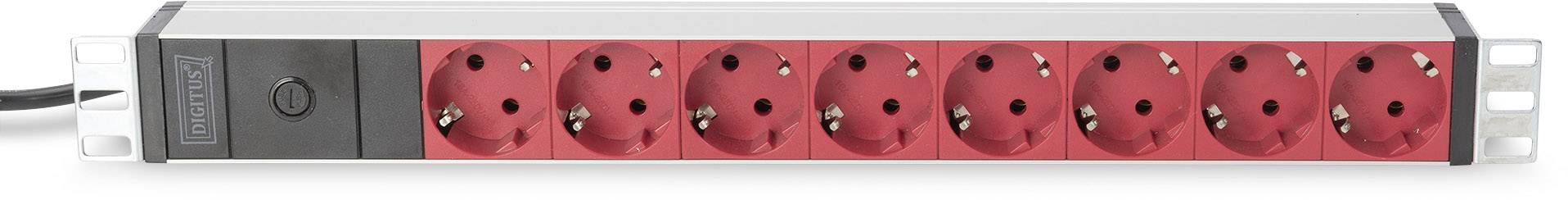

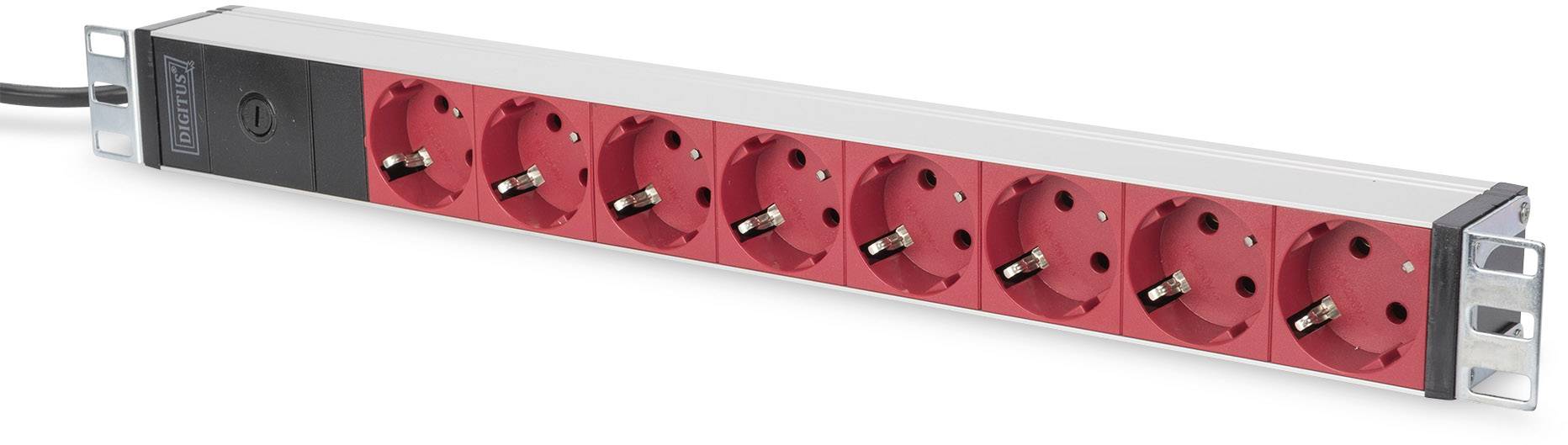

19" server rack cabinet power strip, 1U, earthing contact sockets, Digitus DN -95410-R, red
Highlights & Details
- 8 x protective contact sockets
- Fusing
- Outputs by 35 ° turned
- IEC C14 plug
- Red wires.
Technical specifications
- Product type
Server rack cabinet power strip
- Features
Aluminium rail
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Socket type
PG socket
- Outlets
8
- Voltage (max.)
250 V AC
- Dim
(L x W x H) 2 m x 45 mm x 45 mm
- Amperage
10 A
4000 W
- Cable length
2.00 m
- Material
Aluminium
- Content
1 pc(s)
- Factory colour
Red
- Width
45 mm
- Height
45 mm
- Depth
460 mm
- Length
2 m
- Rack size
483 mm (19")
- Weight
0.918
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1604442 Digitus DN-95410-R 19 inch Server rack cabinet power strip 1 U PG socket Aluminium rail Red
Description
The DIGITUS socket strips are the perfect solution for your 19" network or server cabinet. For the cabinet mounting offer you the DIGITUS socket strips with 220-240 V at 50-60 Hz the best performance with a suitable utilization. The supplied 19" mounting material provides for an optimum mounting on the rails of your cabinets. Each power strip can be mounted vertically and horizontally and it is possible, depending on the schranktyp the power strip with the taps upwards or downwards. With the IEC C14 plug the power strip, the devices with a power consumption of up to 16 A can be connected, but dissolves the installed fuse, as soon as a consumer is more than 10 A is required.
This text is machine translated.
This text is machine translated.
Features
- Perfect power source for your 19" housing
- Sockets are around 35° rotated, this offers an optimal space management and an easy access
- 8 x red sockets 250 VAC 50/60 Hz/16 or 10 A/4000 W
- Aluminum profile
- Includes 2 Metal brackets
- IEC C14 plug
- Fusing
- Wire cross-section: 16 mm²
- Halogen-free: yes
- Surface: anodised/anodised
- Design of the surface: mat
- Degree of protection (IP) IP20
- Twisted Central Application: yes
- Angle twisted central application: 35°
Scope of delivery
- Aluminum socket strip
- Metal brackets for 19" installation
