Digitus DN-95421 PoE kit 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W), IEEE 802.3bt
EAN:
Part number:
Item no:
Highlights & Details
Indoor DIN PoE surge protector
- Protects your network devices against surges up to 10kVGigabit network support (10/100/1000Mbps)Supports PoE standards up to PoE++ (IEEE802.3af/at/bt)
Technical specifications
- Input port: 1 x RJ45, shieldedOutput port 1 x RJ45, shieldedOvervoltage protection: Common mode: 10kV / Differential mode: 1.5kVSupported data transfer rates: 10/100/1000Mbps (IEEE802.3, IEEE802.3u, IEEE802.3ab)Supported PoE standards: IEEE802.3af/at/btMaximum voltage for PoE use: 60VDC (120W max)Leakage current: 10kA(8/20µs, 1.25kA per wire)Protected wires: 1-8Common mode protection level: (10/700µs) 10kVDifferential mode protection level: (10/700µs) 1.5kVInsertion loss: -1dbReturn loss -20dBResponse time: 5 nsGrounding is done via the DIN railOperating temperature: -40°C to 85°COperating humidity: 20% - 80% RH (non-condensing)Operating altitude: 2000m max.Casing: Zinc alloyColour: grey.Mounting: DIN rail (35mm DIN rail)Protection class: IP40Dimensions 77.2 x 45 x 19 mm (HxTxW)Weight: 115 gManufacturer's note: For effective protection, the Surge protector must be connected to a grounded conductor.Industrial use: no.
- Product type
PoE kit
- PoE
IEEE 802.3af (12.95 W)
IEEE 802.3at (25.5 W)
IEEE 802.3bt
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
100 mm
- Height
45 mm
- Length
19 mm
- Depth
77 mm
- Factory colour
Grey
- Wireless charging
No
- Weight
150 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2528893 Digitus DN-95421 PoE kit 10 / 100 / 1000 MBit/s IEEE 802.3af (12.95 W), IEEE 802.3at (25.5 W), IEEE 802.3bt
Description

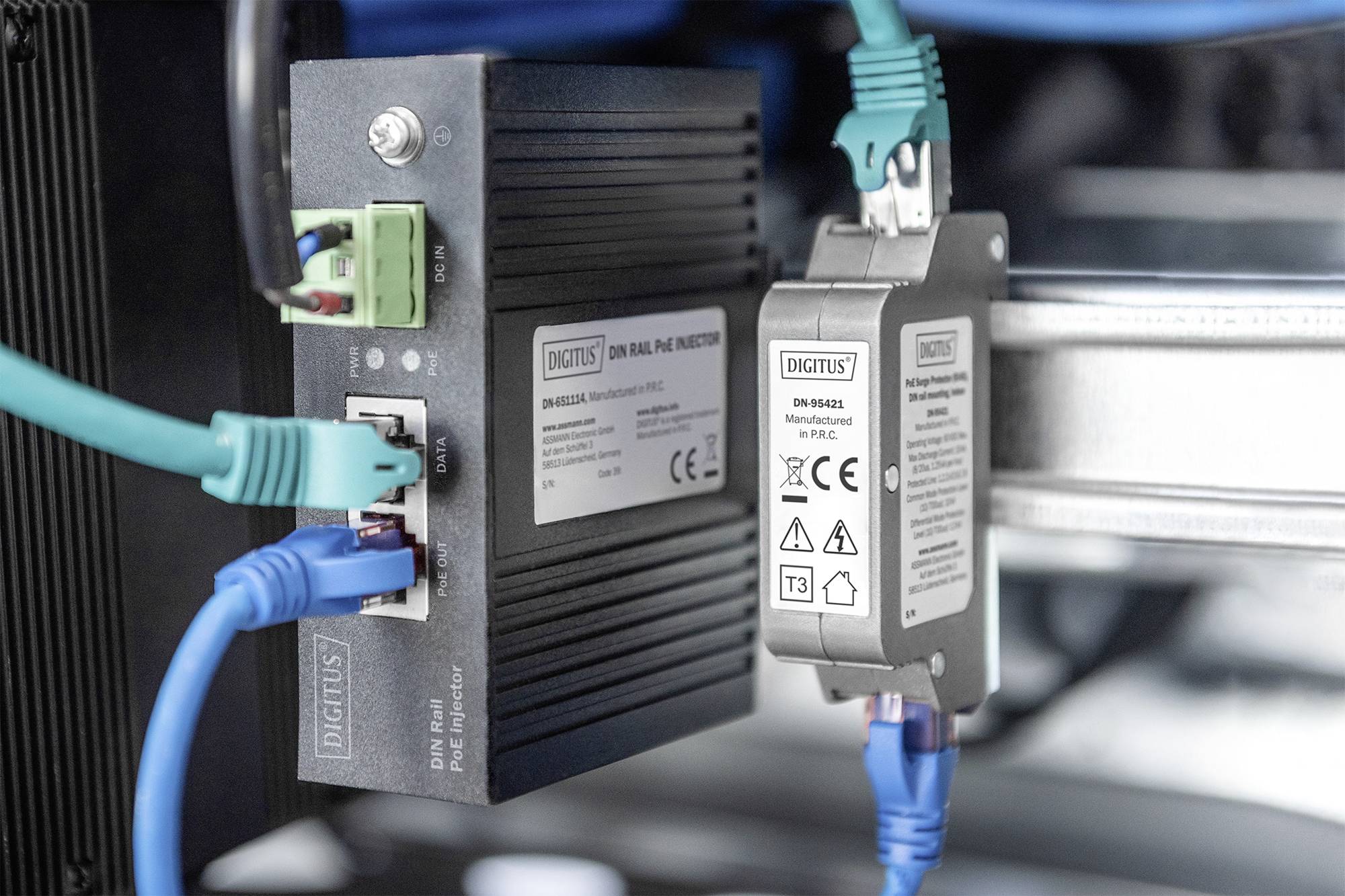

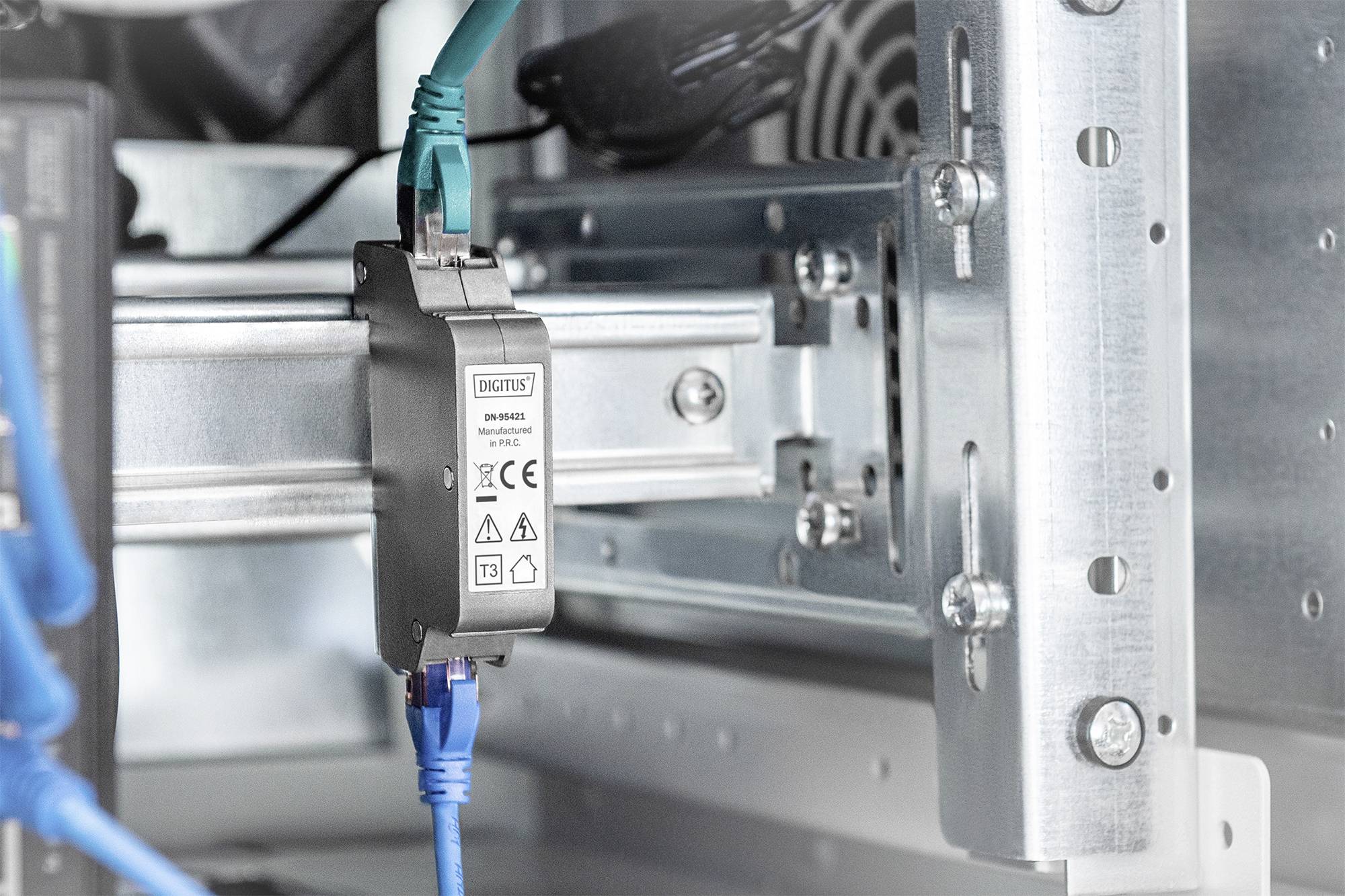

Digitus DIGITUS® Surge protector is designed for industrial network applications and protects against surges of up to 10kV. Data transfer of up to 1000Mbps in gigabit networks and the PoE standards PoE, PoE+ and PoE++ (IEEE802.3af/at/bt) are supported. This not only protects your conventional network devices against overvoltages, you can also use the DIN rail module for a variety of PoE applications (PoE, PoE+, PoE++), for example for IP cameras or PoE switches. The assembly is very straightforward by simply snapping on to a 35mm DIN rail, which can also serve as a grounding for the surge protector. Make no compromises and protect your sensitive devices against excessive voltages and environmental influences.
This text is machine translated.
This text is machine translated.
Features

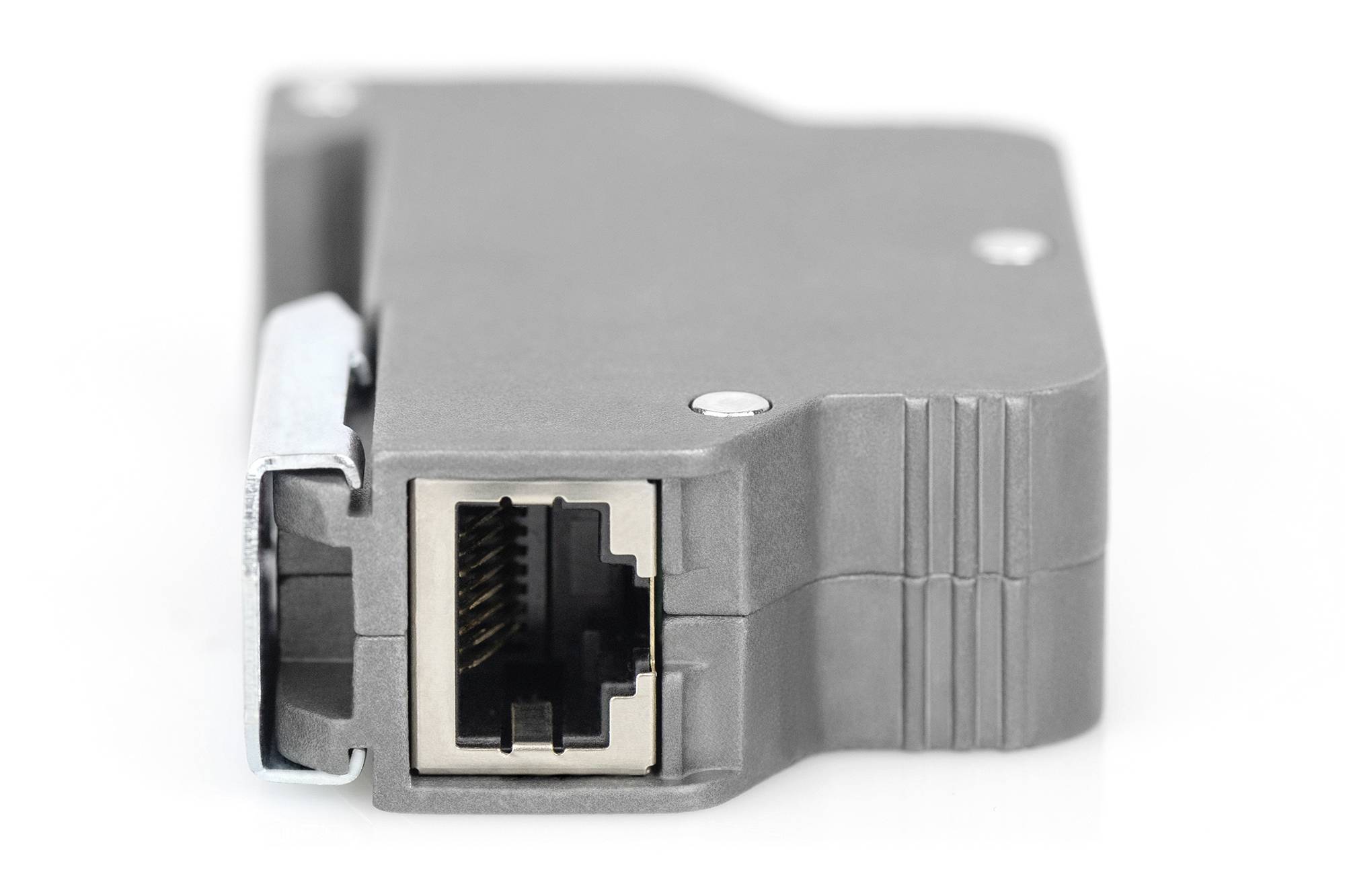

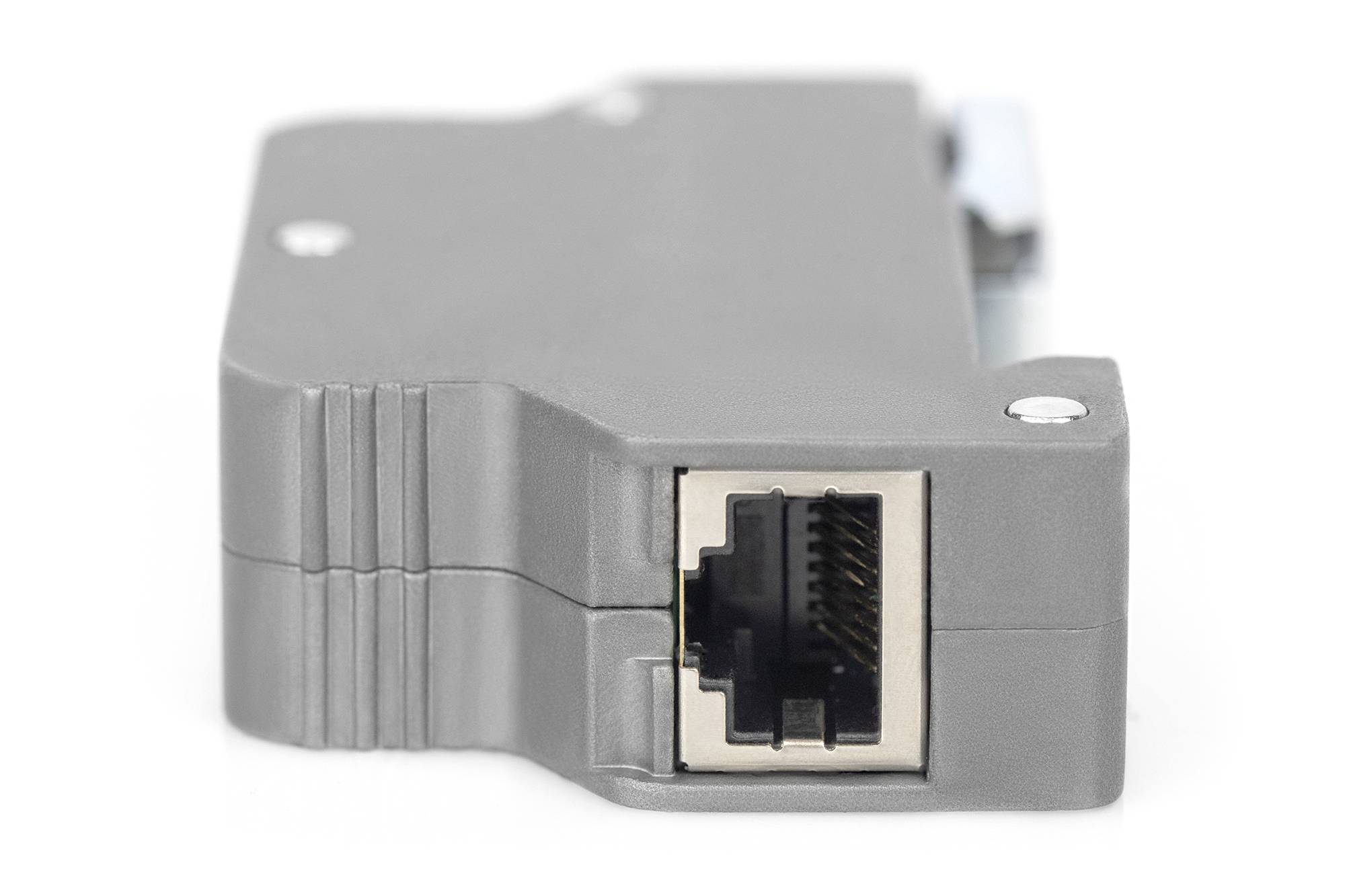

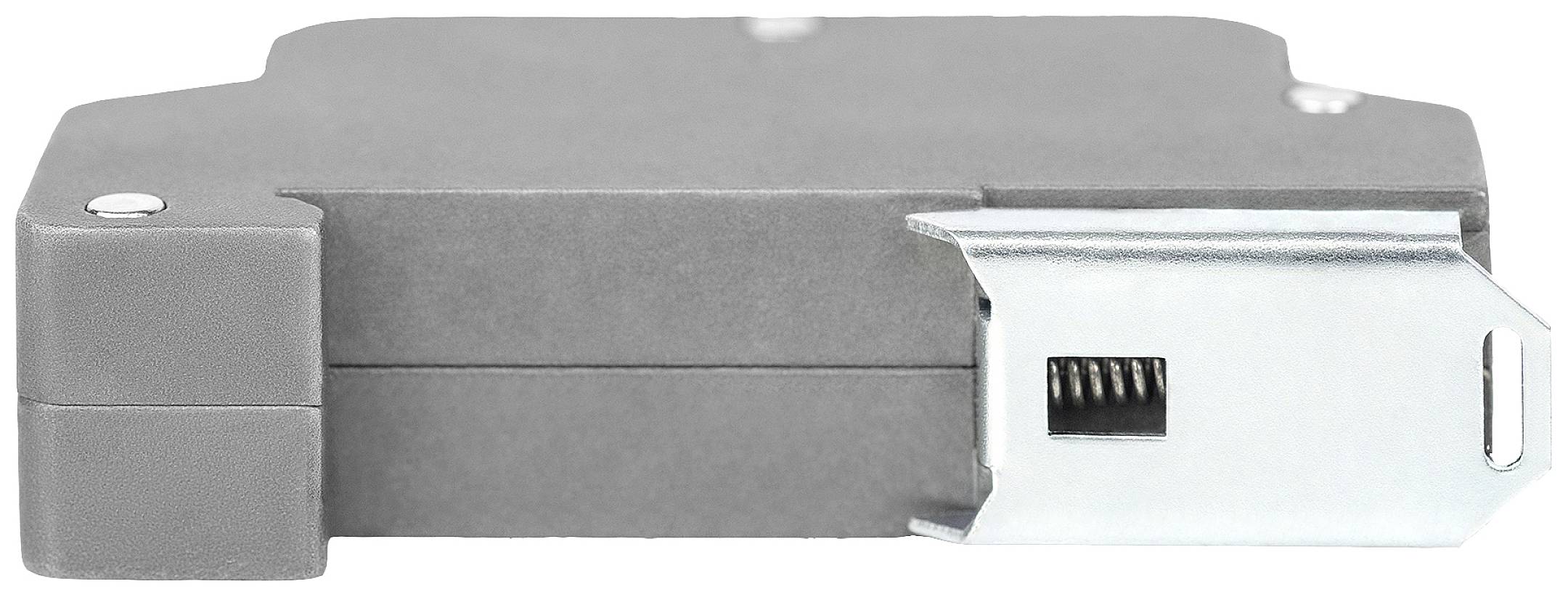

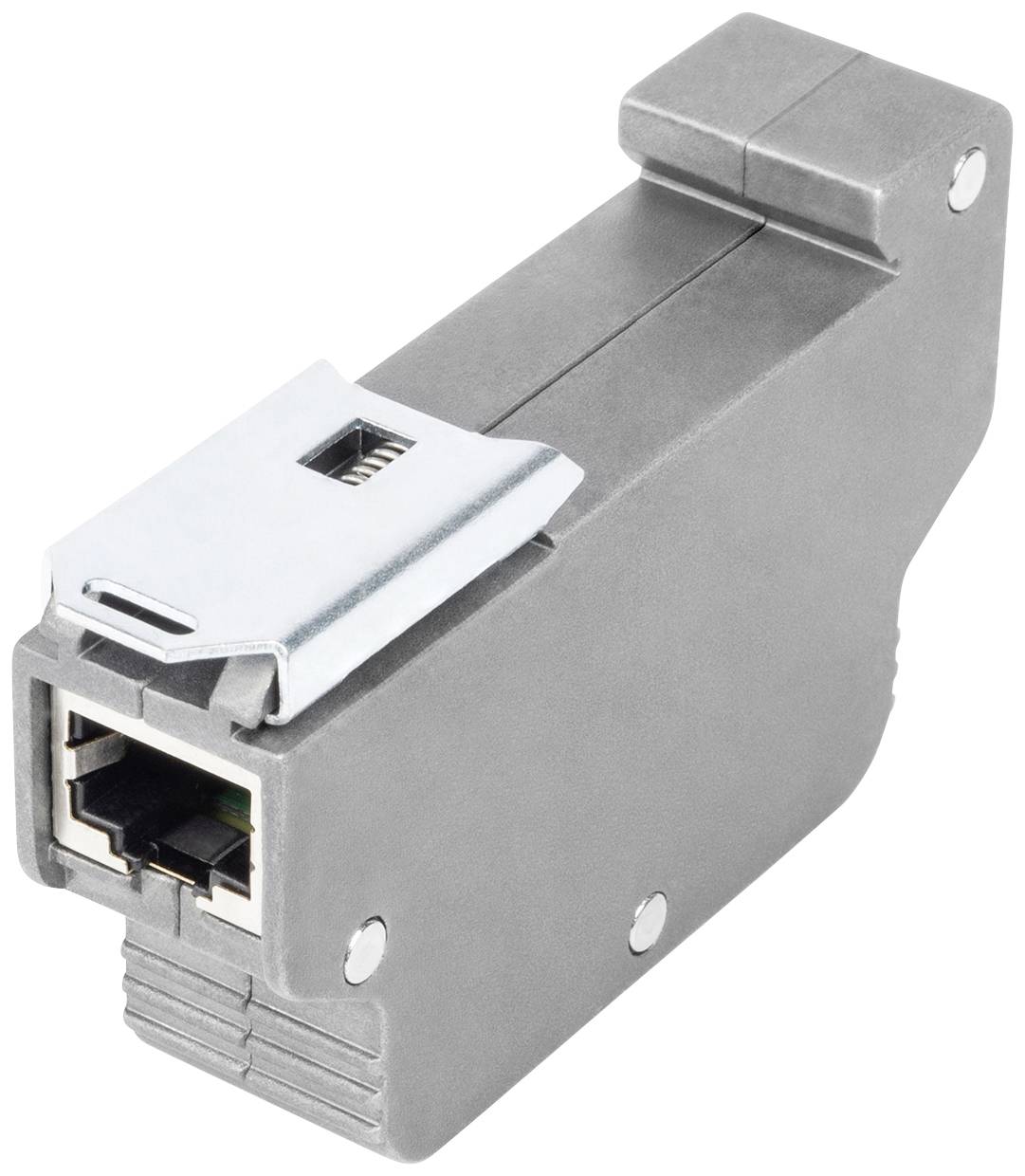

- Mingle port (1 x RJ45 input / 1 x RJ45 output)Simple mounting by snapping on to a DIN rail (35mm DIN rail)Designed for a high temperature range from -40°C to 85°C.Designed for industrial useReliable protection during thunderstorms and lightning
Scope of delivery
- 1 x PoE Surge protector (RJ45), DIN rail mounting, indoor1 x QIG
