Digitus DN-95441 19 inch 19" server rack cabinet 1 U PG socket incl. 2 steel brackets, Surge protection Silver, Black
EAN:
Part number:
Item no:
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.

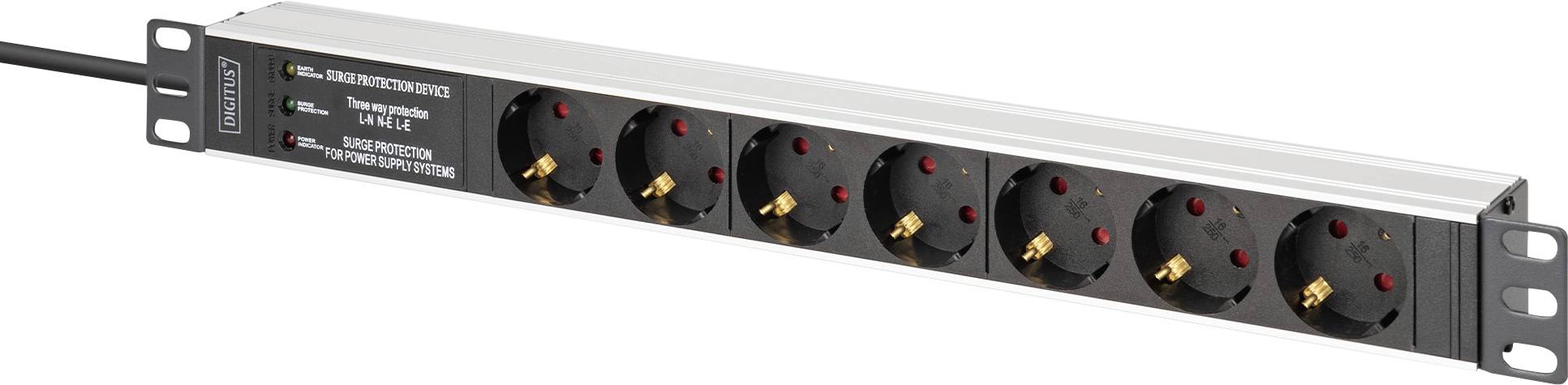

Digitus socket strip with aluminum profile and surge protection, integrated power filter, 7-way earthing contact socket-outlet, 2 m earthing contact plug cable
Highlights & Details
- Perfect power distribution for your network and IT rack

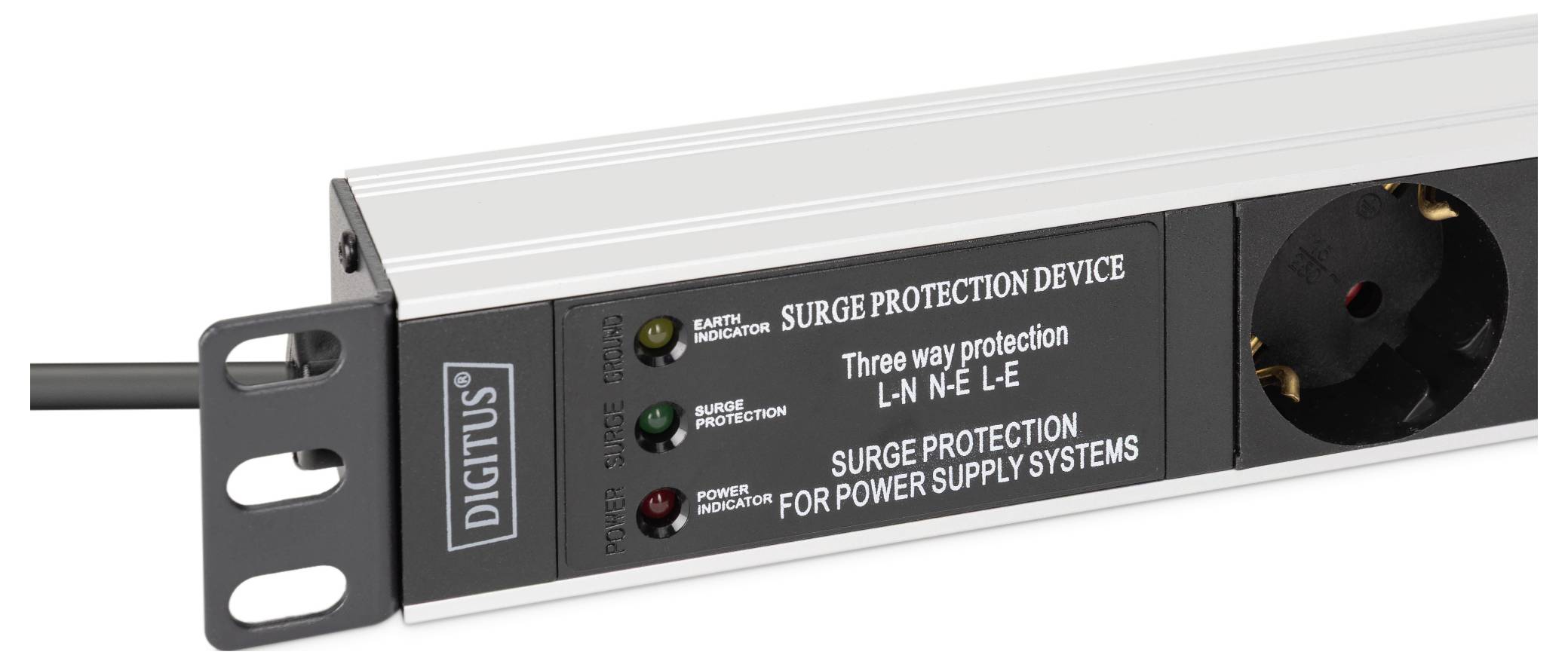

- Built-in line filter and voltage surge module protects the connected consumers from interference from the mains
- Sockets are rotated by 45°, this offers optimum space management and easy access
Technical specifications
- Integrated surge protection: Nominal discharge current (in) – 10 kA

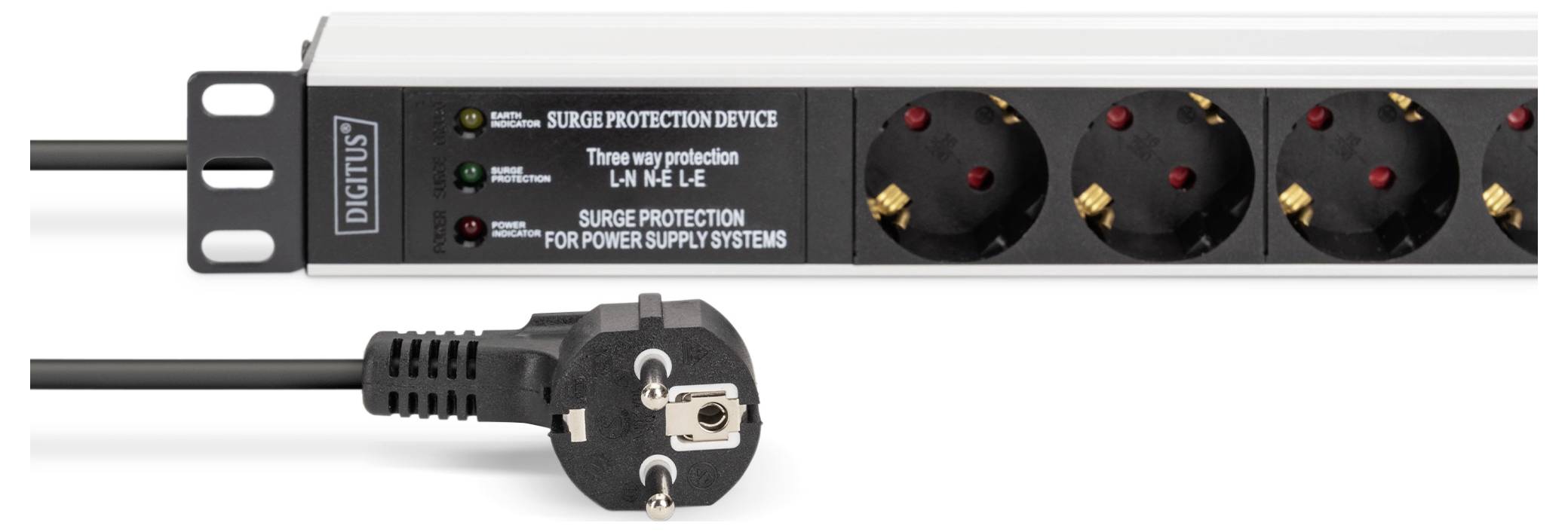

- Input:safety plug CEE 7/7, 230 VAC / 16 A
- Output: 7× Earthing contact socket DIN 49440, max. 16 A per output
- Cable: H05VV-F 3G1.5 mm², length 2 m
- Dimensions: 482.6 (19") × 45 (1HE) × 45 mm (H×B×T)
- Product type
19" server rack cabinet
- Features
incl. 2 steel brackets
Surge protection
- Suitable for server rack cabinet (inch)
19 inch
- Rack unit
1 U
- Socket type
PG socket
- Outlets
7
- Voltage (max.)
230 V
- Dim
(W x H x D) 45 x 482.6 x 45 mm
- Amperage
16 A
- Cable length
2 m
- Material
Aluminium
ABS plastic
PVC
- Content
1 pc(s)
- Factory colour
Silver
Black
- Width
45 mm
- Height
482.6 mm
- Depth
45 mm
- Rack size
483 mm (19")
- Weight
980.00
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3556259 Digitus DN-95441 19 inch 19" server rack cabinet 1 U PG socket incl. 2 steel brackets, Surge protection Silver, Black
Description
The Digitus® socket strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology, laboratories as well as the home sector. The power strip can be mounted in the 19" area in the cabinet space-saving 1HE. An integrated line filter and surge protection protects the connected consumers against interference from the mains. Depending on the type of cabinet, it is possible to attach the power strip in a left or right-pointing orientation.
This text is machine translated.
This text is machine translated.
Features
- Integrated network filter
- 45° rotation of the outputs
- Aluminium casing
- Plastic components made of ABS UL-94V-0
