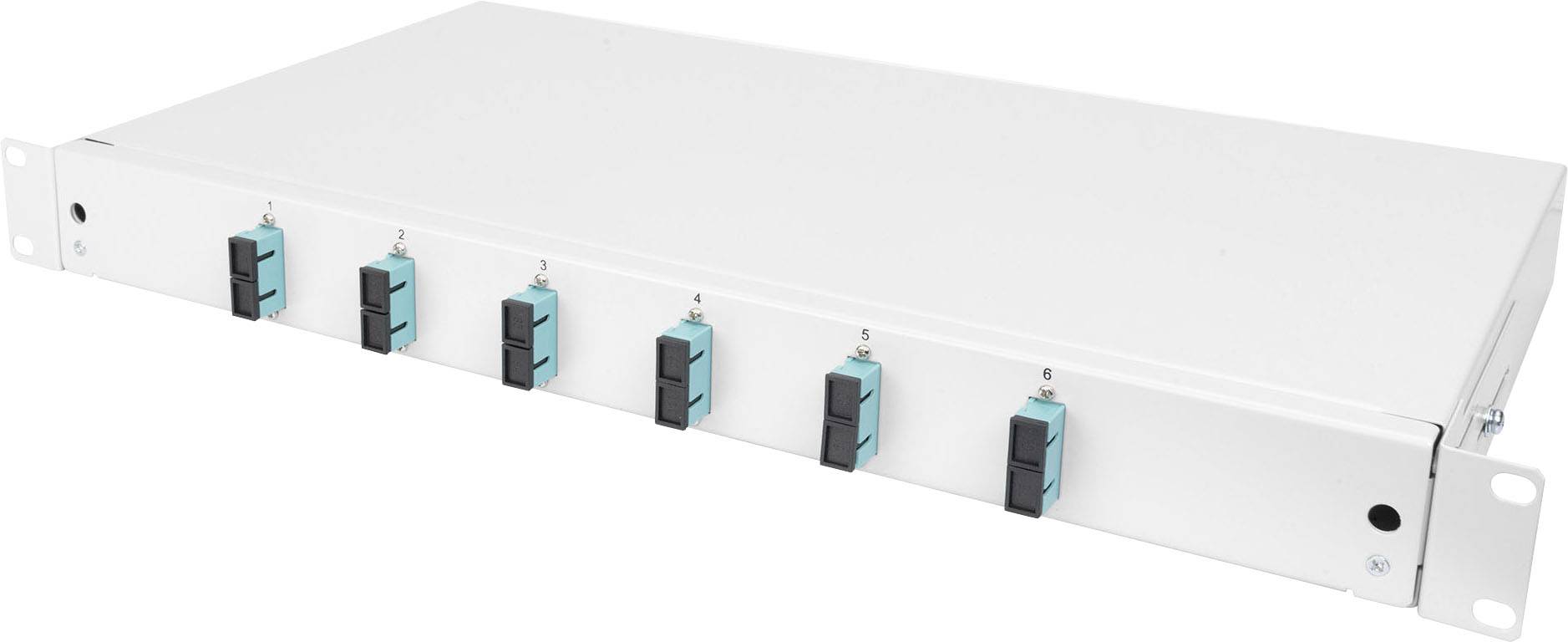

White rack mounting unit with six blue and black optical ports in two rows, for managing fibre optic connections.

A long, flat, brown cardboard box sealed with tape.

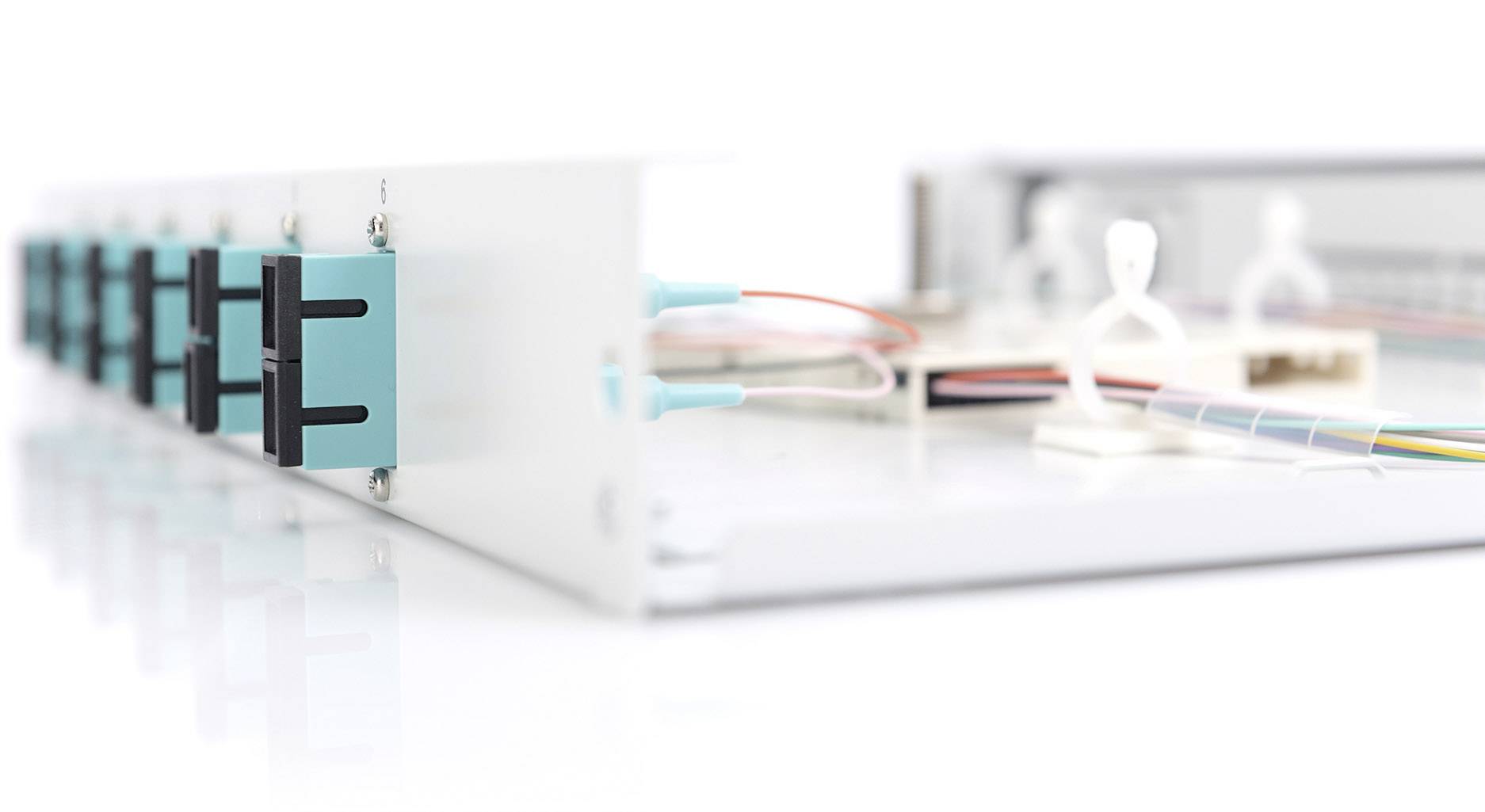

Fibre-optic cabling in a network device, with blue-marked ports and coloured cables lying on a white surface.

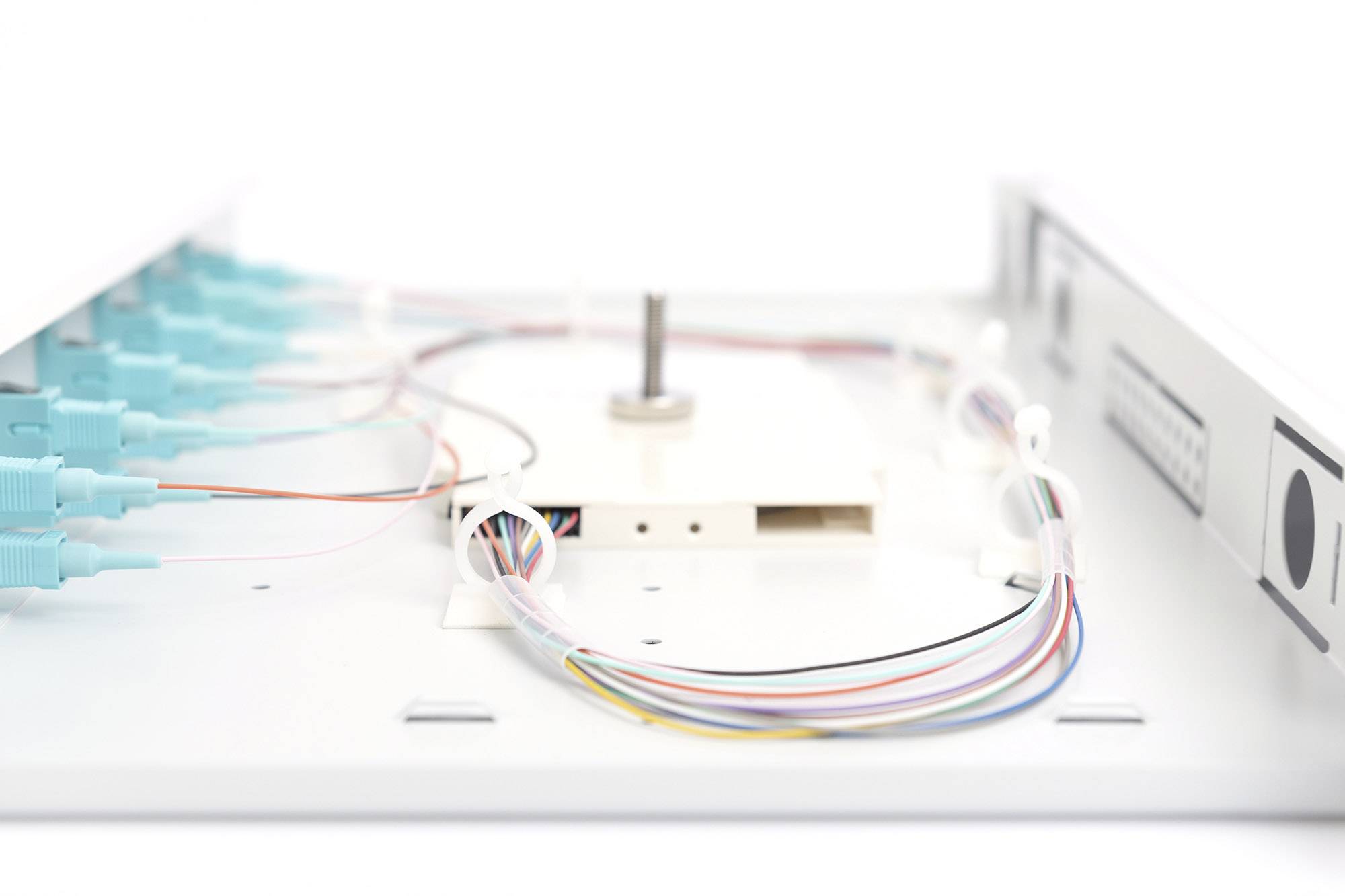

An open distribution box with several fibre-optic cables attached to connection points reveals the internal wiring.

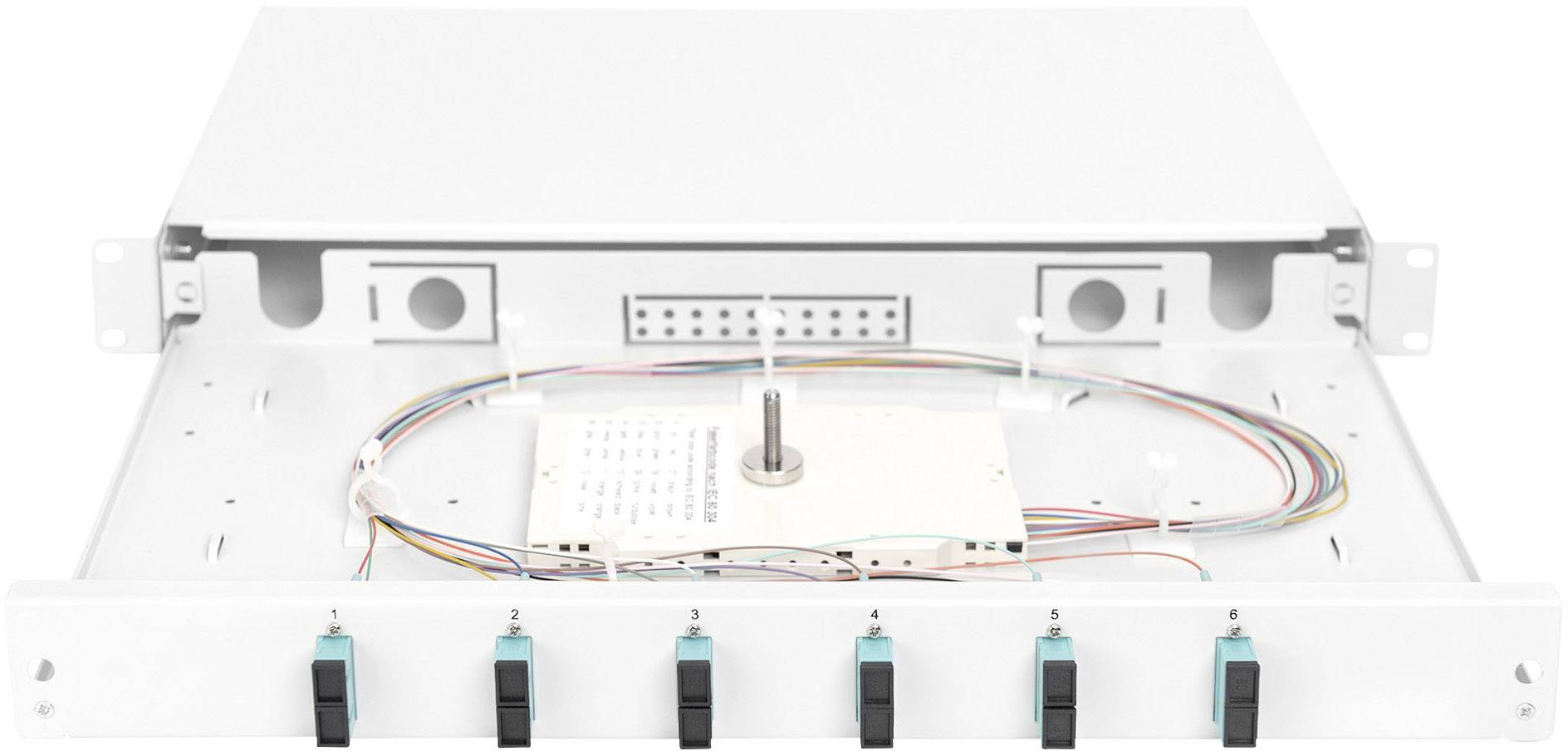

An open chassis with electronic components, including cables and switches, reveals the internal structure and wiring.

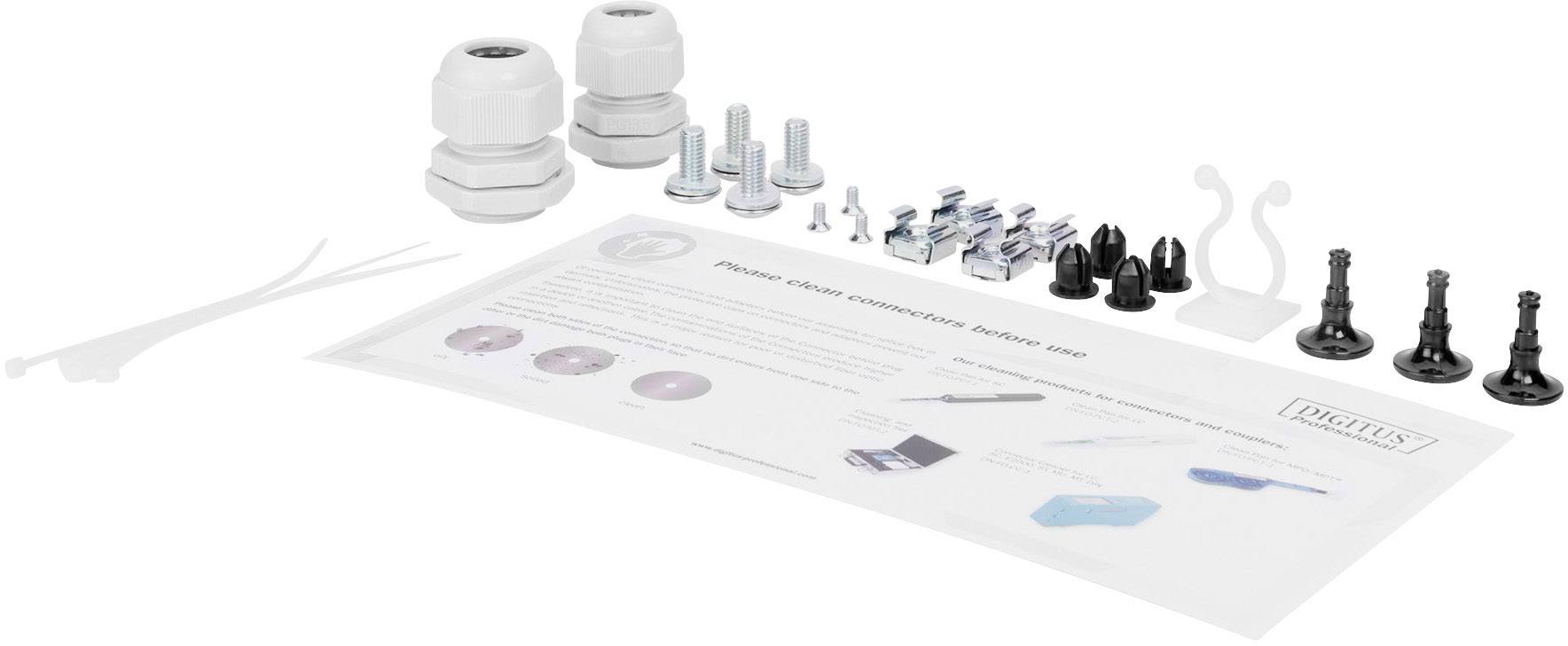

A set of mounting accessories for product installation, including cable glands, screws, wall plugs, and instructions.

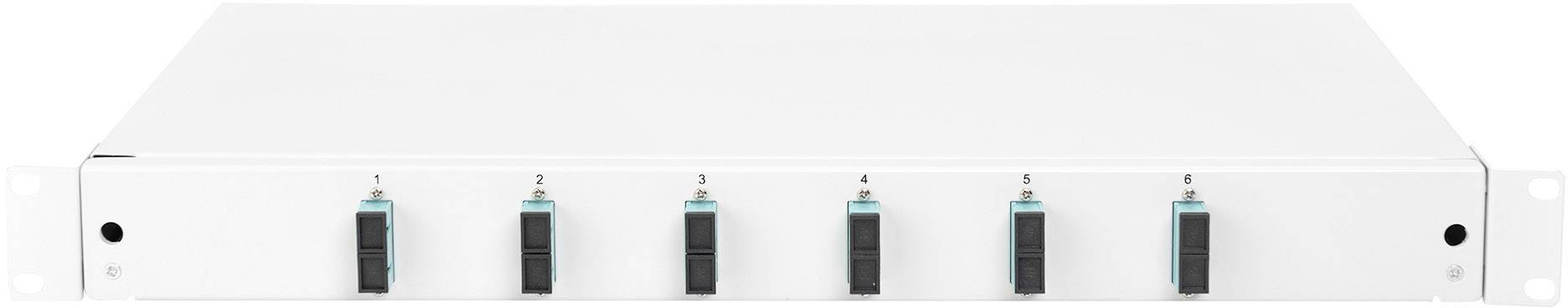

A white, rectangular technical device with five black and blue connection sockets on the front, possibly a network module.

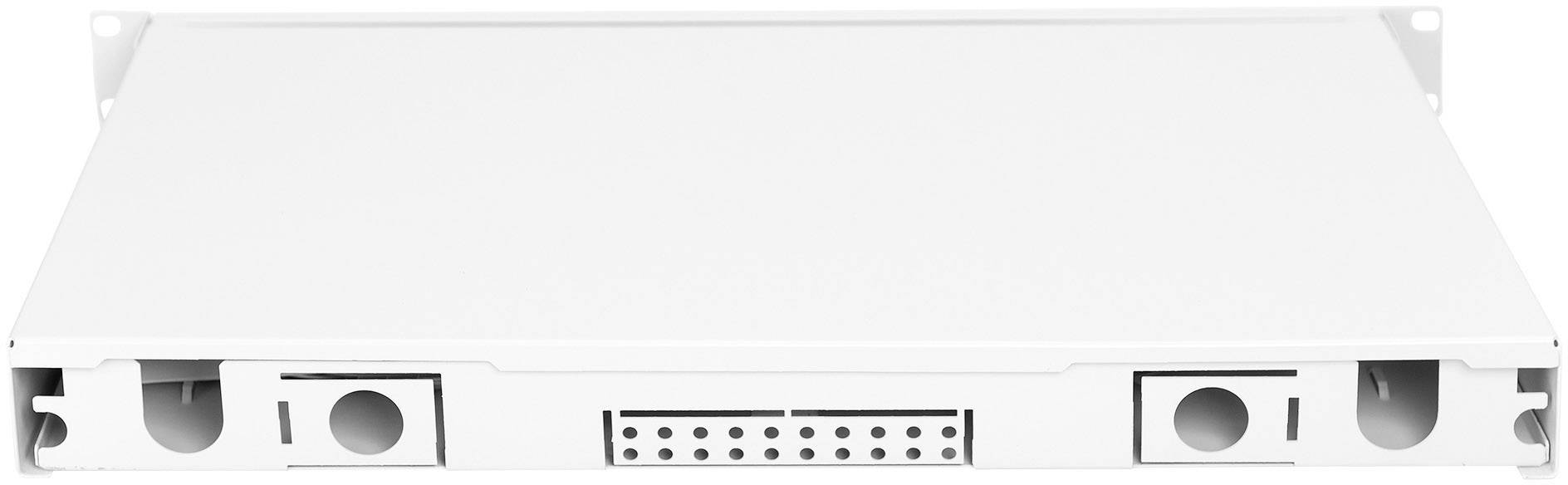

White rectangular metal enclosure, likely part of a network or communications device, with multiple round connector openings.

1/9

Unavailable

18 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Fiber Optic Splice Box, Equipped, SC, OM3

Highlights & Details

Faserpigtails completely assembled, sold separately and in the splice box (n) is inserted
Couplings with cubic zirconia ceramic ferrule
Extendable

Technical specifications

Product type: FO patch panel

Port: 6 ports

: SC

Rack unit: 1 U

Patch panel design: Partly equipped

Width: 483 mm

Height: 44.45 mm

Length: 280 mm

Rack size: 483 mm (19")

Cable feed: reverse

Version: Cable

Factory colour: Grey-white (RAL 7035)

Screen size diagonal (inches): 24 inch

: Multimode OM3

Fibre type: 50/125 µ

: Duplex

Cable use: FO

Connection type: Fibreglass

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1345733 Digitus DN-96320/3 FO patch panel 6 ports SC 1 U

Description

· Completely prefabricated, fiber pigtails exposed and inserted into the splice cassette(s)
· Colored pigtails
· Couplers with zirconia ceramic ferrule
· Couplers in polymer housing
· Carrier housing made of 1.0 mm sheet steel, varnished
· 1 height unit (44.45 mm)
· 483mm width (19")
· 280mm depth
· M20/M25 screw, cassette, cassette cover and strain relief included
· Sliding

Features

Faserpigtails completely assembled, sold separately and in the splice box (n) is inserted
Colored pigtails
Couplings with cubic zirconia ceramic ferrule
Couplings in the plastic housing
Carrier housing made of 1.0 mm steel sheet, painted
1 height unit (44,45 mm)
483 mm width (19")
280 mm depth
M20/M25 cable gland, cassette, cassette cover and strain relief clamp are included in the delivery.
Extendable
