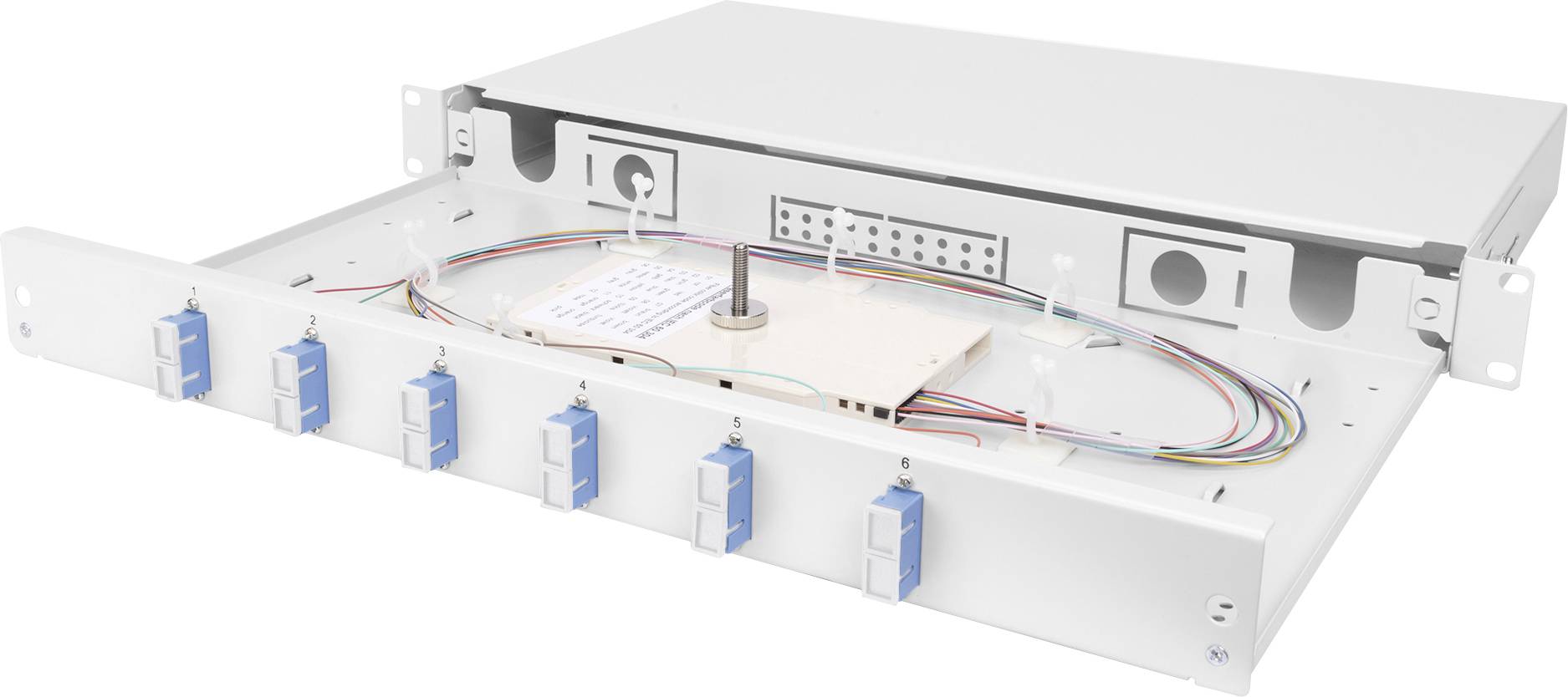

Optical distribution unit with an open housing, showing multiple fibre optic cables and connections on a connection plate.

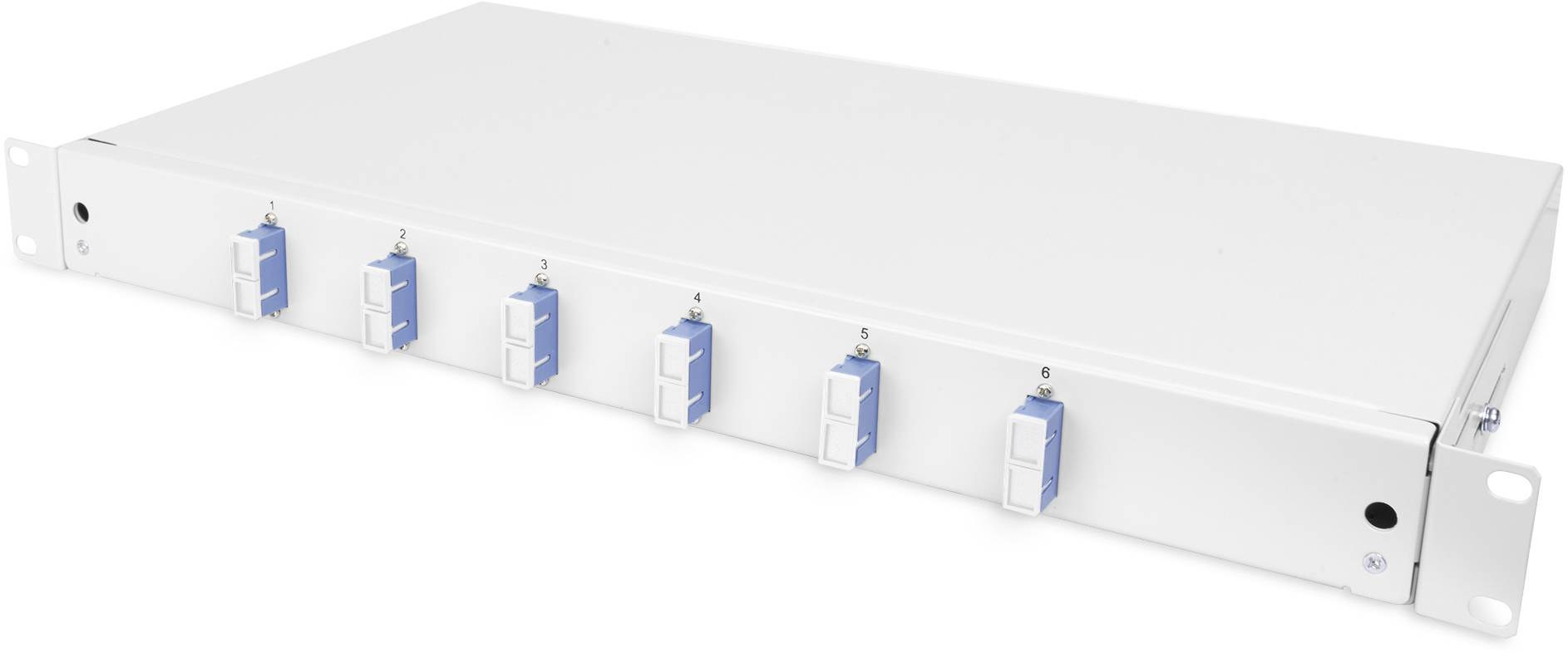

A white rackmount enclosure with six blue and white connection modules, possibly for fibre optic connections, viewed from the front.

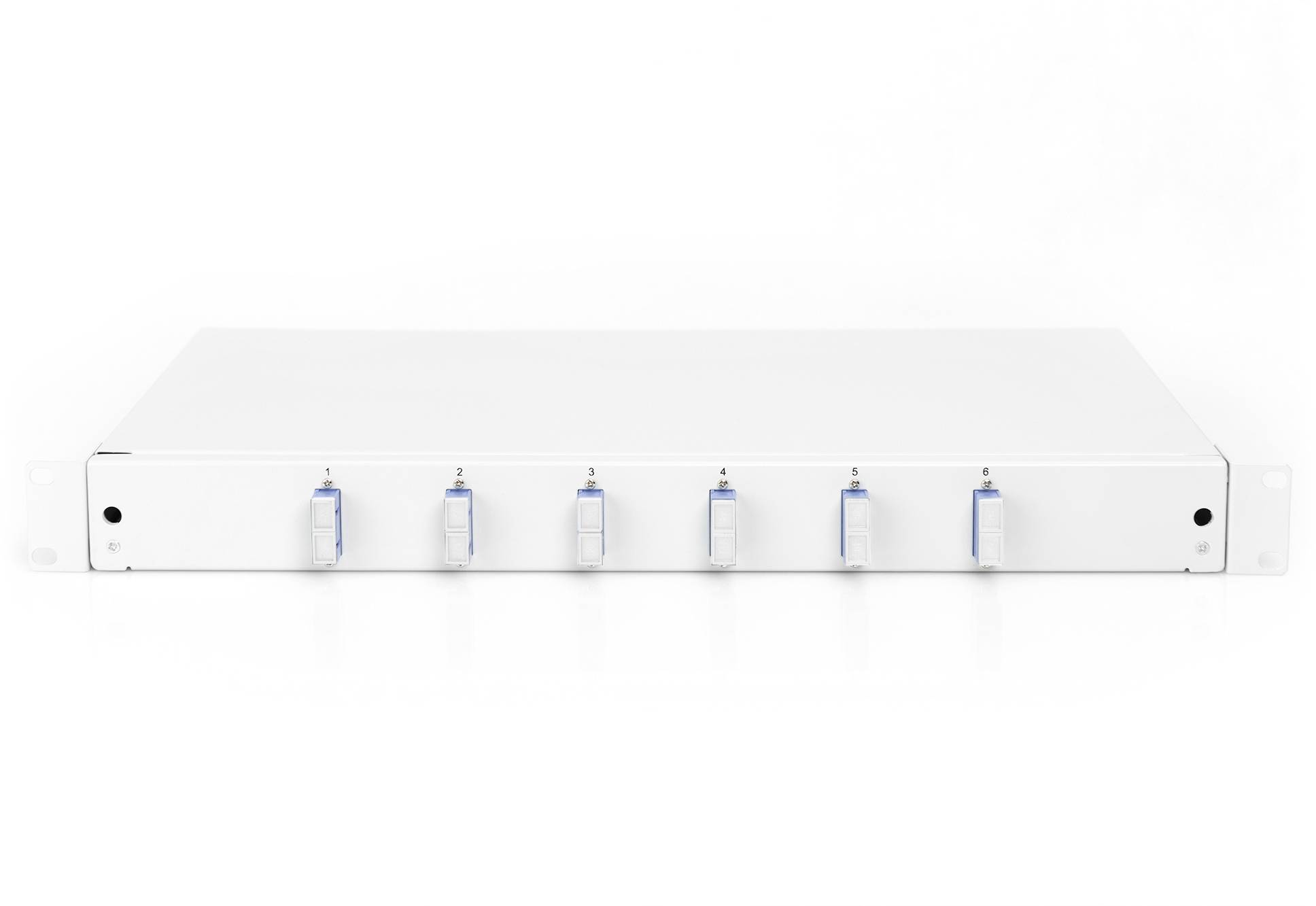

A white rack enclosure with six blue connection modules on the front, suitable for mounting in a network cabinet.

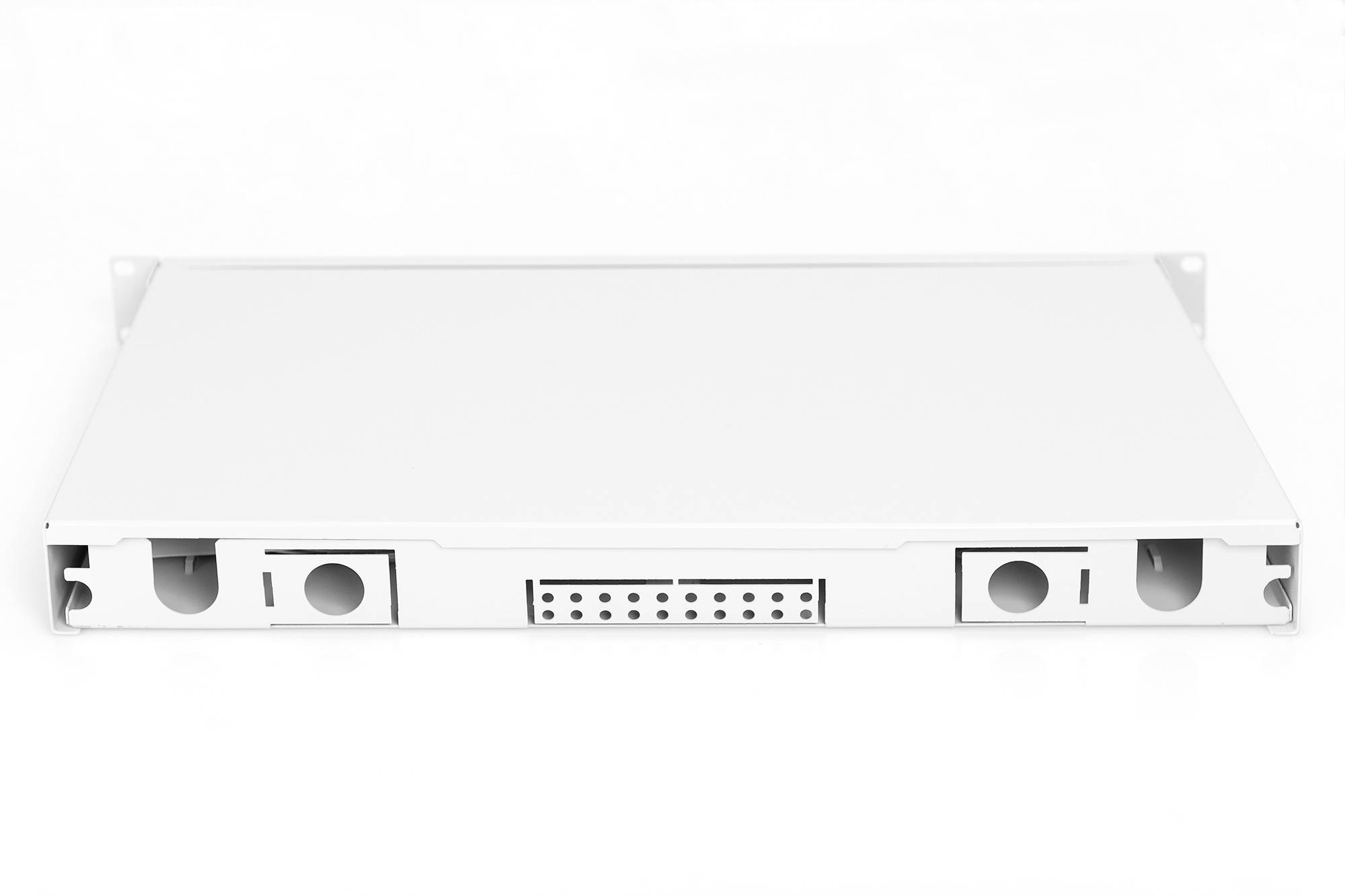

A white 1U rackmount enclosure with two side ventilation openings and multiple connections in the centre.

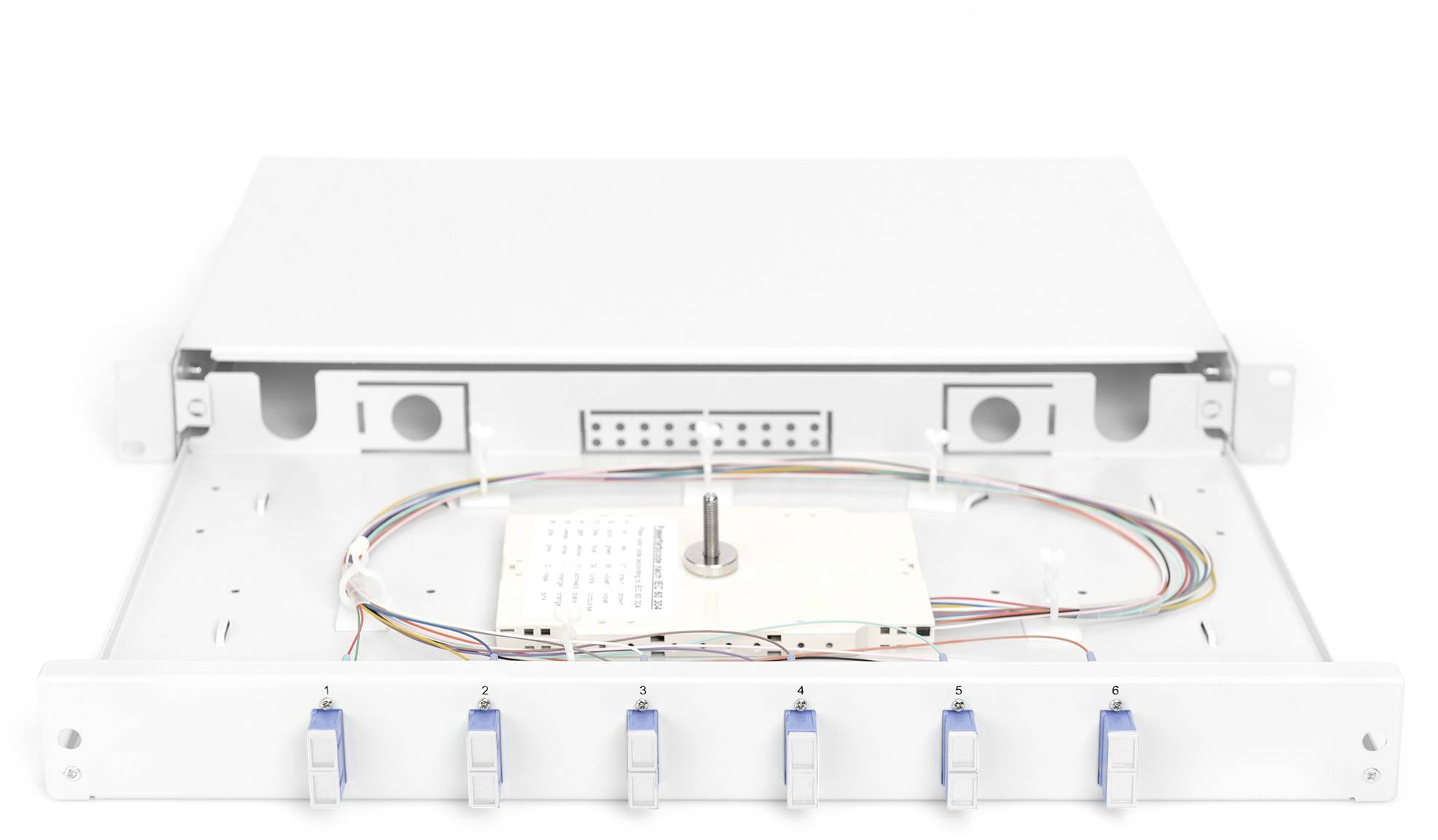

A white network patch panel with open ports, visible cables, and a central distribution block against a light background.

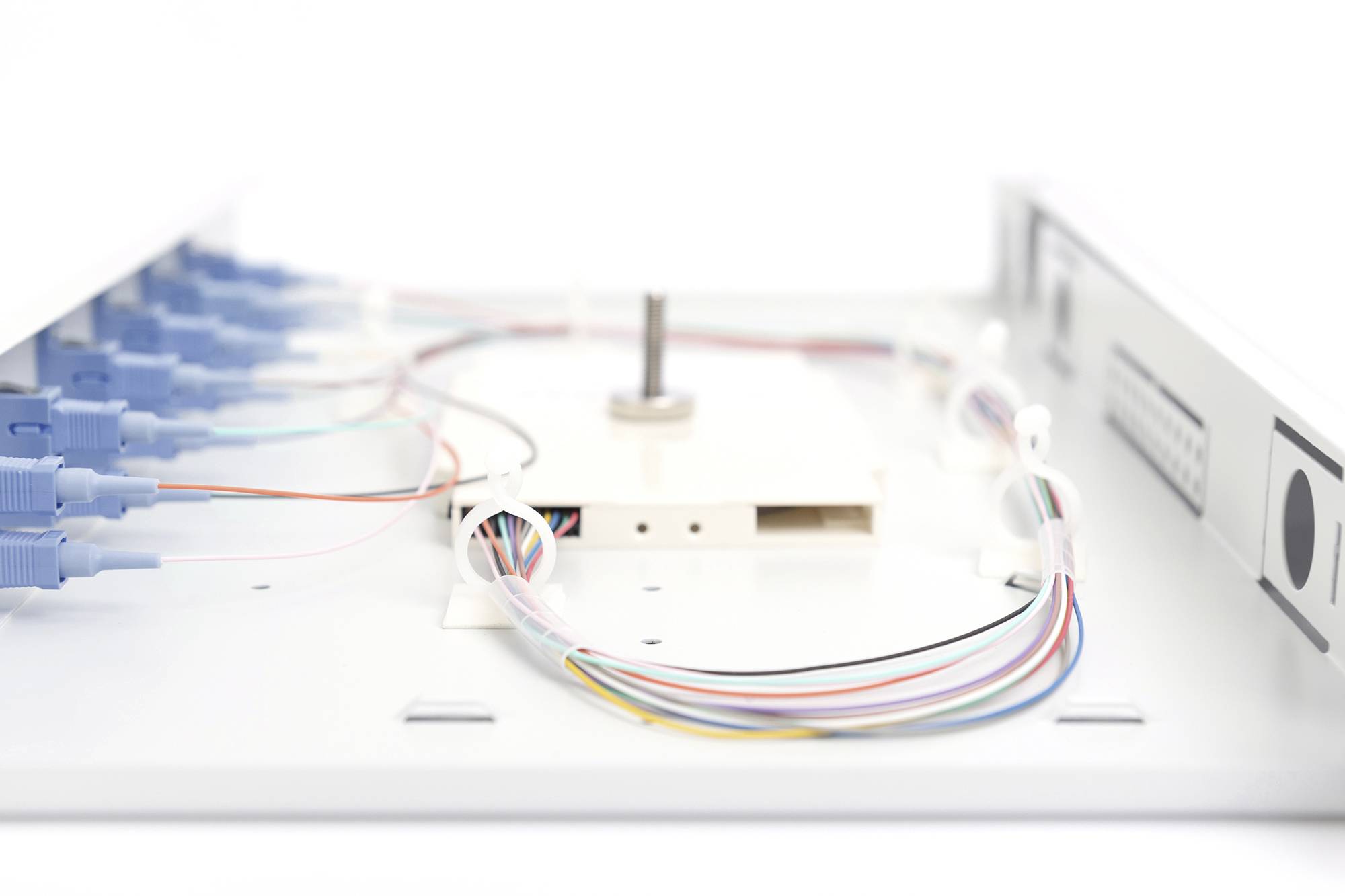

An electrical distribution box with multiple connected blue cables and coloured wires leading to various connection points.

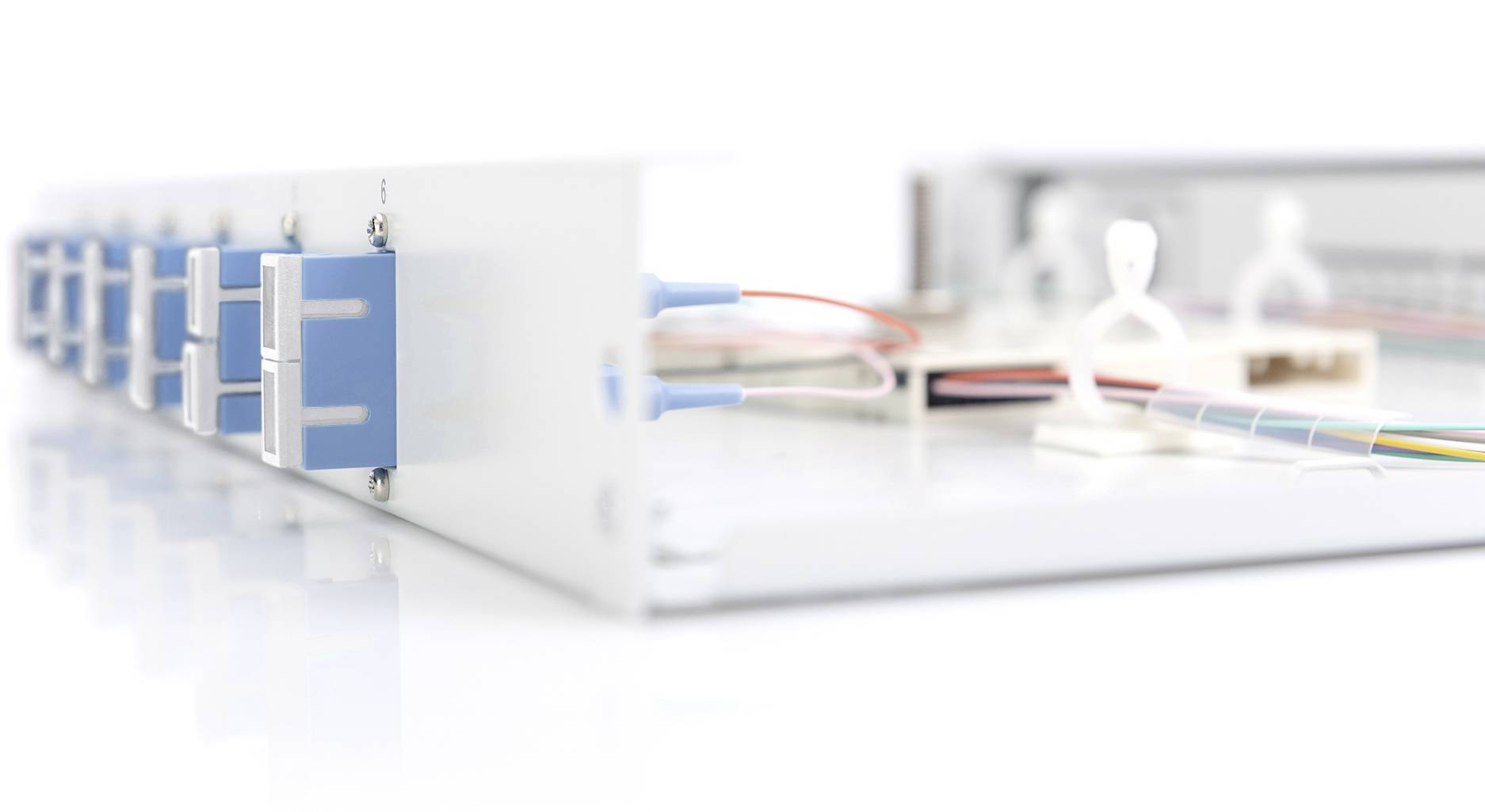

Fibre-optic cables connected to a patch panel in a data centre, blurred background.

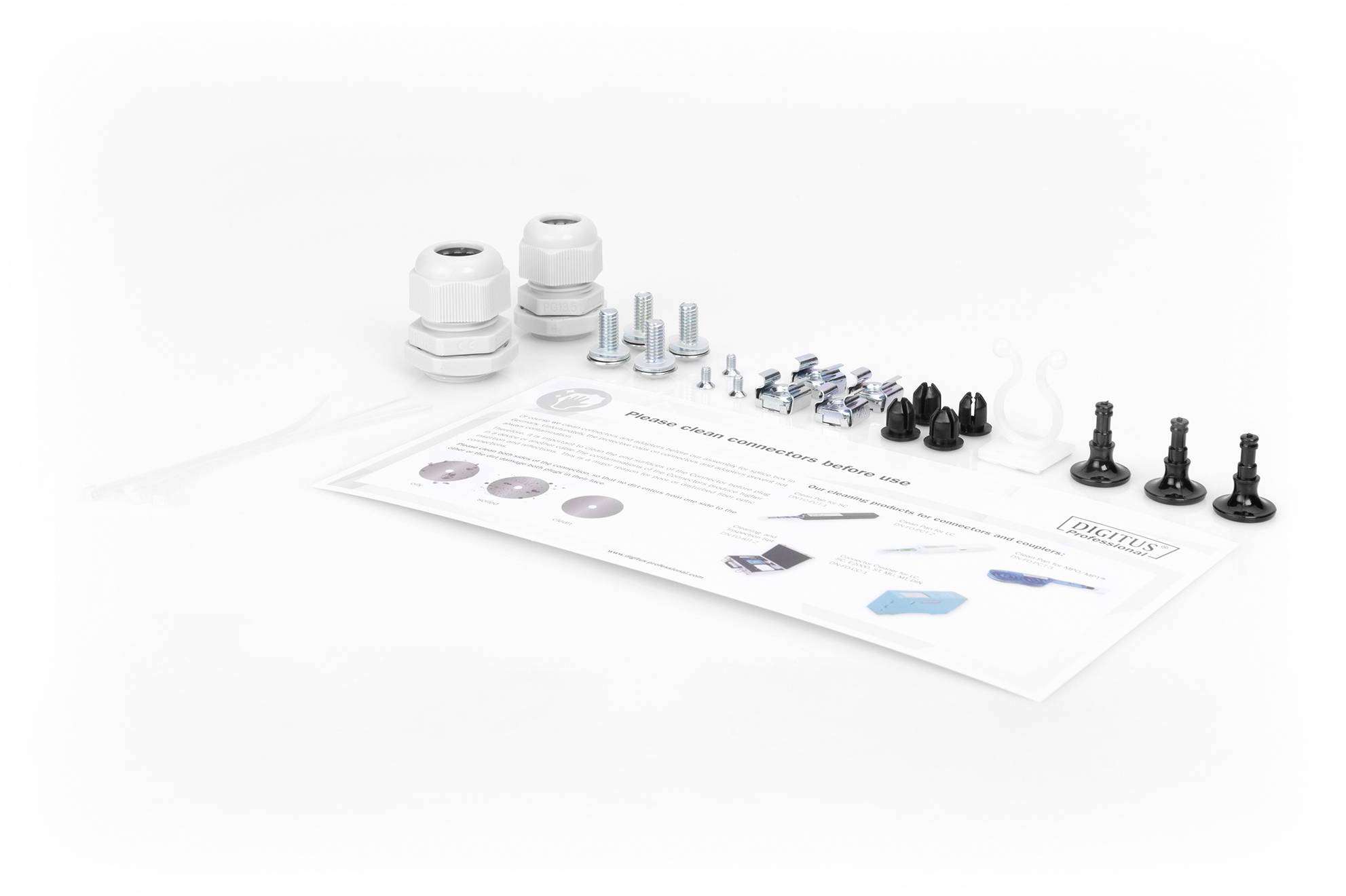

Installation kit with cable glands, screws, wall plugs, mounting instructions. Contains various components for secure fixing.

A flat, rectangular cardboard box with two adhesive strips for securing. Suitable for dispatching longer items.

1/9

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

SC to SC
Duplex-Cable
Factory colour: Multicolour

Technical specifications

Completely pre-assembled, fiber pigments removed and inserted in the splice box(s), crimp splice holder
Coloured pigtail
Coupler with ceramic sleeves
Couplings in plastic housing
Support housing made of 1.0 mm steel sheet, painted
1 height unit (44.45 mm)
483 mm width (19")
280 mm deep
M20/M25 gland, cassette, cassette cover and strain relief included.
Can be pulled out
Number of fibers: 12
Design: Extendable
Splice box equipment
Colour: Light gray, RAL 7035
Fibre class OS2
Plug type SC / UPC / duplex

Product type: FO Cable

Connection type: Fibreglass

No. of A connectors: 6 x

Type A: SC

No. of B connections: 6 x

Type B: SC

: Singlemode OS2

: Duplex

Factory colour: Multicolour

Content: 1 pc(s)

Cable features: Duplex

: FO

Cable use: FO

Version: Cable

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2751399 Digitus DN-96320/9 Fibreglass FO Cable Multicolour [6x SC - 6x SC] Singlemode OS2

User & Safety Instructions

User & Safety Instructions 2751399 Digitus DN-96320/9 Fibreglass FO Cable Multicolour [6x SC - 6x SC] Singlemode OS2

Description

Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.

Features

As housing material 1 mm thick steel sheet is used, which is painted or powder coated in gray (RAL 7035).
The splice box is already pre-assembled – a splice box and corresponding couplings are already installed for the front plate.
