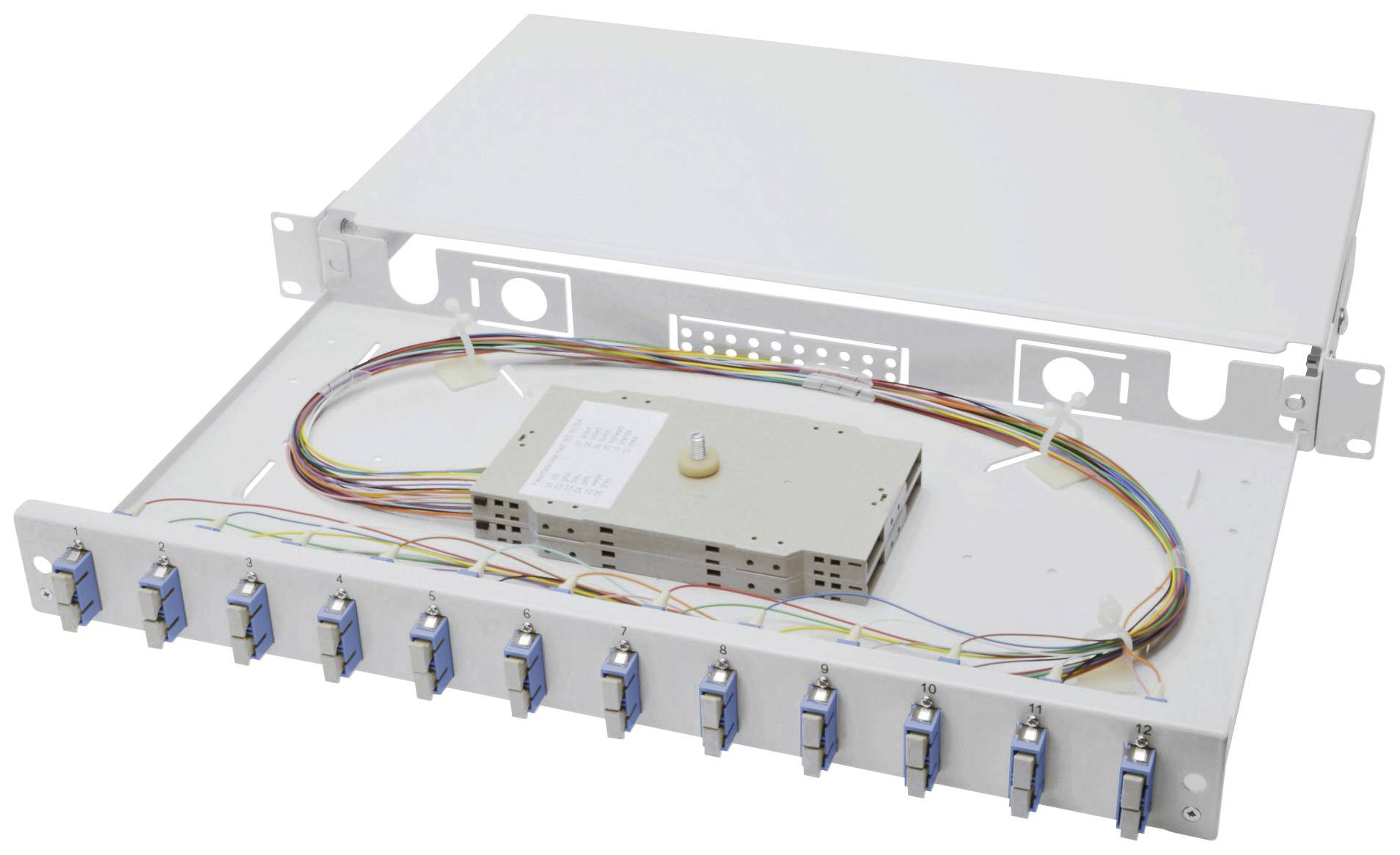

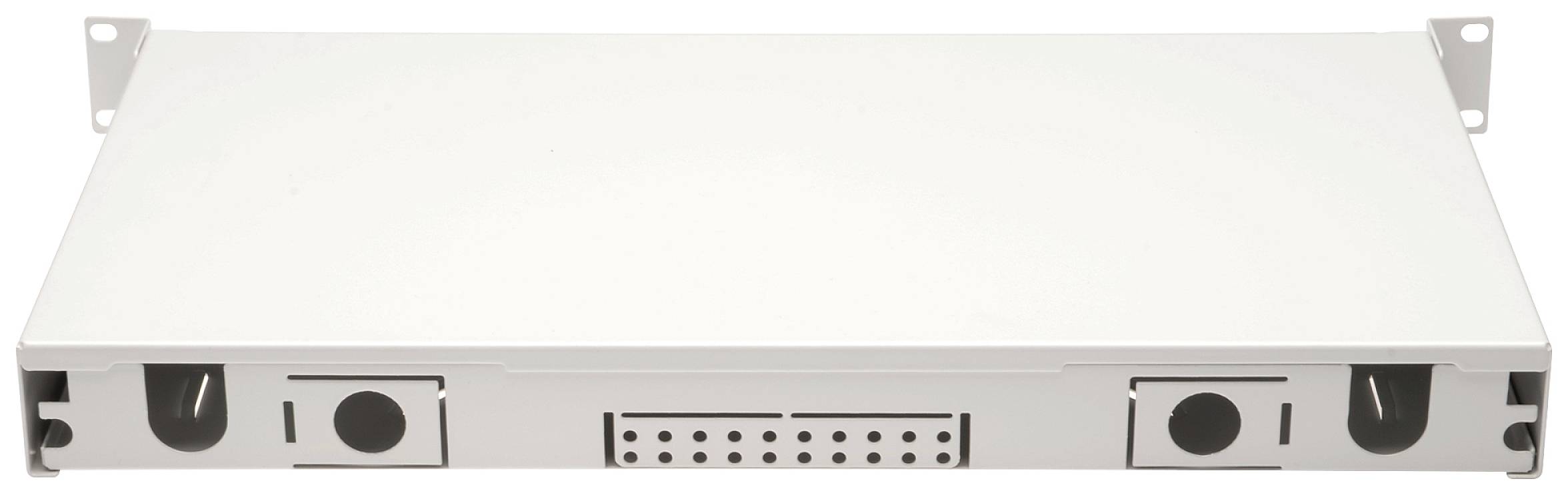

Digitus DN-96321/9 FO patch panel 12 ports SC Equipped 1 U
EAN:
Part number:
Item no:
LWL splice box, 1HE, equipped, 12x SC DX, OS2 incl. splice box, colored pigtails, couplings
Highlights & Details
- Completely pre-assembled, fiber pigtails off and inserted in the splice box(s), crimp splice holder
- Colored pigtails
- Couplings with ceramic sleeves
- Couplings in plastic housing
Technical specifications
- Product type
FO patch panel
SC
- Patch panel design
Equipped
Duplex
- Port
12 ports
Singlemode OS2
- Fibre type
9/125 µ
- Cable feed
long side
left
right
reverse
- Rack unit
1 U
- Factory colour
Grey-white (RAL 7035)
- Length
280 mm
- Width
483 mm
- Height
44 mm
- Weight
0.00
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373057 Digitus DN-96321/9 FO patch panel 12 ports SC Equipped 1 U
Description
LWL splice box, 1HE, equipped, 12x SC DX, OS2, incl. Splice box, colored pigtails, couplings
This text is machine translated.
This text is machine translated.
Features
- Carrier housing made of 1.0 mm steel sheet, painted
- 1 height unit (44.45 mm)
- 483 mm width (19")
- 280 mm depth
- M20/M25 screw connection, cassette, cassette cover and strain relief are included in the delivery.
- Extendable
