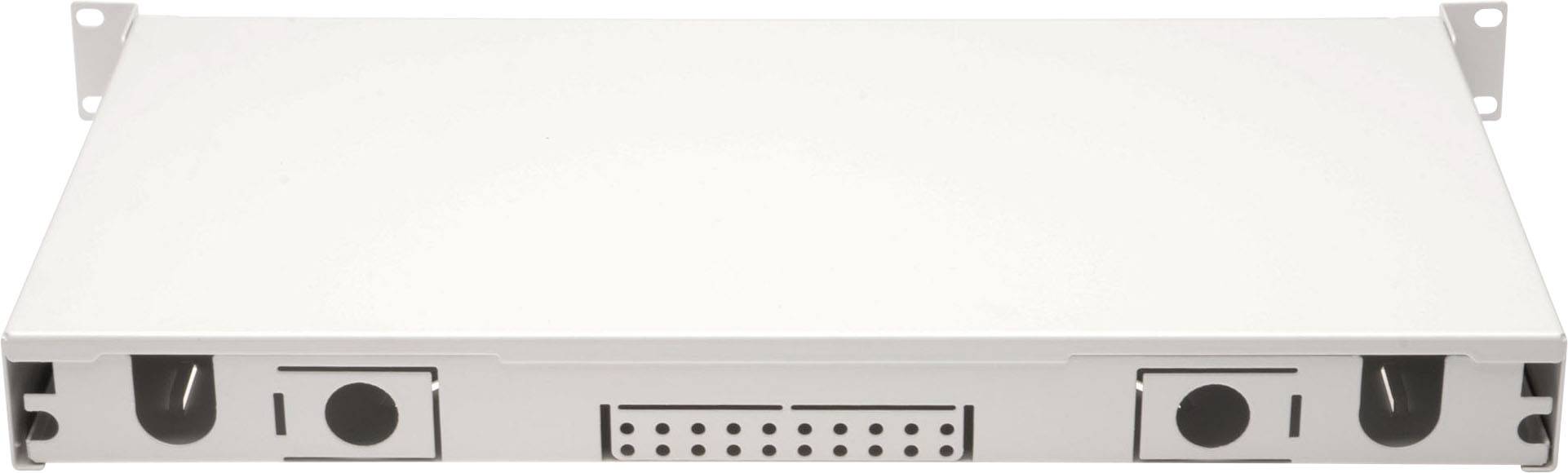

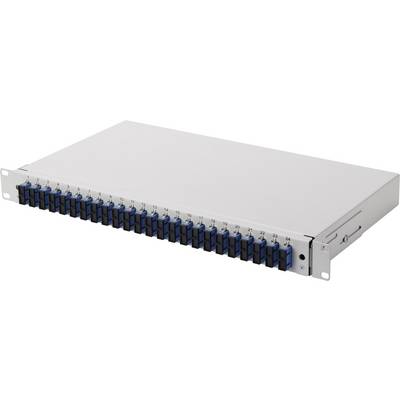

Digitus DN-96322/9 FO patch panel 24 ports SC 1 U
EAN:
Part number:
Item no:
Fiber Optic Splice Box, Equipped, SC, OS2
Highlights & Details
- Faserpigtails completely assembled, sold separately and in the splice box (n) is inserted
- Couplings with ceramic ferrules
- Extendable
Technical specifications
- Product type
FO patch panel
- Port
24 ports
SC
- Rack unit
1 U
- Patch panel design
Equipped
- Width
483 mm
- Height
44.45 mm
- Length
280 mm
- Rack size
483 mm (19")
- Cable feed
reverse
- Factory colour
Grey-white (RAL 7035)
Singlemode OS2
- Fibre type
9/125 µ
Duplex
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1345720 Digitus DN-96322/9 FO patch panel 24 ports SC 1 U
Description

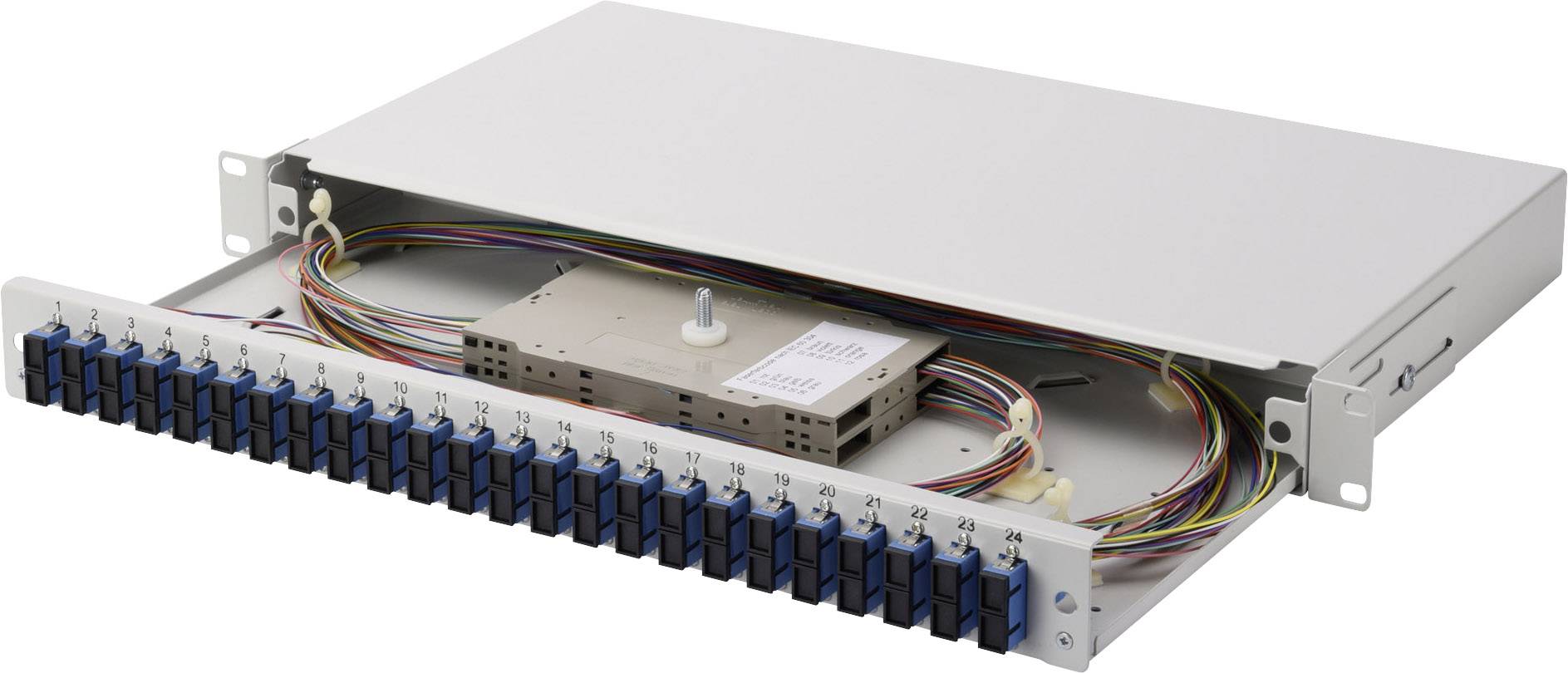

· Completely prefabricated, fiber pigtails exposed and inserted into the splice cassette(s)
· Colored pigtails
· Couplers with ceramic sleeve
· Couplers in polymer housing
· Carrier housing made of 1.0 mm sheet steel, varnished
· 1 height unit (44.45 mm)
· 483mm width (19")
· 280mm depth
· M20/M25 screw, cassette, cassette cover and strain relief included
· Sliding
· Colored pigtails
· Couplers with ceramic sleeve
· Couplers in polymer housing
· Carrier housing made of 1.0 mm sheet steel, varnished
· 1 height unit (44.45 mm)
· 483mm width (19")
· 280mm depth
· M20/M25 screw, cassette, cassette cover and strain relief included
· Sliding
Features
- Faserpigtails completely assembled, sold separately and in the splice box (n) is inserted
- Colored pigtails
- Couplings with ceramic ferrules
- Couplings in the plastic housing
- Carrier housing made of 1.0 mm steel sheet, painted
- 1 height unit (44,45 mm)
- 483 mm width (19")
- 280 mm depth
- M20/M25 cable gland, cassette, cassette cover and strain relief clamp are included in the delivery
- Extendable
