Buy Digitus DN-96332/9 FO patch panel 24 ports LC Equipped 1 U

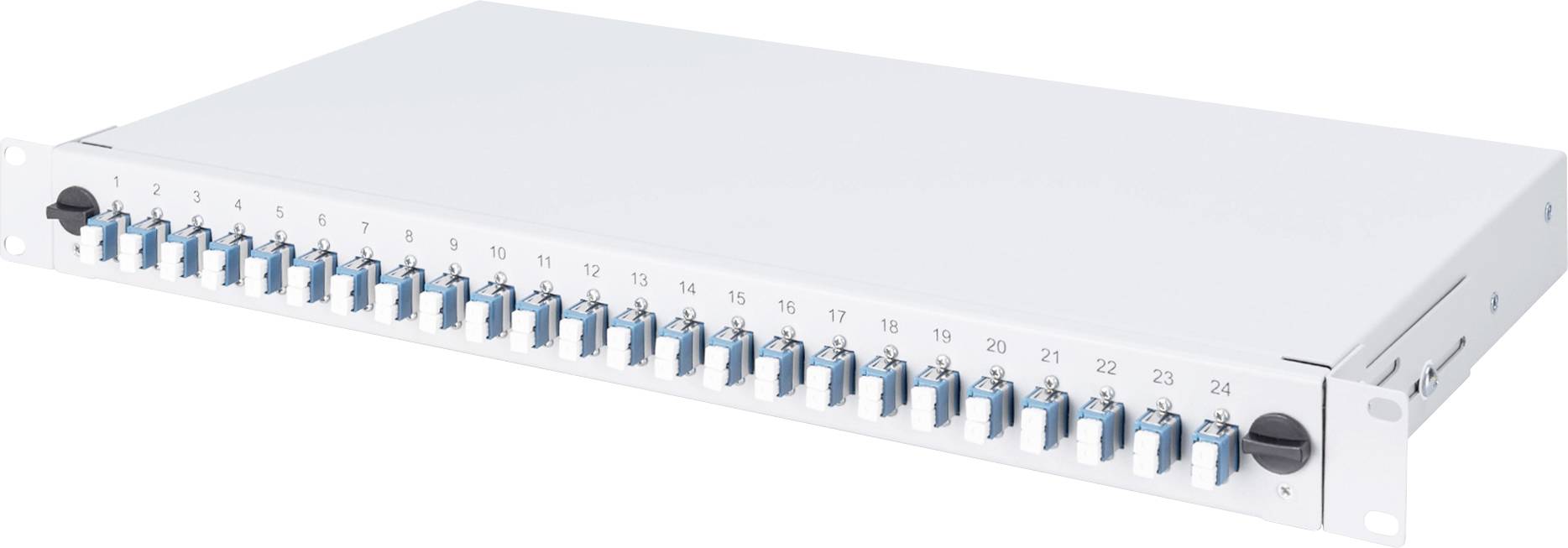

A white 24-port 19-inch patch panel with blue ports, used for network cabling in a server room.

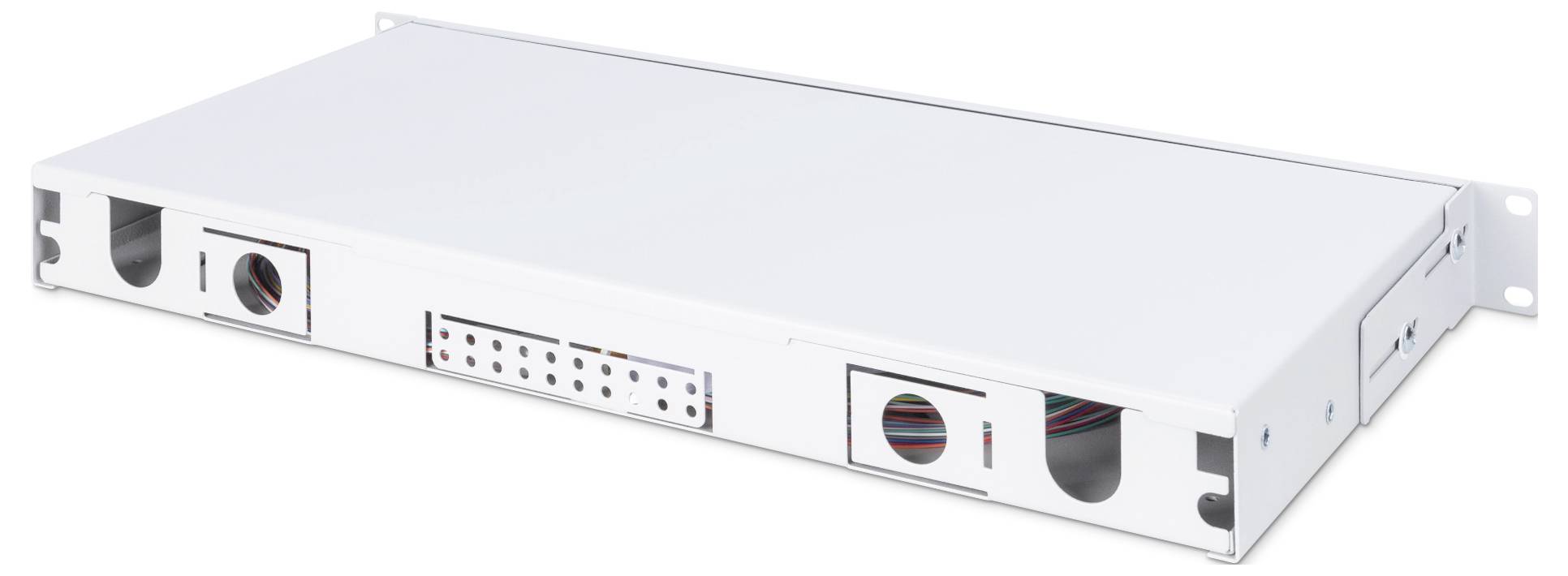

A white, rectangular metal enclosure with multiple outlets and inlets on the front panel, suitable for network or server equipment.

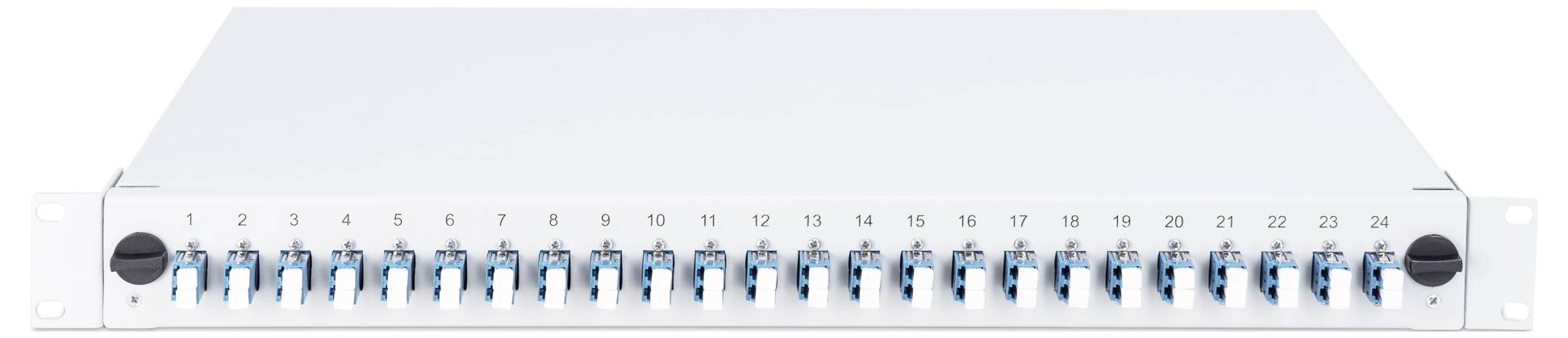

A 24-port fibre panel, horizontally oriented, with numbered blue ports, mounted on a white rack.

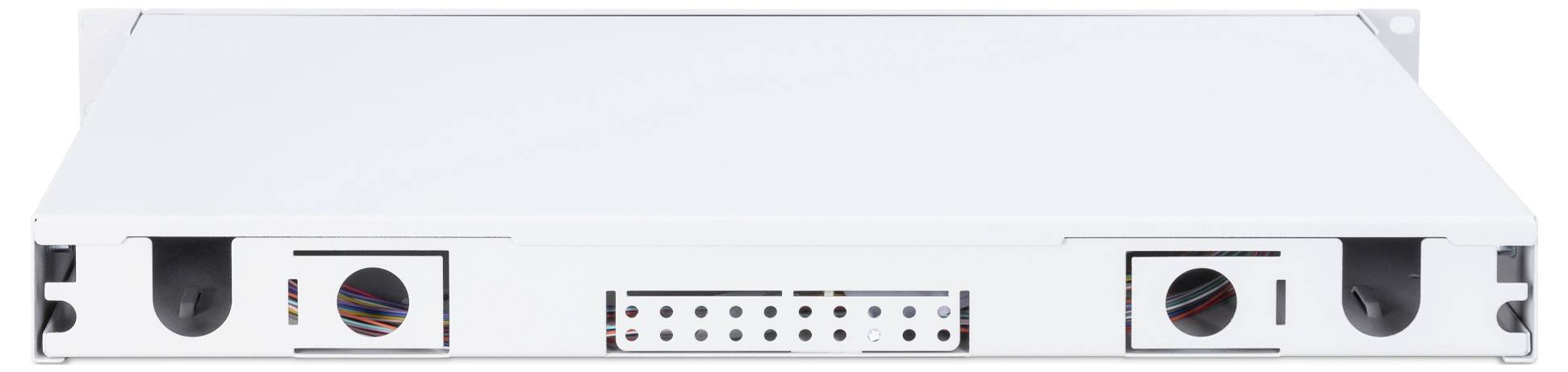

A white 1U rack enclosure with cable routing points and ventilation slots, designed for the installation and management of network components.

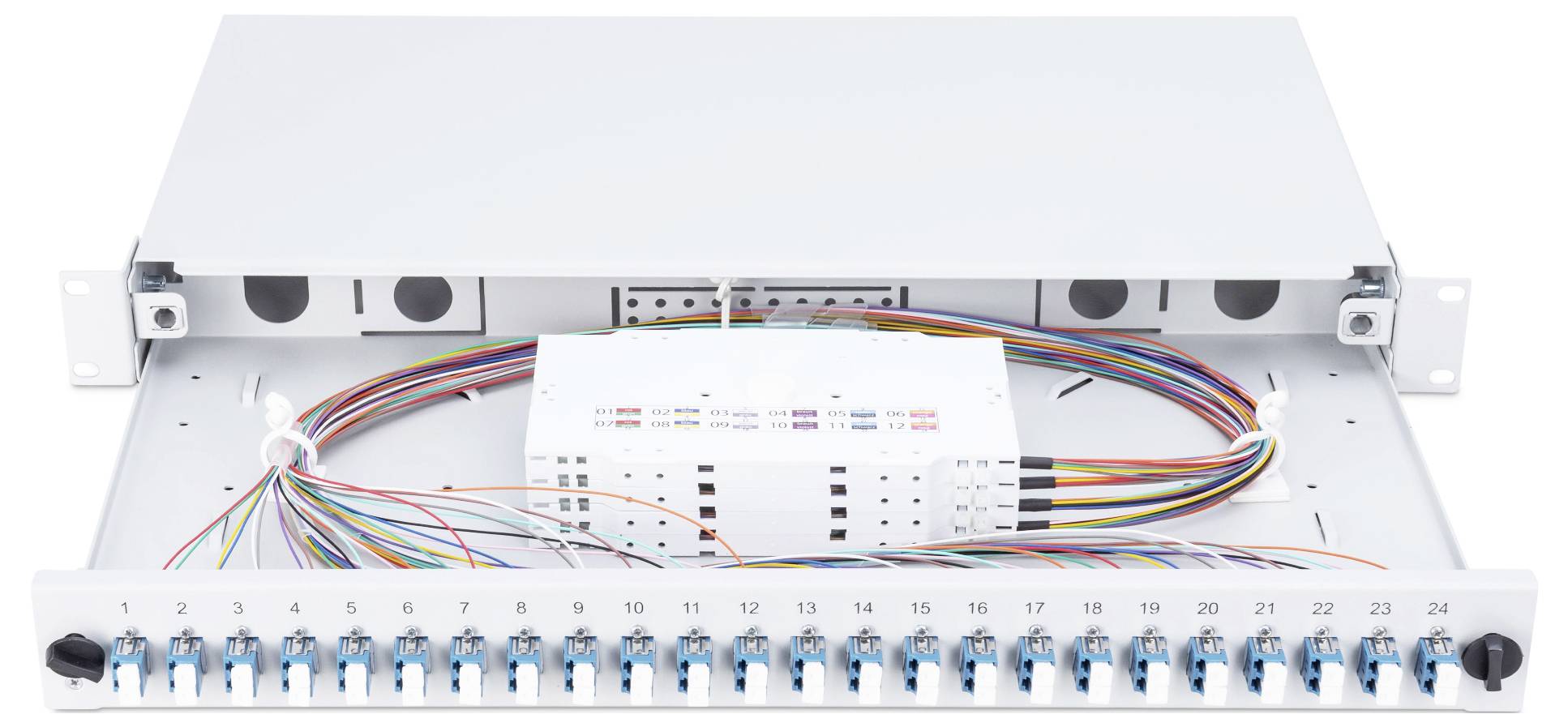

Fibre-optic splice box with 24 ports, open front panel, coloured cables inside, ideal for network connections in server rooms.

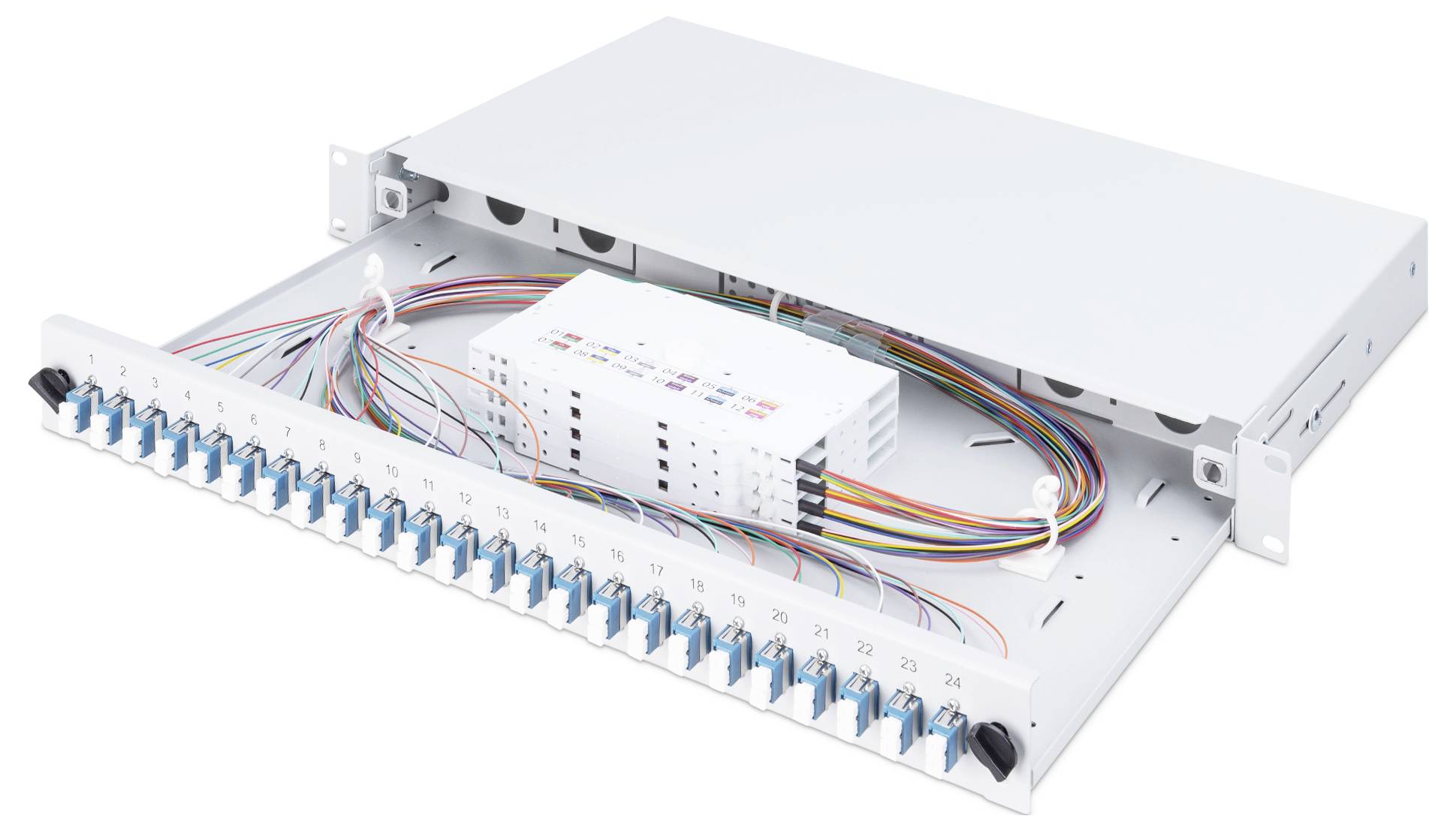

LWL Patch Panel with 24 ports, opened and with colour-coded cables and adapters for the fibre optic connection.

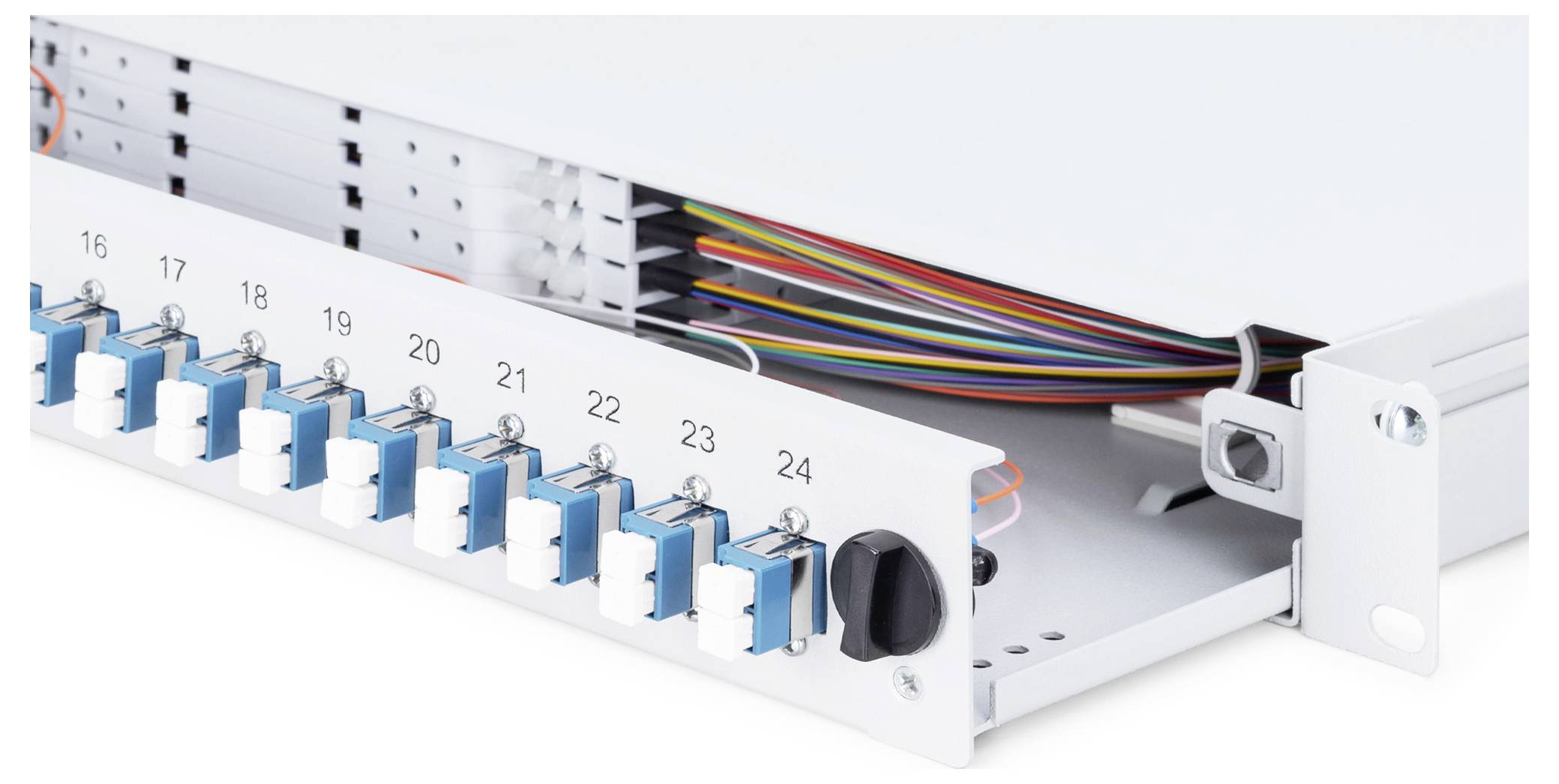

A fibre-optic distribution cabinet with numbered ports and coloured cables for data connections, opened to provide a view of the cabling.

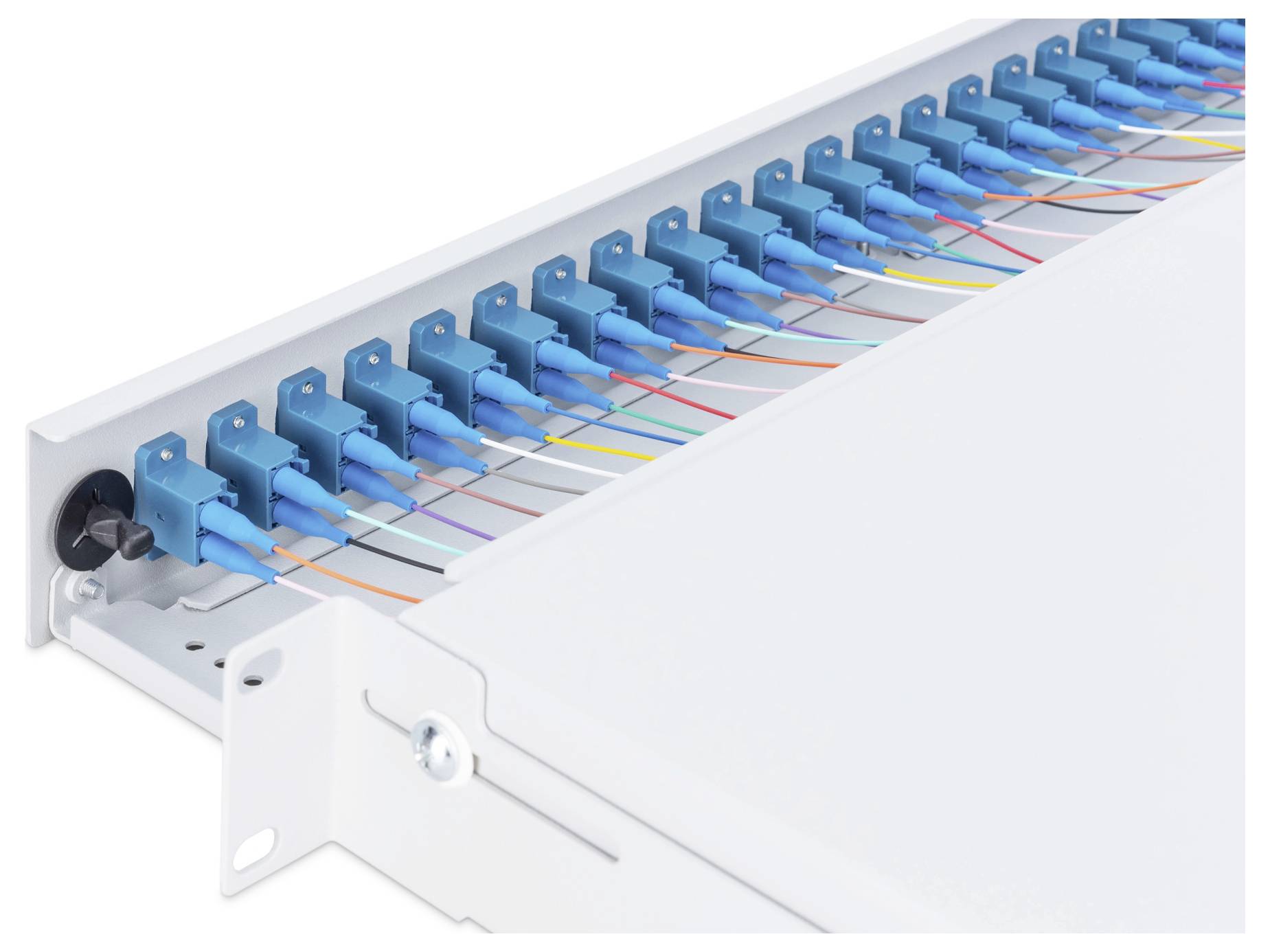

LWL distributor field with multiple blue-encapsulated connection modules and colour-coded cables for organising fibre optic networks.

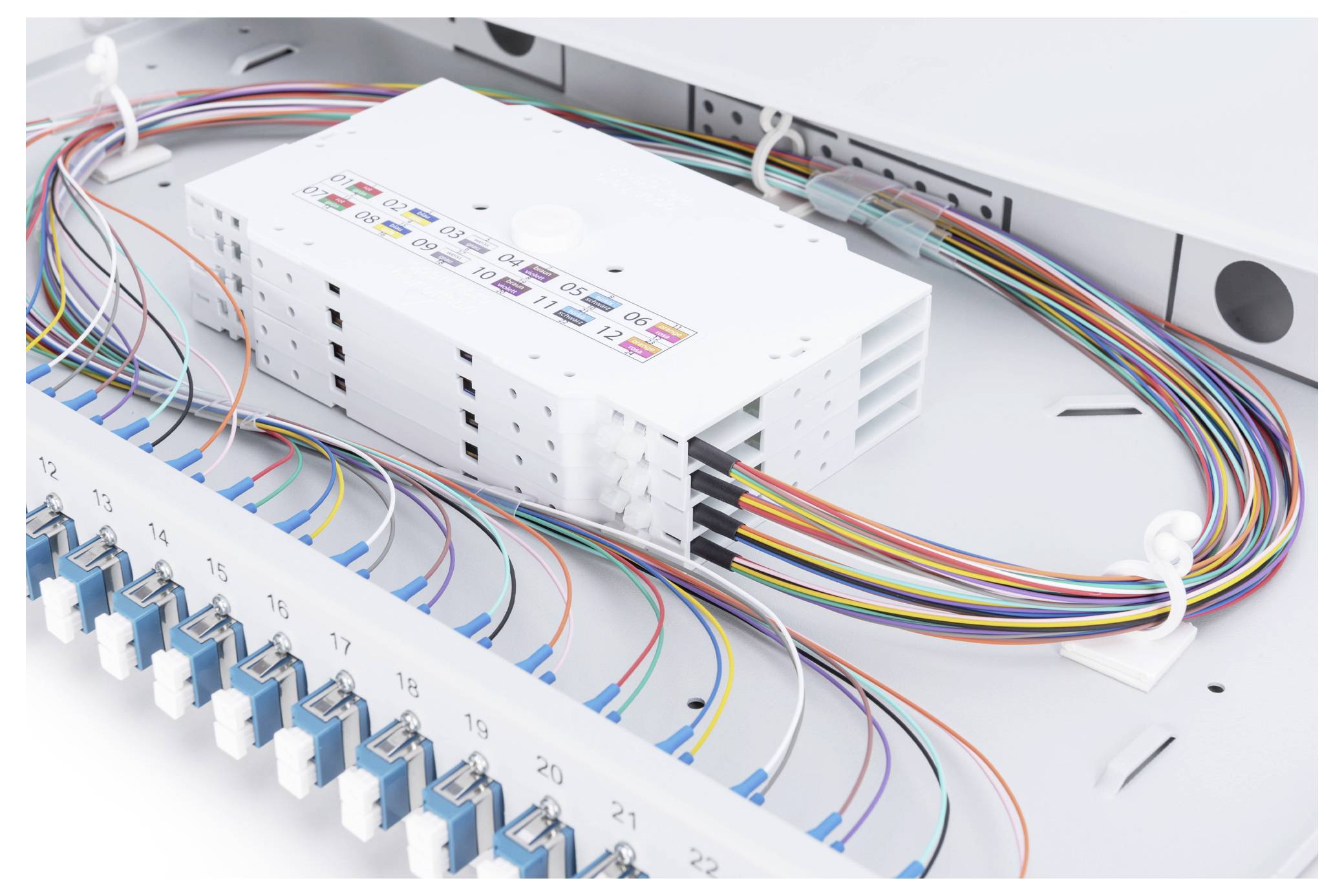

White network component with coloured cables neatly connected. Numbered ports are visible in the foreground.

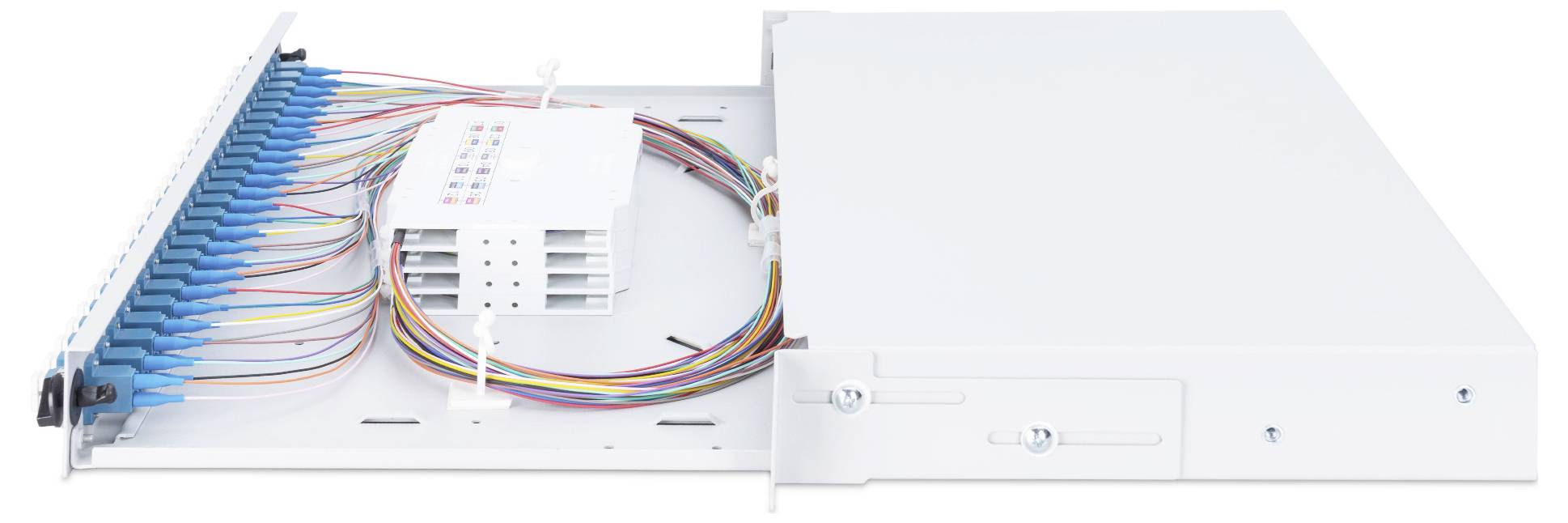

An open fibre optic cable panel with multiple colourful cables and connections, mounted in a white housing.

Cable glands, clamps and cable ties against a white background. Layout for industrial applications or DIY projects.

1/11

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Fiber Optic Splice Box, Equipped, LC, OS2

Highlights & Details

Faserpigtails completely assembled, sold separately and in the splice box (n) is inserted
Couplings with ceramic ferrules
Extendable

Technical specifications

Color: light gray, RAL 7035

Product type: FO patch panel

: LC

Patch panel design: Equipped

: Duplex

Port: 24 ports

: Singlemode OS2

Fibre type: 9/125 µ

Cable feed: reverse

Rack unit: 1 U

Factory colour: Grey-white (RAL 7035)

Length: 280 mm

Width: 483 mm

Height: 44 mm

Version: Cable

Cable use: FO

Connection type: Fibreglass

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1456177 Digitus DN-96332/9 FO patch panel 24 ports LC Equipped 1 U

User & Safety Instructions

User & Safety Instructions 1456177 Digitus DN-96332/9 FO patch panel 24 ports LC Equipped 1 U

Description

· Completely prefabricated, fiber pigtails exposed and inserted into the splice cassette(s)
· Colored pigtails
· Couplers with ceramic sleeve
· Couplers in polymer housing
· Carrier housing made of 1.0 mm sheet steel, varnished
· 1 height unit (44.45 mm)
· 483mm width (19")
· 280mm depth
· M20/M25 screw, cassette, cassette cover and strain relief included
· Sliding

Features

Faserpigtails completely assembled, sold separately and in the splice box (n) is inserted
Colored pigtails
Couplings with ceramic ferrules
Couplings in the plastic housing
Carrier housing made of 1.0 mm steel sheet, painted
1 height unit (44,45 mm)
483 mm width (19")
280 mm depth

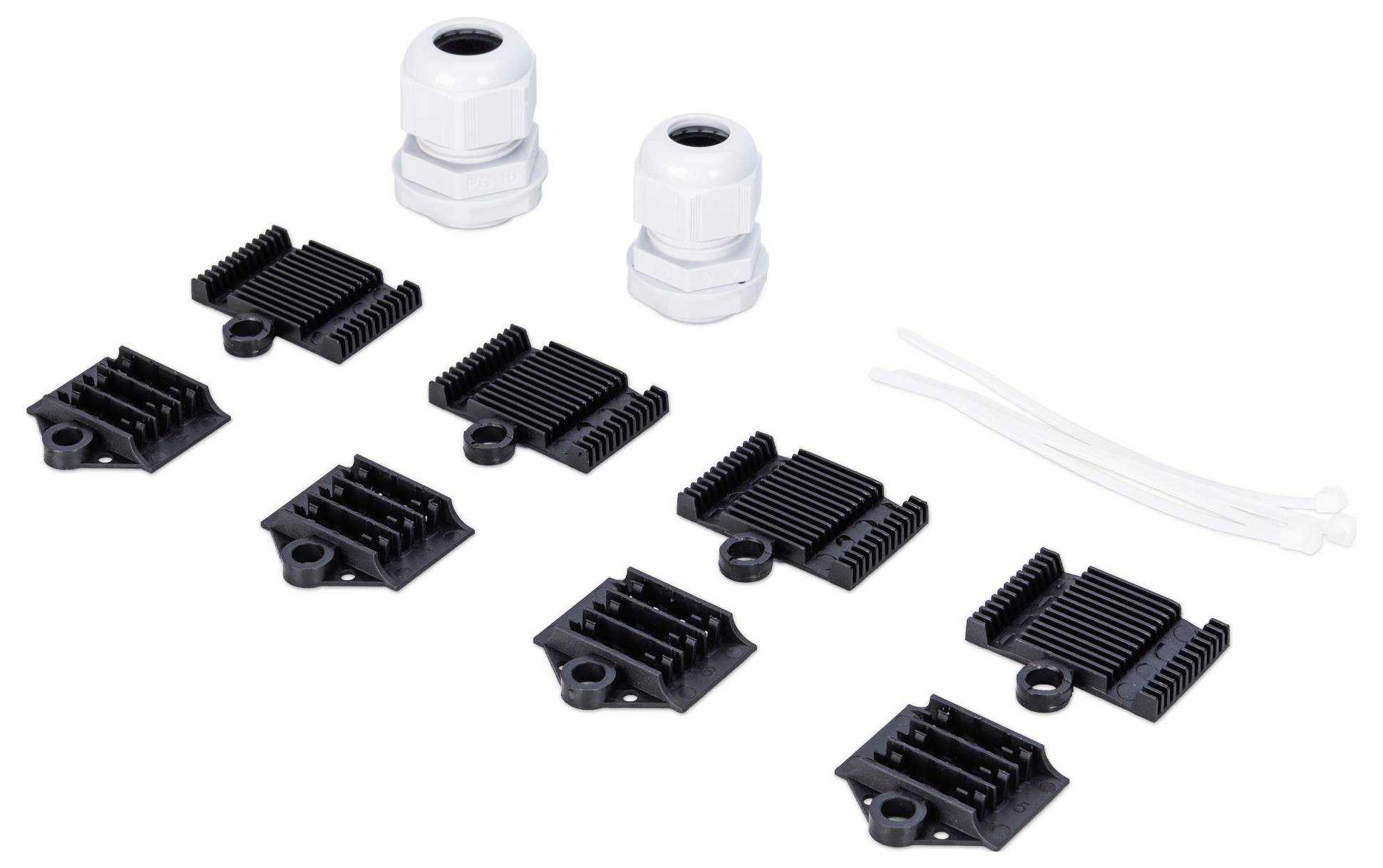

M20/M25 cable gland, cassette, cassette cover and strain relief clamp are included in the delivery
Extendable

Scope of delivery

Splice box
M25 screws
Adapter
