Digitus DN-96800M-2 Distribution box 48 ports Optical fiber Unequipped
EAN:
Part number:
Item no:
Fiber-optic wall mounting Unibox, medium 280 x 320 x 54 mm, gray (RAL 7035)
Highlights & Details
- For up to 48 fibers

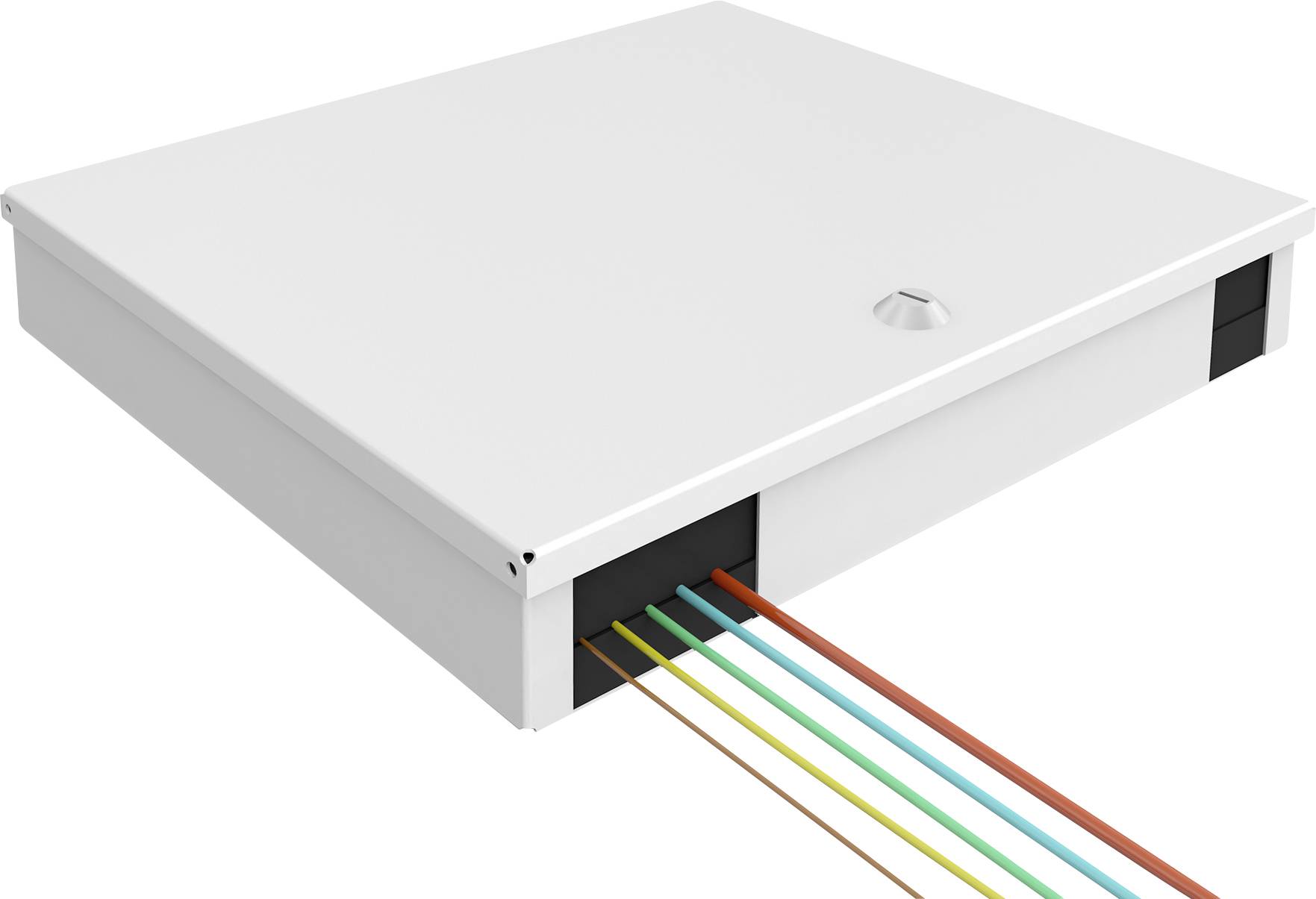

- Cable input or output at the top and bottom with foam rubber strips

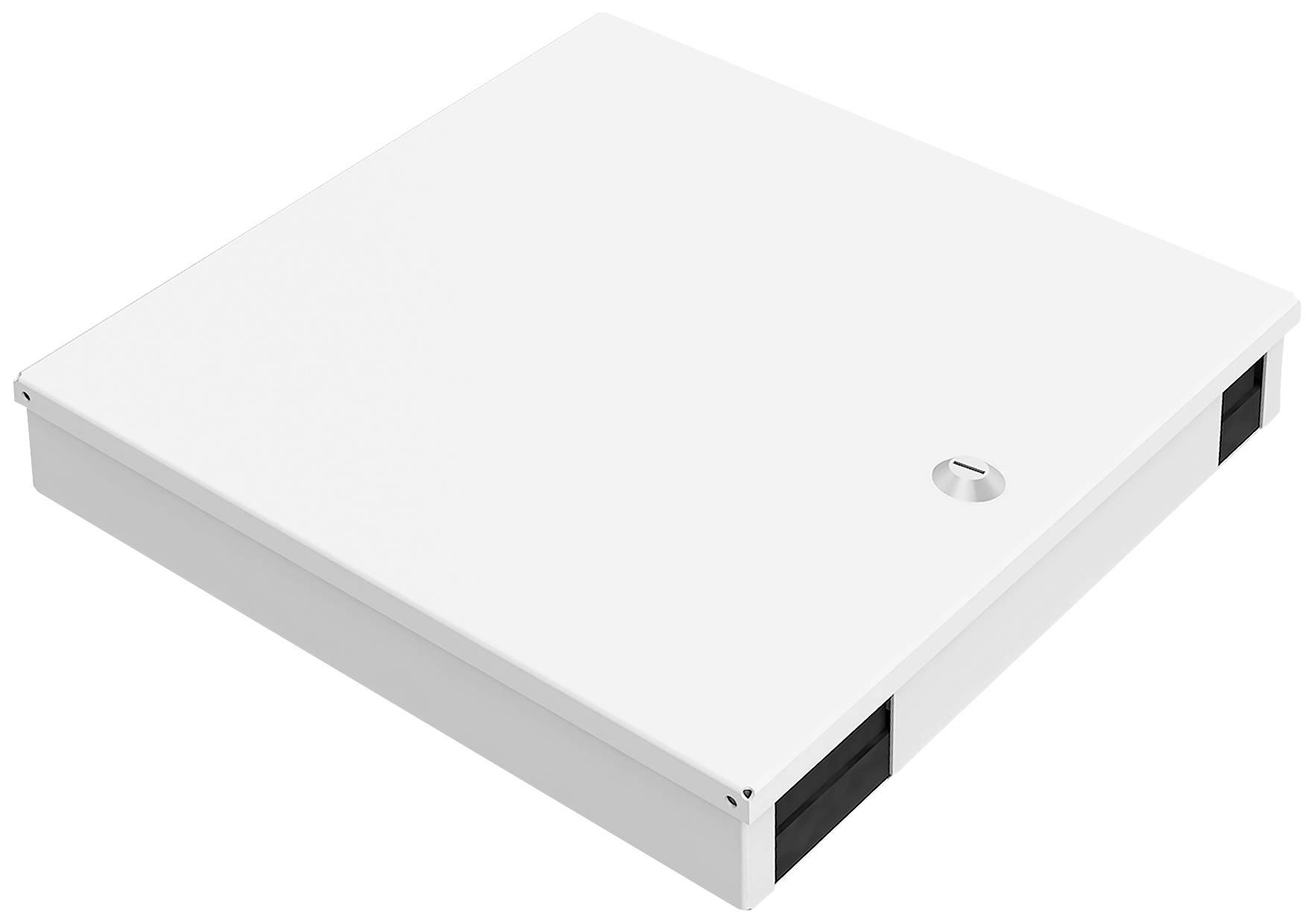

- Lockable (incl. 2x key)
- Robust cold-rolled sheet steel
Technical specifications
- Product type
Distribution box
Optical fiber
- Patch panel design
Unequipped
- Port
48 ports
- Cable feed
short side
top
bottom
vertical
- Factory colour
Grey-white (RAL 7035)
- Length
320 mm
- Width
280 mm
- Height
54 mm
- Version
Cable
- Cable use
FO
- Connection type
Fibreglass
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2373106 Digitus DN-96800M-2 Distribution box 48 ports Optical fiber Unequipped
Description

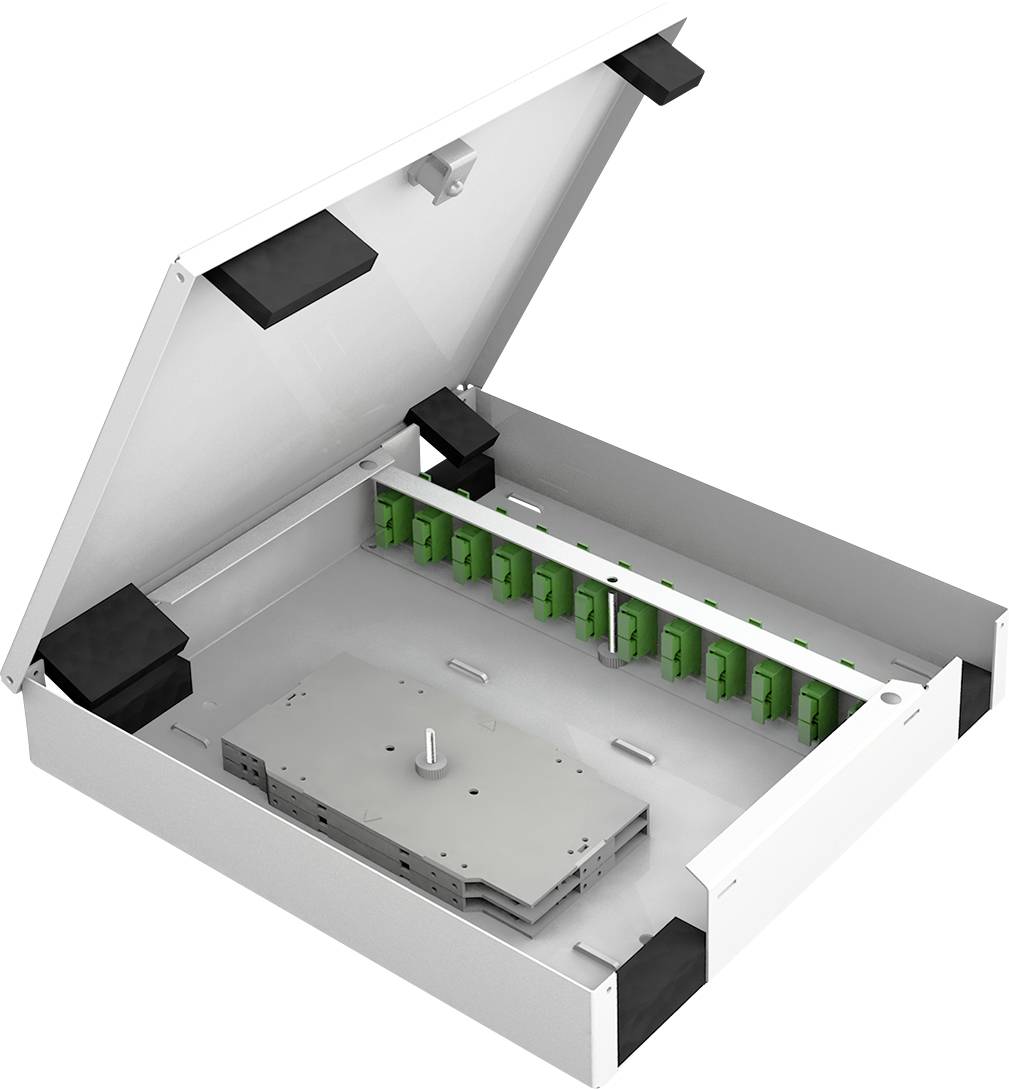

The glass fiber Unibox is a robust and compact splicebox for wall mounting. With separately available coupling brackets, which can be mounted in seconds, the box can be individually fitted with couplings, fiber pigtails and cables as required. Application areas are u .a. Indoor Tele and Data Communications applications.
This text is machine translated.
This text is machine translated.
Features
- Possibility to record up to 4 spliceboxes
- Integrated holding devices for cable ties

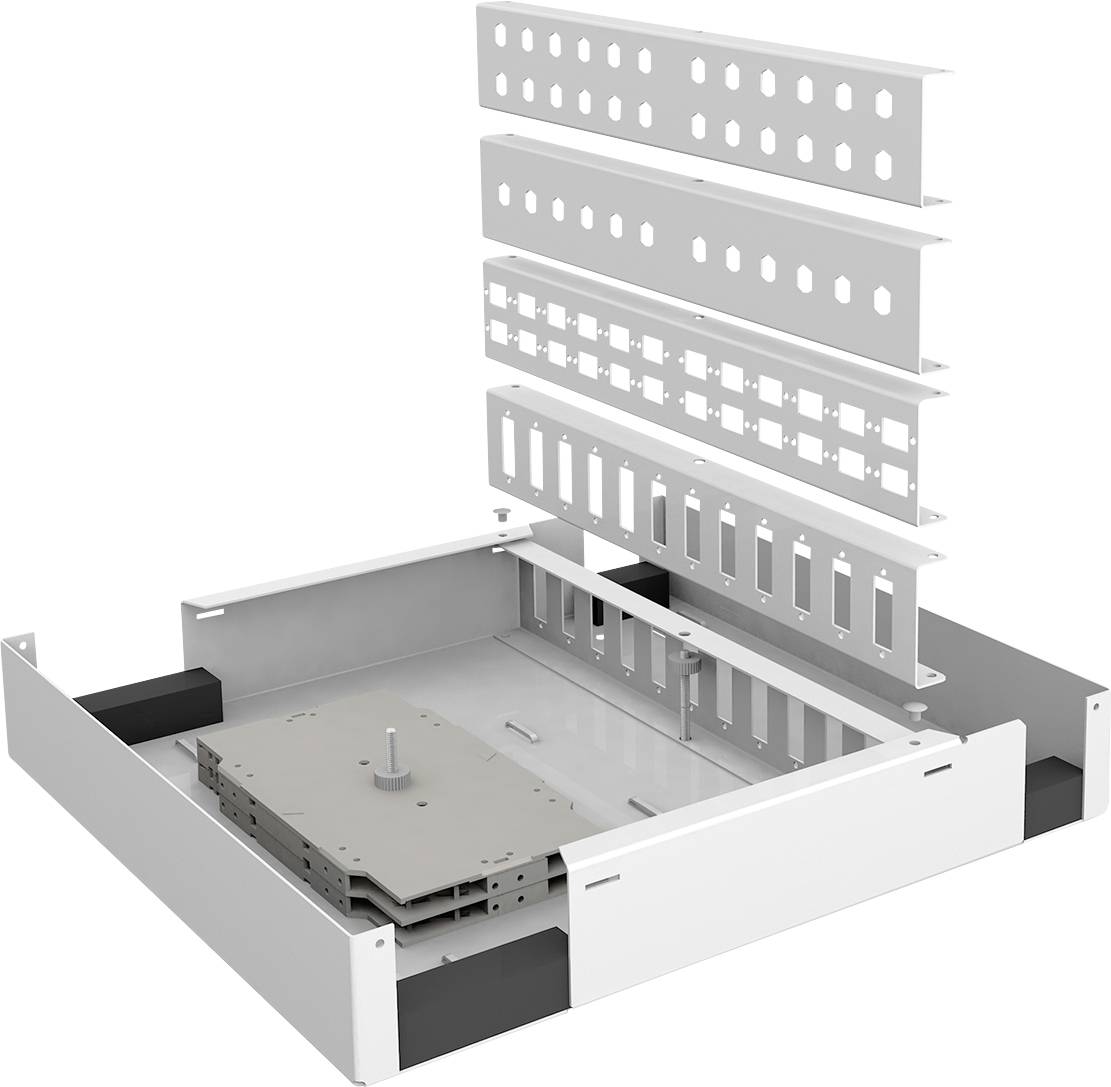

- Different adapter plates available for couplings
- Mounting material included (4x dowels, screws, washers, cable ties)
Scope of delivery
- 2 x keys
- Mounting material (screws, dowels, washers, cable ties)
Hints
The matching adapter plates are required depending on the plug connector!
