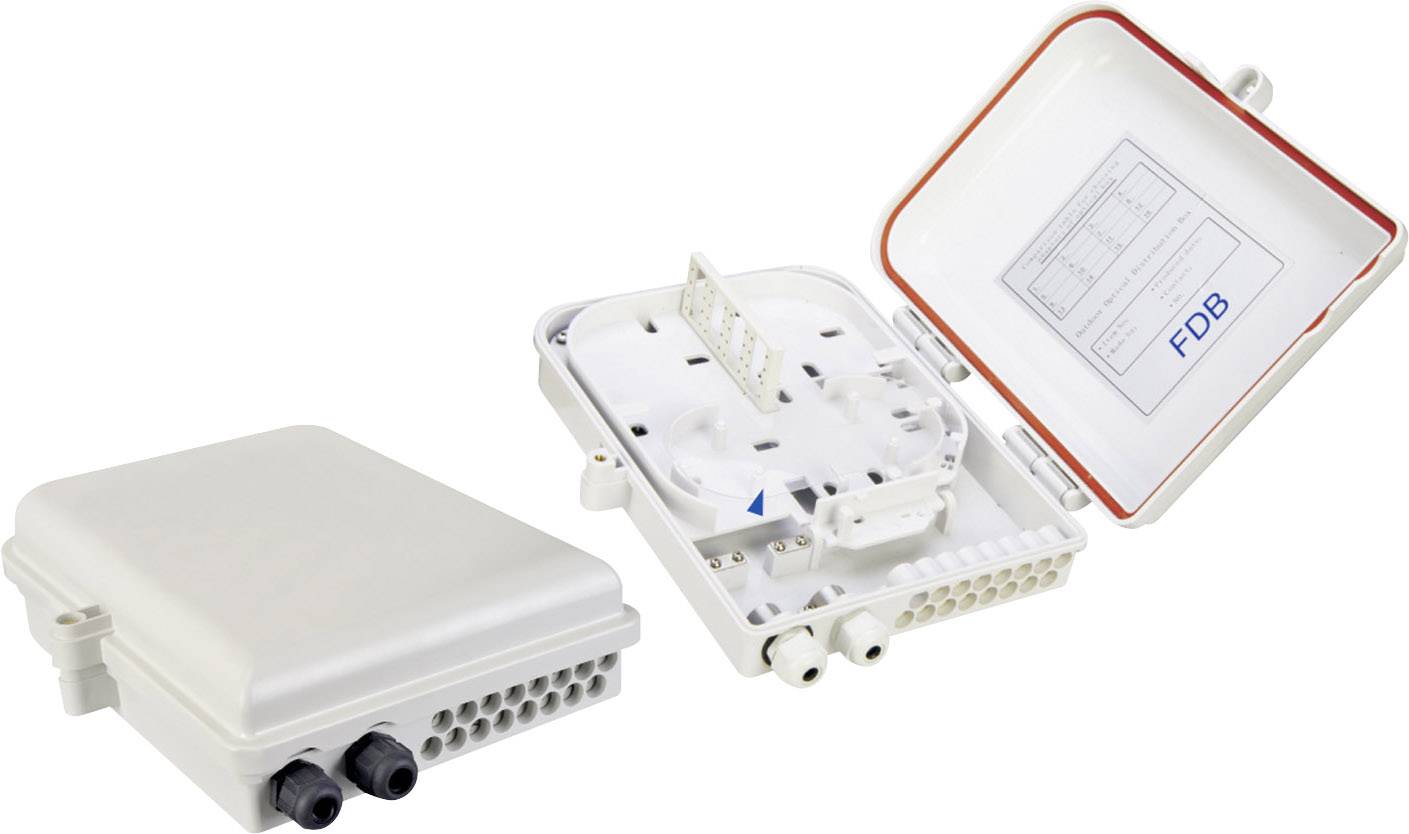

Digitus DN-968914 Distribution box 16 ports LC, SC
EAN:
Part number:
Item no:
FTTH Distribution Box for 16 cores
Highlights & Details
- Holder for 24x LC/DX or 24x SC/SX couplings
- Splice box for 12 SPLICES
- Lockable
Technical specifications
- Protection system: IP 65
- Product type
Distribution box
LC
SC
- Port
16 ports
- Factory colour
Grey
- Length
300 mm
- Width
220 mm
- Height
80 mm
- Version
Adapter
- Cable use
Networks
- Connection type
Fibreglass
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1456204 Digitus DN-968914 Distribution box 16 ports LC, SC
Description
FTTH Outdoor Distribution Box IP65; for 24x SC/SX or 24x LC/DX Adapter and 16 cores; Size: 300x220x80 mm
· 4 SC Duplex couplers Holder; Splice Protection Holder for 12 Splices; lockable; cable overlenght tray; 2 cable entry 12 mm; 16 cable entry 5 mm; fixing material; splice protection, IP 65
· 4 SC Duplex couplers Holder; Splice Protection Holder for 12 Splices; lockable; cable overlenght tray; 2 cable entry 12 mm; 16 cable entry 5 mm; fixing material; splice protection, IP 65
Features
- Cable reserve be unfolded
- 2 cable inputs 12 mm
- 16 cable inputs 5 mm
- Splice protectors
Scope of delivery
- Fasteners
