Digitus DN-CT-10M-25 Hook-and-loop cable manager stick-on, for bundling Hook pad, Hook and loop pad, Loop pad, Mushroom
EAN:
Part number:
Item no:
Digitus DN-CT-10M-25 Velcro cable management system, mushroom head tape 5 m, fleece and Velcro tape 10 m
Highlights & Details
- Fast installation time, no additional components required
- Cut to size, belts are supplied on roll
- No special profiles required, attached directly to non-powder-coated surfaces
- Easily expandable, changing bundle sizes on request
- Compared to cable management with bracket clamp and C profile rail, this is significantly more attractive for the price
- Suitable for frequent opening and closing of up to 10,000 cycles
Technical specifications
- Product type
Hook-and-loop cable manager
- Hook-and-loop technology
Hook pad
Hook and loop pad
Loop pad
Mushroom hooks
Heavy duty
- Hook-and-loop feature
stick-on
for bundling
- Factory colour
Black
- Material
Carbon fibre
Synthetic fibre
Plastic
Synthetic fabric
- Holding force
4 kg
- Width
25 mm
- Min. temperature
-40 °C
- Max. temperature
100 °C
- Content
1 pc(s)
- Manufacturer part #
DN-CT-10M-25
- Type
DN-CT-10M-25
- Weight
0.50
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1881645 Digitus DN-CT-10M-25 Hook-and-loop cable manager stick-on, for bundling Hook pad, Hook and loop pad, Loop pad, Mushroom
Description

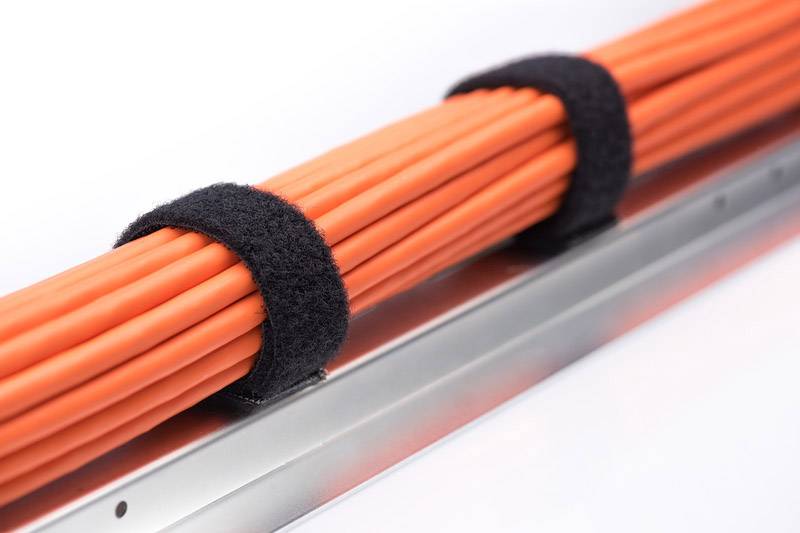

The DIGITUS Professional hook-and-loop cable management system provides fast and optimal cable routing in network cabinets, industrial environments and in the home & office sector. The cable management system is ideal for bundling all common fiber and copper data cables. The bundling of 2 - 48 data lines is possible without any problem. Another advantage is the material conservation, the surface of the fabric offers less material stress on the bundled data lines compared to aluminum and steel iron. In addition, the mushroom head tape is equipped with ultra-strong adhesive, which adheres to the contact point with 4 kg per cm².
The system consists of the following components, a self-adhesive mushroom head tape that adheres to all non-powder coated surfaces with the specified force - the non-powder coated surfaces must be degreased before use. In addition, a fleece/Velcro tape is included in the delivery, which is optimally suitable for bundling the cable strands.
In addition to industrial applications, the cable management system can also be used in the home & office area, for example, to sort connection and connection cables under desks or TV cabinets and to lay them inconspicuously. Please note that non-metallic as well as painted and powder-coated surfaces do not achieve the specified adhesive capacity and may differ from the specified 4 kg/cm²!
This text is machine translated.
The system consists of the following components, a self-adhesive mushroom head tape that adheres to all non-powder coated surfaces with the specified force - the non-powder coated surfaces must be degreased before use. In addition, a fleece/Velcro tape is included in the delivery, which is optimally suitable for bundling the cable strands.
In addition to industrial applications, the cable management system can also be used in the home & office area, for example, to sort connection and connection cables under desks or TV cabinets and to lay them inconspicuously. Please note that non-metallic as well as painted and powder-coated surfaces do not achieve the specified adhesive capacity and may differ from the specified 4 kg/cm²!
This text is machine translated.
Features
- Mushroom head tape
- Modified solvent-based acrylic polymer
- Operating temperature: -40°C - +100°C.
- Short-term up to +160°C.
- Mushroom head density 48 heads/ cm²
- Peeling strength 2 N/ cm²
- Strain RELIEF 40 N/ cm²
- 25 mm breit
- Fleece and Velcro tape
- Front: Flusch, back: Hook
- Material: polyamide
- Both sides are glued together
- Suitable for frequent opening/closing of up to 10,000 cycles
Scope of delivery
- Mushroom head tape 5 m
- Fleece and hook-and-loop tape 10 m
