Digitus DS-12851 1+2 ports KVM changeover switch DisplayPort 3840 x 2160 Pixel
EAN:
Part number:
Item no:
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
14-day return policy included

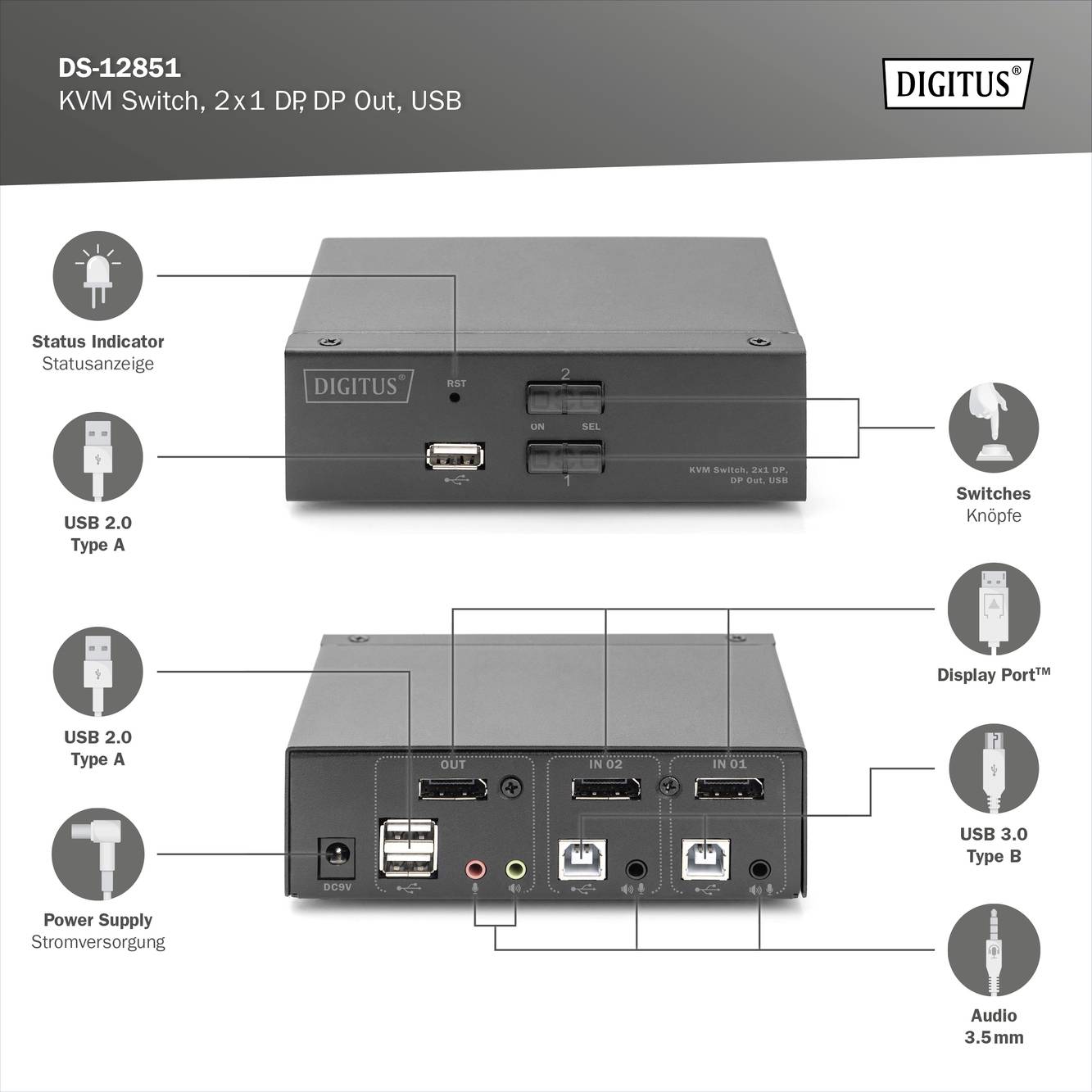

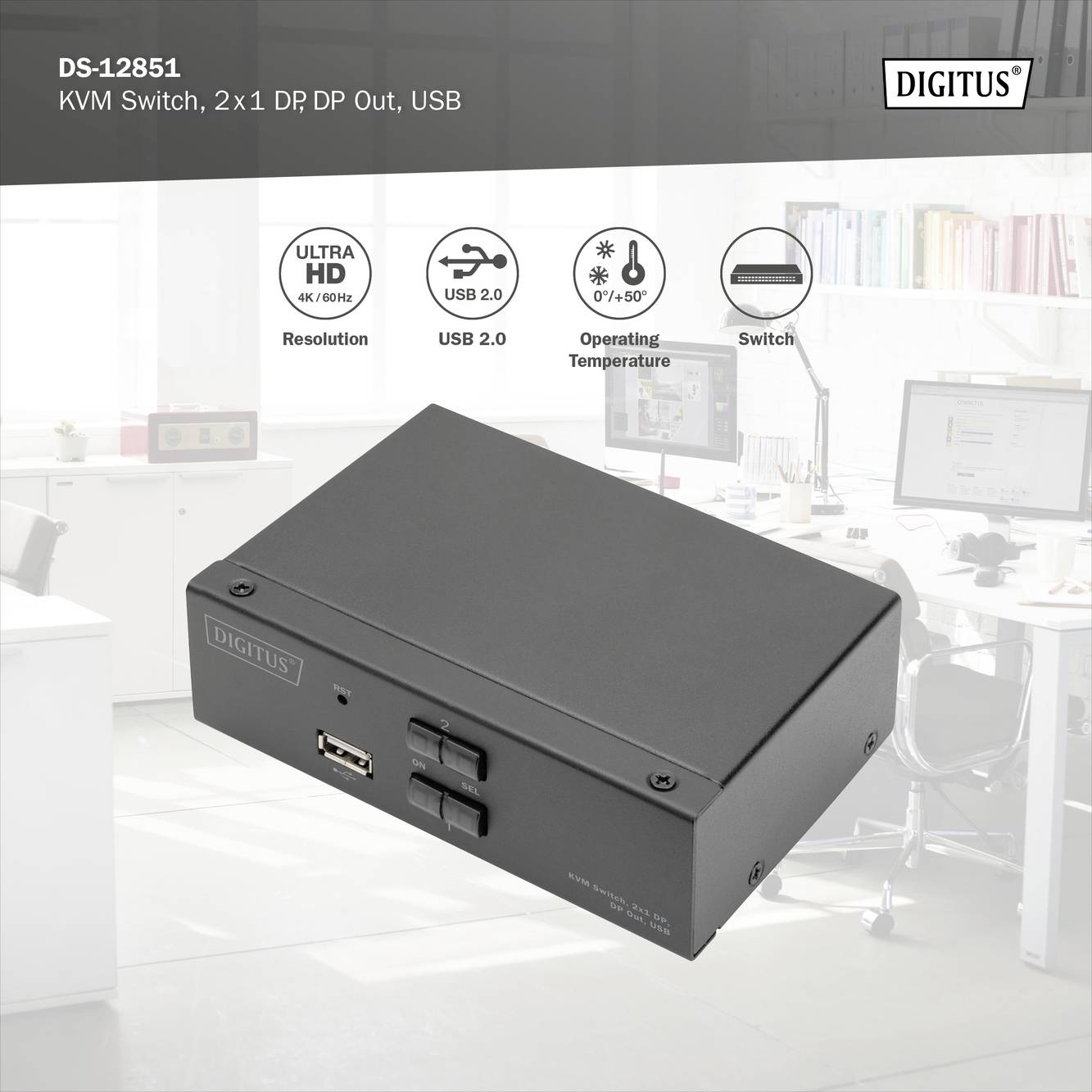

Digitus DS-12851 KVM changeover switch
Highlights & Details
- Resolution: 4K @ 60HZ(3840x2160 @60HZ)
- Inputs: 2 x DisplayPort inputs (2x1), 2 x USB B, 2 x audio combo connectors 3.5 mm jack (microphone, speaker)

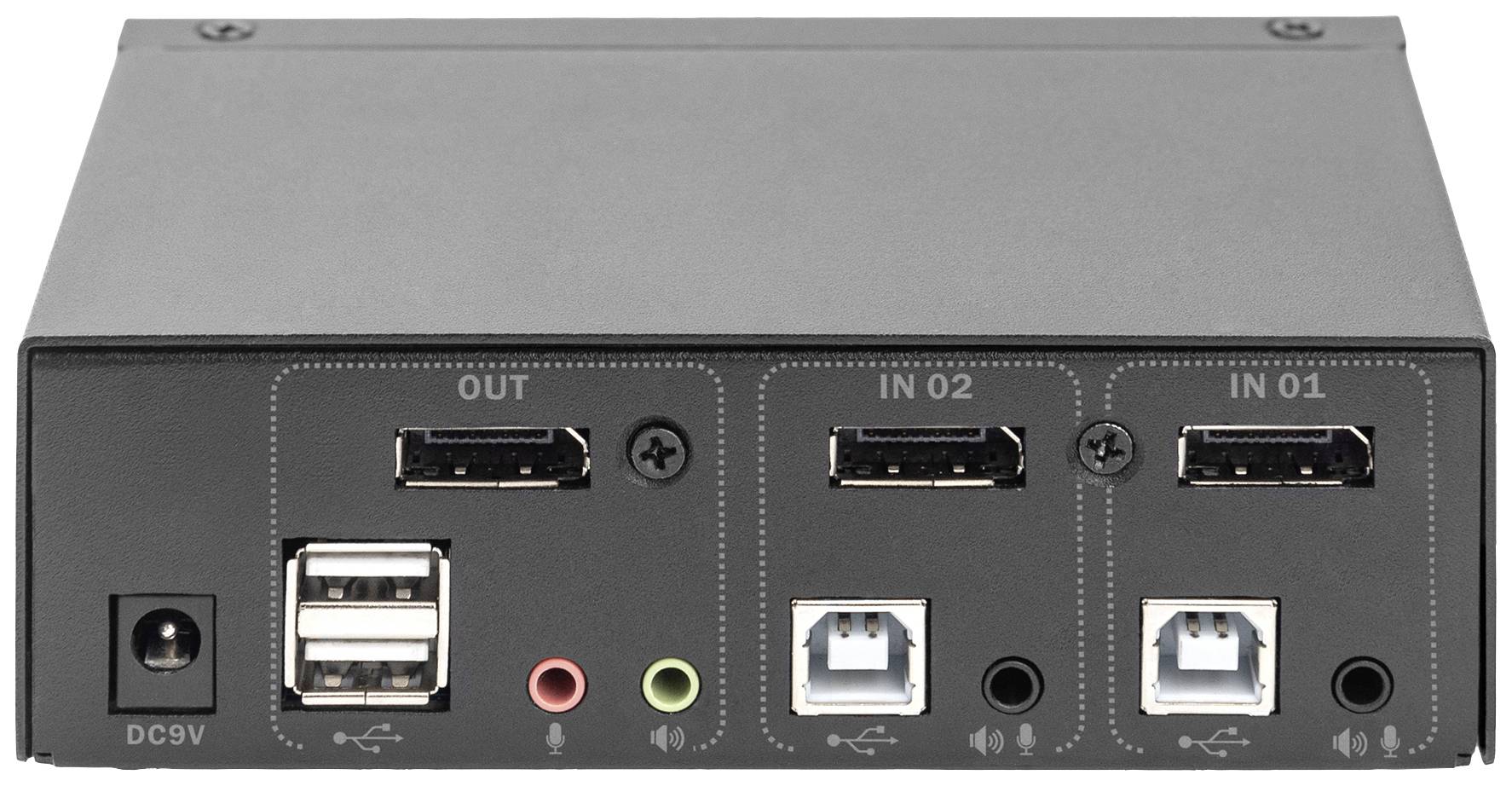

- Outputs (console): 1 x DisplayPort, 2 x USB A (mouse, keyboard), 2 x stereo audio 3.5m jack (microphone, loudspeaker)

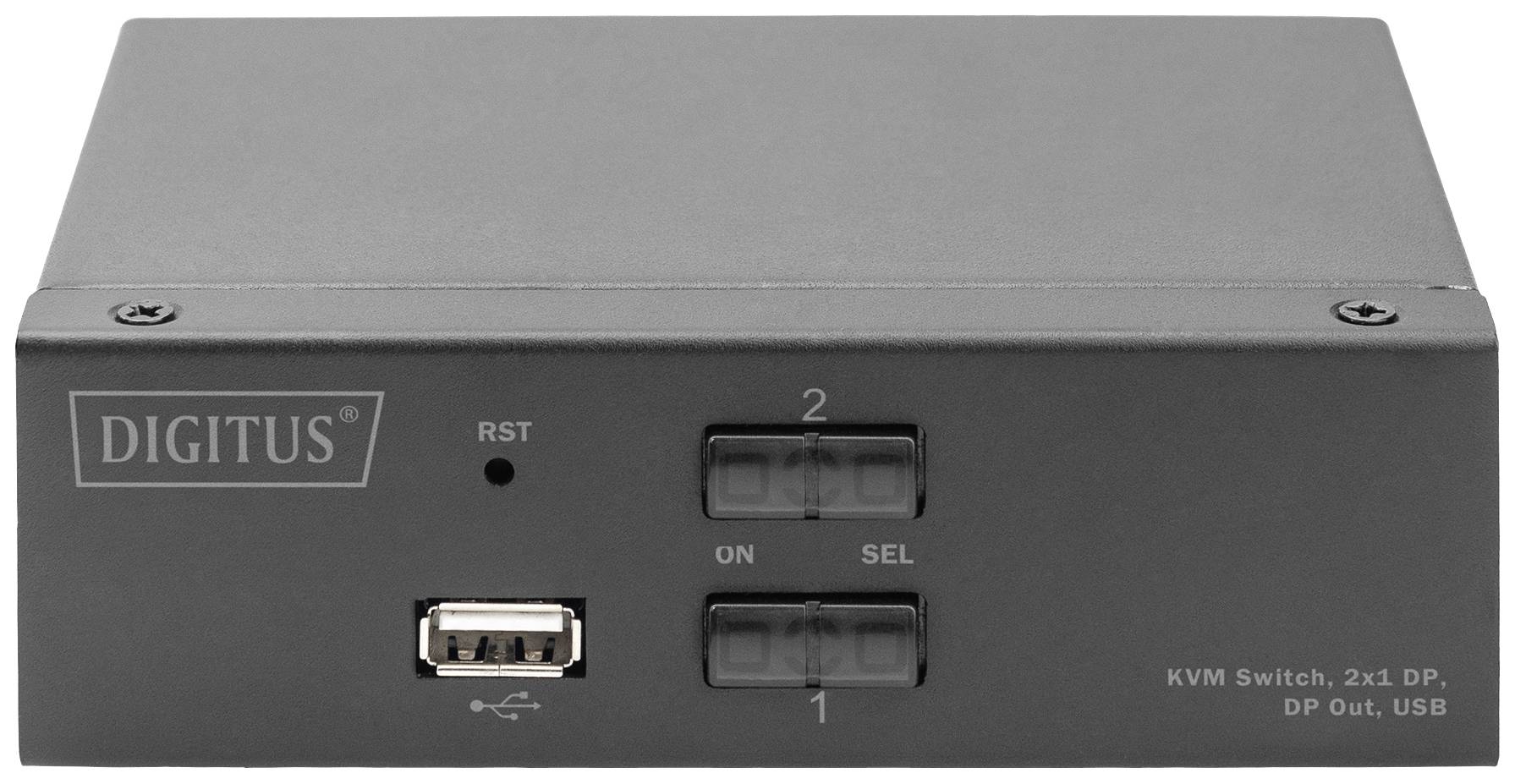

- Additional connection at front side: 1 x USB A for other peripheral devices, like printer or USB-sticks
- USB specification: Meets USB 2.0 (full speed)
- Supported audio formats: Dolby True HD, DTS HD Master audio
- Switching between PCs: Switch on the front side or hot keys
- Status LED on front shows current configuration
- The device works platform-independent, suitable for all operating systems
Technical specifications
- Resolution: 4K @ 60HZ(3840x2160 @60HZ)
- Inputs: 2 x DisplayPort inputs (2x1), 2 x USB B, 2 x audio combo connectors 3.5 mm jack (microphone, speaker)
- Outputs (console): 1 x DisplayPort, 2 x USB A (mouse, keyboard), 2 x stereo audio 3.5m jack (microphone, loudspeaker)
- Additional connection at front side: 1 x USB A for other peripheral devices, like printer or USB-sticks
- USB specification: Meets USB 2.0 (full speed)
- Supported audio formats: Dolby True HD, DTS HD Master audio
- Switching between PCs: Switch on the front side or hot keys
- Status LED on front shows current configuration
- Operating temperature: 0 °C ~ 50 °C
- Storage temperature: -20°C ~ 60°C.
- Operating humidity 0 - 80% RH, non-condensing
- Material housing: Metal
- Optional power supply: 9 V DC power supply
- Product type
KVM changeover switch
- No. of switchable PCs
2
- Video via
DisplayPort
- Video resolution
3840 x 2160 Pixel
- Audio headphones
Yes
- Audio microphone
Yes
- No. of USB 2.0 ports
5 x
- Switch function
Key
- Distributor/switch features
Steel casing
+ audio ports
LED display
- Power supply (LOV)
via USB
via PSU (optional)
- Factory colour
Black
- Weight
465 g
- Length
132 mm
- Width
92 mm
- Height
44 mm
- Port
1+2 ports
- Dim
(L x W x H) 132 x 92 x 44 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3046091 Digitus DS-12851 1+2 ports KVM changeover switch DisplayPort 3840 x 2160 Pixel
Description

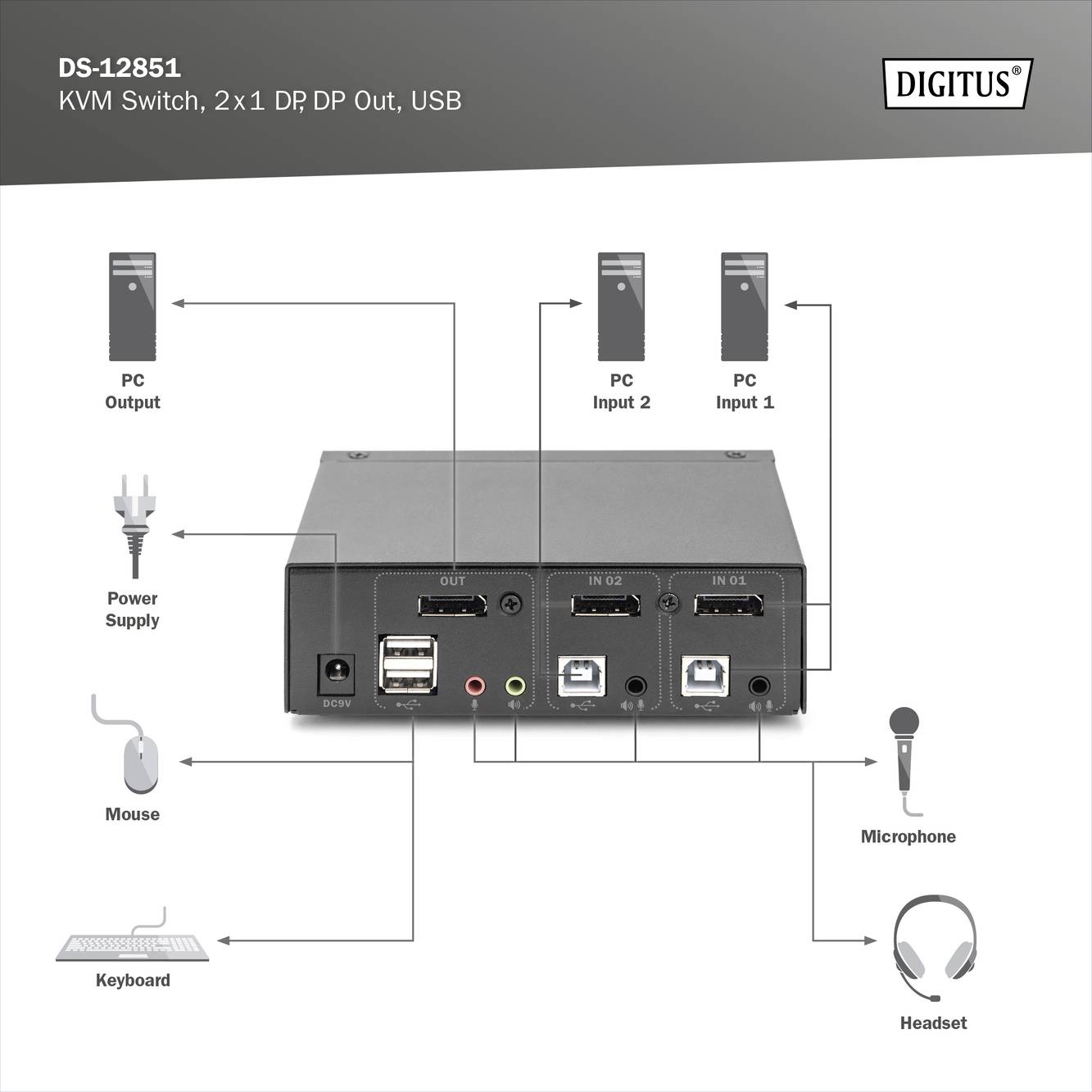

The DS-12851 is a desktop KVM switch that offers seamless switching between devices of DP+ audio + MIC + USB devices. It is equipped with local control interfaces, which enable you to manage and control all the connected devices easily. The front USB interface provides easy access for connecting USB peripherals such as keyboard, mouse, USB flash drive, printer and more. With support for Hot-key switching and key pad switching the DS-12851 is easy to use and enables the switching between the devices without interrupting the workflow. Whether you are a professional user who works on several projects, or a player who needs seamless control of his gaming setup - the DS-12851 is the perfect solution. Thanks to its slim and compact design, the DS-12851 Ideal is suitable for a variety of settings, including home offices, gaming rooms and professional work areas. If you are looking for a reliable and easy-to-operate interface controller that meets your requirements, the DS-12851 is the right choice.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 pieces desktop KVM switch
- 2 sets KVM connection cable
- 1 user manual
System requirements
- The device works platform-independent, suitable for all operating systems
