Buy Digitus DS-12860 2+1 ports KVM changeover switch HDMI Remote control, Keyboard 3840 x 2160 Pixel

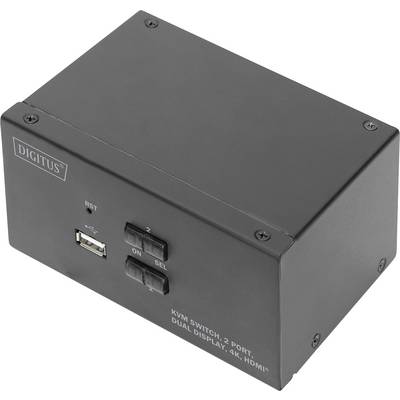

A rectangular KVM switch by Digitus with two switches and a USB port, labelled 'KVM Switch, 2 Port, Dual Display, 4K, HDMI'.

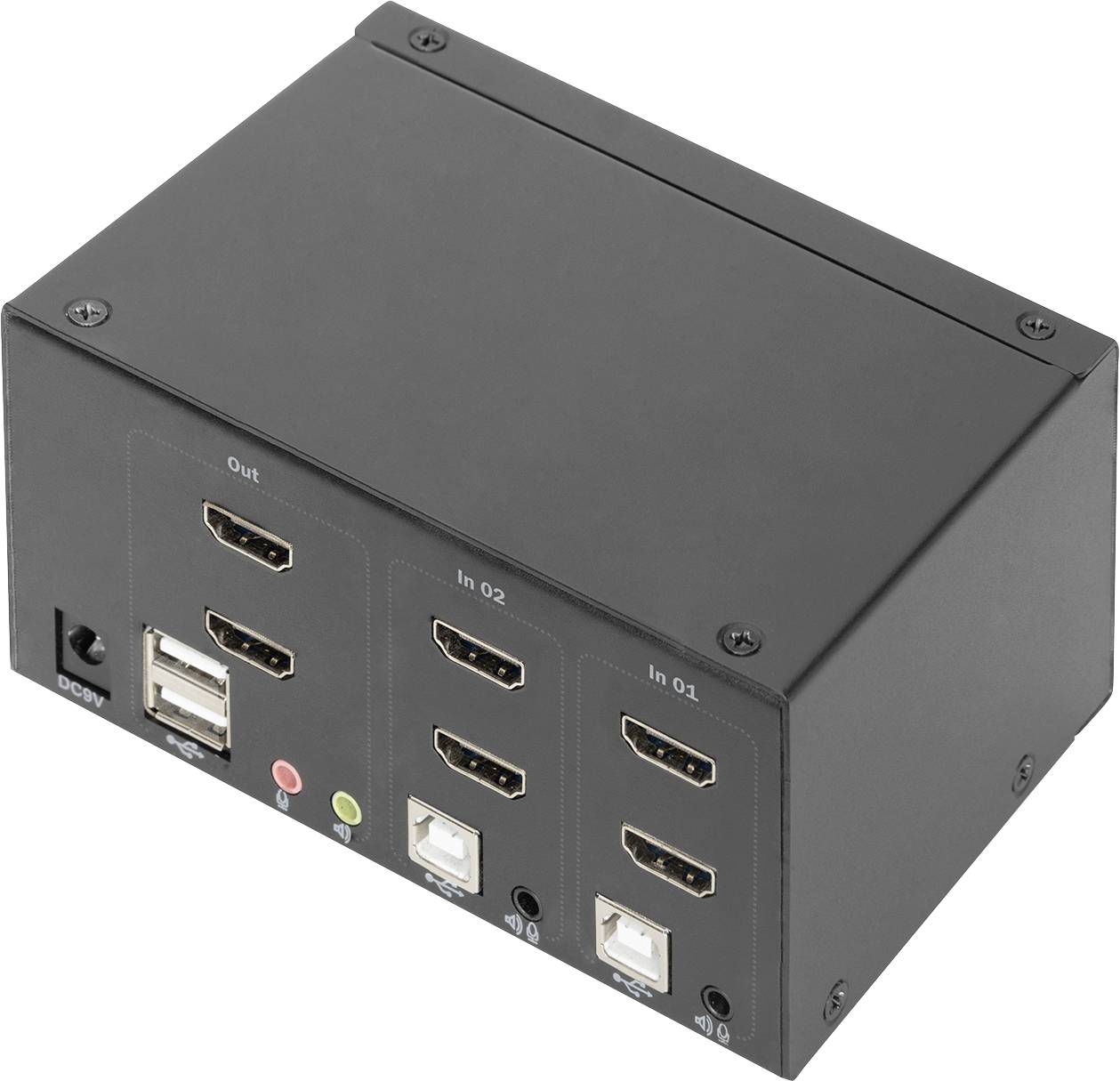

A black HDMI splitter with multiple input and output ports and a USB port on the front.

A set comprising multiple cables and a black adapter box offering various connections. Suitable for audiovisual connections.

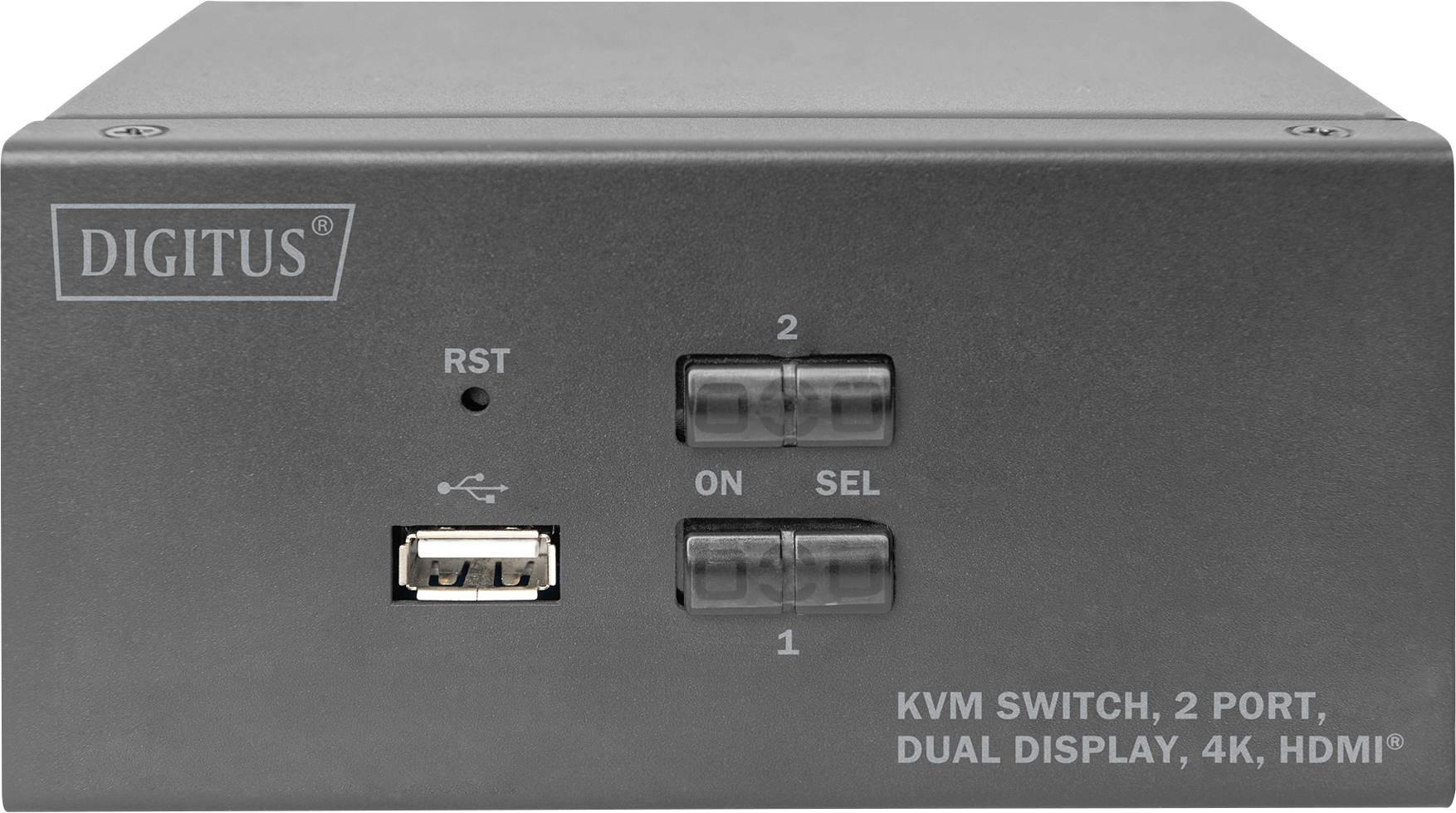

A black KVM switch with two buttons for HDMI connections. Labelled with 'DIGITUS' and 'KVM SWITCH, 2 PORT, DUAL DISPLAY, 4K, HDMI'.

Black distribution box with multiple HDMI, USB, and audio ports, labelled as 'Out', 'In 01' and 'In 02'.

'Diagram shows KVM switch with connections for mouse, keyboard, external hard drive and printer. Upper text: DS-12860 Info.'

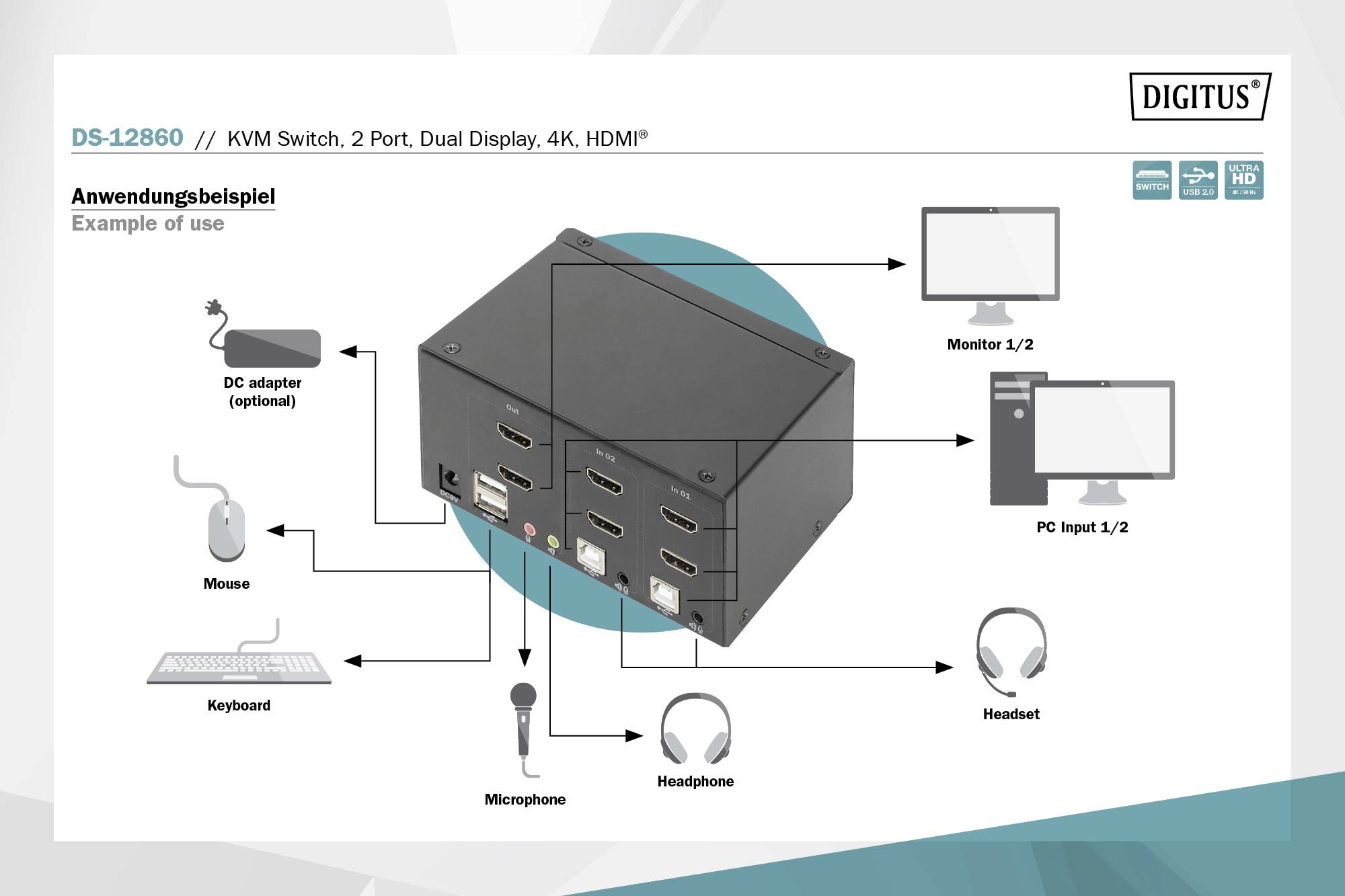

'Application example' shows the use of a KVM switch with connections to monitors, PC, headset, microphone and input devices.

'DS-12860 KVM Switch, 2 Port, Dual Display, 4K, HDMI. Illustrations of the device with connections: USB, Audio, Microphone, HDMI.'

1/8

Unavailable

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DS-12860 KVM changeover switch

Highlights & Details

Enables the use of two computers with two monitors (dual display) As well as a mouse and a keyboard - clearer PC management With saved space and costs
Supports a maximum Ultra HD resolution of 3840 x 2160 pixels At a frame rate of 30-Hertz - Dolby True HD and DTS HD master audio provides for the best possible sound experience
The power supply of the KVM HDMI switch is ensured by USB, however an optional 9V/DC power supply can be used for power supply - through subsampling: YUV 4:4:4 is ensured for the best possible picture quality
A USB 2.0 is located on the front of the switches (USB-A) Connection for other peripheral devices - status LED shows Current selections on the same page
The delivery also includes two HDMI cables as well as two KVM cables (HDMI, USB, audio), plus a QIG for the quick installation and setup of the KVM switch

Technical specifications

UHD resolution: 4K / 30 Hz (3840 x 2160p) / Subsampling: YUV 4:4:4
Inputs: 4 x HDMI® inputs (2x2), 2 x USB B, 2 x audio combination sockets 3.5 mm jack (microphone, loudspeaker)
Outputs (console): 2 x HDMI®, 2 x USB A (mouse, keyboard), 2 x stereo audio 3.5 m jack (microphone, speaker)
Additional connection on the front side: 1 x USB A for other peripheral devices, such as printers or USB sticks
HDMI version: 1.4b
USB specification: USB 2.0 compliant (FullSpeed)
Supported audio formats: Dolby True HD, DTS HD master audio
Switching between the PCs: Switch on the front or hot keys
Operating temperature: 0 °C ~ 80°C
Storage temperature -20°C ~ 60°C.
Operating humidity: 0 - 80% RH (non-condensing)
Material casing: Metal
Power supply Device: USB power supply or optional 9 V DC power supply

Product type: KVM changeover switch

No. of switchable PCs: 2

Video via: HDMI

Video resolution: 3840 x 2160 Pixel

Controller: Remote control
Keyboard

No. of USB 2.0 ports: 1 x

Switch function: Remote control
Hot key
Key
Manual

Distributor/switch features: Ultra HD compatibility
individually connectable
+ remote control
+ LED indicator lights

Power supply (LOV): mains-powered
via PSU

Factory colour: Black

Weight: 575 g

Length: 9.2 cm

Width: 13.2 cm

Height: 6.6 cm

Port: 2+1 ports

Dim: (L x W x H) 9.2 x 13.2 x 6.6 cm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2347902 Digitus DS-12860 2+1 ports KVM changeover switch HDMI Remote control, Keyboard 3840 x 2160 Pixel

Description

With the DIGITUS® 2-Port Digitus KVM switch for dual displays, you can operate two 4K-enabled PCs via a single USB keyboard and mouse combination. By pressing a button or hotkey, you can conveniently switch between the two PCs and save yourself the effort of changing all cables. The output to up to two monitors takes place via the two HDMI® outputs on the rear side. Audio signals from the microphone and speakers are also switched. In addition, there is a USB port on the front, which can be used for other peripheral devices such as USB sticks or external hard disks can be used on both PCs. The connected peripheral devices are assigned to the active PC. Status LED on the front of the switch indicates the current configuration at any time. The switch is rounded off by the robust metal housing.

This text is machine translated.
