Digitus DS-12862 2 ports KVM changeover switch DisplayPort 3840 x 2160 Pixel
EAN:
Part number:
Item no:

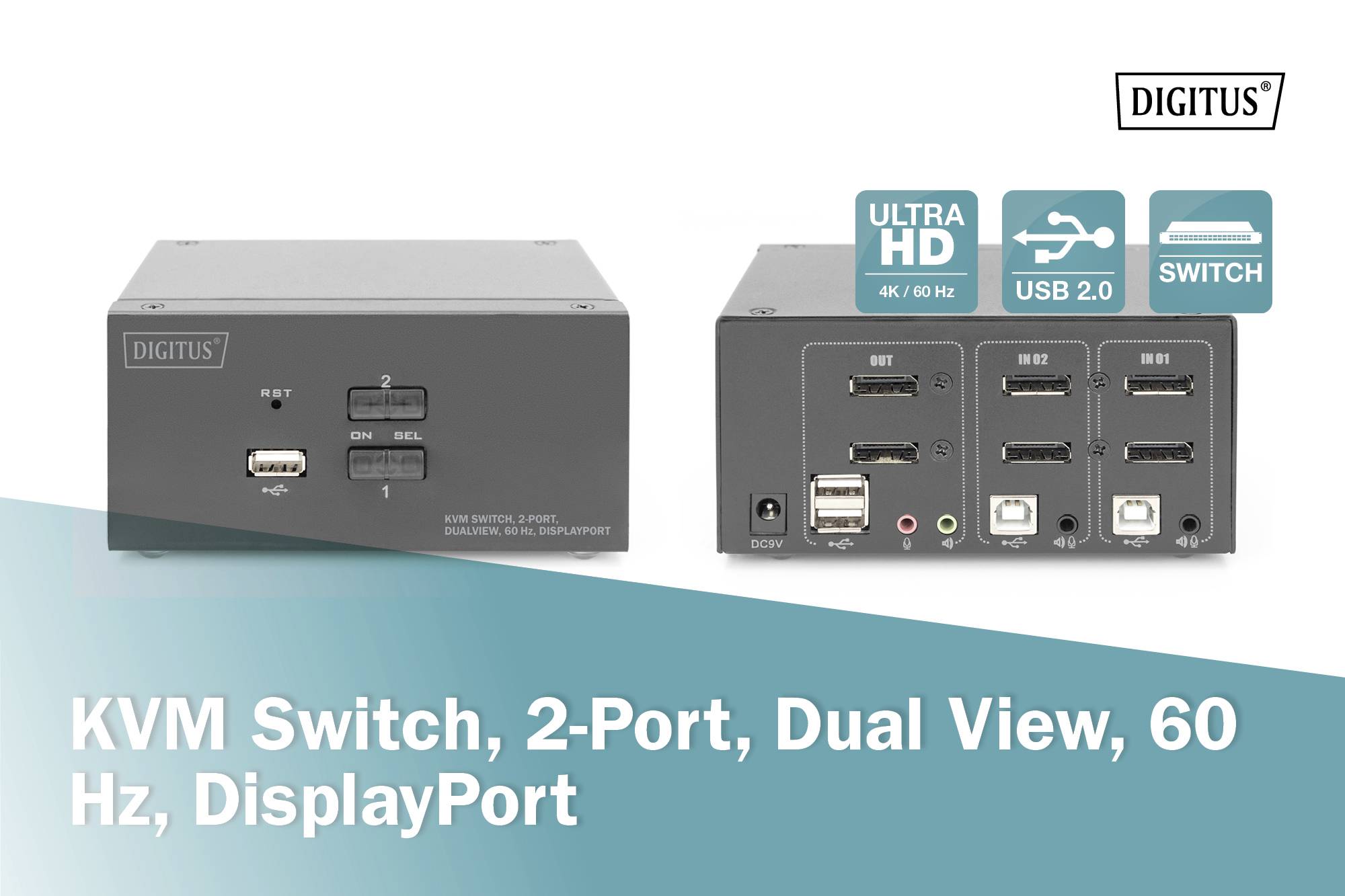

Digitus DS-12862 KVM changeover switch
Highlights & Details
- Use two monitors, one mouse and one keyboard to control 2 computers with Dual display
- Supports a maximum UHD resolution of 4K / 60 Hz
- USB-connections for mouse and keyboard
- Audio connection for microphone / loudspeaker, supports Dolby True HD and DTS HD Master audio
- Integrated USB hub with USB A connection for more peripheral devices
- Switch between the PCs via a switch on the KVM switch or the keyboard hotkey

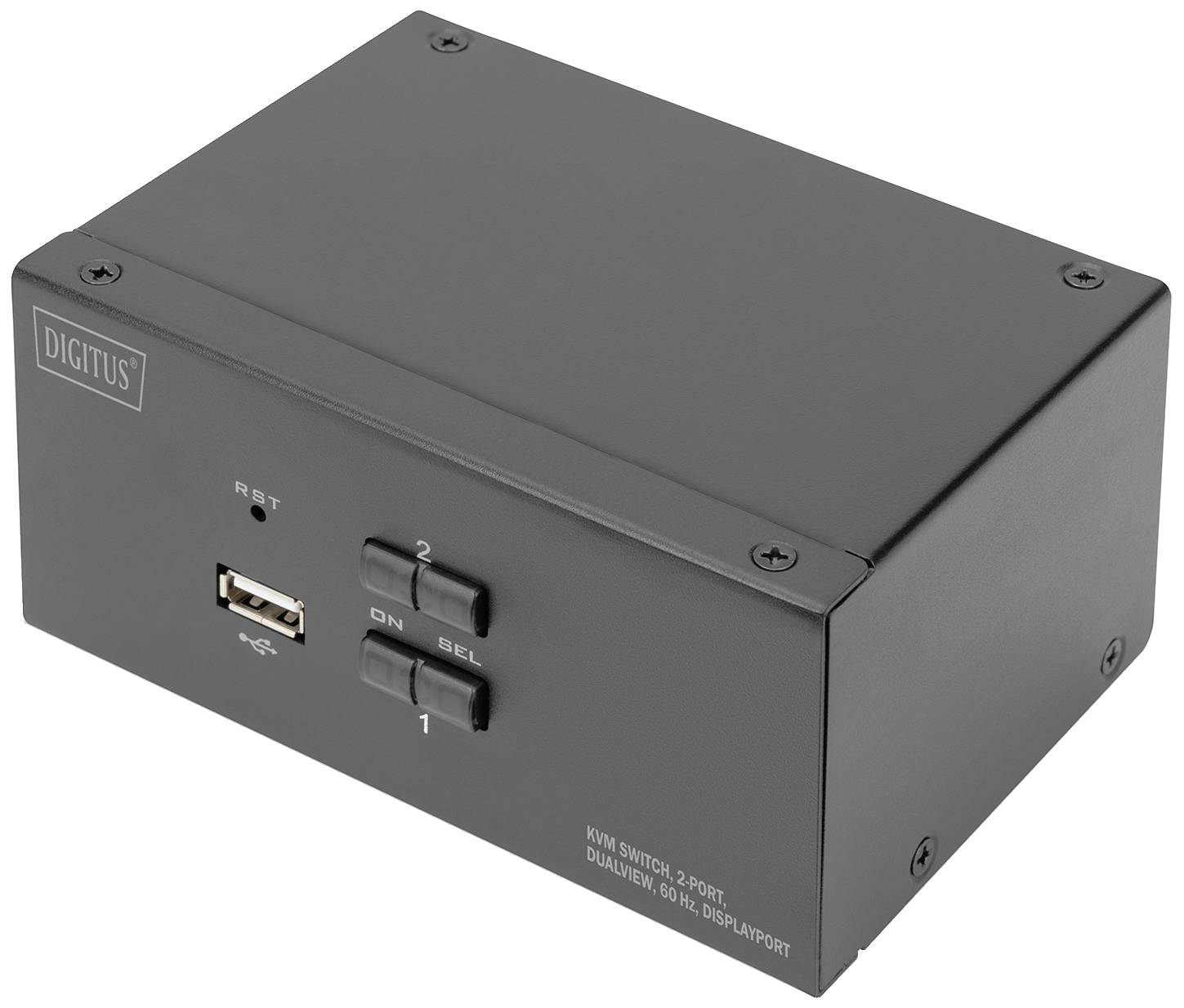

- LED status and function display on front
- The KVM Switch is supplied with power via the USB connection by a connected computer
- Real Plug and Play - no software or driver installation needed (BIOS hardware connection)
- Heavy duty metal casing
Technical specifications
- UHD resolution: 4K / 60 Hz (3840 x 2160p) / YUV subsampling: 4:4:4

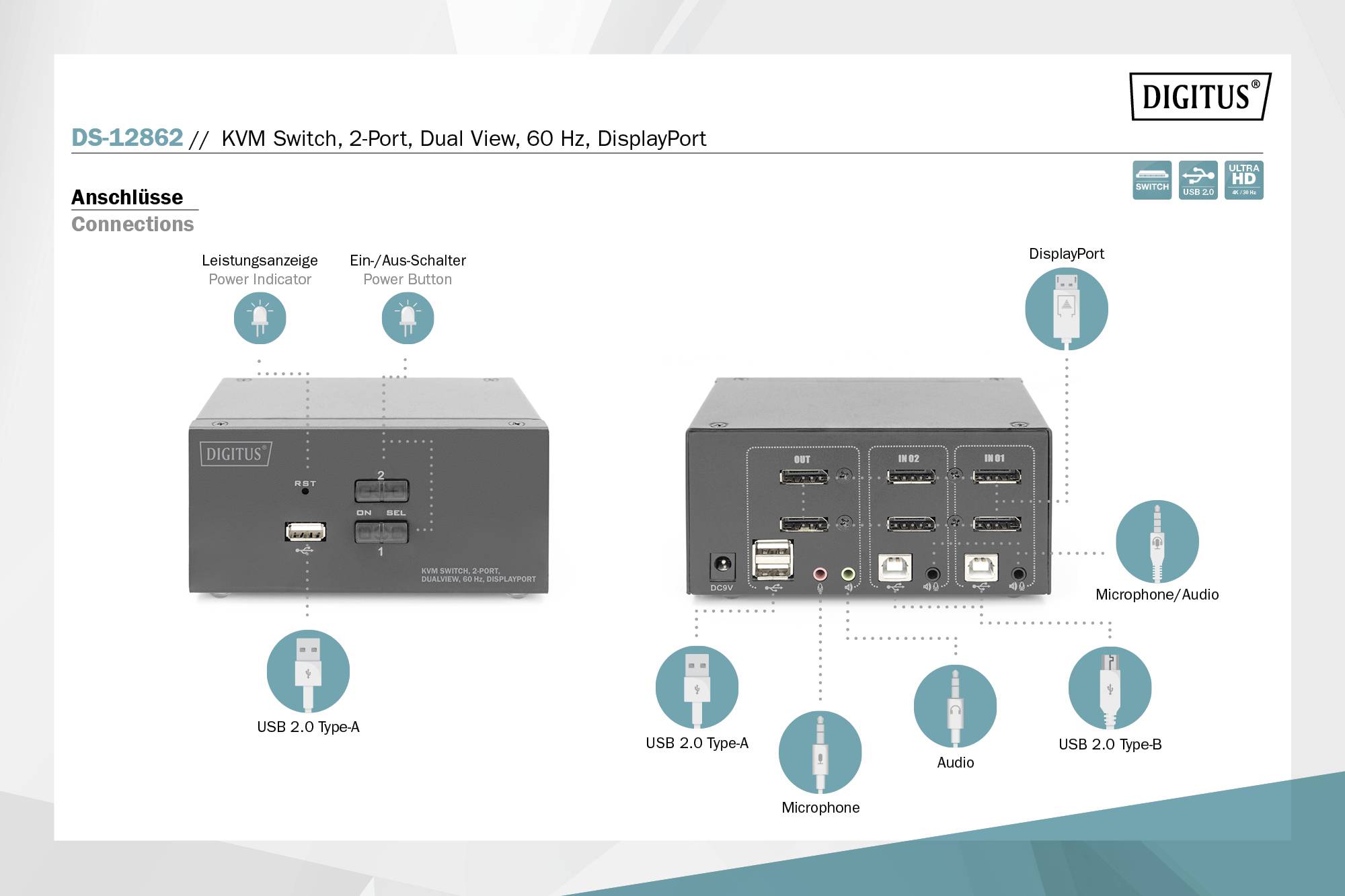

- Inputs: 4 x DP inputs (2x2) ,2 x USB B, 2 x audio combination jack 3.5 mm jack (microphone, speaker)
- Outputs (console): 2 x DP®, 2 x USB A (mouse, keyboard), 2 x stereo audio 3.5m jack (microphone, speaker)
- Additional connection at front side: 1 x USB A for other peripheral devices, like printer or USB-sticks
- USB specification: Meets USB 2.0 (full speed)
- Supported audio formats: Dolby True HD, DTS HD Master audio
- Switching between PCs: Switch on the front side or hot keys
- Operating temperature: 0 °C ~ 80°C
- Storage temperature: -20°C ~ 60°C.
- Operating humidity 0 - 80% RH, non-condensing
- Material housing: Metal
- Power supply device: USB power supply or optional 9 V DC power supply (300mA, 5.5 x 2.1 mm plug)
- Dimensions 13.2 x 9.2 x 6.6 cm (WxDxH)
- Weight 580 g
- Product type
KVM changeover switch
- No. of switchable PCs
2
- Video via
DisplayPort
- Video resolution
3840 x 2160 Pixel
- Audio headphones
Yes
- Audio microphone
Yes
- No. of USB 2.0 ports
3 x
- Stackable
No
- Rack mount option
No
- Switch function
Automatic
Hot key
Manual
Key
- Distributor/switch features
individually connectable
LED display
Steel casing
+ audio ports
+ LED indicator lights
Multi view mode
Ultra HD compatibility
suitable for indoor use
PC-controlled
- Power supply (LOV)
mains-powered (optional)
via USB
- Factory colour
Black
- Weight
580 g
- Length
92 mm
- Width
132 mm
- Height
66 mm
- Port
2 ports
- Dim
(L x W x H) 92 x 132 x 66 mm
- Product type description
Switch
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2751135 Digitus DS-12862 2 ports KVM changeover switch DisplayPort 3840 x 2160 Pixel
Description

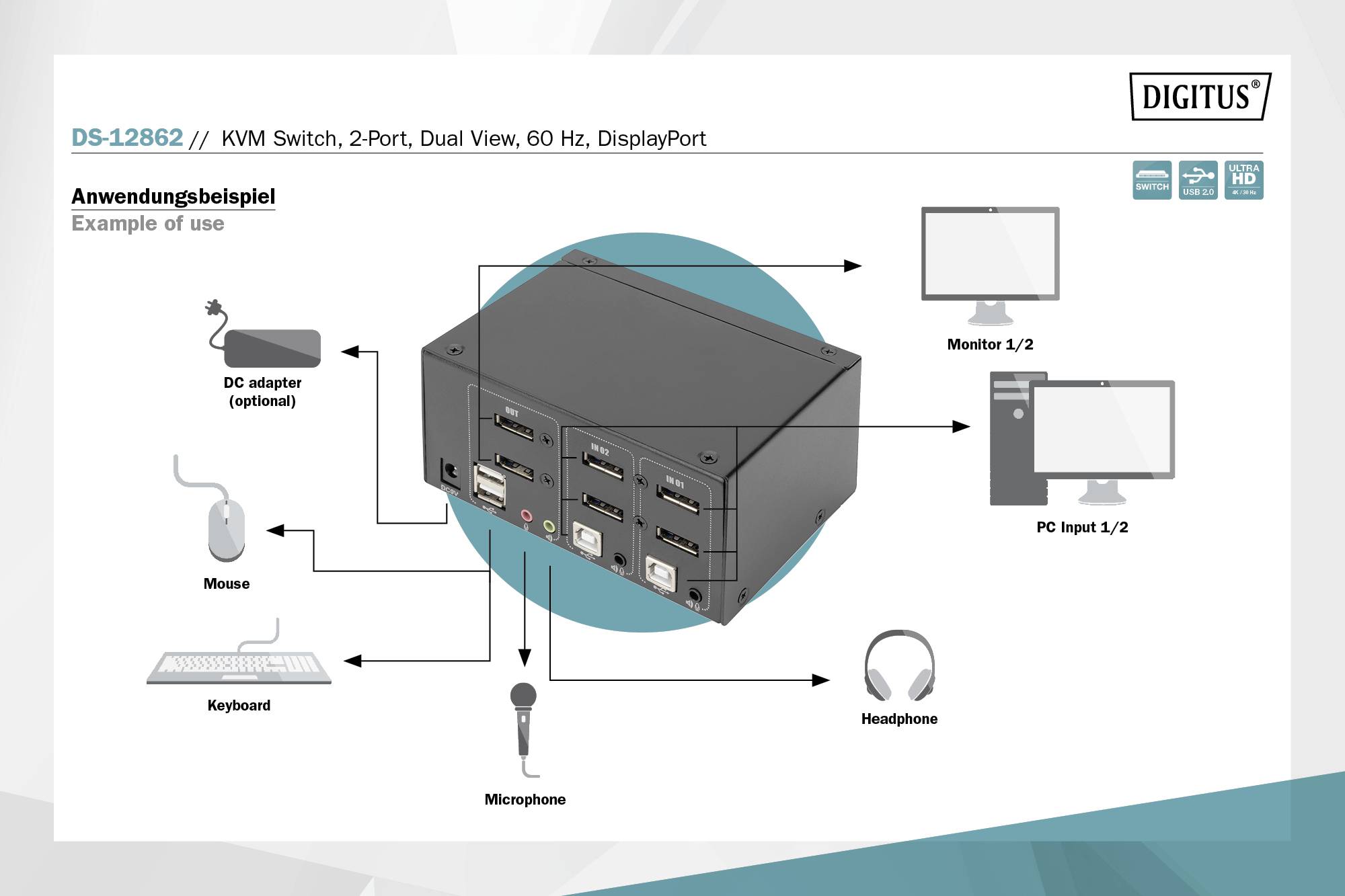

The Digitus® 2-port KVM switch for Dual displays allows you to operate two 4K-enabled PCs via a single USB keyboard and mouse combination. You can switch easily between the two PCs at the push of a button or by using a hotkey and save costly replugging of cables. Output to up to two monitors is via the two DisplayPort® outputs on the back. Audio signals from microphone and loudspeaker are also switched. In addition, a USB-connection is present at the front side, which can be used for other peripherals, such as USB-sticks or external hard disks at both the PCs. The connected peripheral devices are each assigned to the active PC. Status LED on the front of the switch indicates the current configuration at any time. The switch is rounded off by the robust metallic casing.
This text is machine translated.
This text is machine translated.
Features
- UHD resolution: 4K / 60 Hz (3840 x 2160p) / YUV subsampling: 4:4:4
- Inputs: 4 x DP inputs (2x2) ,2 x USB B, 2 x audio combination jack 3.5 mm jack (microphone, speaker)
- Outputs (console): 2 x DP®, 2 x USB A (mouse, keyboard), 2 x stereo audio 3.5m jack (microphone, speaker)

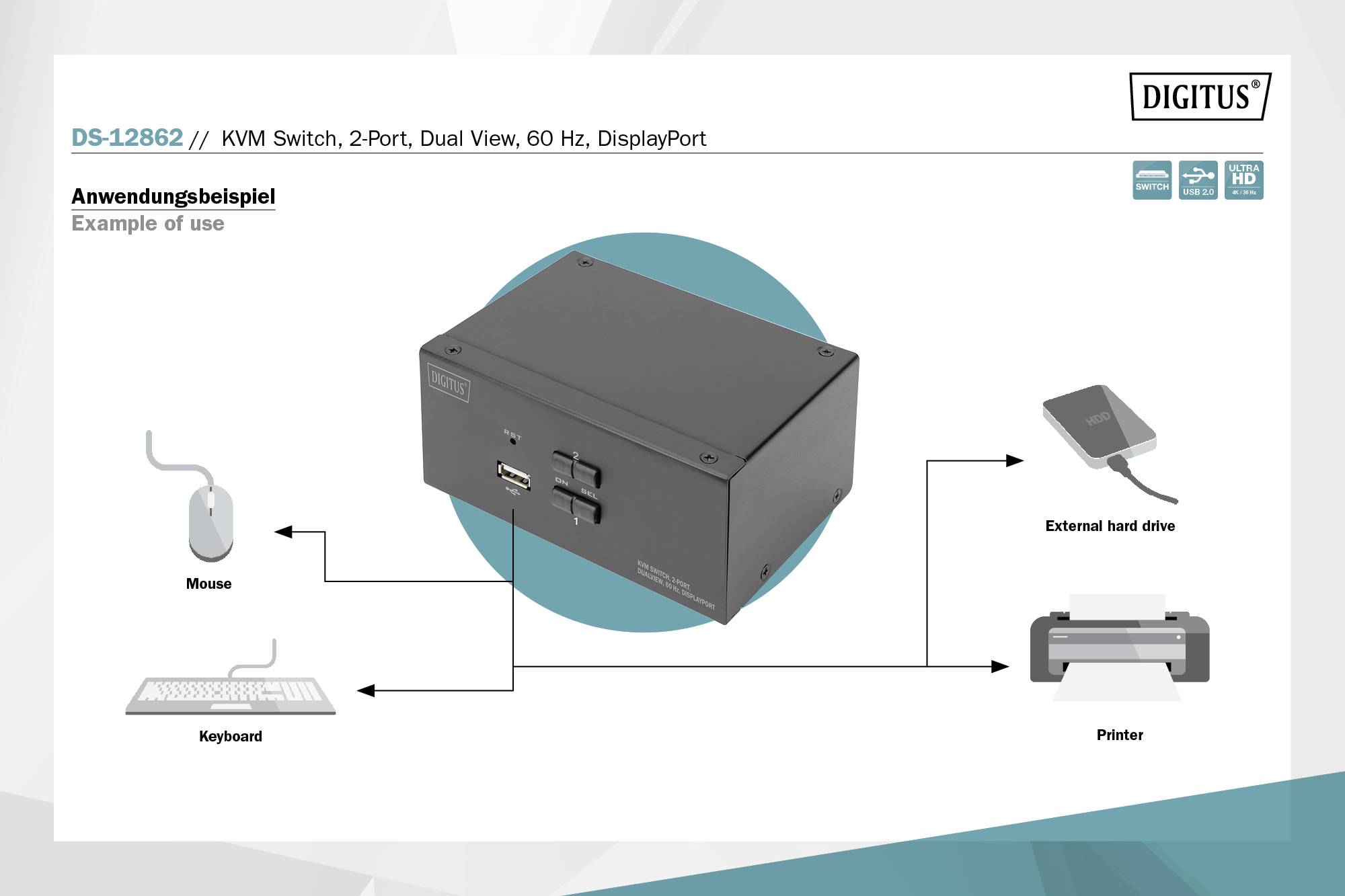

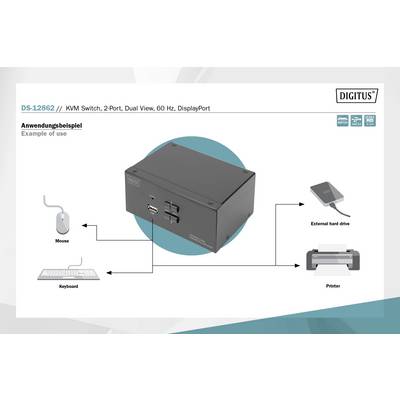

- Additional connection at front side: 1 x USB A for other peripheral devices, like printer or USB-sticks
- USB specification: Meets USB 2.0 (full speed)
- Supported audio formats: Dolby True HD, DTS HD Master audio
- Switching between PCs: Switch on the front side or hot keys
- Status LED on front shows current configuration
- The device works platform-independent, suitable for all operating systems
- Material housing: Metal
- Power supply device: USB power supply or optional 9 V DC power supply (300mA, 5.5 x 2.1 mm plug)
- Dimensions 13.2 x 9.2 x 6.6 cm (W x D x H)
- Weight 580 g
- Power supply: Input: 100-240V AC, output: DC 9V / 300mA
- Power consumption: 2.7W.
- DC plug size 5.5 x 2.1mm
- DC connector electrode: Inside ( + ) , outside ( - )
Scope of delivery
- 2 x DisplayPort® cable 1.8 m
- 2 x KVM cable (DisplayPort®, USB, Audio) 1.8 m
- User manual.
