Digitus DS-12874 4 ports KVM changeover switch HDMI USB 4096 x 2160 Pixel
EAN:
Part number:
Item no:

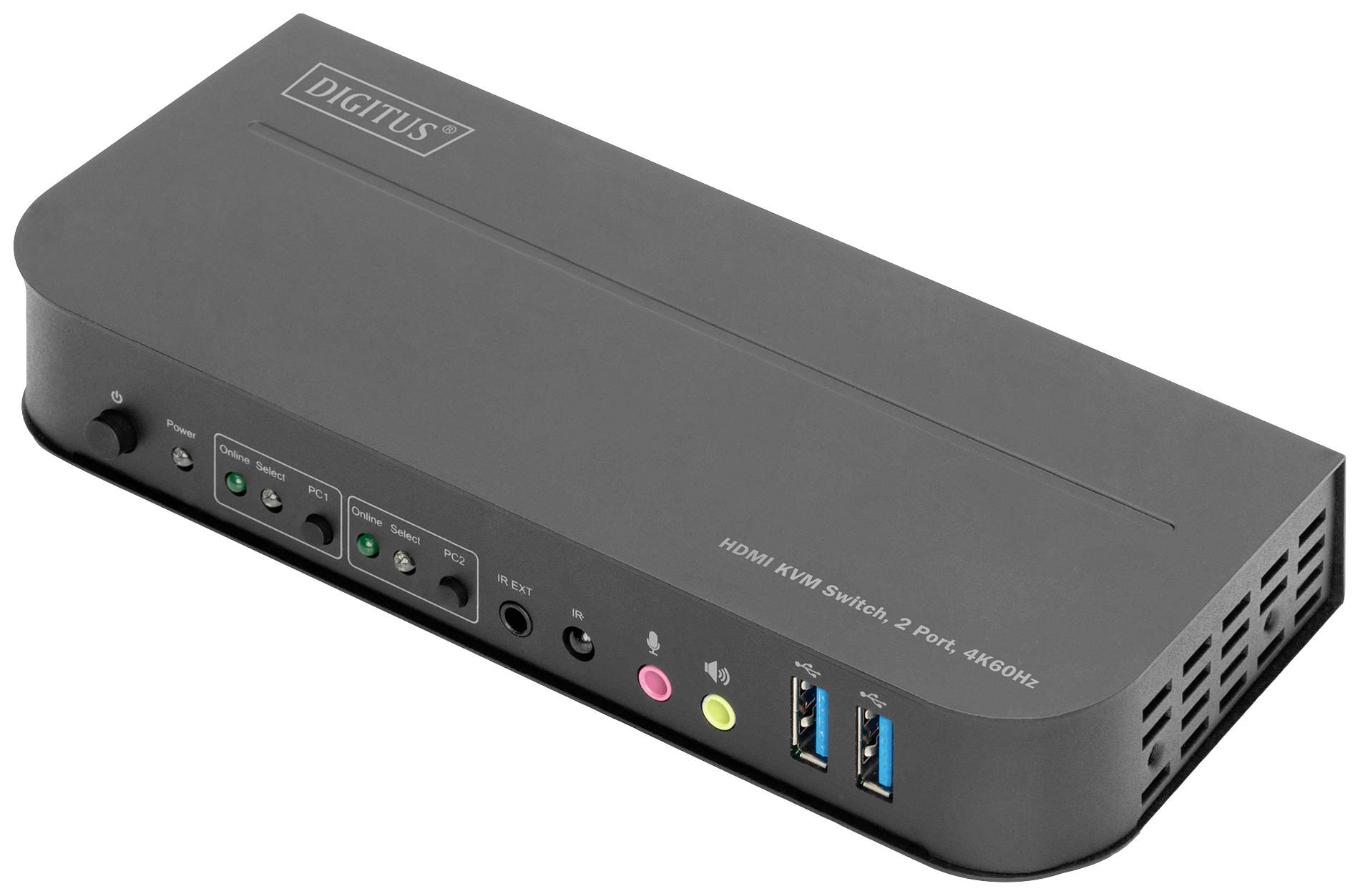

Digitus DS-12874 KVM changeover switch
Highlights & Details
- Use a monitor, mouse and keyboard to operate two computers
- USB-connections for mouse and keyboard
- Audio connections for microphone / loudspeaker
Technical specifications

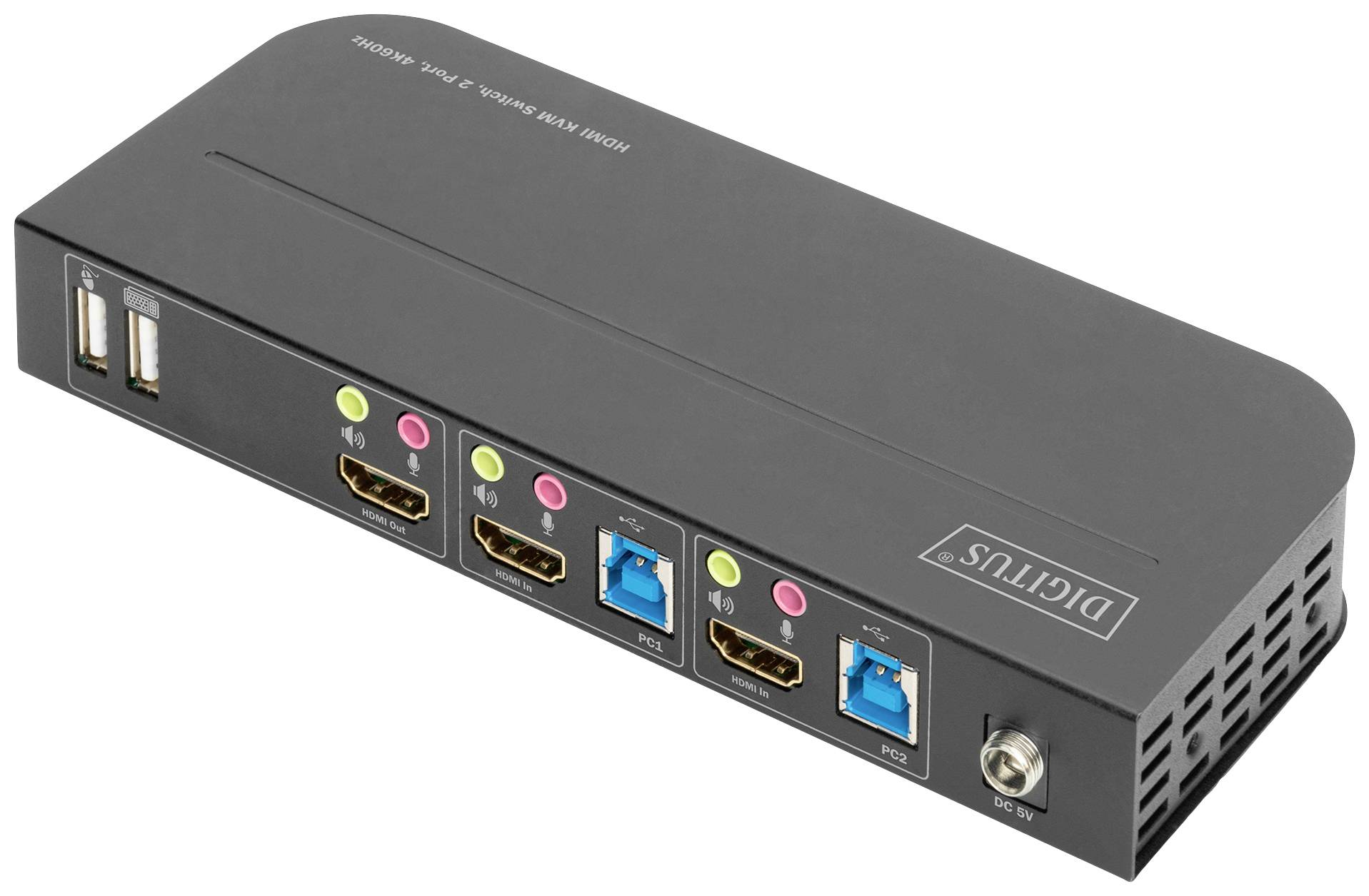

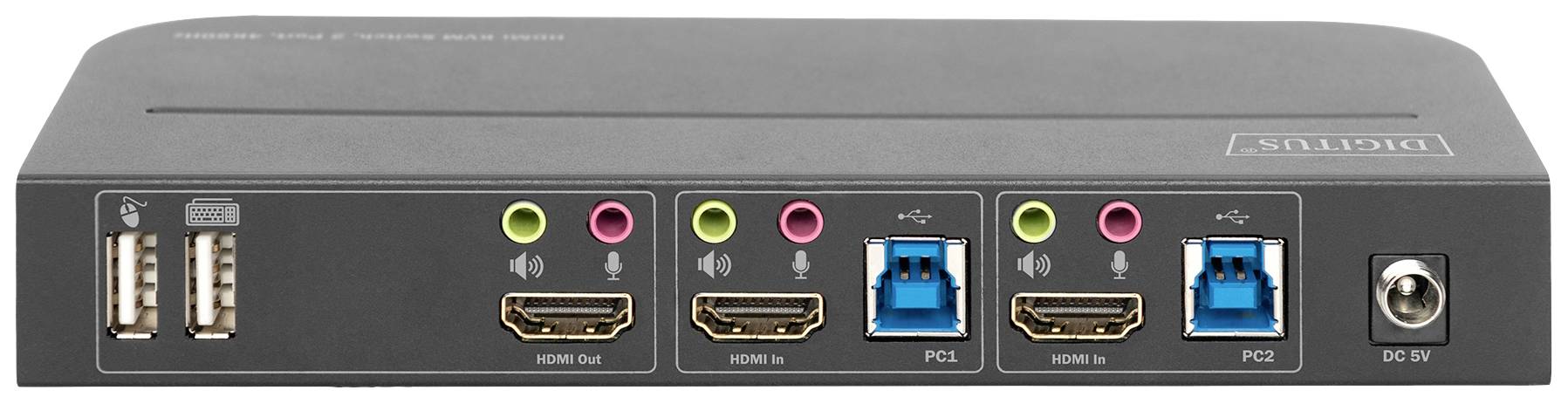

- Inputs: 2 x HDMI, 2 x USB B (3.0), 2 x audio input, 2 x audio output
- Outputs: 1 x HDMI, 1 x audio input, 1 x audio output, 2 x USB A 2.0

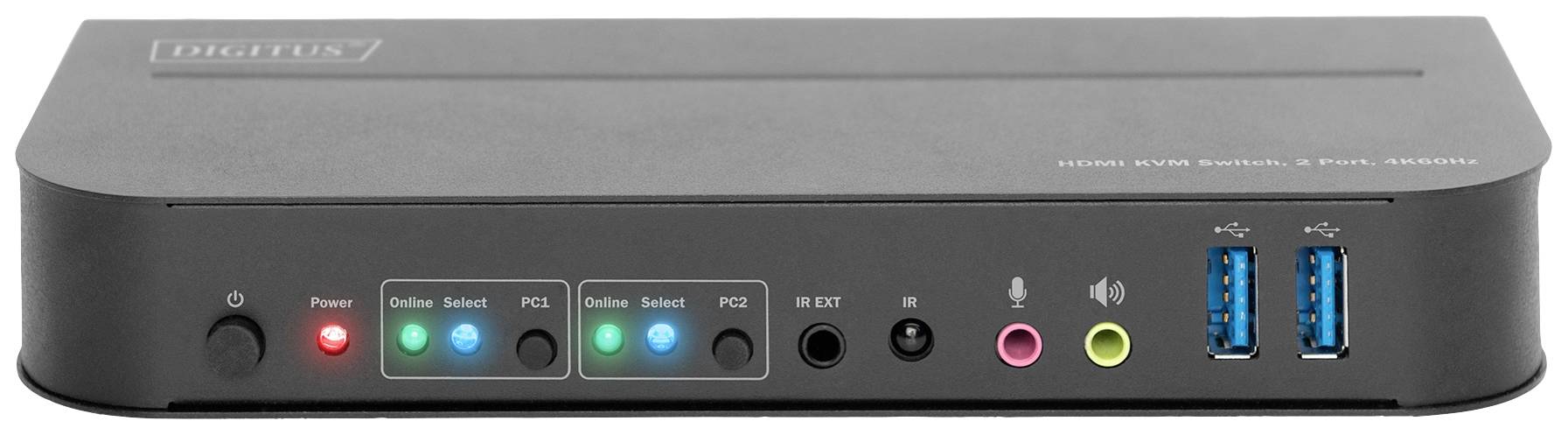

- Additional connections front side: 2 x USB A 3.0, 1 x audio input, 1 x audio output, infrared receiver, IR output
- Audio inputs/outputs 3.5 mm stereo jack socket

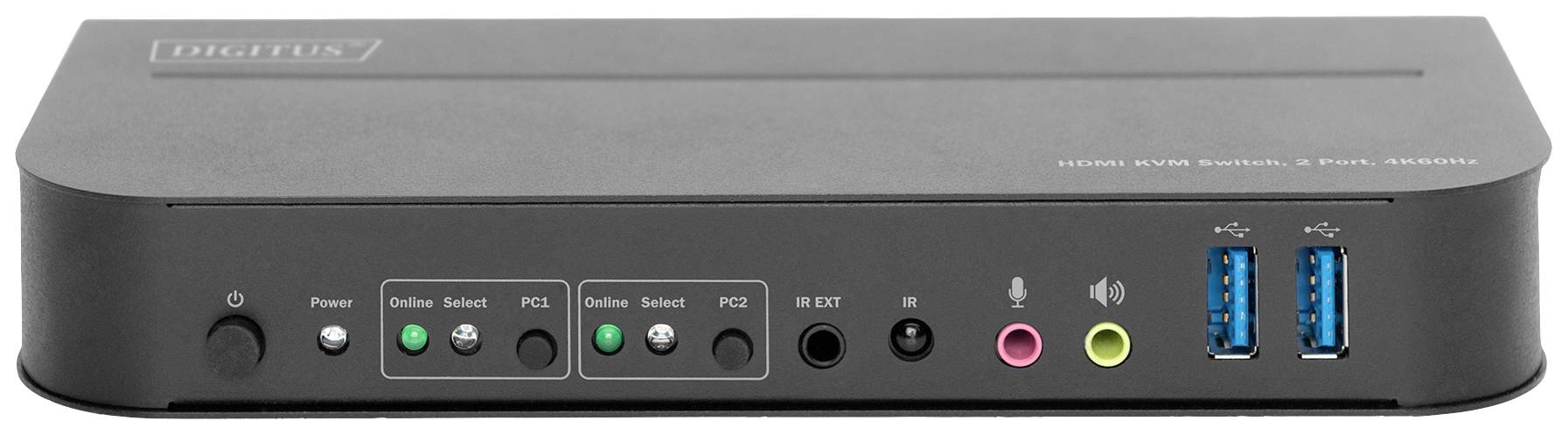

- Front LEDs: Power, 2 x online, 2 x selection PC
- Switch: Power on/off, switch over PC1 / PC2
- HDMI version: 2.0
- HDCP version 2.2/1.4
- UHD resolution 4096 x 2160p / 60 Hz
- Subsampling: RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
- Bandwidth HDMI®: 18 Gbps all channels (6 Gbps per channel), supports HDR
- Colour depth HDMI®: 36-bit (all channels)
- Power supply 100 - 240 V AC / 50/60 Hz, 0.4 A
- Power supply KVM switch 5 V/3 A
- Operating temperature: 0 °C ~ 45°C
- Operating humidity: 10% - 85% RH (non-condensing)
- Case material: metal
- Including bracket for wall mounting
- External receiver for signals of remote control included in delivery
- Dimensions 17.8 x 7.5 x 2.6 cm (WxDxH)
- Weight: 366 g
- Colour, black
- Product type
KVM changeover switch
- No. of switchable PCs
2
- Video via
HDMI
- Video resolution
4096 x 2160 Pixel
- Controller
USB
- No. of USB 2.0 ports
2 x
- Ethernet ports
1
- Switch function
Manual
- Power supply (LOV)
via PSU
- Factory colour
Black
- Weight
366 g
- Length
178 mm
- Width
75 mm
- Height
26 mm
- Port
4 ports
- Dim
(L x W x H) 178 x 75 x 26 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2997752 Digitus DS-12874 4 ports KVM changeover switch HDMI USB 4096 x 2160 Pixel
Description
The Digitus® 2-port KVM switch is a high-performance HDMI KVM switch. It conducts high-resolution video (at several resolutions up to 4kx2k@60Hz) and audio from one of the various sources to the display devices. This HDMI KVM switch not only has a switch function at the touch of a button, but also an intelligent function and hot plugging function.
This text is machine translated.
This text is machine translated.
Features
- Integrated USB hub with 2 x USB 3.0 ports for additional peripherals
- Switch between PCs using switches on KVM switch, remote control or keyboard hotkey
- External receiver for signals of remote control included in delivery
- Compatible with HDMI 2.0 / HDCP 2.2 / HDR / FreeSync / 3D /
- LED status and function indicators on the front
- Wall mounting possible
- Plug and Play - driver installation is not necessary
- Supports infrared remote control function
- Supports Windows /Linux/Apple Mac OS
Scope of delivery
- 1x KVM switch, 2 connections, 4K60HZ, 2 x HDMI input, 1 x HDMI output
- 1 x mains adapter for KVM switch
- 2 x USB 3.0 connection cable (USB B to USB A)
- 2 x HDMI cable
- 1 x infrared remote control
- 1 x infrared receiver with connection cable
- 2 x Mounting bracket for table or wall mounting
- 1 x User manual
