Digitus DS-12882 4 ports KVM changeover switch DisplayPort Keyboard, USB 1920 x 1080 Pixel, 1920 x 1200 Pixel, 1920 x 12
EAN:
Part number:
Item no:
Digitus DS-12882 KVM changeover switch
Highlights & Details
- DISPLAYPORT KVM SWITCH: With the KVM switch (keyboard-video-mouse) four computers can be controlled alternately at only one workstation – audio/video connections, mouse and keyboard can be connected with the other PC by pressing a buttonPLUG & Play: After connecting the USB, audio and DP cables, the KVM switch is ready for operation – thanks to the BIOS hardware connection, the installation of drivers and other software is not necessaryHD VIDEO: The KVM DisplayPort switch supports FreeSync, Subsampling and a maximum ultra-HD resolution of 4K at 30 Hz (3840 x 2160p) – audio signals are transmitted via 3.5 mm jack sockets
Technical specifications

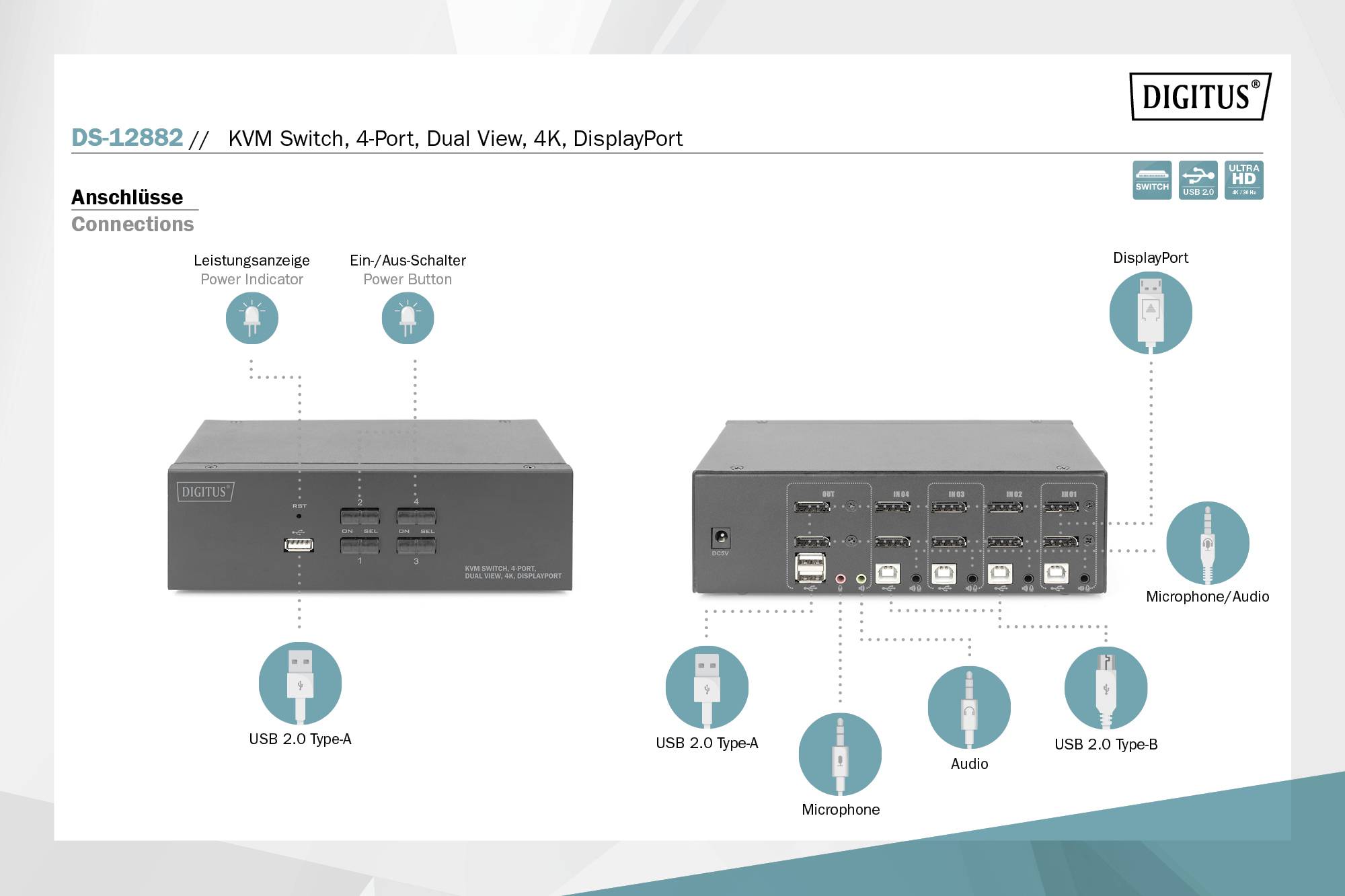

- UHD resolution: 4K / 60 Hz (3840 x 2160p) / YUV subsampling: 4:4:4Inputs: 8 x DP inputs (4x2), 4 x USB B, 4 x audio combination jack 3.5 mm jack (microphone, speaker)Outputs (console): 2 x DP®, 2 x USB A (mouse, keyboard), 2 x stereo audio 3.5m jack (microphone, speaker)Additional connection at front side: 1 x USB A for other peripheral devices, like printer or USB-sticksUSB specification: Meets USB 2.0 (full speed)Supported audio formats: Dolby True HD, DTS HD Master audioSwitching between PCs: Switch on the front side or hot keysOperating temperature: 0 °C ~ 50 °CStorage temperature: -20°C ~ 60°C.Operating humidity 0 - 80% RH, non-condensingMaterial housing: MetalPower supply device: USB power supply or optional 9 V DC power supply (300mA, 5.5 x 2.1 mm plug)Dimensions 20.2 x 11.0 x 6.6 cm (WxDxH)Weight: 920 g
- Product type
KVM changeover switch
- No. of switchable PCs
4
- Video via
DisplayPort
- Video resolution
1920 x 1080 Pixel
1920 x 1200 Pixel
1920 x 1280 Pixel
1920 x 1440 Pixel
2560 x 1080 Pixel
2560 x 1280 Pixel
2560 x 1440 Pixel
2560 x 1600 Pixel
3840 x 1080 Pixel
3840 x 1600 Pixel
Show more
- Controller
Keyboard
USB
- Audio headphones
Yes
- Audio microphone
Yes
- No. of USB 2.0 ports
3 x
- Stackable
No
- Rack mount option
No
- Switch function
Automatic
Hot key
Manual
Key
- Distributor/switch features
individually connectable
LED display
Steel casing
+ audio ports
+ LED indicator lights
Multi view mode
Ultra HD compatibility
suitable for indoor use
PC-controlled
- Power supply (LOV)
mains-powered (optional)
via USB
- Factory colour
Black
- Weight
920 g
- Length
110 mm
- Width
202 mm
- Height
66 mm
- Port
4 ports
- Dim
(L x W x H) 110 x 202 x 66 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2751397 Digitus DS-12882 4 ports KVM changeover switch DisplayPort Keyboard, USB 1920 x 1080 Pixel, 1920 x 1200 Pixel, 1920 x 12
Description

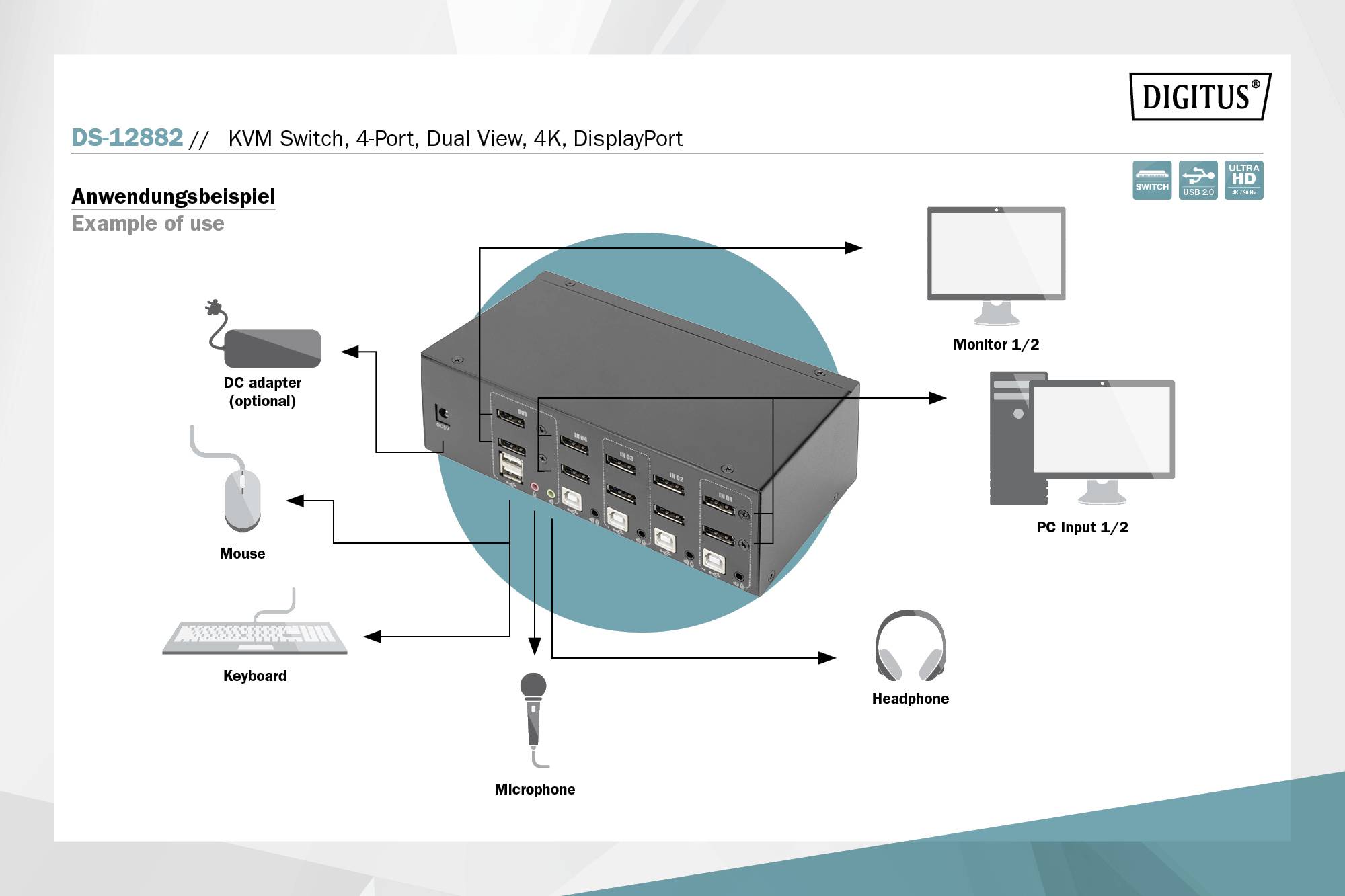

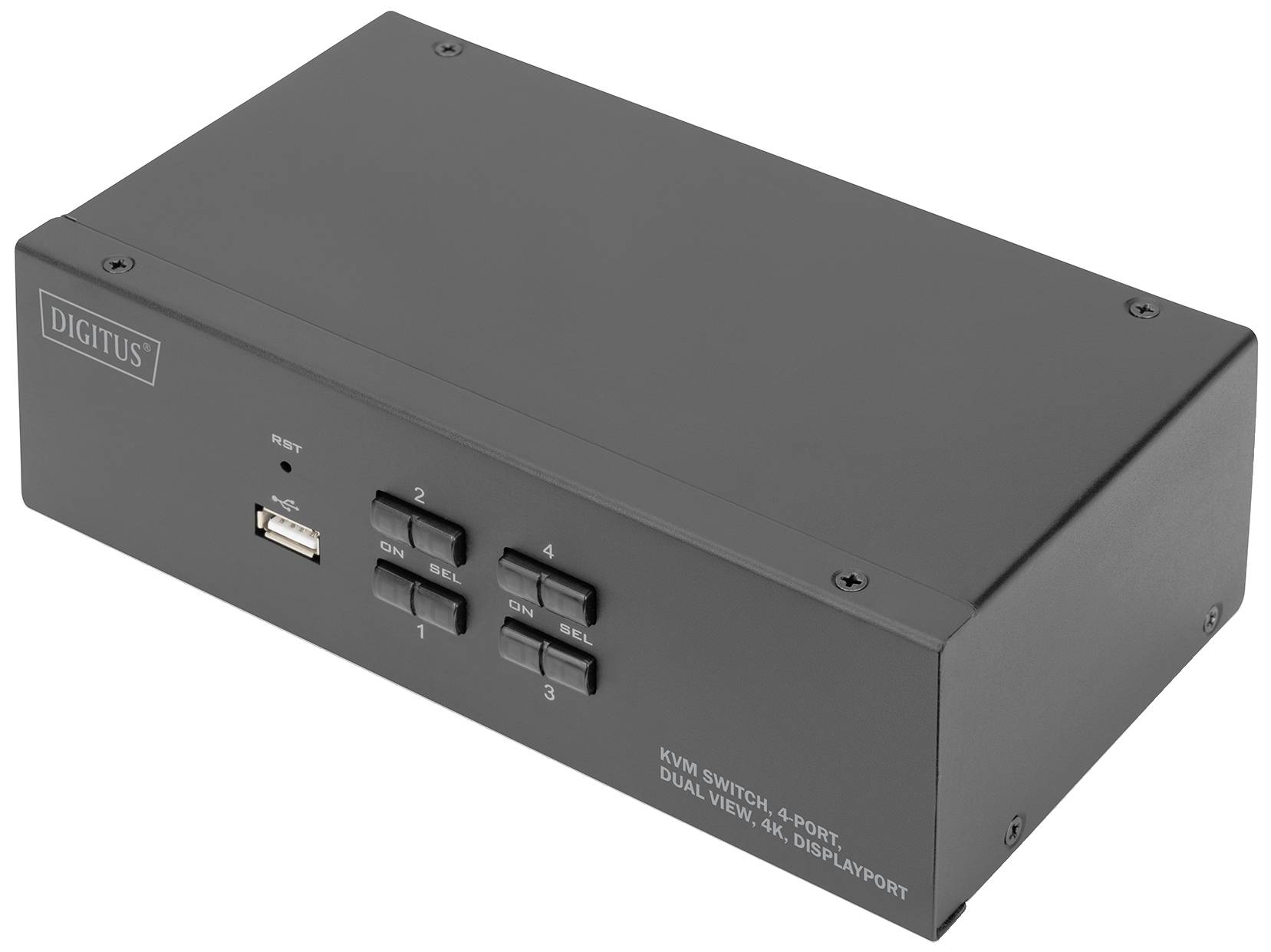

With the Digitus® 4-port KVM switch for dual displays, you can operate four 4K-enabled PCs via a single USB keyboard and mouse combination. You can switch between the four PCs easily at the push of a button or by using a hotkey and save costly replugging of cables. Output to up to two monitors is via the two DisplayPort® outputs on the back. Audio signals from microphone and loudspeaker are also switched. In addition, a USB-connection is present at the front side, which is used for other peripherals, such as e.g. USB sticks or external hard disks can be used on both PCs. The connected peripheral devices are each assigned to the active PC. Status LED on the front of the switch indicates the current configuration at any time. The switch is rounded off by the robust metallic casing.
This text is machine translated.
This text is machine translated.
Features

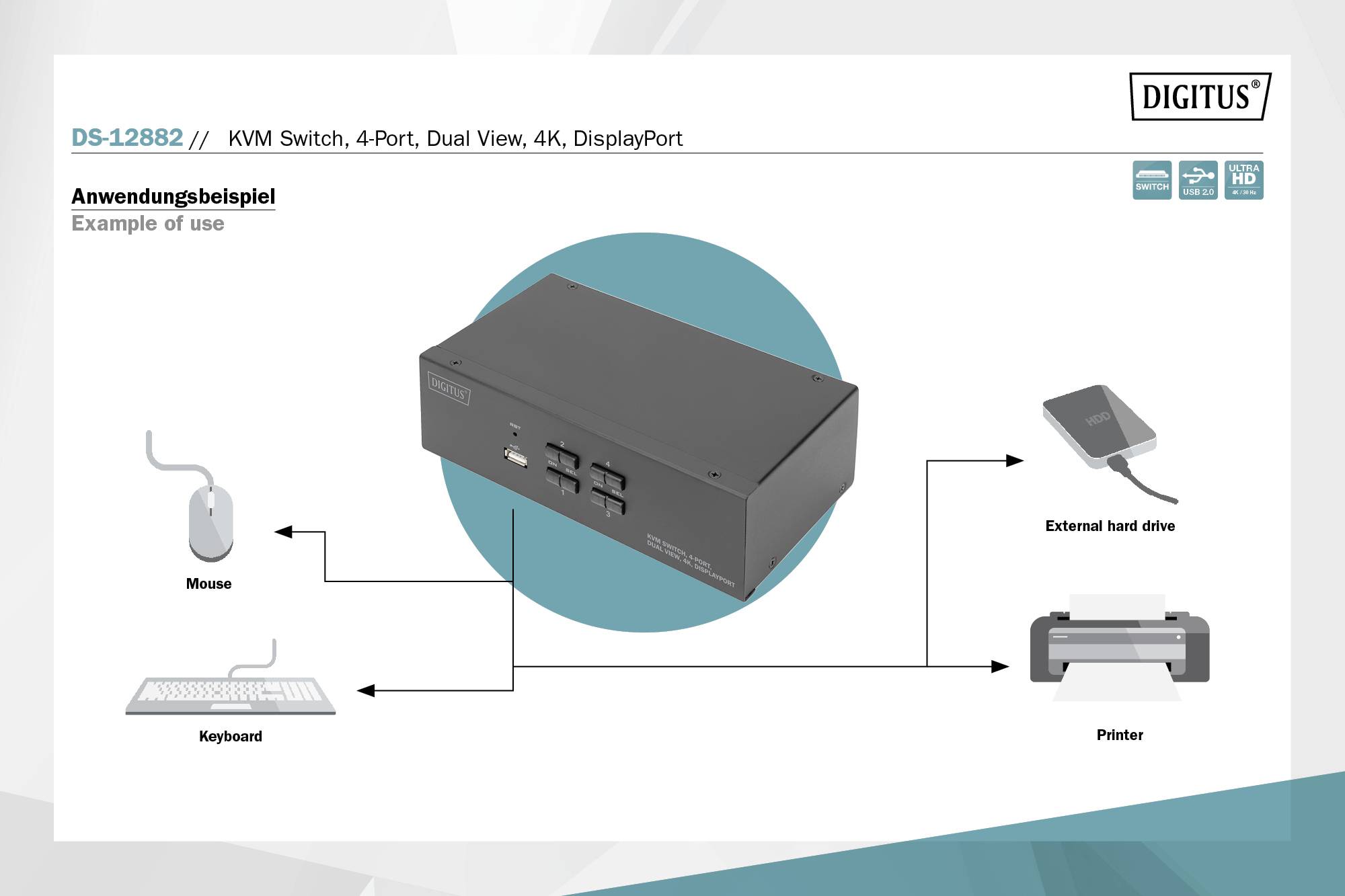

- FUNCTION: With the additional USB-port on the front side USB-stick, Headset or printer can also be used alternately – Ideal for frequent change between laptop, PC or gaming console in the home office, office or gaming roomPOWER SUPPLY: The KVM switch is supplied with power via the existing USB connection of the active PC – Optionally an external 9 V DC power supply can be connected (not included in the delivery)

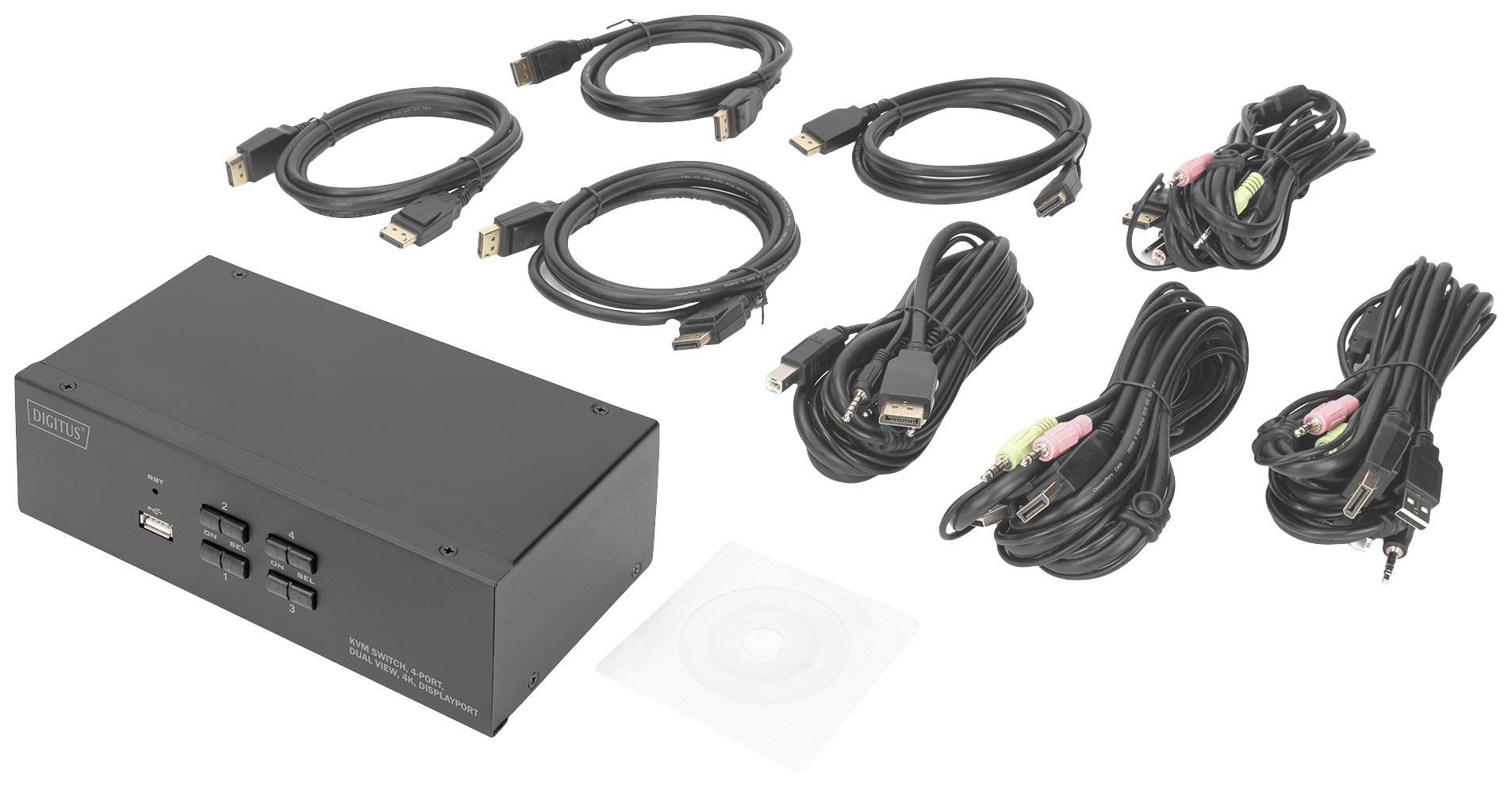

Scope of delivery
- 4 x DisplayPort® cable
- 4 x KVM cable (DisplayPort, USB, audio)
- User manual.
