Digitus DS-12883 4 ports KVM changeover switch HDMI 4096 x 2560 Pixel, 2040 x 1080 Pixel, 1920 x 1080 Pixel
EAN:
Part number:
Item no:
Highlights & Details

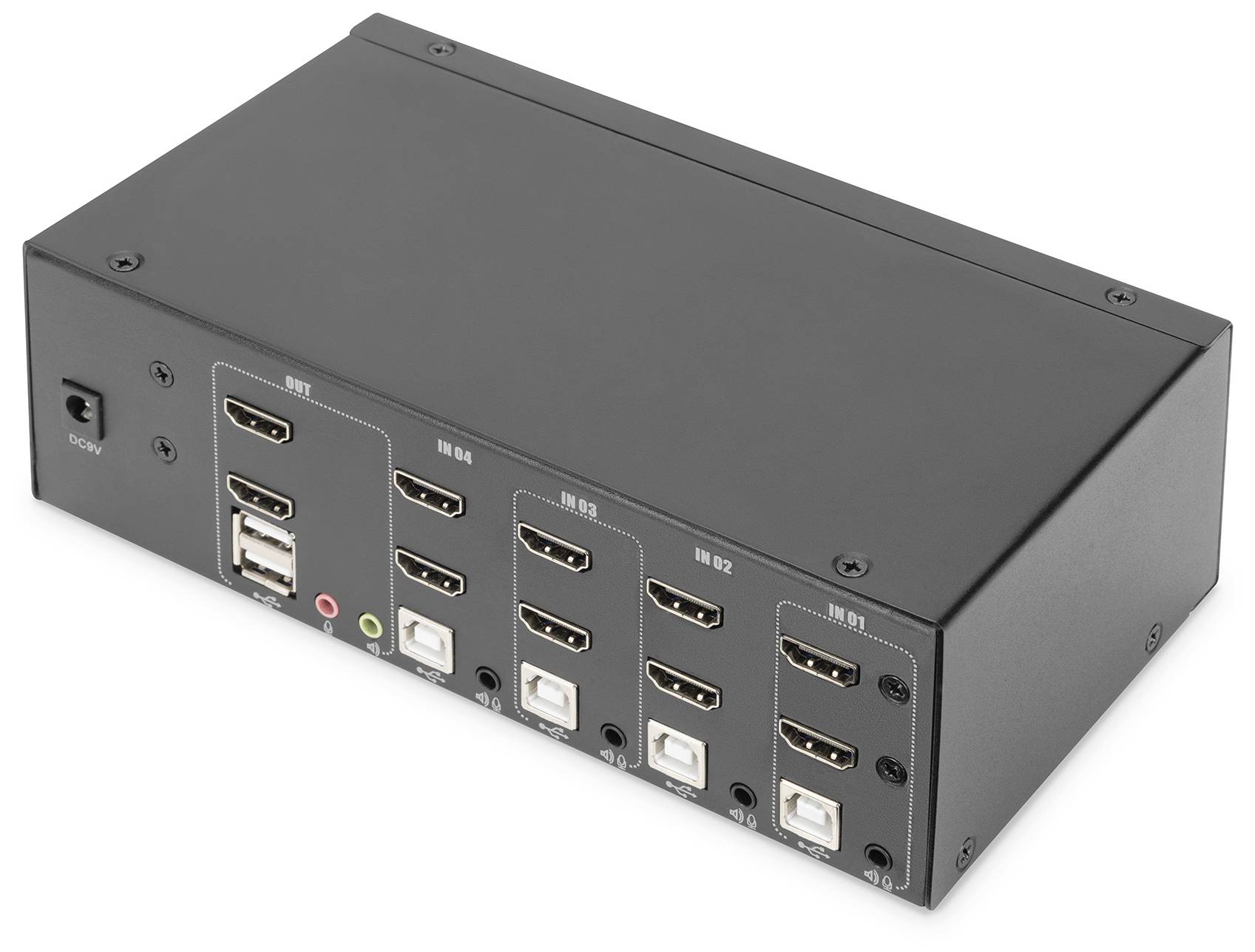

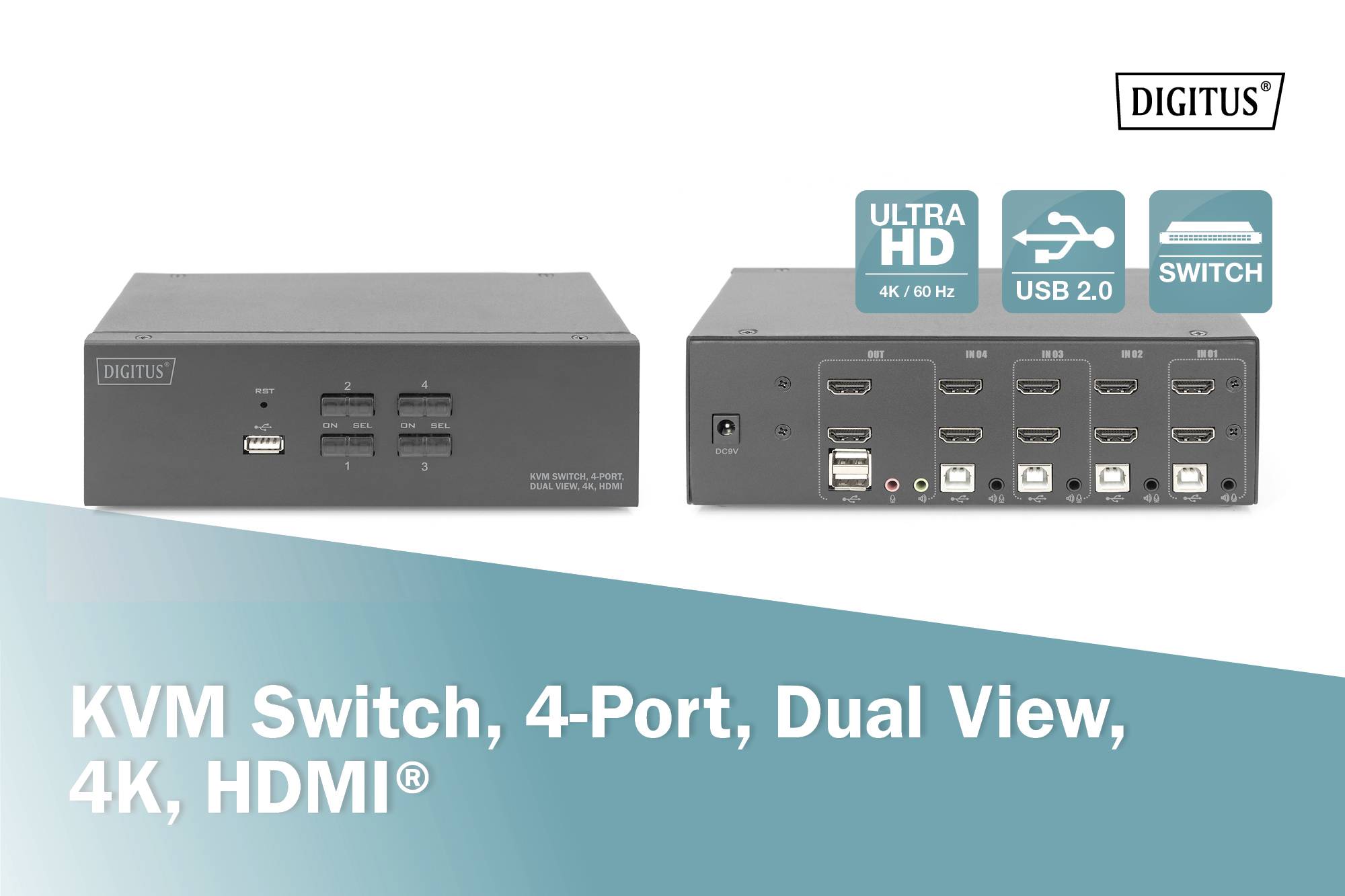

Digitus DS-12883 KVM changeover switch
- Use two monitors, one mouse / keyboard to operate 4 computers with dual display
- Supports a maximum UHD resolution of 4K / 30 Hz + FreeSync
- USB-connections for mouse and keyboard
Technical specifications
- UHD resolution: 4K / 30 Hz (3840 x 2160p) / YUV subsampling: 4:4:4

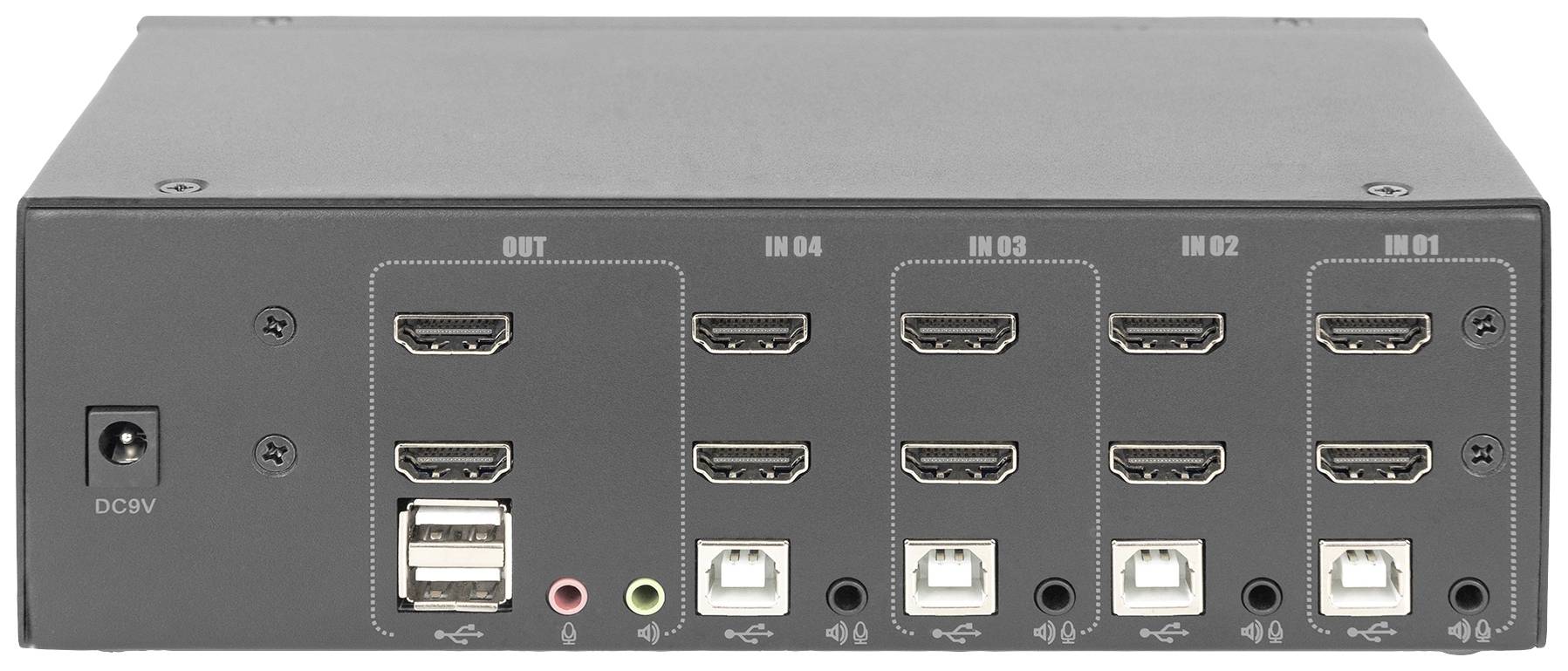

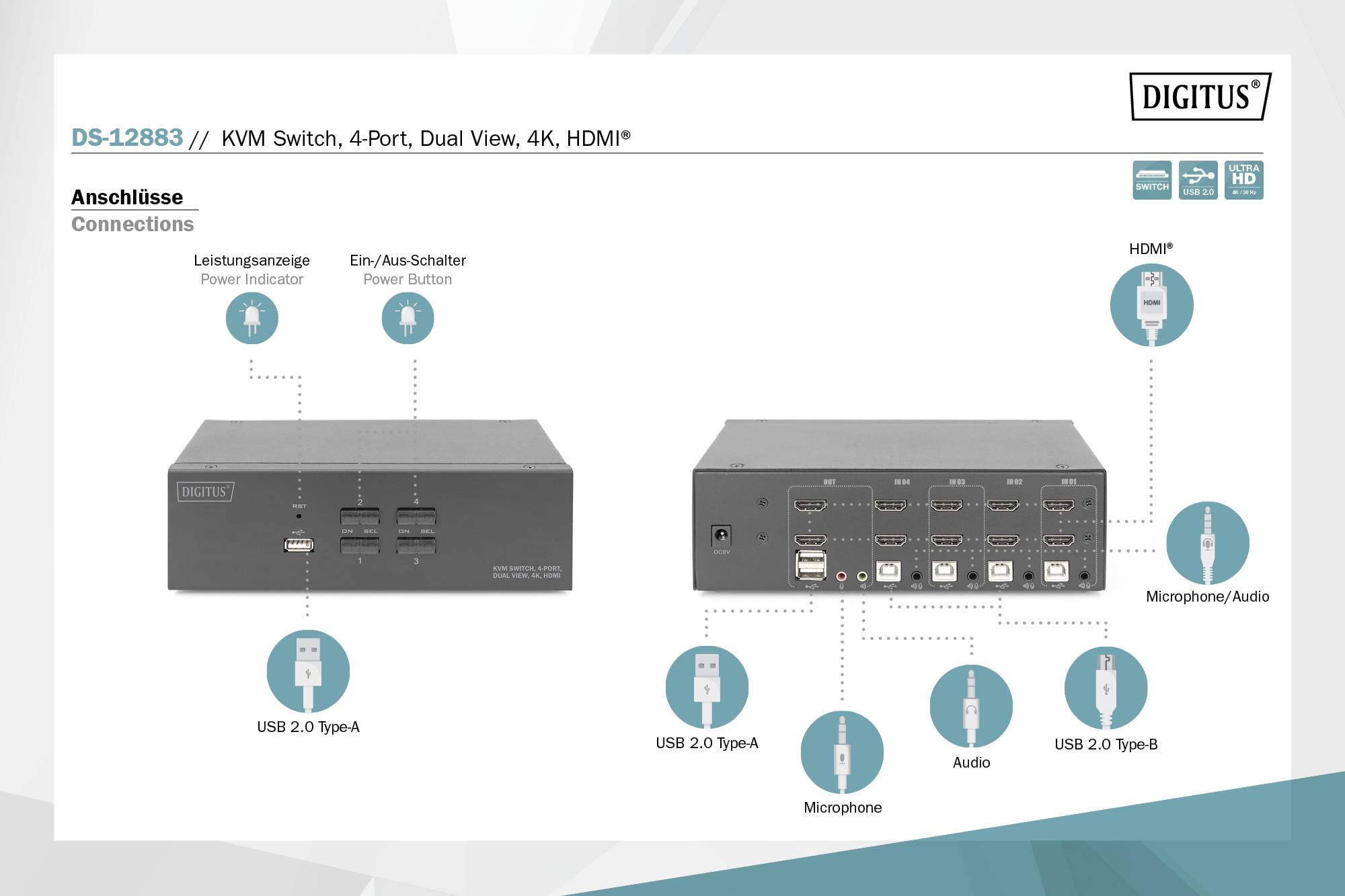

- Inputs: 8 x HDMI inputs (4x2), 4 x USB B, 4 x audio combination jack 3.5 mm jack (microphone, speaker)
- Outputs (console): 2 x HDMI®, 2 x USB A (mouse, keyboard), 2 x stereo audio 3.5m jack (microphone, speaker)
- Additional connection at front side: 1 x USB A for other peripheral devices, like printer or USB-sticks
- HDMI version: 1.4b
- USB specification: Meets USB 2.0 (full speed)
- Supported audio formats: Dolby True HD, DTS HD Master audio
- Switching between PCs: Switch on the front side or hot keys

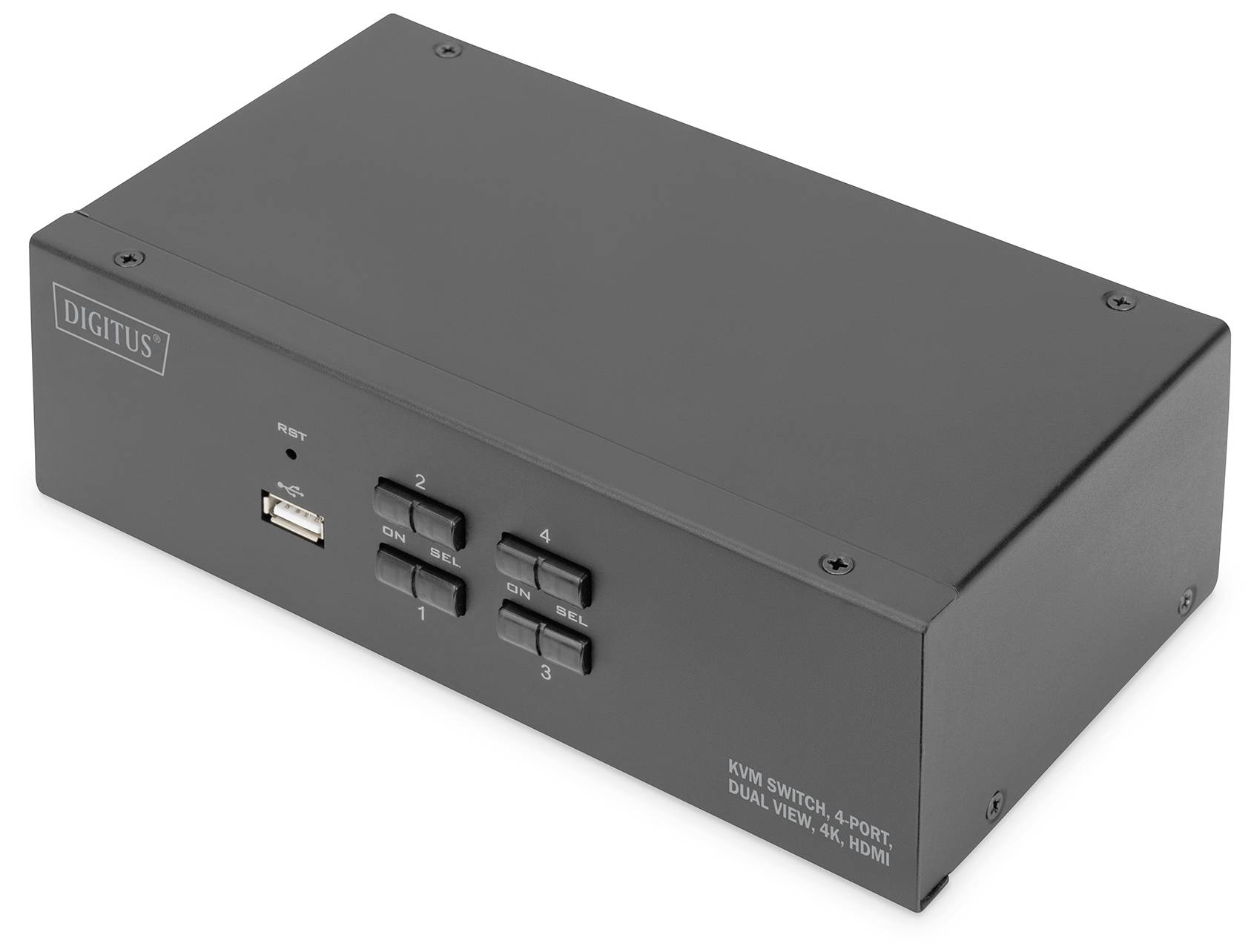

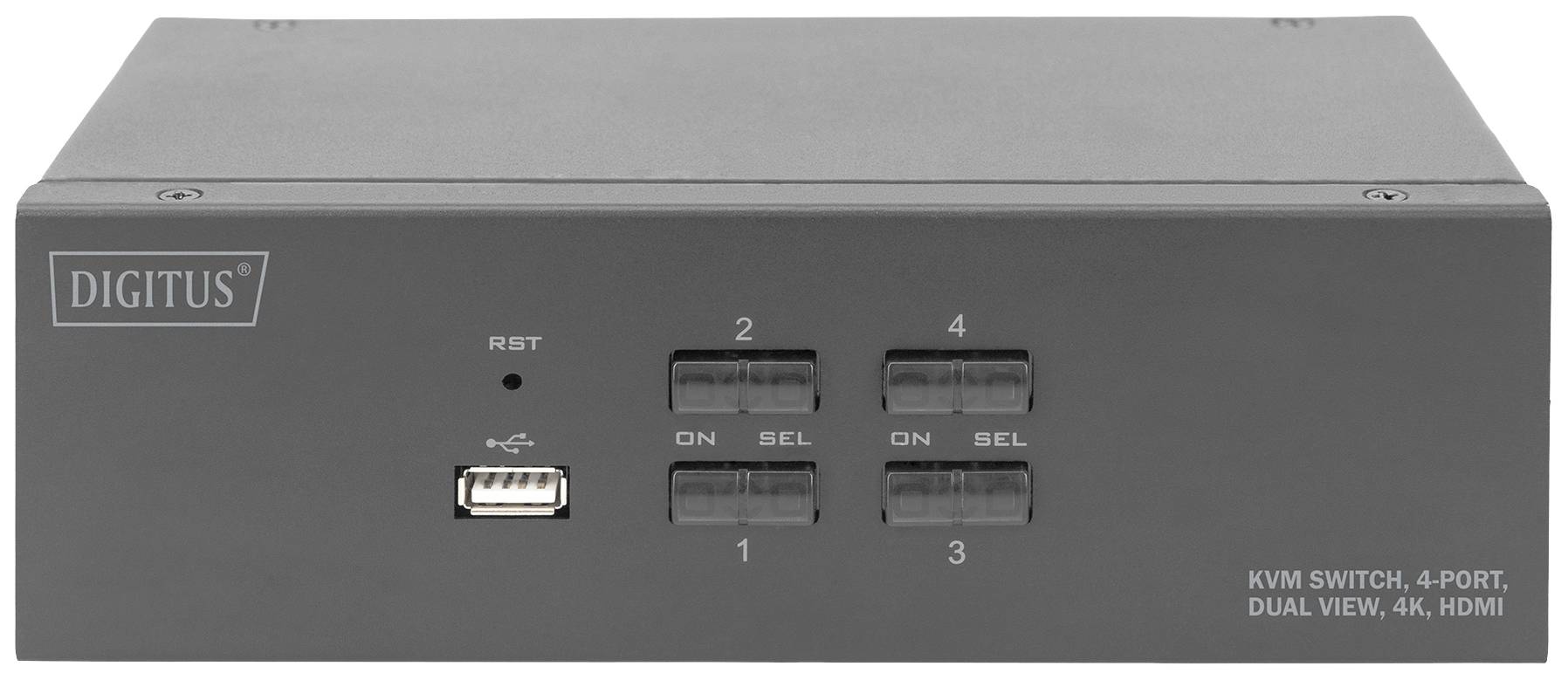

- Status LED on front shows current configuration
- The device works platform-independent, suitable for all operating systems
- Operating temperature: 0 °C ~ 50 °C
- Storage temperature: -20°C ~ 60°C.
- Operating humidity 0 - 80% RH, non-condensing
- Material housing: Metal
- Power supply device: USB power supply or optional 9 V DC power supply (300mA, 5.5 x 2.1 mm plug)
- Product type
KVM changeover switch
- No. of switchable PCs
2
- Video via
HDMI
- Video resolution
4096 x 2560 Pixel
2040 x 1080 Pixel
1920 x 1080 Pixel
- No. of USB 2.0 ports
7 x
- Switch function
Key
- Distributor/switch features
Steel casing
- Power supply (LOV)
via USB
mains-powered (optional)
- Factory colour
Metallic
- Weight
920 g
- Length
202 mm
- Width
110 mm
- Height
66 mm
- Port
4 ports
- Dim
(L x W x H) 202 x 110 x 66 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2996617 Digitus DS-12883 4 ports KVM changeover switch HDMI 4096 x 2560 Pixel, 2040 x 1080 Pixel, 1920 x 1080 Pixel
Description

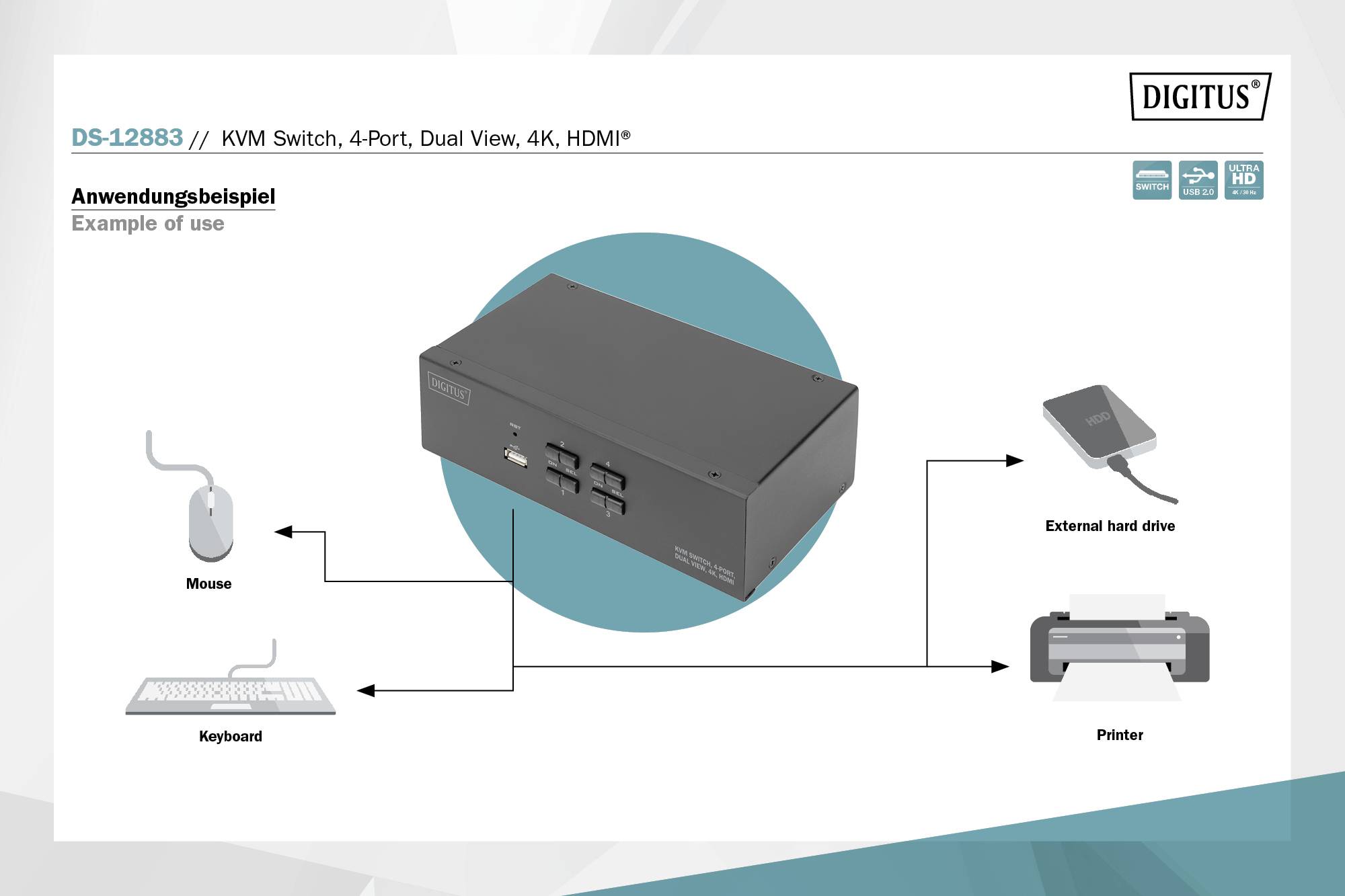

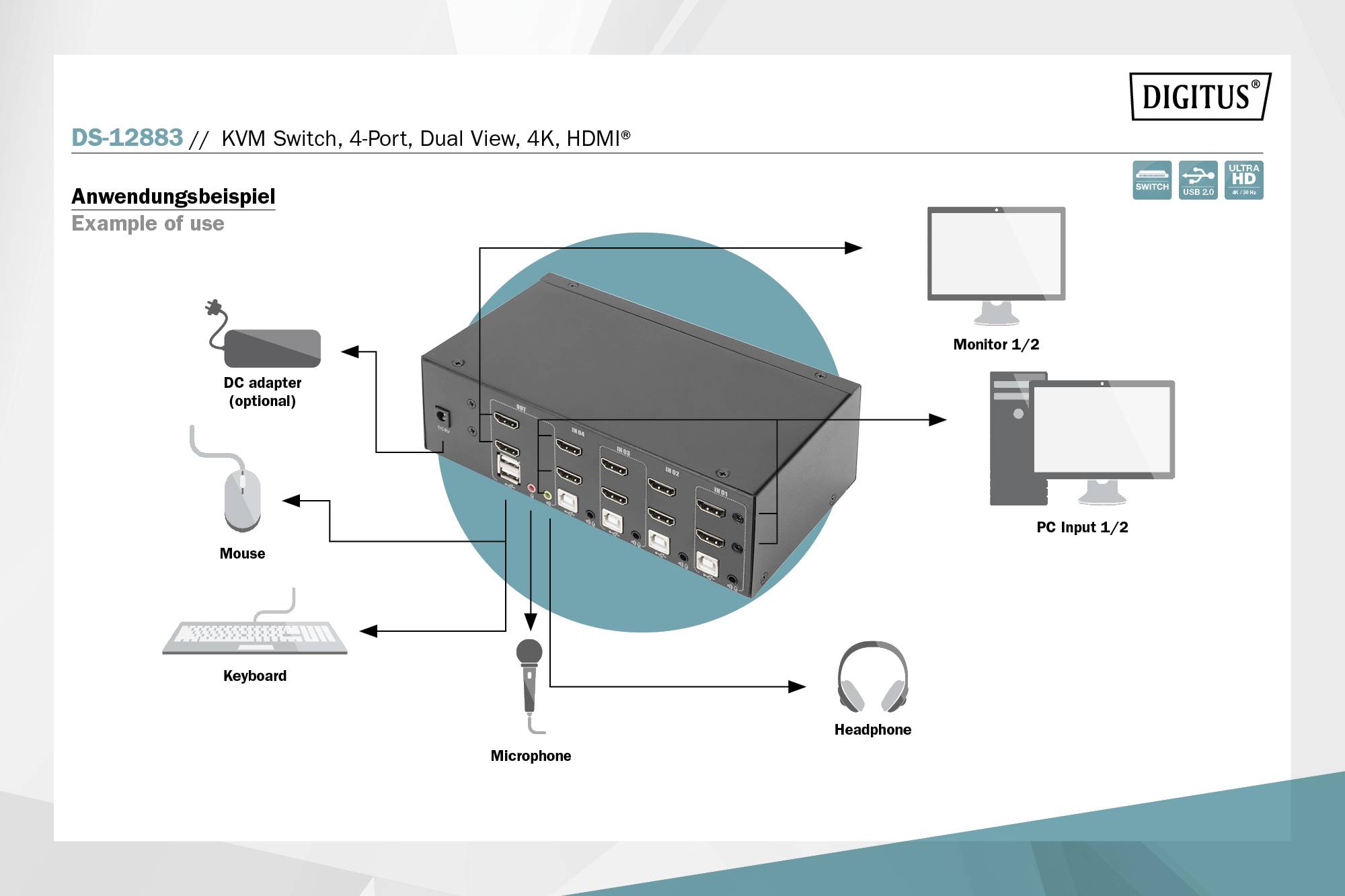

With the Digitus® 4-port KVM switch for dual displays, you can operate four 4K-enabled PCs via a single USB keyboard and mouse combination. You can switch between the four PCs easily at the push of a button or by using a hotkey and save costly replugging of cables. Output to up to two monitors is via the two HDMI® outputs on the back. Audio signals from microphone and loudspeaker are also switched. In addition, a USB-connection is present at the front side, which can be used for other peripherals, such as USB-sticks or external hard disks at both the PCs. The connected peripheral devices are each assigned to the active PC. Status LED on the front of the switch indicates the current configuration at any time. The switch is rounded off by the robust metallic casing.
This text is machine translated.
This text is machine translated.
Features
- Audio connection for microphone / loudspeaker, supports Dolby True HD and DTS HD Master audio
- Integrated USB hub with USB A connection for more peripheral devices
- Switch between the PCs via a switch on the KVM switch or the keyboard hotkey
- LED status and function display on front
- No need to laborious repositioning of the connection cables anymore
- Real plug and play - no software or driver installation needed (BIOS hardware connection)
- Heavy duty metal casing
Scope of delivery
- 1 x KVM switch, 4-port, dual display, 4K, HDMI
- 4 x HMDI® cable
- 4 x KVM cables (HDMI, USB, audio)
- 1x user manual
