Buy Digitus DS-33170 2+1 ports M.2 controller PCIe Compatible with: 2230, 2242, 2260, 2280 incl. slot panel

A PCIe card for M.2 NVMe SSD installation with multiple mounting points for different SSD sizes and a SATA connection.

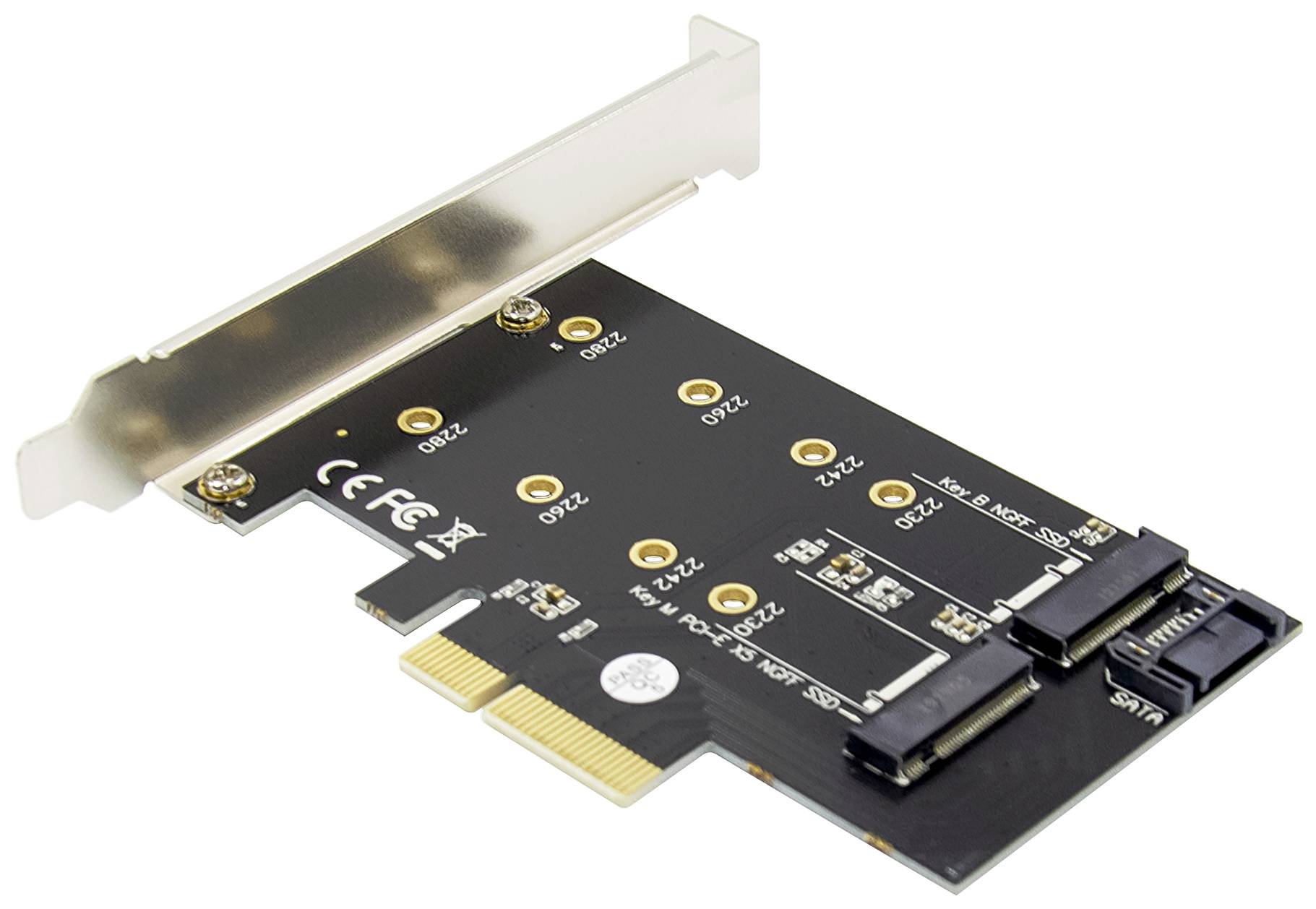

PCIe expansion card with two SATA ports, used to extend the storage capacity of a PC.

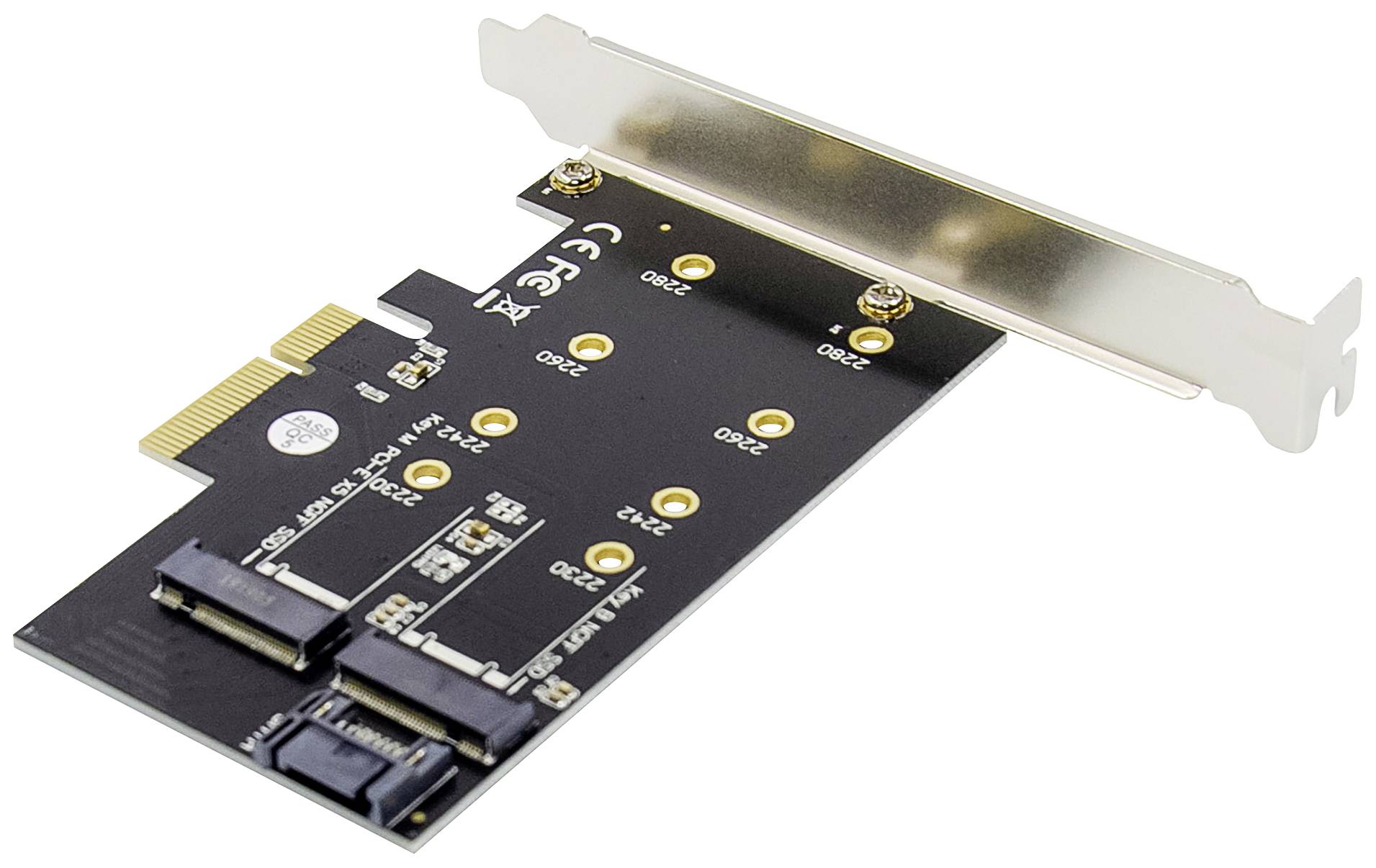

A PCIe adaptor card with a slot for an M.2 SSD. It has golden contacts and a metal bracket for mounting in the computer case.

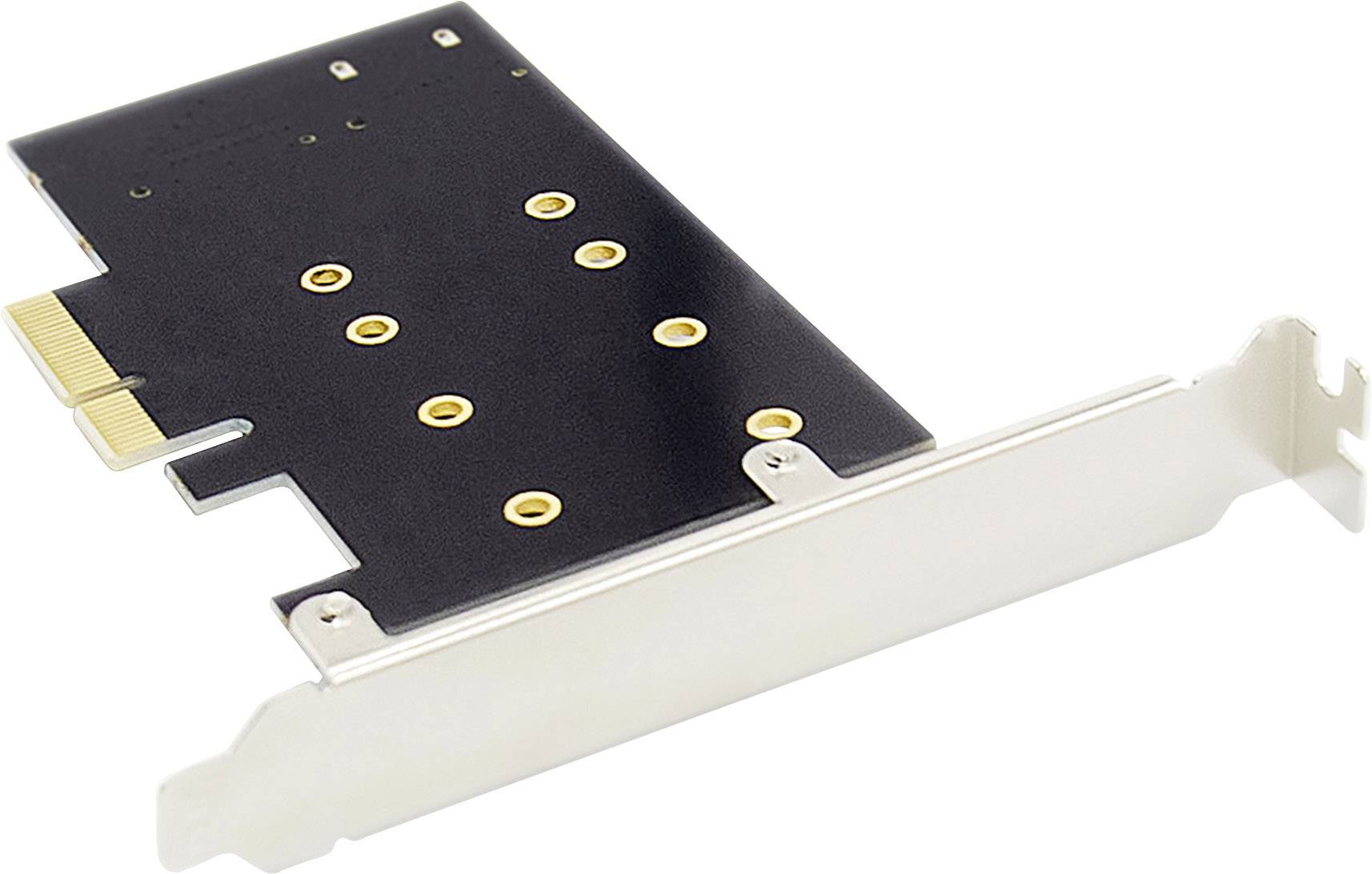

PCIe expansion card with a black surface and gold connectors, used for additional hardware connections in computers.

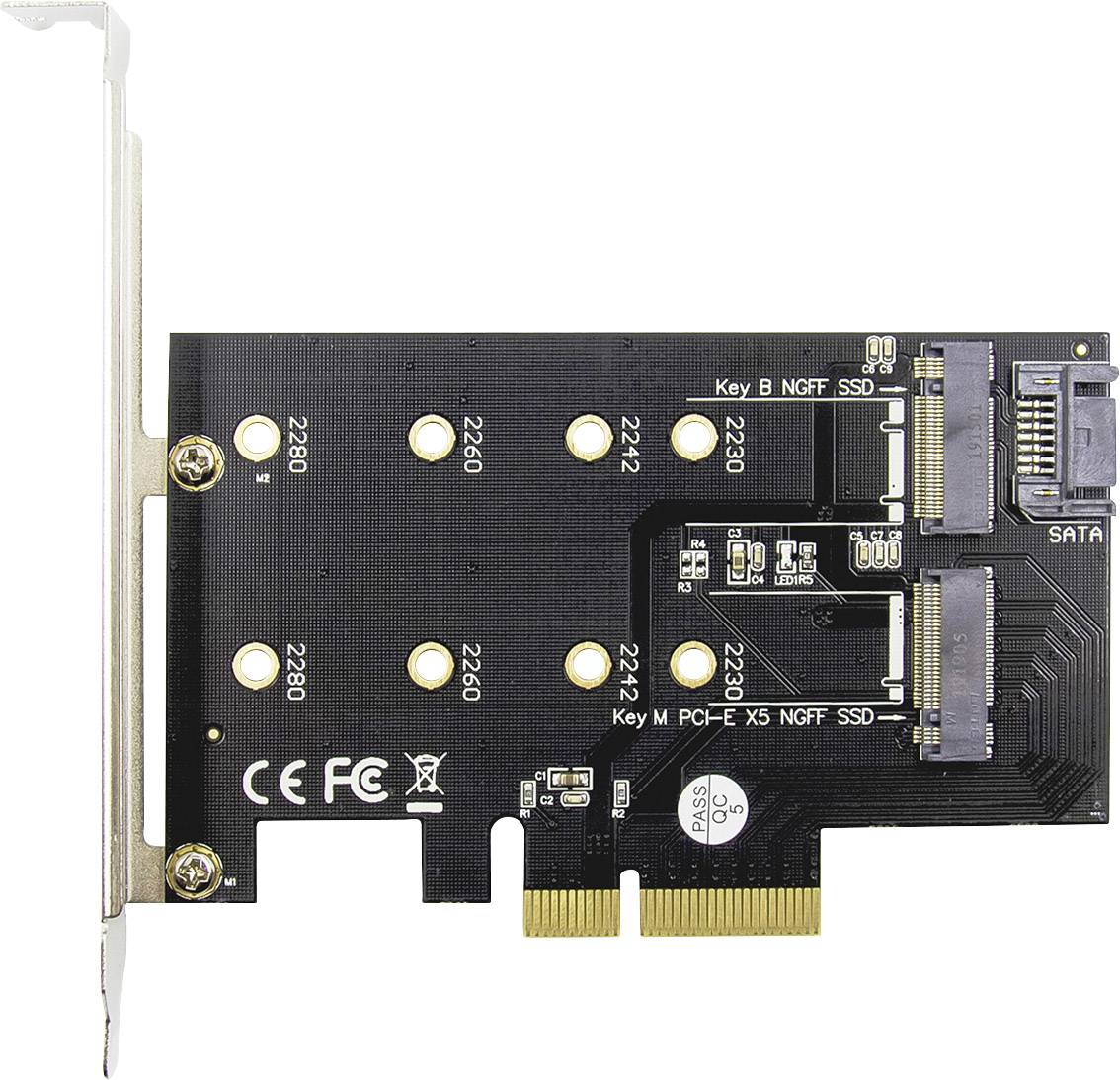

PCIe adapter card for M.2 NVMe SSDs, showing slots for PCIe and SATA connections with markings for different module sizes.

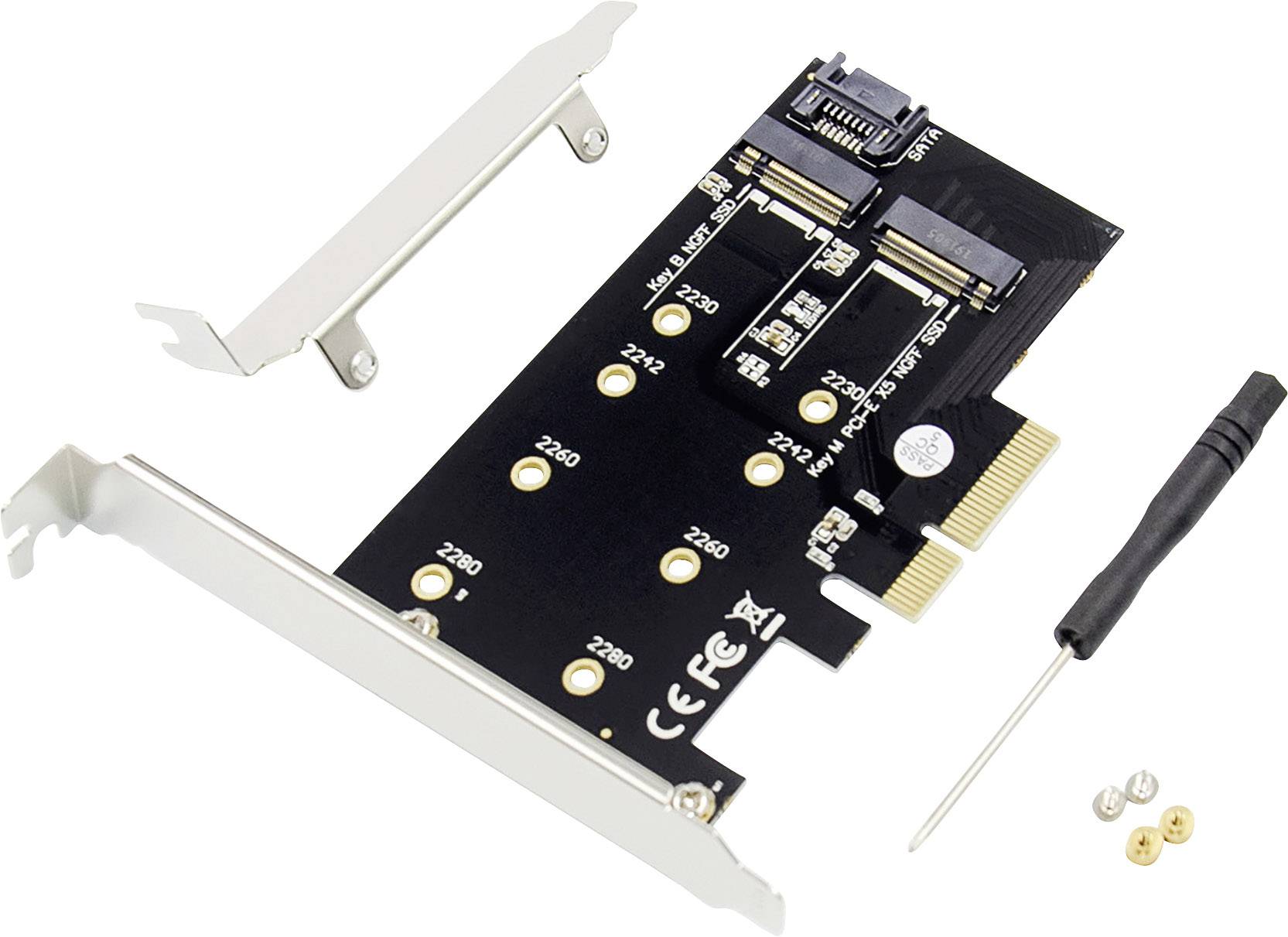

PCIe Adapter Card for M.2 SSD with Screwdriver and Screws. Suitable for 2230, 2242, 2260, 2280 Formats.

1/6

Fast track dispatch on Wed, 7 Oct

27 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 8.39 / piece)

€ 8.39

plus VAT.

14-day return policy included

Report legal concerns

DIGITUS M.2 NGFF / NVMe SSD PCI Express 3.0 (x4) Add-on card

Highlights & Details

NGFF/NVMe SSD M.2 adapter card for PCIe slots: x4/x8/x16
Supports NVMe Key B/M M.2 SSD including 2230, 2242, 2260 & 2280
Supports M-Key M.2 SSD, B-Key and B+M Key M.2 SSD

Technical specifications

Data transfer rate: Up to 6Gbps (32GT/S)
Hard disk sizes 80, 60, 42 & 30 mm
Bus type: PCIe 3.0 (compliant with PCI Express specification rev. 3)
SATA 3.0 (compliant with rev SATA specification. 3)
Supported operating systems: Windows10/8/8.1/Server 2012 R2/Linux/Ubuntu
Dimensions 11.4 x 7 x 2 cm (W x D x H)
Weight: 41.2 g

Product type: M.2 controller

Slot: PCIe

Compatible with: 2230
2242
2260
2280

Internal SATA: 1

Specs: incl. slot panel

Port: 2+1 ports

Weight: 0.15

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2298591 Digitus DS-33170 2+1 ports M.2 controller PCIe Compatible with: 2230, 2242, 2260, 2280 incl. slot panel

Description

This PCIe x4 adapter card is suitable for M.2 / NGFF storage media (NVMe) with B, M, B+M Key and the dimensions 2230, 2242, 2260 & 2280. Together with the x4 interface and the PCIe 3.0 standard, data transfers of up to 6 Gbps (32GT/s) are possible. The storage media can be connected optionally via the integrated SATA interface with M.2 SATA SSDs or via the PCIe interface with NVMe PCIe SSDs. Insert the turbo - with Digitus multifunctional M.2 PCIe 3.0 Add-On card

This text is machine translated.
