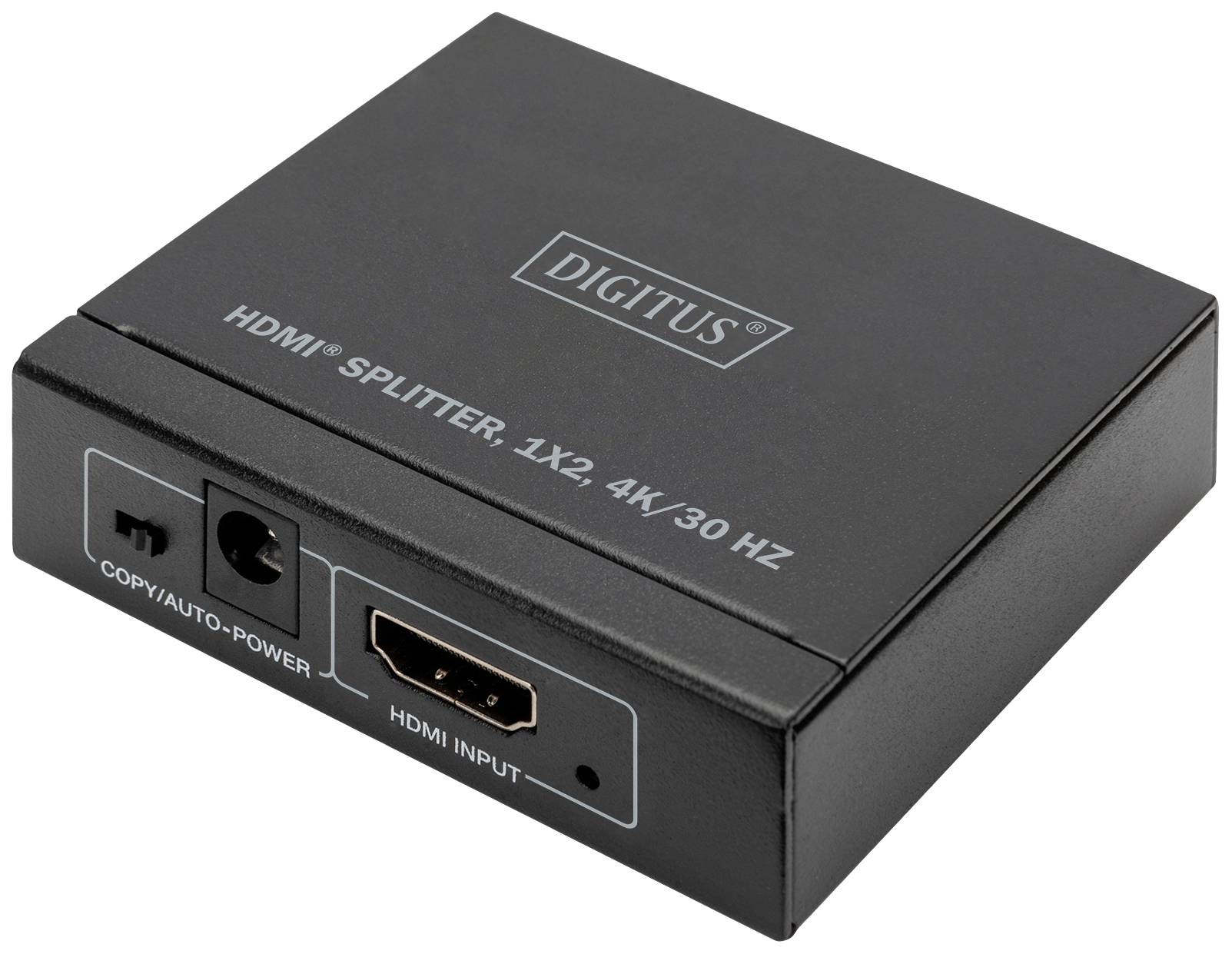

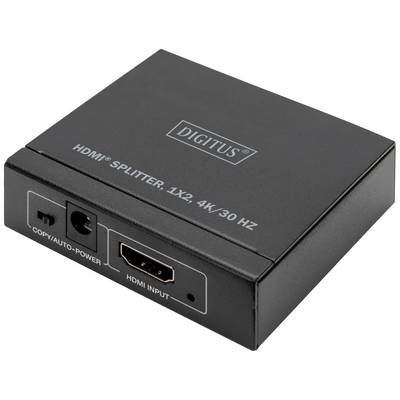

Digitus DS-45340 HDMI splitter
EAN:
Part number:
Item no:
Digitus HDMI splitter, 1x2, 4K / 30 Hz
Highlights & Details
- Output of an HDMI input signal to two output displays simultaneously in 4K/30Hz
- EDID support (2 modes) - 1: Copy - HDMI output 1 / 2: Auto mode - Compare & Create HDMI output 1 & 2
- HDMI 1.4b
Technical specifications
- Distributes an HDMI input signal to two output displays at a maximum resolution of 4K2K/30Hz
- EDID support (2 modes) - 1: Copy - HDMI output 1 / 2: Auto mode - Compare & Create HDMI output 1 & 2
- HDMI 1.4b
- HDCP 1.4
- Video bandwidth 2.97 Gbps
- Compact design for easy and flexible installation
- Connections:

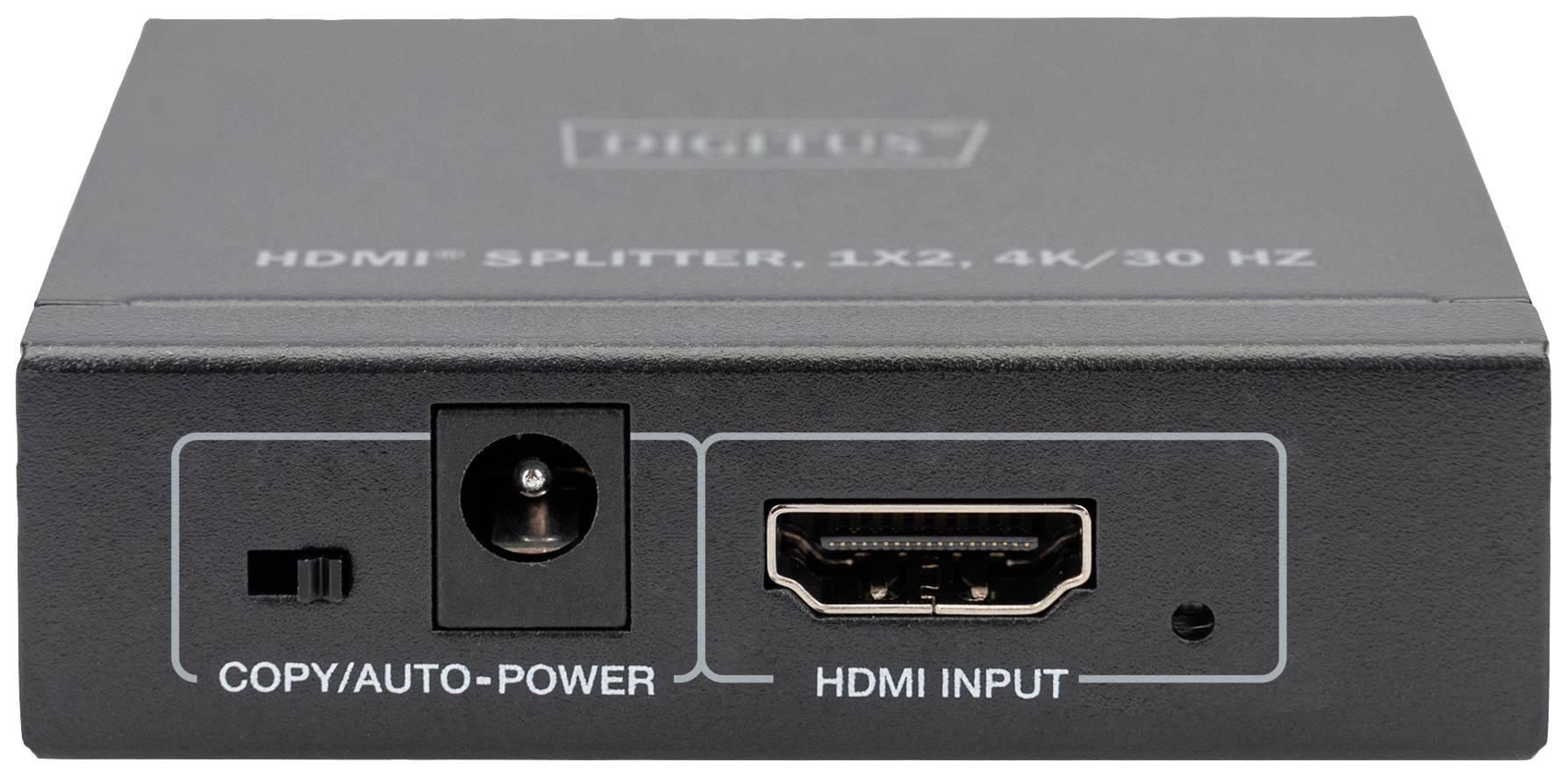

- 1x HDMI input (4K/30Hz) - signal source connector

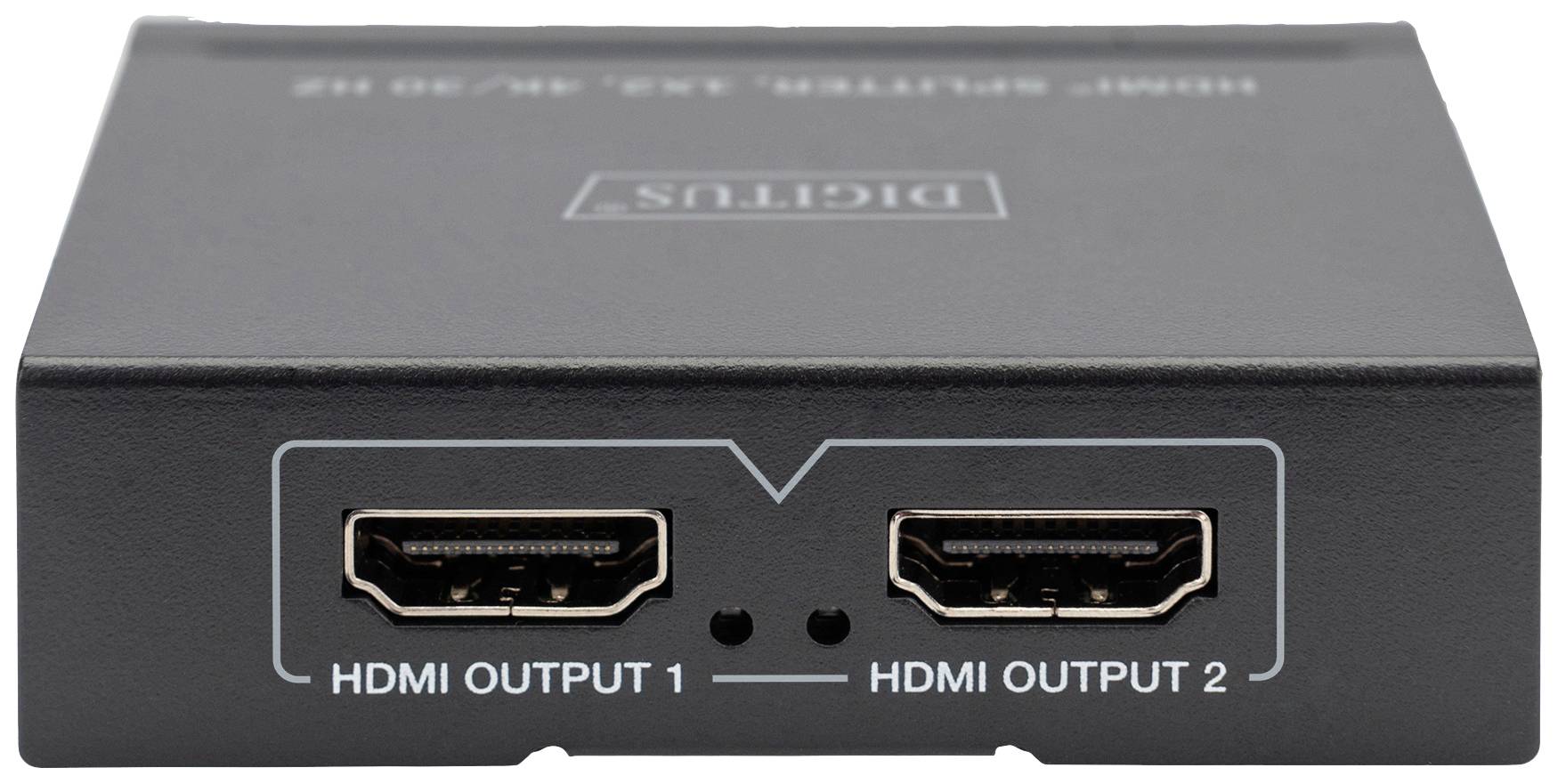

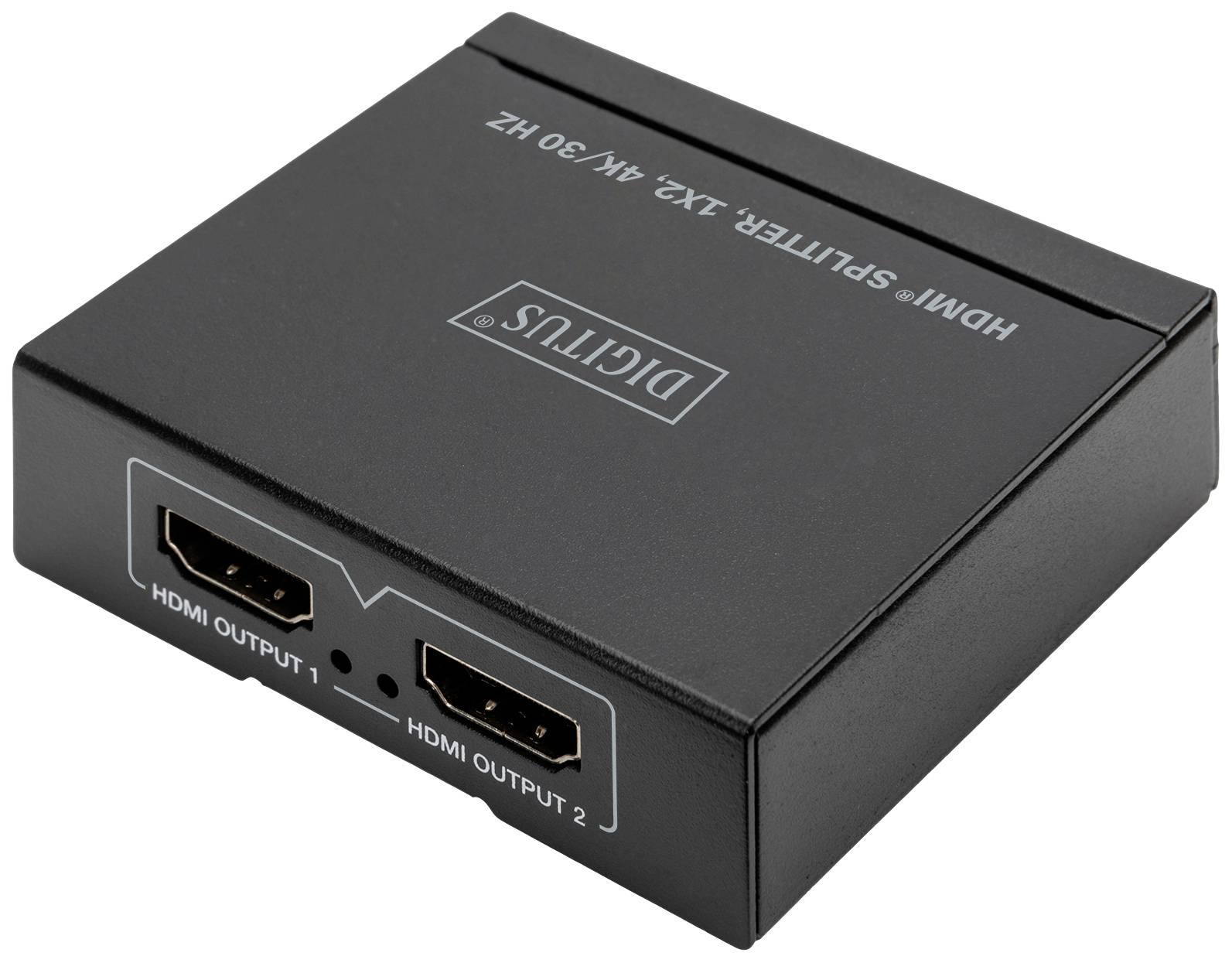

- 2x HDMI output (4K/30Hz) - output device connection
- 1x power supply input (DC 5V/1A), connection of external power supply
- 1x EDID switch
- Operating temperature 0 -40°
- ESD Protection
- Housing: metal
- Dimensions: L 7 x W 6 x H 2 cm
- Weight 125 g
- Colour, black
- Product type
HDMI splitter
- Supported monitors
2
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- No. of inputs
1 x
- No. of outputs
2 x
- Factory colour
Black
- Power supply (LOV)
via PSU
- Width
70 mm
- Height
60 mm
- Depth
20 mm
- Weight
0.28 kg
- Resolutions (max.)
UHD 4K @ 60 Hz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2997731 Digitus DS-45340 HDMI splitter
Description
Distributes an HDMI-input signal on two output displays. It supports a maximum resolution of 4K2K/30Hz. Over the EDID switch two modes can be selected (Copy: HDMI output 1 / Auto mode: Compares HDMI output 1&2 automatically and adds a new EDID together and plays this back to the HDMI input
This text is machine translated.
This text is machine translated.
Features
- HDCP 1.4
- Video bandwidth 2.97 Gbps
- Compact design for easy and flexible installation
Scope of delivery
- 1x HDMI splitter
- 1x power supply (DC 5V/1A, 1.15 m)
- 1x user manual
