Digitus DS-55202 HDMI™ Extension via RJ45 network cable 120 m
EAN:
Part number:
Item no:
Datasheet (PDF)
HDMI KVM Extender via Ethernet-set consists of a transmitter & receiver - including audio transmission-USB for mouse & keyboard - Full HD 1080p at 60 Hz - Black
Highlights & Details
- Enables HDMI transmission up to 120 m away via a suitable network cable
- Extension of the signal also via existing local network infrastructure (IP-connection)
- Highest supported video resolution: 1080p / 60 Hz
- It supports KVM-Function - Comfortable control of the connected computer at the transmitter via mouse and keyboard (USB) at the receiver unit
- Supports LAN-Standard 802.3 Ethernet 10/100/100 Mbps

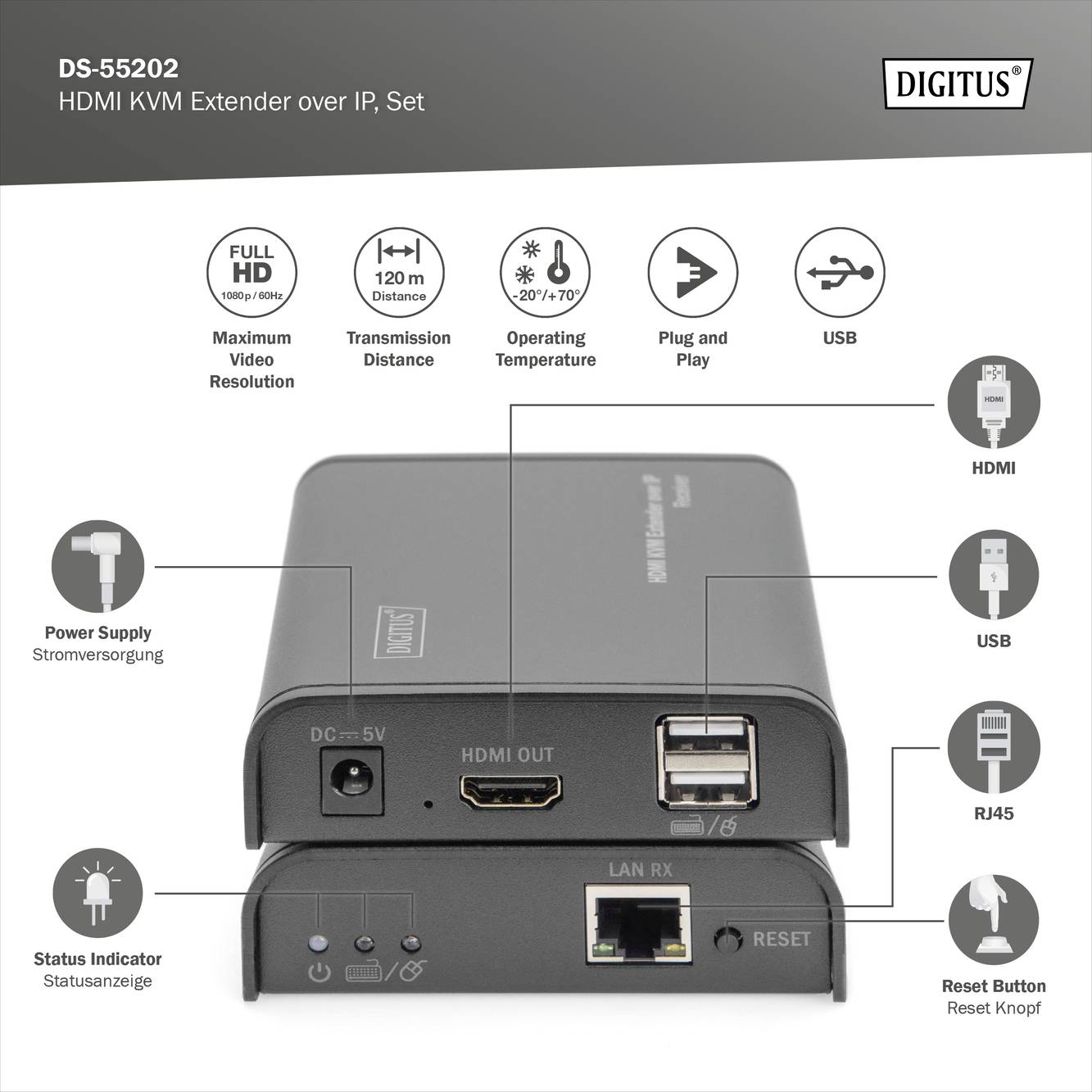

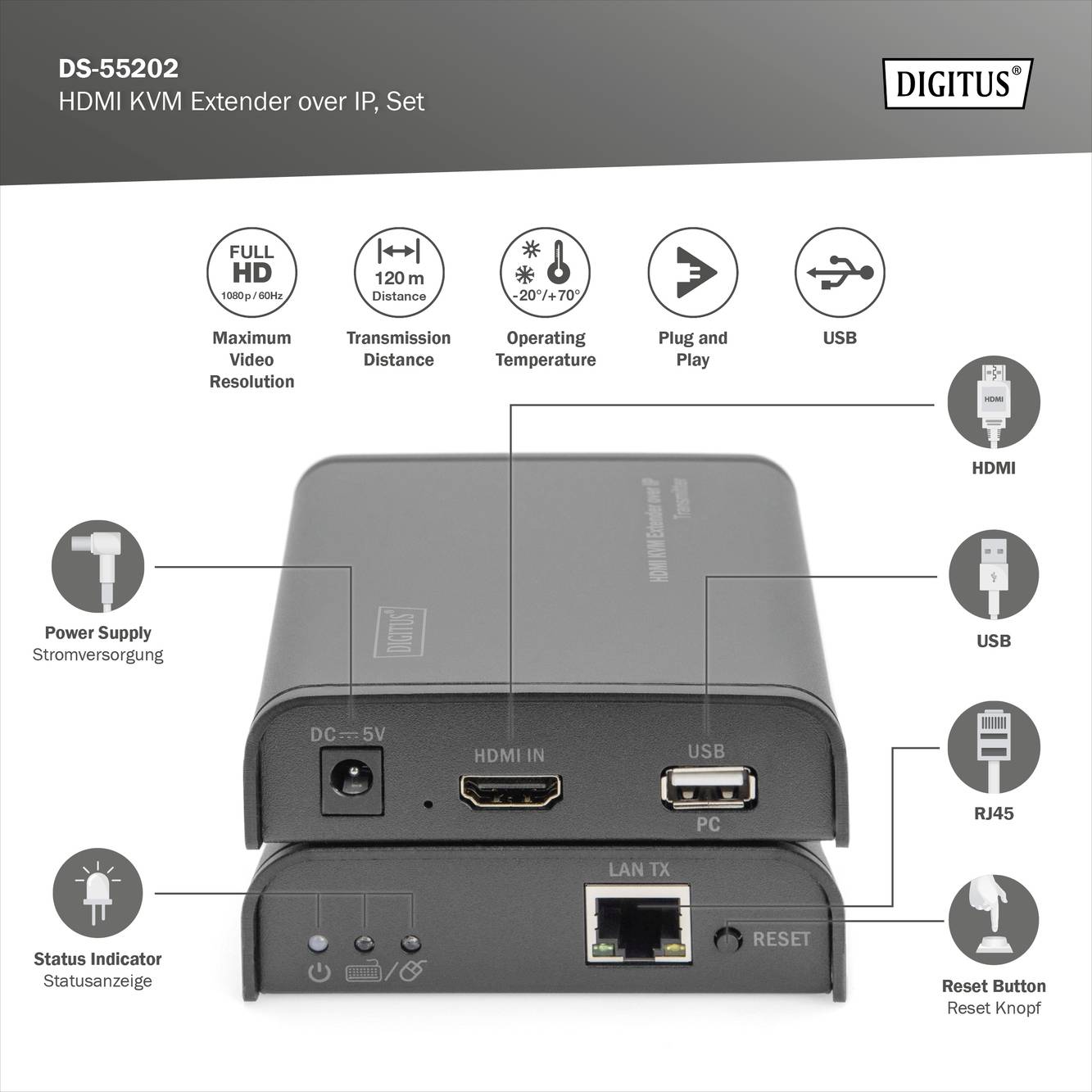

- LED-activity indicator for function, keyboard and mouse
Technical specifications
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Features
built-in LED display
- Resolution (max.)
1920 x 1080 p
- Range (max.)
120 m
- Factory colour
Black
- Weight
300 g
- Length
109.6 mm
- Width
89.5 mm
- Height
26.3 mm
- Dim
(L x W x H) 109.6 x 89.5 x 26.3 mm
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 1681562 Digitus DS-55202 HDMI™ Extension via RJ45 network cable 120 m
User & Safety Instructions
User & Safety Instructions 1681562 Digitus DS-55202 HDMI™ Extension via RJ45 network cable 120 m
Description

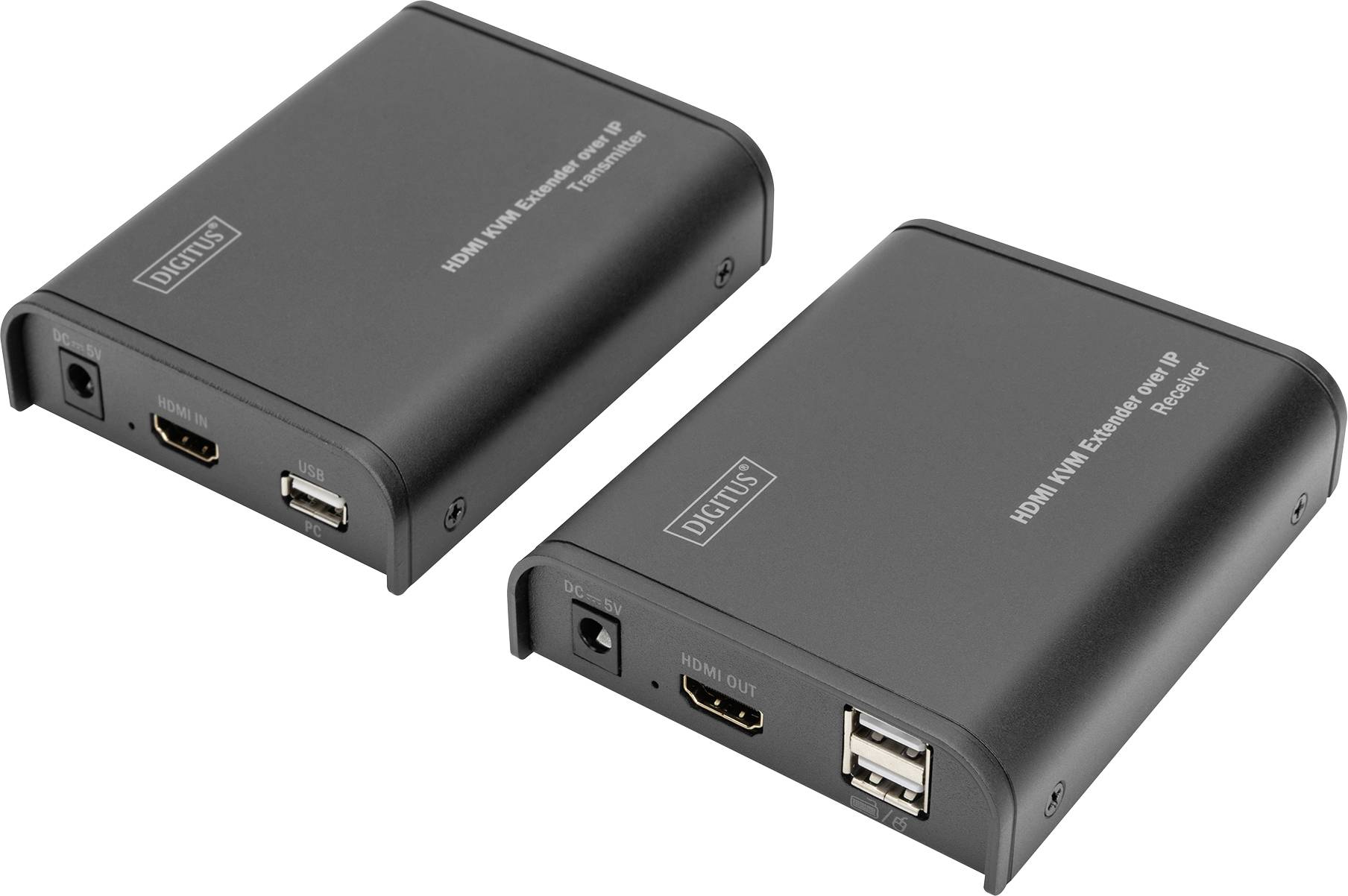

The Digitus HDMI KVM extender set consists of a transmitter unit (local location) as well as a receiver unit (remote location). The HDMI signal can be extended to a maximum distance of 120 m via a network cable (CAT 6, 5e, 5). The HDMI signal can also be extended to an unlimited distance over the existing network infrastructure (via IP connection). The highest supported video resolution is 1080p / 60 Hz. It also enables a comfortable access to the computer through the mouse and keyboard connected to the receiver unit via USB. It is perfect for industrial, commercial and public applications.
This text is machine translated.
This text is machine translated.
Features

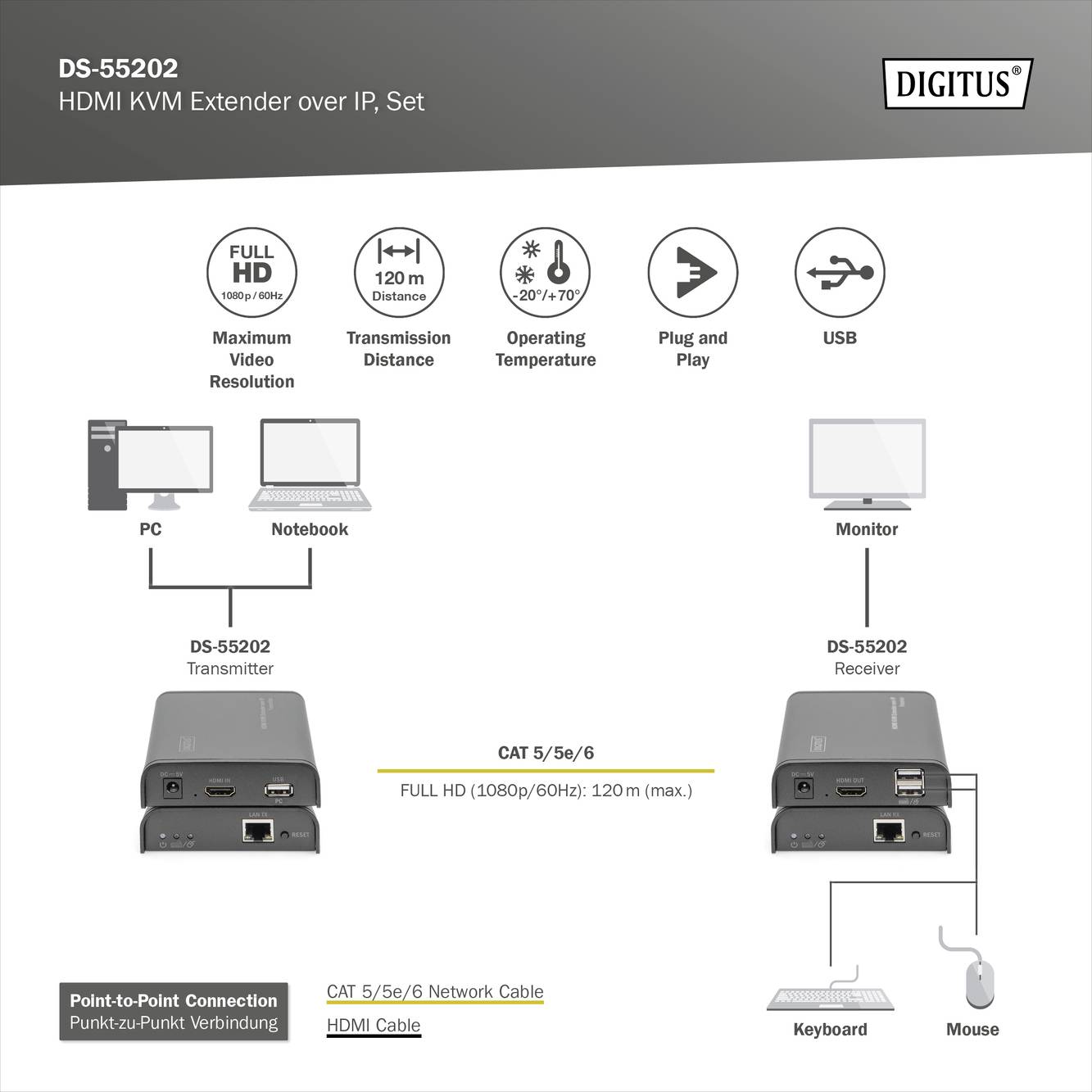

- Extends the maximum HDMI cable length to up to 120 m via a simple network cable

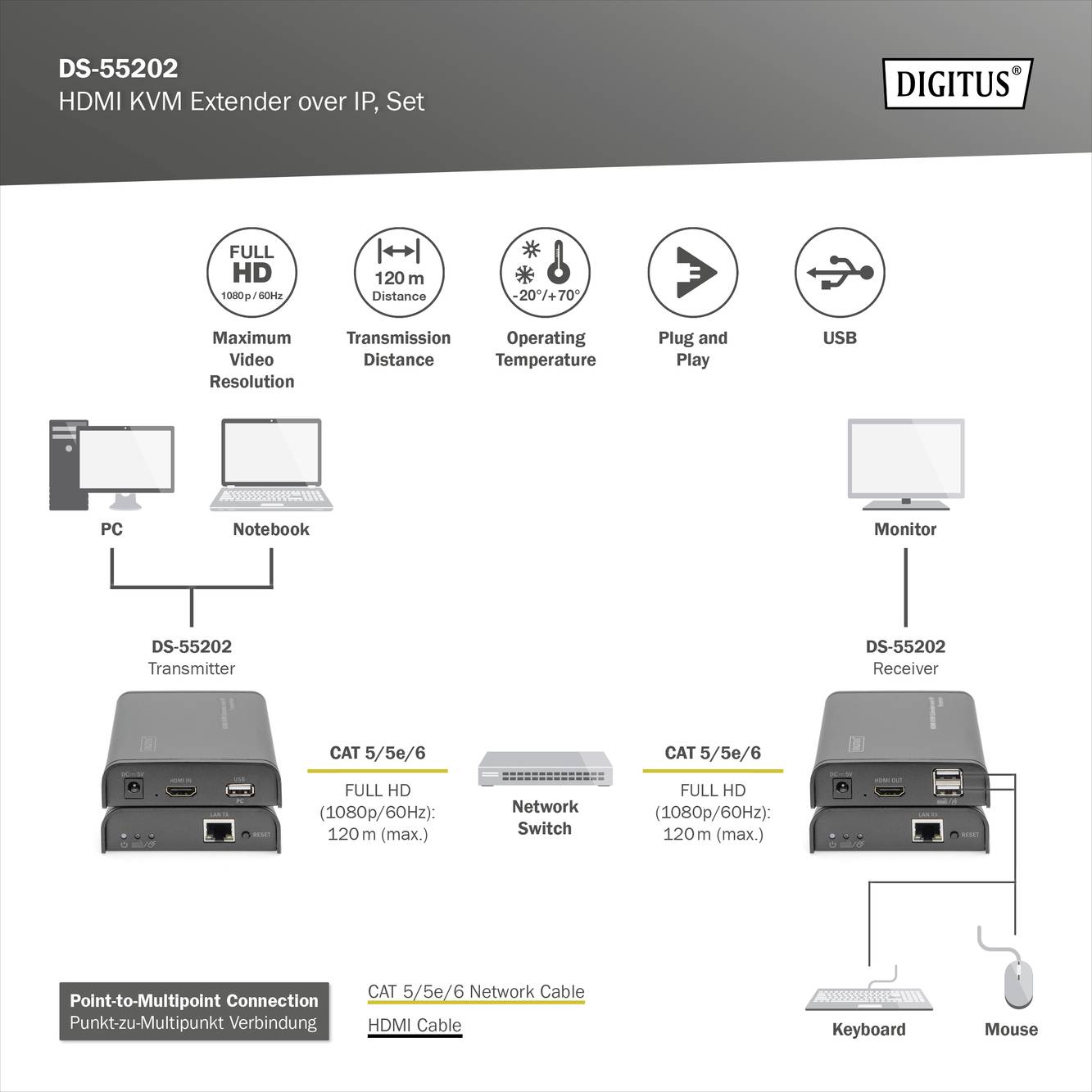

- Extension of the signal (unlimited distance) via the existing local network infrastructure (via IP connection)
- Highest supported video resolution: 1080p/60 Hz
- Supports KVM-Function - convenient control of the mouse & keyboard via USB to the receiver unit.
- Supports 10/100/100 Mbps Ethernet LAN- Standard 802.3
- Aktivitatsidikator LED for function, keyboard and mouse
- Transmission lengths: 120 m (CAT 6), 100 m (CAT 5e), 80 m (CAT5)
- Video bandwidth: small 70 Mbit/s
- Video latency: 70 ms
- Audio support PCM (44.1 KHz, 48 KHz)
- USB keyboard and mouse support
- Supports UTP/STP CAT 5/5e/6 network cable according to standard IEEE-568B
- Plug & Play, no additional software required - Driver CD only necessary if no mouse & keyboard function
- Power consumption: less than 3.5 W (TX or RX)
- Working temperature: 0–60°C
- Ambient temperature: -20~70°C
- High-quality aluminium enclosure
Scope of delivery

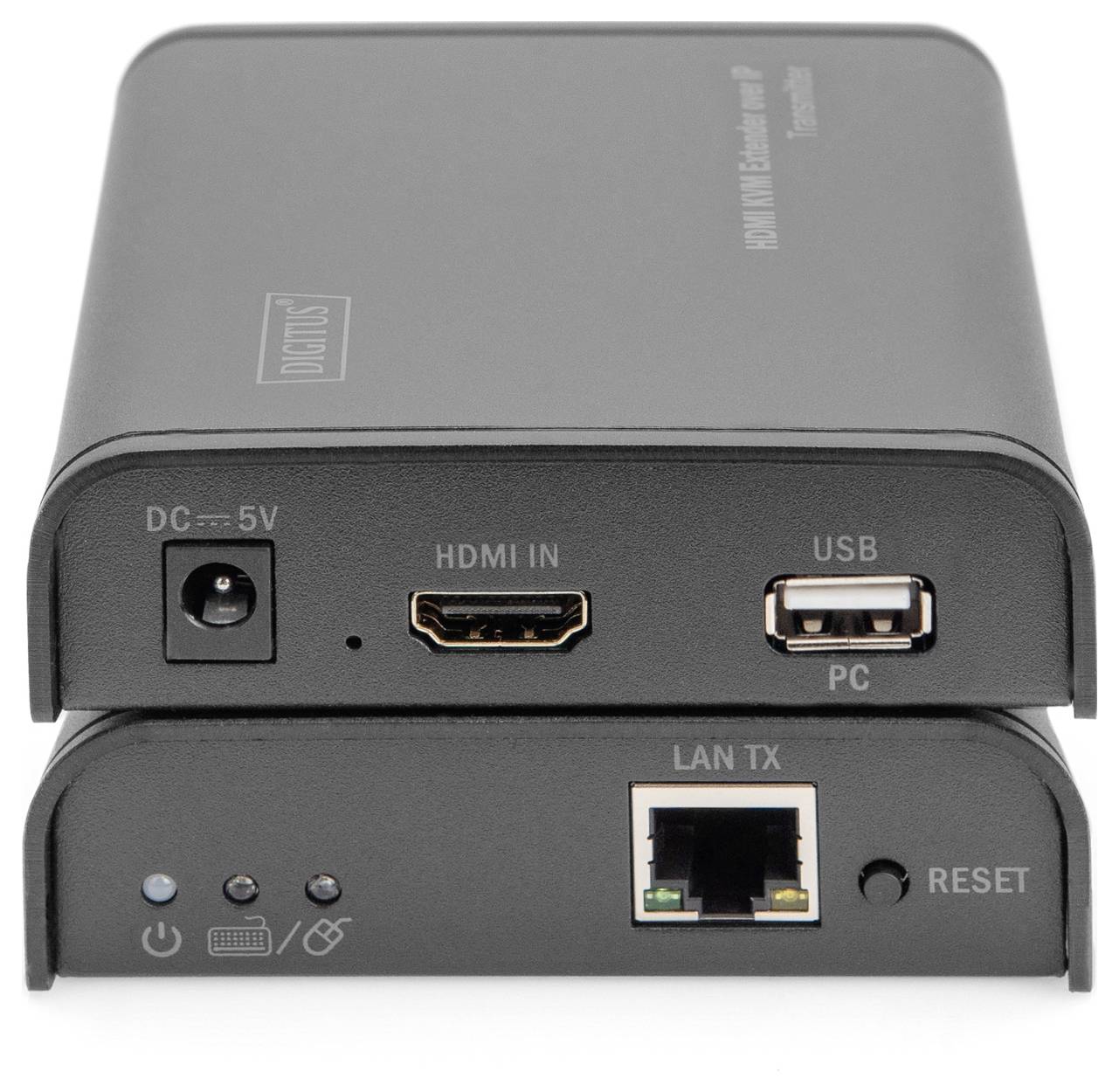

- 1x HDMI Extender transmission unit

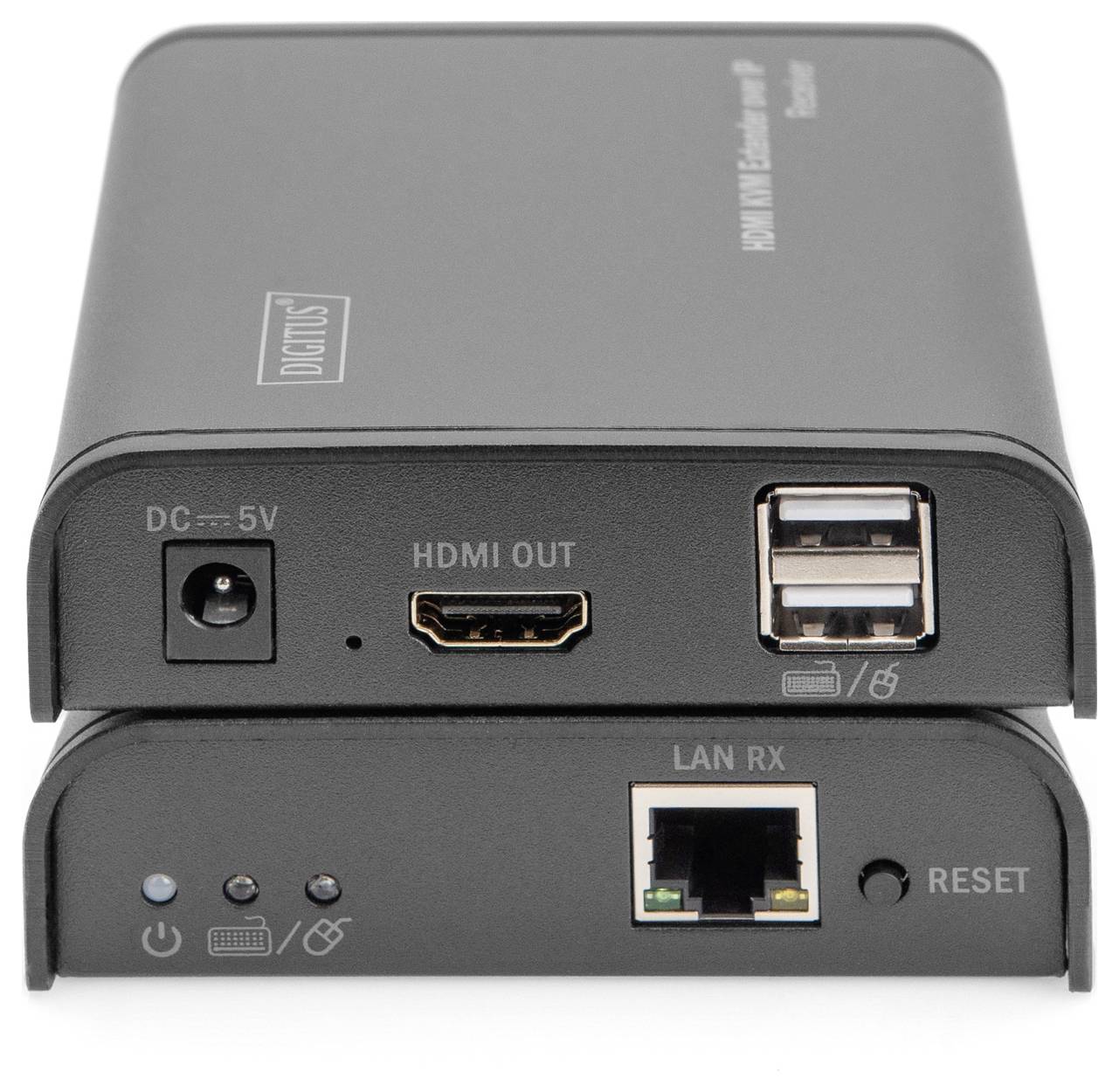

- 1x HDMI Extender Receiver unit

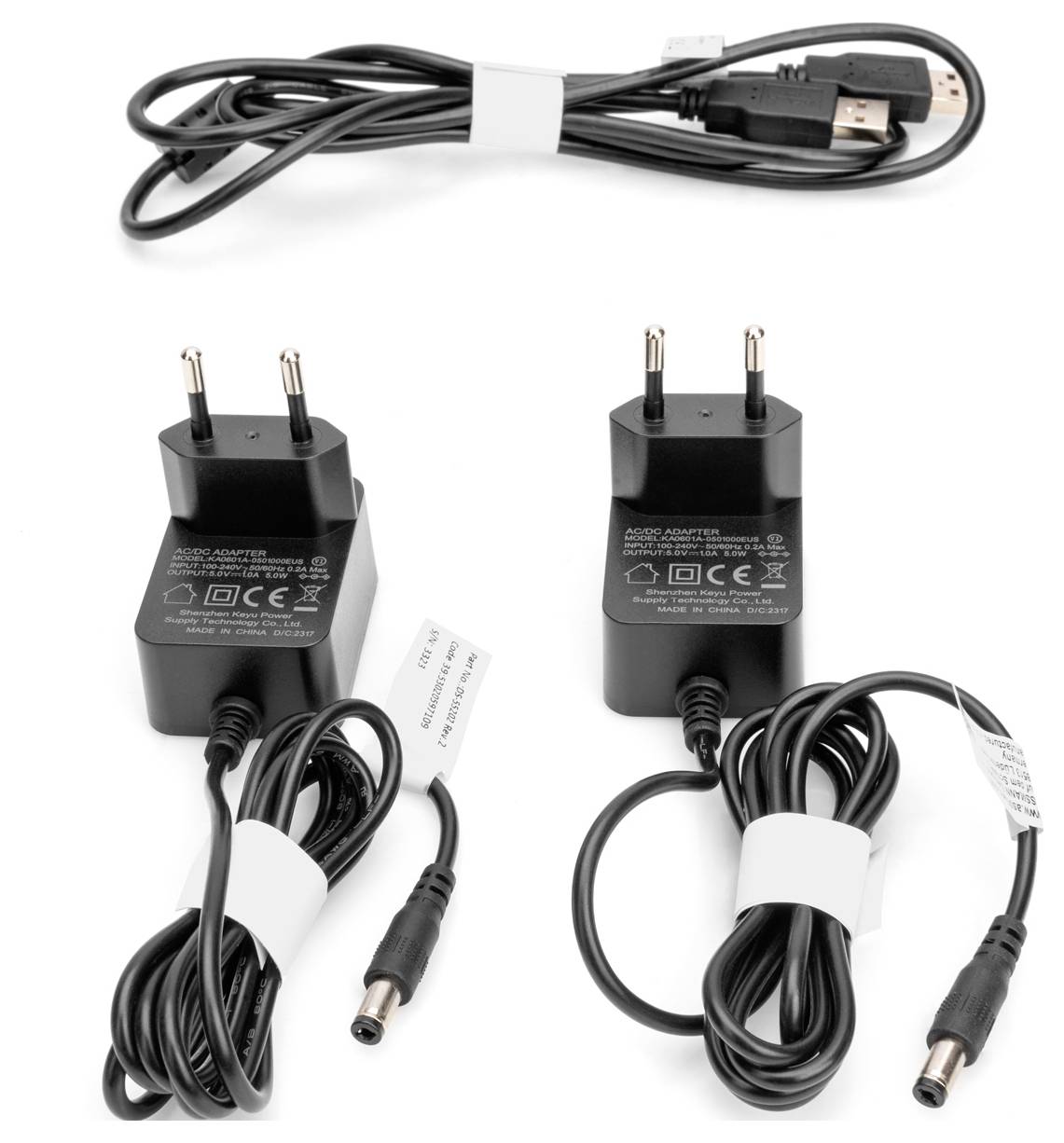

- 2x power supply: DC 5V/1A
- 1x user manual
- 1x CD (USB driver software)
