Digitus DS-55203 HDMI™ Extension via RJ45 network cable 50 m
EAN:
Part number:
Item no:
Mini HDMI Extender-Set-Transmitter & Receiver power supply via micro USB 50 m transmission range - Full HD 1080p at 60 Hz
Highlights & Details
- Extended Full HD video content on up to 50 m with a CAT 6/6 A cable
- Supports resolutions up to 1080p/60 Hz
- Ultra compact design - can be used almost anywhere easily and discretely position
- Power supply via micro USB cable - Use the USB port of your PC / Notebook, a USB charging adapter, etc. in order to provide power to the extender
- Supports PoE-only a unit must be supplied with power via micro USB cable
Technical specifications
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
1920 x 1080 p
- Range (max.)
50 m
- Factory colour
Black
- Weight
20 g
- Length
71.5 mm
- Width
26 mm
- Height
11.5 mm
- Dim
(L x W x H) 71.5 x 26 x 11.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1681571 Digitus DS-55203 HDMI™ Extension via RJ45 network cable 50 m
Description

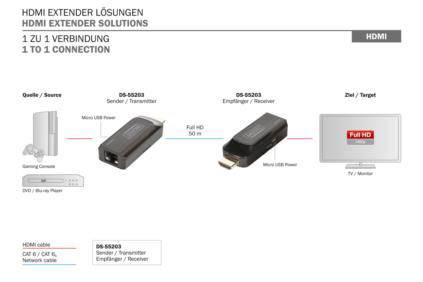

The Mini HDMI Extender set of DIGITUS extends the maximum length for HDMI cable to up to 50 m using just a simple network cable (Cat 6/6 A) between the transmitter and the receiver unit is used. Supports a maximum video resolution of 1080p/60 Hz. The power supply is via the included Micro USB cable is ensured, with only one unit must be supplied with power. Thanks to these features as well as the ultra-compact design, the extender set almost everywhere easily and discretely position. Place your screen, wherever you want.
This text is machine translated.
This text is machine translated.
Features
- Extends the maximum HDMI cable length to up to 50 m using just a simple network cable between transmitter and receiver.
- Extended Full HD video content on up to 50 m with a CAT 6/6 A cable
- Supports resolutions up to 1080p/60 Hz
- Power supply via micro USB cable - Use the USB port of your PC / Notebook, a USB charging adapter, etc. in order to provide power to the extender
- Supports PoE-only a unit must be supplied with power via micro USB cable
- Ultra compact design - can be used almost anywhere easily and discretely position
- Provides quick and easy distribution for HDMI video signals - place your screens, wherever you want
- Supports HDCP 1.2
- Supports CAT 6 and CAT 6e network cable
- Complies with IEEE-568B standard
- HDMI Band Width: 10.2 gps (max.)
- Housing: ABS plastic
- Working temperature: 0 ~ 50°C
- Ambient temperature: -10~70°C
- Humidity (non-condensing): 0 ~ 90%
- Dimensions (1 unit): L 7.1 x W 2.6 x H 1.1 cm
- Weight (1 unit): 10 g
- Colour: Black
Scope of delivery
- 1 x mini HDMI Extender transmission unit
- 1 x mini HDMI Extender Receiver unit
- 2x Micro USB cable (1.20 m)
- User manual
