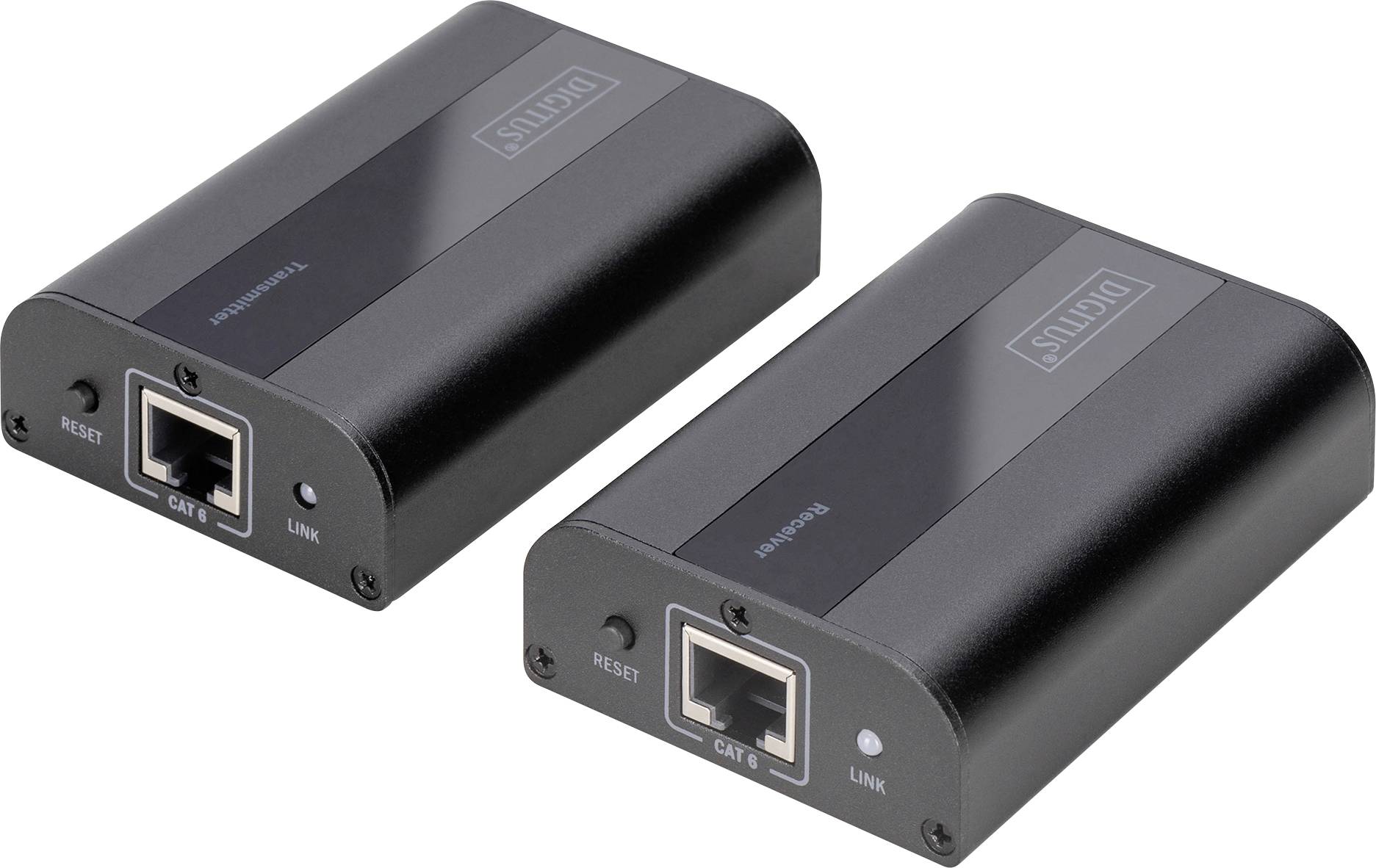

Two black electronic devices with Ethernet ports, labelled 'Cat5'. Suitable for network connection.

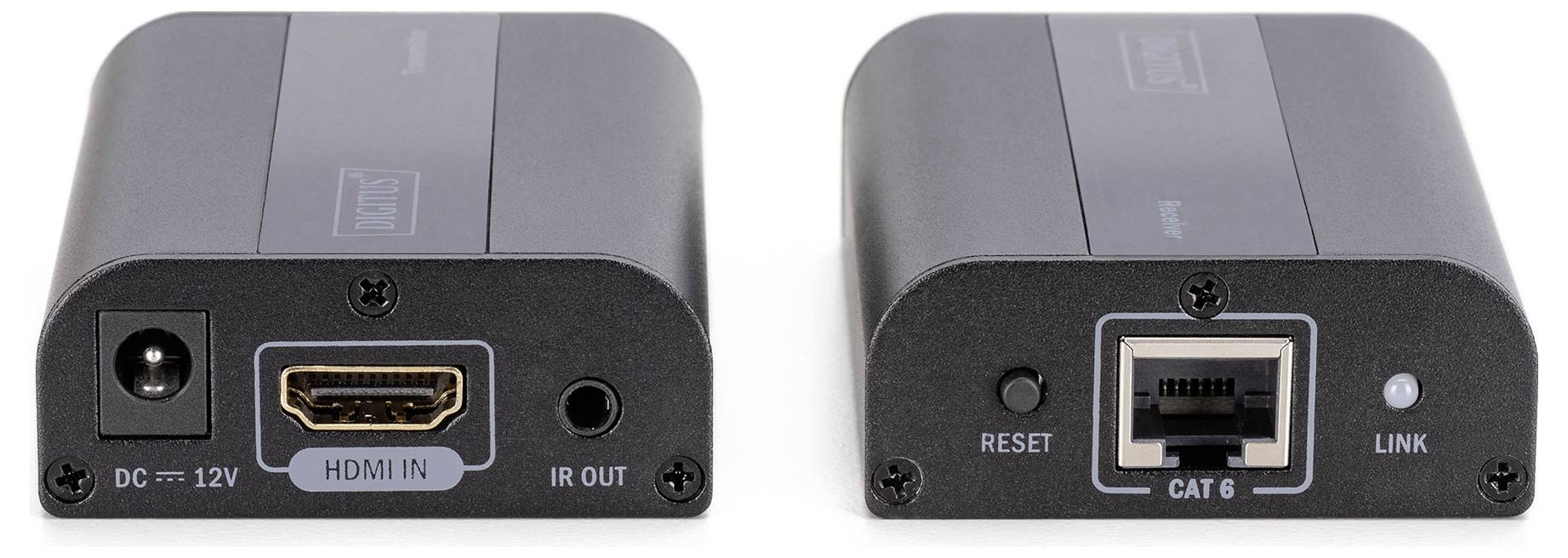

Two electronic devices: On the left with HDMI and power connections, on the right with network port and reset button.

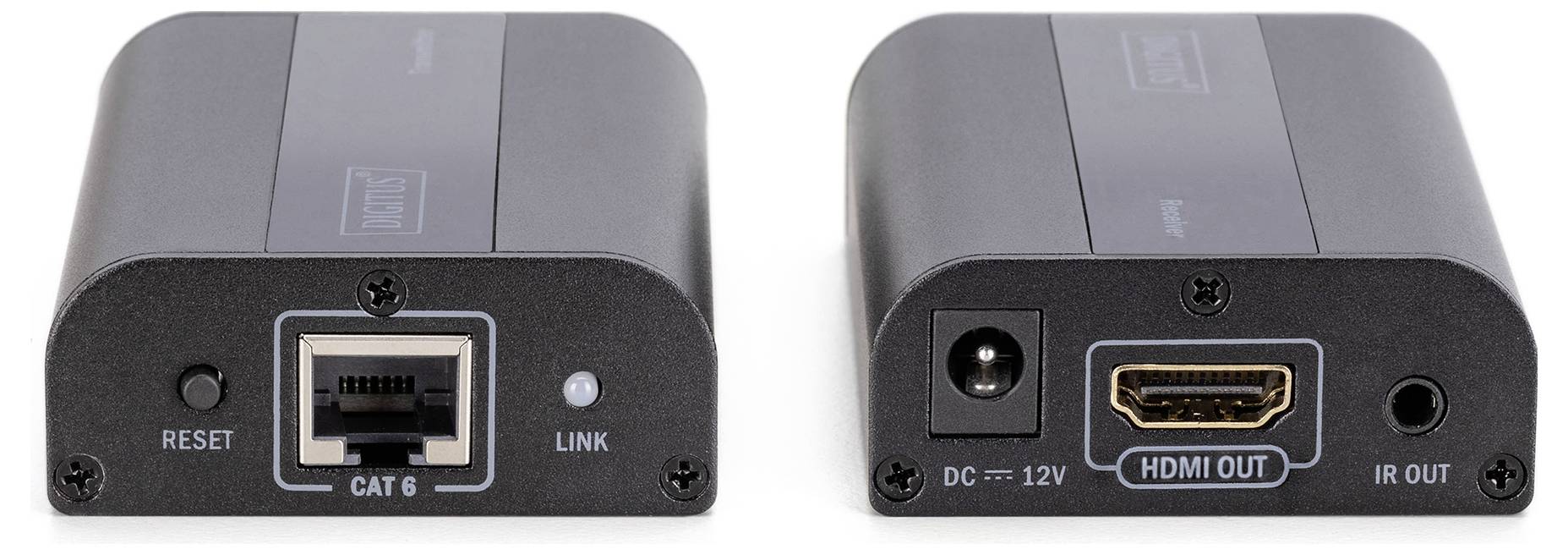

Two devices show front and back sides: On the left, a CAT6 Ethernet port, on the right an HDMI output with power supply connection.

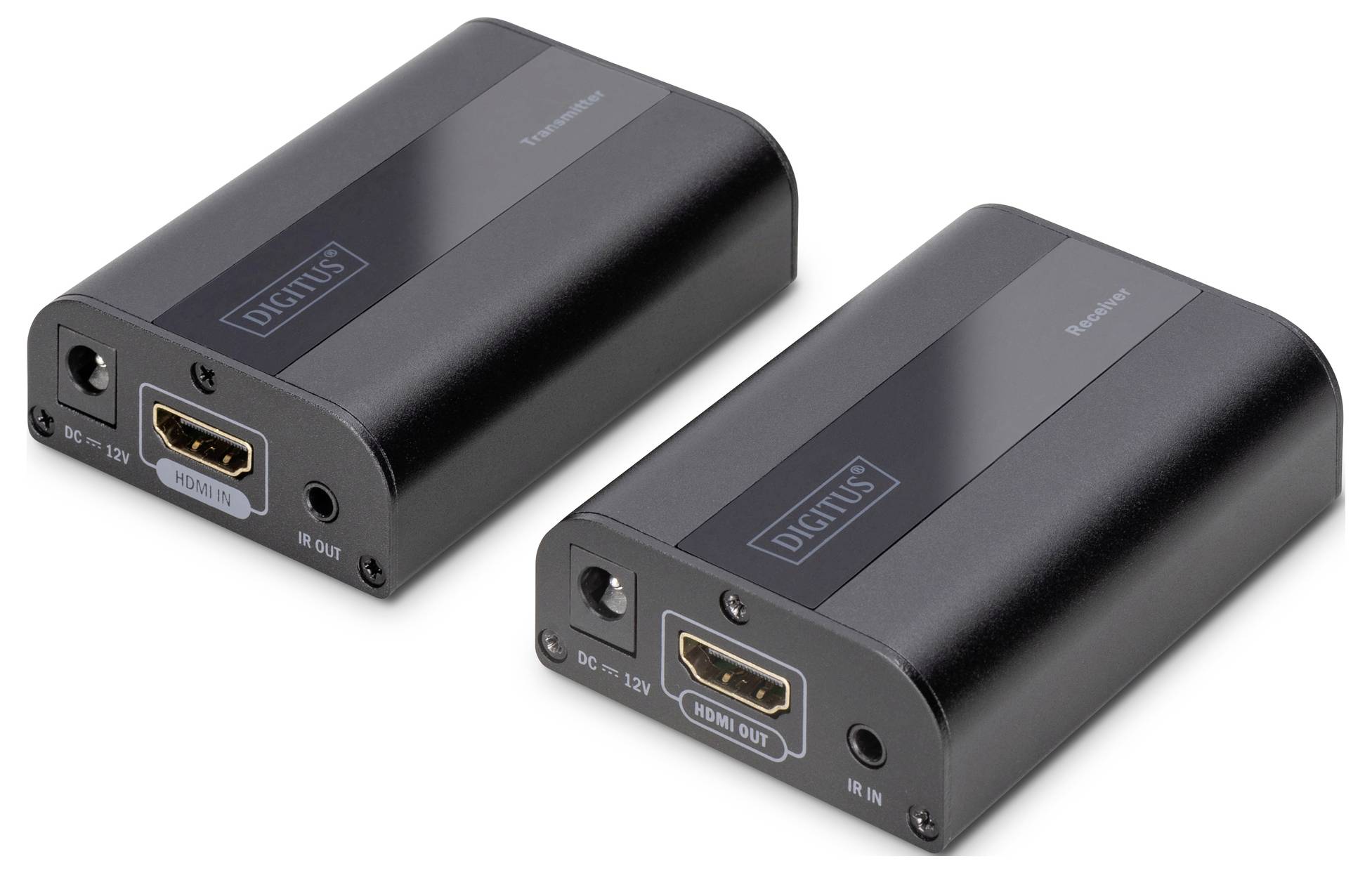

Two black HDMI extenders with ports for 'DC 12V', 'HDMI IN' and 'HDMI OUT'. They enable the extension of HDMI signals.

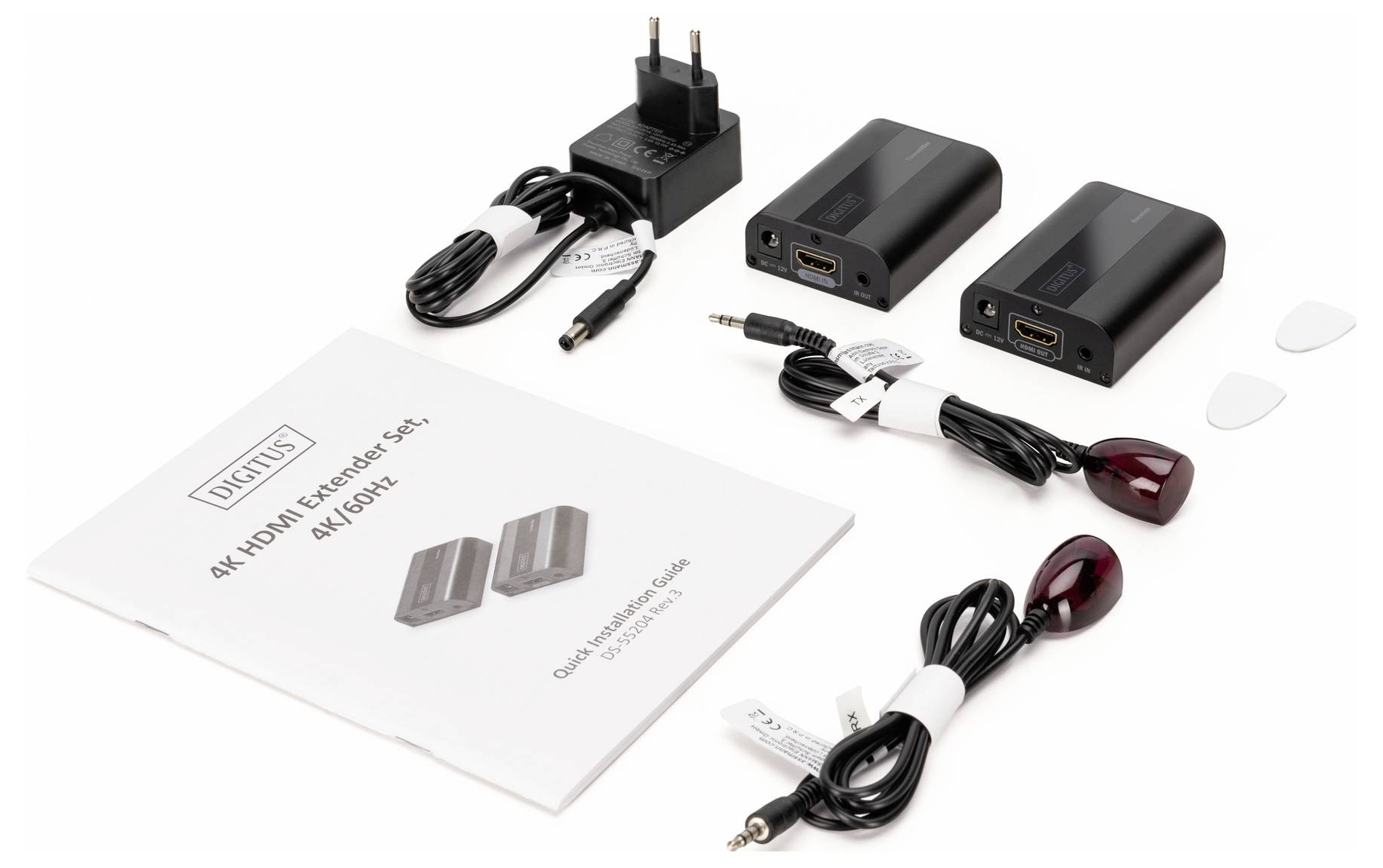

A set of HDMI extenders with instruction manual, two black devices, power supply, two infrared receivers, and two cables.

Brown cardboard box with label describing a 4K HDMI extender set. Label contains product specifications and CE marking.

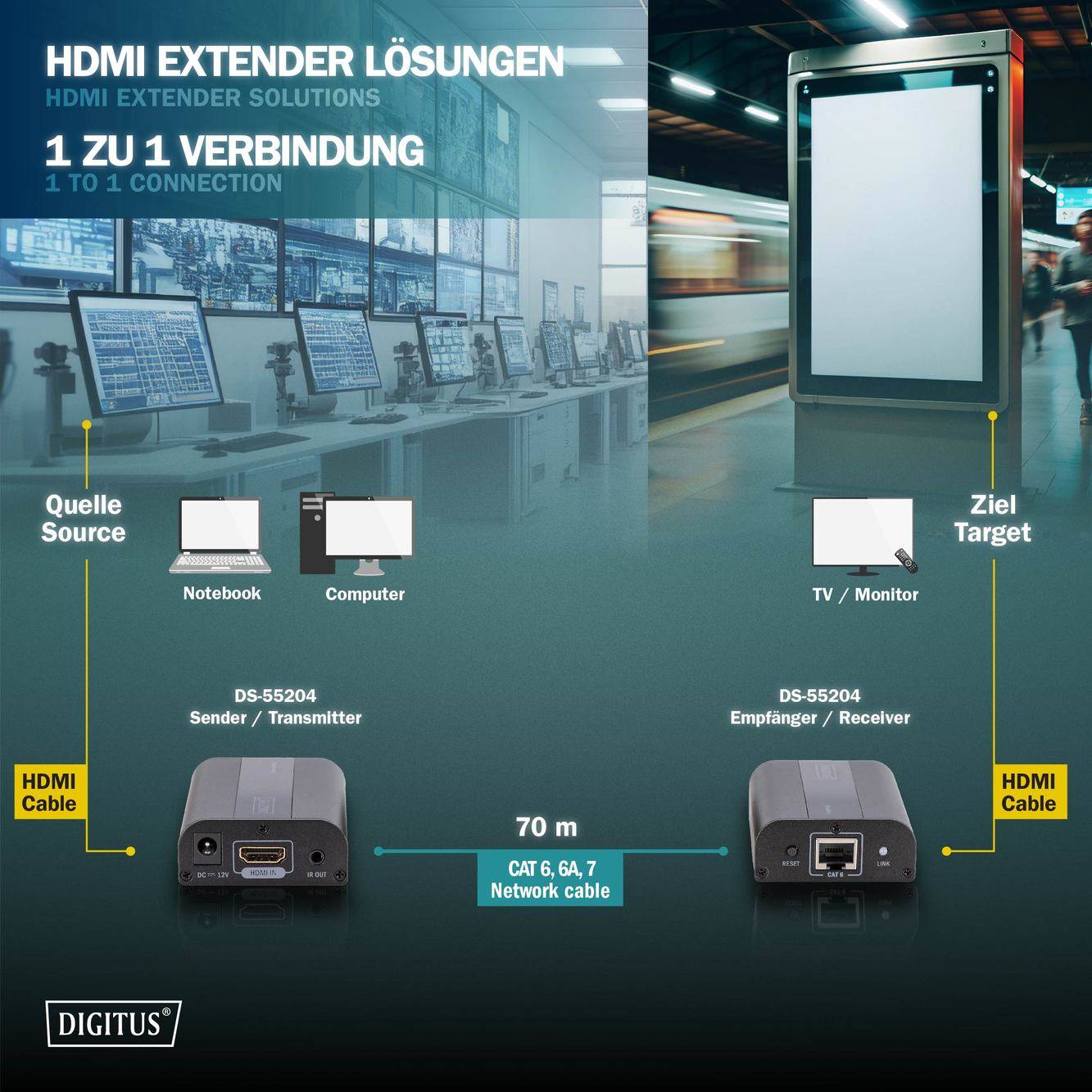

Notice for HDMI Extender Solution. Shows connection between laptop and target device over 70m CAT 6/6A/7 cable.

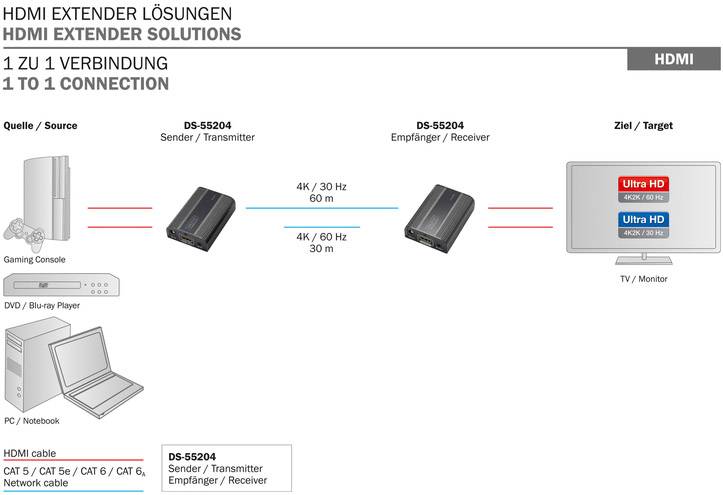

Presentation of the HDMI Extender Solution: Sender DS-55204 transmits 4K/30Hz signal from PC or Blu-ray player 60m to TV/monitor.

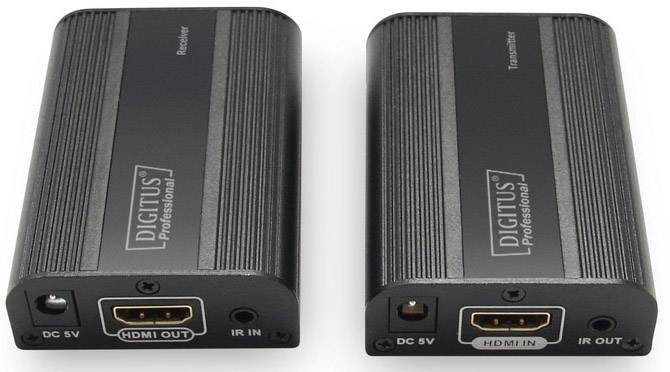

Two Digitus devices, labelled as 'Receiver' and 'Transmitter', with connections for DC 5V, HDMI and IR. They are designed for the transmission of HDMI signals.

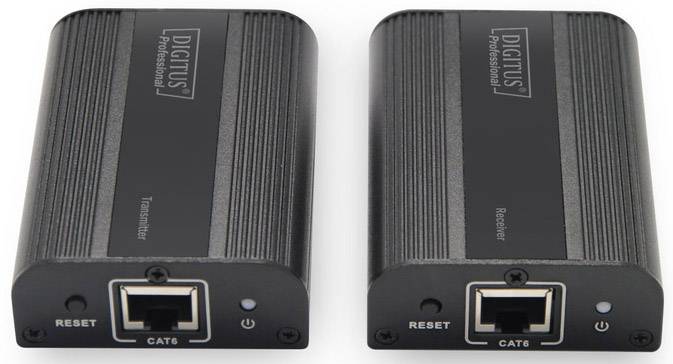

Two black network devices with CAT6 connections. The left one is labelled as 'Transmitter', the right one as 'Receiver'.

1/11

Datasheet (PDF)

Unavailable

22 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DS-55204 HDMI™, Infrared Extension via RJ45 network cable 60 m

Highlights & Details

Extends 4K2K/60Hz video content to up to 30m
Extends 4K2K/30Hz video content to up to 60m
Supports Ultra HD (60Hz), 4096 x 2160p resolution
Integrated IR-interface - simple control of the input source with a remote control
Supports CAT 6, CAT 6A network cable
Supports HDCP 2.2

Technical specifications

Product type: Extension

Transfer type: via RJ45 network cable

Interfaces (input): HDMI™
Infrared

Interfaces (output): HDMI™
Infrared

Features: HDMI output (loop-through)
built-in amplifier

Resolution (max.): 4096 x 2160 p

Range (max.): 60 m

Factory colour: Black

Weight: 160 g

Length: 77.5 mm

Width: 56 mm

Height: 27 mm

Dim: (L x W x H) 77.5 x 56 x 27 mm

Cable length: 60 m

Version: Cable

Type A: HDMI plug

Type B: HDMI plug

Cable use: Networks

Cable specs: HDMI 2.0

Connection type: HDMI

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1881756 Digitus DS-55204 HDMI™, Infrared Extension via RJ45 network cable 60 m

User & Safety Instructions

User & Safety Instructions 1881756 Digitus DS-55204 HDMI™, Infrared Extension via RJ45 network cable 60 m

Conformity certificate

Conformity certificate 1881756 Digitus DS-55204 HDMI™, Infrared Extension via RJ45 network cable 60 m

Description

The Digitus 4K Extender Set, 4K2K/60Hz offers an external solution up to 60 m for the highest demands - both for high-resolution graphic display as well as for absolutely smooth video playback. It transmits digital 4K2K/60Hz video and audio signals to a maximum length of up to 30 m. 4K2K/30Hz content can be transferred up to 60 m. Cat 6 and CAT 6A network cables are supported. It consists of a transmitter and receiver unit. Two infrared units (transmitter, receiver) are also supplied, which can be used to control the remote control of the connected input source.

This text is machine translated.

Features

Extends 4K2K/60Hz video content to up to 30m
Extends 4K2K/30Hz video content to up to 60m
Supports Ultra HD (60Hz), 4096 x 2160p resolution
Integrated IR-interface - simple control of the input source with a remote control
Supports CAT 6, CAT 6A network cable
Supports HDCP 2.2
Offers simple and fast distribution for HDMI video signals - Place your screens wherever you want
Resolutions: 4K (60Hz), 4K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
LED status display.
Max. Transmission rate 18 Gbps
Color depth: 12 bits
Supports compressed audio signals such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
Supports uncompressed audio signals such as LPCM.
High-quality aluminium enclosure
Compact size, easy handling and installation
POWER SUPPLY: DC 5V/1A
Dimensions (1x unit): L 7.7 x W 5.6 x H 2.7 cm
Colour: Black

Scope of delivery

1x 4K HDMI Extender transmitter unit
1x 4K HDMI Extender receiver unit
2x power supply: DC 5V/1A
1x IR transmitter unit
1x IR receiver unit
1x user manual
