Digitus DS-55318 Wireless HDMI (set) 50 m 5 GHz 1920 x 1080 Pixel
EAN:
Part number:
Item no:
Datasheet (PDF)

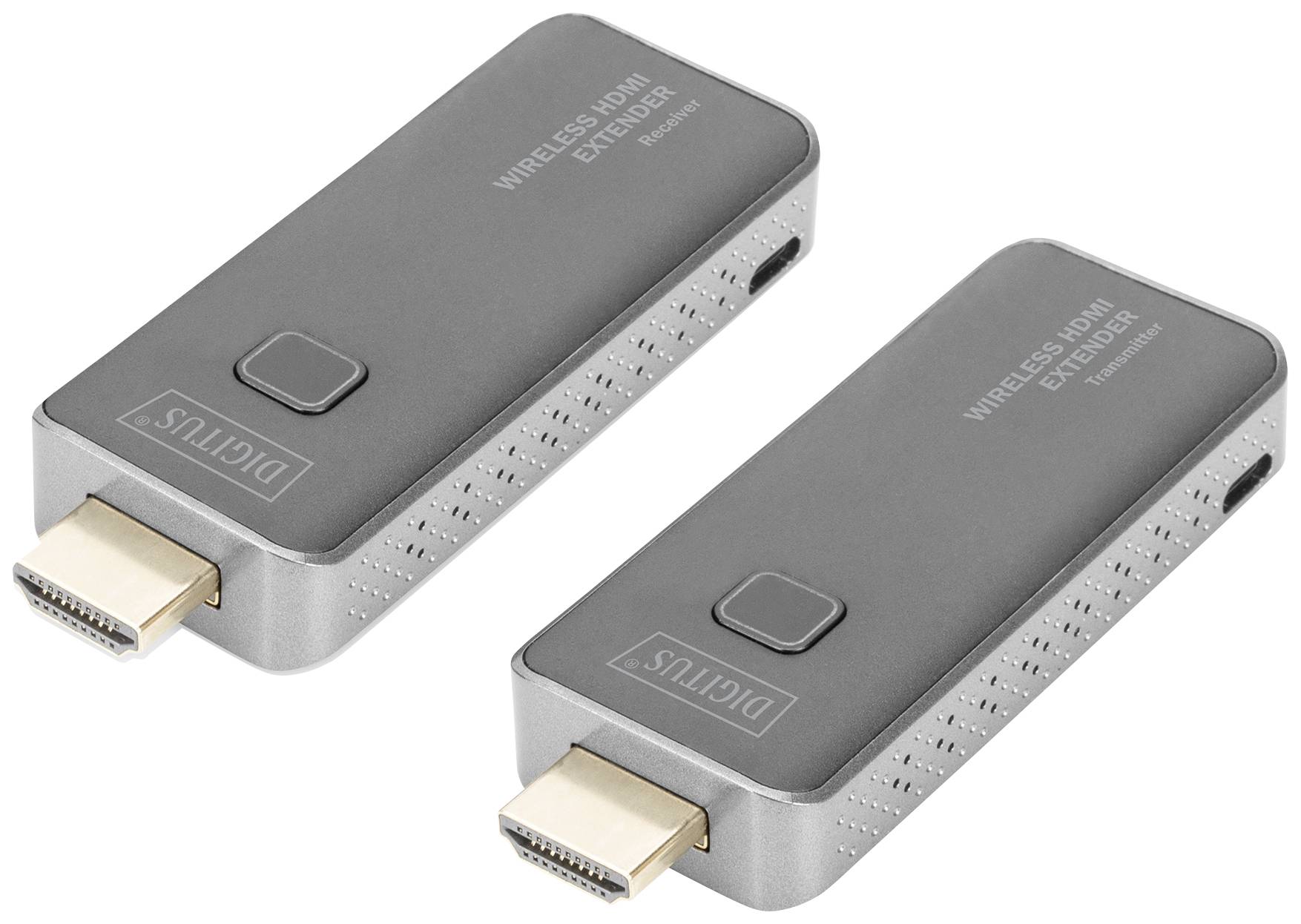

Digitus DS-55318 Wireless HDMI Extender Set, 50m Dongle, 1 to 1, Full HD
Highlights & Details
- Multimedia transmission: The Digitus HDMI extender set 1080pNo software installation required: To establish a connection, the factory-coupled transmitter and receiver unit is simply plugged into the source and receiver deviceRange: The transmission distance is up to 50 m with clear view - in case of restricted view the maximum range cannot be determined flat-rate and depends on the conditions on site
Technical specifications
- Radio channel: IEEE 802.11ac, 5 GHz, 2T2R
- HDMI version 1.4
- HDCP version: 1.3
- Authentication protocol: WPA2 (WPA2-PSK / WPA2-Enterprise)
- Ports per unit: 1x HDMI plug, 1x micro USB socket
- Power supply: HDMI socket (0.5A required) or via micro-USB (DC 5V/0.5A)
- Connection button with LED status indicator
- Audio: Stereo, 16 bits/48 KHz
- Latency: Approx. 5 120 ms
- ABS-housing
- Power consumption: 2.5W.
- Operating temperature 0 °C - 40 °C
- KVM: No.
- Power over Ethernet (PoE): No.
- Product type
Wireless HDMI (set)
- Frequency
5 GHz
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Video resolution
1920 x 1080 Pixel
- Range (max.)
50 m
- Factory colour
Black
Silver
- Weight
27 g
- Length
83 mm
- Width
32 mm
- Height
13 mm
- Dim
(L x W x H) 83 x 32 x 13 mm
- Power supply (LOV)
via USB
- Type A
HDMI plug
- Type B
HDMI plug
- Connection type
HDMI
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2617998 Digitus DS-55318 Wireless HDMI (set) 50 m 5 GHz 1920 x 1080 Pixel
User & Safety Instructions
User & Safety Instructions 2617998 Digitus DS-55318 Wireless HDMI (set) 50 m 5 GHz 1920 x 1080 Pixel
Description

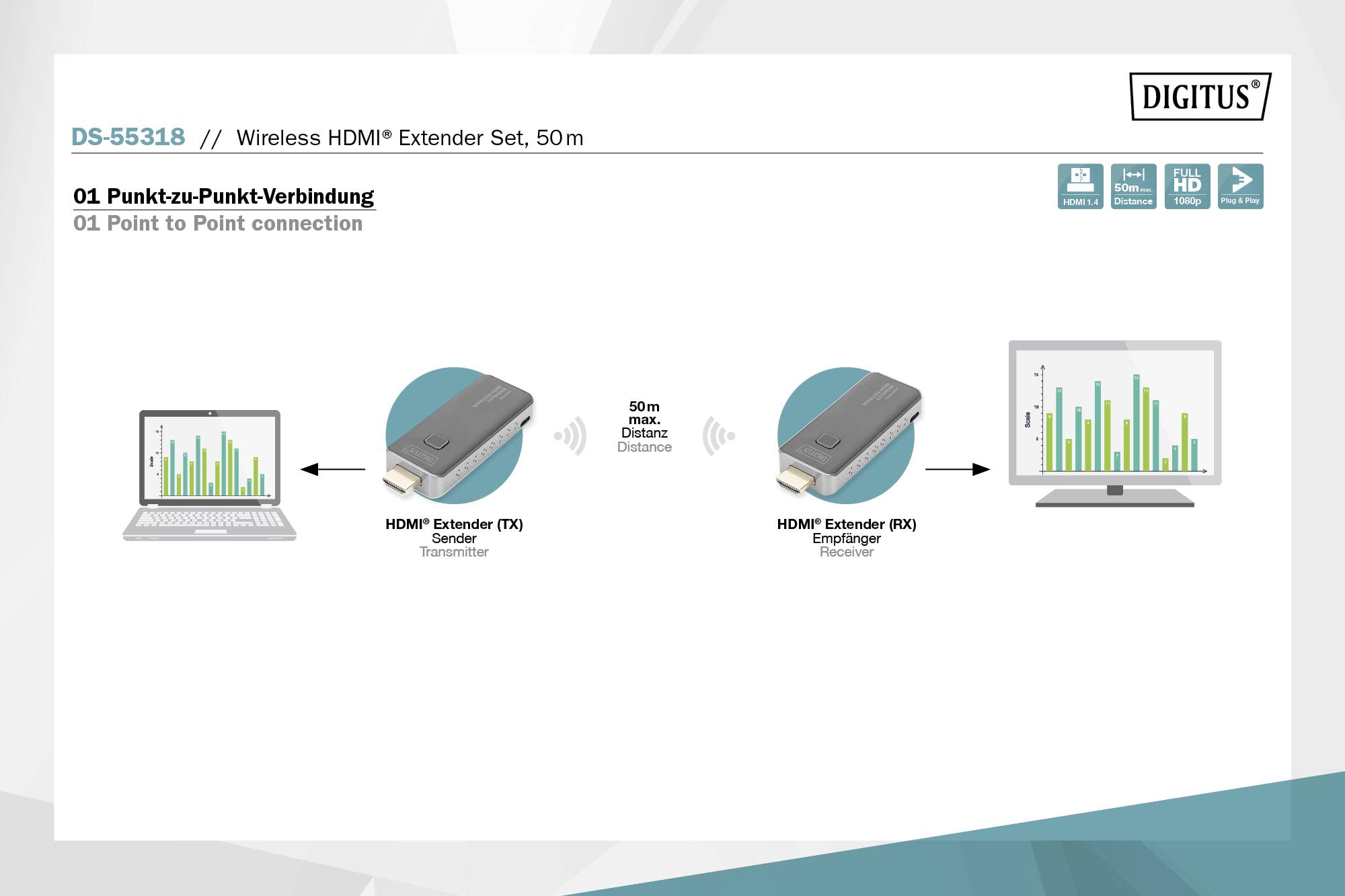

With the Wireless HDMI Extender Set, you can wirelessly transfer HDMI video and audio signals over a distance of up to 50 m in free view. Operation and installation is child's play. Real Plug & Play - Plug in and start´s. Transmitter & receiver can be supplied with power via the HDMI connection of your device (0.5A required), alternatively (in addition) with the accompanying micro USB cable via the USB connection of your notebook, PC, etc. Thanks to the compact design of transmitter and receiver, it is easy to Quickly and individually installed - the perfect solution for meeting, conference or congress rooms. It can also be used for spontaneous or short-term installations in the private sector.
This text is machine translated.
This text is machine translated.
Features
- Private and professional applications: The streaming solution is suitable for subsequent or short-term video transmissions (film evening, home theater, public viewing, meeting, conference, & Meeting room, presentation)Device requirements: All devices with HDMI interface / Receiver: TV, Monitor, Beamer, ... / Transmitter: Notebook, computer, Blu-ray & DVD player, set-top box, game consoles, …
Scope of delivery
- 1x transmitter unit1x receiver unit2x Micro-USB cable (0.5 m)1x QIG
Hints
Notes: The transmission distance in case of reduced visibility cannot be determined on a flat-rate basis and depends on the conditions on site. Walls, glass, etc. shorten the signal coverage or cause signal loss
