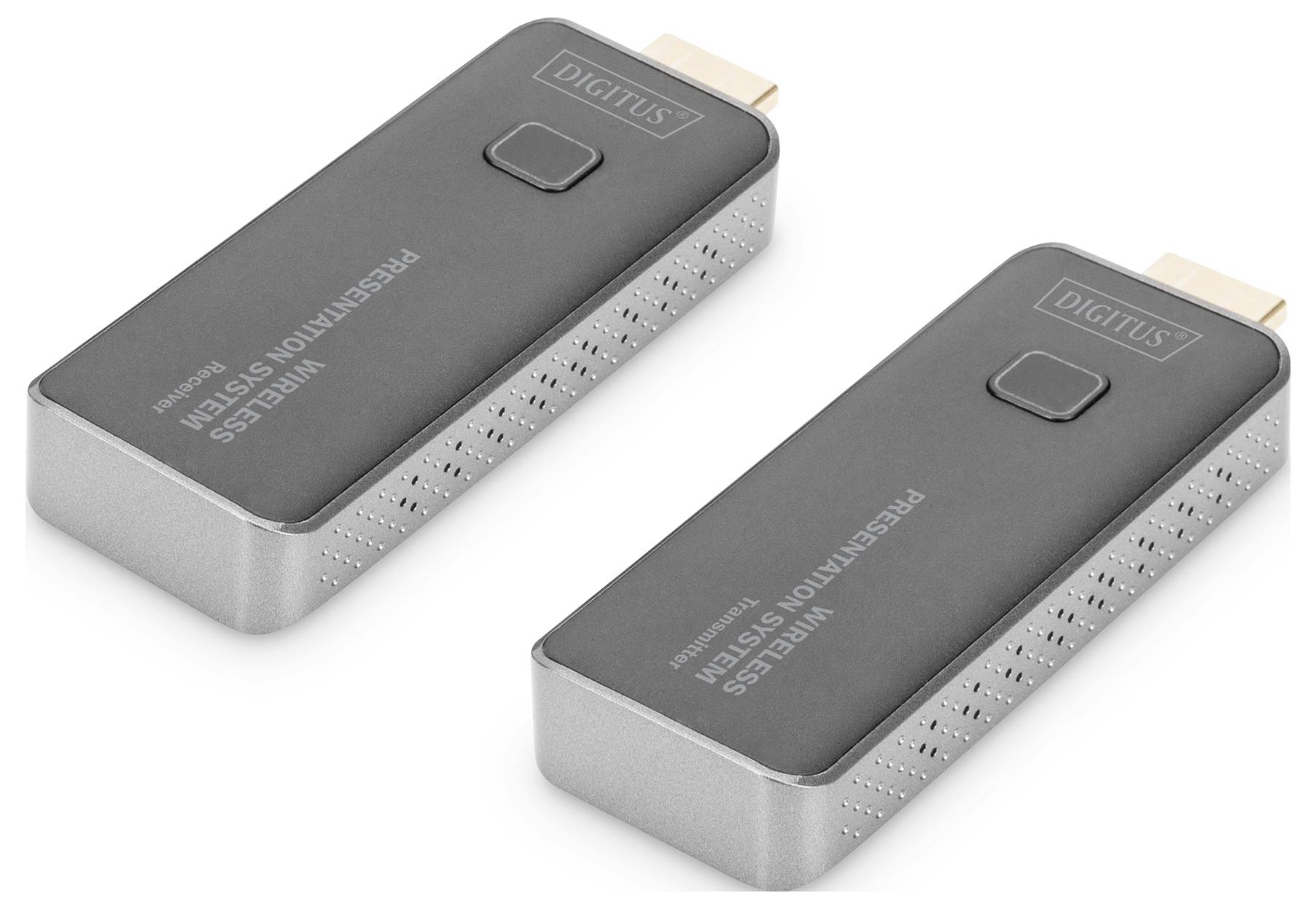

Two wireless presentation devices, grey and rectangular, with HDMI ports, positioned on a white background.

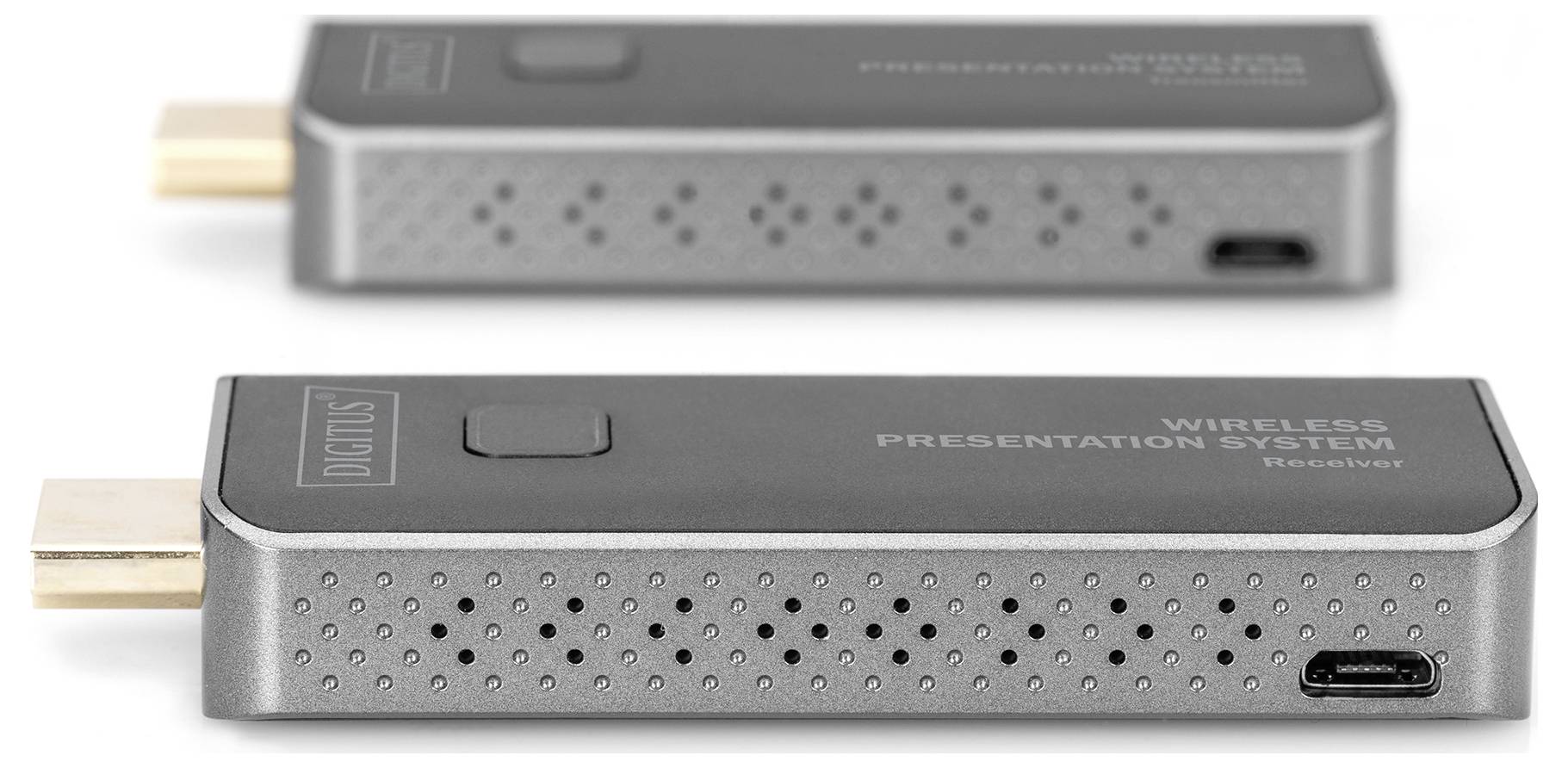

Two black wireless presentation system receivers with HDMI ports, suitable for presentations or media transmissions.

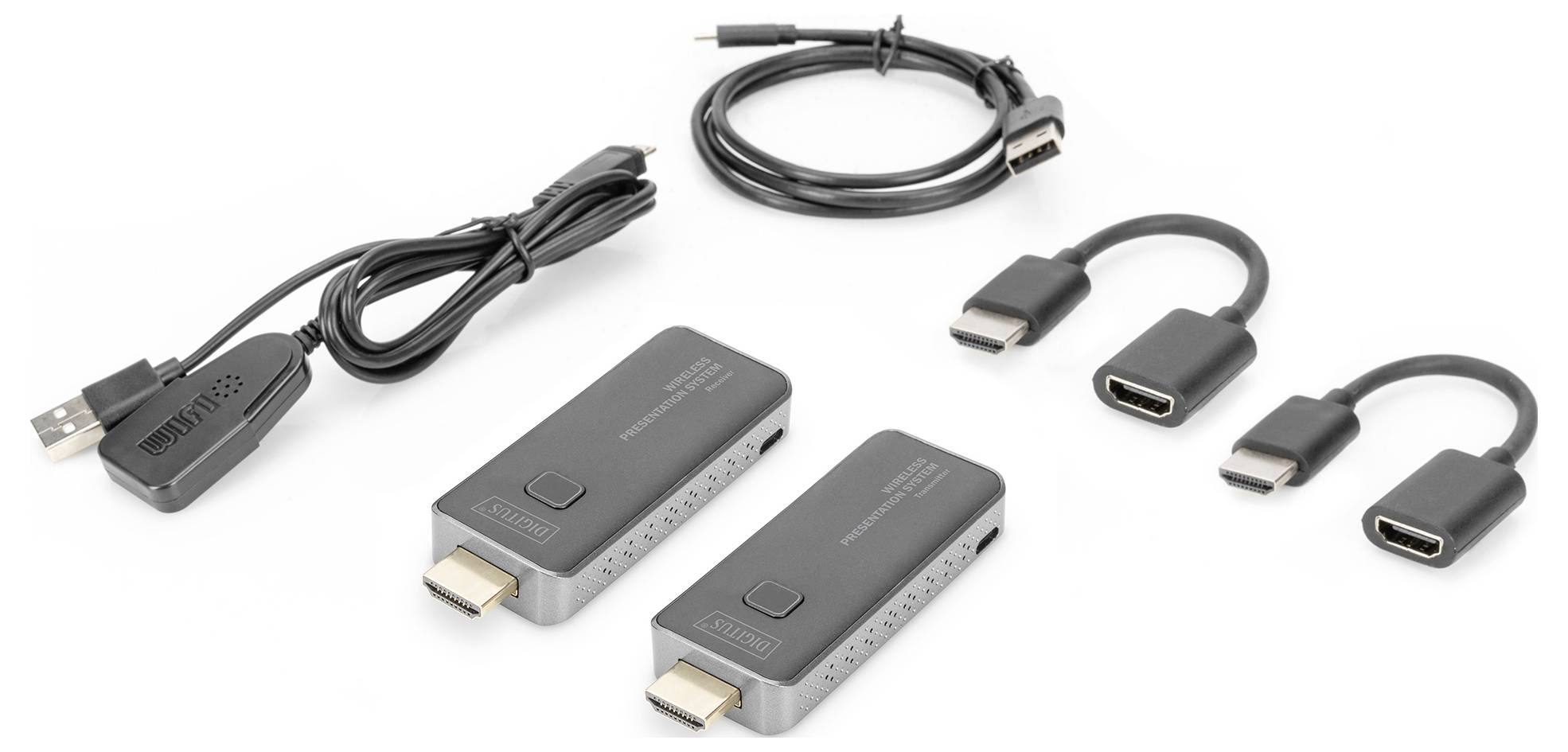

A wireless HDMI transmission set with two HDMI transmitters, a USB cable, three short HDMI adapters and an audio cable.

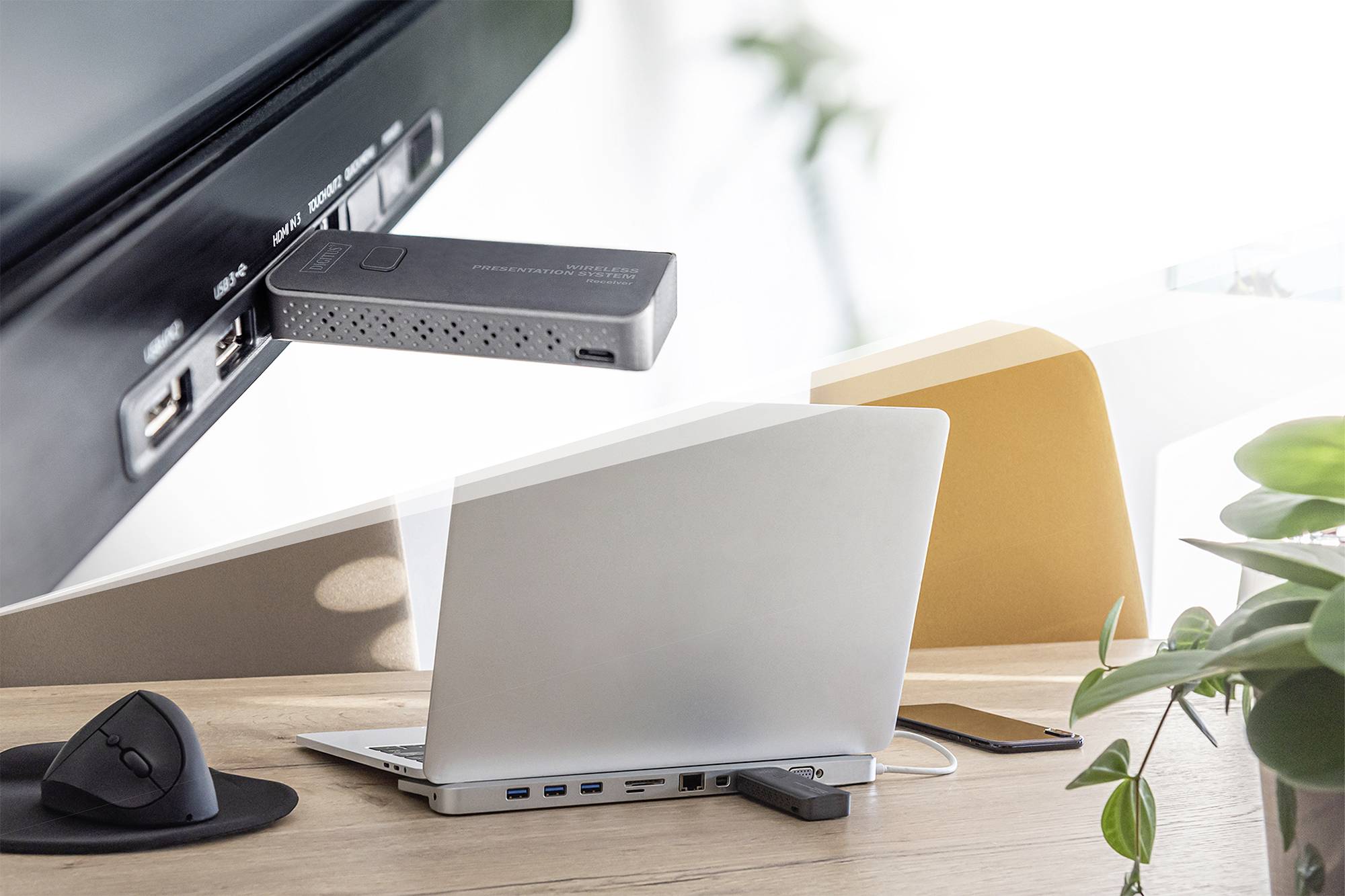

A person is streaming content from a smartphone to a television. An HDMI dongle is shown alongside, which enables wireless connection.

A person with a smartphone wirelessly mirrors content onto a television. An HDMI dongle appears as the connection medium.

A person is using a tablet to cast content onto a larger screen. The focus is on the wireless streaming functionality.

Two people are sitting in a conference room, looking at a presentation with diagrams and a world map on a screen.

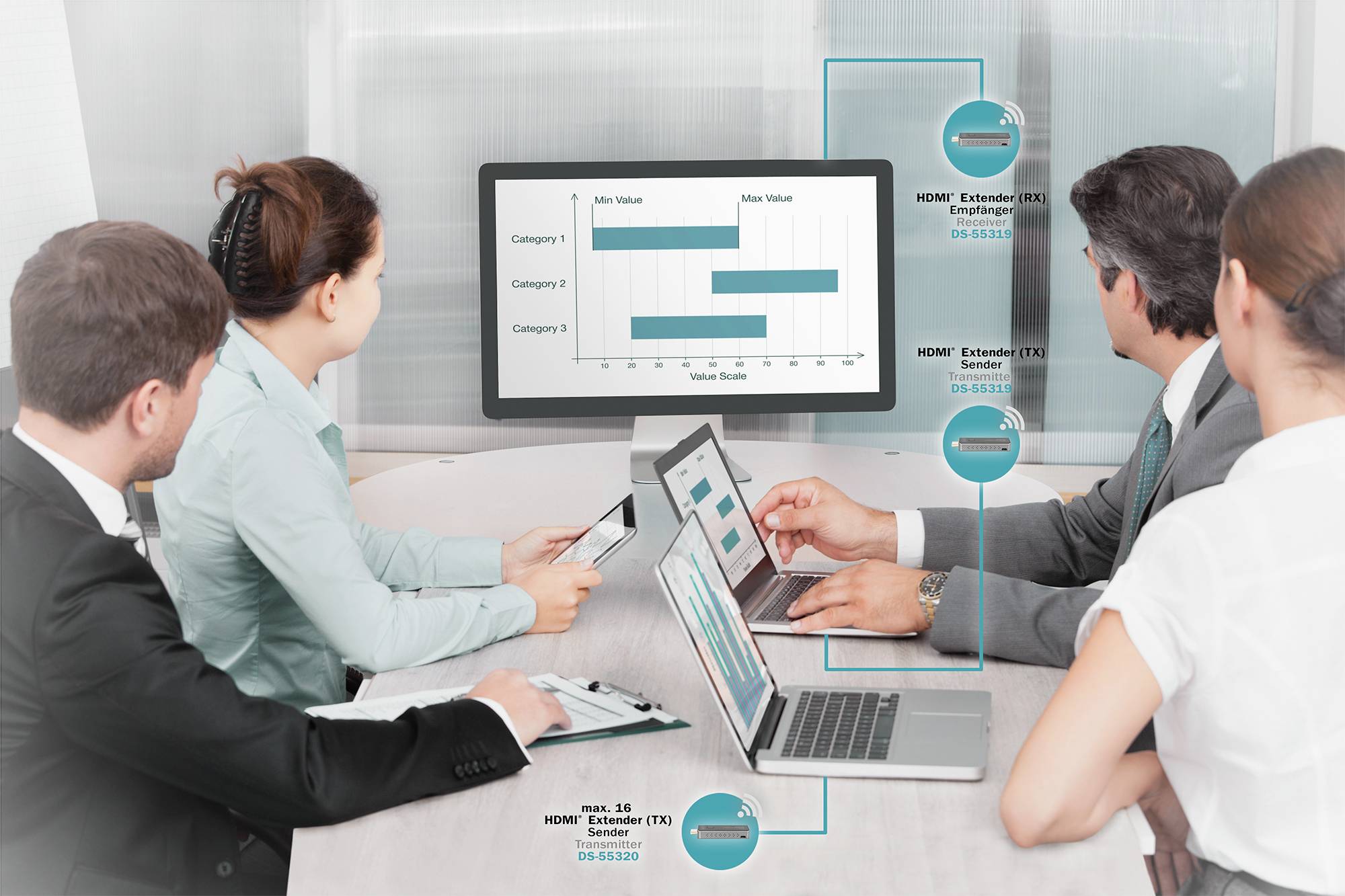

Four people are sitting at a table, looking at a monitor displaying a bar graph. Laptops and notes are spread out on the table.

Two wireless presentation systems with HDMI port and connection button. Devices are placed side by side, with label 'Connections'.

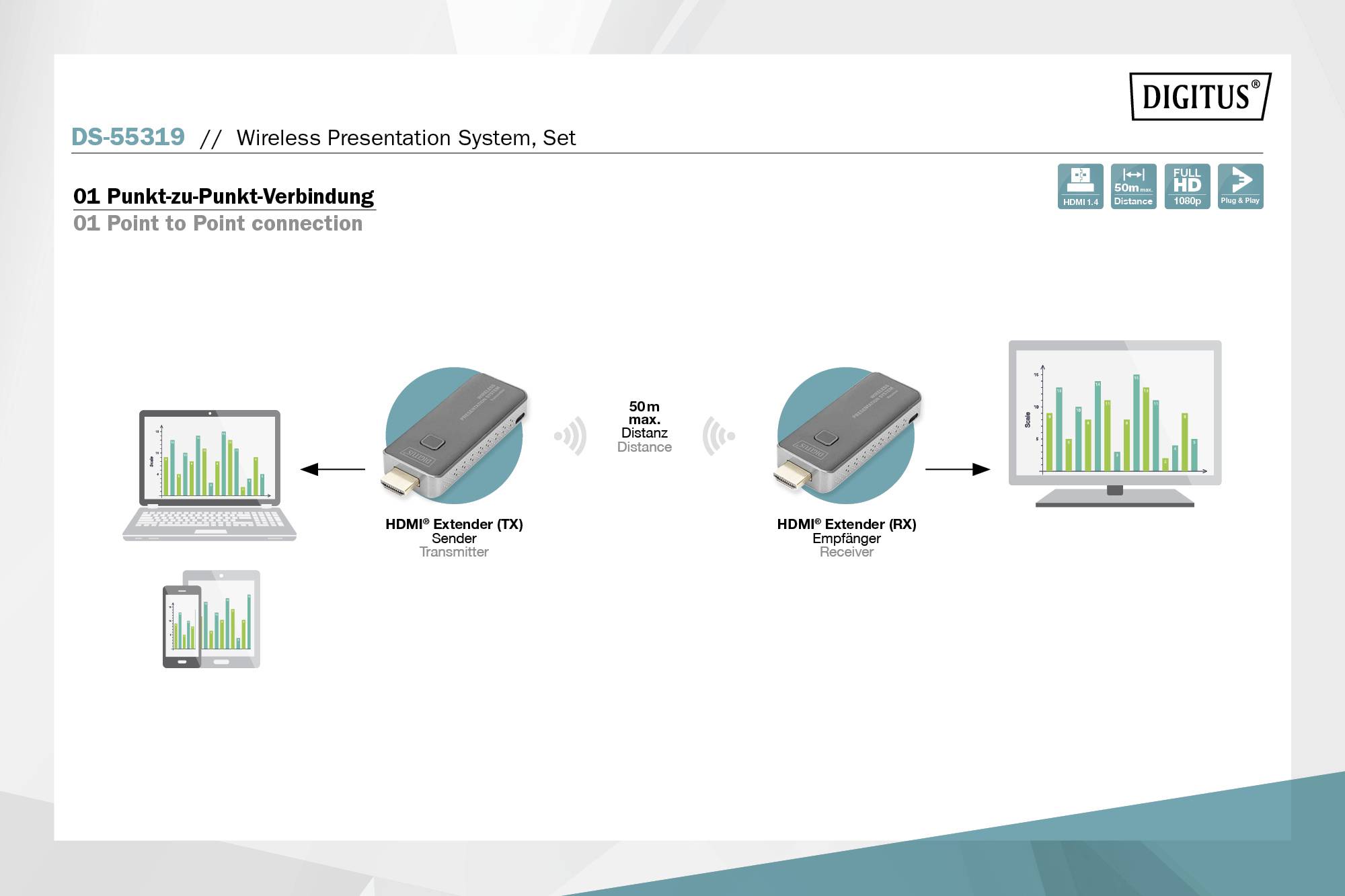

'Digitus' wireless presentation system. HDMI extender connects laptop and monitor via transmitter and receiver up to 50 m distance.

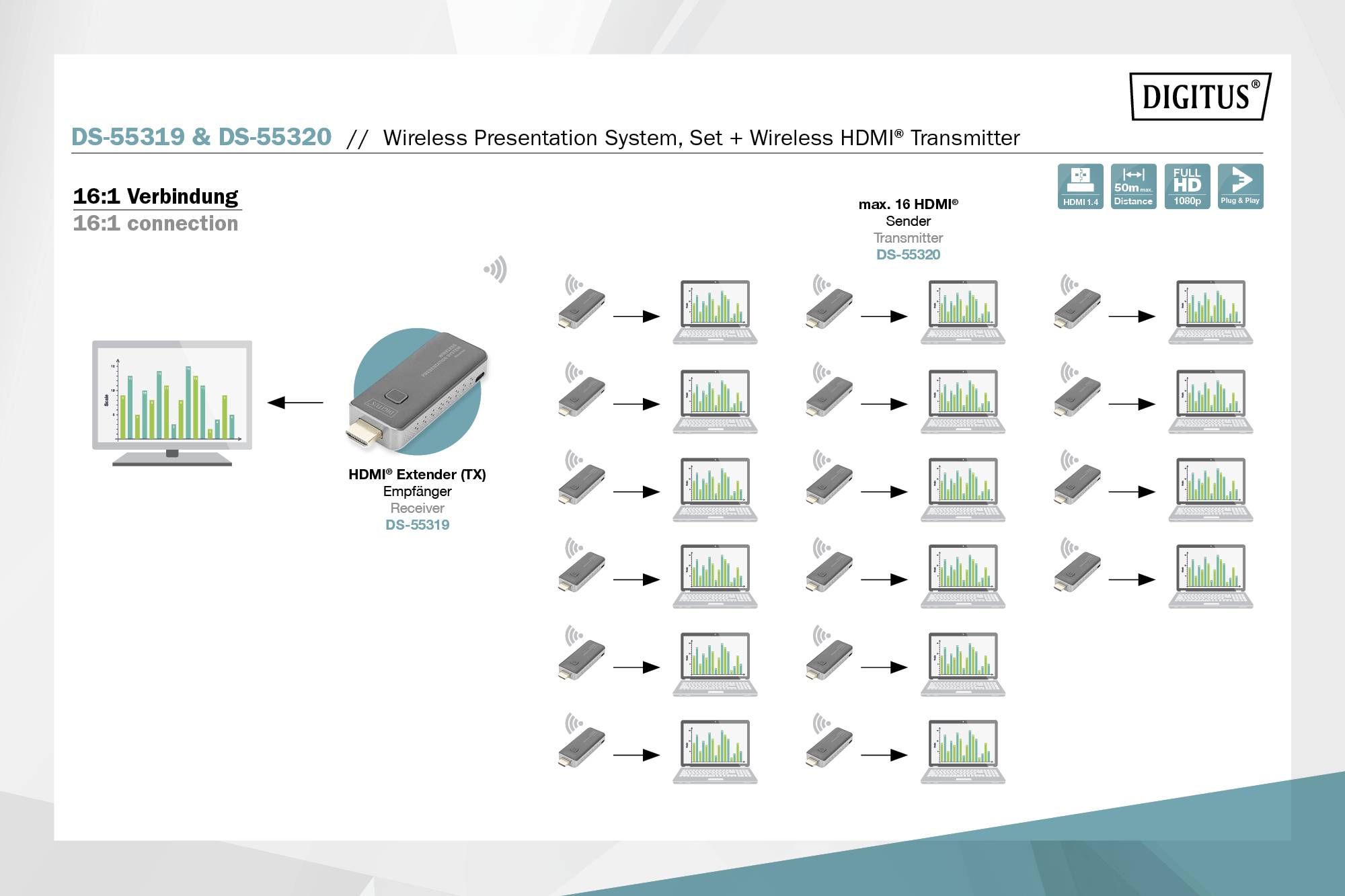

'Wireless Presentation System: HDMI Extender connected to up to 16 receivers. Main device transmits to multiple laptops.'

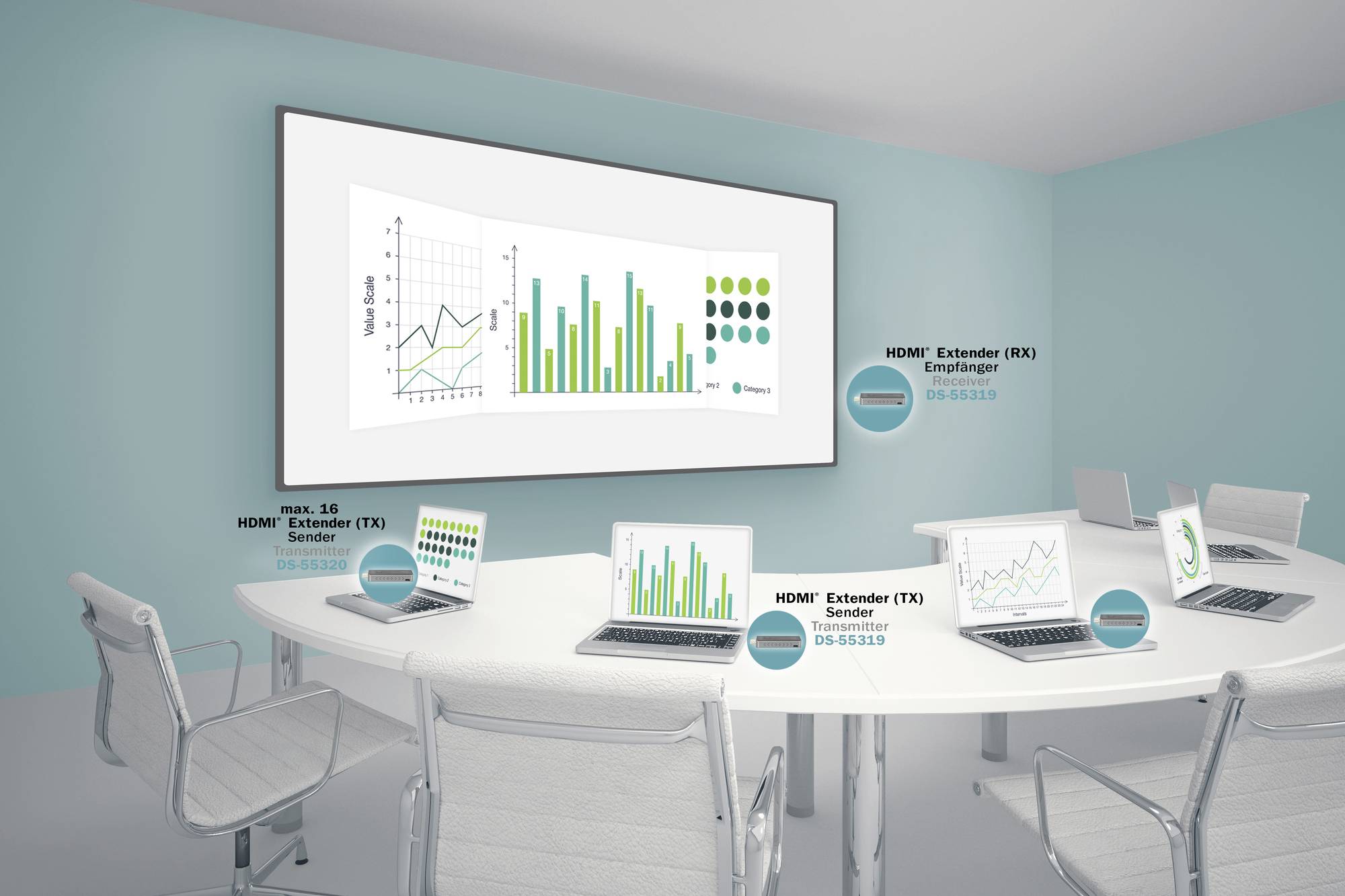

A conference room with an oval table, laptops with graphics placed on it. A large screen displays a diagram with bars and lines.

1/13

Datasheet (PDF)

Unavailable

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DS-55319 Wireless Presentation System, 50 m dongle, up to 16 to 1, Full HD, Mobile Screen Sharing

Highlights & Details

Share & present: The wireless presentation system connects notebooks and mobile devices wirelessly with a screen or beamer (compatible with Windows, MacOS, iOS, Android)No app or software installation required: Share from computer via HDMI transmitter / tablet & smartphone via WLAN and share via screen synchronization of the mobile devicePlug, Press & Play: After connecting the HDMI dongle to an HDMI port, just press a button on the transmitter to start the signal transmission (active transmissions are interrupted)

Technical specifications

Radio channel : IEEE 802.11ac, 5 GHz, 2T2RHDMI version : 1.4HDCP version : 1.3AES 128-bit encryptionWPA2 protocolAuthentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)Supports Windows, MacOS, iOS, iPadOS, AndroidConnections per unit: 1x HDMI plug, 1x Micro-USB socketPower supply: HDMI socket (0.5A required) or via micro USB (DC 5V/0.5A)Connection button with LED status indicatorAudio : Stereo, 16 bits / 48 kHzABS-housingPower consumption : Approx. 2.5WOperating temperature 0-40°C.KVM : no.power over Ethernet (PoE) : no.

Product type: Wireless HDMI (set)

Frequency: 5 GHz

Interfaces (input): HDMI™

Interfaces (output): HDMI™

Video resolution: 1920 x 1080 Pixel

Range (max.): 50 m

Factory colour: Black
Silver

Weight: 27 g

Length: 83 mm

Width: 32 mm

Height: 13 mm

Dim: (L x W x H) 83 x 32 x 13 mm

Power supply (LOV): via USB

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2618000 Digitus DS-55319 Wireless HDMI (set) 50 m 5 GHz 1920 x 1080 Pixel

User & Safety Instructions

User & Safety Instructions 2618000 Digitus DS-55319 Wireless HDMI (set) 50 m 5 GHz 1920 x 1080 Pixel

Description

With the wireless presentation system you can transfer HDMI video and audio signals wirelessly over a distance of up to 50 m in free view. Operation and installation is child's play. Real Plug & Play - Plug in and start´s. With additional transmitters (DS-55320) the set can be extended to up to 16 transmission units (total). Switch quickly and easily to the desired station by pressing a button to play your content. You can also share content directly from your mobile device (smartphone/tablet) directly via the respective OS of your device, no additional app required. Transmitter & receiver can be supplied with power via the HDMI connection of your device (0.5A required), alternatively (in addition) with the accompanying micro USB cable via the USB connection of your notebook, PC, etc. Thanks to the compact design of transmitter and receiver, it is easy to Quickly and individually installed - the perfect solution for meeting, conference or congress rooms.

This text is machine translated.

Features

Multi-user support: Up to 16 subscribers/sources can be connected at the same time to the receiver unit and start the screen transmission alternately (additional HDMI transmitters are available separately)User interface: As long as no video signal is transmitted, the info page shows tips for successful connection establishment (please refer to the user manual for setting up mobile devices)Video resolution: The presentation solution works with HDMI 1.4 / HDCP 1.3 and supports resolutions up to full HD 1920x1080p at 60 Hz (stereo audio: 16 bit / 48 kHz)Power supply: Transmitter & receiver can be supplied with power via the HDMI connection of your device (greater than 500 mA required) / alternatively a micro USB cable is included in the deliveryRange: The transmission distance is up to 50 m with free signal propagation - in case of limited visibility the range cannot be determined flat-rate and depends on the conditions on siteApplication examples: Business applications (meeting, conference, & meeting room, office, trade fair stand, Meeting room) / Education (schools, colleges, universities, class rooms, seminar room, Auditorium)Device requirements: All devices with HDMI interface / PC operating systems (compatible with: Windows, MacOS) / Smartphone & Tablet (compatible with: Android, iPhone & iPad with iOS)

Scope of delivery

1x transmitter unit1x receiver unit1x WiFi / power cable (0.75 m) for RX1x Micro-USB cable (0.8 m) for TX2x HDMI extension cable (0.15 m)1x QIG

Hints

Notes: The transmission distance in case of reduced visibility cannot be determined on a flat-rate basis and depends on the conditions on siteWalls, glass, etc. shorten the signal coverage or cause signal loss

Description

Features

Multi-user support: Up to 16 subscribers/sources can be connected at the same time to the receiver unit and start the screen transmission alternately (additional HDMI transmitters are available separately)User interface: As long as no video signal is transmitted, the info page shows tips for successful connection establishment (please refer to the user manual for setting up mobile devices)Video resolution: The presentation solution works with HDMI 1.4 / HDCP 1.3 and supports resolutions up to full HD 1920x1080p at 60 Hz (stereo audio: 16 bit / 48 kHz)Power supply: Transmitter & receiver can be supplied with power via the HDMI connection of your device (greater than 500 mA required) / alternatively a micro USB cable is included in the deliveryRange: The transmission distance is up to 50 m with free signal propagation - in case of limited visibility the range cannot be determined flat-rate and depends on the conditions on siteApplication examples: Business applications (meeting, conference, & meeting room, office, trade fair stand, Meeting room) / Education (schools, colleges, universities, class rooms, seminar room, Auditorium)Device requirements: All devices with HDMI interface / PC operating systems (compatible with: Windows, MacOS) / Smartphone & Tablet (compatible with: Android, iPhone & iPad with iOS)

Scope of delivery

1x transmitter unit1x receiver unit1x WiFi / power cable (0.75 m) for RX1x Micro-USB cable (0.8 m) for TX2x HDMI extension cable (0.15 m)1x QIG
