Digitus DS-55320 Wireless HDMI (transmitter) 50 m 5 GHz 1920 x 1080 Pixel
EAN:
Part number:
Item no:

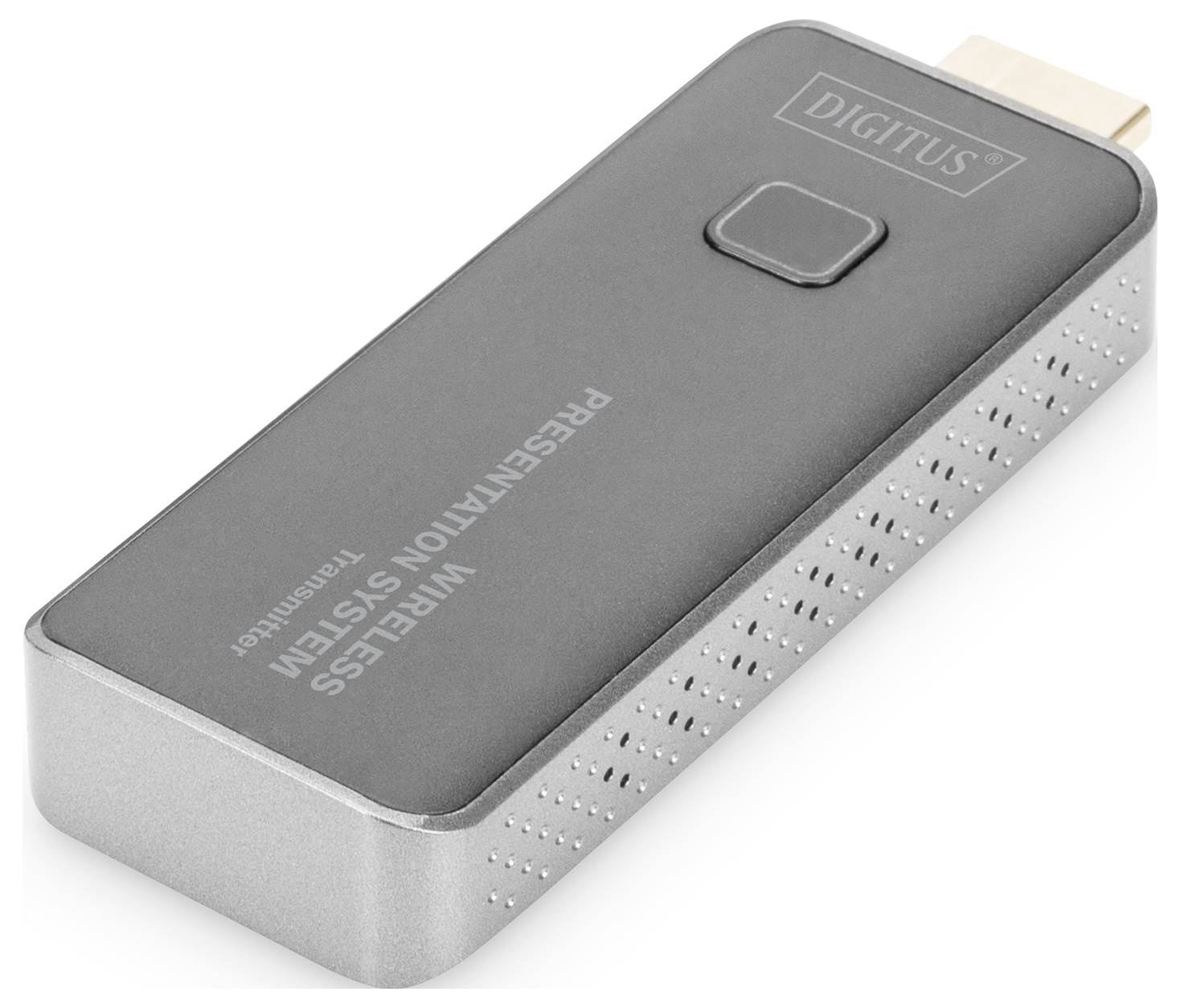

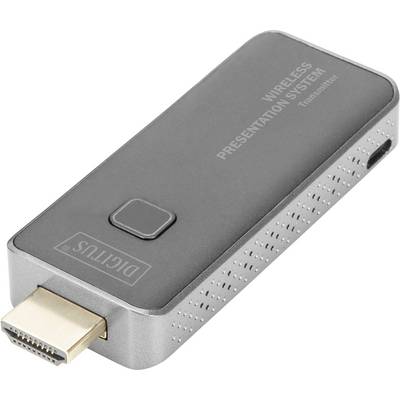

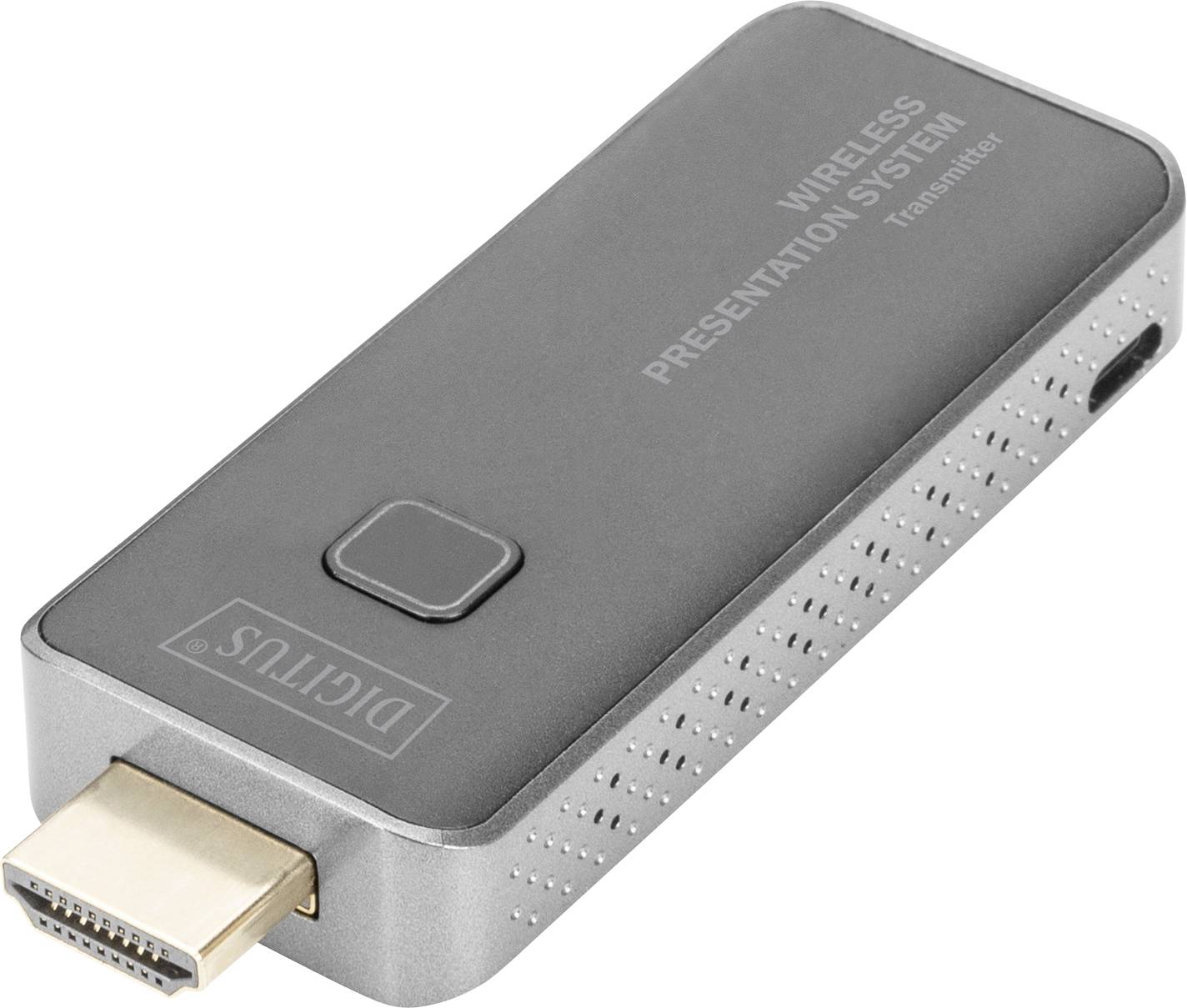

Digitus DS-55320 Wireless HDMI transmitter unit for DS-55319 (additional unit)
Highlights & Details
- Share & present: The HDMI transmitter extends the wireless presentation system Click & Present Mini and is suitable for all devices with HDMI output (compatible with Windows, MacOS)No software installation required: To share the computer via HDMI transmitter, the transmitter only needs to be coupled with the receiver unit oncePlug, Press & Play: After connecting the HDMI dongle to an HDMI port, just press a button on the transmitter to start the signal transmission (active transmissions are interrupted)
Technical specifications

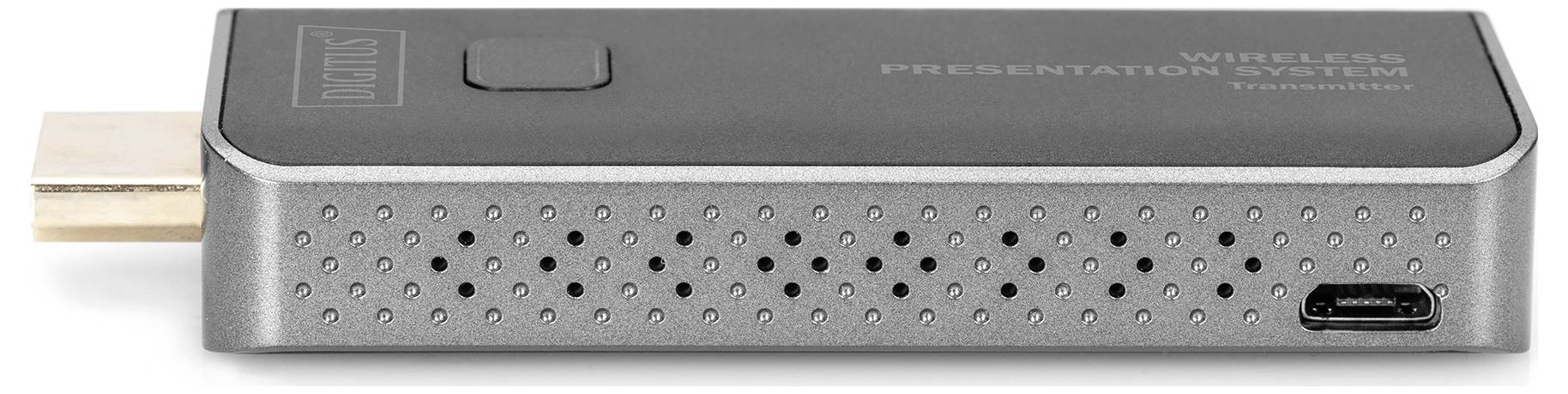

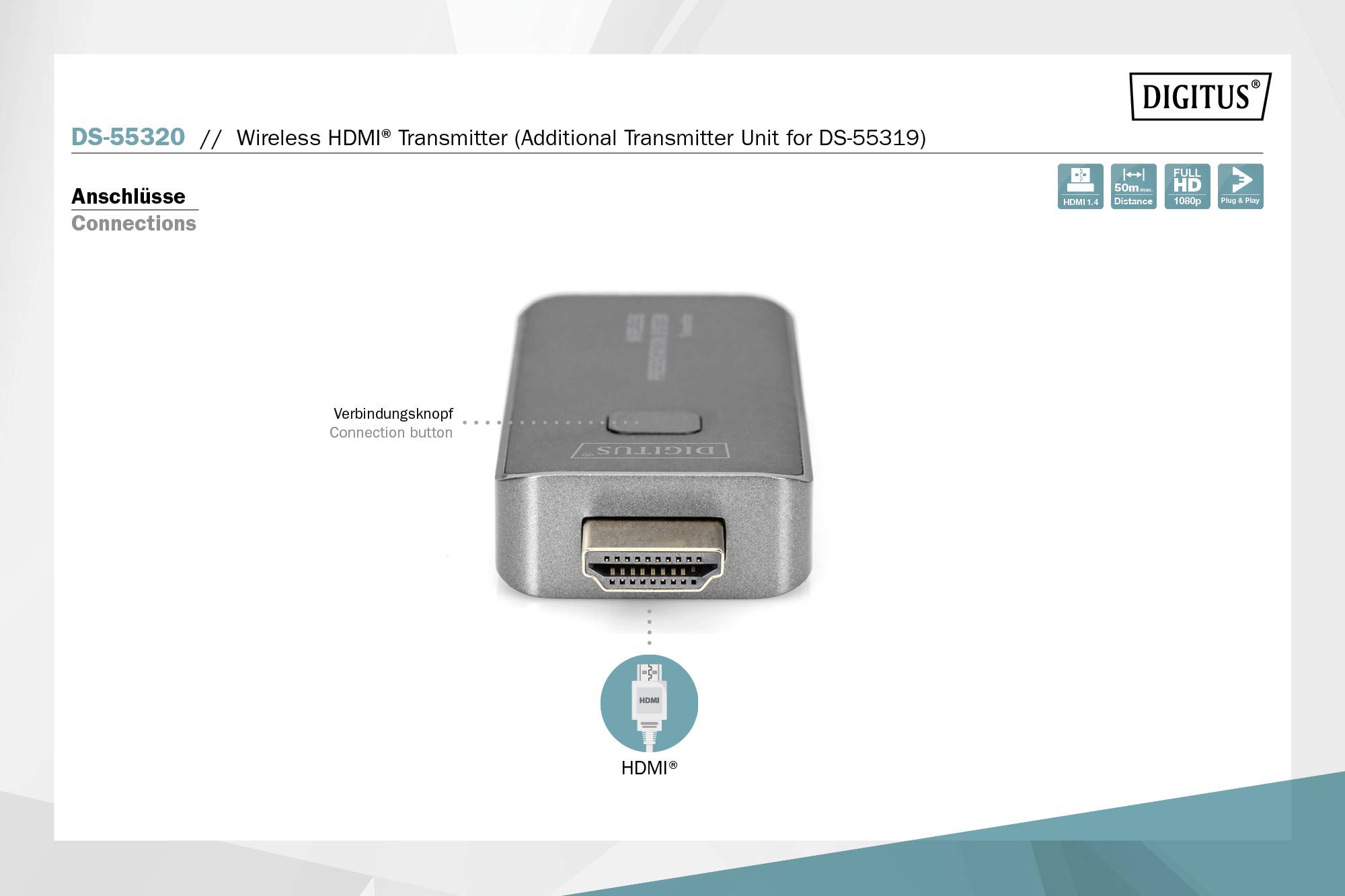

- Radio channel : IEEE 802.11ac, 5 GHz, 2T2RHDMI version : 1.4HDCP version : 1.3AES 128-bit encryptionWPA2 protocolAuthentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)Supports Windows, MacOSConnections per unit: 1x HDMI plug, 1x Micro-USB socketPower supply: HDMI socket (0.5A required) or via micro USB (DC 5V/0.5A)Connection button with LED status indicatorAudio : Stereo, 16 bit / 48 kHzABS-housingPower consumption : Approx. 2.5WOperating temperature 0-40°C.KVM : no.power over Ethernet (PoE) : no.
- Product type
Wireless HDMI (transmitter)
- Frequency
5 GHz
- Interfaces (input)
HDMI™
- Video resolution
1920 x 1080 Pixel
- Range (max.)
50 m
- Factory colour
Black
Silver
- Weight
27 g
- Length
83 mm
- Width
32 mm
- Height
13 mm
- Dim
(L x W x H) 83 x 32 x 13 mm
- Power supply (LOV)
via USB
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2618001 Digitus DS-55320 Wireless HDMI (transmitter) 50 m 5 GHz 1920 x 1080 Pixel
Description

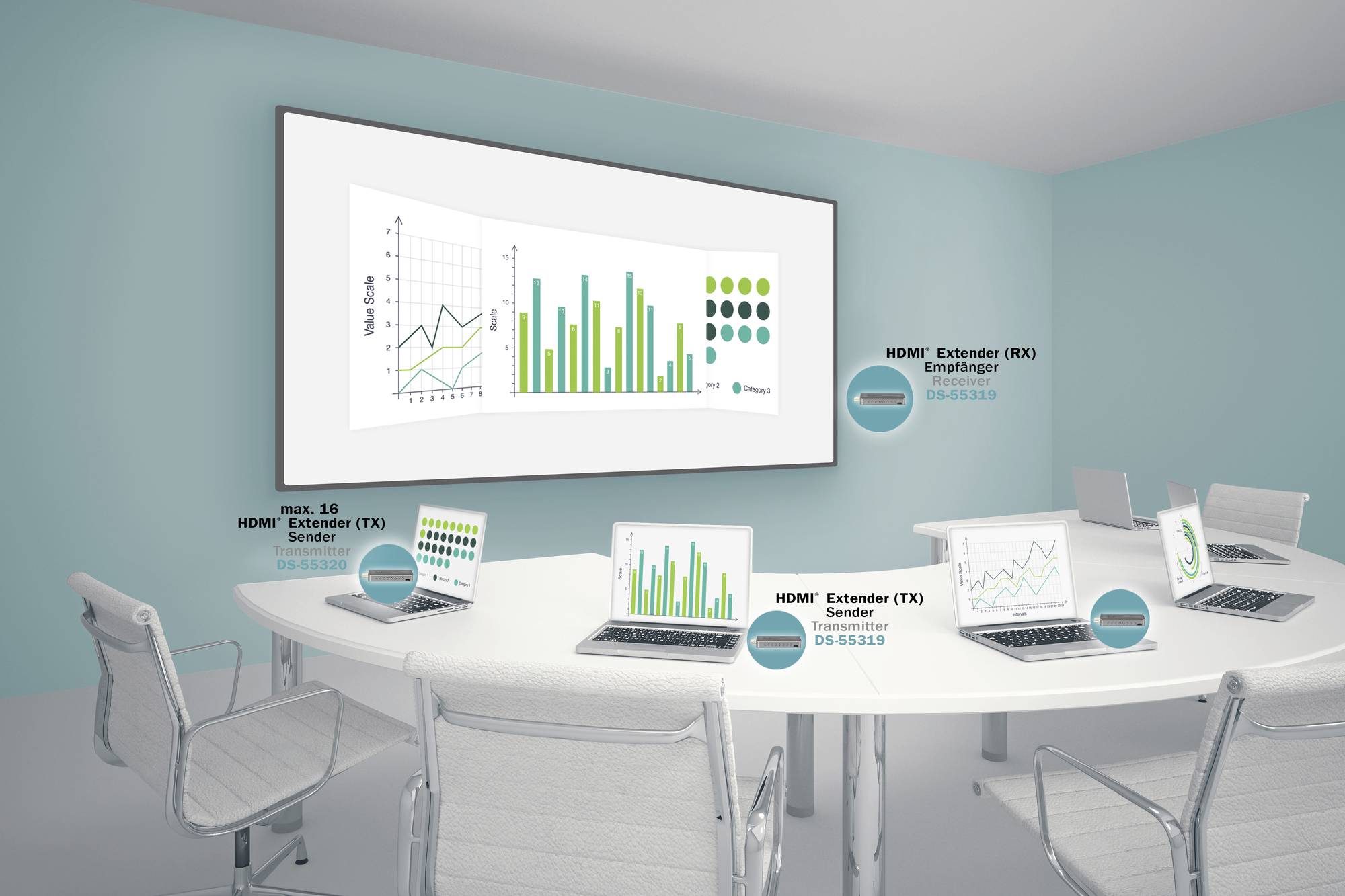

With the wireless presentation system you can transfer HDMI video and audio signals wirelessly over a distance of up to 50 m in free view. Operation and installation is child's play. Real Plug & Play - Plug in and start´s. With additional transmitters (DS-55320) the set can be extended to up to 16 transmission units (total). Switch quickly and easily to the desired station by pressing a button to play your content. You can also share content directly from your mobile device (smartphone/tablet) directly via the respective OS of your device, no additional app required. Transmitter & receiver can be supplied with power via the HDMI connection of your device (0.5A required), alternatively (in addition) with the accompanying micro USB cable via the USB connection of your notebook, PC, etc. Thanks to the compact design of transmitter and receiver, it is easy to Quickly and individually installed - the perfect solution for meeting, conference or congress rooms.
This text is machine translated.
This text is machine translated.
Features

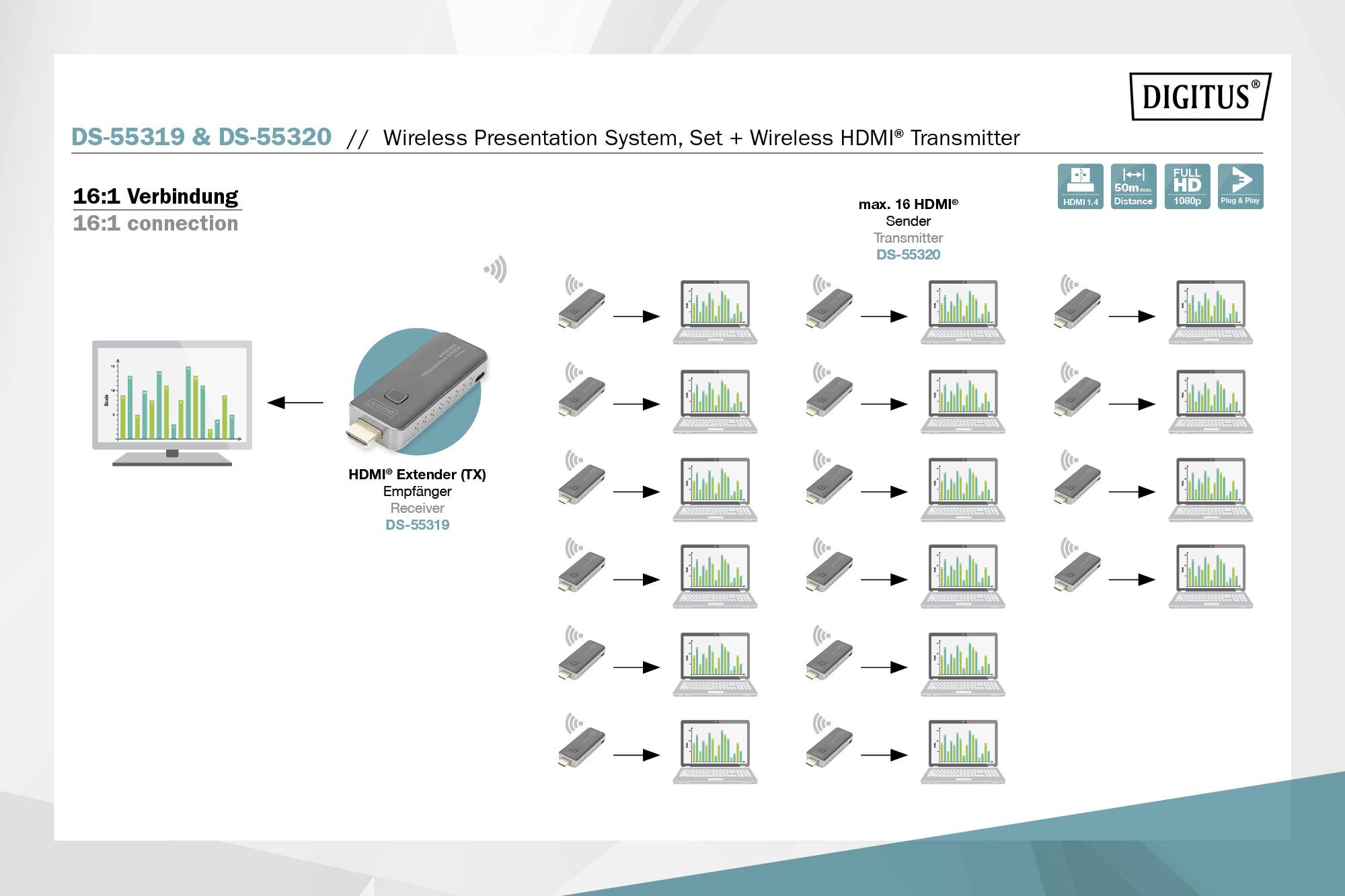

- Multi-user support: Up to 16 subscribers/sources can be connected to the receiver unit at the same time and start screen transmission alternatelyUser interface: As long as no video signal is transmitted, the info page shows tips for successful connection establishment (please refer to the user manual for setting up mobile devices)Video resolution: The transmitter works with HDMI 1.4 / HDCP 1.3 and supports resolutions up to full HD 1920x1080p at 60 Hz (stereo audio: 16 bit / 48 kHz)Power supply: The receiver can be supplied with power via the HDMI connection of your device (greater than 500 mA required) / alternatively a micro USB cable is included in the deliveryRange: The transmission distance is up to 50 m with free signal propagation - in case of limited visibility the range cannot be determined flat-rate and depends on the conditions on siteApplication examples: Business applications (meeting, conference, & meeting room, office, trade fair stand, Meeting room) / Education (schools, colleges, universities, class rooms, seminar room, Auditorium)
Scope of delivery

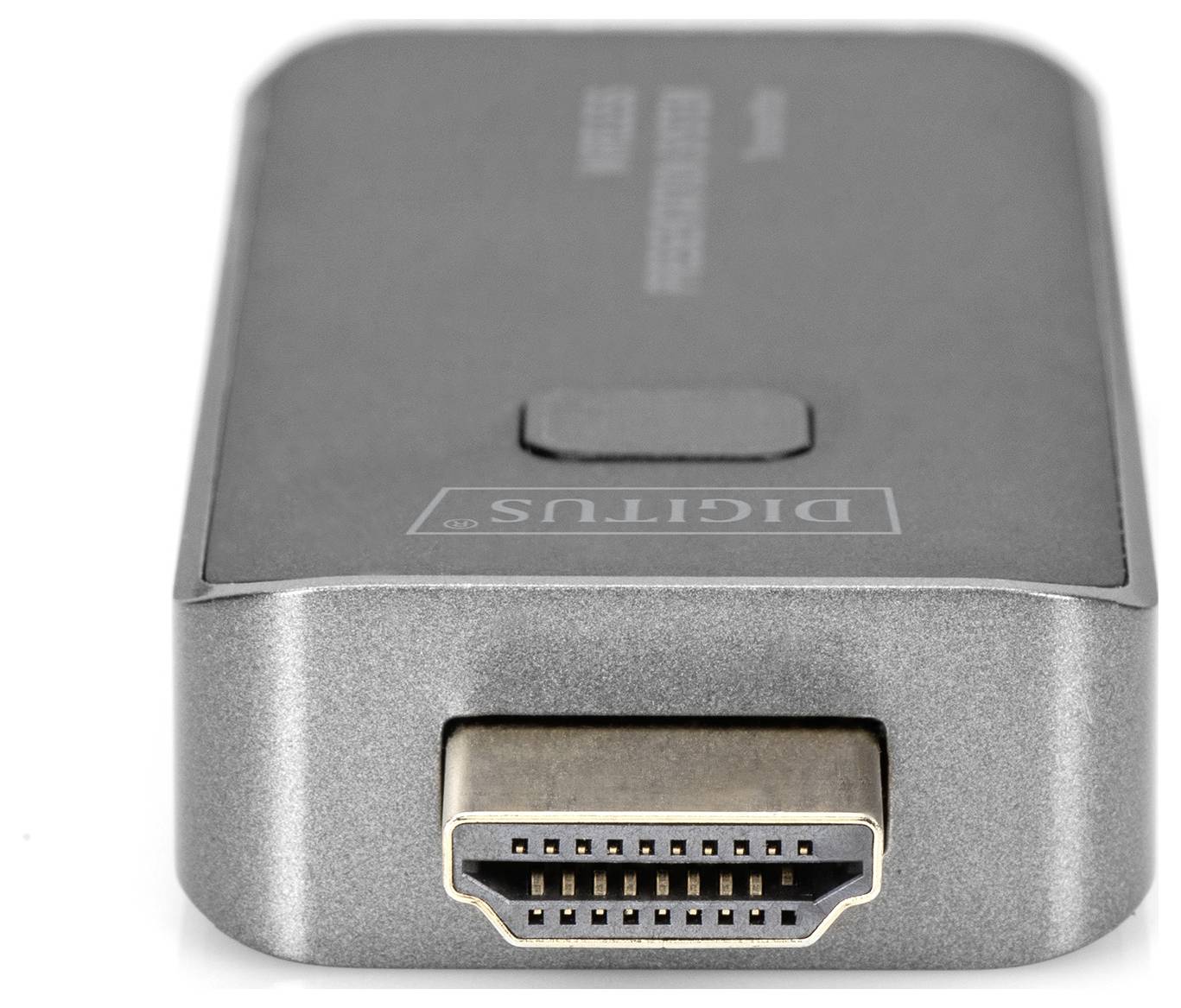

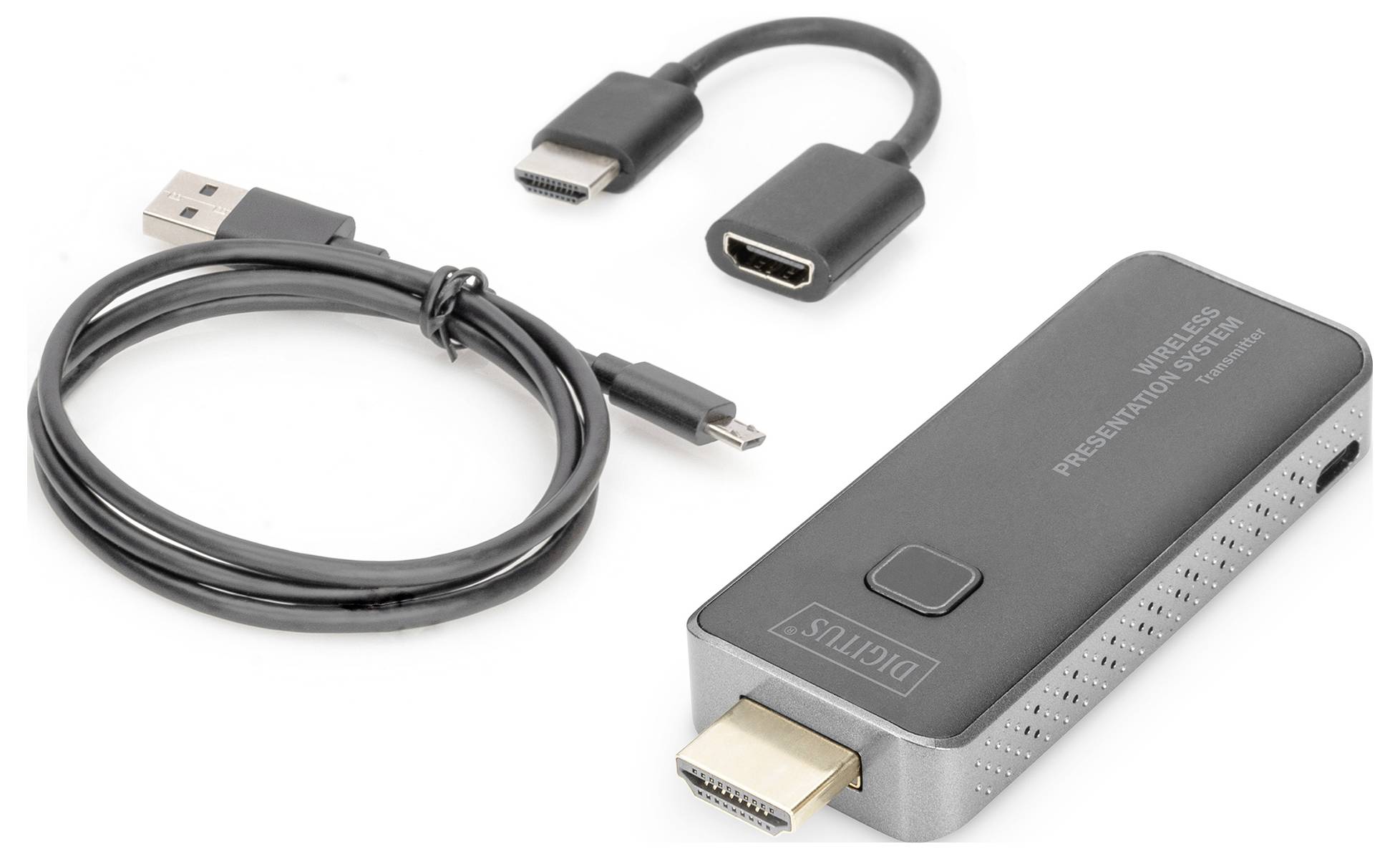

- 1x transmitter unit1x Micro-USB cable (0.5 m)1x HDMI extension cable (0.15 m)1x QIG
Hints
Notes: The transmission distance in case of reduced visibility cannot be determined on a flat-rate basis and depends on the conditions on site. Walls, glass, etc. shorten the signal coverage or cause signal loss
