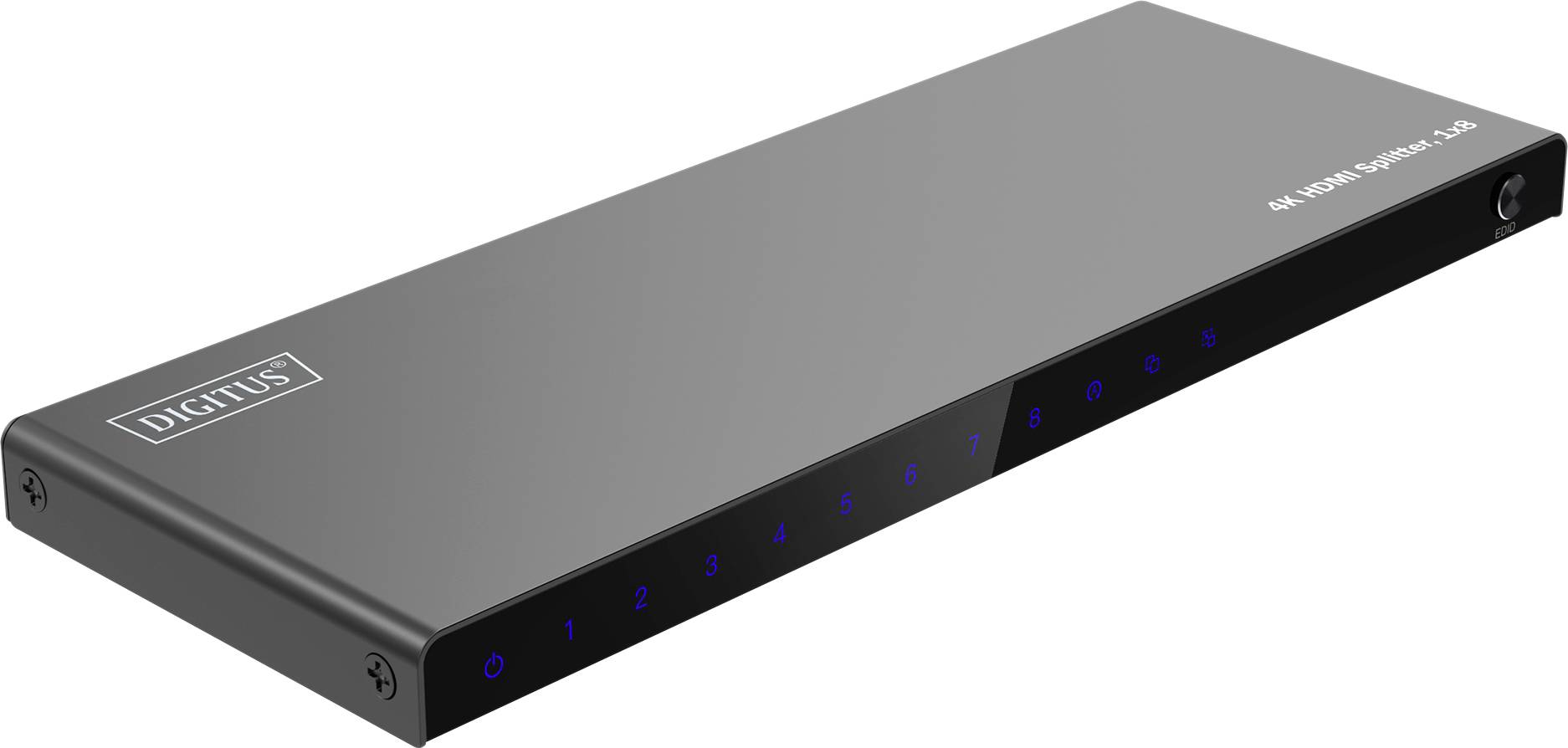

Digitus DS-55338 8 + 1 ports HDMI splitter LED display, + LED indicator lights, Steel casing, individually connectable,
EAN:
Part number:
Item no:
Datasheet (PDF)
Digitus 4K HDMI splitter, 1x8
Highlights & Details

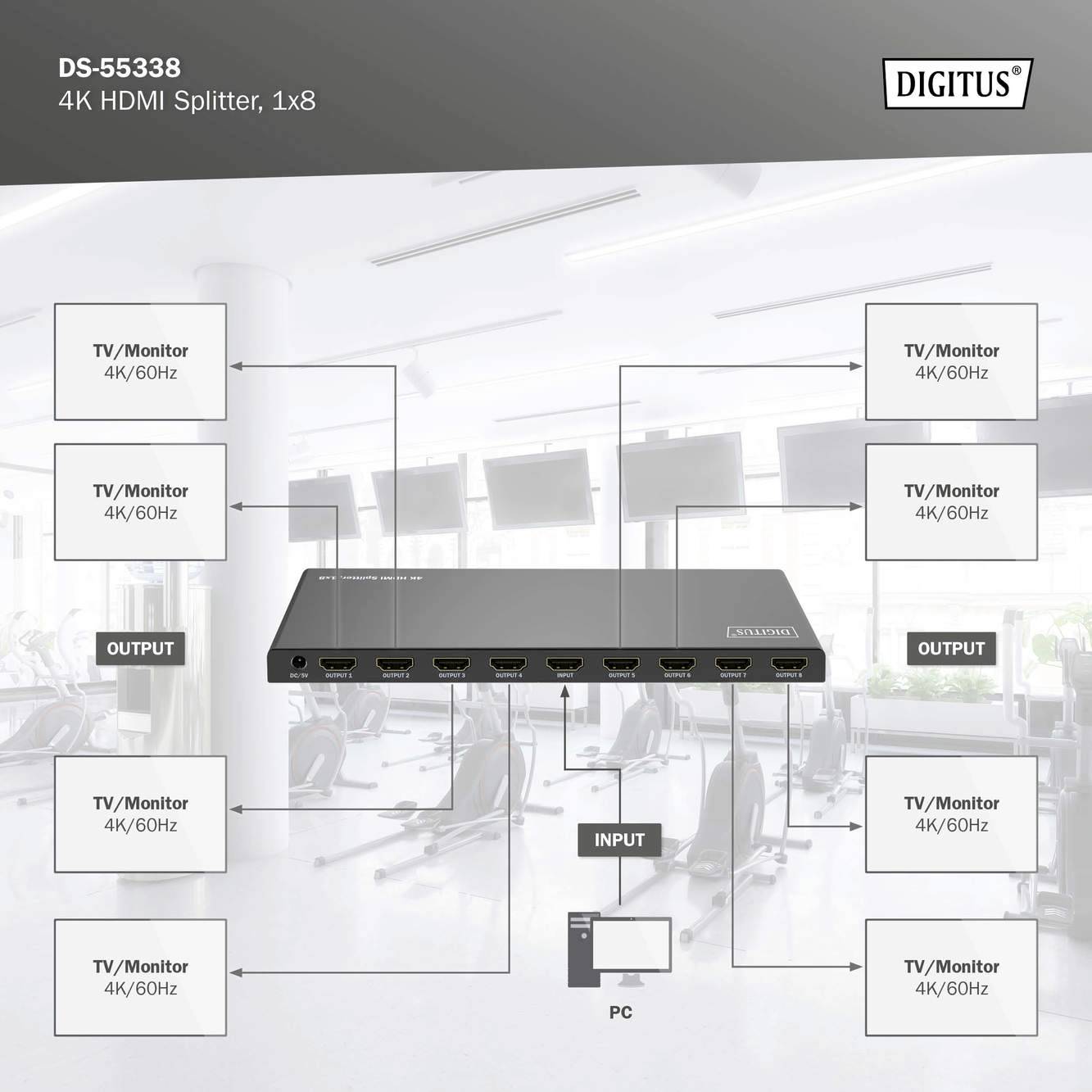

- Distributes a HDMI signal on 8 TVs/monitors/video projector
- EDID management: Automatic/copy/down scaler
- Max. Resolution: 4K/60Hz (4:4:4)
- Video bandwidth 18 Gbps
- Supports high dynamic range (HDR)
- Supports HDCP 2.2
- Supports Deep Colour (36 bit)
- HDMI 2.0
Technical specifications
- Max. Resolution: 4K/60Hz (4:4:4)
- Video bandwidth 18 Gbps
- Operating temperature 0 -70°
- Power consumption: Approx. 10W
- Number of ports: 8
- Number of status LEDs: 12
- HDTV resolution max. 3840 x 2160 Pixel, 60Hz
- Product type
HDMI splitter
- Supported monitors
8
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
8 x
- Interfaces (output)
HDMI™
- Resolution (max.)
3840 x 2160 p
- Switch function
Key
- Power supply (LOV)
via mains outlet
- Distributor/switch features
LED display
+ LED indicator lights
Steel casing
individually connectable
Ultra HD compatibility
- Factory colour
Black
- Weight
387 g
- Width
84 mm
- Height
15 mm
- Depth
228 mm
- Dim
(W x H x D) 84 x 15 x 228 mm
- Port
8 + 1 ports
- Supported audio file formats
Dolby-AC3
DTS
LPCM 2.0
LPCM 5.1
LPCM 7.1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3333874 Digitus DS-55338 8 + 1 ports HDMI splitter LED display, + LED indicator lights, Steel casing, individually connectable,
User & Safety Instructions
User & Safety Instructions 3333874 Digitus DS-55338 8 + 1 ports HDMI splitter LED display, + LED indicator lights, Steel casing, individually connectable,
User & Safety Instructions 3333874 Digitus DS-55338 8 + 1 ports HDMI splitter LED display, + LED indicator lights, Steel casing, individually connectable,
Description
The HDMI splitter from Digitus® distributes audio and video signals from your HDMI device to 8 TVs, monitors or projectors at a resolution of UHD 4K/60Hz. With EDID management, you can select from 3 modes (Copy, Auto, Downscaler). Built-in downscaling allows 4K content to be displayed on Full HD displays, while 4K and Full HD displays can also be operated at the same time. Thanks to the Auto EDID function, the splitter automatically detects the connected displays - no manual settings are required.
This text is machine translated.
This text is machine translated.
Features
- Distributes a HDMI signal on 8 TVs/monitors/video projector
- EDID management: Automatic/copy/down scaler
- Supports high dynamic range (HDR)
- Supports HDCP 2.2
- Supports Deep Colour (36 bit)
- Supports compressed (e.g. DTS, Dolby Digital, etc.) and uncompressed audio formats (e.g. LPCM, etc.)
- HDMI 2.0
- Colour, black
- HDTV standard ultra HD 4K
- Signal output HDMI
- Signal input: HDMI
- HDMI video output
Scope of delivery
- 1x power supply (5V/2A, 1.2 m)
- 1x QIG
