Digitus DS-55340 4 ports HDMI splitter individually connectable, LED display, + LED indicator lights, Ultra HD compatibi
EAN:
Part number:
Item no:
Datasheet (PDF)
Digitus DS-55340 HDMI splitter, 8K/60Hz (4:4:4), Toslink, stereo, EDID control
Highlights & Details
- Distributes a HDMI signal on 4 TVs/monitors/video projector
- Audio extractor: Toslink/stereo (3.5 mm) – uncoupling and separate playback of the audio signal
- EDID-switch / management
- Downscaler mode (8K to 4K or 2K) - If the resolution is scaled down, no display remains black
- Max. Resolution 8K/60Hz (4:4:4)
- Video bandwidth 48 Gbps
- Supports high dynamic range (HDR)
- Supports HDCP 2.3
- Supports Deep Colour (36 bit)
- HDMI 2.1
Technical specifications
- Product type
HDMI splitter
- Supported monitors
4
- No. of inputs
1 x
- Interfaces (input)
HDMI® 2.1
- No. of outputs
6 x
- Interfaces (output)
HDMI® 2.1
Audio 2.0 (3.5 mm jack)
Toslink
- Resolution (max.)
7680 x 4320 p
- Switch function
Manual
Key
- Power supply (LOV)
mains-powered
- Distributor/switch features
individually connectable
LED display
+ LED indicator lights
Ultra HD compatibility
suitable for indoor use
Steel casing
- Factory colour
Black
- Weight
285 g
- Width
71 mm
- Height
18 mm
- Depth
188 mm
- Dim
(W x H x D) 71 x 18 x 188 mm
- Port
4 ports
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3347391 Digitus DS-55340 4 ports HDMI splitter individually connectable, LED display, + LED indicator lights, Ultra HD compatibi
User & Safety Instructions
User & Safety Instructions 3347391 Digitus DS-55340 4 ports HDMI splitter individually connectable, LED display, + LED indicator lights, Ultra HD compatibi
Description

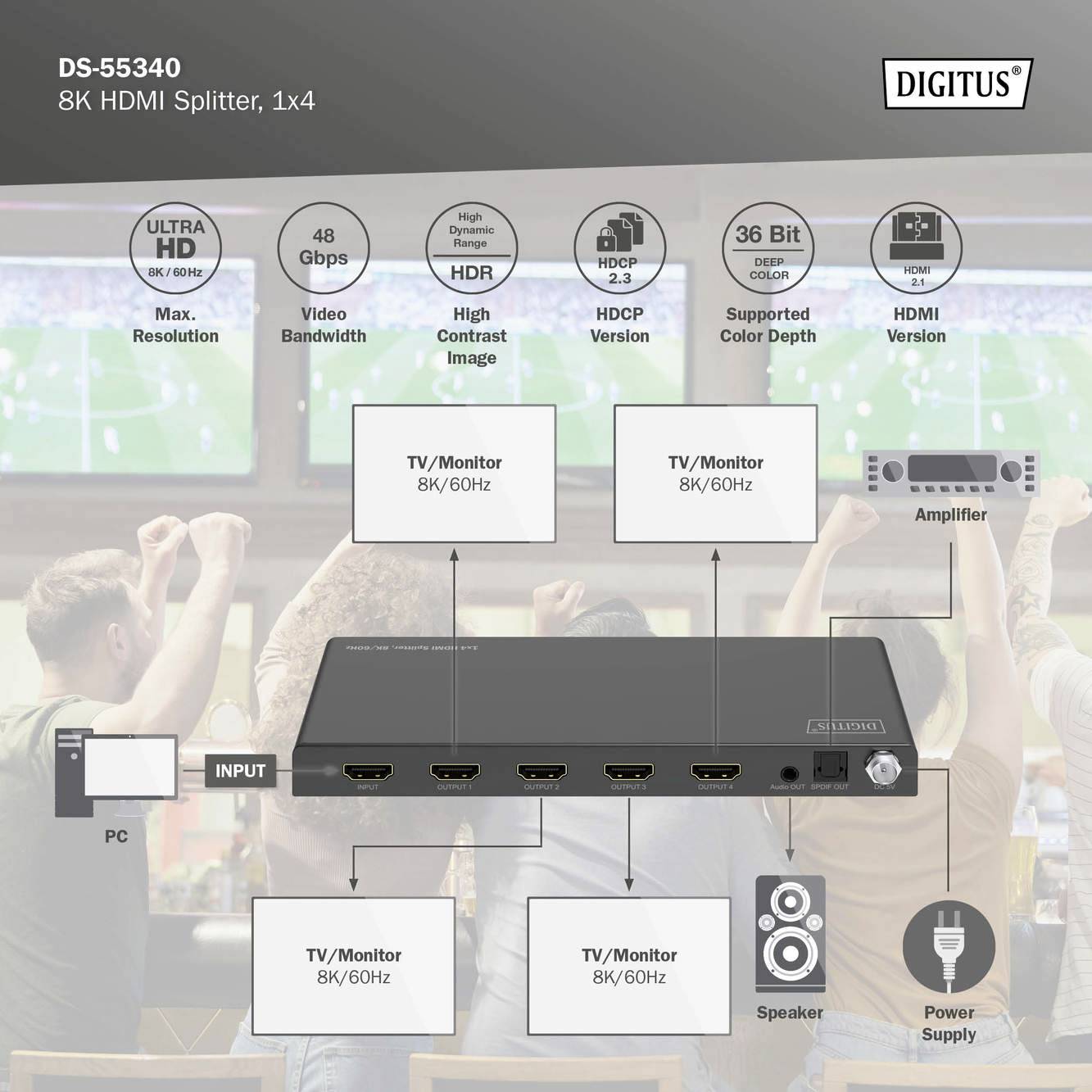

The HDMI splitter from Digitus® distributes/mirrors audio and video signals of your HDMI device on 4 TVs, monitors or video projectors at a resolution of UHD 8K/60Hz. Similarly, audio signals can be decoupled via Toslink or 3.5 mm stereo connection and played back separately. Using the EDID switch, settings are compatible with the connected displays can be made.
This text is machine translated.
This text is machine translated.

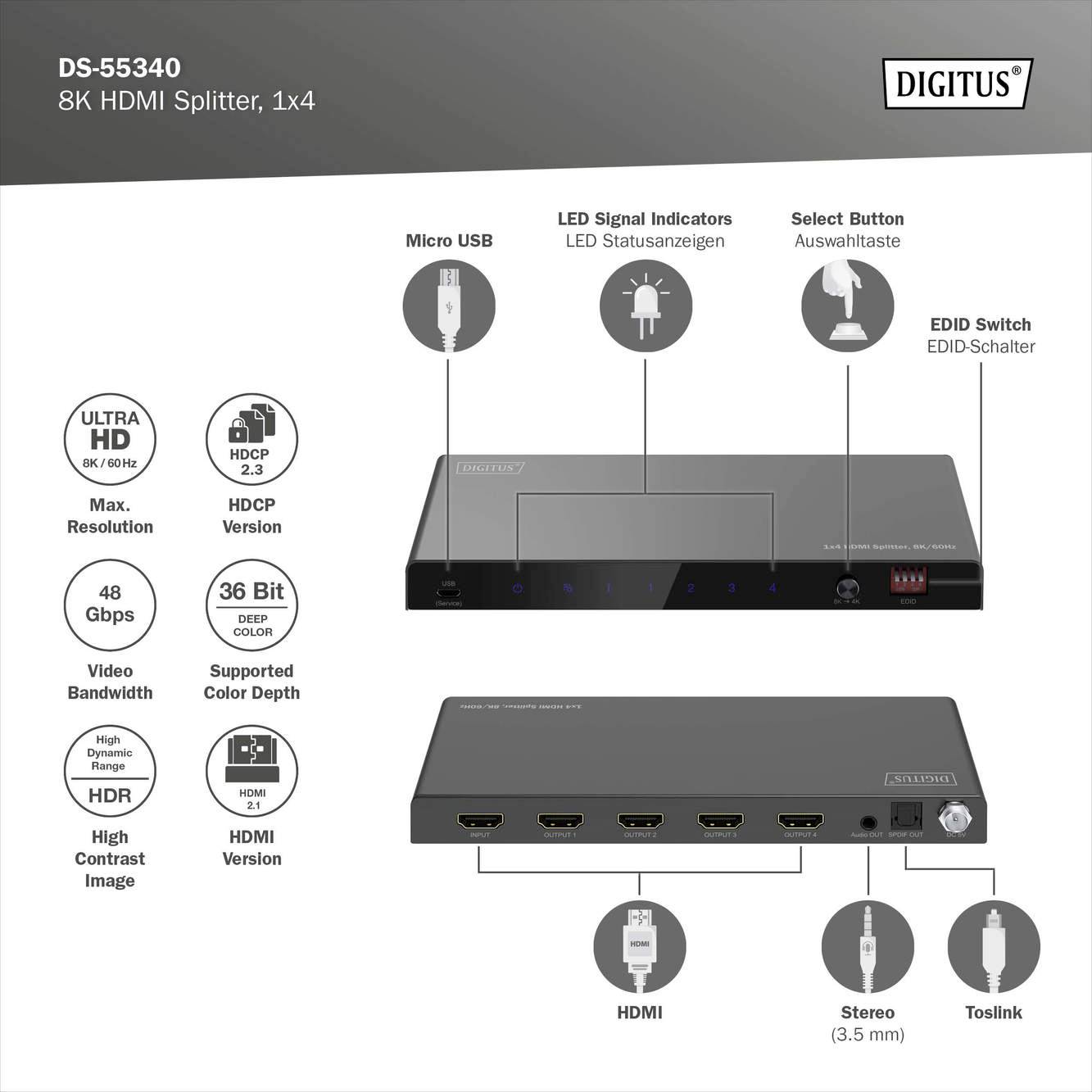

Features

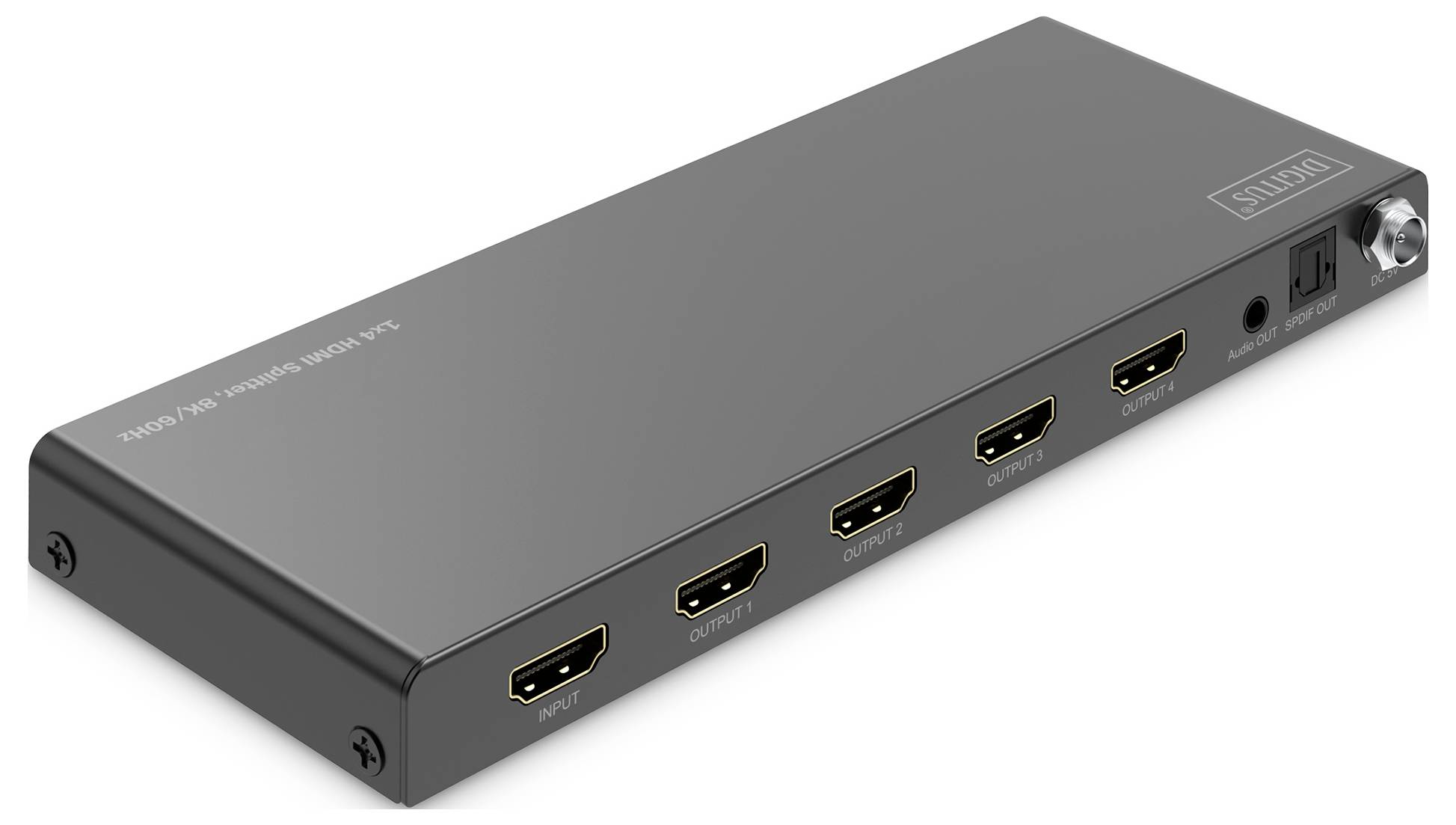

- Distributes a HDMI signal on 4 TVs/monitors/video projector
- Audio extractor: Toslink/stereo (3.5 mm) – uncoupling and separate playback of the audio signal
- EDID-switch / management
- Supports high dynamic range (HDR)
- Supports HDCP 2.3
- Supports Deep Colour (36 bit)
- HDMI 2.1

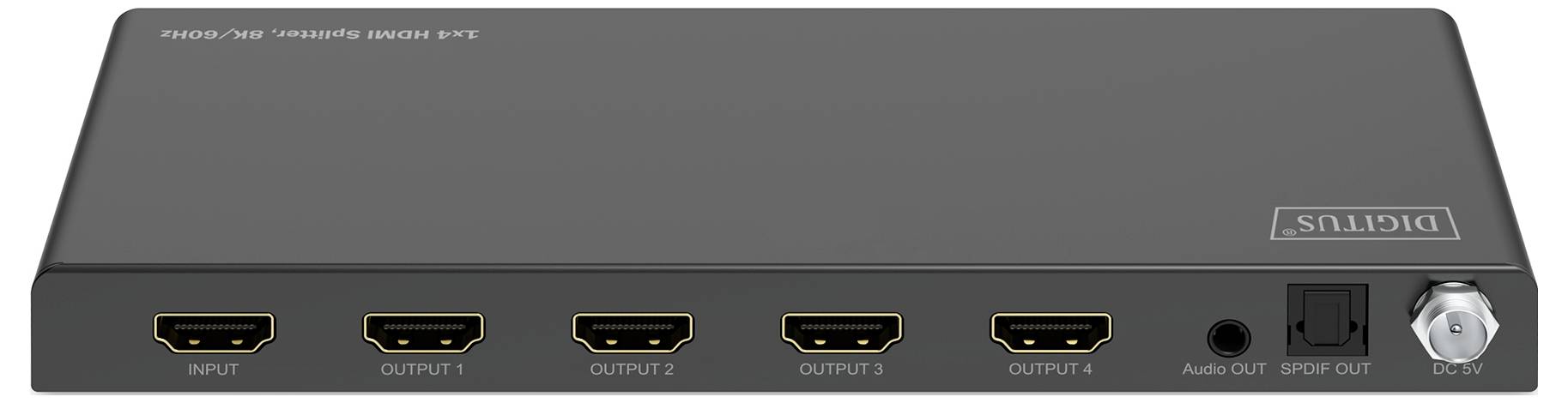

- 1x HDMI input (8K/60Hz)
- 4x HDMI output (8K/60Hz)
- 1x Toslink
- 1 x 3.5 mm audio
- 1x DC / 5V input - power supply connection

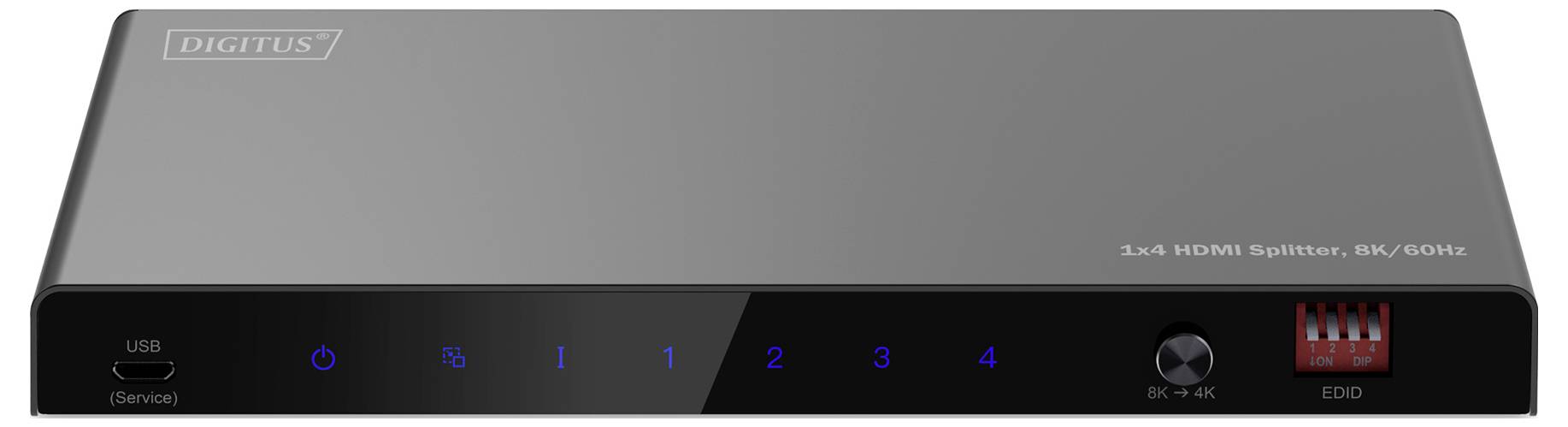

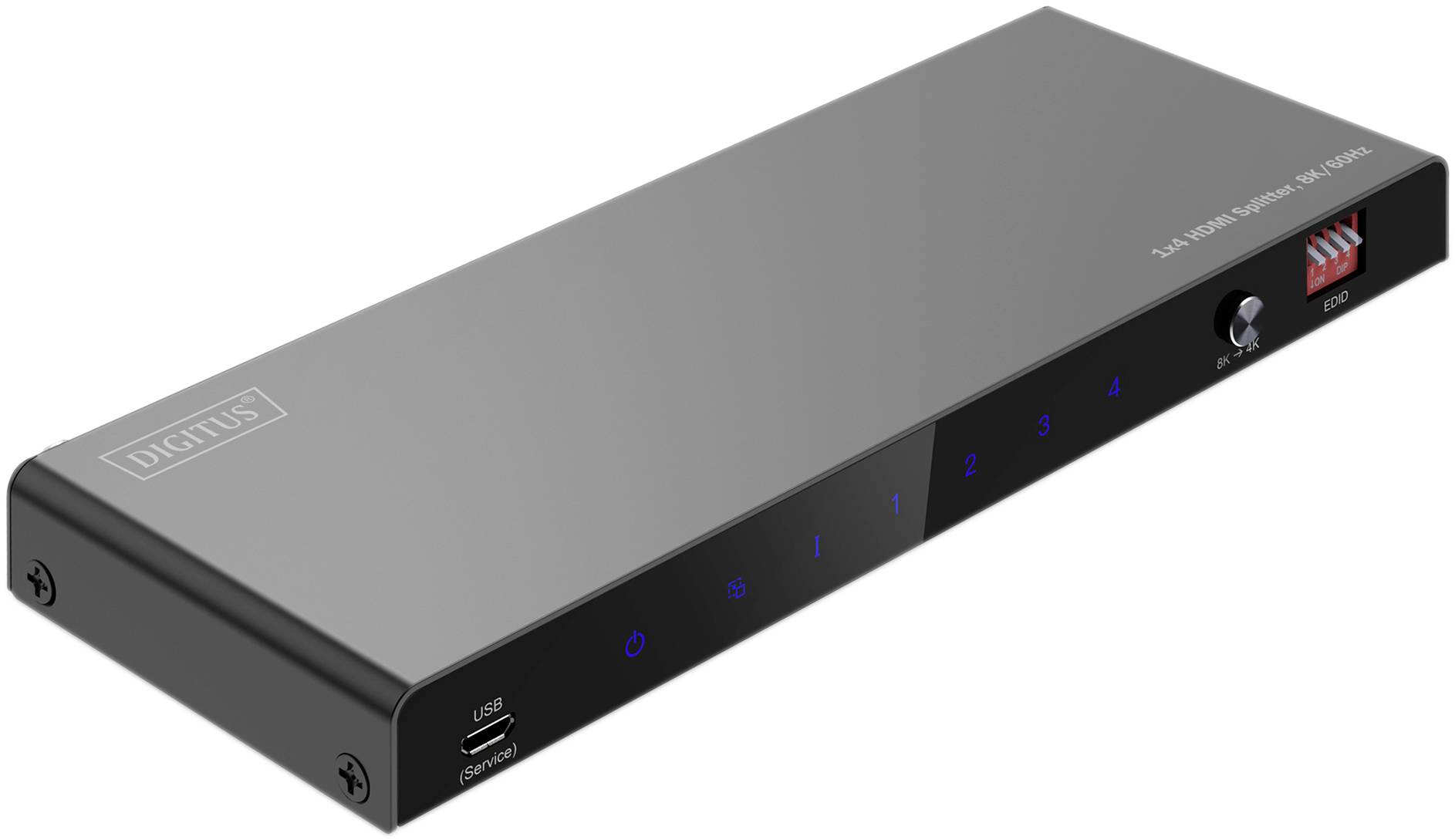

- 5 status LEDs
- 1x EDID switch
- 1x micro USB input - service
- Housing: metal
- Colour, black
- Signal output HDMI
- Signal input: HDMI
- HDMI video output
Scope of delivery
- Power supply (5V/2A), 1.2 m
- QIG
