Digitus DS-55341 HDMI™ Repeater 13 m
EAN:
Part number:
Item no:

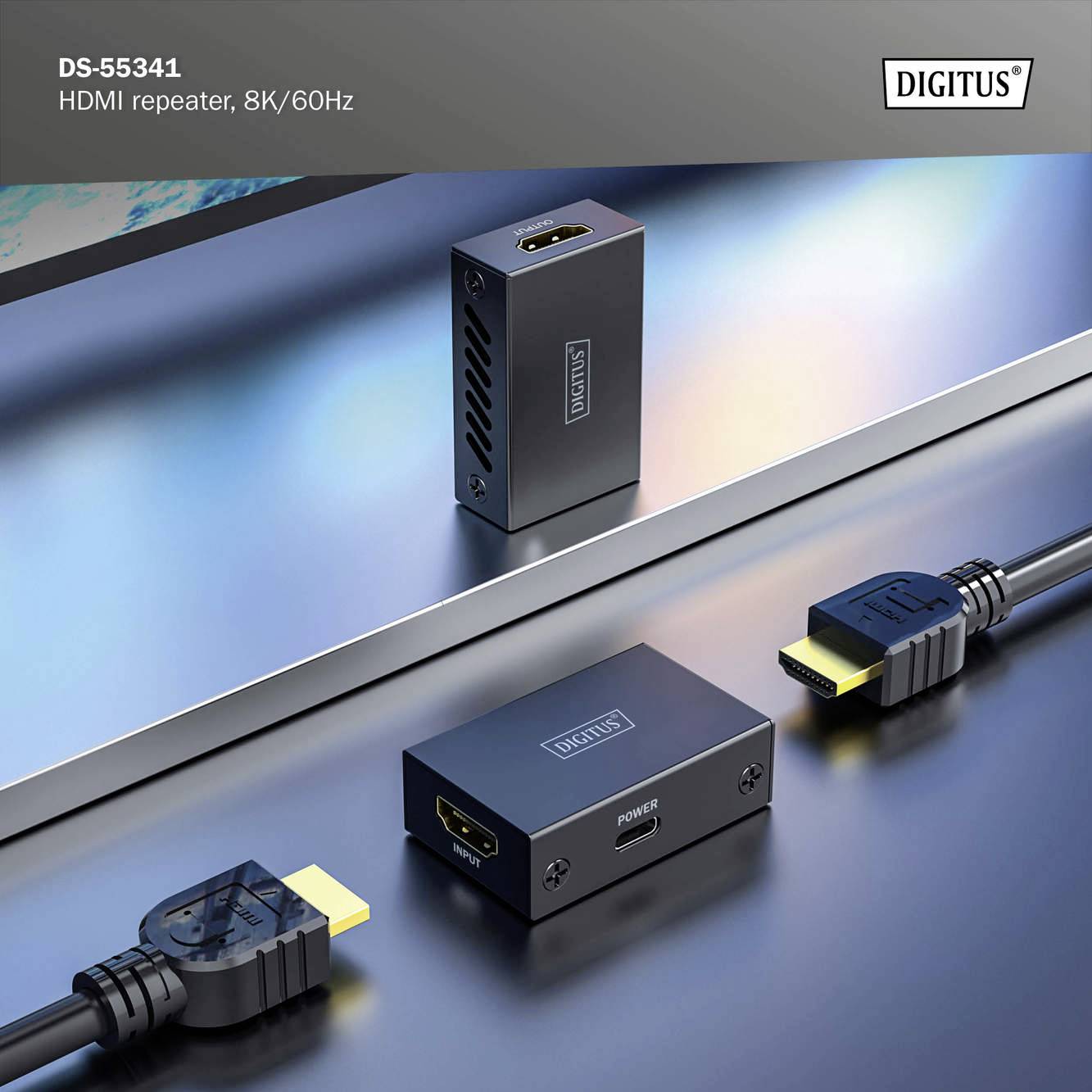

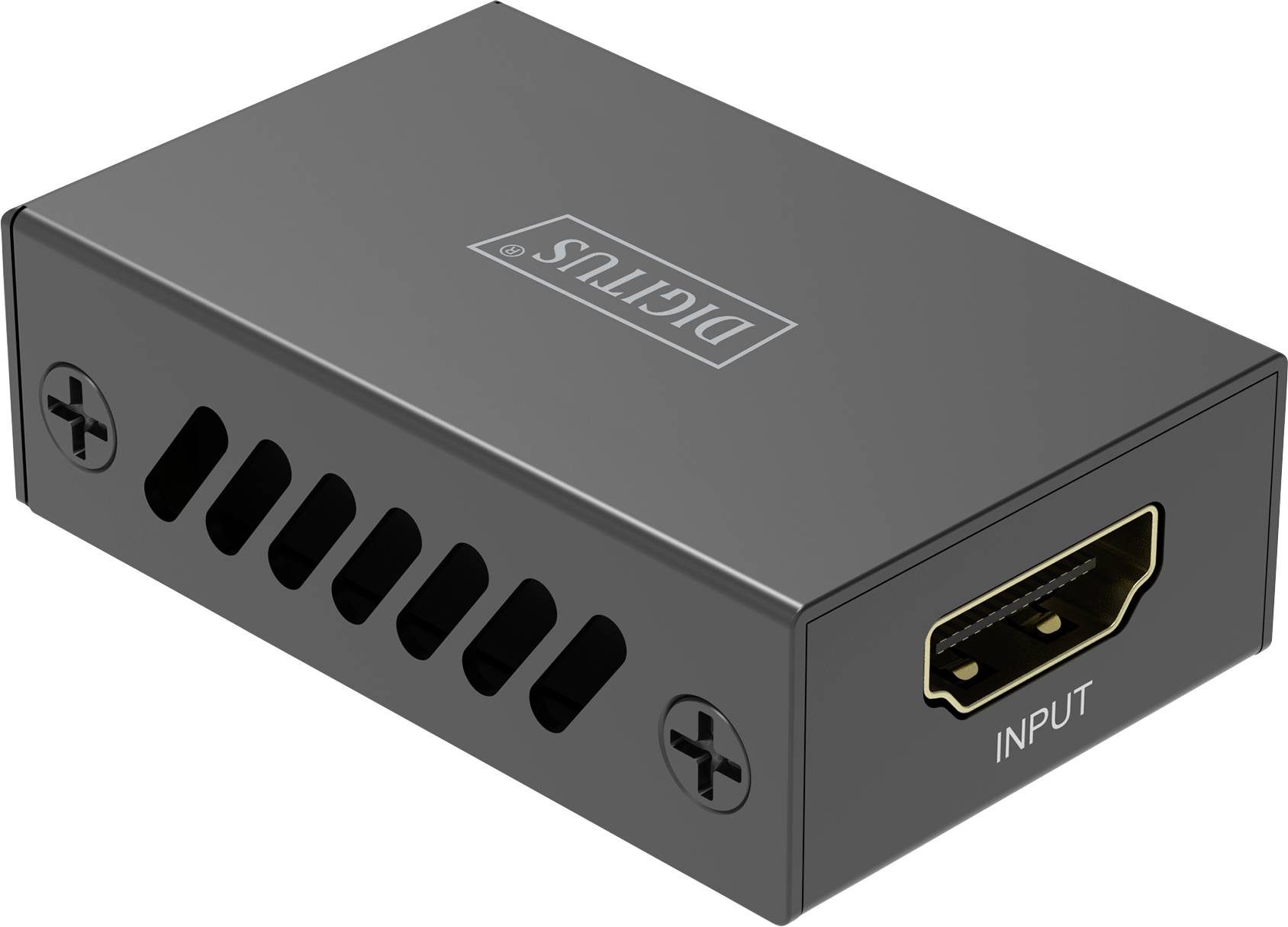

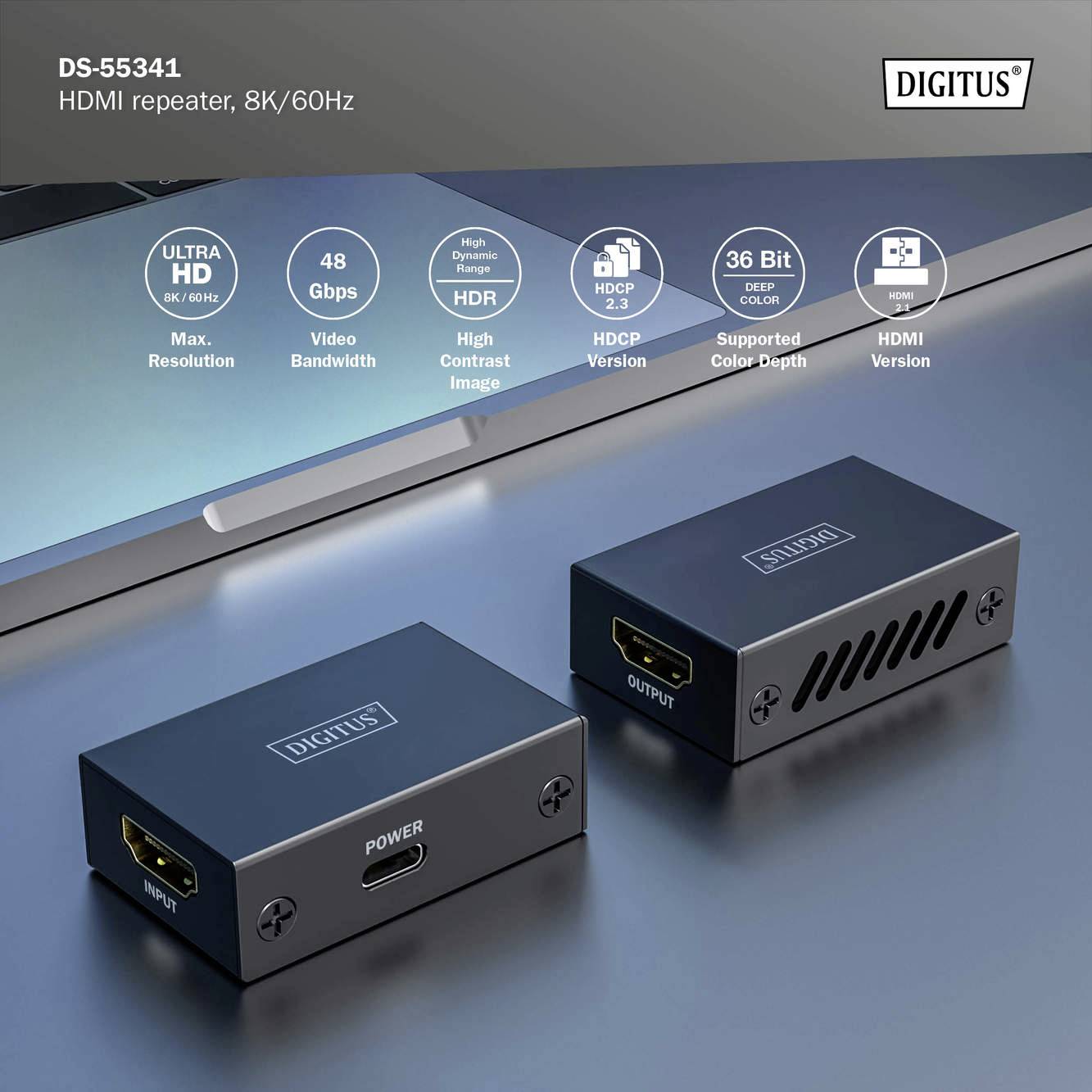

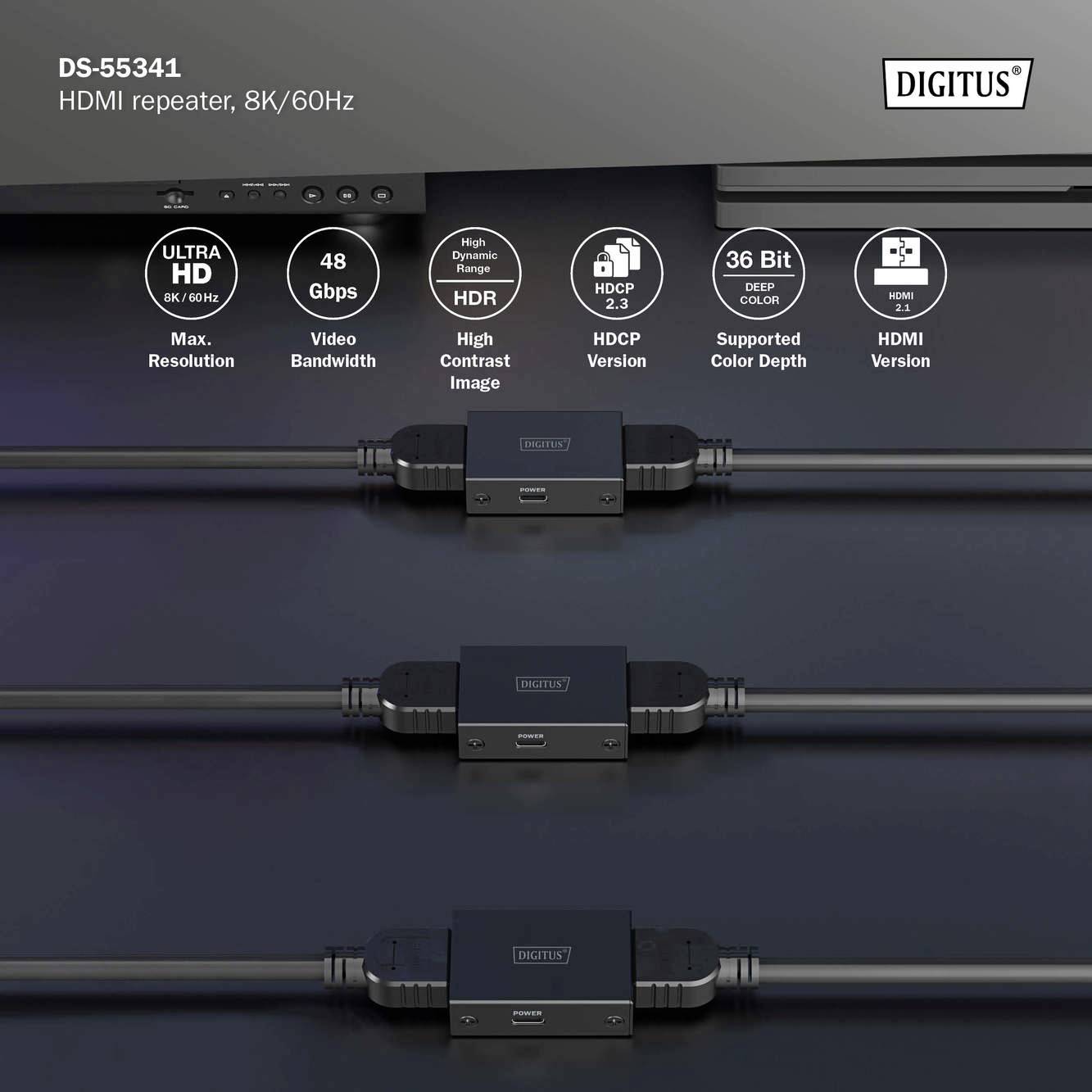

Digitus DS-55341 HDMI™ Repeater 13 m
Highlights & Details

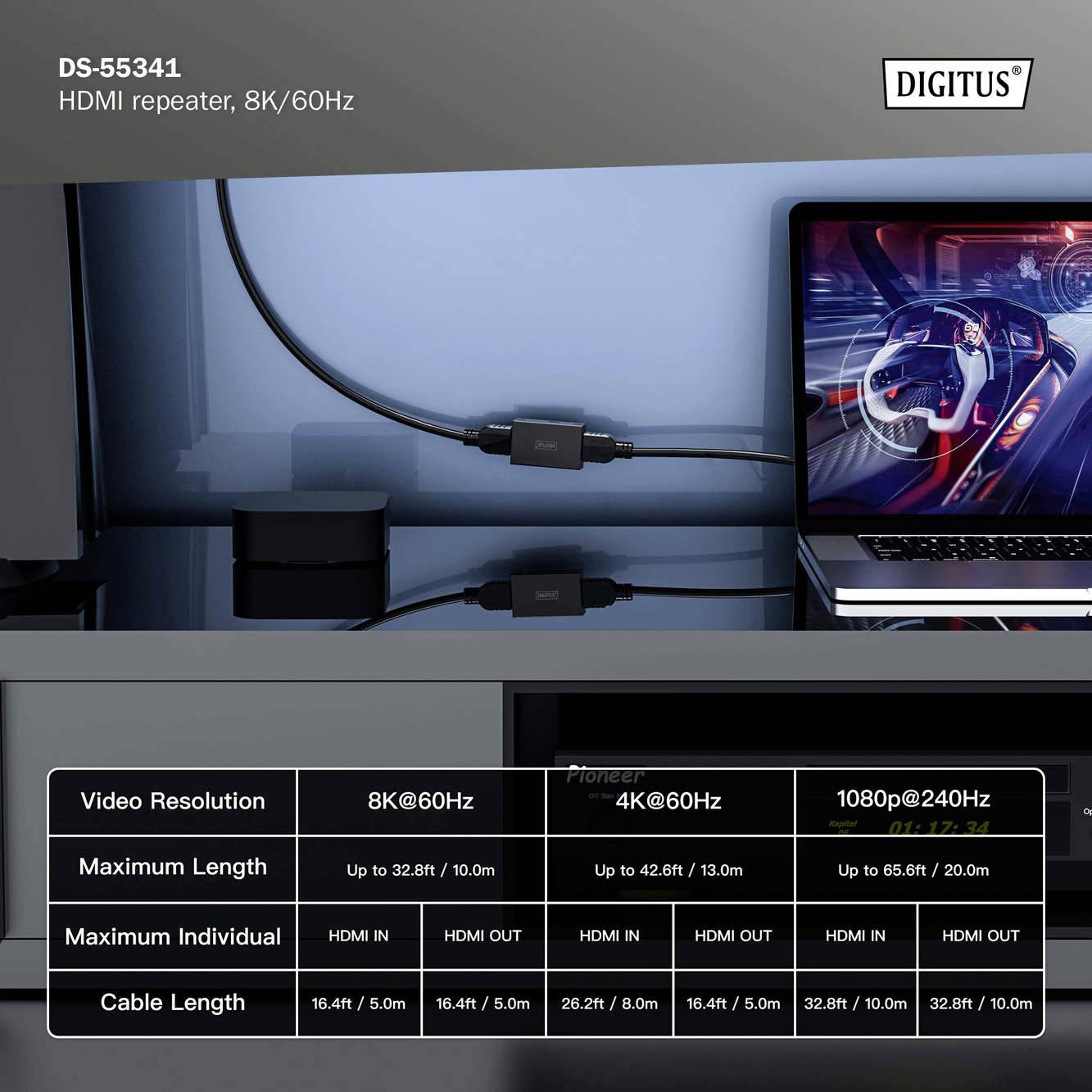

- Extends HDMI signals to up to 10 m in 8K/60Hz - 5 m input (HDMI cable) + 5 m output (HDMI cable)
- Extends HDMI signals to up to 13 m in 4K/60Hz - 8 m input (HDMI cable) + 5 m output (HDMI cable)
- Power supply via HDMI cable (signal source), thanks to special self-powered design
- Optional (additional) power supply via the enclosed USB-C cable if the set-up requires it
- Max. Resolution 8K/60Hz (4:4:4)
- Video bandwidth 48 Gbps
- HDMI 2.1
- Supports HDCP 2.3
- Supports Deep Colour (36 bit)
- Ultra-Slim design
Technical specifications
- Max. Resolution 8K/60Hz (4:4:4)
- Video bandwidth 48 Gbps
- Operating temperature 0 -70°
- Power consumption: Approx. 1W
- Range (HDMI extension): Up to 10 m (8K/60Hz), up to 13 m (4K/60Hz)

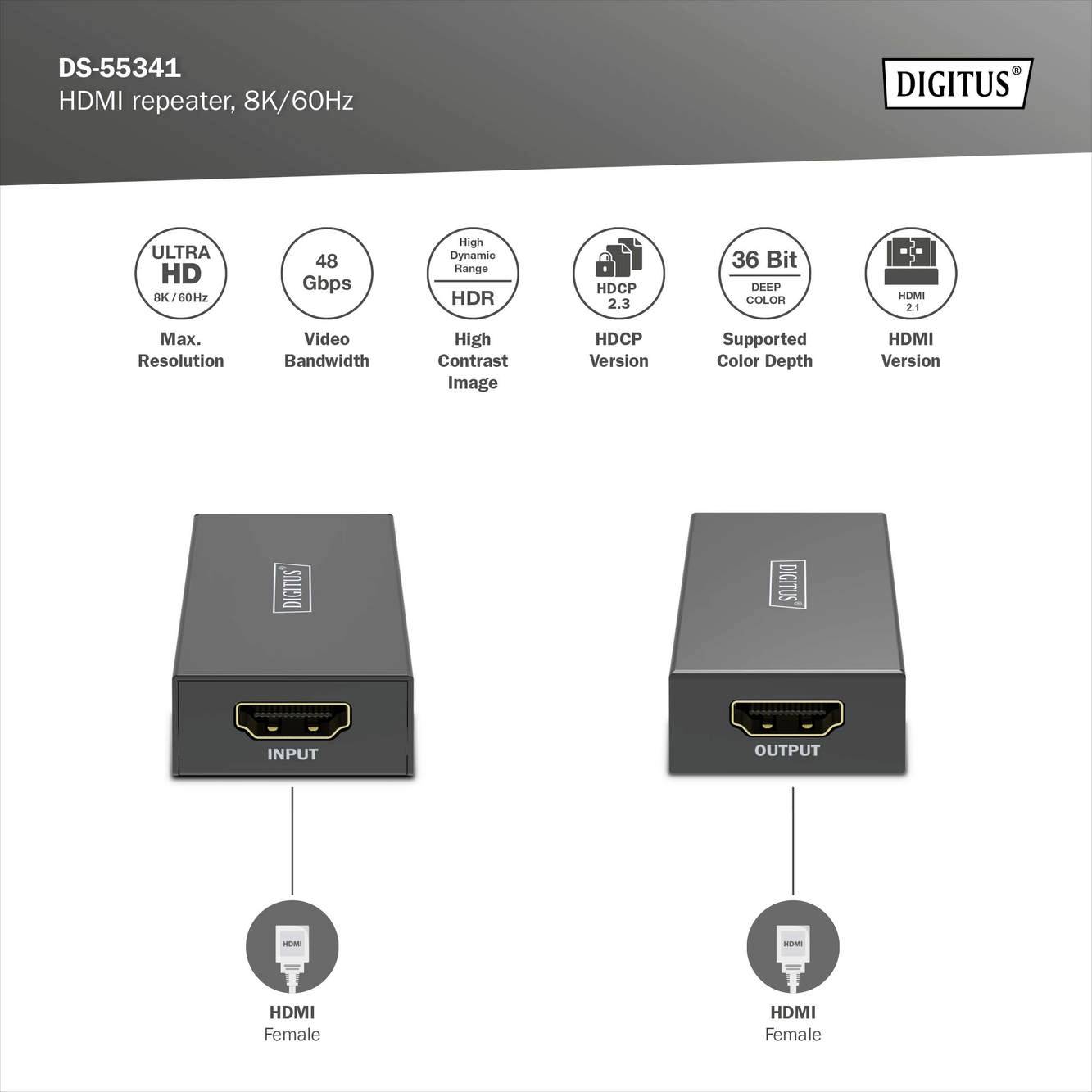

- Number of connections:3 (1 x HDMI input, 1 x HDMI output, 1 x USB-C input)
- Colour, black
- HDTV resolution max. 7680 × 4320 pixels, 60Hz
- HDTV standard ultra HD 8K
- Product type
Repeater
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
7680 x 4320 p
- Range (max.)
13 m
- Factory colour
Black
- Weight
40 g
- Length
50 mm
- Width
31 mm
- Height
15 mm
- Dim
(L x W x H) 50 x 31 x 15 mm
- No. of outputs
1 x
- No. of inputs
1 x
- Supported monitors
1
- Power supply (LOV)
via USB
- Type A
HDMI plug
- Type B
HDMI plug
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3333871 Digitus DS-55341 HDMI™ Repeater 13 m
Description

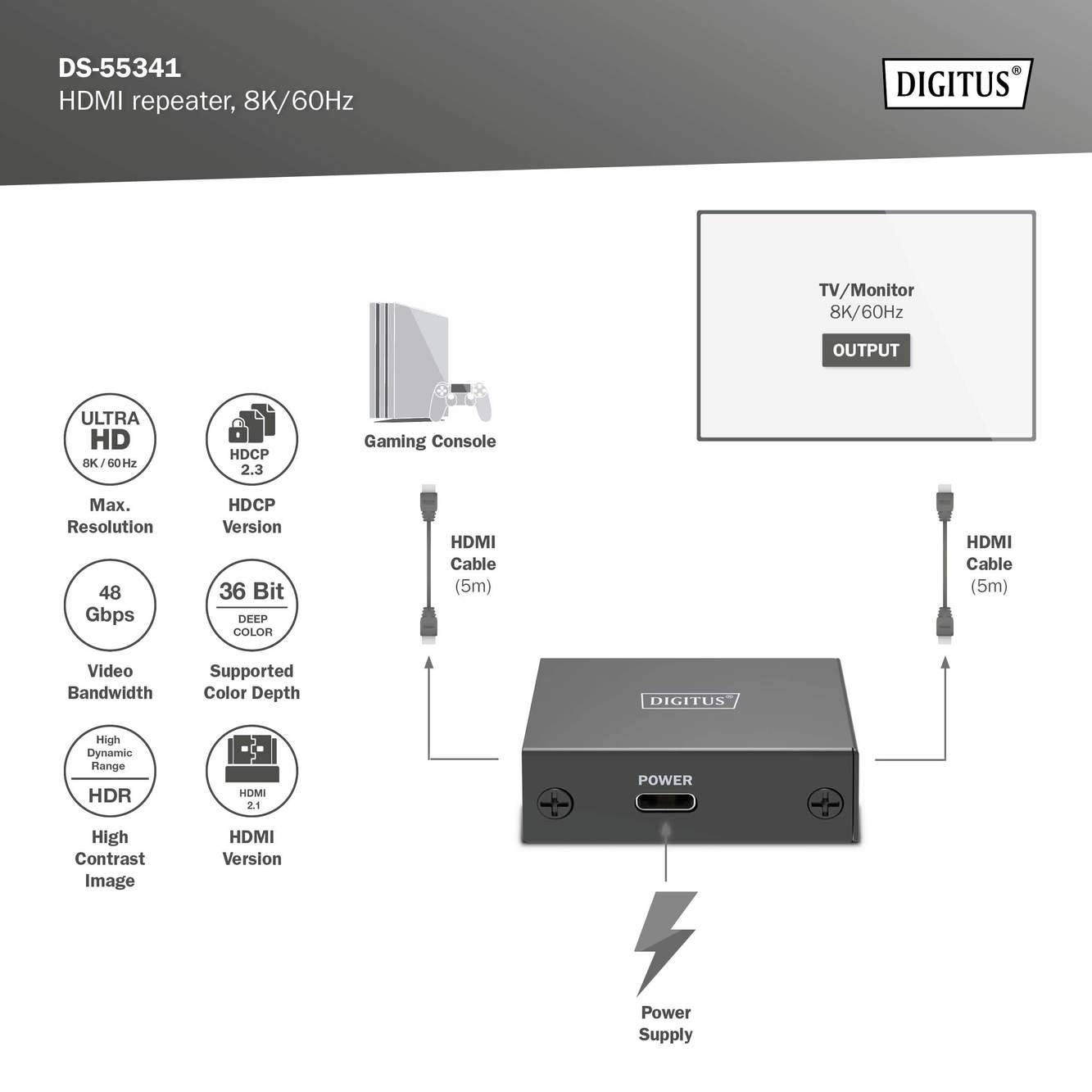

The Digitus® 8K HDMI repeater extends HDMI signals in 8K/60Hz (4:4:4) to up to 10 m. 4K/60Hz (4:4:4) signals can be extended to up to 13 m. Two corresponding HDMI cables can be cascaded with the repeater. Thanks to the special design, the repeater is also supplied with power via HDMI (5V). Optionally, you can supply the repeater via USB-C with power, if your set-up requires this.
This text is machine translated.
This text is machine translated.
Features
- Extends HDMI signals to up to 10 m in 8K/60Hz
- Extends HDMI signals to up to 13 m in 4K/60Hz
- Power supply via HDMI cable (signal source), thanks to special self-powered design
- Optional (additional) power supply via the enclosed USB-C cable, if the set-up requires it
- Supports HDCP 2.3
- Supports Deep Colour (36 bit)
- Ultra-Slim design
- Supports compressed (e.g. DTS, Dolby Digital, etc.) and uncompressed audio formats (e.g. LPCM, etc.)
- HDMI 2.1
- Colour, black
- HDTV standard ultra HD 8K
- KVM: No.
- Power over Ethernet (PoE): No.
- HDMI video output
Scope of delivery
- 1x USB-C cable (1.0 m)
- 1x QIG
