Digitus DS-55343 USB A (USB 3.1 1st gen), USB C® Cable via RJ45 network cable, via data cable 30 m
EAN:
Part number:
Item no:

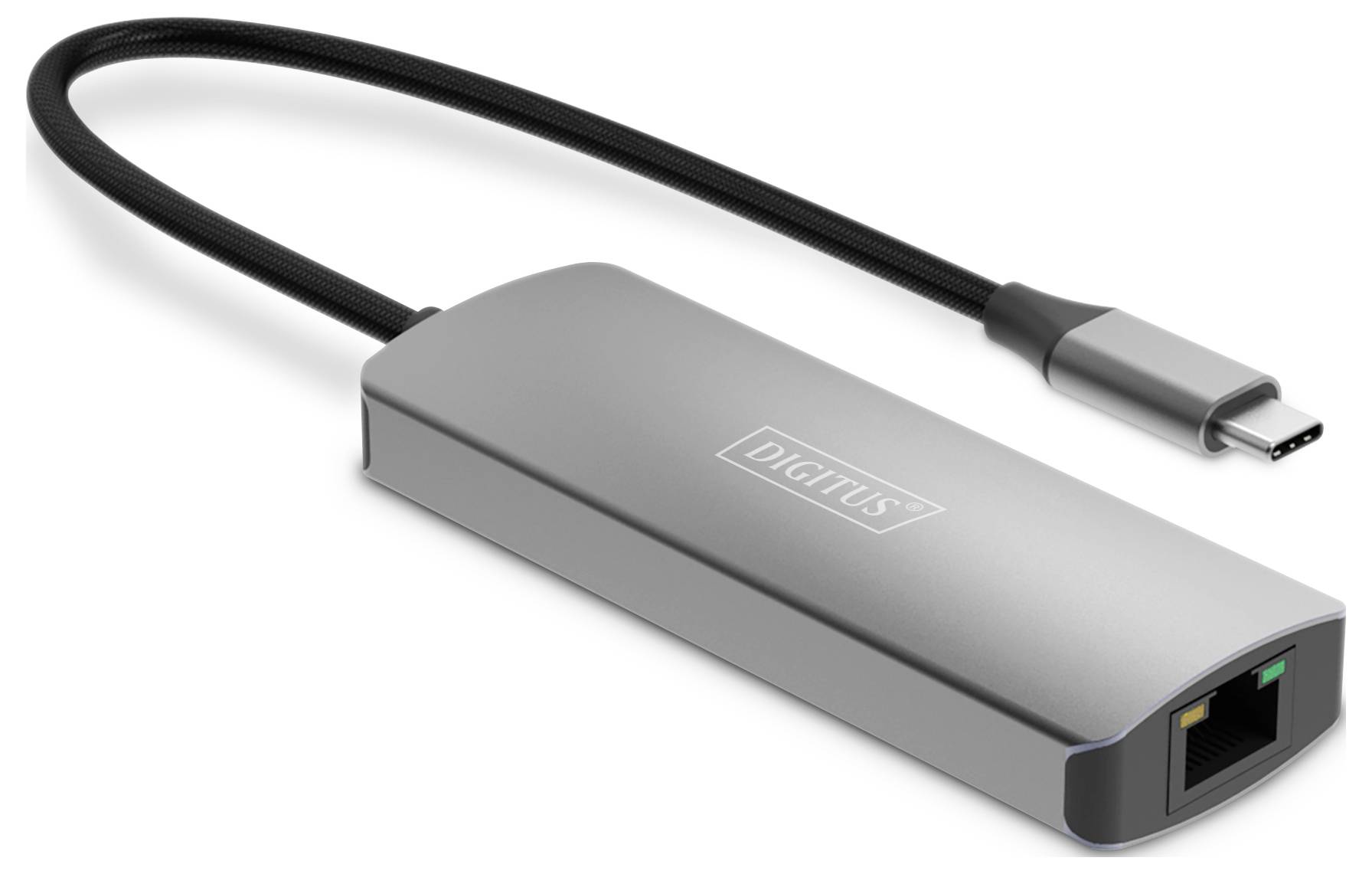

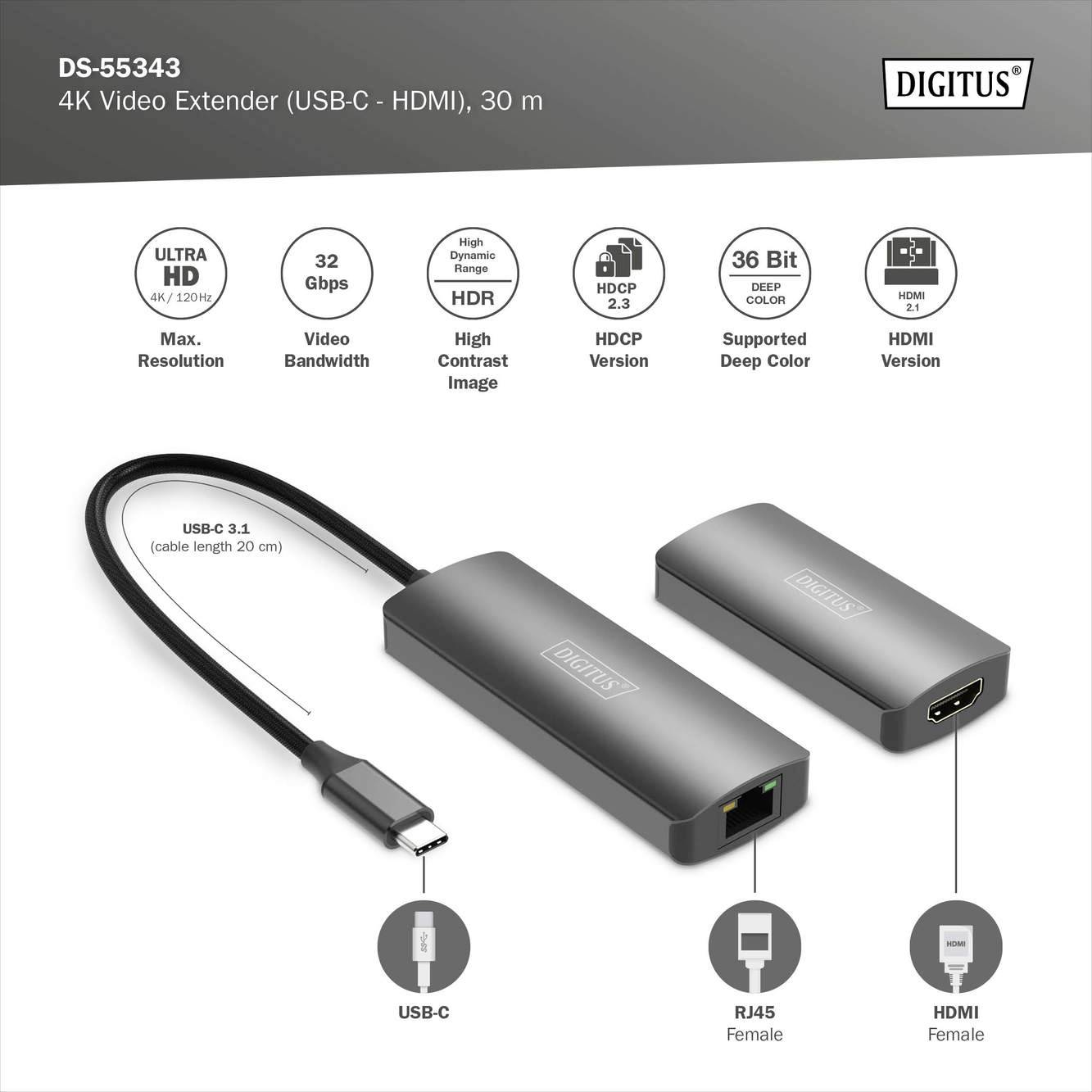

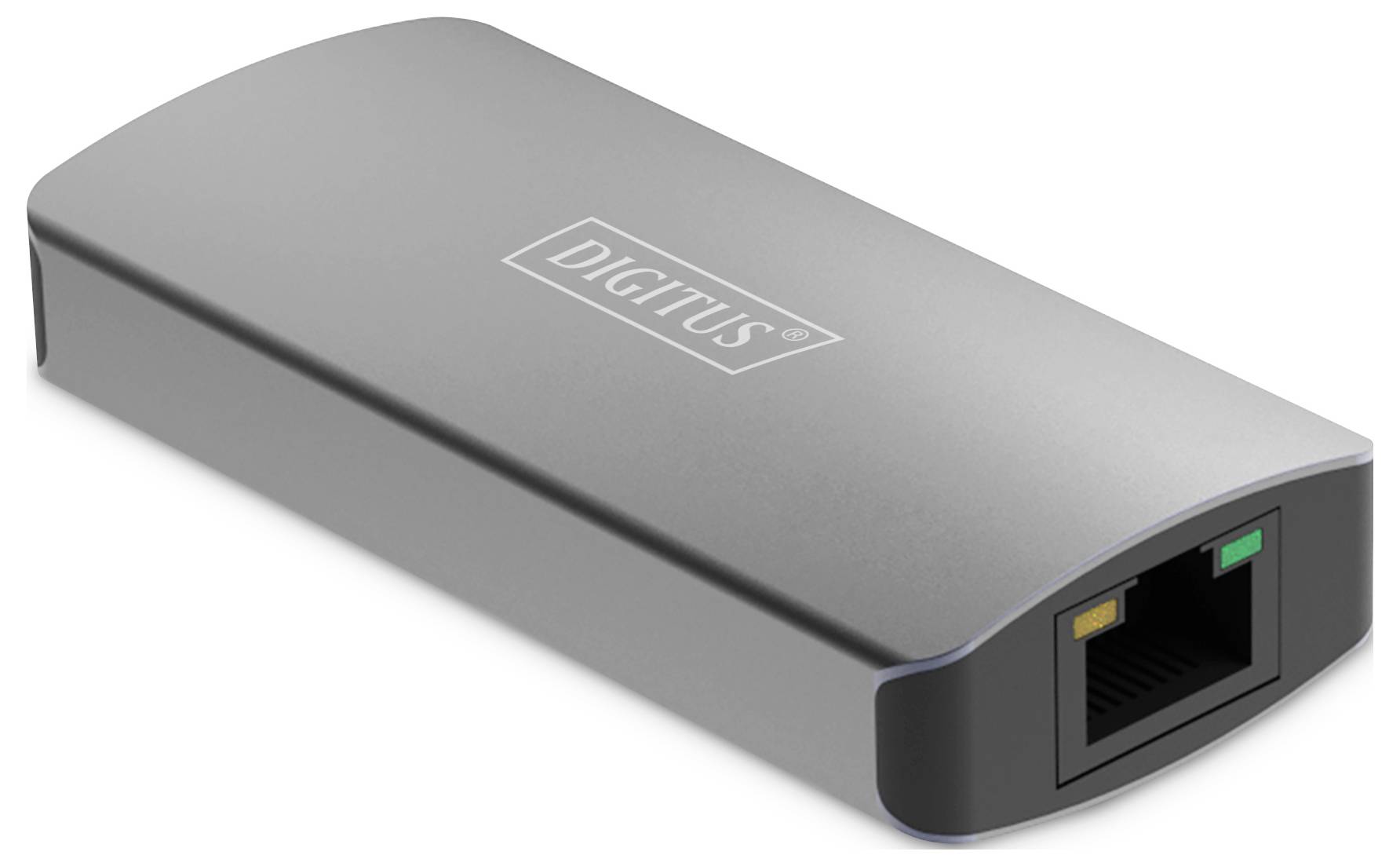

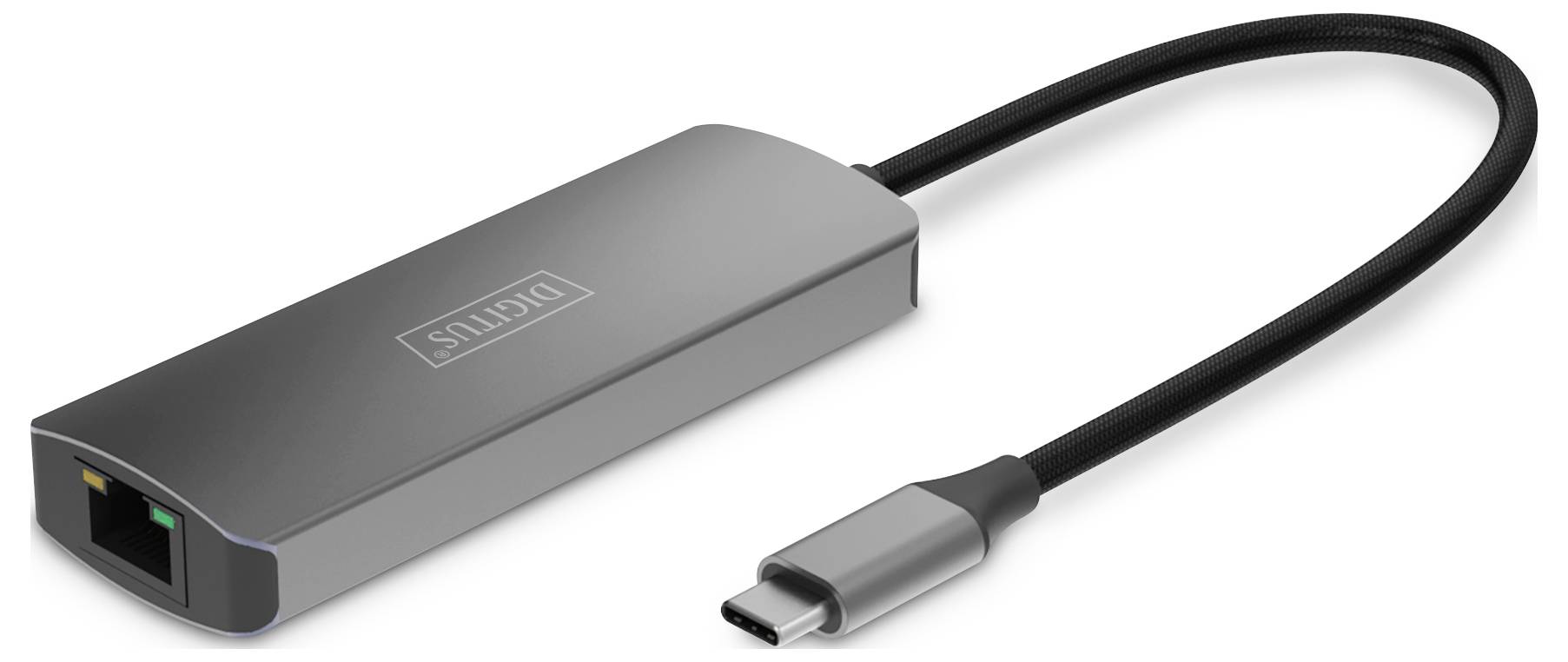

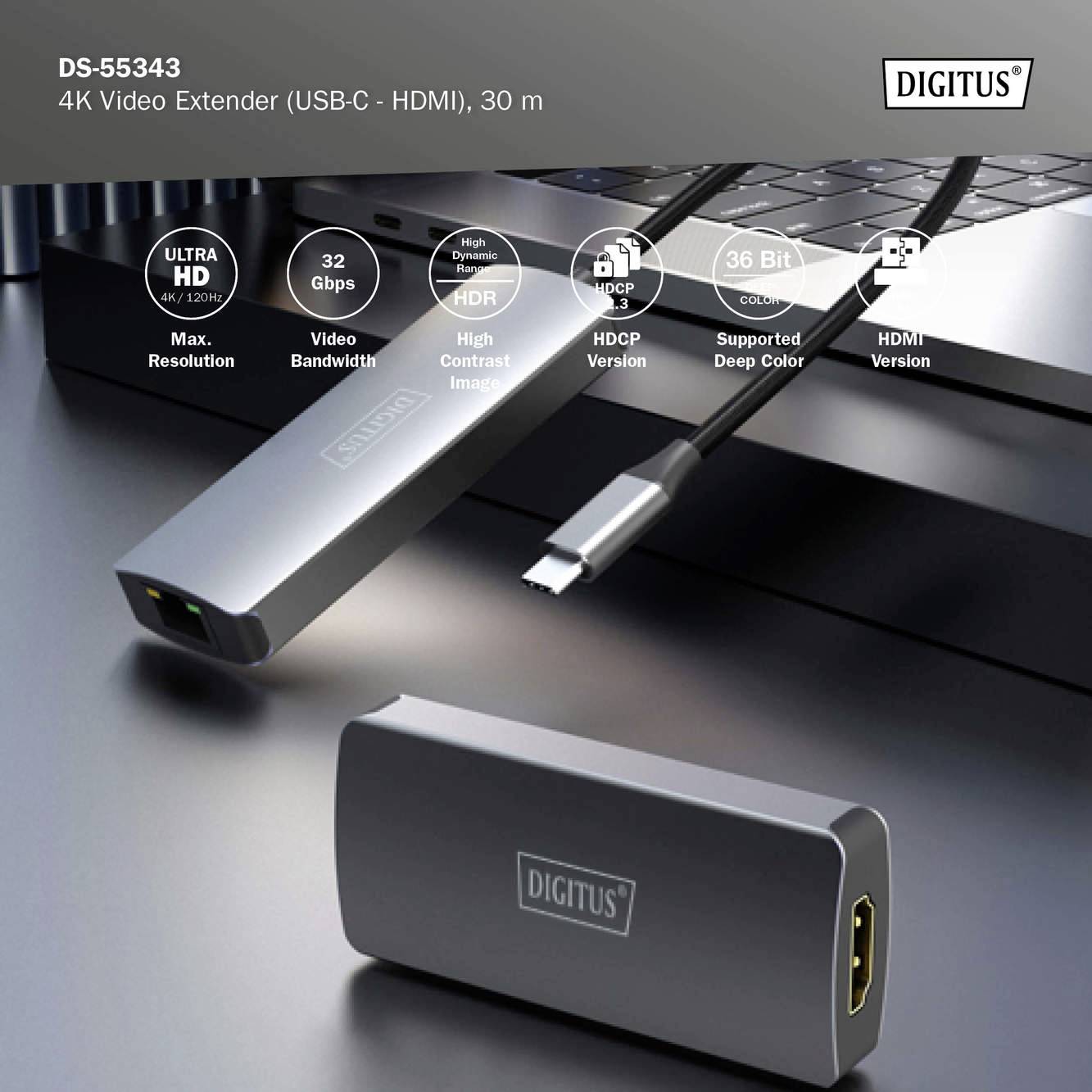

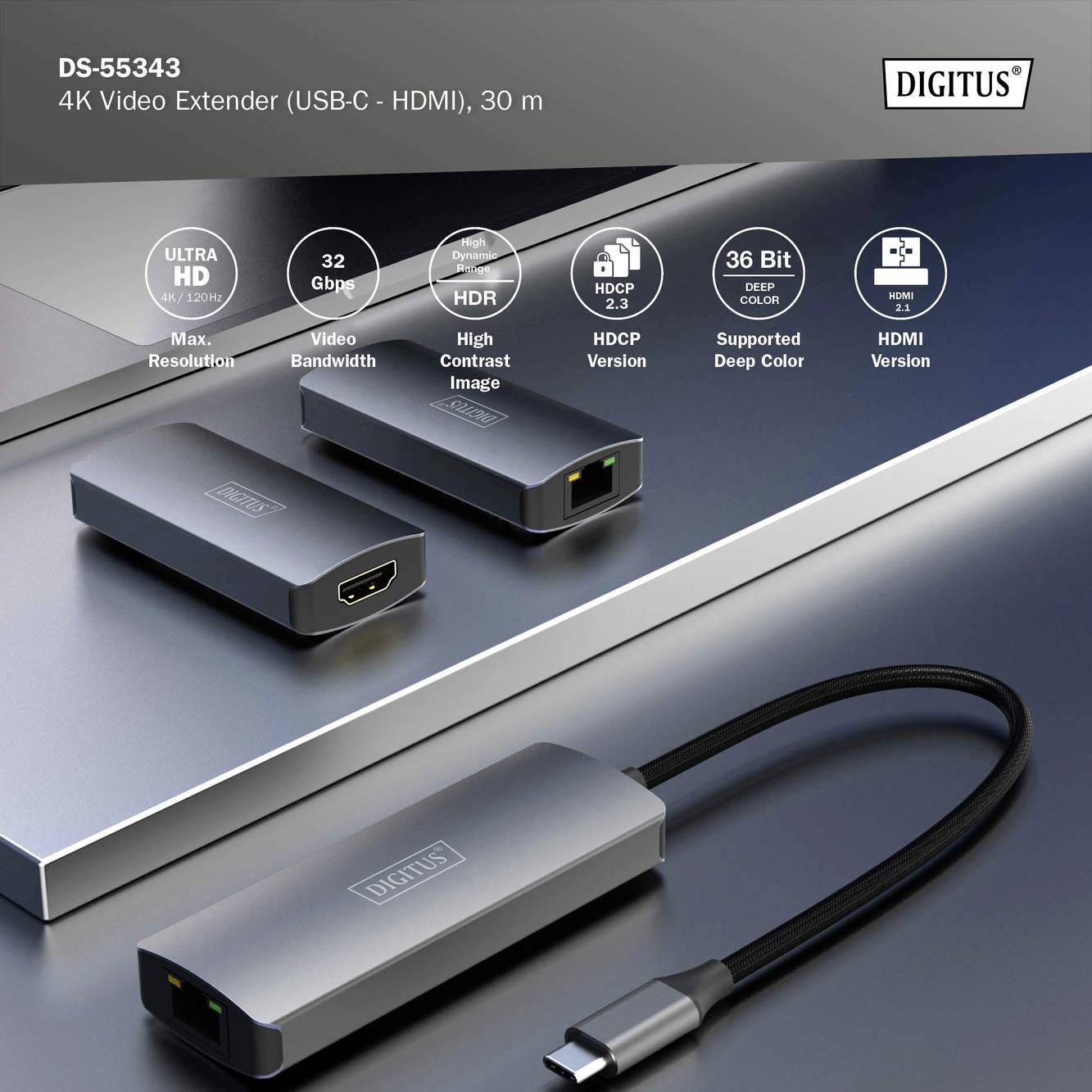

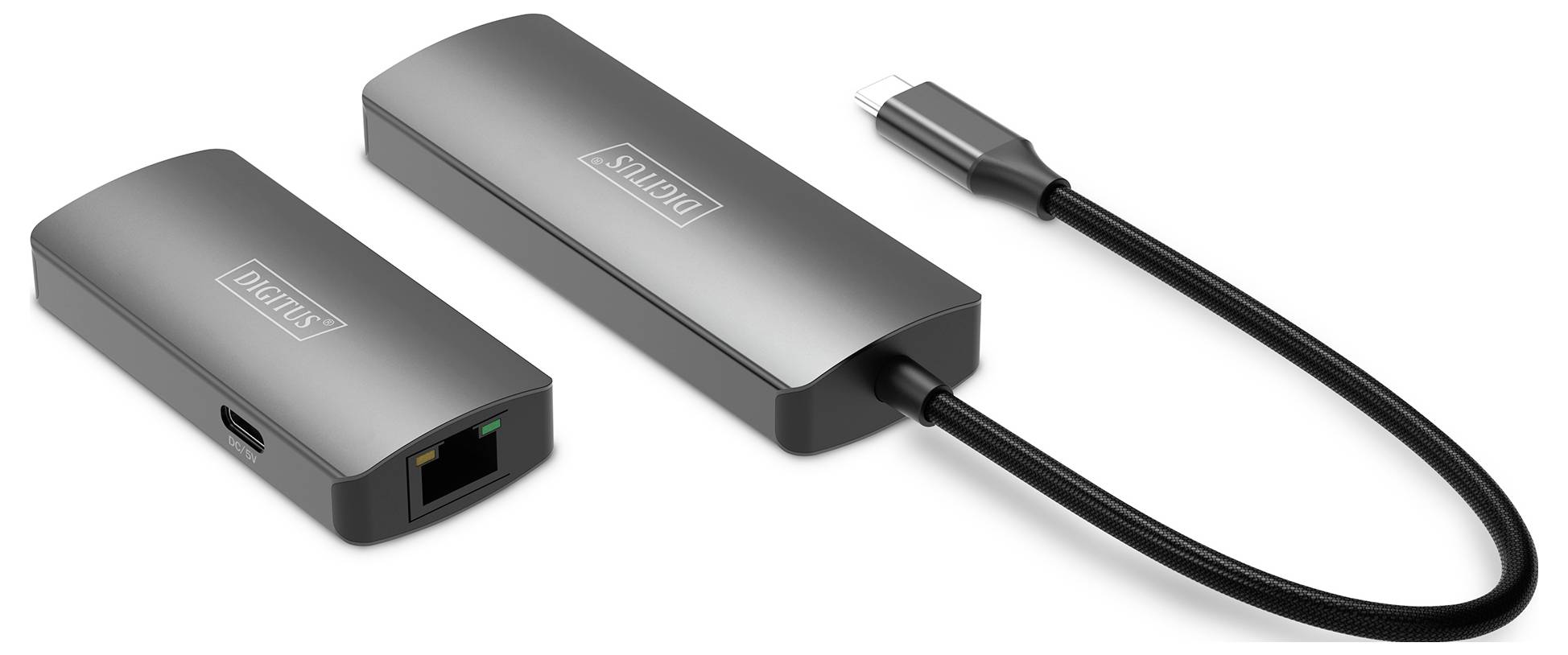

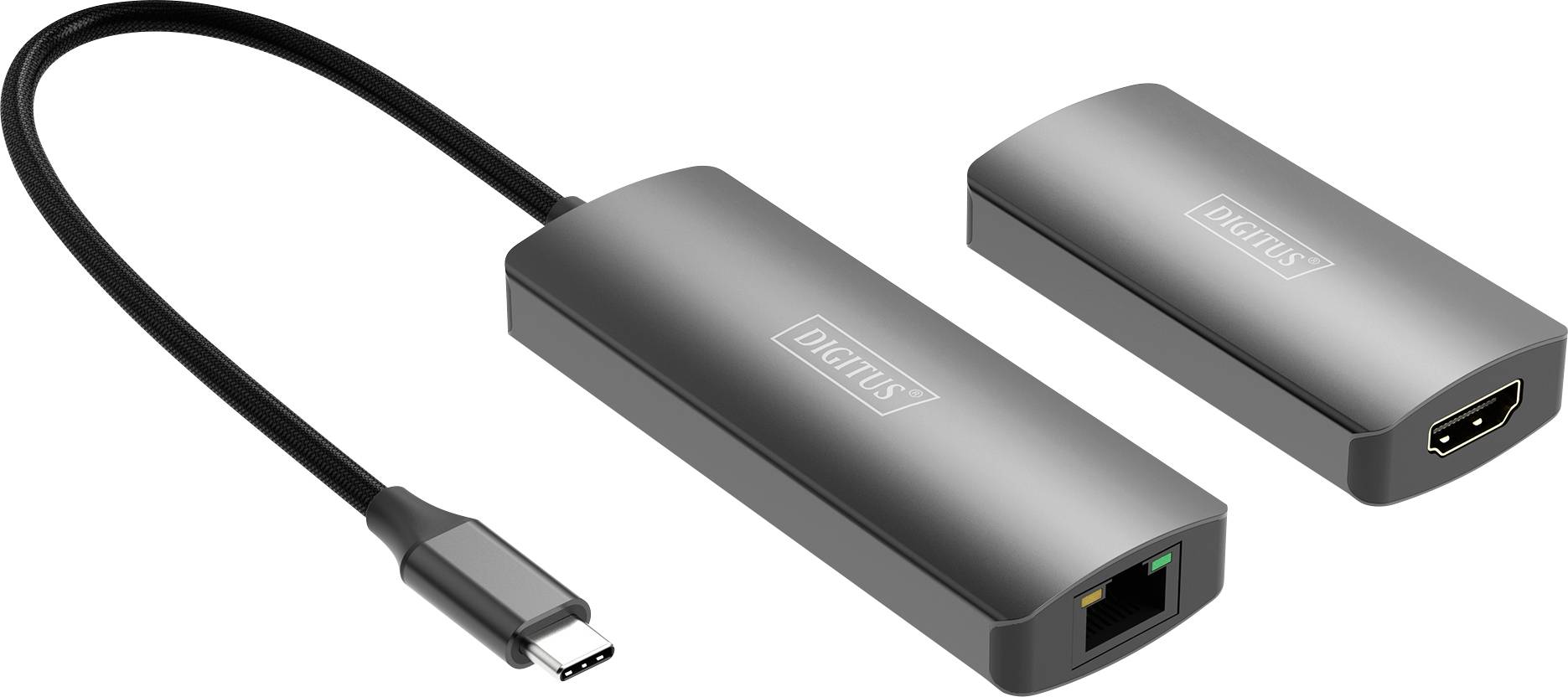

Digitus DS-55343 Video Extender Set, USB-C - HDMI, 4K/120Hz CAT6, 30 m
Highlights & Details
- Supports CAT 6 or higher network cable
- USB-C 3.1 - connection signal source
- HDMI 2.1 - Connection output display
- Supports high dynamic range (HDR)
- Supports HDCP 2.3
- Supports Deep Colour (36 bit)
- Power supply - transmitter via host, receiver via USB-C connection/cable (included)
Technical specifications
- Product type
Cable
- Transfer type
via RJ45 network cable
via data cable
- Interfaces (input)
USB A (USB 3.1 1st gen)
USB C®
- Interfaces (output)
HDMI® 2.1
- Resolution (max.)
3840 x 2160 p
- Range (max.)
30 m
- Factory colour
Black (matt)
- Weight
53 g
- Length
93.5 mm
- Width
34 mm
- Height
15 mm
- Dim
(L x W x H) 93.5 x 34 x 15 mm
- No. of outputs
1 x
- No. of inputs
1 x
- Supported monitors
1
- Power supply (LOV)
via USB
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3347387 Digitus DS-55343 USB A (USB 3.1 1st gen), USB C® Cable via RJ45 network cable, via data cable 30 m
Description

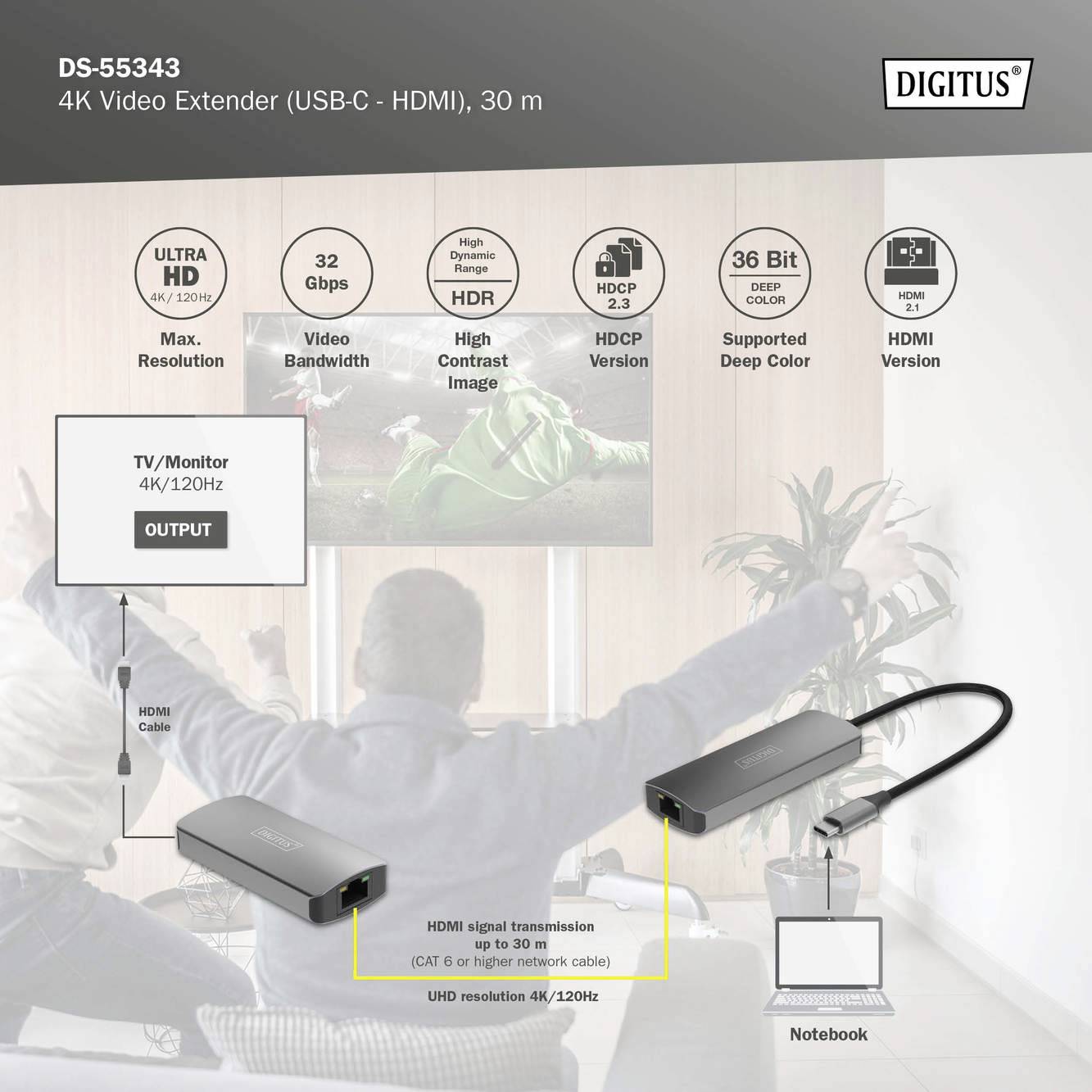

With our 4K video extender (USB-C - HDMI) you can expand your picture quality and range options. This extender enables seamless transfer of USB-C AV signals with breathtaking 4K resolution and an impressive picture refresh rate of up to 120Hz over a distance of up to 30 meters, all via a simple CAT cable. With a maximum transmission distance of 30 meters and the support for CAT 6 or higher network cables, our Extender offers a flexible solution for your AV-requirements, whether in the professional environment or in the private home-theater/gaming. The USB-C 3.1 port serves as a signal input, while the HDMI 2.1 port connects the output display. With a maximum resolution of 4K/120Hz (4:4:4) and a video bandwidth of 32 Gbps, our Extender delivers pin-sharp images and smooth movements for an unparalleled viewing experience. Thanks to the support of High Dynamic Range (HDR) and HDCP 2.3 you enjoy an extended color palette and an improved picture quality, while Deep Color (36 bit) provides for lively and precise color display.
This text is machine translated.
This text is machine translated.
Features
- Supports CAT 6 or higher network cable
- USB-C 3.1 - connection signal source
- HDMI 2.1 - Connection output display
- Supports high dynamic range (HDR)
- Supports HDCP 2.3
- Supports Deep Colour (36 bit)
- Power supply transmitter via host, receiver via USB-C cable (included)
- EDID and HDCP bypass
- Supports compressed (e.g. DTS, Dolby Digital, etc.) and uncompressed audio formats (e.g. LPCM, etc.)
- Digital Stream Conversation (DSC), compatible with DSC 1.2a
- 1x USB-C 3.1 - connection signal source
- 1x RJ45 - CAT 6 or higher
- 1x HDMI 2.1 - Connection output display
- 1x RJ45 - CAT 6 or higher
- Aluminium casing
- Colour, black
- HDTV standard ultra HD 4K
- Category: CAT 6
- KVM: No.
- Power over Ethernet (PoE): No.
- Transmission technology CAT
- HDMI video output
Scope of delivery
- Power cable (USB-A - USB-C), 0.95 m
- User manual
