Digitus DS-55345 4+2 ports HDMI switch LED display, + remote control, Ultra HD compatibility, Steel casing, individually
EAN:
Part number:
Item no:
Datasheet (PDF)
Digitus 4x2 HDMI matrix switch/multi-viewer, 4K/30Hz
Highlights & Details

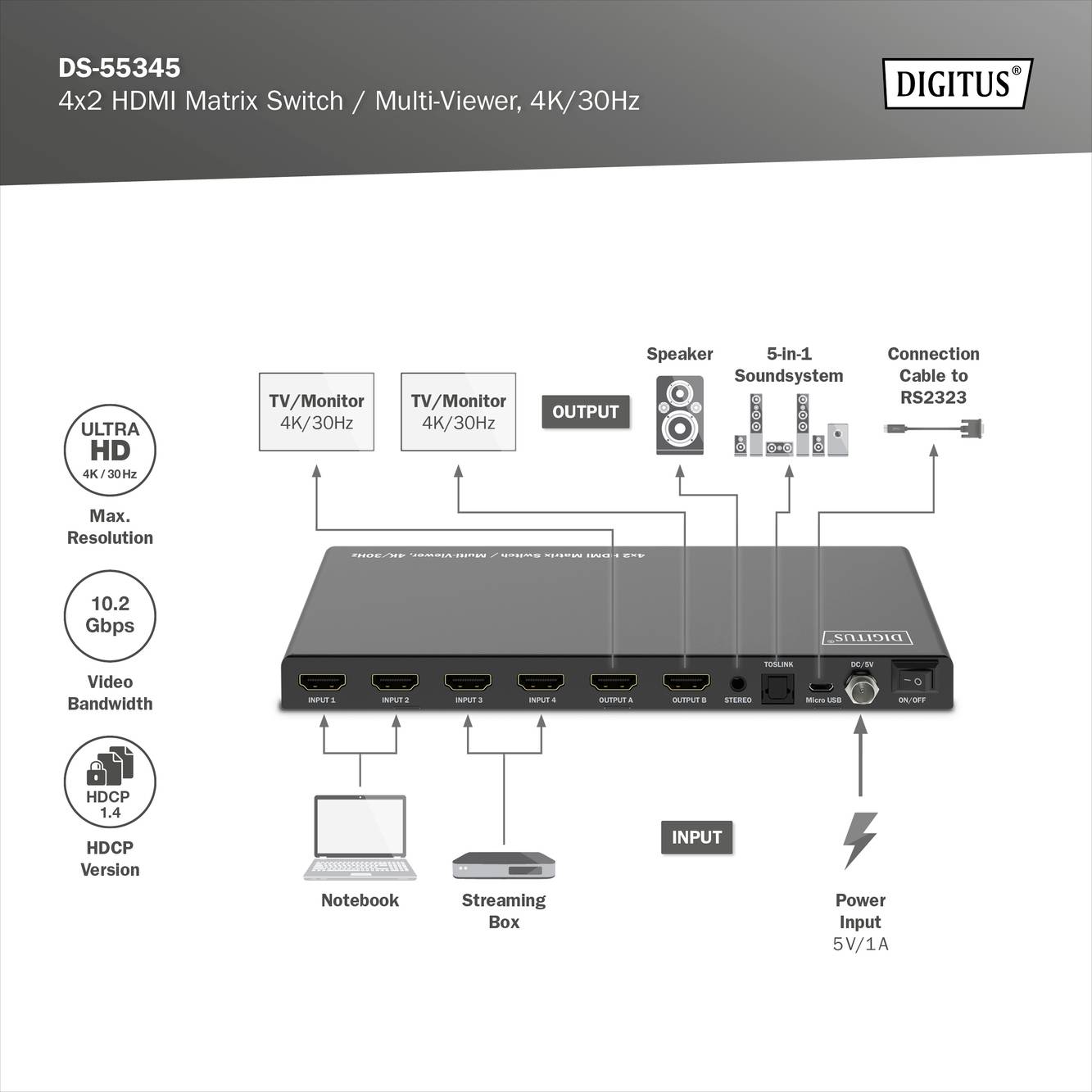

- Switching between up to 4 HDMI sources and 2 playback devices via remote control, the device itself or via RS232 control

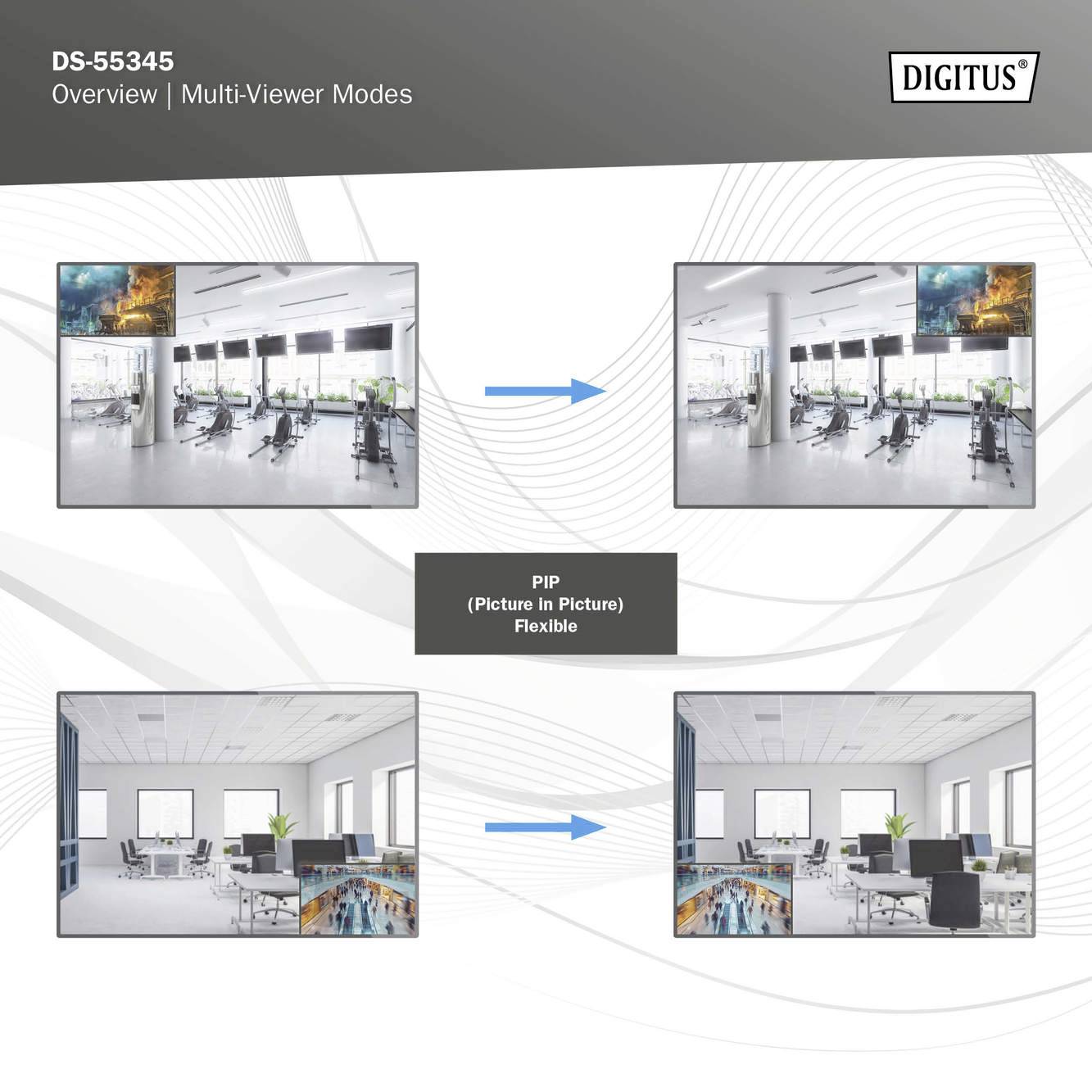

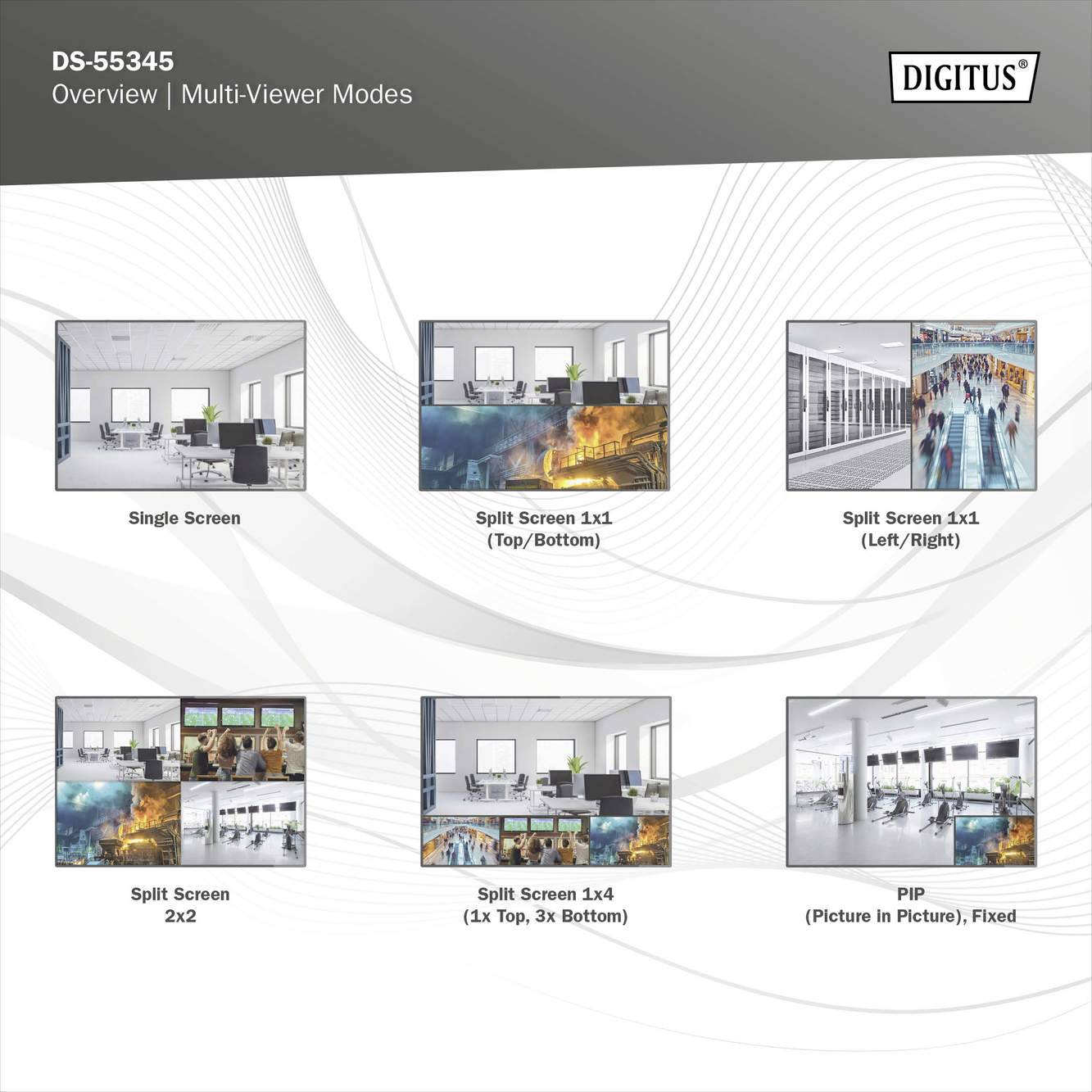

- Multi-Viewer: 6 modes for individual display of the sources at HDMI output A (primary) or at HDMI output A & B simultaneously (secondary) via remote control or at the device itself
- Audio extractor: Toslink/stereo (3.5 mm) – uncoupling/separate playback of the audio signal
- Max. 4K/30Hz resolution
- RS232 control via micro USB connection
- Scaler (switch) - adaptation of the HDMI output resolution (1080p, 1600p, 4K/30Hz)
- Separate on / off switch
- Video bandwidth 10.2 Gbps
- HDCP 1.4
- HDMI 1.4
Technical specifications
- Max. 4K/30Hz (3840 x 2160 pixels) resolution
- Video bandwidth 10.2 Gbps
- Operating temperature 0 -70°
- Power consumption: Approx. 5W
- Number of outputs: 2
- Number of inputs: 4

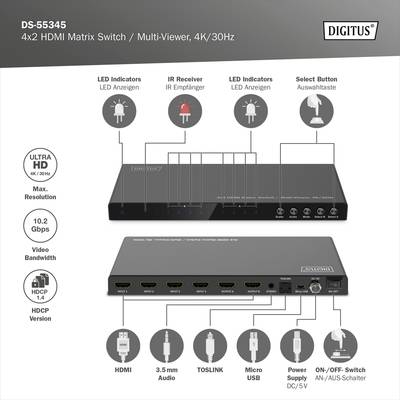

- Number of status LEDs: 9
- Number of switches: 5
- Product type
HDMI switch
- Supported monitors
4
- Interfaces (input)
HDMI™
HDMI® input
- Interfaces (output)
HDMI™
HDMI® output
- No. of inputs
4 x
- No. of outputs
2 x
- Switch function
Remote control
Automatic
Manual
- Resolution (max.)
3840 x 2160 p
- Distributor/switch features
LED display
+ remote control
Ultra HD compatibility
Steel casing
individually connectable
+ LED indicator lights
- Factory colour
Black
Black (metallic)
- Power supply (LOV)
via PSU
via USB
- Width
91 mm
- Height
18.5 mm
- Depth
214 mm
- Weight
450 g
- Resolutions (max.)
UHD 4K @ 60 Hz
- Port
4+2 ports
- Supported audio file formats
DTS
LPCM 2.0
LPCM 5.1
LPCM 7.1
Dolby-AC3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3333879 Digitus DS-55345 4+2 ports HDMI switch LED display, + remote control, Ultra HD compatibility, Steel casing, individually
User & Safety Instructions
User & Safety Instructions 3333879 Digitus DS-55345 4+2 ports HDMI switch LED display, + remote control, Ultra HD compatibility, Steel casing, individually
Description

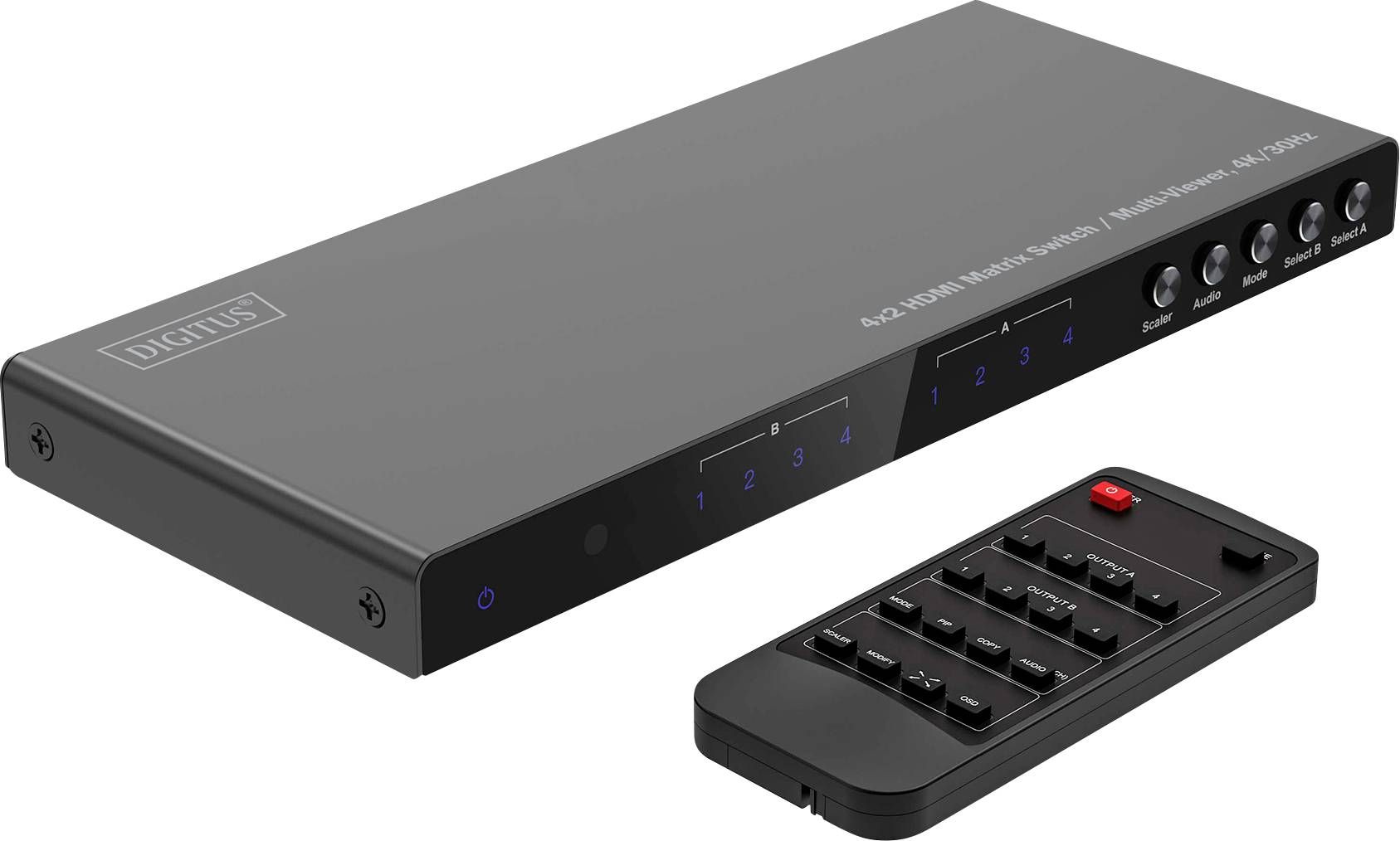

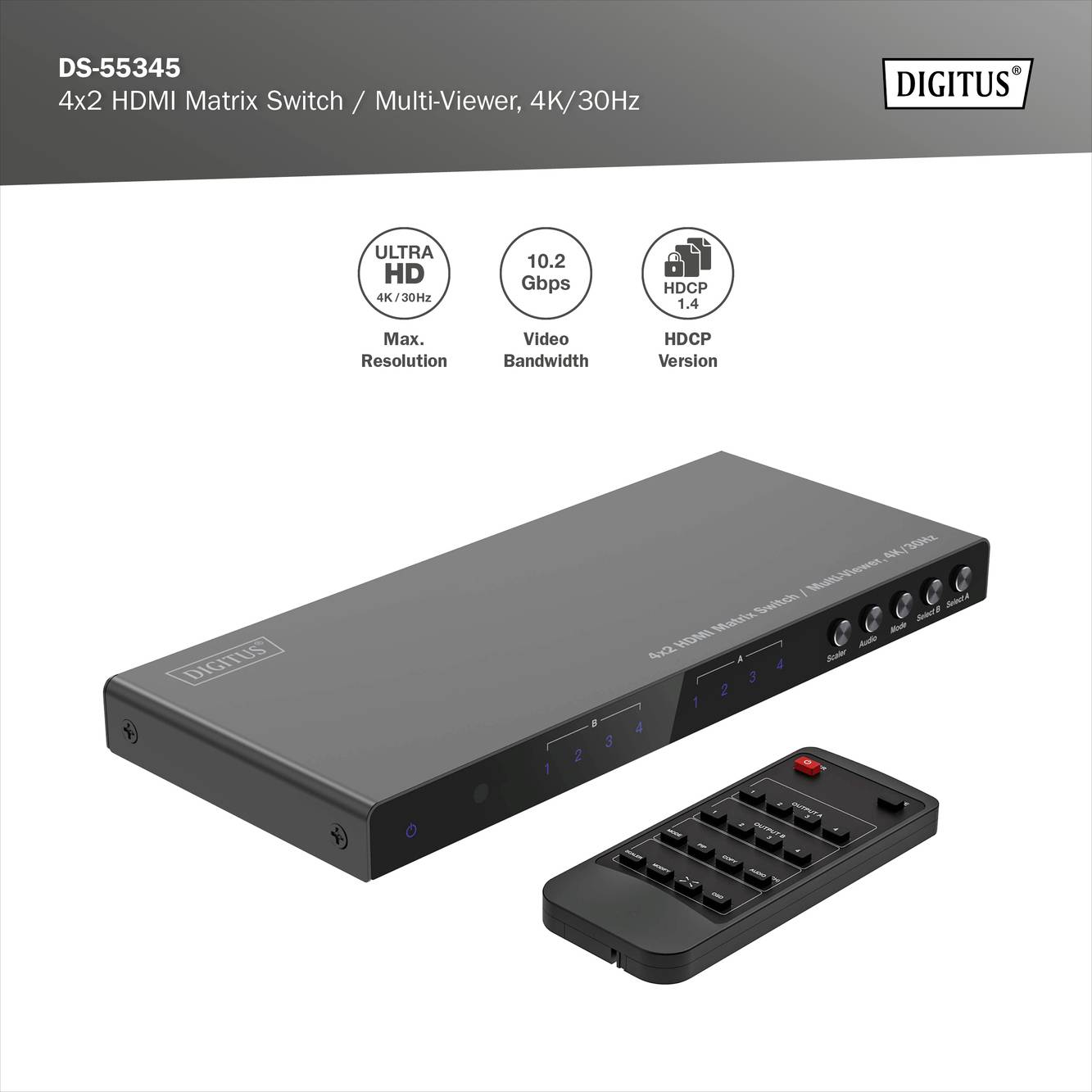

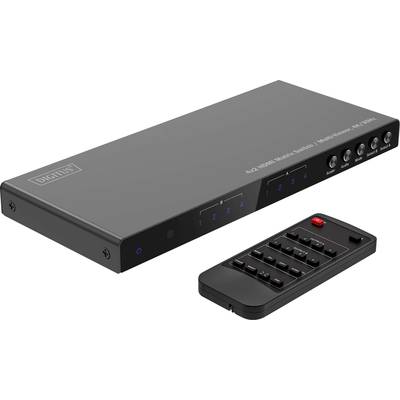

The Digitus® 4x2 HDMI matrix switch/quad multi viewer allows easy switching between up to 4 HDMI sources and 2 playback devices, and distribute your media content independently of each other. Conveniently switch between the signal sources via remote control, on the device itself or via RS232 control. The multi viewer function offers 6 modes for individual display of the sources (split-screen, PIP) at output A or A & B parallel. Similarly, audio signals can be decoupled via Toslink or 3.5 mm stereo connection and played back separately. Supports resolutions of up to 4K/30Hz. The HDMI output resolution can be individually adjusted using a scaler.
This text is machine translated.
This text is machine translated.
Features
- Switching between up to 4 HDMI sources and 2 playback devices via remote control, the device itself or via RS232 control
- Multi-Viewer: 6 modes for individual display of the sources at HDMI output A (primary) or at HDMI output A & B simultaneously (secondary)
- Audio extractor: Toslink/stereo (3.5 mm) – uncoupling/separate playback of the audio signal
- RS232 control via micro USB connection
- Scaler (switch) - adaptation of the HDMI output resolution (1080p, 1600p, 4K/30Hz)
- Separate on / off switch
- HDCP 1.4
- HDMI 1.4
- Colour, black
- HDTV standard ultra HD 4K
- Signal output HDMI
- Signal input: HDMI
- HDMI video output
Scope of delivery
- 1x remote control
- 1x power supply (5V/1A, 1.2 m) with screw connector
- 1x QIG
