Digitus DS-55347 HDMI receiver 100 m 5 GHz 1920 x 1080 Pixel built-in LED display, with loop function, Secure wireless t
EAN:
Part number:
Item no:
Highlights & Details

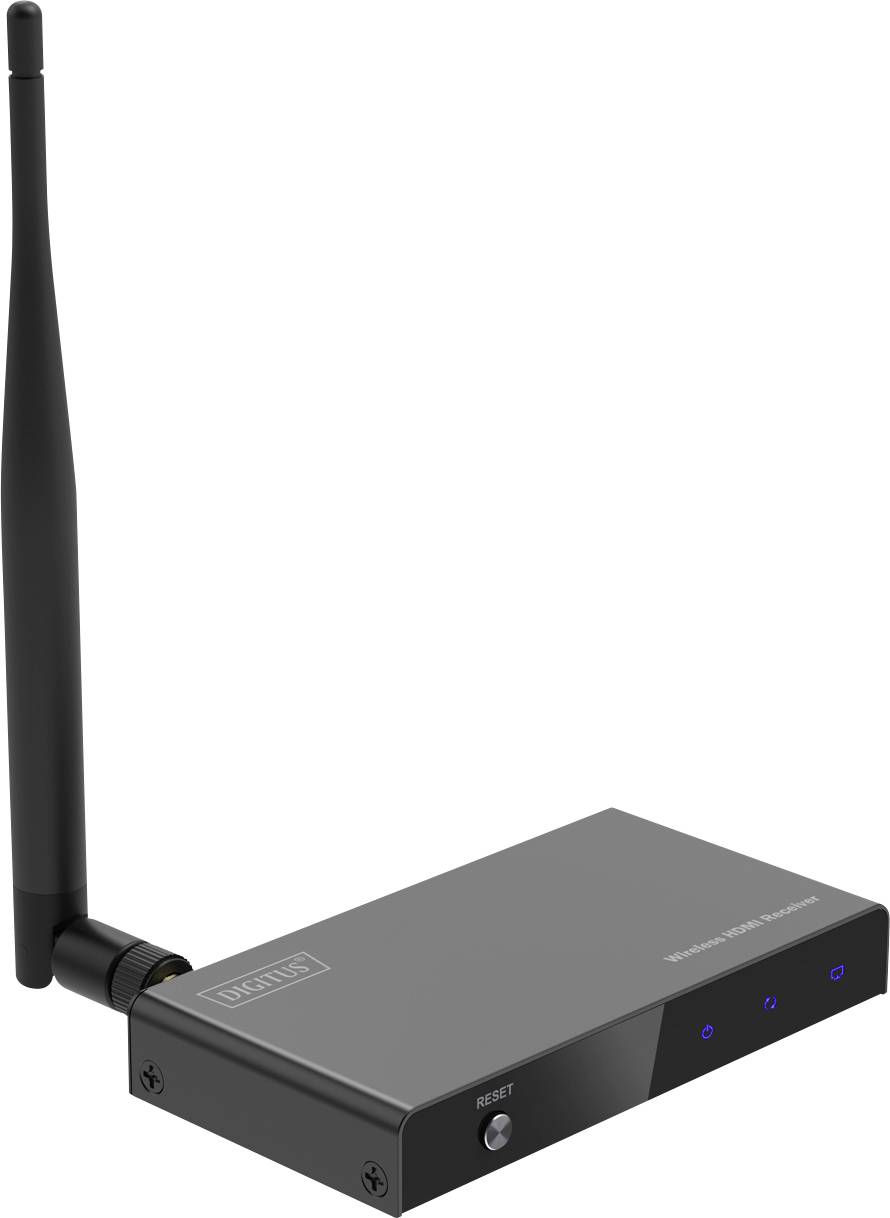

Digitus wireless HDMI receiver for DS-55346
- Extends the Wireless HDMI Extender / Splitter Set (DS-55346) to further receiver units
- Distribute your HDMI signal to up to 4 displays (receiver)
- Transmission of HDMI signals in Full HD with max. Resolution of 1080p / 60 Hz
- IR transmission for controlling the source device from the output display
- Plug & Play - no software or drivers needed
- HDMI 1.4, HDCP 1.3
Technical specifications
- Transmission of HDMI signals in Full HD with max. Resolution of 1080p / 60 Hz
- Transmission distance 1:1 connection: Up to 100 m (unrestricted view)
- Transmission distance 1:2 connection: Up to 60 m (unrestricted view)
- Transmission distance 1:3 connection: Up to 45 m (unrestricted view)
- Transmission distance 1:4 connection: Up to 25 m (unrestricted view)
- Frequency: 5 GHz
- HDMI 6.75 Gbps transfer rate
- Transfer latency 150 - 200 ms
- Operating temperature: 0°C to 50°C
- Power consumption approx. 1.5 W
- Dimensions: L 11.8 x W 6.35 x H 1.8 cm
- Receiver weight 170 g
- HDTV resolution max. 1920 x 1080 Pixel, 60Hz
- HDMI video output
- Product type
HDMI receiver
- Frequency
5 GHz
- Interfaces (input)
Infrared
- Interfaces (output)
HDMI™
- Video resolution
1920 x 1080 Pixel
- Features
built-in LED display
with loop function
Secure wireless transmission
- Range (max.)
100 m
- Factory colour
Black
- Weight
0.411 kg
- Power supply (LOV)
via mains outlet
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3333870 Digitus DS-55347 HDMI receiver 100 m 5 GHz 1920 x 1080 Pixel built-in LED display, with loop function, Secure wireless t
Description

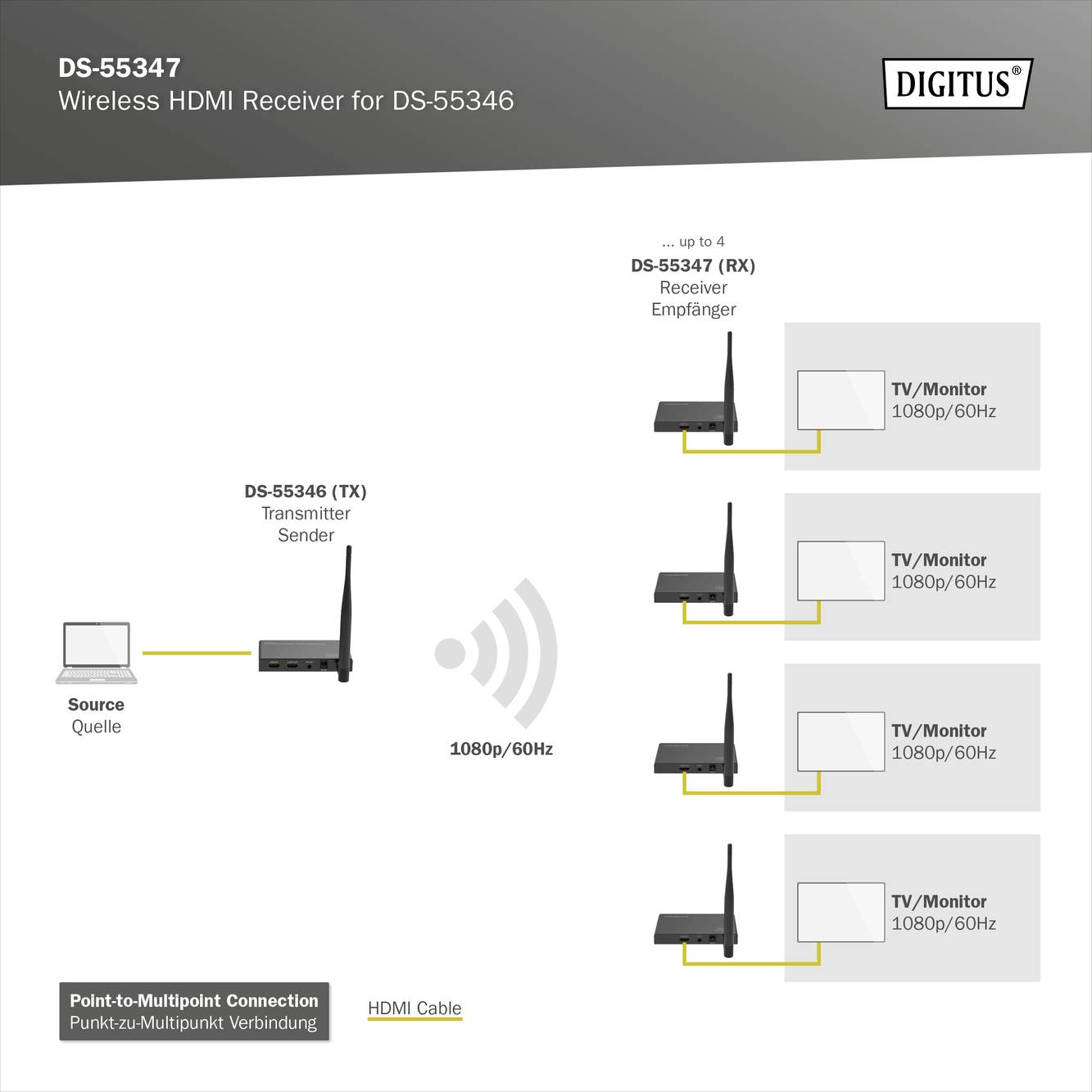

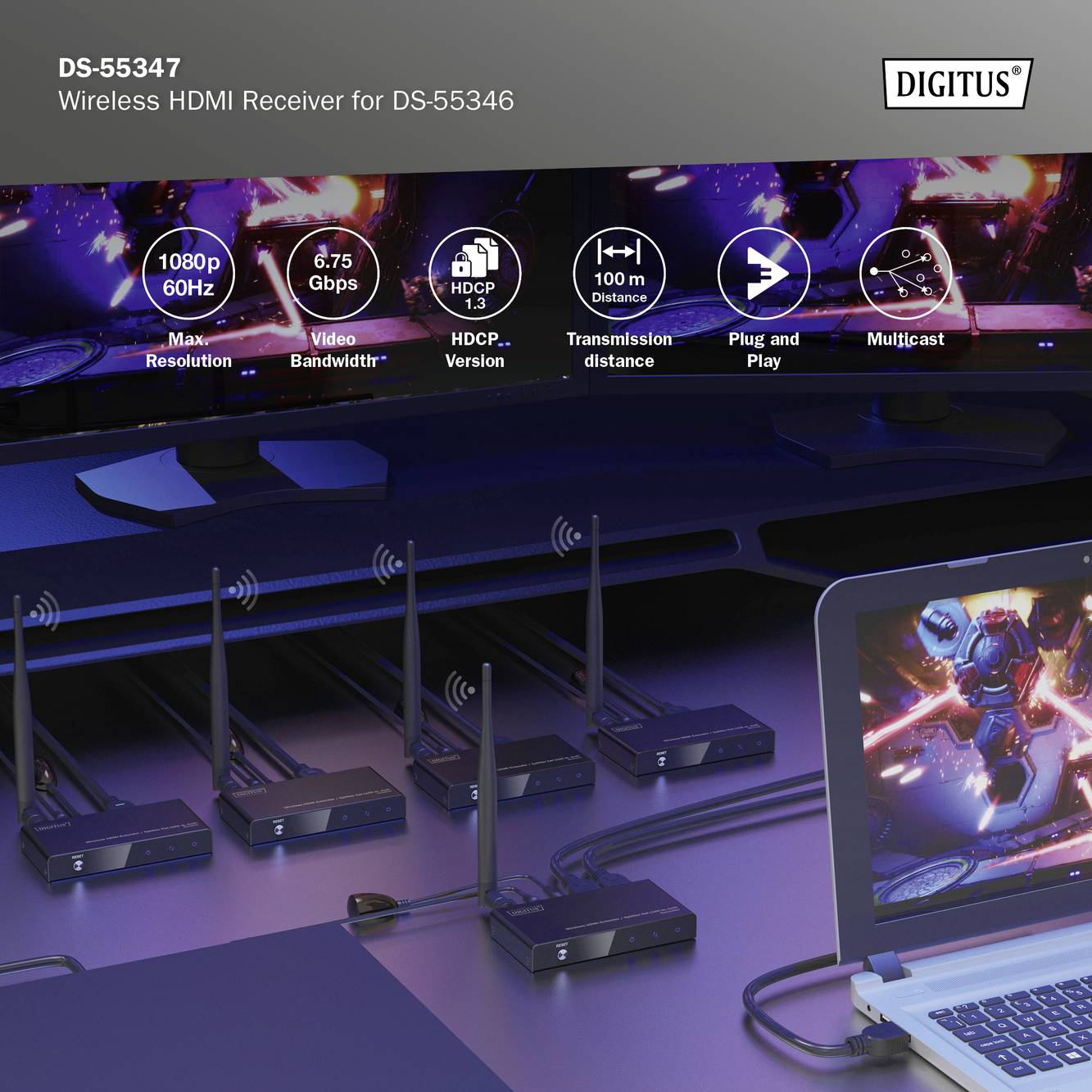

The additional receiver unit for the wireless HDMI extender / splitter set (DS-55346) supplements this multicast system by up to 4 reception modules and receives your high-resolution HDMI video and audio signals wirelessly at a distance of up to 100 m (1:1 connection, unrestricted view). Distribute your media contents quickly and easily on up to 4 displays.
This text is machine translated.
This text is machine translated.
Features
- Distribute your HDMI signal to up to 4 displays (receiver)
- Transmission of HDMI signals in Full HD with max. Resolution of 1080p / 60 Hz
- IR transmission for controlling the source device from the output display
- Plug & Play - no software or drivers needed
- HDMI 1.4, HDCP 1.3
- Transmission distance 1:1 connection: Up to 100 m (unrestricted view)
- Transmission distance 1:2 connection: Up to 60 m (unrestricted view)
- Transmission distance 1:3 connection: Up to 45 m (unrestricted view)
- Transmission distance 1:4 connection: Up to 25 m (unrestricted view)
- Frequency: 5 GHz
- Wireless standard 802.11a
- HDMI 6.75 Gbps transfer rate
- Compression: H.264
- Transfer latency 150 - 200 ms

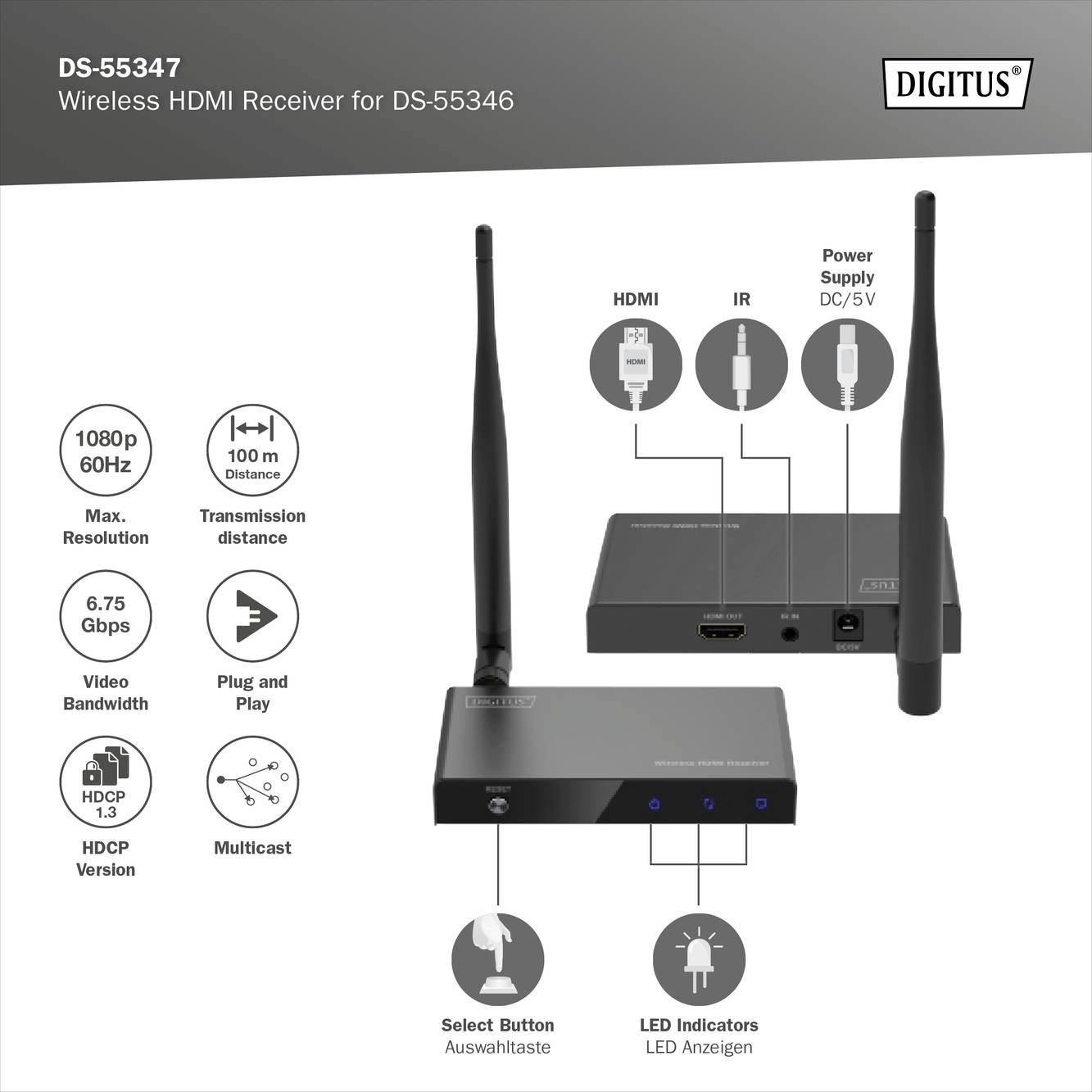

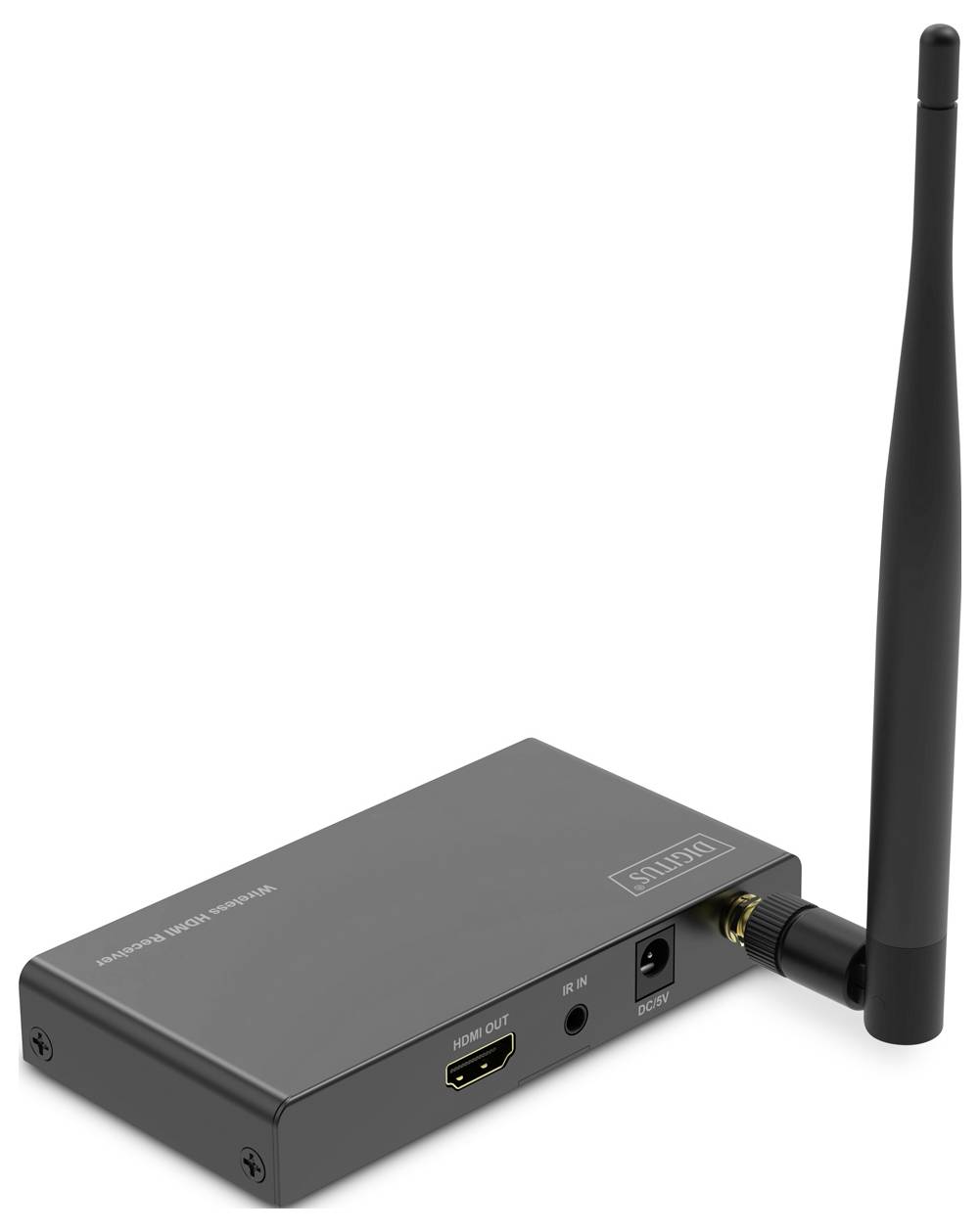

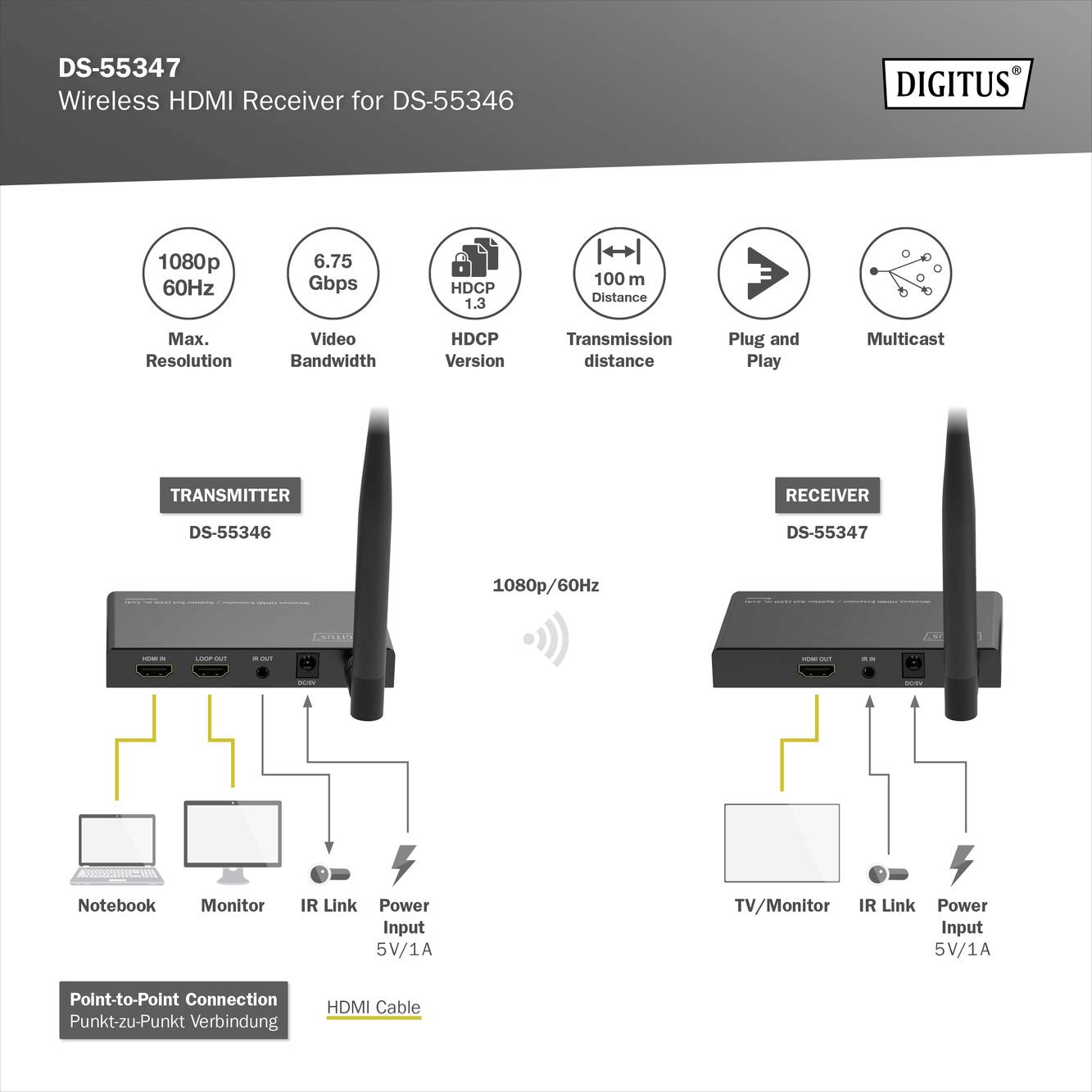

- Connections receiver:
- 1 x HDMI (output) - connection output display
- 1 x IR (input) - connection IR cable
- 1x power supply (DC/5V)
- 1 x reset button
- LED-displays: Power / link / status
- Operating temperature: 0°C to 50°C
- Power consumption approx. 1.5 W
- Dimensions: L 11.8 x W 6.35 x H 1.8 cm
- Colour, black
- Receiver weight 170 g
- Case material: Metal
- Note: The transmission distance with restricted visibility cannot be determined as a lump sum and depends on the circumstances on the spot
- Note: Walls, glass, etc. reduce the signal cover or cause signal loss
- HDTV resolution max. 1920 x 1080 Pixel, 60Hz
- HDTV standard:1080p
- KVM: No.
- Power over Ethernet (PoE): No.
- HDMI video output
Scope of delivery
- 1x Antenna
- 1x power supply, cable length 1.2 m
- 1x IR-connection cable, 1.2 m
- 1x user manual
