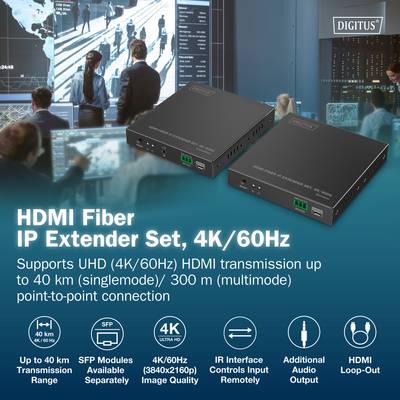

Digitus DS-55350 HDMI™, HDMI® input, HDMI® output, SFP, PSU connector, RS232, Micro USB, Headphone jack (3.5 mm) HDMI extender via FO cable 40000 m
Highlights & Details

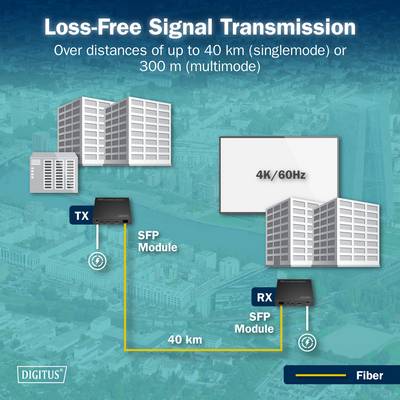

- High range: AV signal transmission via fiber optic cable – single mode up to 40 km, multi-mode up to 300 m – point-to-point connection

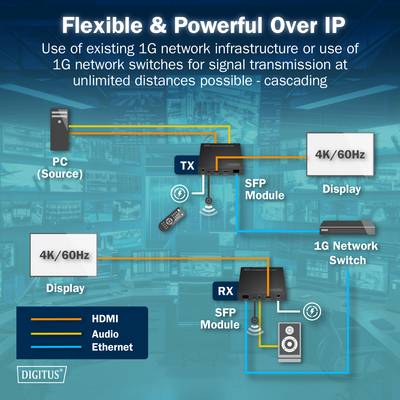

- Flexible & powerful via IP: Use of existing 1G network infrastructure or use 1G network switches for signal transmission in an unlimited distance possible - Cascading
- SFP-Modules available separately (not included) - LC Singlemode (SM): DN-81002, LC Multimode (MM): DN-81000
- Wide compatibility: Supports LC & SC SFP modules, single-mode and multimode fiber optic cables
- Excellent picture quality: Transfer in UHD of up to 4K/60Hz (3840x2160p) with low latency of 80-140 ms
- Additional audio output: 3.5 mm stereo port for a separate audio transmission
- HDMI loop-out: Connect a local monitor to the transmitter unit (TX)
- IR interface allows remote control of the input source from the output screen
Technical specifications
- Max. Resolution ultra HD 4K/60Hz (3840×2160p)
- Max. Range: Single mode (SM) up to 40 km, multi-mode (MM) up to 300 m.
- Max. Video bandwidth 18 Gbps
- Latency 80–140 ms
- Max. HDMI cable length 5 m
- Operating temperature: -10 °C to + +50 °C.
- Power consumption: TX approx. 7.5 W, RX approx. 7.5 W
- Dimensions (per unit) 10.6 × 10.3 × 2.6 cm
- Weight TX 290 g, RX 286 g
- Product type
HDMI extender
- Transfer type
via FO cable

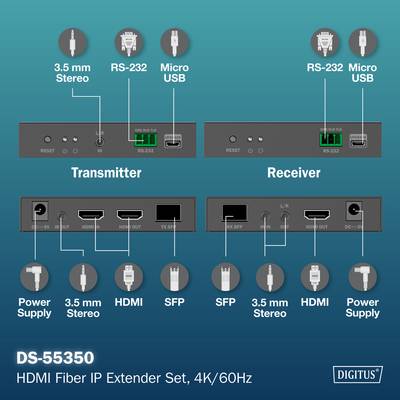

- Interfaces (input)
HDMI™
HDMI® input
HDMI® output
SFP
PSU connector
RS232
Micro USB
Headphone jack (3.5 mm)
- Interfaces (output)
HDMI™
HDMI® output
SFP
PSU connector
RS232
Micro USB
Headphone jack (3.5 mm)
- Features
built-in LED display
- Resolution (max.)
3840 x 2160 p
- Range (max.)
40000 m
- Factory colour
Black
- No. of outputs
1 x
- No. of inputs
1 x
- Supported monitors
1
- Power supply (LOV)
via PSU
Documents & Downloads
Datasheet
Datasheet 3462079 Digitus DS-55350 HDMI™, HDMI® input, HDMI® output, SFP, PSU connector, RS232, Micro USB, Headphone jack (3.5 mm) HDMI ex
User & Safety Instructions
User & Safety Instructions 3462079 Digitus DS-55350 HDMI™, HDMI® input, HDMI® output, SFP, PSU connector, RS232, Micro USB, Headphone jack (3.5 mm) HDMI ex
Description
The HDMI fiber IP extender set, 4K/60Hz is the ideal solution for high-quality HDMI signal transmission over great distances. It enables 4K/60Hz (3840x2160p) UHD signals to be transferred with minimum latency of only 80–140 ms, delivering crisp, clear image quality with virtually no delay. Thanks to modern fiber optic technology, the system achieves a maximum transmission distance of up to 40 km in single mode or up to 300 m in multimode mode, making it perfect for professional AV installations. By using existing 1G network infrastructures or additional 1G network switches, the extender set enables a flexible and powerful signal transmission. In addition, the range can be expanded as required by cascading, which enables unlimited distances. For added flexibility, the system is compatible with LC & SC SFP modules as well as single-mode and multimode fiber optic cables. Suitable SFP-modules are available separately (Singlemode: DN-81002, Multimode: DN-81000). In addition to the excellent picture quality, the extender set also offers a separate audio output via a 3.5-mm stereo connection, WAS enables a flexible sound transmission. An HDMI loop-out allows the connection of a local monitor directly to the transmitter unit (TX), while the integrated IR-interface enables a remote control of the input source from the output screen. With its high range, excellent picture quality and versatile expansion options, the HDMI Fibre IP Extender Set is the perfect choice for professional applications such as conference rooms, control centers, digital signage, broadcast studios.
This text is machine translated.
This text is machine translated.
Features
- Supports HDMI 2.0
- Supports HDCP 2.2 / 1.4
- Suitable for wall mounting
- Protection against: Short circuit, overvoltage, ESD
Scope of delivery
- 1x transmitter unit
- 1x receiver unit
- 2x power supply, EU plug (DC 5V/2A, 1.2 m)
- 2x IR cable/extension (1.0 m)
- 1x attachment material wall mounting brackets, screws)
- 2 x RS232 terminal Block
- 2x ground screws
- 1x user manual
