Digitus DS-55352 HDMI™, HDMI® input, USB, USB type A, USB A (USB 1.1), RJ45, Micro USB HDMI receiver via RJ45 network ca
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 1 Piece(s) available

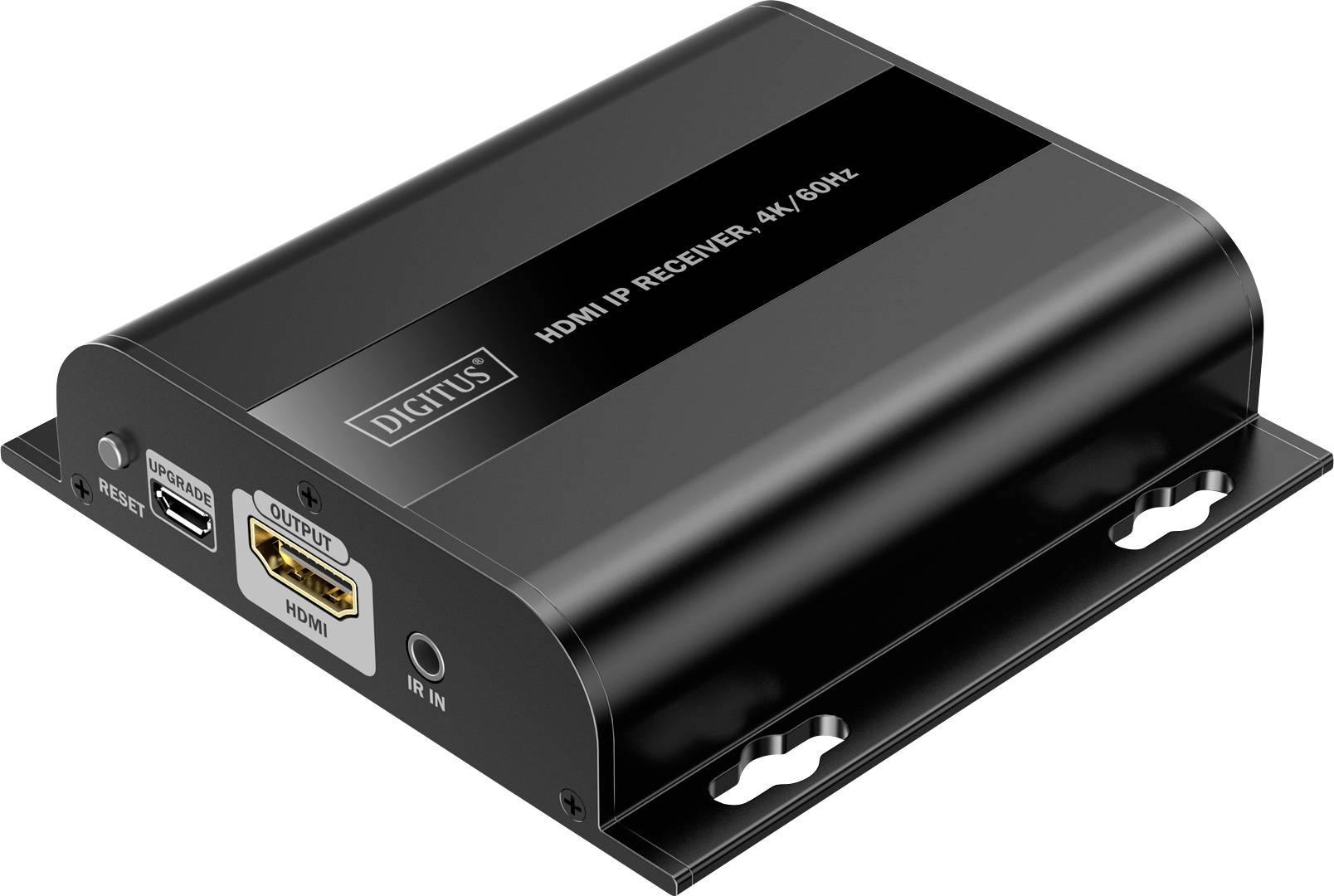

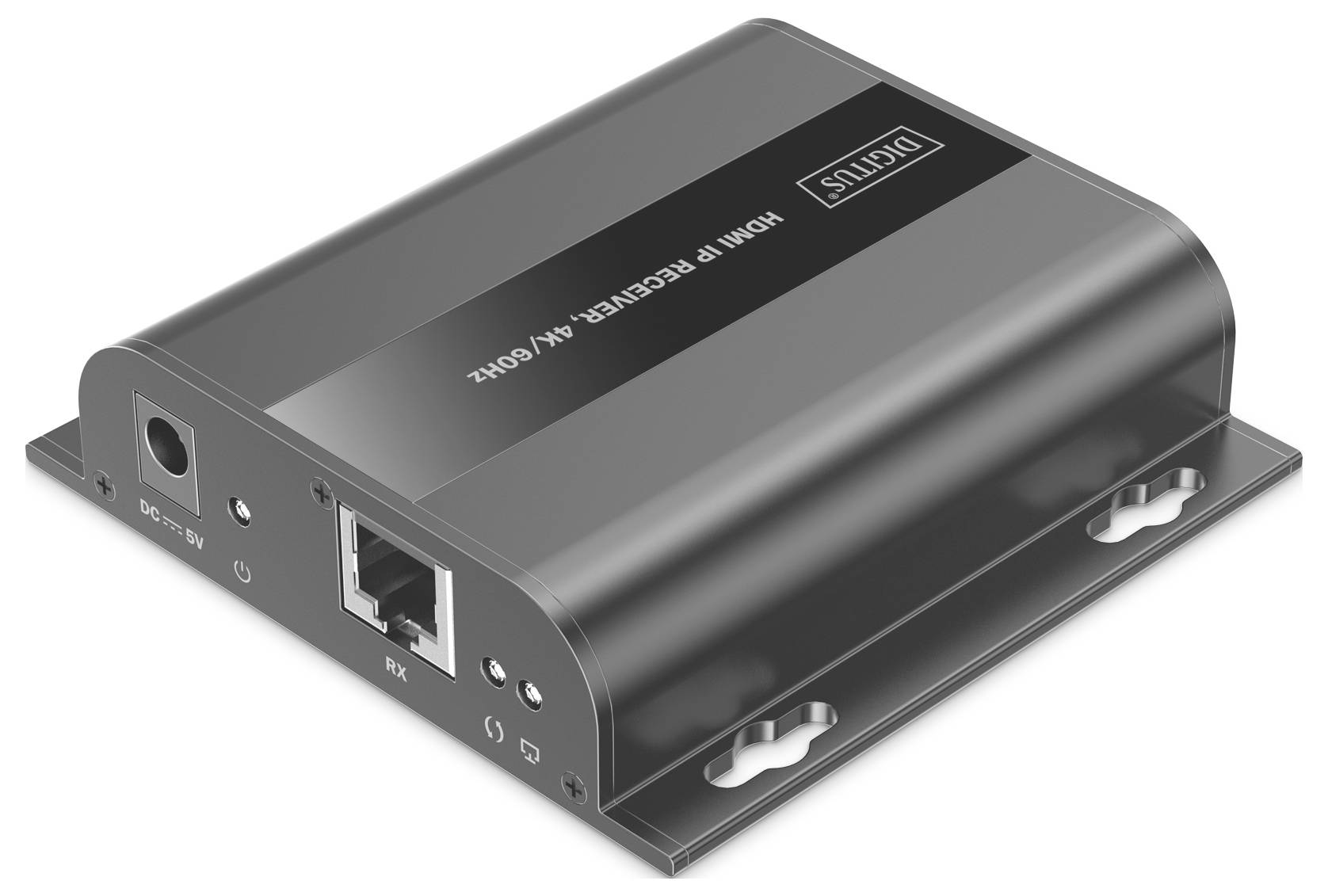

Digitus HDMI IP receiver, 4K/60Hz
Highlights & Details

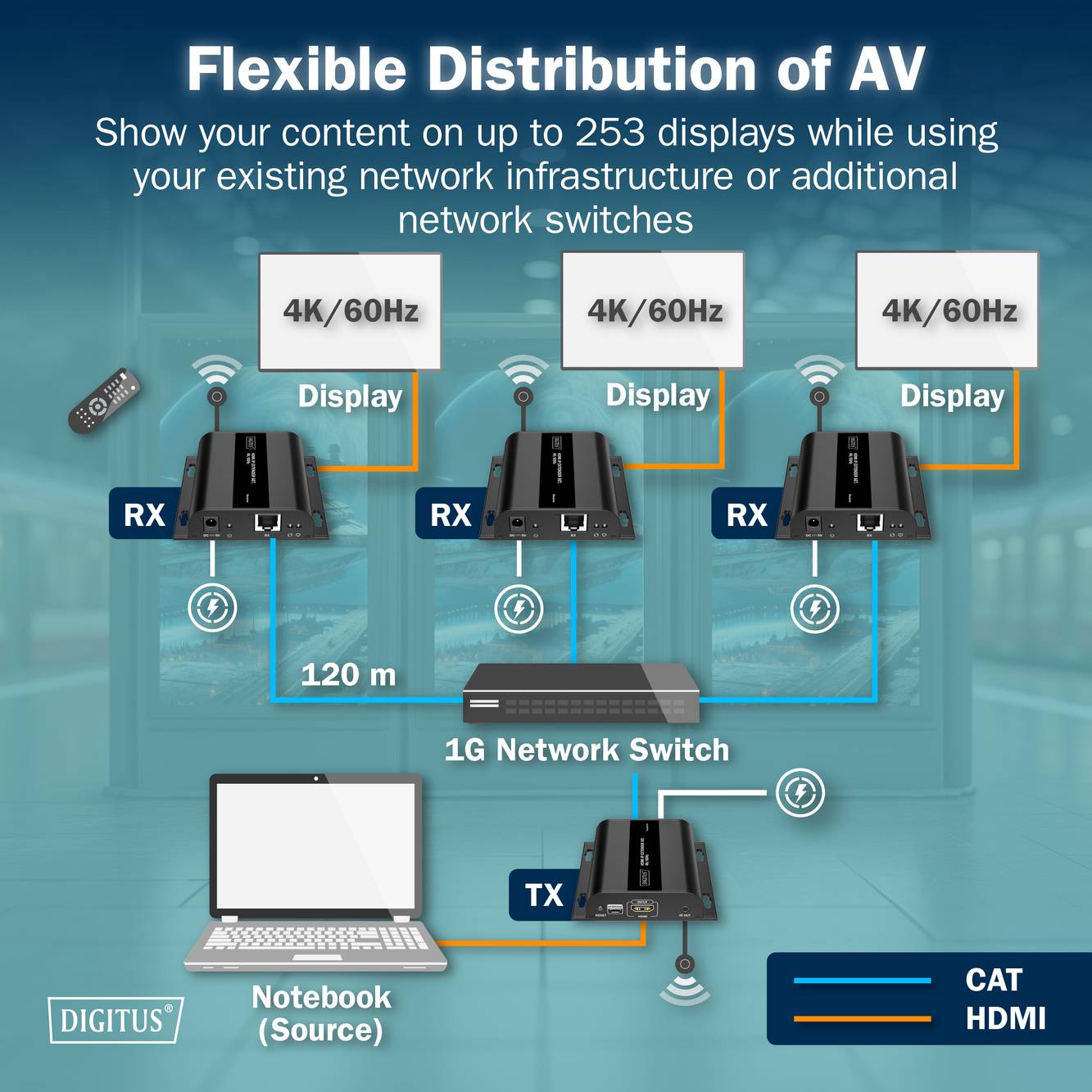

- Can be extended via IP: Extend the HDMI IP Extender Set (DS-55351) to up to 253 receivers (displays) - point-to-multipoint connection
- Flexible & powerful via IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission in an unlimited distance possible - Cascading
- Excellent picture quality: Transfer in UHD of up to 4K/60Hz (4096 x 2160p) with low latency of 150-220 ms
- IR interface allows remote control of the input source from the output screen
- Supports CAT6 (or higher) network cable
- Suitable for wall mounting
Technical specifications
- Max. Resolution ultra HD 4K/60Hz (4096 × 2160p)

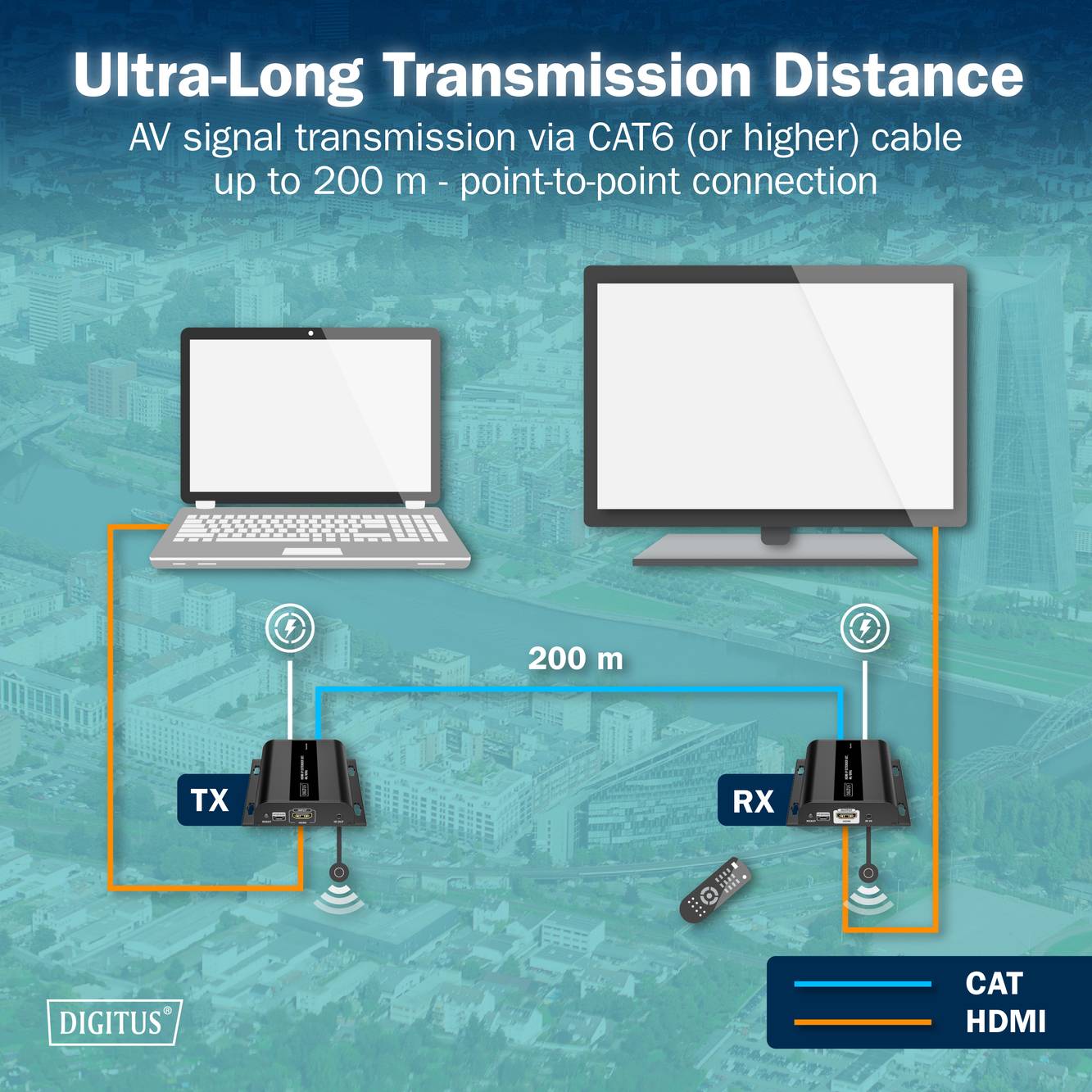

- Max. Range point-to-multipoint: 120 m
- Max. Cascading range per distance: 120 m.
- Max. Video bandwidth 18 Gbps
- Latency: 150–220 ms (4K/60Hz), 80–130 ms (full HD)
- Max. HDMI cable length 5 m
- Extension: Up to 253 receiver units
- Operating temperature: -20 °C to +60°C
- Power consumption: TX approx. 3.5 W, RX approx. 2.5 W
- Dimensions 9.7 × 9.4 × 2.4 cm
- Weight: 154 g
- Product type
HDMI receiver
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
HDMI® input
USB
USB type A
USB A (USB 1.1)
RJ45
Micro USB
- Interfaces (output)
HDMI™
HDMI® input
USB
USB type A
USB A (USB 1.1)
RJ45
Micro USB
- Features
built-in LED display
- Resolution (max.)
4096 x 2160 p
- Range (max.)
200 m
- Factory colour
Black
- Weight
0.38 kg
- No. of outputs
1 x
- No. of inputs
1 x
- Supported monitors
1
- Power supply (LOV)
via PSU
- Type A
HDMI plug
- Type B
HDMI plug
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3462072 Digitus DS-55352 HDMI™, HDMI® input, USB, USB type A, USB A (USB 1.1), RJ45, Micro USB HDMI receiver via RJ45 network ca
Description
Expand your existing HDMI IP Extender set (DS-55351) with additional receiver units and bring your AV-contents to up to 253 displays simultaneously - Ideal for digital signage, conference rooms or extensive presentations. With IP-based signal transmission over an existing 1G network infrastructure or additional 1G network switches, you can distribute content flexibly and over unlimited distances. Cascading provides maximum scalability and easy integration into your system. Enjoy pin-sharp images in UHD resolution of up to 4K/60Hz (4096 x 2160p) with a minimum latency of just 150-220 ms. The integrated IR interface allows remote control of the input source directly from the output screen, allowing you to manage your content easily. For a stable and reliable connection we recommend the use of CAT6 or higher-quality network cables. In addition, the receiver is suitable for wall mounting, so that a space-saving installation is possible. Increase the efficiency of your AV solution with the HDMI IP Receiver 4K/60Hz for impressive picture quality and maximum flexibility.
This text is machine translated.
This text is machine translated.
Features
- Supports CAT6 or higher network cable
- HDMI 2.0
- HDCP 2.2 / 1.4
- Suitable for wall mounting
- Protection against: Short circuit, overvoltage, ESD

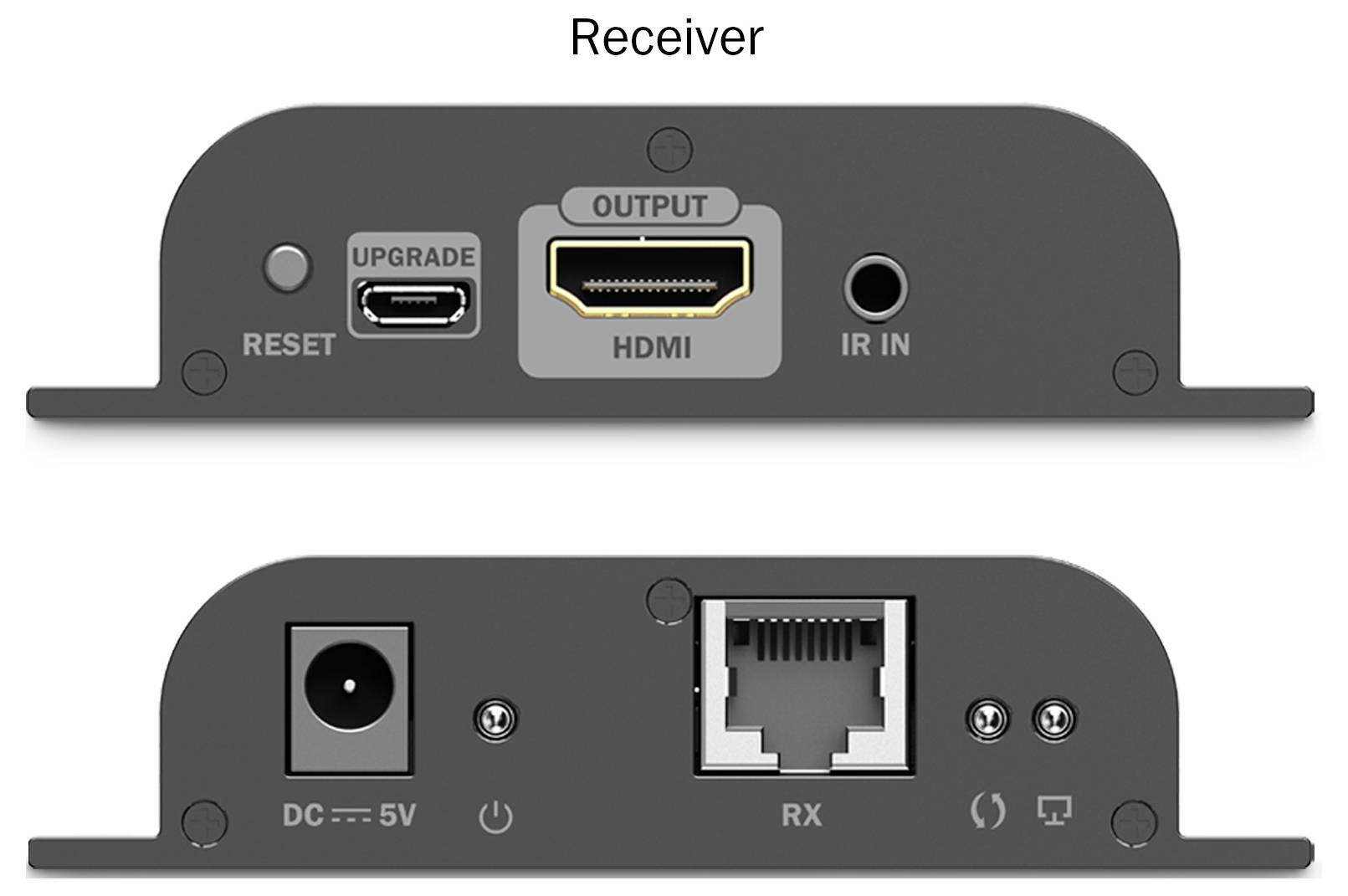

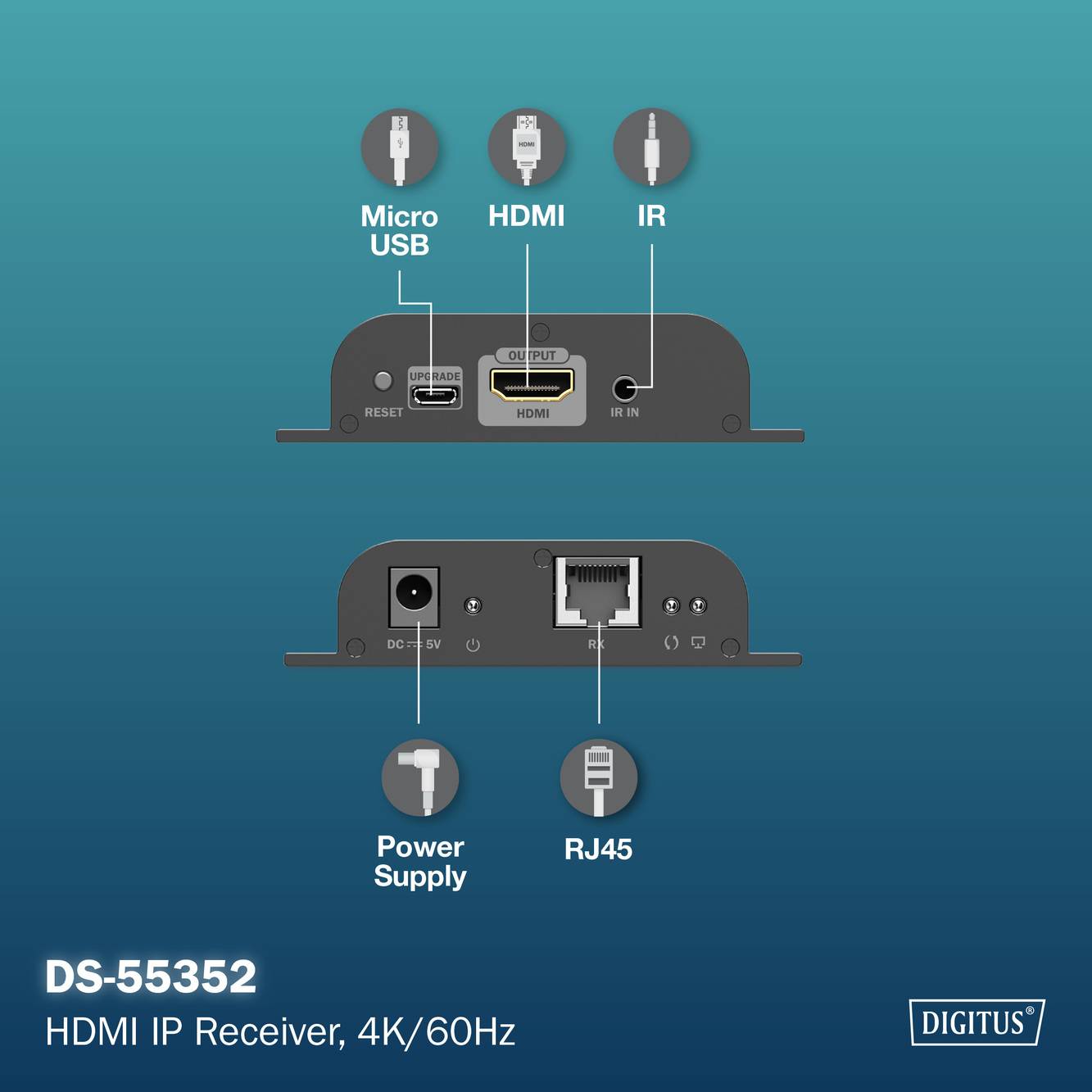

- Receiver unit connections (RX):
- 1 × HDMI output (4K/60Hz) – display
- 1 × RJ45 input (Gigabit Ethernet) – CAT transmission cable
- 1 × IR input – transmission of IR signal
- 1 × power supply connection (DC 5V/1A) - external mains adapter
- 1 × Micro USB – FW update port
- 1 × Reset button
- 3 × Status LED
- Housing: metal
- Colour, black
Scope of delivery
- 1x receiver unit
- 1x power supply, EU plug (DC 5V/1A, 1.5 m)
- 1x IR cable/extension (1.0 m)
- 1x user manual
