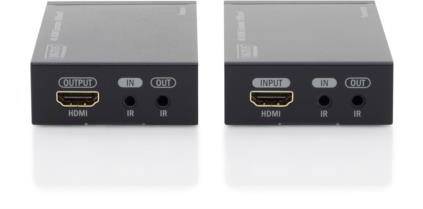

Two black HDMI signal repeaters with connections and labels 'HDMI', 'IN', 'OUT', 'IR' on a white surface.

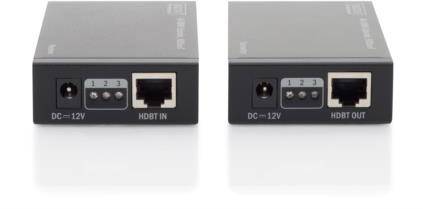

Two black HDBT devices with port connections, labelled 'DC IN - 12V', 'HDBT IN' on the left and 'DC IN - 12V', 'HDBT OUT' on the right.

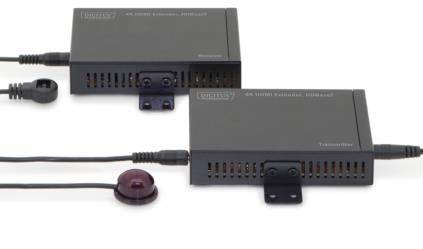

Two black electronic devices with cable connections and a round sensor, likely for data transmission.

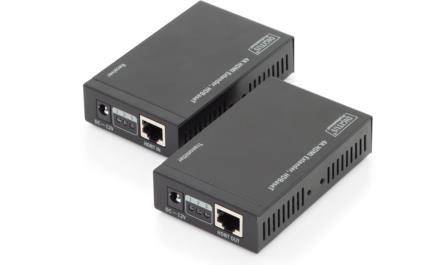

Two black network converters with Ethernet ports, side by side on a white surface.

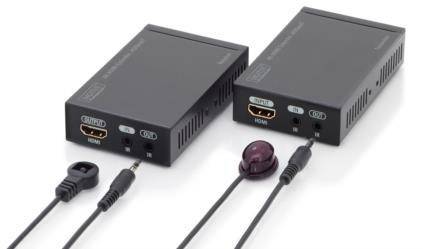

Two black HDMI extenders with connections and connected cables for audio and video signals, displayed on a white background.

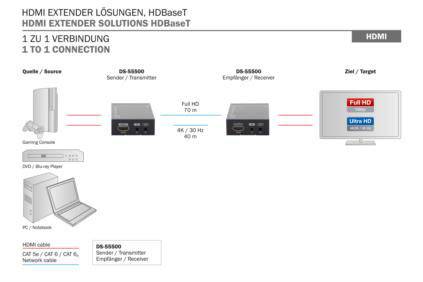

'HDMI Extender Diagram: Connects Source to Destination via DS-55500 Units. Supports Full HD and Ultra HD, up to 60 m Distance.'

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DS-55500 HDMI™ Extension via RJ45 network cable 70 m

Highlights & Details

Extends the maximum HDMI cable length to up to 70 m using just a simple network cable between transmitter and receiver.
Extends 4K video content to up to 40 m with a cat 6 cable
Supports 4K2K (30Hz), 4096 x 2160p resolution
Uses HDBaseT technology

Technical specifications

Product type: Extension

Transfer type: via RJ45 network cable

Interfaces (input): HDMI™

Interfaces (output): HDMI™

Features: built-in LED display

Resolution (max.): 4096 x 2160 p

Range (max.): 70 m

Factory colour: Black

Weight: 30 g

Length: 68.5 mm

Width: 66.5 mm

Height: 23 mm

Dim: (L x W x H) 68.5 x 66.5 x 23 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1681689 Digitus DS-55500 HDMI™ Extension via RJ45 network cable 70 m

Description

The DIGITUS 4K Extender Set, HDBaseT offers a externderlosung m to 70 m for the highest standards, both for high-resolution graphics display as well as for absolutely smooth video playback. It transmits digital video and audio signals to a maximum length of up to 70 m. 4K content can be transmitted to up to 40 m, using a CAT6 network cable. It consists of a transmitter and receiver unit. Thanks to PoE support, only the receiver (recommended) with current via the supplied power supply unit. Also comes with two Bidirectional infrared units (Sender, receiver) via the remote control of the connected input source can be used.

This text is machine translated.

Features

Provides easy and fast distribution for HDMI video signals - Place your screens, Wherever you want
supports 4K2K (30Hz), 4096 x 2160p resolution
used HDBaseT technology
supports cat 5e, cat 6 and cat 6A network cable
supports HDCP 2.2
integrated bi-directional IR interface - easy control of the input source with a remote control
resolutions: 4K2K (30 Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
LED status display
supports: 3D, HDTV
supports CEC
supports Deep Color (24bit)
supports compressed audio signals such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
supports uncompressed audio signals such as LPCM
metal housing
compact size, easy handling and installation
